0-83 — ANEROID COMPENSATOR; INJECTION GOVERNOR (#2180) — 45 parça

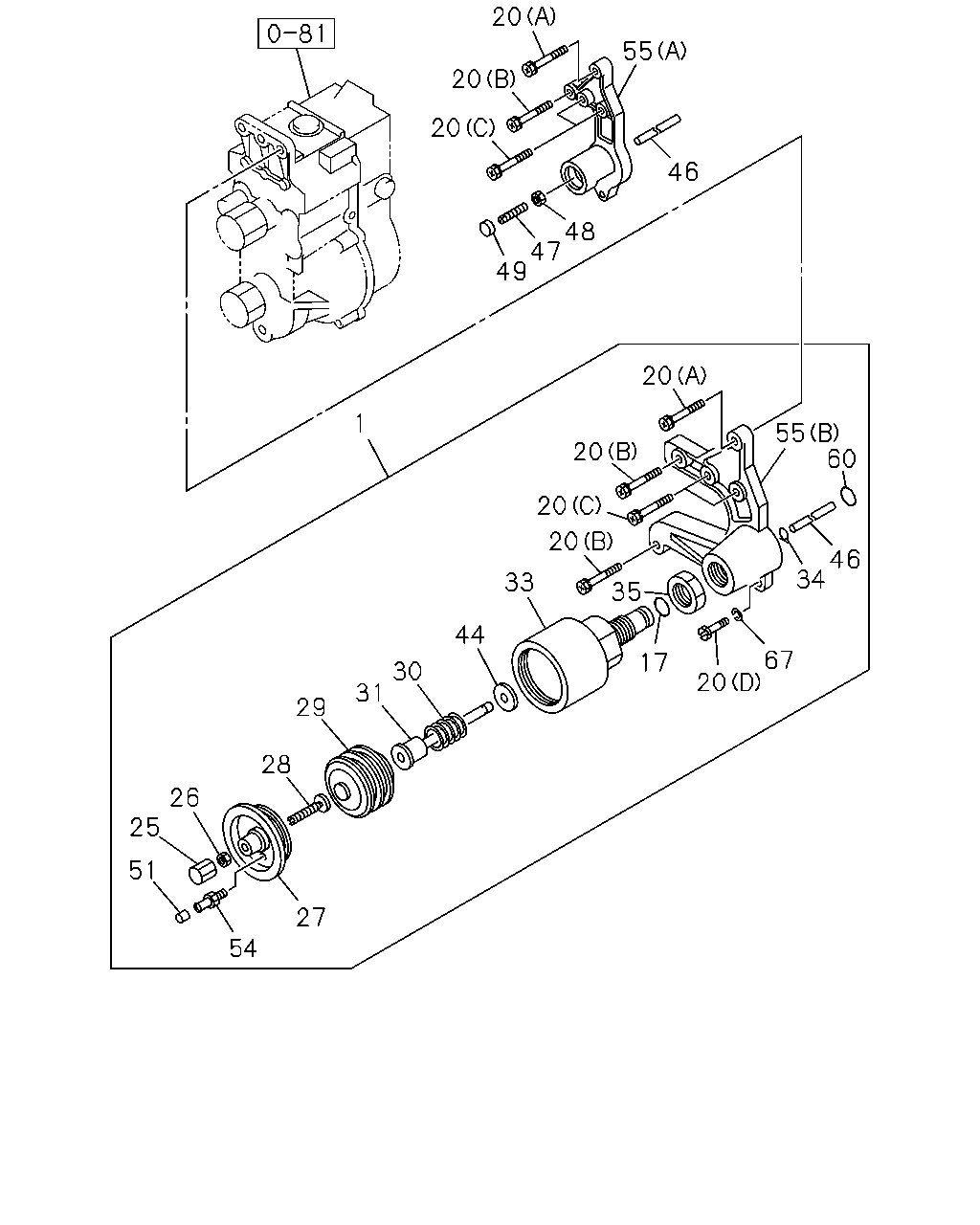

çizim 93865
20 55 20 20 46 48 47 49 20 1 55 60 20 20 20 46 34 33 35 44 67 20 17 30 31 29 28 26 25 51 27 54
BalonParca AdiParca NoAdetTipApplied Date
1 COMPENSATOR ASM; ANEROID,INJ PUMP
ASM PART: B = 1-15601-529-4, C = 1-15601-616-5 		1-15728-026-0 01 1 -
17 GASKET; HSG,ANEROID COMPENSATOR
ASM PART: B = 1-15601-529-4, C = 1-15601-616-5 		1-15729-343-0 01 1 -
20 BOLT; SPACER FIX,ANEROID COMPENSATOR
(A) ASM PART: D = 1-15602-221-4 		1-15619-282-0 02 1 -
20 BOLT; SPACER FIX,ANEROID COMPENSATOR
(A) ASM PART: A = 1-15601-528-4 		1-15619-282-0 01 1 -
20 BOLT; SPACER FIX,ANEROID COMPENSATOR
(C), M6X25 ASM PART: B = 1-15601-529-4, C = 1-15601-616-5 		1-15729-242-0 02 1 -
20 BOLT; SPACER FIX,ANEROID COMPENSATOR
(A), M8X30 ASM PART: B = 1-15601-529-4, C = 1-15601-616-5 		1-15729-243-0 01 1 -
20 BOLT; SPACER FIX,ANEROID COMPENSATOR
(D), M6X24 ASM PART: B = 1-15601-529-4, C = 1-15601-616-5 		1-15729-383-0 01 1 -
20 BOLT; SPACER FIX,ANEROID COMPENSATOR
(B) ASM PART: A = 1-15601-528-4, D = 1-15602-221-4 		1-15729-562-0 01 1 -
20 BOLT; SPACER FIX,ANEROID COMPENSATOR
(C), M6X25 W/LK WASHER ASM PART: A = 1-15601-528-4, D = 1-15602-221-4 		9-01900-625-0 03 1 -
20 BOLT; SPACER FIX,ANEROID COMPENSATOR
(B), M6X20 ASM PART: B = 1-15601-529-4 		9-81325-187-0 02 1 -
20 BOLT; SPACER FIX,ANEROID COMPENSATOR
(B) ASM PART: C = 1-15601-616-5 		9-88410-094-0 02 1 -
25 NUT; CAP,SET BOLT,ANEROID COMPENSATOR
CAP NUT ASM PART: B = 1-15601-529-4, C = 1-15601-616-5 		1-15729-093-0 01 1 -
26 NUT; SET BOLT,ANEROID COMPENSATOR
ASM PART: B = 1-15601-529-4, C = 1-15601-616-5 		9-81325-081-0 01 1 -
27 COVER; HSG,ANEROID COMPENSATOR
ASM PART: B = 1-15601-529-4, C = 1-15601-616-5 		1-15721-103-0 01 1 -
28 BOLT; BELLOWS SET,ANEROID COMPENSATOR
ASM PART: B = 1-15601-529-4, C = 1-15601-616-5 		1-15729-342-0 01 1 -
29 BELLOWS; ANEROID COMPENSATOR
ASM PART: B = 1-15601-529-4 		1-15729-497-0 01 1 -
29 BELLOWS; ANEROID COMPENSATOR
ASM PART: C = 1-15601-616-5 		1-15729-622-0 01 1 -
30 SPRING; PUSH ROD,ANEROID COMPENSATOR
ASM PART: B = 1-15601-529-4, C = 1-15601-616-5 		1-15723-221-0 01 1 -
31 ROD; PUSH,BELLOWS,ANEROID COMPENSATOR
ASM PART: B = 1-15601-529-4, C = 1-15601-616-5 		1-15729-341-0 01 1 -
33 HOUSING; ANEROID COMPENSATOR
ASM PART: B = 1-15601-529-4, C = 1-15601-616-5 		1-15721-150-0 01 1 -
34 RING; SNAP,PUSH ROD,ANEROID COMPENSATO
ASM PART: B = 1-15601-529-4, C = 1-15601-616-5 		8-94244-599-0 01 1 -
35 NUT; HSG LOCK,ANEROID COMPENSATOR
ASM PART: B = 1-15601-529-4, C = 1-15601-616-5 		1-15729-344-0 01 1 -
44 SHIM; SPRING,ANEROID COMPENSATOR
ASM PART: B = 1-15601-529-4, C = 1-15601-616-5 		9-81393-301-0 01 1 -
46 ROD; PUSH,LEVER SIDE,ANEROID COMPENSAT
L=102.0 ASM PART: C = 1-15601-616-5 		1-15729-346-0 01 1 -
46 ROD; PUSH,LEVER SIDE,ANEROID COMPENSAT
L=102.5 ASM PART: A = 1-15601-528-4, C = 1-15601-616-5, D = 1-15602-221-4 		1-15729-347-0 01 1 -
46 ROD; PUSH,LEVER SIDE,ANEROID COMPENSAT
L=103.0 ASM PART: C = 1-15601-616-5 		1-15729-348-0 01 1 -
46 ROD; PUSH,LEVER SIDE,ANEROID COMPENSAT
L=103.5 ASM PART: C = 1-15601-616-5 		1-15729-623-0 01 1 -
46 ROD; PUSH,LEVER SIDE,ANEROID COMPENSAT
L=104.0 ASM PART: C = 1-15601-616-5 		1-15729-624-0 01 1 -
46 ROD; PUSH,LEVER SIDE,ANEROID COMPENSAT
L=97.0 ASM PART: C = 1-15601-616-5 		1-15729-631-0 01 1 -
46 ROD; PUSH,LEVER SIDE,ANEROID COMPENSAT
L=98.0 ASM PART: C = 1-15601-616-5 		1-15729-632-0 01 1 -
46 ROD; PUSH,LEVER SIDE,ANEROID COMPENSAT
L=99.0 ASM PART: C = 1-15601-616-5 		1-15729-633-0 01 1 -
46 ROD; PUSH,LEVER SIDE,ANEROID COMPENSAT
L=100.0 ASM PART: C = 1-15601-616-5 		1-15729-634-0 01 1 -
46 ROD; PUSH,LEVER SIDE,ANEROID COMPENSAT
L=101.0 ASM PART: C = 1-15601-616-5 		1-15729-635-0 01 1 -
46 ROD; PUSH,LEVER SIDE,ANEROID COMPENSAT
L=95.0 ASM PART: C = 1-15601-616-5 		1-15779-065-0 01 1 -
46 ROD; PUSH,LEVER SIDE,ANEROID COMPENSAT
L=96.0 ASM PART: C = 1-15601-616-5 		1-15779-066-0 01 1 -
47 SCREW; ROD ADJ,GOV
ASM PART: A = 1-15601-528-4, D = 1-15602-221-4 		9-81391-113-0 01 1 -
48 NUT; ADJ SCREW,GOV
ASM PART: A = 1-15601-528-4, D = 1-15602-221-4 		1-15729-006-0 01 1 -
49 PLUG; ADJ SCREW,GOV
ASM PART: A = 1-15601-528-4, D = 1-15602-221-4 		1-15729-563-0 01 1 -
51 CAP; HOSE JOINT,ANEROID COMPENSATOR
ASM PART: B = 1-15601-529-4, C = 1-15601-616-5 		8-94424-221-0 01 1 -
54 JOINT; HOSE,ANEROID COMPENSATOR
ASM PART: B = 1-15601-529-4, C = 1-15601-616-5 		1-15729-360-0 01 1 -
55 SPACER; HSG,ANEROID COMPENSATOR
(A) ASM PART: A = 1-15601-528-4, D = 1-15602-221-4 		1-15729-597-0 01 1 -
55 SPACER; HSG,ANEROID COMPENSATOR
(B) ASM PART: B = 1-15601-529-4, C = 1-15601-616-5 		1-15729-620-0 01 1 -
60 RING; SPACER,GOV
ASM PART: C = 1-15601-616-5 		8-94424-220-0 01 1 -
67 WASHER; LK,SPACER,ANEROID COMPENSATOR
ID=6.1 ASM PART: C = 1-15601-616-5 		9-09150-506-0 01 1 -
67 WASHER; LK,SPACER,ANEROID COMPENSATOR
ID=6.1 ASM PART: B = 1-15601-529-4 		9-09150-606-0 01 1 -
