◀ 🏠 ▶ Isuzu WW ▶ TRUCKS ▶ FSR ▶ 10625 - FSR-LHD ▶ 4 - Propeller Shaft, Axles, Steering, Suspension ▶ 4-30 - STEERING WHEEL AND COWL ▶
4-30 — STEERING WHEEL AND COWL (#218) — 20 parça

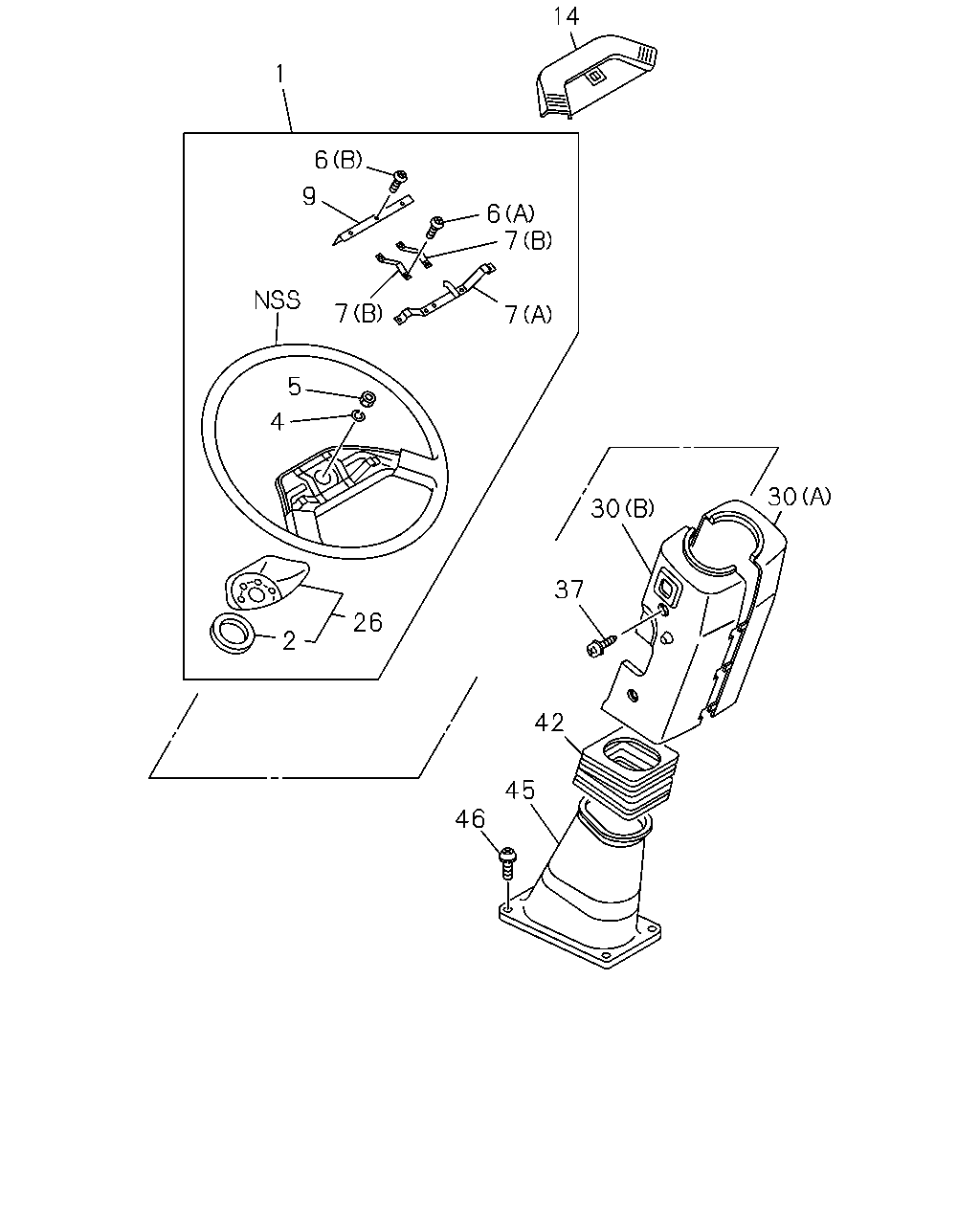

çizim 94615
14 1 6 9 6 7 7 7 5 4 30 30 37 26 2 42 45 46
BalonParca AdiParca NoAdetTipApplied Date
1 WHEEL; STRG 1-44110-121-1 01 1 9212-
2 RING; HORN CONTACT 1-44129-020-2 01 1 9212-
4 WASHER; LK,STRG WHEEL
ID=20.2 		9-09150-520-0 01 1 9212-
5 NUT; STRG WHEEL TO SHAFT
M20 		9-99110-420-0 01 1 9212-
6 SCREW; HORN SPR CONTACT
(B) M4X10 		1-44129-034-0 01 1 9212-
6 SCREW; HORN SPR CONTACT
(A) 		1-44129-035-0 06 1 9212-
7 SPRING; HORN CONTACT
(A) 		1-44129-032-1 01 1 9212-
7 SPRING; HORN CONTACT
(B) 		1-44129-033-0 02 1 9212-
9 PLATE; HORN CONTACT 1-44129-031-0 01 1 9212-9312
9 PLATE; HORN CONTACT 1-44129-038-0 01 1 9401-
14 BUTTON; HORN,STRG WHEEL 1-44120-030-0 01 1 9212-
26 COVER; STRG WHEEL,LWR 1-44120-033-0 01 1 9212-
30 COWL; STEERING
DRIVING POSITION WIDE LEG SPACE(PR2) (B) 		1-79997-265-0 01 1 9212-
30 COWL; STEERING
DRIVING POSITION WIDE LEG SPACE(PR2) (A) 		1-79997-264-0 01 1 9212-
30 COWL; STEERING
EXC. DRIVING POSITION WIDE LEG SPACE(PR2) (B) 		1-79997-288-1 01 1 9212-
30 COWL; STEERING
EXC. DRIVING POSITION WIDE LEG SPACE(PR2) (A) 		1-79997-282-0 01 1 9212-
37 SCREW; STRG COWL UPR
M6X12 W/PL WASHER 		1-09981-380-0 04 1 9212-
42 BOOT; STEERING COLUMN 1-79997-184-0 01 1 9212-
45 BOOT; STRG SHAFT 1-79998-184-1 01 1 9212-
46 SCREW; STRG SHAFT BOOT
M6X16 W/PL WASHER 		1-09981-505-0 04 1 9212-
