1-50 — EXHAUST PIPE AND SILENCER (#21798) — 395 parça
çizim 134745
70 62 75 107 56 60 75 81 94 105 81 22 22
BalonParca AdiParca NoAdetTipApplied Date
22 CLAMP; EXH PIPE
(B) ID=80-84 		1-22133-233-0 02 1 1103-1109
22 CLAMP; EXH PIPE
(B) ID=80-84 		1-22133-233-0 02 1 1103-1109
22 CLAMP; EXH PIPE
(B) ID=80-84 		1-22133-233-0 02 1 1110-1304
22 CLAMP; EXH PIPE
(B) ID=80-84 		1-22133-233-0 02 1 1110-1304
22 CLAMP; EXH PIPE
WHEEL BASE 7100MM<71W> (B) ID=80-84 		1-22133-233-0 02 1 1110-1304
22 CLAMP; EXH PIPE
(B) ID=80-84 		1-22133-233-0 02 1 1305-1305
22 CLAMP; EXH PIPE
WHEEL BASE 7100MM<71W> (B) ID=80-84 		1-22133-233-0 02 1 1305-1305
22 CLAMP; EXH PIPE
(B) ID=80-84 		1-22133-233-0 02 1 1306-
22 CLAMP; EXH PIPE
WHEEL BASE 7100MM<71W> (B) ID=80-84 		1-22133-233-0 02 1 1306-
22 CLAMP; EXH PIPE
(B) ID=80-84 		1-22133-233-0 02 1 1306-
22 CLAMP; EXH PIPE
(A) 		8-97615-334-0 01 1 1103-
22 CLAMP; EXH PIPE
(C) THA 		8-97915-961-1 01 1 1103-1107
22 CLAMP; EXH PIPE
WHEEL BASE 6300MM<63W> (C) THA 		8-97915-961-1 01 1 1108-
56 BRACKET; CLAMP,EXH PIPE
(D) THA 		8-97925-383-0 01 1 1306-
56 BRACKET; CLAMP,EXH PIPE
WHEEL BASE 7100MM<71W> (E) THA 		8-98200-669-0 01 1 1110-
56 BRACKET; CLAMP,EXH PIPE
(A) 		8-97629-969-0 01 1 1103-
56 BRACKET; CLAMP,EXH PIPE
(B) 		8-97630-073-0 01 1 1103-
56 BRACKET; CLAMP,EXH PIPE
(C) THA 		8-97634-230-0 01 1 1103-
56 BRACKET; CLAMP,EXH PIPE
(D) THA 		8-97925-383-0 01 1 1103-1304
60 BRACKET; FRAME TO BRKT
(B) 		8-98245-532-0 01 1 1306-
60 BRACKET; FRAME TO BRKT
WHEEL BASE 7100MM<71W> (C) THA 		8-98200-861-1 01 1 1110-
60 BRACKET; FRAME TO BRKT
(A) 		8-97629-971-0 01 1 1103-
60 BRACKET; FRAME TO BRKT
(A) 		8-97629-971-0 02 1 1103-
60 BRACKET; FRAME TO BRKT
(B) 		8-98070-628-0 01 1 1103-1304
62 TUBE; DIST,BRKT
WHEEL BASE 7100MM<71W> (B) L=25 IMA 		1-14234-083-0 01 1 1110-
62 TUBE; DIST,BRKT
(A) L=39 		8-98060-852-0 02 1 1103-1307
62 TUBE; DIST,BRKT
(A) THA 		8-97948-228-0 02 1 1308-
62 TUBE; DIST,BRKT
(A) L=39 		8-98060-852-0 01 1 1103-1304
62 TUBE; DIST,BRKT
(A) L=39 		8-98060-852-0 01 1 1103-1304
62 TUBE; DIST,BRKT
(A) L=39 		8-98060-852-0 01 1 1305-1305
62 TUBE; DIST,BRKT
(A) L=39 		8-98060-852-0 01 1 1306-1307
62 TUBE; DIST,BRKT
(A) L=39 		8-98060-852-0 01 1 1306-1307
62 TUBE; DIST,BRKT
(A) THA 		8-97948-228-0 01 1 1308-
62 TUBE; DIST,BRKT
(A) THA 		8-97948-228-0 01 1 1308-
70 BOLT; BRKT
WHEEL BASE 7100MM<71W> (C) M10X50 FLANGE THA 		0-28051-050-0 01 1 1110-
70 BOLT; BRKT
(A) M10X70 FLANGE THA 		0-28051-070-0 02 1 1103-
70 BOLT; BRKT
(A) M10X70 FLANGE THA 		0-28051-070-0 01 1 1103-1304
70 BOLT; BRKT
(A) M10X70 FLANGE THA 		0-28051-070-0 01 1 1103-1304
70 BOLT; BRKT
(A) M10X70 FLANGE THA 		0-28051-070-0 01 1 1305-1305
70 BOLT; BRKT
(A) M10X70 FLANGE THA 		0-28051-070-0 01 1 1306-
70 BOLT; BRKT
(A) M10X70 FLANGE THA 		0-28051-070-0 01 1 1306-
70 BOLT; BRKT
(B) M10X35 FLANGE THA 		0-28651-035-0 02 1 1103-
75 RUBBER; SUPPORT,BRKT
WHEEL BASE 7100MM<71W> OD=40 THA 		1-22159-094-0 02 1 1110-
81 NUT; BRKT
WHEEL BASE 7100MM<71W> (C) M10 FLANGE THA 		0-91180-110-0 02 1 1110-
81 NUT; BRKT
(A) M8 FLANGE THA 		0-91180-108-0 02 1 1103-1107
81 NUT; BRKT
WHEEL BASE 6300MM<63W> (A) M8 FLANGE THA 		0-91180-108-0 02 1 1108-
81 NUT; BRKT
(B) M10 FLANGE THA 		0-91180-210-0 01 1 1103-1109
81 NUT; BRKT
(B) M10 FLANGE THA 		0-91180-210-0 01 1 1103-1109
81 NUT; BRKT
(B) M10 FLANGE THA 		0-91180-210-0 01 1 1110-1304
81 NUT; BRKT
(B) M10 FLANGE THA 		0-91180-210-0 01 1 1110-1304
81 NUT; BRKT
WHEEL BASE 7100MM<71W> (B) M10 FLANGE THA 		0-91180-210-0 01 1 1110-1304
81 NUT; BRKT
(B) M10 FLANGE THA 		0-91180-210-0 01 1 1305-1305
81 NUT; BRKT
WHEEL BASE 7100MM<71W> (B) M10 FLANGE THA 		0-91180-210-0 01 1 1305-1305
81 NUT; BRKT
(B) M10 FLANGE THA 		0-91180-210-0 01 1 1306-
81 NUT; BRKT
WHEEL BASE 7100MM<71W> (B) M10 FLANGE THA 		0-91180-210-0 01 1 1306-
81 NUT; BRKT
(B) M10 FLANGE THA 		0-91180-210-0 01 1 1306-
81 NUT; BRKT
(B) M10 FLANGE THA 		0-91180-210-0 02 1 1103-
81 NUT; BRKT
(B) M10 FLANGE THA 		0-91180-210-0 02 1 1103-
81 NUT; BRKT
(B) M10 FLANGE THA 		0-91180-210-0 04 1 1103-
81 NUT; BRKT
(B) M10 FLANGE THA 		0-91180-210-0 04 1 1103-
94 BOLT; CLAMP
M10X40 FLANGE THA 		0-28651-040-0 02 1 1103-1109
94 BOLT; CLAMP
M10X40 FLANGE THA 		0-28651-040-0 02 1 1103-1109
94 BOLT; CLAMP
M10X40 FLANGE THA 		0-28651-040-0 02 1 1110-1304
94 BOLT; CLAMP
M10X40 FLANGE THA 		0-28651-040-0 02 1 1110-1304
94 BOLT; CLAMP
WHEEL BASE 7100MM<71W> M10X40 FLANGE THA 		0-28651-040-0 02 1 1110-1304
94 BOLT; CLAMP
M10X40 FLANGE THA 		0-28651-040-0 02 1 1305-1305
94 BOLT; CLAMP
WHEEL BASE 7100MM<71W> M10X40 FLANGE THA 		0-28651-040-0 02 1 1305-1305
94 BOLT; CLAMP
M10X40 FLANGE THA 		0-28651-040-0 02 1 1306-
94 BOLT; CLAMP
WHEEL BASE 7100MM<71W> M10X40 FLANGE THA 		0-28651-040-0 02 1 1306-
94 BOLT; CLAMP
M10X40 FLANGE THA 		0-28651-040-0 02 1 1306-
105 NUT; CLAMP
M10 FLANGE THA 		0-91180-210-0 01 1 1103-1107
105 NUT; CLAMP
M10 FLANGE THA 		0-91180-210-0 02 1 1108-1109
105 NUT; CLAMP
M10 FLANGE THA 		0-91180-210-0 02 1 1108-1109
105 NUT; CLAMP
M10 FLANGE THA 		0-91180-210-0 02 1 1110-1304
105 NUT; CLAMP
M10 FLANGE THA 		0-91180-210-0 02 1 1110-1304
105 NUT; CLAMP
WHEEL BASE 7100MM<71W> M10 FLANGE THA 		0-91180-210-0 02 1 1110-1304
105 NUT; CLAMP
M10 FLANGE THA 		0-91180-210-0 02 1 1305-1305
105 NUT; CLAMP
WHEEL BASE 7100MM<71W> M10 FLANGE THA 		0-91180-210-0 02 1 1305-1305
105 NUT; CLAMP
M10 FLANGE THA 		0-91180-210-0 02 1 1306-
105 NUT; CLAMP
WHEEL BASE 7100MM<71W> M10 FLANGE THA 		0-91180-210-0 02 1 1306-
105 NUT; CLAMP
M10 FLANGE THA 		0-91180-210-0 02 1 1306-
105 NUT; CLAMP
M10 FLANGE THA 		0-91180-210-0 02 1 1103-1107
105 NUT; CLAMP
WHEEL BASE 6300MM<63W> M10 FLANGE THA 		0-91180-210-0 02 1 1103-1107
105 NUT; CLAMP
WHEEL BASE 6300MM<63W> M10 FLANGE THA 		0-91180-210-0 01 1 1108-
107 BOLT; BRKT
WHEEL BASE 7100MM<71W> (C) M10X40 FLANGE THA 		0-28651-040-0 02 1 1110-
107 BOLT; BRKT
(A) M8X30 FLANGE THA 		0-28650-830-0 02 1 1103-1107
107 BOLT; BRKT
WHEEL BASE 6300MM<63W> (A) M8X30 FLANGE THA 		0-28650-830-0 02 1 1108-
107 BOLT; BRKT
WHEEL BASE 6300MM<63W> (A) M8X35 FLANGE THA 		0-28650-835-0 02 1 1110-
107 BOLT; BRKT
(B) M10X35 FLANGE THA 		0-28651-035-0 06 1 1103-

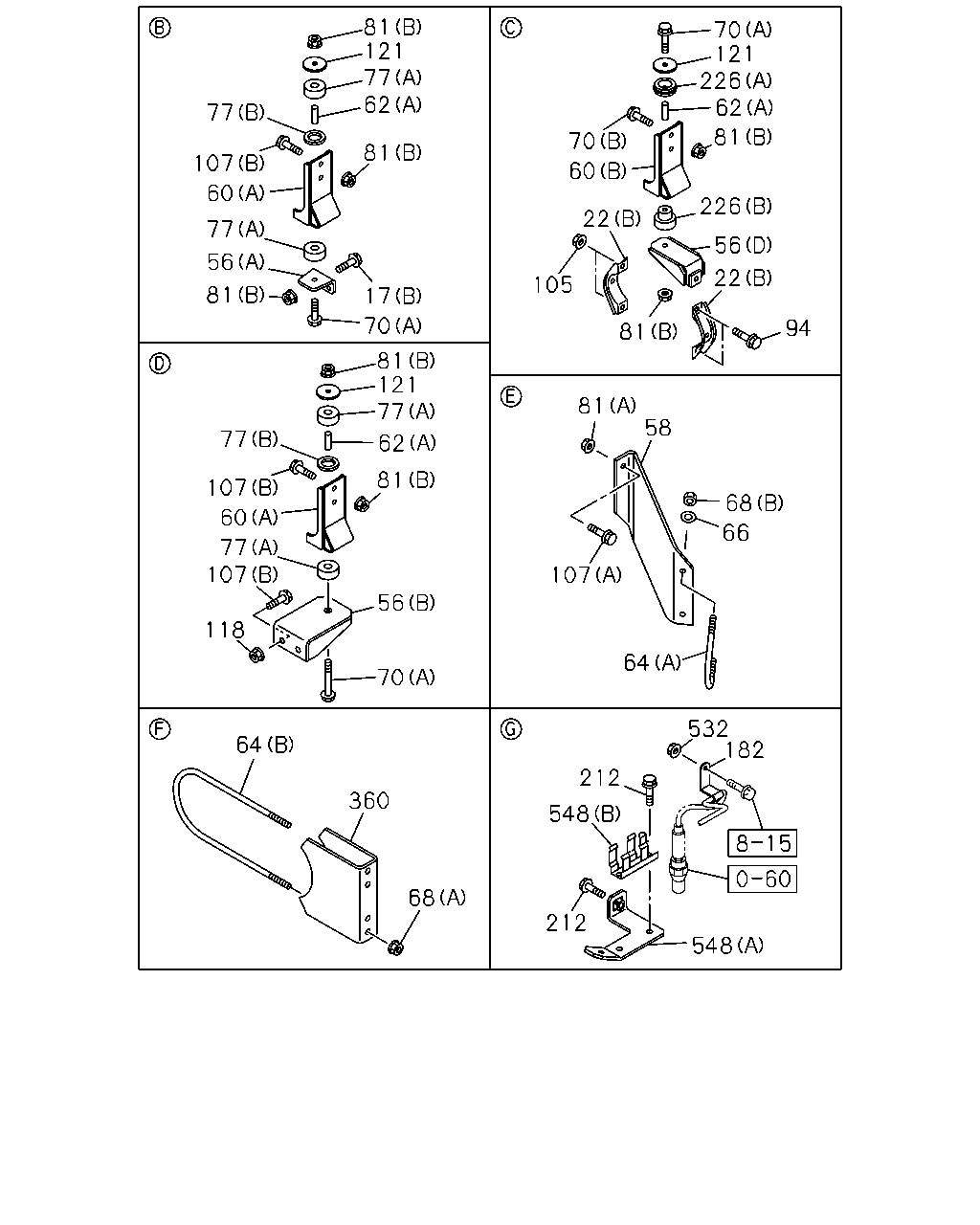

çizim 134768
81 121 77 62 70 121 226 62 77 8 70 81 107 60 60 226 22 77 56 56 22 105 81 17 70 94 81 81 121 77 81 58 77 62 81 107 68 60 66 77 107 107 56 118 64 70 532 182 64 212 360 548 68 212 548
BalonParca AdiParca NoAdetTipApplied Date
8 BRACKET; EXH PIPE 8-98120-522-0 01 1 1103-
17 BOLT; EXH PIPE
(A) M12X35 		0-20851-235-0 03 1 1103-
17 BOLT; EXH PIPE
(B) M10X35 FLANGE THA 		0-28651-035-0 02 1 1103-
22 CLAMP; EXH PIPE
(B) ID=80-84 		1-22133-233-0 02 1 1103-1109
22 CLAMP; EXH PIPE
(B) ID=80-84 		1-22133-233-0 02 1 1103-1109
22 CLAMP; EXH PIPE
(B) ID=80-84 		1-22133-233-0 02 1 1110-1304
22 CLAMP; EXH PIPE
(B) ID=80-84 		1-22133-233-0 02 1 1110-1304
22 CLAMP; EXH PIPE
WHEEL BASE 7100MM<71W> (B) ID=80-84 		1-22133-233-0 02 1 1110-1304
22 CLAMP; EXH PIPE
(B) ID=80-84 		1-22133-233-0 02 1 1305-1305
22 CLAMP; EXH PIPE
WHEEL BASE 7100MM<71W> (B) ID=80-84 		1-22133-233-0 02 1 1305-1305
22 CLAMP; EXH PIPE
(B) ID=80-84 		1-22133-233-0 02 1 1306-
22 CLAMP; EXH PIPE
WHEEL BASE 7100MM<71W> (B) ID=80-84 		1-22133-233-0 02 1 1306-
22 CLAMP; EXH PIPE
(B) ID=80-84 		1-22133-233-0 02 1 1306-
22 CLAMP; EXH PIPE
(A) 		8-97615-334-0 01 1 1103-
22 CLAMP; EXH PIPE
(C) THA 		8-97915-961-1 01 1 1103-1107
22 CLAMP; EXH PIPE
WHEEL BASE 6300MM<63W> (C) THA 		8-97915-961-1 01 1 1108-
56 BRACKET; CLAMP,EXH PIPE
(D) THA 		8-97925-383-0 01 1 1306-
56 BRACKET; CLAMP,EXH PIPE
WHEEL BASE 7100MM<71W> (E) THA 		8-98200-669-0 01 1 1110-
56 BRACKET; CLAMP,EXH PIPE
(A) 		8-97629-969-0 01 1 1103-
56 BRACKET; CLAMP,EXH PIPE
(B) 		8-97630-073-0 01 1 1103-
56 BRACKET; CLAMP,EXH PIPE
(C) THA 		8-97634-230-0 01 1 1103-
56 BRACKET; CLAMP,EXH PIPE
(D) THA 		8-97925-383-0 01 1 1103-1304
58 BRACKET; EXH PIPE,RR
THA 		8-97916-505-0 01 1 1103-1107
58 BRACKET; EXH PIPE,RR
WHEEL BASE 6300MM<63W> THA 		8-97916-505-0 01 1 1108-
60 BRACKET; FRAME TO BRKT
(B) 		8-98245-532-0 01 1 1306-
60 BRACKET; FRAME TO BRKT
WHEEL BASE 7100MM<71W> (C) THA 		8-98200-861-1 01 1 1110-
60 BRACKET; FRAME TO BRKT
(A) 		8-97629-971-0 01 1 1103-
60 BRACKET; FRAME TO BRKT
(A) 		8-97629-971-0 02 1 1103-
60 BRACKET; FRAME TO BRKT
(B) 		8-98070-628-0 01 1 1103-1304
62 TUBE; DIST,BRKT
WHEEL BASE 7100MM<71W> (B) L=25 IMA 		1-14234-083-0 01 1 1110-
62 TUBE; DIST,BRKT
(A) L=39 		8-98060-852-0 02 1 1103-1307
62 TUBE; DIST,BRKT
(A) THA 		8-97948-228-0 02 1 1308-
62 TUBE; DIST,BRKT
(A) L=39 		8-98060-852-0 01 1 1103-1304
62 TUBE; DIST,BRKT
(A) L=39 		8-98060-852-0 01 1 1103-1304
62 TUBE; DIST,BRKT
(A) L=39 		8-98060-852-0 01 1 1305-1305
62 TUBE; DIST,BRKT
(A) L=39 		8-98060-852-0 01 1 1306-1307
62 TUBE; DIST,BRKT
(A) L=39 		8-98060-852-0 01 1 1306-1307
62 TUBE; DIST,BRKT
(A) THA 		8-97948-228-0 01 1 1308-
62 TUBE; DIST,BRKT
(A) THA 		8-97948-228-0 01 1 1308-
64 U-BOLT; EXH PIPE,RR
(A) THA 		8-97915-979-0 01 1 1103-1107
64 U-BOLT; EXH PIPE,RR
WHEEL BASE 6300MM<63W> (A) THA 		8-97915-979-0 01 1 1108-
64 U-BOLT; EXH PIPE,RR
WHEEL BASE 6300MM<63W> (B) THA 		8-97633-805-0 02 1 1110-
64 U-BOLT; EXH PIPE,RR
(B) THA 		8-97633-805-0 02 1 1103-1107
64 U-BOLT; EXH PIPE,RR
WHEEL BASE 6300MM<63W> (B) THA 		8-97633-805-0 02 1 1108-
66 WASHER; LK,U BOLT
ID=8.2 THA 		0-91510-508-0 02 1 1103-1107
66 WASHER; LK,U BOLT
WHEEL BASE 6300MM<63W> ID=8.2 THA 		0-91510-508-0 02 1 1108-
68 NUT; U BOLT
WHEEL BASE 6300MM<63W> (B) M8 THA 		0-91110-508-0 02 1 1110-
68 NUT; U BOLT
(B) M8 THA 		0-91110-508-0 02 1 1103-1107
68 NUT; U BOLT
WHEEL BASE 6300MM<63W> (B) M8 THA 		0-91110-508-0 02 1 1108-
68 NUT; U BOLT
WHEEL BASE 6300MM<63W> (A) M8 FLANGE THA 		0-91180-108-0 04 1 1110-
68 NUT; U BOLT
(A) M8 FLANGE THA 		0-91180-108-0 04 1 1103-1107
68 NUT; U BOLT
WHEEL BASE 6300MM<63W> (A) M8 FLANGE THA 		0-91180-108-0 04 1 1108-
70 BOLT; BRKT
WHEEL BASE 7100MM<71W> (C) M10X50 FLANGE THA 		0-28051-050-0 01 1 1110-
70 BOLT; BRKT
(A) M10X70 FLANGE THA 		0-28051-070-0 02 1 1103-
70 BOLT; BRKT
(A) M10X70 FLANGE THA 		0-28051-070-0 01 1 1103-1304
70 BOLT; BRKT
(A) M10X70 FLANGE THA 		0-28051-070-0 01 1 1103-1304
70 BOLT; BRKT
(A) M10X70 FLANGE THA 		0-28051-070-0 01 1 1305-1305
70 BOLT; BRKT
(A) M10X70 FLANGE THA 		0-28051-070-0 01 1 1306-
70 BOLT; BRKT
(A) M10X70 FLANGE THA 		0-28051-070-0 01 1 1306-
70 BOLT; BRKT
(B) M10X35 FLANGE THA 		0-28651-035-0 02 1 1103-
77 RUBBER; CUSHION,BRKT
(A) 		8-97379-882-0 04 1 1103-
77 RUBBER; CUSHION,BRKT
(B) 		8-98090-400-0 02 1 1103-
81 NUT; BRKT
WHEEL BASE 7100MM<71W> (C) M10 FLANGE THA 		0-91180-110-0 02 1 1110-
81 NUT; BRKT
(A) M8 FLANGE THA 		0-91180-108-0 02 1 1103-1107
81 NUT; BRKT
WHEEL BASE 6300MM<63W> (A) M8 FLANGE THA 		0-91180-108-0 02 1 1108-
81 NUT; BRKT
(B) M10 FLANGE THA 		0-91180-210-0 01 1 1103-1109
81 NUT; BRKT
(B) M10 FLANGE THA 		0-91180-210-0 01 1 1103-1109
81 NUT; BRKT
(B) M10 FLANGE THA 		0-91180-210-0 01 1 1110-1304
81 NUT; BRKT
(B) M10 FLANGE THA 		0-91180-210-0 01 1 1110-1304
81 NUT; BRKT
WHEEL BASE 7100MM<71W> (B) M10 FLANGE THA 		0-91180-210-0 01 1 1110-1304
81 NUT; BRKT
(B) M10 FLANGE THA 		0-91180-210-0 01 1 1305-1305
81 NUT; BRKT
WHEEL BASE 7100MM<71W> (B) M10 FLANGE THA 		0-91180-210-0 01 1 1305-1305
81 NUT; BRKT
(B) M10 FLANGE THA 		0-91180-210-0 01 1 1306-
81 NUT; BRKT
WHEEL BASE 7100MM<71W> (B) M10 FLANGE THA 		0-91180-210-0 01 1 1306-
81 NUT; BRKT
(B) M10 FLANGE THA 		0-91180-210-0 01 1 1306-
81 NUT; BRKT
(B) M10 FLANGE THA 		0-91180-210-0 02 1 1103-
81 NUT; BRKT
(B) M10 FLANGE THA 		0-91180-210-0 02 1 1103-
81 NUT; BRKT
(B) M10 FLANGE THA 		0-91180-210-0 04 1 1103-
81 NUT; BRKT
(B) M10 FLANGE THA 		0-91180-210-0 04 1 1103-
94 BOLT; CLAMP
M10X40 FLANGE THA 		0-28651-040-0 02 1 1103-1109
94 BOLT; CLAMP
M10X40 FLANGE THA 		0-28651-040-0 02 1 1103-1109
94 BOLT; CLAMP
M10X40 FLANGE THA 		0-28651-040-0 02 1 1110-1304
94 BOLT; CLAMP
M10X40 FLANGE THA 		0-28651-040-0 02 1 1110-1304
94 BOLT; CLAMP
WHEEL BASE 7100MM<71W> M10X40 FLANGE THA 		0-28651-040-0 02 1 1110-1304
94 BOLT; CLAMP
M10X40 FLANGE THA 		0-28651-040-0 02 1 1305-1305
94 BOLT; CLAMP
WHEEL BASE 7100MM<71W> M10X40 FLANGE THA 		0-28651-040-0 02 1 1305-1305
94 BOLT; CLAMP
M10X40 FLANGE THA 		0-28651-040-0 02 1 1306-
94 BOLT; CLAMP
WHEEL BASE 7100MM<71W> M10X40 FLANGE THA 		0-28651-040-0 02 1 1306-
94 BOLT; CLAMP
M10X40 FLANGE THA 		0-28651-040-0 02 1 1306-
105 NUT; CLAMP
M10 FLANGE THA 		0-91180-210-0 01 1 1103-1107
105 NUT; CLAMP
M10 FLANGE THA 		0-91180-210-0 02 1 1108-1109
105 NUT; CLAMP
M10 FLANGE THA 		0-91180-210-0 02 1 1108-1109
105 NUT; CLAMP
M10 FLANGE THA 		0-91180-210-0 02 1 1110-1304
105 NUT; CLAMP
M10 FLANGE THA 		0-91180-210-0 02 1 1110-1304
105 NUT; CLAMP
WHEEL BASE 7100MM<71W> M10 FLANGE THA 		0-91180-210-0 02 1 1110-1304
105 NUT; CLAMP
M10 FLANGE THA 		0-91180-210-0 02 1 1305-1305
105 NUT; CLAMP
WHEEL BASE 7100MM<71W> M10 FLANGE THA 		0-91180-210-0 02 1 1305-1305
105 NUT; CLAMP
M10 FLANGE THA 		0-91180-210-0 02 1 1306-
105 NUT; CLAMP
WHEEL BASE 7100MM<71W> M10 FLANGE THA 		0-91180-210-0 02 1 1306-
105 NUT; CLAMP
M10 FLANGE THA 		0-91180-210-0 02 1 1306-
105 NUT; CLAMP
M10 FLANGE THA 		0-91180-210-0 02 1 1103-1107
105 NUT; CLAMP
WHEEL BASE 6300MM<63W> M10 FLANGE THA 		0-91180-210-0 02 1 1103-1107
105 NUT; CLAMP
WHEEL BASE 6300MM<63W> M10 FLANGE THA 		0-91180-210-0 01 1 1108-
107 BOLT; BRKT
WHEEL BASE 7100MM<71W> (C) M10X40 FLANGE THA 		0-28651-040-0 02 1 1110-
107 BOLT; BRKT
(A) M8X30 FLANGE THA 		0-28650-830-0 02 1 1103-1107
107 BOLT; BRKT
WHEEL BASE 6300MM<63W> (A) M8X30 FLANGE THA 		0-28650-830-0 02 1 1108-
107 BOLT; BRKT
WHEEL BASE 6300MM<63W> (A) M8X35 FLANGE THA 		0-28650-835-0 02 1 1110-
107 BOLT; BRKT
(B) M10X35 FLANGE THA 		0-28651-035-0 06 1 1103-
118 NUT; SILENCER MTG BRKT
M10 FLANGE THA 		0-91180-210-0 02 1 1103-
121 WASHER; PL,BRKT
ID=11 OD=54 		1-09503-154-2 02 1 1103-
121 WASHER; PL,BRKT
ID=11 OD=54 		1-09503-154-2 01 1 1103-1304
121 WASHER; PL,BRKT
ID=11 OD=54 		1-09503-154-2 01 1 1103-1304
121 WASHER; PL,BRKT
ID=11 OD=54 		1-09503-154-2 01 1 1305-1305
121 WASHER; PL,BRKT
ID=11 OD=54 		1-09503-154-2 01 1 1306-
121 WASHER; PL,BRKT
ID=11 OD=54 		1-09503-154-2 01 1 1306-
182 CLIP; HARNESS
ID=7 L=38 H=21 THA 		1-09700-916-0 01 1 1103-
212 BOLT; BRKT
M6X12 FLANGE THA 		0-28050-612-0 02 1 1103-
212 BOLT; BRKT
M8X30 FLANGE THA 		0-28650-830-0 02 1 1103-
226 RUBBER; CUSHION
(A) 		8-94457-277-1 01 1 1306-1307
226 RUBBER; CUSHION
(A) THA 		8-97948-226-0 01 1 1308-
226 RUBBER; CUSHION
(B) 		8-94457-278-1 01 1 1306-1307
226 RUBBER; CUSHION
(B) THA 		8-97948-227-0 01 1 1308-
226 RUBBER; CUSHION
(A) 		8-94457-277-1 01 1 1103-1304
226 RUBBER; CUSHION
(B) 		8-94457-278-1 01 1 1103-1304
226 RUBBER; CUSHION
(C) 		8-97379-882-0 02 1 1103-
226 RUBBER; CUSHION
(D) 		8-98090-400-0 01 1 1103-
360 PIECE; DIST,EXH PIPE
THA 		8-97633-809-0 02 1 1103-1107
360 PIECE; DIST,EXH PIPE
WHEEL BASE 6300MM<63W> THA 		8-97633-809-0 02 1 1108-
532 NUT
M8 FLANGE THA 		0-91180-108-0 01 1 1103-
548 BRACKET; O2 SENSOR
(B) 		8-97262-725-0 01 1 1103-
548 BRACKET; O2 SENSOR
(A) THA 		8-98152-132-0 01 1 1103-

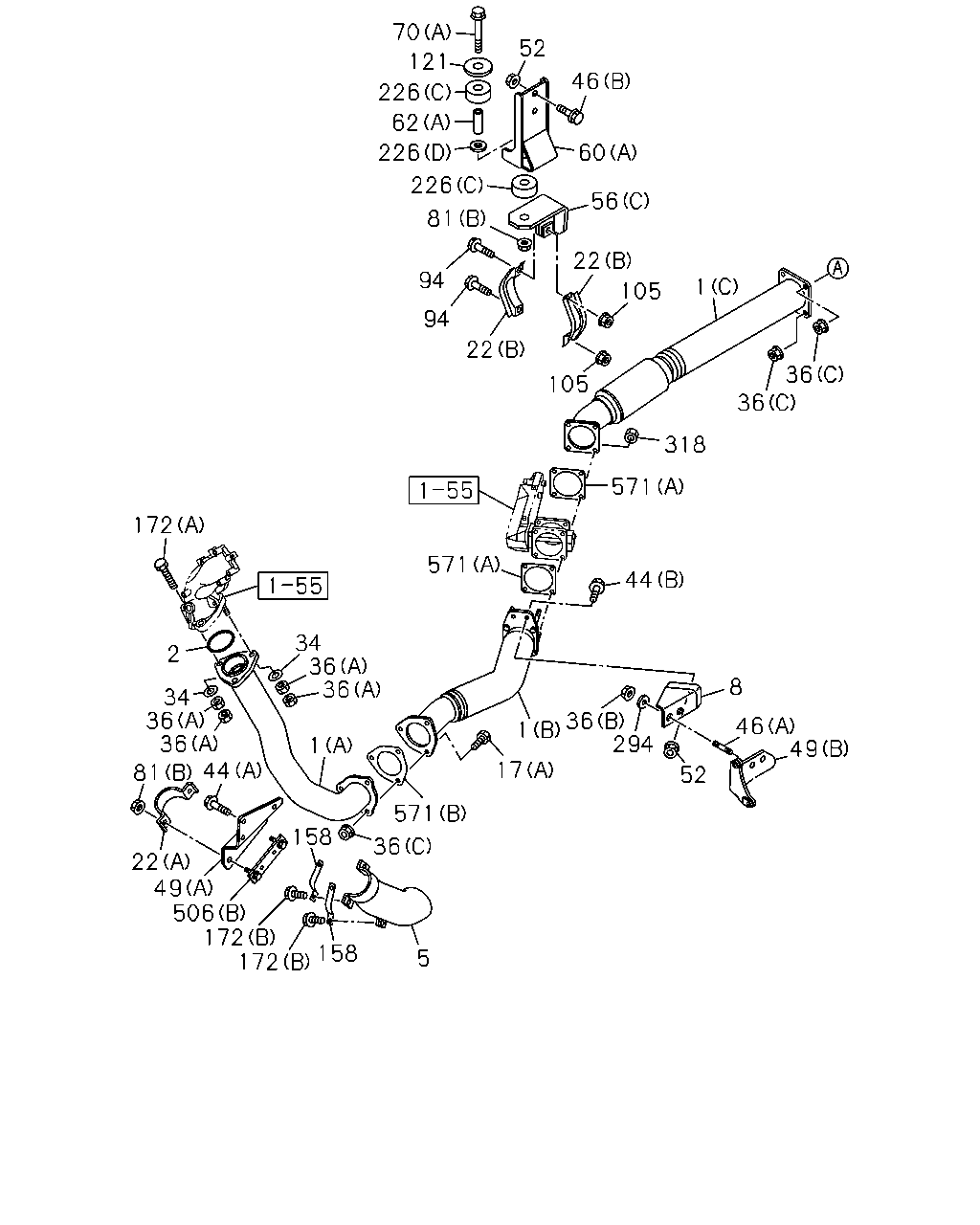

çizim 134847
70 121 226 62 226 81 52 46 60 56 22 105 1 36 36 318 571 44 571 172 34 2 34 36 36 36 36 81 44 22 49 506 8 1 17 36 294 52 46 49 571 36 1 158 172 172 158 5 226 94 94 22 105
BalonParca AdiParca NoAdetTipApplied Date
1 PIPE; EXH
(C) THA 		8-97925-381-0 01 1 1103-
1 PIPE; EXH
(B) 		8-98047-778-0 01 1 1103-1209
1 PIPE; EXH
(B) 		8-98221-117-0 01 1 1210-
1 PIPE; EXH
(A) THA 		8-98126-486-5 01 1 1103-
2 GASKET; PIPE TO MANIF
ALSO INCLUDED IN GASKET SET(ENGINE). 		1-22116-029-0 01 1 1103-
5 PROTECTOR; HEAT
THA 		8-97630-122-2 01 1 1103-
8 BRACKET; EXH PIPE 8-98120-522-0 01 1 1103-
17 BOLT; EXH PIPE
(A) M12X35 		0-20851-235-0 03 1 1103-
17 BOLT; EXH PIPE
(B) M10X35 FLANGE THA 		0-28651-035-0 02 1 1103-
22 CLAMP; EXH PIPE
(B) ID=80-84 		1-22133-233-0 02 1 1103-1109
22 CLAMP; EXH PIPE
(B) ID=80-84 		1-22133-233-0 02 1 1103-1109
22 CLAMP; EXH PIPE
(B) ID=80-84 		1-22133-233-0 02 1 1110-1304
22 CLAMP; EXH PIPE
(B) ID=80-84 		1-22133-233-0 02 1 1110-1304
22 CLAMP; EXH PIPE
WHEEL BASE 7100MM<71W> (B) ID=80-84 		1-22133-233-0 02 1 1110-1304
22 CLAMP; EXH PIPE
(B) ID=80-84 		1-22133-233-0 02 1 1305-1305
22 CLAMP; EXH PIPE
WHEEL BASE 7100MM<71W> (B) ID=80-84 		1-22133-233-0 02 1 1305-1305
22 CLAMP; EXH PIPE
(B) ID=80-84 		1-22133-233-0 02 1 1306-
22 CLAMP; EXH PIPE
WHEEL BASE 7100MM<71W> (B) ID=80-84 		1-22133-233-0 02 1 1306-
22 CLAMP; EXH PIPE
(B) ID=80-84 		1-22133-233-0 02 1 1306-
22 CLAMP; EXH PIPE
(A) 		8-97615-334-0 01 1 1103-
22 CLAMP; EXH PIPE
(C) THA 		8-97915-961-1 01 1 1103-1107
22 CLAMP; EXH PIPE
WHEEL BASE 6300MM<63W> (C) THA 		8-97915-961-1 01 1 1108-
34 WASHER; EXH PIPE
ID=13 OD=24 DISH 		1-09500-030-0 03 1 1103-
36 NUT; EXH PIPE
(B) M10 FLANGE THA 		0-91180-210-0 02 1 1103-
36 NUT; EXH PIPE
(C) M12 FLANGE THA 		0-91180-212-0 11 1 1103-
36 NUT; EXH PIPE
(A) M12 		1-09400-010-0 06 1 1103-
44 BOLT; BRKT
(B) M10X30 FLANGE THA 		0-28651-030-0 02 1 1103-
44 BOLT; BRKT
(A) M10X20 FLANGE THA 		0-28751-020-0 03 1 1103-
46 BOLT; BRKT,EXH PIPE
(B) M10X35 FLANGE THA 		0-28651-035-0 02 1 1103-
46 BOLT; BRKT,EXH PIPE
(A) M10X25 L=40 THA 		0-44011-025-0 02 1 1103-
49 BRACKET; EXH PIPE TO TRANS
(A) 		8-97629-970-0 01 1 1103-
49 BRACKET; EXH PIPE TO TRANS
(B) 		8-98120-497-0 01 1 1103-
52 NUT; BRKT
M10 FLANGE THA 		0-91180-210-0 02 1 1103-
52 NUT; BRKT
M10 FLANGE THA 		0-91180-210-0 02 1 1103-
56 BRACKET; CLAMP,EXH PIPE
(D) THA 		8-97925-383-0 01 1 1306-
56 BRACKET; CLAMP,EXH PIPE
WHEEL BASE 7100MM<71W> (E) THA 		8-98200-669-0 01 1 1110-
56 BRACKET; CLAMP,EXH PIPE
(A) 		8-97629-969-0 01 1 1103-
56 BRACKET; CLAMP,EXH PIPE
(B) 		8-97630-073-0 01 1 1103-
56 BRACKET; CLAMP,EXH PIPE
(C) THA 		8-97634-230-0 01 1 1103-
56 BRACKET; CLAMP,EXH PIPE
(D) THA 		8-97925-383-0 01 1 1103-1304
60 BRACKET; FRAME TO BRKT
(B) 		8-98245-532-0 01 1 1306-
60 BRACKET; FRAME TO BRKT
WHEEL BASE 7100MM<71W> (C) THA 		8-98200-861-1 01 1 1110-
60 BRACKET; FRAME TO BRKT
(A) 		8-97629-971-0 01 1 1103-
60 BRACKET; FRAME TO BRKT
(A) 		8-97629-971-0 02 1 1103-
60 BRACKET; FRAME TO BRKT
(B) 		8-98070-628-0 01 1 1103-1304
62 TUBE; DIST,BRKT
WHEEL BASE 7100MM<71W> (B) L=25 IMA 		1-14234-083-0 01 1 1110-
62 TUBE; DIST,BRKT
(A) L=39 		8-98060-852-0 02 1 1103-1307
62 TUBE; DIST,BRKT
(A) THA 		8-97948-228-0 02 1 1308-
62 TUBE; DIST,BRKT
(A) L=39 		8-98060-852-0 01 1 1103-1304
62 TUBE; DIST,BRKT
(A) L=39 		8-98060-852-0 01 1 1103-1304
62 TUBE; DIST,BRKT
(A) L=39 		8-98060-852-0 01 1 1305-1305
62 TUBE; DIST,BRKT
(A) L=39 		8-98060-852-0 01 1 1306-1307
62 TUBE; DIST,BRKT
(A) L=39 		8-98060-852-0 01 1 1306-1307
62 TUBE; DIST,BRKT
(A) THA 		8-97948-228-0 01 1 1308-
62 TUBE; DIST,BRKT
(A) THA 		8-97948-228-0 01 1 1308-
70 BOLT; BRKT
WHEEL BASE 7100MM<71W> (C) M10X50 FLANGE THA 		0-28051-050-0 01 1 1110-
70 BOLT; BRKT
(A) M10X70 FLANGE THA 		0-28051-070-0 02 1 1103-
70 BOLT; BRKT
(A) M10X70 FLANGE THA 		0-28051-070-0 01 1 1103-1304
70 BOLT; BRKT
(A) M10X70 FLANGE THA 		0-28051-070-0 01 1 1103-1304
70 BOLT; BRKT
(A) M10X70 FLANGE THA 		0-28051-070-0 01 1 1305-1305
70 BOLT; BRKT
(A) M10X70 FLANGE THA 		0-28051-070-0 01 1 1306-
70 BOLT; BRKT
(A) M10X70 FLANGE THA 		0-28051-070-0 01 1 1306-
70 BOLT; BRKT
(B) M10X35 FLANGE THA 		0-28651-035-0 02 1 1103-
81 NUT; BRKT
WHEEL BASE 7100MM<71W> (C) M10 FLANGE THA 		0-91180-110-0 02 1 1110-
81 NUT; BRKT
(A) M8 FLANGE THA 		0-91180-108-0 02 1 1103-1107
81 NUT; BRKT
WHEEL BASE 6300MM<63W> (A) M8 FLANGE THA 		0-91180-108-0 02 1 1108-
81 NUT; BRKT
(B) M10 FLANGE THA 		0-91180-210-0 01 1 1103-1109
81 NUT; BRKT
(B) M10 FLANGE THA 		0-91180-210-0 01 1 1103-1109
81 NUT; BRKT
(B) M10 FLANGE THA 		0-91180-210-0 01 1 1110-1304
81 NUT; BRKT
(B) M10 FLANGE THA 		0-91180-210-0 01 1 1110-1304
81 NUT; BRKT
WHEEL BASE 7100MM<71W> (B) M10 FLANGE THA 		0-91180-210-0 01 1 1110-1304
81 NUT; BRKT
(B) M10 FLANGE THA 		0-91180-210-0 01 1 1305-1305
81 NUT; BRKT
WHEEL BASE 7100MM<71W> (B) M10 FLANGE THA 		0-91180-210-0 01 1 1305-1305
81 NUT; BRKT
(B) M10 FLANGE THA 		0-91180-210-0 01 1 1306-
81 NUT; BRKT
WHEEL BASE 7100MM<71W> (B) M10 FLANGE THA 		0-91180-210-0 01 1 1306-
81 NUT; BRKT
(B) M10 FLANGE THA 		0-91180-210-0 01 1 1306-
81 NUT; BRKT
(B) M10 FLANGE THA 		0-91180-210-0 02 1 1103-
81 NUT; BRKT
(B) M10 FLANGE THA 		0-91180-210-0 02 1 1103-
81 NUT; BRKT
(B) M10 FLANGE THA 		0-91180-210-0 04 1 1103-
81 NUT; BRKT
(B) M10 FLANGE THA 		0-91180-210-0 04 1 1103-
94 BOLT; CLAMP
M10X40 FLANGE THA 		0-28651-040-0 02 1 1103-1109
94 BOLT; CLAMP
M10X40 FLANGE THA 		0-28651-040-0 02 1 1103-1109
94 BOLT; CLAMP
M10X40 FLANGE THA 		0-28651-040-0 02 1 1110-1304
94 BOLT; CLAMP
M10X40 FLANGE THA 		0-28651-040-0 02 1 1110-1304
94 BOLT; CLAMP
WHEEL BASE 7100MM<71W> M10X40 FLANGE THA 		0-28651-040-0 02 1 1110-1304
94 BOLT; CLAMP
M10X40 FLANGE THA 		0-28651-040-0 02 1 1305-1305
94 BOLT; CLAMP
WHEEL BASE 7100MM<71W> M10X40 FLANGE THA 		0-28651-040-0 02 1 1305-1305
94 BOLT; CLAMP
M10X40 FLANGE THA 		0-28651-040-0 02 1 1306-
94 BOLT; CLAMP
WHEEL BASE 7100MM<71W> M10X40 FLANGE THA 		0-28651-040-0 02 1 1306-
94 BOLT; CLAMP
M10X40 FLANGE THA 		0-28651-040-0 02 1 1306-
105 NUT; CLAMP
M10 FLANGE THA 		0-91180-210-0 01 1 1103-1107
105 NUT; CLAMP
M10 FLANGE THA 		0-91180-210-0 02 1 1108-1109
105 NUT; CLAMP
M10 FLANGE THA 		0-91180-210-0 02 1 1108-1109
105 NUT; CLAMP
M10 FLANGE THA 		0-91180-210-0 02 1 1110-1304
105 NUT; CLAMP
M10 FLANGE THA 		0-91180-210-0 02 1 1110-1304
105 NUT; CLAMP
WHEEL BASE 7100MM<71W> M10 FLANGE THA 		0-91180-210-0 02 1 1110-1304
105 NUT; CLAMP
M10 FLANGE THA 		0-91180-210-0 02 1 1305-1305
105 NUT; CLAMP
WHEEL BASE 7100MM<71W> M10 FLANGE THA 		0-91180-210-0 02 1 1305-1305
105 NUT; CLAMP
M10 FLANGE THA 		0-91180-210-0 02 1 1306-
105 NUT; CLAMP
WHEEL BASE 7100MM<71W> M10 FLANGE THA 		0-91180-210-0 02 1 1306-
105 NUT; CLAMP
M10 FLANGE THA 		0-91180-210-0 02 1 1306-
105 NUT; CLAMP
M10 FLANGE THA 		0-91180-210-0 02 1 1103-1107
105 NUT; CLAMP
WHEEL BASE 6300MM<63W> M10 FLANGE THA 		0-91180-210-0 02 1 1103-1107
105 NUT; CLAMP
WHEEL BASE 6300MM<63W> M10 FLANGE THA 		0-91180-210-0 01 1 1108-
121 WASHER; PL,BRKT
ID=11 OD=54 		1-09503-154-2 02 1 1103-
121 WASHER; PL,BRKT
ID=11 OD=54 		1-09503-154-2 01 1 1103-1304
121 WASHER; PL,BRKT
ID=11 OD=54 		1-09503-154-2 01 1 1103-1304
121 WASHER; PL,BRKT
ID=11 OD=54 		1-09503-154-2 01 1 1305-1305
121 WASHER; PL,BRKT
ID=11 OD=54 		1-09503-154-2 01 1 1306-
121 WASHER; PL,BRKT
ID=11 OD=54 		1-09503-154-2 01 1 1306-
158 BRACKET; HEAT PROTECTOR 8-97630-104-0 02 1 1103-
172 BOLT
(B) M8X16 FLANGE THA 		0-28050-816-0 04 1 1103-
172 BOLT
(A) M12X65 		1-09000-386-0 02 1 1103-
226 RUBBER; CUSHION
(A) 		8-94457-277-1 01 1 1306-1307
226 RUBBER; CUSHION
(A) THA 		8-97948-226-0 01 1 1308-
226 RUBBER; CUSHION
(B) 		8-94457-278-1 01 1 1306-1307
226 RUBBER; CUSHION
(B) THA 		8-97948-227-0 01 1 1308-
226 RUBBER; CUSHION
(A) 		8-94457-277-1 01 1 1103-1304
226 RUBBER; CUSHION
(B) 		8-94457-278-1 01 1 1103-1304
226 RUBBER; CUSHION
(C) 		8-97379-882-0 02 1 1103-
226 RUBBER; CUSHION
(D) 		8-98090-400-0 01 1 1103-
294 WASHER; PL,CLAMP TO BRKT,EXH PIPE
ID=10.5 		8-98073-091-0 02 1 1103-
318 NUT; EXH PIPE,FRT
M10 FLANGE THA 		0-91180-210-0 04 1 1103-
506 BRACKET; STUD
(A) 		1-22134-214-0 04 1 1103-
506 BRACKET; STUD
(B) 		8-97615-333-1 01 1 1103-
571 GASKET
(A) ID=85.8 		1-22116-043-0 02 1 1103-
571 GASKET
(B) ID=81 		8-98043-481-0 01 1 1103-
çizim 134849
126 36 84 506 12 506 84
BalonParca AdiParca NoAdetTipApplied Date
12 SILENCER ASM; EXH 8-97630-814-1 01 1 1103-
36 NUT; EXH PIPE
(B) M10 FLANGE THA 		0-91180-210-0 02 1 1103-
36 NUT; EXH PIPE
(C) M12 FLANGE THA 		0-91180-212-0 11 1 1103-
36 NUT; EXH PIPE
(A) M12 		1-09400-010-0 06 1 1103-
84 GASKET; EXH PIPE 1-22116-034-0 02 1 1103-
126 PIPE; EXH,RR
WHEEL BASE 7100MM<71W> THA 		8-98200-667-0 01 1 1110-
506 BRACKET; STUD
(A) 		1-22134-214-0 04 1 1103-
506 BRACKET; STUD
(B) 		8-97615-333-1 01 1 1103-
çizim 134853
11 415 97 22 105 128 36 84 506 12 506 84
BalonParca AdiParca NoAdetTipApplied Date
11 PIPE; EXH,RR
WHEEL BASE 6300MM<63W> THA 		8-97925-380-0 01 1 1103-
12 SILENCER ASM; EXH 8-97630-814-1 01 1 1103-
22 CLAMP; EXH PIPE
(B) ID=80-84 		1-22133-233-0 02 1 1103-1109
22 CLAMP; EXH PIPE
(B) ID=80-84 		1-22133-233-0 02 1 1103-1109
22 CLAMP; EXH PIPE
(B) ID=80-84 		1-22133-233-0 02 1 1110-1304
22 CLAMP; EXH PIPE
(B) ID=80-84 		1-22133-233-0 02 1 1110-1304
22 CLAMP; EXH PIPE
WHEEL BASE 7100MM<71W> (B) ID=80-84 		1-22133-233-0 02 1 1110-1304
22 CLAMP; EXH PIPE
(B) ID=80-84 		1-22133-233-0 02 1 1305-1305
22 CLAMP; EXH PIPE
WHEEL BASE 7100MM<71W> (B) ID=80-84 		1-22133-233-0 02 1 1305-1305
22 CLAMP; EXH PIPE
(B) ID=80-84 		1-22133-233-0 02 1 1306-
22 CLAMP; EXH PIPE
WHEEL BASE 7100MM<71W> (B) ID=80-84 		1-22133-233-0 02 1 1306-
22 CLAMP; EXH PIPE
(B) ID=80-84 		1-22133-233-0 02 1 1306-
22 CLAMP; EXH PIPE
(A) 		8-97615-334-0 01 1 1103-
22 CLAMP; EXH PIPE
(C) THA 		8-97915-961-1 01 1 1103-1107
22 CLAMP; EXH PIPE
WHEEL BASE 6300MM<63W> (C) THA 		8-97915-961-1 01 1 1108-
36 NUT; EXH PIPE
(B) M10 FLANGE THA 		0-91180-210-0 02 1 1103-
36 NUT; EXH PIPE
(C) M12 FLANGE THA 		0-91180-212-0 11 1 1103-
36 NUT; EXH PIPE
(A) M12 		1-09400-010-0 06 1 1103-
84 GASKET; EXH PIPE 1-22116-034-0 02 1 1103-
97 WASHER; PL,CLAMP
ID=10.5 		0-91610-710-0 01 1 1103-1109
97 WASHER; PL,CLAMP
WHEEL BASE 6300MM<63W> ID=10.5 		0-91610-710-0 01 1 1110-
105 NUT; CLAMP
M10 FLANGE THA 		0-91180-210-0 01 1 1103-1107
105 NUT; CLAMP
M10 FLANGE THA 		0-91180-210-0 02 1 1108-1109
105 NUT; CLAMP
M10 FLANGE THA 		0-91180-210-0 02 1 1108-1109
105 NUT; CLAMP
M10 FLANGE THA 		0-91180-210-0 02 1 1110-1304
105 NUT; CLAMP
M10 FLANGE THA 		0-91180-210-0 02 1 1110-1304
105 NUT; CLAMP
WHEEL BASE 7100MM<71W> M10 FLANGE THA 		0-91180-210-0 02 1 1110-1304
105 NUT; CLAMP
M10 FLANGE THA 		0-91180-210-0 02 1 1305-1305
105 NUT; CLAMP
WHEEL BASE 7100MM<71W> M10 FLANGE THA 		0-91180-210-0 02 1 1305-1305
105 NUT; CLAMP
M10 FLANGE THA 		0-91180-210-0 02 1 1306-
105 NUT; CLAMP
WHEEL BASE 7100MM<71W> M10 FLANGE THA 		0-91180-210-0 02 1 1306-
105 NUT; CLAMP
M10 FLANGE THA 		0-91180-210-0 02 1 1306-
105 NUT; CLAMP
M10 FLANGE THA 		0-91180-210-0 02 1 1103-1107
105 NUT; CLAMP
WHEEL BASE 6300MM<63W> M10 FLANGE THA 		0-91180-210-0 02 1 1103-1107
105 NUT; CLAMP
WHEEL BASE 6300MM<63W> M10 FLANGE THA 		0-91180-210-0 01 1 1108-
128 PIPE; EXH,RR
WHEEL BASE 6300MM<63W> THA 		8-97925-379-0 01 1 1103-
415 BOLT; CLAMP
M10X35 FLANGE THA 		0-28651-035-0 01 1 1103-1107
415 BOLT; CLAMP
WHEEL BASE 6300MM<63W> M10X35 FLANGE THA 		0-28651-035-0 01 1 1108-
506 BRACKET; STUD
(A) 		1-22134-214-0 04 1 1103-
506 BRACKET; STUD
(B) 		8-97615-333-1 01 1 1103-
İpucu: çizimdeki balona veya tablodaki Balon sütununa tıkla; ilgili parçalar vurgulanır. Birden çok çizim varsa üstteki seçim kutusu/oklarla gezin.
Isuzu EPC — test · veri: yerel (eski sürüm)
