Sayfa 1-40 - Isuzu EPC

1-40 — FUEL TANK (#21796) — 77 parça

42 534 534 507 195 42 38 40 40 42 42 507 534 508 115 534 50 50 115 195 534 499 50 500 499 43 50 38

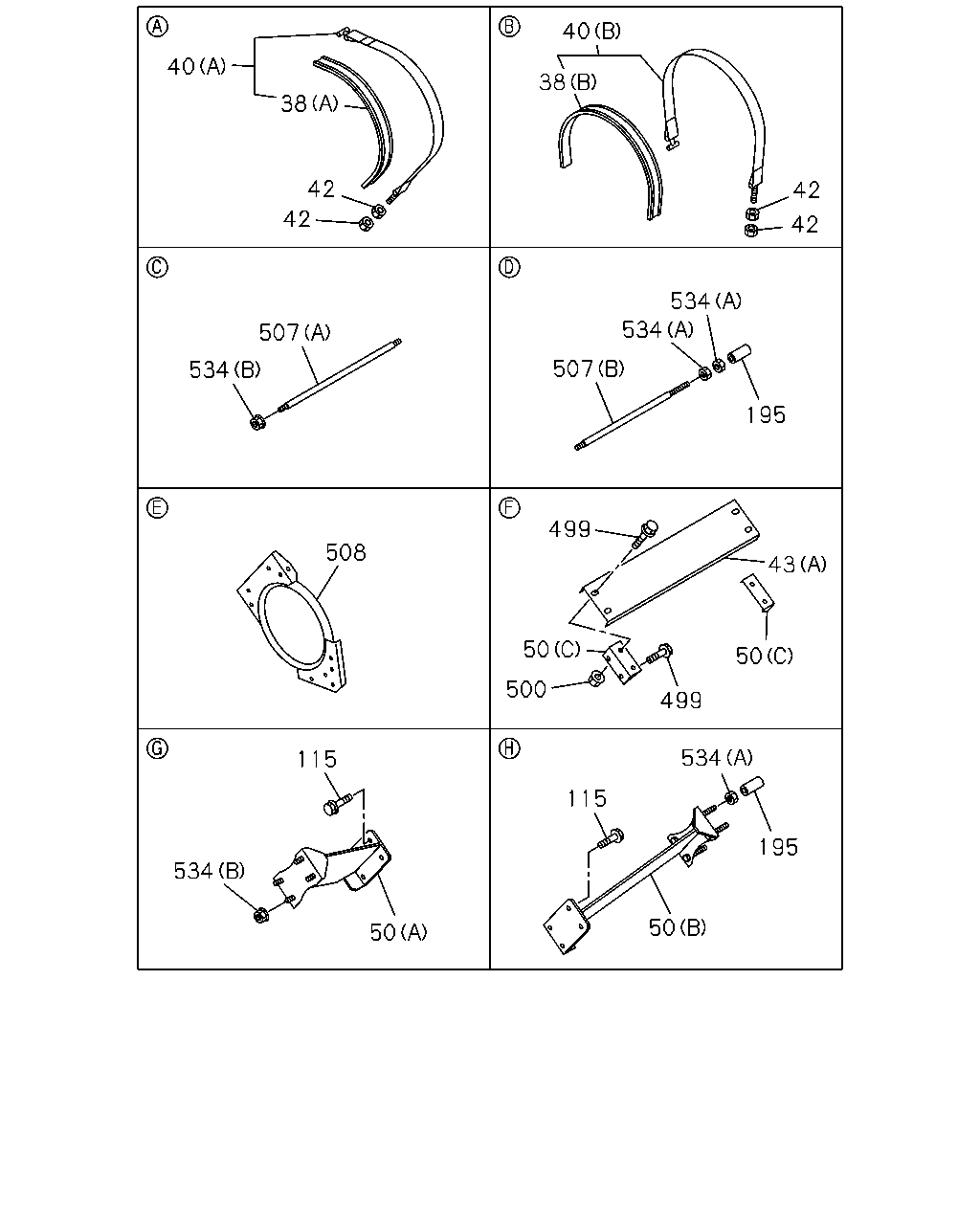

Balon	Parca Adi	Parca No	Adet	Tip	Applied Date
38	INSULATION; SUPPORT BELT (A) L=540 THA	1-22553-014-2	06	1	1103-
38	INSULATION; SUPPORT BELT (B)	1-22553-025-1	06	1	1103-
40	BELT; SUPPORT,FUEL TANK (A) THA	8-98050-304-0	06	1	1103-
40	BELT; SUPPORT,FUEL TANK (B) THA	8-98050-305-1	06	1	1103-
42	NUT; SUPPORT BELT M10 THA	0-91110-510-0	24	1	1103-
43	BRACKET; FUEL TANK (A) FRONT THA	8-98050-251-0	01	1	1103-1109
43	BRACKET; FUEL TANK (A) FRONT THA	8-98050-251-0	01	1	1110-
43	BRACKET; FUEL TANK WHEEL BASE 7100MM<71W> (A) REAR THA	8-98050-251-0	01	1	1110-
43	BRACKET; FUEL TANK (A) THA	8-98126-563-0	01	1	1103-
43	BRACKET; FUEL TANK (A) REAR THA	8-97925-416-0	01	1	1103-1107
43	BRACKET; FUEL TANK WHEEL BASE 6300MM<63W> (A) REAR THA	8-97925-416-0	01	1	1108-
43	BRACKET; FUEL TANK (B) THA	8-98126-506-4	03	1	1103-
43	BRACKET; FUEL TANK (C) THA	8-98137-147-3	03	1	1103-
50	BRACKET; SUPPORT,FUEL BRKT (B) FRONT THA	8-97633-884-1	01	1	1103-1109
50	BRACKET; SUPPORT,FUEL BRKT (B) FRONT THA	8-97633-884-1	01	1	1110-
50	BRACKET; SUPPORT,FUEL BRKT WHEEL BASE 7100MM<71W> (B) REAR THA	8-97633-884-1	01	1	1110-
50	BRACKET; SUPPORT,FUEL BRKT (B) THA	8-97633-885-2	01	1	1103-
50	BRACKET; SUPPORT,FUEL BRKT (A) REAR THA	8-97925-412-0	01	1	1103-1107
50	BRACKET; SUPPORT,FUEL BRKT WHEEL BASE 6300MM<63W> (A) REAR THA	8-97925-412-0	01	1	1108-
50	BRACKET; SUPPORT,FUEL BRKT (B) REAR THA	8-97925-413-0	01	1	1103-1107
50	BRACKET; SUPPORT,FUEL BRKT WHEEL BASE 6300MM<63W> (B) REAR THA	8-97925-413-0	01	1	1108-
50	BRACKET; SUPPORT,FUEL BRKT (C) THA	8-98050-250-0	06	1	1103-
50	BRACKET; SUPPORT,FUEL BRKT (A) FRONT THA	8-98126-508-2	01	1	1103-1109
50	BRACKET; SUPPORT,FUEL BRKT (A) FRONT THA	8-98126-508-2	01	1	1110-
50	BRACKET; SUPPORT,FUEL BRKT (A) FRONT THA	8-98126-508-2	01	1	1110-
50	BRACKET; SUPPORT,FUEL BRKT WHEEL BASE 7100MM<71W> (A) REAR THA	8-98126-508-2	01	1	1110-
50	BRACKET; SUPPORT,FUEL BRKT (A) THA	8-98126-564-0	01	1	1103-
115	BOLT; BRKT M10X25 FLANGE THA	0-28051-025-0	24	1	1103-
195	RUBBER; CUSHION,TANK CARRIER ID=9.0	8-94207-303-0	18	1	1103-
499	BOLT; STAY M10X25 FLANGE THA	0-28051-025-0	24	1	1103-
500	NUT; STAY M10 FLANGE THA	0-91180-110-0	12	1	1103-
507	ROD (B) FRONT THA	8-97633-886-0	02	1	1103-1109
507	ROD (B) FRONT THA	8-97633-886-0	02	1	1110-
507	ROD WHEEL BASE 7100MM<71W> (B) REAR THA	8-97633-886-0	02	1	1110-
507	ROD (B) THA	8-97633-887-1	02	1	1103-
507	ROD (A) REAR THA	8-97925-414-0	02	1	1103-1107
507	ROD WHEEL BASE 6300MM<63W> (A) REAR THA	8-97925-414-0	02	1	1108-
507	ROD (B) REAR THA	8-97925-415-0	02	1	1103-1107
507	ROD WHEEL BASE 6300MM<63W> (B) REAR THA	8-97925-415-0	02	1	1108-
507	ROD (A) FRONT THA	8-98126-511-0	02	1	1103-1109
507	ROD (A) FRONT THA	8-98126-511-0	02	1	1110-
507	ROD WHEEL BASE 7100MM<71W> (A) REAR THA	8-98126-511-0	02	1	1110-
507	ROD (A) THA	8-98126-566-1	02	1	1103-
508	STOPPER THA	8-97925-339-0	12	1	1103-
534	NUT; STOPPER (A) M10 THA	0-91110-510-0	36	1	1103-
534	NUT; STOPPER (B) M10 FLANGE THA	0-91180-110-0	18	1	1103-

1 1

Balon	Parca Adi	Parca No	Adet	Tip	Applied Date

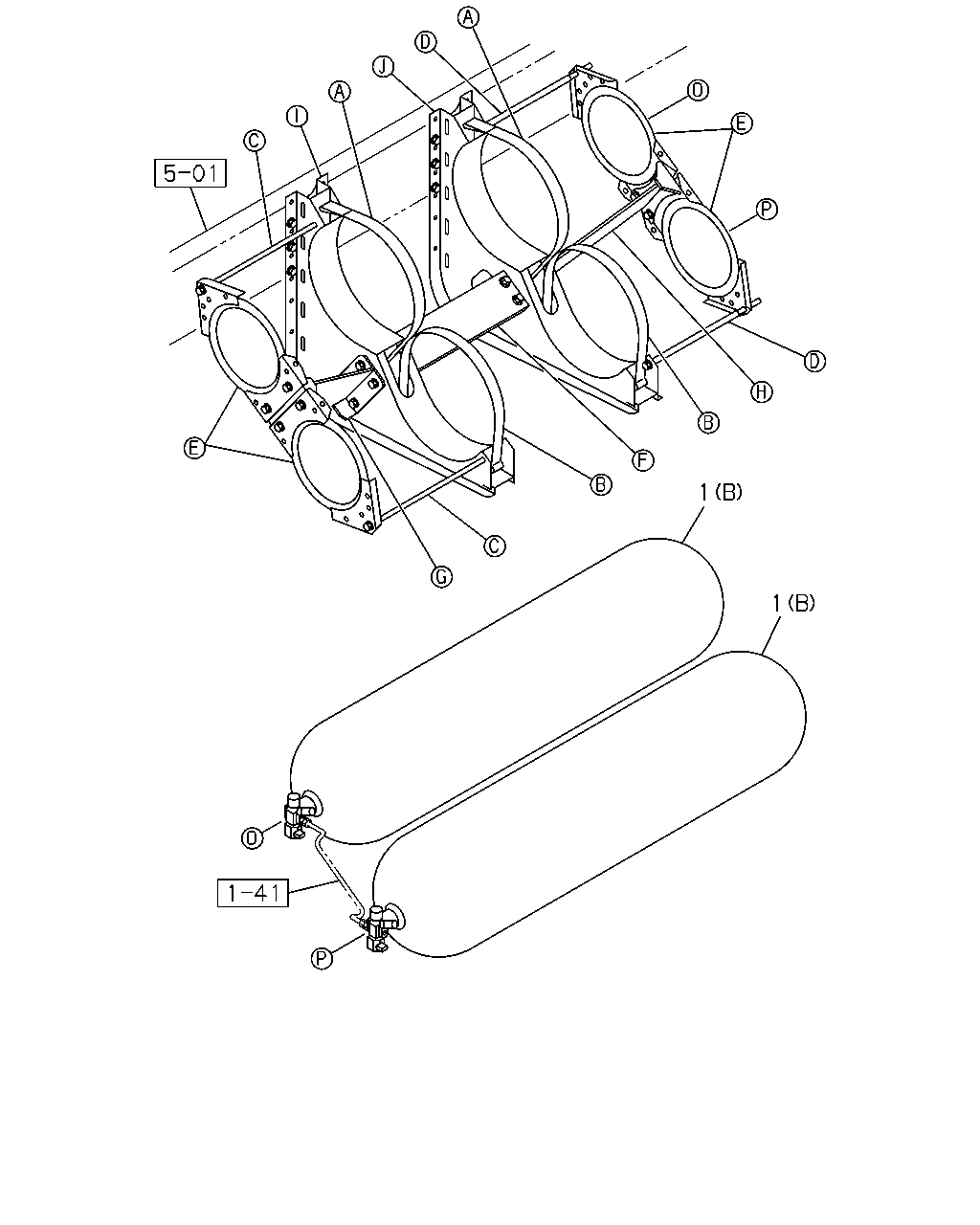

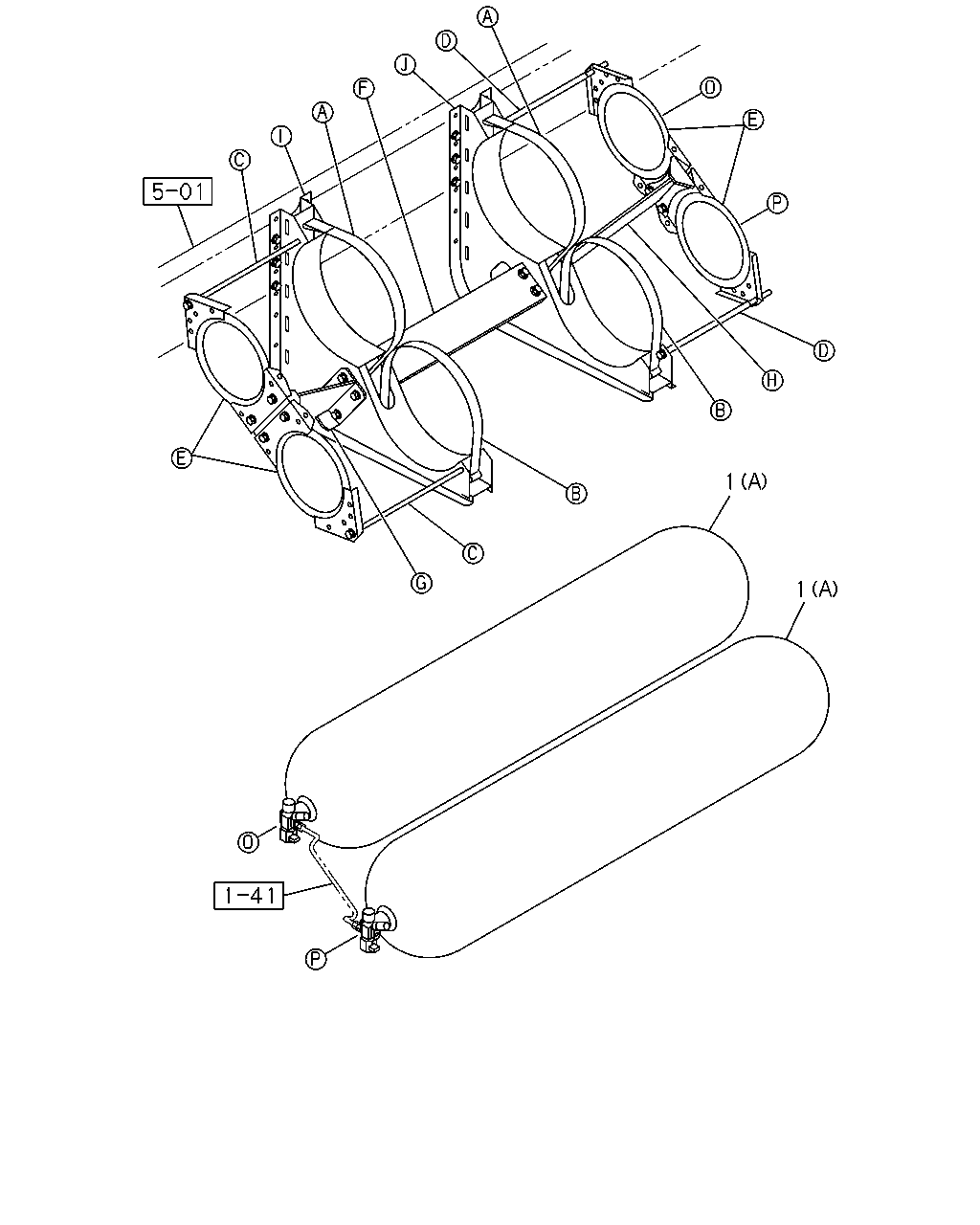

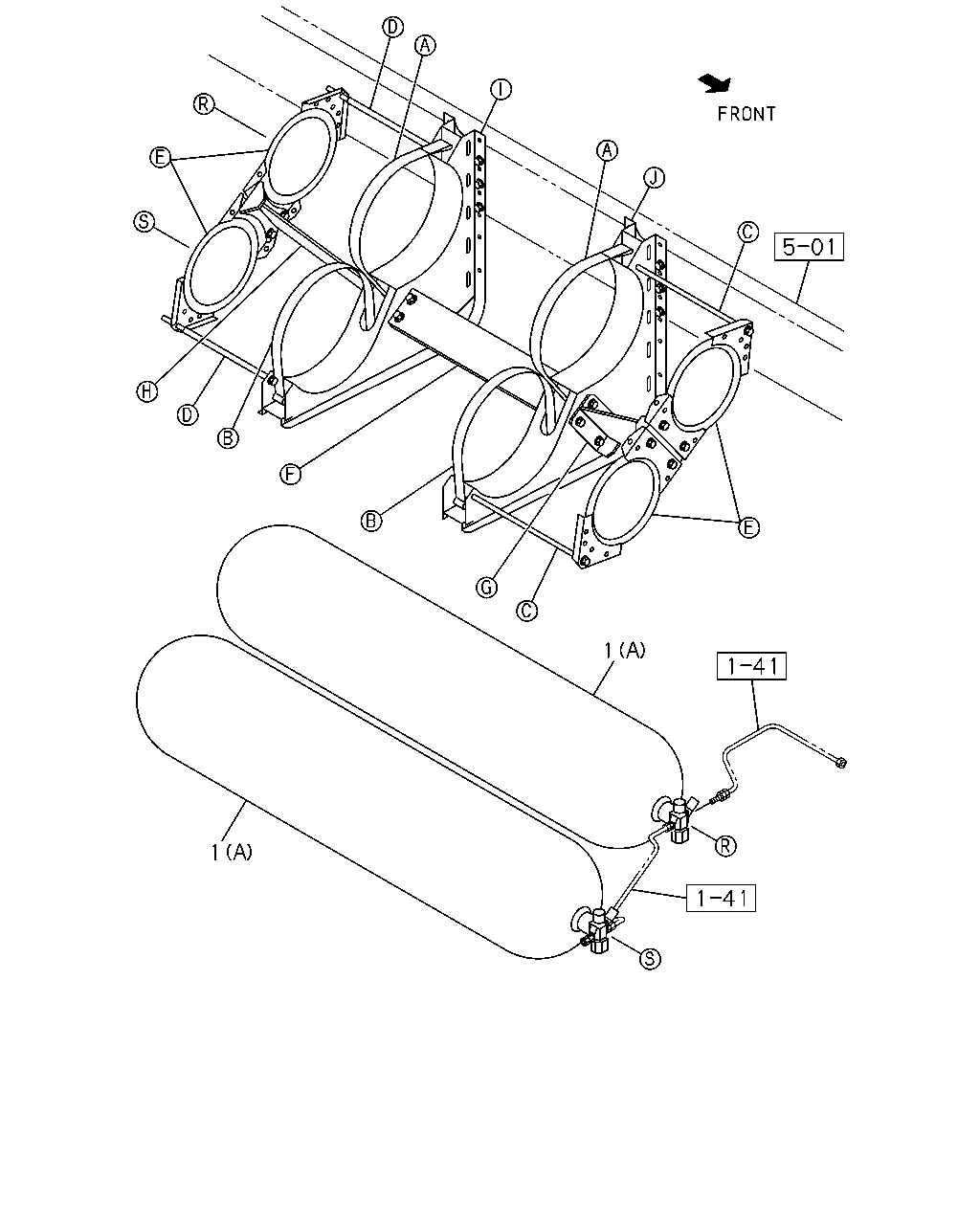

1	TANK; FUEL WHEEL BASE 7100MM<71W> (A) OD=356 L=1660 140L THA	8-98188-205-0	06	1	1110-
1	TANK; FUEL (B) OD=356 L=1120 90L THA	8-98188-204-0	02	1	1103-1107
1	TANK; FUEL WHEEL BASE 6300MM<63W> (B) OD=356 L=1120 90L THA	8-98188-204-0	02	1	1108-
1	TANK; FUEL (A) OD=356 L=1660 140L THA	8-98188-205-0	04	1	1103-1107
1	TANK; FUEL WHEEL BASE 6300MM<63W> (A) OD=356 L=1660 140L THA	8-98188-205-0	04	1	1108-

1 1

Balon	Parca Adi	Parca No	Adet	Tip	Applied Date
1	TANK; FUEL WHEEL BASE 7100MM<71W> (A) OD=356 L=1660 140L THA	8-98188-205-0	06	1	1110-
1	TANK; FUEL (B) OD=356 L=1120 90L THA	8-98188-204-0	02	1	1103-1107
1	TANK; FUEL WHEEL BASE 6300MM<63W> (B) OD=356 L=1120 90L THA	8-98188-204-0	02	1	1108-
1	TANK; FUEL (A) OD=356 L=1660 140L THA	8-98188-205-0	04	1	1103-1107
1	TANK; FUEL WHEEL BASE 6300MM<63W> (A) OD=356 L=1660 140L THA	8-98188-205-0	04	1	1108-

1 1

Balon	Parca Adi	Parca No	Adet	Tip	Applied Date
1	TANK; FUEL WHEEL BASE 7100MM<71W> (A) OD=356 L=1660 140L THA	8-98188-205-0	06	1	1110-
1	TANK; FUEL (B) OD=356 L=1120 90L THA	8-98188-204-0	02	1	1103-1107
1	TANK; FUEL WHEEL BASE 6300MM<63W> (B) OD=356 L=1120 90L THA	8-98188-204-0	02	1	1108-
1	TANK; FUEL (A) OD=356 L=1660 140L THA	8-98188-205-0	04	1	1103-1107
1	TANK; FUEL WHEEL BASE 6300MM<63W> (A) OD=356 L=1660 140L THA	8-98188-205-0	04	1	1108-

1 1

Balon	Parca Adi	Parca No	Adet	Tip	Applied Date
1	TANK; FUEL WHEEL BASE 7100MM<71W> (A) OD=356 L=1660 140L THA	8-98188-205-0	06	1	1110-
1	TANK; FUEL (B) OD=356 L=1120 90L THA	8-98188-204-0	02	1	1103-1107
1	TANK; FUEL WHEEL BASE 6300MM<63W> (B) OD=356 L=1120 90L THA	8-98188-204-0	02	1	1108-
1	TANK; FUEL (A) OD=356 L=1660 140L THA	8-98188-205-0	04	1	1103-1107
1	TANK; FUEL WHEEL BASE 6300MM<63W> (A) OD=356 L=1660 140L THA	8-98188-205-0	04	1	1108-

43 49 460 322 43 460 322 49

Balon	Parca Adi	Parca No	Adet	Tip	Applied Date
43	BRACKET; FUEL TANK (A) FRONT THA	8-98050-251-0	01	1	1103-1109
43	BRACKET; FUEL TANK (A) FRONT THA	8-98050-251-0	01	1	1110-
43	BRACKET; FUEL TANK WHEEL BASE 7100MM<71W> (A) REAR THA	8-98050-251-0	01	1	1110-
43	BRACKET; FUEL TANK (A) THA	8-98126-563-0	01	1	1103-
43	BRACKET; FUEL TANK (A) REAR THA	8-97925-416-0	01	1	1103-1107
43	BRACKET; FUEL TANK WHEEL BASE 6300MM<63W> (A) REAR THA	8-97925-416-0	01	1	1108-
43	BRACKET; FUEL TANK (B) THA	8-98126-506-4	03	1	1103-
43	BRACKET; FUEL TANK (C) THA	8-98137-147-3	03	1	1103-
49	NUT; BRKT M12 FLANGE THA	0-91180-212-0	36	1	1103-
322	BOLT; BRKT FIX M12X45 FLANGE	0-28061-245-0	36	1	1103-
460	WASHER; PL,BRKT ID=12.5 OD=32	0-91614-712-0	36	1	1103-
