0-61 — BATTERY AND ENGINE ELECTRICAL PARTS (#21787) — 42 parça

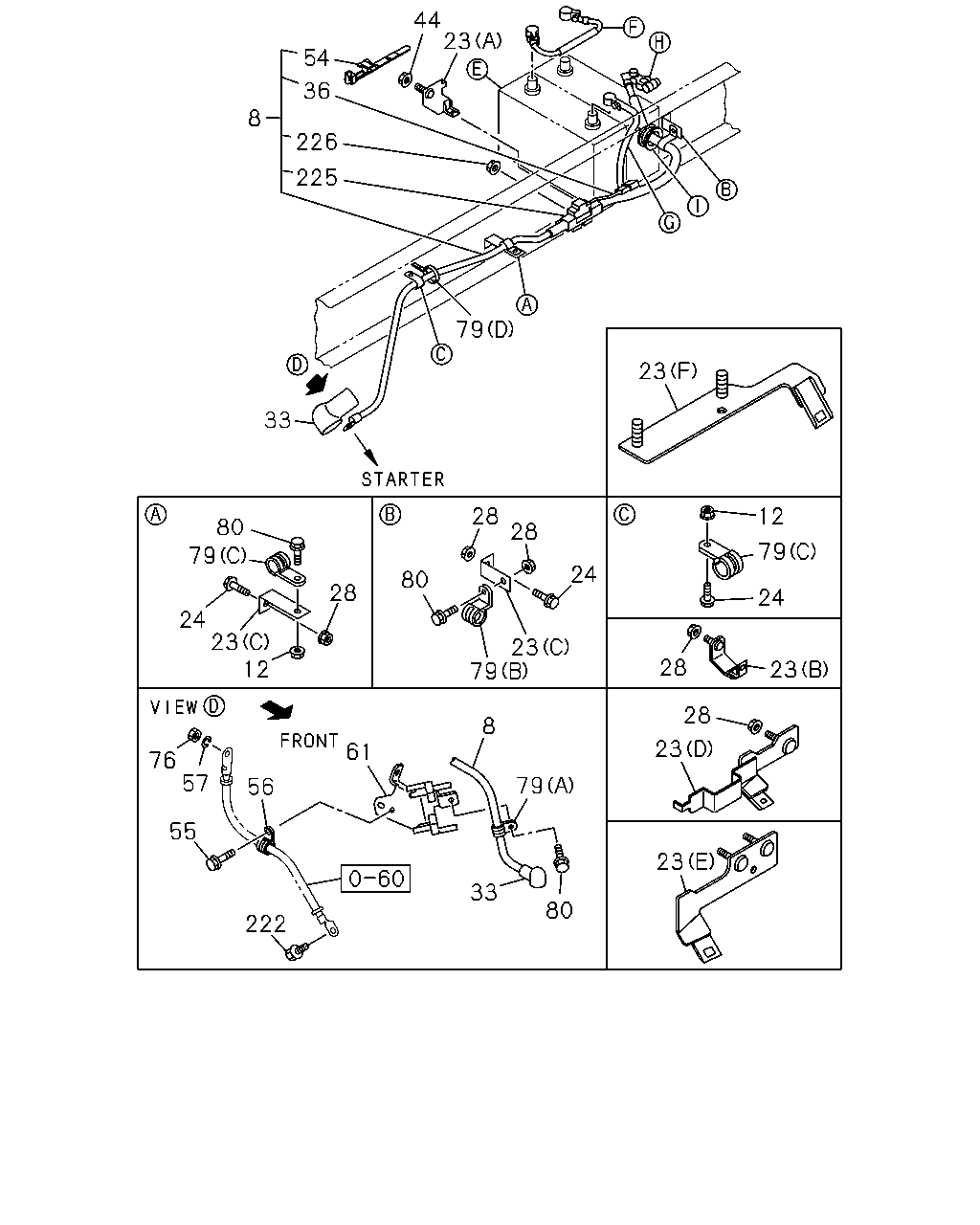

çizim 134822
44 23 54 36 8 226 225 79 23 33 28 12 80 79 28 79 24 80 28 24 24 23 12 23 79 28 23 28 8 61 23 76 57 79 56 55 23 33 80 222
BalonParca AdiParca NoAdetTipApplied Date
8 CABLE; BATTERY,STARTER
L=2500 THA 		8-97924-527-2 01 1 1103-
12 NUT; BATTERY CABLE CLIP
M8 FLANGE THA 		0-91180-108-0 04 1 1103-
23 BRACKET; CABLE CLIP TO FRAME
WHEEL BASE 7100MM<71W> (E) 		8-98195-165-0 01 1 1110-1111
23 BRACKET; CABLE CLIP TO FRAME
(C) L=55 		1-47475-304-0 01 1 1103-
23 BRACKET; CABLE CLIP TO FRAME
(C) L=95 		1-82699-085-0 03 1 1103-
23 BRACKET; CABLE CLIP TO FRAME
(B) 		8-97612-957-1 02 1 1103-
23 BRACKET; CABLE CLIP TO FRAME
(A) 		8-98044-882-0 01 1 1103-
23 BRACKET; CABLE CLIP TO FRAME
(D) 		8-98085-160-4 01 1 1103-1111
23 BRACKET; CABLE CLIP TO FRAME
(F) 		8-98201-025-0 01 1 1112-
24 BOLT; BRKT TO FRAME
M8X30 FLANGE THA 		0-28650-830-0 04 1 1103-
28 NUT; BRKT TO FRAME
M8 FLANGE THA 		0-91180-108-0 01 1 1103-1109
28 NUT; BRKT TO FRAME
M8 FLANGE THA 		0-91180-108-0 01 1 1110-1111
28 NUT; BRKT TO FRAME
WHEEL BASE 7100MM<71W> M8 FLANGE THA 		0-91180-108-0 01 1 1110-1111
28 NUT; BRKT TO FRAME
M8 FLANGE THA 		0-91180-108-0 02 1 1112-
28 NUT; BRKT TO FRAME
M8 FLANGE THA 		0-91180-108-0 06 1 1103-
33 CAP; INSULATOR 1-82699-431-0 01 1 1103-
36 FUSIBLE LINK; BATTERY
THA 		8-97615-498-1 01 1 1103-
44 NUT; BRKT
M10 FLANGE THA 		0-91180-210-0 01 1 1103-
54 CLIP; BAND,BATTERY CABLE
L=175 		1-09707-176-1 01 1 1103-
55 BOLT; CLIP,BATTERY CABLE
M8X16 FLANGE THA 		0-28050-816-0 01 1 1103-
56 CLIP; BATTERY CABLE
ID=16 L=28 		1-09700-872-0 01 1 1103-
57 WASHER; PL,BATTERY CABLE
ID=10.5 OD=22 T=1.6 		0-91610-610-0 01 1 1103-
61 BRACKET; BATTERY CABLE 8-98051-379-1 01 1 1103-
76 NUT; BATTERY CABLE
M10 FLANGE THA 		0-91180-210-0 01 1 1103-
79 CLIP; BATTERY CABLE
(B) ID=19 L=24 H=21 		1-09700-109-1 01 1 1103-
79 CLIP; BATTERY CABLE
(D) ID=20 L=70 		1-09700-485-0 01 1 1103-
79 CLIP; BATTERY CABLE
(A) ID=16 L=28 		1-09700-872-0 01 1 1103-
79 CLIP; BATTERY CABLE
(C) ID=21 L=24 		8-98019-191-0 03 1 1103-
80 BOLT; BATTERY CABLE CLIP
M8X16 FLANGE THA 		0-28050-816-0 01 1 1103-
80 BOLT; BATTERY CABLE CLIP
M8X25 FLANGE THA 		0-28650-825-0 04 1 1103-
222 BOLT; EARTH CABLE
M10X25 W/LK&PL WASHER 		8-97087-205-0 01 1 1103-
225 BLOCK; TERMINAL
THA 		8-98029-689-0 01 1 1103-
226 NUT; FUSIBLE LINK
M6 W/LK WASHER THA 		8-94424-179-0 01 1 1103-
çizim 134823
1 2 8 11 112 10 13 107
BalonParca AdiParca NoAdetTipApplied Date
1 CABLE; BATTERY
L=280 THA 		8-97922-383-0 01 1 1103-
2 CABLE; BATTERY
L=305 THA 		8-97924-521-1 01 1 1103-
8 CABLE; BATTERY,STARTER
L=2500 THA 		8-97924-527-2 01 1 1103-
10 BOLT; BATTERY CABLE CLIP
M10X25 W/LK&PL WASHER 		8-97087-205-0 01 1 1103-
11 WASHER; BATTERY CABLE EARTH
ID=10.5 OD=22 T=2.0 		1-09503-265-0 01 1 1103-
13 GROMMET; BATTERY CABLE
ID=32 OD=40 T=23 		1-09332-112-0 01 1 1103-
107 CLIP; BAND
L=140 THA 		5-09707-031-1 01 1 1103-
112 TERMINAL; BATTERY
<+> 		8-97365-771-0 01 1 1103-1408
112 TERMINAL; BATTERY
<+> THA 		8-98290-356-0 01 1 1409-
