Isuzu WW
▶
TRUCKS
▶
FVM
▶
11351 - FVM CNG(THAILAND)
▶
0 - Engine, Emission, Engine Electrical
▶
0-15 - CRANKSHAFT,PISTON AND FLYWHEEL
▶

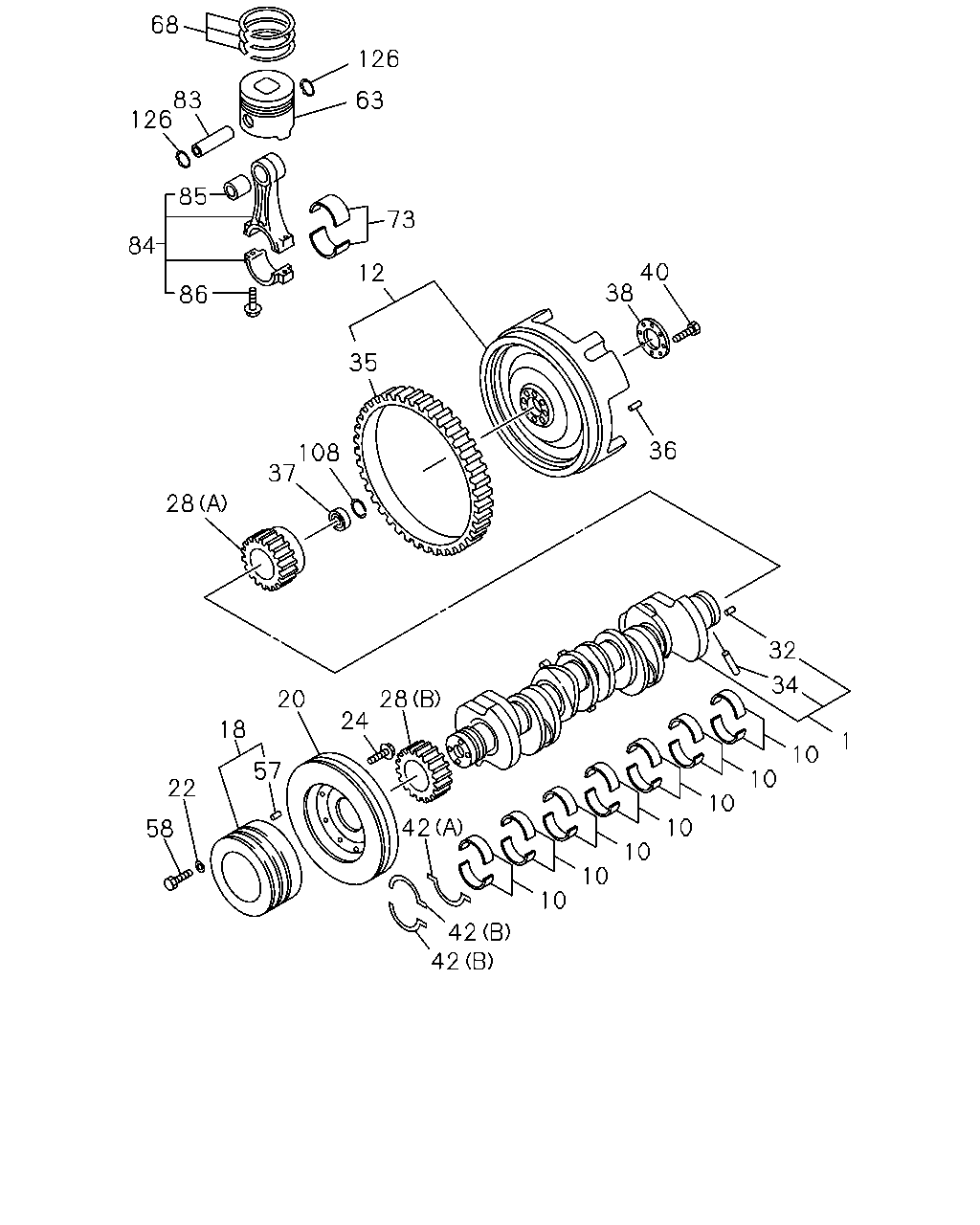

0-15 — CRANKSHAFT,PISTON AND FLYWHEEL
(#21764) — 35 parça
1
10
10
10
10
10
10
10
42
42
42
34
32
28
24
20
57
18
22
58
28
37
108
35
38
40
36
12
73
63
126
83
68
126
85
84
86
Balon
Parca Adi
Parca No
Adet
Tip
Applied Date
1
CRANKSHAFT
8-97603-004-0
01
1
1103-
10
METAL SET; CRANKSHAFT,STANDARD
BLUE
8-97372-076-1
07
1
1103-
10
METAL SET; CRANKSHAFT,STANDARD
BLACK
8-97372-077-1
07
1
1103-
10
METAL SET; CRANKSHAFT,STANDARD
BROWN
8-97372-078-1
07
1
1103-
12
FLYWHEEL
8-97602-463-2
01
1
1103-
18
PULLEY; CR/SHF
3-GROOVE
8-97606-944-0
01
1
1103-
20
DAMPER; CR/SHF
8-94392-276-3
01
1
1103-
22
PLATE; PULLEY
ID=17 OD=30
9-09851-935-0
04
1
1103-
24
BOLT; DAMPER
M10X16 FLANGE THA
0-28151-016-0
06
1
1103-
28
GEAR; CR/SHF
(A) Z=42
8-94394-342-4
01
1
1103-
28
GEAR; CR/SHF
(B) Z=41
8-94396-954-2
01
1
1103-
32
PIN; FLYWHEEL
OD=8 L=16
9-08150-816-0
02
1
1103-
34
PIN; GEAR SETTING
OD=5 L=6
9-09878-626-0
01
1
1103-
35
GEAR; RING
Z=140
8-94396-784-1
01
1
1103-
36
PIN; FLYWHEEL
OD=10 L=22
9-08151-022-0
02
1
1103-
37
BEARING; PILOT,TOP GEAR SHAFT
8-94392-288-0
01
1
1103-
37
BEARING; PILOT,TOP GEAR SHAFT
BEST VALUE PARTS
1-87610-157-0
01
1
1103-
38
WASHER; FLYWHEEL
ID=55 OD=110
8-94397-496-1
01
1
1103-
40
BOLT; FLYWHEEL
M16X62
8-94393-070-2
08
1
1103-
42
WASHER; THRUST,CR/SHF
(A)
8-97386-548-0
01
1
1103-
42
WASHER; THRUST,CR/SHF
(B)
8-97386-549-0
02
1
1103-
57
PIN; PULLEY
OD=8 L=16
8-94391-156-0
01
1
1103-
58
BOLT; CR/SHF PULLEY
M16X50
0-20951-650-0
04
1
1103-
63
PISTON
ALSO INCLUDED IN LINER SET.
8-98120-371-0
06
1
1103-1301
63
PISTON
ALSO INCLUDED IN LINER SET.
8-98229-766-0
06
1
1302-
68
RING SET; PISTON,STANDARD
ALSO INCLUDED IN LINER SET.
8-98141-535-0
06
1
1103-1301
68
RING SET; PISTON,STANDARD
ALSO INCLUDED IN LINER SET.
8-98233-350-0
06
1
1302-
73
METAL SET; CONN ROD,STANDARD
GREEN
8-97616-358-0
06
1
1103-
73
METAL SET; CONN ROD,STANDARD
YELLOW
8-97616-359-0
06
1
1103-
83
PIN; PISTON
ALSO INCLUDED IN LINER SET.
8-94396-731-1
06
1
1103-
84
ROD ASM; CONN
8-98018-425-3
06
1
1103-
85
BUSHING; CONNROD
ALSO INCLUDED IN LINER SET.
8-94391-794-1
06
1
1103-
86
BOLT; CONNROD
M13X57 FLANGE
8-98091-141-0
12
1
1103-
108
RING; SNAP,BRG SET
OD=59.2
9-09180-155-0
01
1
1103-
126
RING; SNAP,PISTON PIN
ALSO INCLUDED IN LINER SET.
1-09587-081-1
12
1
1103-
