Sayfa 0-65 - Isuzu EPC

0-65 — STARTER (#2176) — 208 parça

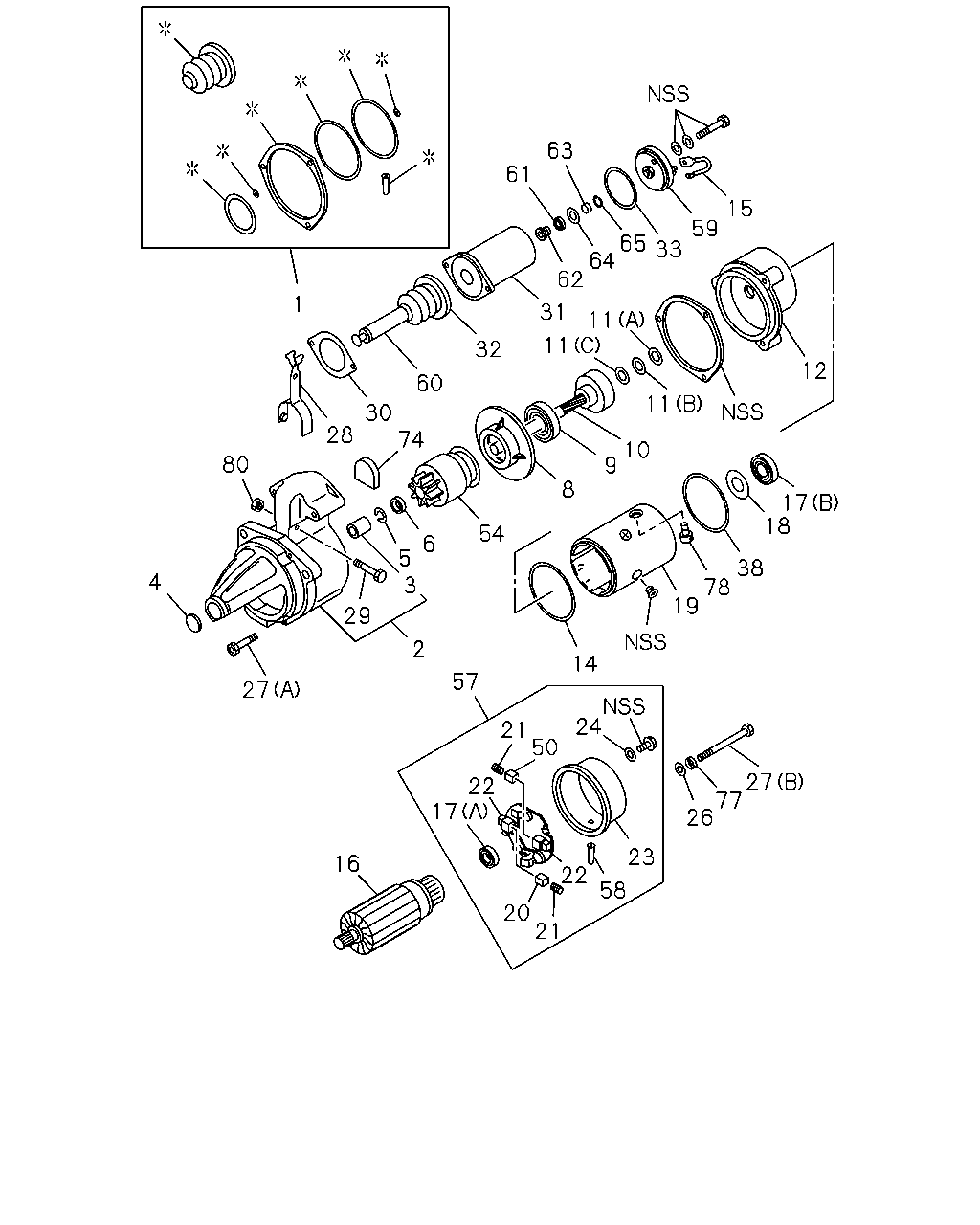

63 61 15 59 65 33 64 62 1 31 11 11 32 12 60 11 30 74 28 10 80 9 8 17 18 54 6 5 3 38 78 19 4 29 2 14 57 27 24 21 50 27 77 26 22 17 23 16 22 58 20 21

Balon	Parca Adi	Parca No	Adet	Tip	Applied Date
1	SEAL KIT; STARTER ASM PART: B = 1-81100-264-1	1-81129-569-0	01	1	-
2	CASE; PINION,STARTER ASM PART: A = 1-81100-141-1	1-81114-018-0	01	1	9810-
2	CASE; PINION,STARTER ASM PART: C = 1-81100-342-0	1-81114-019-0	01	1	-
2	CASE; PINION,STARTER ASM PART: B = 1-81100-264-1	1-81123-025-0	01	1	-
2	CASE; PINION,STARTER ASM PART: A = 1-81100-141-1	5-81113-035-0	01	1	-9809
3	METAL; PINION CASE STARTER ASM PART: B = 1-81100-264-1	1-81129-397-0	01	1	-
3	METAL; PINION CASE STARTER ASM PART: C = 1-81100-342-0	5-81119-012-0	01	1	-
4	COVER; PINION CASE STARTER ASM PART: B = 1-81100-264-1	5-81129-142-0	01	1	-
5	CLIP; PINION STOPPER STARTER ASM PART: B = 1-81100-264-1	5-81129-144-0	02	1	-
6	STOPPER; PINION STARTER ASM PART: B = 1-81100-264-1	5-81129-145-0	01	1	-
8	BRACKET; CENTER STARTER ASM PART: B = 1-81100-264-1	1-81113-081-0	01	1	-
9	BEARING; GEAR SHAFT STARTER ASM PART: B = 1-81100-264-1	1-81129-386-0	01	1	-
10	SHAFT; GEAR STARTER ASM PART: B = 1-81100-264-1	1-81123-024-0	01	1	-
10	SHAFT; GEAR STARTER ASM PART: C = 1-81100-342-0	1-81129-181-0	01	1	-
11	WASHER; GEAR SHAFT STARTER (A) ASM PART: B = 1-81100-264-1	5-81129-158-0	01	1	-
11	WASHER; GEAR SHAFT STARTER (B) ASM PART: B = 1-81100-264-1	5-81129-159-0	02	1	-
11	WASHER; GEAR SHAFT STARTER (C) ASM PART: B = 1-81100-264-1	5-81129-160-0	01	1	-
12	BRACKET; CENTER RR STARTER ASM PART: B = 1-81100-264-1	1-81113-082-0	01	1	-
14	GASKET; YOKE,STARTER ASM PART: B = 1-81100-264-1	1-81129-389-0	01	1	-
15	WIRE; LEAD STARTER ASM PART: B = 1-81100-264-1	1-81116-044-0	01	1	-
16	ARMATURE; STARTER ASM PART: C = 1-81100-342-0	1-81121-025-0	01	1	-
16	ARMATURE; STARTER ASM PART: B = 1-81100-264-1	1-81121-037-0	01	1	-
16	ARMATURE; STARTER ASM PART: A = 1-81100-141-1	1-81121-052-1	01	1	-
17	BEARING; ARMATURE,STARTER (A) ASM PART: B = 1-81100-264-1	1-81129-385-0	01	1	-
17	BEARING; ARMATURE,STARTER (B) ASM PART: B = 1-81100-264-1	1-81129-395-0	01	1	-
17	BEARING; ARMATURE,STARTER (B) ASM PART: C = 1-81100-342-0	1-81129-864-0	01	1	-
17	BEARING; ARMATURE,STARTER (A) ASM PART: C = 1-81100-342-0	1-81129-865-0	01	1	-
17	BEARING; ARMATURE,STARTER (A) ASM PART: A = 1-81100-141-1	5-09800-041-0	01	1	-
17	BEARING; ARMATURE,STARTER (B) ASM PART: A = 1-81100-141-1	5-09800-064-0	01	1	-
18	WASHER; THRUST,ARMATURE,STARTER ASM PART: C = 1-81100-342-0	1-81129-175-0	01	1	-
18	WASHER; THRUST,ARMATURE,STARTER ASM PART: A = 1-81100-141-1	5-81129-128-0	01	1	-
18	WASHER; THRUST,ARMATURE,STARTER ASM PART: B = 1-81100-264-1	5-81129-156-0	02	1	-
19	COIL; FIELD,STARTER ASM PART: B = 1-81100-264-1	1-81129-396-0	01	1	-
19	COIL; FIELD,STARTER ASM PART: C = 1-81100-342-0	8-97226-649-0	01	1	-0003
19	COIL; FIELD,STARTER ASM PART: C = 1-81100-342-0	8-97250-574-0	01	1	0004-
20	BRUSH; (+),STARTER ASM PART: C = 1-81100-342-0	1-81116-024-0	02	1	-0003
20	BRUSH; (+),STARTER ASM PART: B = 1-81100-264-1	1-81116-042-0	02	1	-
20	BRUSH; (+),STARTER ASM PART: C = 1-81100-342-0	1-81116-072-0	02	1	0004-
20	BRUSH; (+),STARTER ASM PART: A = 1-81100-141-1	5-81126-002-0	02	1	-9809
20	BRUSH; (+),STARTER ASM PART: A = 1-81100-141-1	8-94171-853-0	02	1	9810-
21	SPRING; BRUSH HOLDER STARTER ASM PART: B = 1-81100-264-1	1-81117-014-0	04	1	-
21	SPRING; BRUSH HOLDER STARTER ASM PART: C = 1-81100-342-0	1-81129-178-0	04	1	-
22	HOLDER; BRUSH STARTER ASM PART: C = 1-81100-342-0	1-81118-021-0	01	1	-0003
22	HOLDER; BRUSH STARTER ASM PART: B = 1-81100-264-1	1-81118-036-0	01	1	-
22	HOLDER; BRUSH STARTER ASM PART: C = 1-81100-342-0	1-81118-065-0	01	1	0004-
22	HOLDER; BRUSH STARTER ASM PART: A = 1-81100-141-1	5-81118-013-0	01	1	-
23	COVER; RR COVER STARTER ASM PART: B = 1-81100-264-1	1-81115-203-0	01	1	-
23	COVER; RR COVER STARTER ASM PART: A = 1-81100-141-1	1-81115-236-0	01	1	9810-
23	COVER; RR COVER STARTER ASM PART: A = 1-81100-141-1	5-81156-002-0	01	1	-9809
23	COVER; RR COVER STARTER ASM PART: C = 1-81100-342-0	8-97226-650-0	01	1	-
24	SEAL; HOLDER STARTER ASM PART: B = 1-81100-264-1	1-81129-391-0	04	1	-
26	SEAL; THROUGH BOLT STARTER ASM PART: B = 1-81100-264-1	1-81129-393-0	02	1	-
26	SEAL; THROUGH BOLT STARTER ASM PART: A = 1-81100-141-1	5-81129-131-0	02	1	-9809
27	BOLT; THROUGH,STARTER (A) ASM PART: B = 1-81100-264-1	1-81129-387-0	03	1	-
27	BOLT; THROUGH,STARTER (D) ASM PART: A = 1-81100-141-1	1-81129-698-0	02	1	9810-
27	BOLT; THROUGH,STARTER (D) ASM PART: A = 1-81100-141-1	5-81129-123-0	02	1	-9809
27	BOLT; THROUGH,STARTER (B) ASM PART: B = 1-81100-264-1	5-81129-214-0	02	1	-
27	BOLT; THROUGH,STARTER (C) ASM PART: C = 1-81100-342-0	8-97030-404-0	02	1	-
28	LEVER; SHIFT,STARTER ASM PART: B = 1-81100-264-1	1-81127-031-0	01	1	-
28	LEVER; SHIFT,STARTER ASM PART: C = 1-81100-342-0	5-81127-013-0	01	1	-
29	PIN; SHIFT LEVER STARTER ASM PART: B = 1-81100-264-1	1-81129-185-0	01	1	-
30	PLATE; ENGAGE SW STARTER ASM PART: B = 1-81100-264-1	5-81129-147-0	01	1	-
31	SWITCH; ENGAGE STARTER ASM PART: A = 1-81100-141-1	1-81151-034-0	01	1	9810-
31	SWITCH; ENGAGE STARTER ASM PART: B = 1-81100-264-1	5-81151-036-0	01	1	-
31	SWITCH; ENGAGE STARTER ASM PART: A = 1-81100-141-1	5-81151-039-0	01	1	-9809
31	SWITCH; ENGAGE STARTER ASM PART: C = 1-81100-342-0	8-97226-673-0	01	1	-
32	COVER; RUBBER,STARTER ASM PART: B = 1-81100-264-1	1-81129-388-0	01	1	-
33	GASKET; ENGAGE SW STARTER ASM PART: B = 1-81100-264-1	1-81129-390-0	01	1	-
38	GASKET; RR COVER,STARTER ASM PART: B = 1-81100-264-1	1-81129-392-0	01	1	-
50	BRUSH; (-),STARTER ASM PART: C = 1-81100-342-0	1-81116-023-0	02	1	-0003
50	BRUSH; (-),STARTER ASM PART: B = 1-81100-264-1	1-81116-043-0	02	1	-
50	BRUSH; (-),STARTER ASM PART: C = 1-81100-342-0	1-81116-072-0	02	1	0004-
54	CLUTCH; PINION,STARTER ASM PART: B = 1-81100-264-1	1-81122-056-0	01	1	-
54	CLUTCH; PINION,STARTER ASM PART: C = 1-81100-342-0	1-81123-009-6	01	1	-
54	CLUTCH; PINION,STARTER ASM PART: A = 1-81100-141-1	5-81124-004-0	01	1	-
57	COVER ASM; RR,STARTER ASM PART: B = 1-81100-264-1	1-81115-202-0	01	1	-
58	PIPE; DRAIN RR COVER STARTER ASM PART: B = 1-81100-264-1	1-81129-568-0	01	1	-
59	TERMINAL; ENGAGE SW STARTER ASM PART: B = 1-81100-264-1	5-81129-150-0	01	1	-
60	PLUNGER; ENGAGE SW STARTER ASM PART: B = 1-81100-264-1	5-81129-146-0	01	1	-
61	CONTACT; ENGAGE SW STARTER ASM PART: B = 1-81100-264-1	5-81129-148-0	01	1	-
62	BUSHING; ENGAGE SW STARTER ASM PART: B = 1-81100-264-1	9-82116-140-0	01	1	-
63	HOLDER; ENGAGE SW STARTER ASM PART: B = 1-81100-264-1	5-81118-019-0	01	1	-
64	WASHER; INSULATION ENGAGE SW STARTER ASM PART: B = 1-81100-264-1	9-82116-142-0	01	1	-
65	RING; CLIP ENGAGE SW STARTER ASM PART: B = 1-81100-264-1	5-81129-149-0	02	1	-
74	GASKET; PINION CASE,STARTER ASM PART: B = 1-81100-264-1	1-81129-299-0	01	1	-
77	WASHER; THROUGH BOLT,STARTER ASM PART: B = 1-81100-264-1	1-81229-114-0	02	1	-
77	WASHER; THROUGH BOLT,STARTER ASM PART: A = 1-81100-141-1	5-81128-002-0	02	1	-9809
78	TERMINAL; LEAD WIRE STARTER ASM PART: B = 1-81100-264-1	1-81129-384-0	01	1	-
80	NUT; SHIFT LEVER PIN STARTER ASM PART: B = 1-81100-264-1	1-81129-184-0	01	1	-

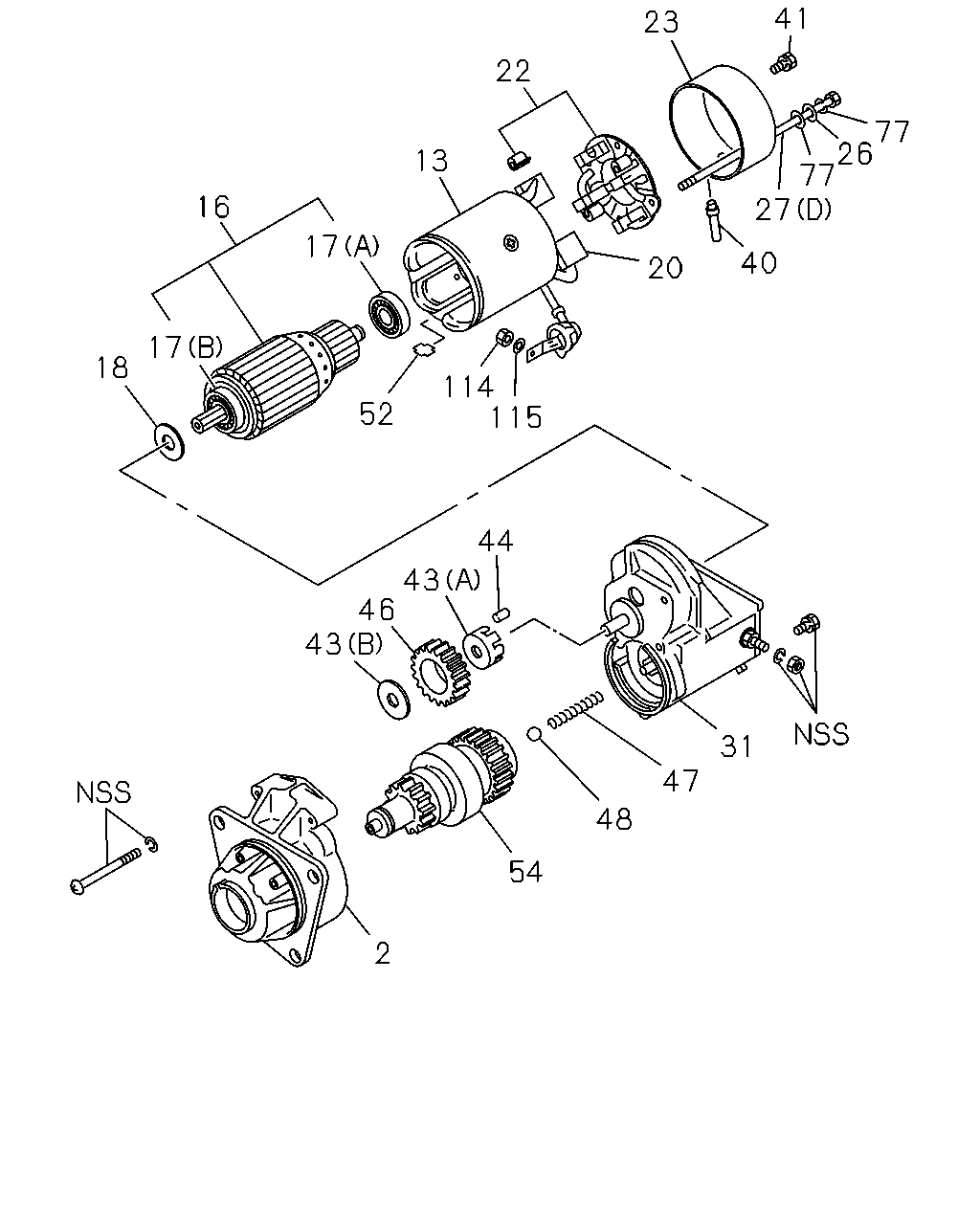

41 23 22 77 26 77 27 13 16 17 40 20 17 18 114 115 52 44 43 46 43 31 47 48 54 2

Balon	Parca Adi	Parca No	Adet	Tip	Applied Date
2	CASE; PINION,STARTER ASM PART: A = 1-81100-141-1	1-81114-018-0	01	1	9810-
2	CASE; PINION,STARTER ASM PART: C = 1-81100-342-0	1-81114-019-0	01	1	-
2	CASE; PINION,STARTER ASM PART: B = 1-81100-264-1	1-81123-025-0	01	1	-
2	CASE; PINION,STARTER ASM PART: A = 1-81100-141-1	5-81113-035-0	01	1	-9809
13	YOKE; STARTER ASM PART: A = 1-81100-141-1	1-81129-696-0	01	1	9810-
13	YOKE; STARTER ASM PART: A = 1-81100-141-1	5-81153-001-0	01	1	-9809
16	ARMATURE; STARTER ASM PART: C = 1-81100-342-0	1-81121-025-0	01	1	-
16	ARMATURE; STARTER ASM PART: B = 1-81100-264-1	1-81121-037-0	01	1	-
16	ARMATURE; STARTER ASM PART: A = 1-81100-141-1	1-81121-052-1	01	1	-
17	BEARING; ARMATURE,STARTER (A) ASM PART: B = 1-81100-264-1	1-81129-385-0	01	1	-
17	BEARING; ARMATURE,STARTER (B) ASM PART: B = 1-81100-264-1	1-81129-395-0	01	1	-
17	BEARING; ARMATURE,STARTER (B) ASM PART: C = 1-81100-342-0	1-81129-864-0	01	1	-
17	BEARING; ARMATURE,STARTER (A) ASM PART: C = 1-81100-342-0	1-81129-865-0	01	1	-
17	BEARING; ARMATURE,STARTER (A) ASM PART: A = 1-81100-141-1	5-09800-041-0	01	1	-
17	BEARING; ARMATURE,STARTER (B) ASM PART: A = 1-81100-141-1	5-09800-064-0	01	1	-
18	WASHER; THRUST,ARMATURE,STARTER ASM PART: C = 1-81100-342-0	1-81129-175-0	01	1	-
18	WASHER; THRUST,ARMATURE,STARTER ASM PART: A = 1-81100-141-1	5-81129-128-0	01	1	-
18	WASHER; THRUST,ARMATURE,STARTER ASM PART: B = 1-81100-264-1	5-81129-156-0	02	1	-
20	BRUSH; (+),STARTER ASM PART: C = 1-81100-342-0	1-81116-024-0	02	1	-0003
20	BRUSH; (+),STARTER ASM PART: B = 1-81100-264-1	1-81116-042-0	02	1	-
20	BRUSH; (+),STARTER ASM PART: C = 1-81100-342-0	1-81116-072-0	02	1	0004-
20	BRUSH; (+),STARTER ASM PART: A = 1-81100-141-1	5-81126-002-0	02	1	-9809
20	BRUSH; (+),STARTER ASM PART: A = 1-81100-141-1	8-94171-853-0	02	1	9810-
22	HOLDER; BRUSH STARTER ASM PART: C = 1-81100-342-0	1-81118-021-0	01	1	-0003
22	HOLDER; BRUSH STARTER ASM PART: B = 1-81100-264-1	1-81118-036-0	01	1	-
22	HOLDER; BRUSH STARTER ASM PART: C = 1-81100-342-0	1-81118-065-0	01	1	0004-
22	HOLDER; BRUSH STARTER ASM PART: A = 1-81100-141-1	5-81118-013-0	01	1	-
23	COVER; RR COVER STARTER ASM PART: B = 1-81100-264-1	1-81115-203-0	01	1	-
23	COVER; RR COVER STARTER ASM PART: A = 1-81100-141-1	1-81115-236-0	01	1	9810-
23	COVER; RR COVER STARTER ASM PART: A = 1-81100-141-1	5-81156-002-0	01	1	-9809
23	COVER; RR COVER STARTER ASM PART: C = 1-81100-342-0	8-97226-650-0	01	1	-
26	SEAL; THROUGH BOLT STARTER ASM PART: B = 1-81100-264-1	1-81129-393-0	02	1	-
26	SEAL; THROUGH BOLT STARTER ASM PART: A = 1-81100-141-1	5-81129-131-0	02	1	-9809
27	BOLT; THROUGH,STARTER (A) ASM PART: B = 1-81100-264-1	1-81129-387-0	03	1	-
27	BOLT; THROUGH,STARTER (D) ASM PART: A = 1-81100-141-1	1-81129-698-0	02	1	9810-
27	BOLT; THROUGH,STARTER (D) ASM PART: A = 1-81100-141-1	5-81129-123-0	02	1	-9809
27	BOLT; THROUGH,STARTER (B) ASM PART: B = 1-81100-264-1	5-81129-214-0	02	1	-
27	BOLT; THROUGH,STARTER (C) ASM PART: C = 1-81100-342-0	8-97030-404-0	02	1	-
31	SWITCH; ENGAGE STARTER ASM PART: A = 1-81100-141-1	1-81151-034-0	01	1	9810-
31	SWITCH; ENGAGE STARTER ASM PART: B = 1-81100-264-1	5-81151-036-0	01	1	-
31	SWITCH; ENGAGE STARTER ASM PART: A = 1-81100-141-1	5-81151-039-0	01	1	-9809
31	SWITCH; ENGAGE STARTER ASM PART: C = 1-81100-342-0	8-97226-673-0	01	1	-
40	COVER; DUST,RR COVER,STARTER ASM PART: A = 1-81100-141-1	1-81129-677-0	01	1	9810-
40	COVER; DUST,RR COVER,STARTER ASM PART: A = 1-81100-141-1	5-81129-122-0	01	1	-9809
41	SCREW; RR COVER,STARTER ASM PART: A = 1-81100-141-1	5-81129-130-0	02	1	9810-
43	RETAINER; PINION STARTER (A) ASM PART: A = 1-81100-141-1	5-81129-121-0	01	1	-
43	RETAINER; PINION STARTER (B) ASM PART: A = 1-81100-141-1	5-81129-127-0	01	1	9810-
44	ROLLER; PINION STARTER ASM PART: A = 1-81100-141-1	5-81129-120-0	06	1	-
46	GEAR; CLU STARTER ASM PART: A = 1-81100-141-1	5-81123-018-0	01	1	-
47	SPRING; PINION STARTER ASM PART: A = 1-81100-141-1	5-81129-119-0	01	1	-
48	BALL; PINION,STARTER ASM PART: A = 1-81100-141-1	5-81129-092-0	01	1	-
52	PLATE; LK,STARTER ASM PART: A = 1-81100-141-1	5-81129-136-0	01	1	-
54	CLUTCH; PINION,STARTER ASM PART: B = 1-81100-264-1	1-81122-056-0	01	1	-
54	CLUTCH; PINION,STARTER ASM PART: C = 1-81100-342-0	1-81123-009-6	01	1	-
54	CLUTCH; PINION,STARTER ASM PART: A = 1-81100-141-1	5-81124-004-0	01	1	-
77	WASHER; THROUGH BOLT,STARTER ASM PART: B = 1-81100-264-1	1-81229-114-0	02	1	-
77	WASHER; THROUGH BOLT,STARTER ASM PART: A = 1-81100-141-1	5-81128-002-0	02	1	-9809
114	NUT; TERMINAL ASM PART: A = 1-81100-141-1	5-81129-126-0	01	1	9810-
115	WASHER; TERMINAL ASM PART: A = 1-81100-141-1	5-81129-134-0	01	1	9810-

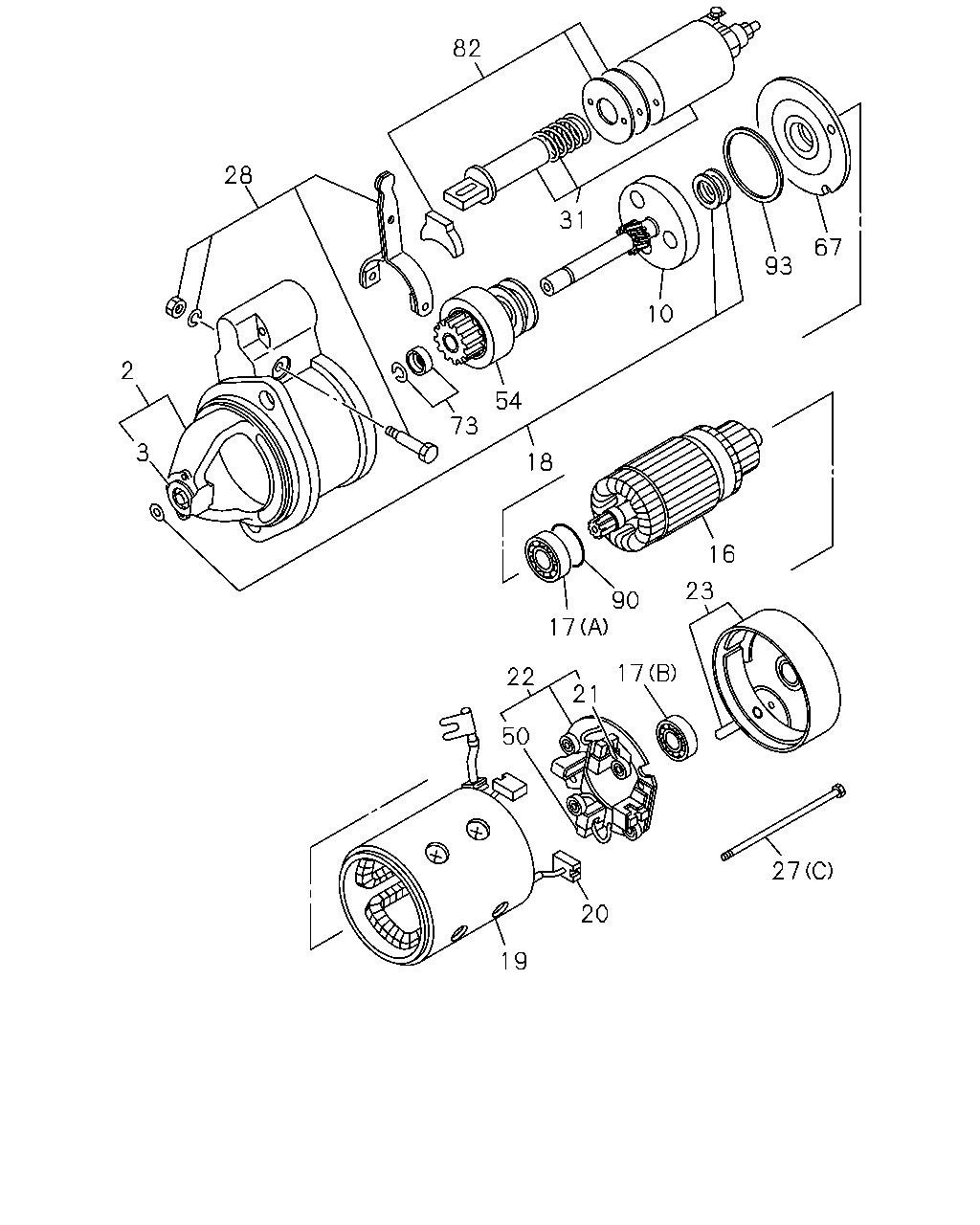

82 28 31 67 93 10 2 54 73 3 18 16 23 90 17 17 22 21 50 27 20 19

Balon	Parca Adi	Parca No	Adet	Tip	Applied Date
2	CASE; PINION,STARTER ASM PART: A = 1-81100-141-1	1-81114-018-0	01	1	9810-
2	CASE; PINION,STARTER ASM PART: C = 1-81100-342-0	1-81114-019-0	01	1	-
2	CASE; PINION,STARTER ASM PART: B = 1-81100-264-1	1-81123-025-0	01	1	-
2	CASE; PINION,STARTER ASM PART: A = 1-81100-141-1	5-81113-035-0	01	1	-9809
3	METAL; PINION CASE STARTER ASM PART: B = 1-81100-264-1	1-81129-397-0	01	1	-
3	METAL; PINION CASE STARTER ASM PART: C = 1-81100-342-0	5-81119-012-0	01	1	-
10	SHAFT; GEAR STARTER ASM PART: B = 1-81100-264-1	1-81123-024-0	01	1	-
10	SHAFT; GEAR STARTER ASM PART: C = 1-81100-342-0	1-81129-181-0	01	1	-
16	ARMATURE; STARTER ASM PART: C = 1-81100-342-0	1-81121-025-0	01	1	-
16	ARMATURE; STARTER ASM PART: B = 1-81100-264-1	1-81121-037-0	01	1	-
16	ARMATURE; STARTER ASM PART: A = 1-81100-141-1	1-81121-052-1	01	1	-
17	BEARING; ARMATURE,STARTER (A) ASM PART: B = 1-81100-264-1	1-81129-385-0	01	1	-
17	BEARING; ARMATURE,STARTER (B) ASM PART: B = 1-81100-264-1	1-81129-395-0	01	1	-
17	BEARING; ARMATURE,STARTER (B) ASM PART: C = 1-81100-342-0	1-81129-864-0	01	1	-
17	BEARING; ARMATURE,STARTER (A) ASM PART: C = 1-81100-342-0	1-81129-865-0	01	1	-
17	BEARING; ARMATURE,STARTER (A) ASM PART: A = 1-81100-141-1	5-09800-041-0	01	1	-
17	BEARING; ARMATURE,STARTER (B) ASM PART: A = 1-81100-141-1	5-09800-064-0	01	1	-
18	WASHER; THRUST,ARMATURE,STARTER ASM PART: C = 1-81100-342-0	1-81129-175-0	01	1	-
18	WASHER; THRUST,ARMATURE,STARTER ASM PART: A = 1-81100-141-1	5-81129-128-0	01	1	-
18	WASHER; THRUST,ARMATURE,STARTER ASM PART: B = 1-81100-264-1	5-81129-156-0	02	1	-
19	COIL; FIELD,STARTER ASM PART: B = 1-81100-264-1	1-81129-396-0	01	1	-
19	COIL; FIELD,STARTER ASM PART: C = 1-81100-342-0	8-97226-649-0	01	1	-0003
19	COIL; FIELD,STARTER ASM PART: C = 1-81100-342-0	8-97250-574-0	01	1	0004-
20	BRUSH; (+),STARTER ASM PART: C = 1-81100-342-0	1-81116-024-0	02	1	-0003
20	BRUSH; (+),STARTER ASM PART: B = 1-81100-264-1	1-81116-042-0	02	1	-
20	BRUSH; (+),STARTER ASM PART: C = 1-81100-342-0	1-81116-072-0	02	1	0004-
20	BRUSH; (+),STARTER ASM PART: A = 1-81100-141-1	5-81126-002-0	02	1	-9809
20	BRUSH; (+),STARTER ASM PART: A = 1-81100-141-1	8-94171-853-0	02	1	9810-
21	SPRING; BRUSH HOLDER STARTER ASM PART: B = 1-81100-264-1	1-81117-014-0	04	1	-
21	SPRING; BRUSH HOLDER STARTER ASM PART: C = 1-81100-342-0	1-81129-178-0	04	1	-
22	HOLDER; BRUSH STARTER ASM PART: C = 1-81100-342-0	1-81118-021-0	01	1	-0003
22	HOLDER; BRUSH STARTER ASM PART: B = 1-81100-264-1	1-81118-036-0	01	1	-
22	HOLDER; BRUSH STARTER ASM PART: C = 1-81100-342-0	1-81118-065-0	01	1	0004-
22	HOLDER; BRUSH STARTER ASM PART: A = 1-81100-141-1	5-81118-013-0	01	1	-
23	COVER; RR COVER STARTER ASM PART: B = 1-81100-264-1	1-81115-203-0	01	1	-
23	COVER; RR COVER STARTER ASM PART: A = 1-81100-141-1	1-81115-236-0	01	1	9810-
23	COVER; RR COVER STARTER ASM PART: A = 1-81100-141-1	5-81156-002-0	01	1	-9809
23	COVER; RR COVER STARTER ASM PART: C = 1-81100-342-0	8-97226-650-0	01	1	-
27	BOLT; THROUGH,STARTER (A) ASM PART: B = 1-81100-264-1	1-81129-387-0	03	1	-
27	BOLT; THROUGH,STARTER (D) ASM PART: A = 1-81100-141-1	1-81129-698-0	02	1	9810-
27	BOLT; THROUGH,STARTER (D) ASM PART: A = 1-81100-141-1	5-81129-123-0	02	1	-9809
27	BOLT; THROUGH,STARTER (B) ASM PART: B = 1-81100-264-1	5-81129-214-0	02	1	-
27	BOLT; THROUGH,STARTER (C) ASM PART: C = 1-81100-342-0	8-97030-404-0	02	1	-
28	LEVER; SHIFT,STARTER ASM PART: B = 1-81100-264-1	1-81127-031-0	01	1	-
28	LEVER; SHIFT,STARTER ASM PART: C = 1-81100-342-0	5-81127-013-0	01	1	-
31	SWITCH; ENGAGE STARTER ASM PART: A = 1-81100-141-1	1-81151-034-0	01	1	9810-
31	SWITCH; ENGAGE STARTER ASM PART: B = 1-81100-264-1	5-81151-036-0	01	1	-
31	SWITCH; ENGAGE STARTER ASM PART: A = 1-81100-141-1	5-81151-039-0	01	1	-9809
31	SWITCH; ENGAGE STARTER ASM PART: C = 1-81100-342-0	8-97226-673-0	01	1	-
50	BRUSH; (-),STARTER ASM PART: C = 1-81100-342-0	1-81116-023-0	02	1	-0003
50	BRUSH; (-),STARTER ASM PART: B = 1-81100-264-1	1-81116-043-0	02	1	-
50	BRUSH; (-),STARTER ASM PART: C = 1-81100-342-0	1-81116-072-0	02	1	0004-
54	CLUTCH; PINION,STARTER ASM PART: B = 1-81100-264-1	1-81122-056-0	01	1	-
54	CLUTCH; PINION,STARTER ASM PART: C = 1-81100-342-0	1-81123-009-6	01	1	-
54	CLUTCH; PINION,STARTER ASM PART: A = 1-81100-141-1	5-81124-004-0	01	1	-
67	BEARING; CENTER,STARTER ASM PART: C = 1-81100-342-0	8-97226-651-0	01	1	-
73	STOPPER SET; PINION ASM PART: C = 1-81100-342-0	1-81129-176-0	01	1	-
82	COVER; DUST ENGAGE SW STARTER ASM PART: C = 1-81100-342-0	1-81129-182-0	01	1	-
90	GASKET; ARMATURE ASM PART: C = 1-81100-342-0	1-81129-180-0	01	1	-
93	SEAL; OIL,CENTER BEARING,STARTER ASM PART: C = 1-81100-342-0	8-97226-652-0	01	1	-

İpucu: çizimdeki balona veya tablodaki Balon sütununa tıkla; ilgili parçalar vurgulanır. Birden çok çizim varsa üstteki seçim kutusu/oklarla gezin.
