Isuzu WW
▶
TRUCKS
▶
FVM
▶
11351 - FVM CNG(THAILAND)
▶
0 - Engine, Emission, Engine Electrical
▶
0-10 - CYLINDER HEAD COVER
▶

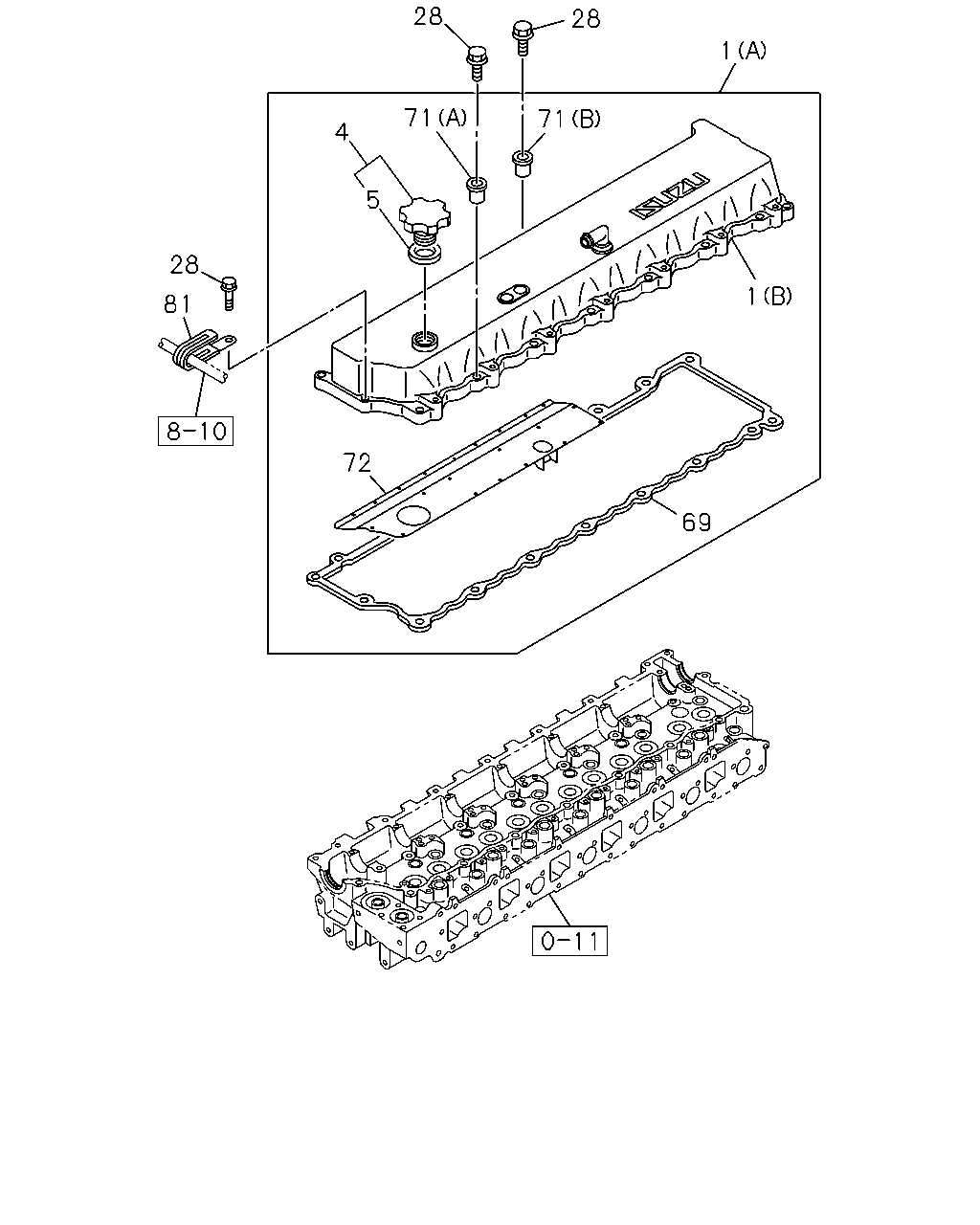

0-10 — CYLINDER HEAD COVER
(#21759) — 10 parça
28
28
1
71
71
4
5
28
1
81
72
69
Balon
Parca Adi
Parca No
Adet
Tip
Applied Date
1
COVER; CYL HD
(A)
8-98153-621-0
01
1
1103-
1
COVER; CYL HD
(B)
8-98153-626-0
01
1
1103-
4
CAP; OIL FILLER
8-94399-723-0
01
1
1103-
5
GASKET; OIL FILLER
ALSO INCLUDED IN GASKET SET(ENGINE). ID=49 OD=58
8-94399-689-0
01
1
1103-
28
BOLT; HD COVER
M8X35 FLANGE THA
0-28050-835-0
19
1
1103-
69
GASKET; HD TO COVER
ALSO INCLUDED IN GASKET SET(ENG. & HEAD)
8-94396-383-0
01
1
1103-
71
COLLAR; HD COVER
(A) OD=12.3
8-94396-971-1
18
1
1103-
71
COLLAR; HD COVER
(B) OD=11
8-94396-972-1
01
1
1103-
72
PLATE; INNER HD COVER
8-98015-023-0
01
1
1103-
81
CLIP; HARNESS
ID=18 L=44
8-97367-985-1
01
1
1103-
Seçili parçaları sepete ekle
İpucu: çizimdeki balona veya tablodaki
Balon
sütununa tıkla; ilgili parçalar vurgulanır. Birden çok çizim varsa üstteki seçim kutusu/oklarla gezin.
