Sayfa 2-05 - Isuzu EPC

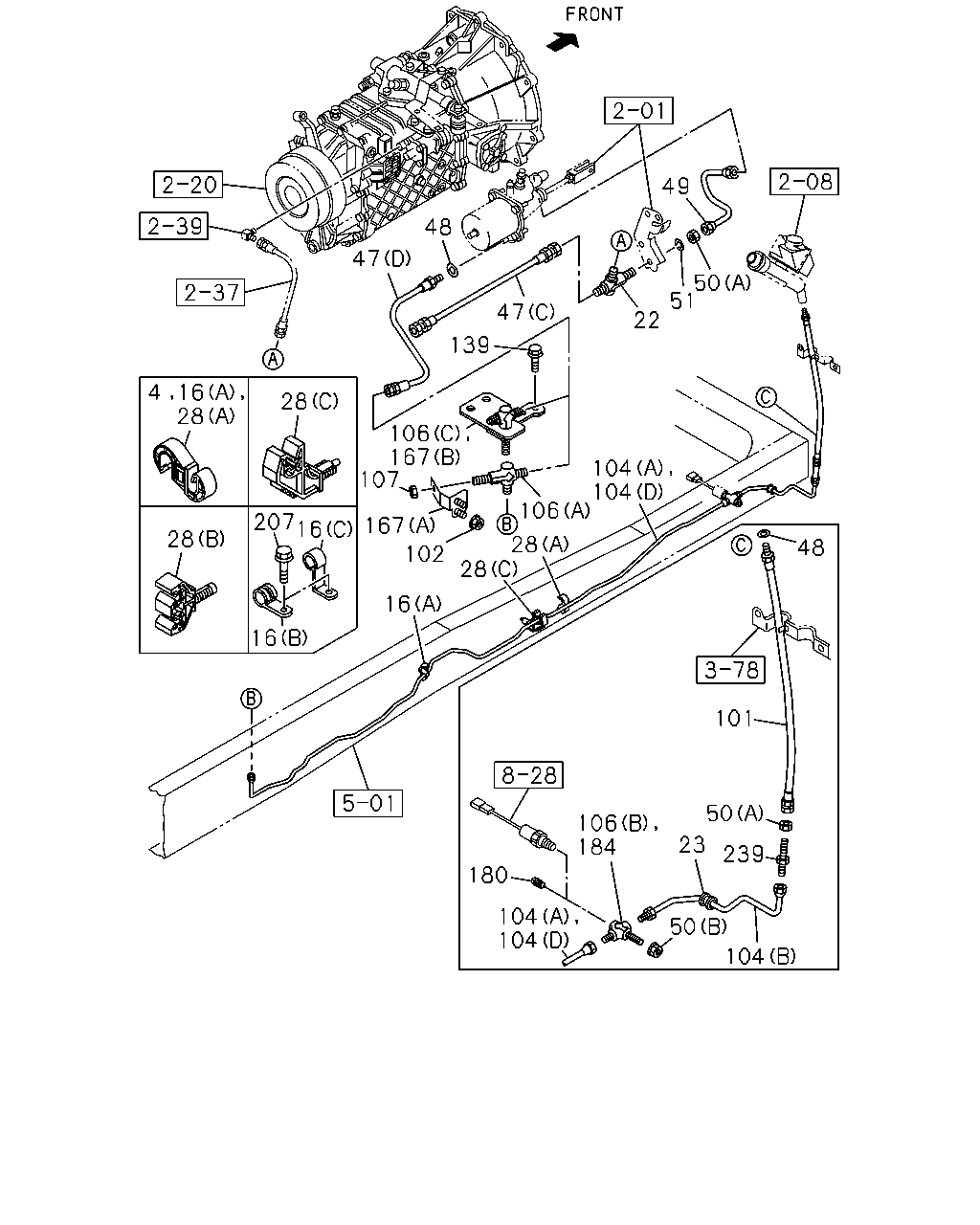

2-05 — CLUTCH PIPING (#21754) — 223 parça

48 101 50 239 104 106 184 23 180 50 104 104 52 53 49 53 107 104 104 50 22 47 16 51 106 48 28 28 28 47

Balon	Parca Adi	Parca No	Adet	Tip	Applied Date	A	B
16	CLIP; FLEX HOSE MLD6Q M/T(X5J),MLD6W M/T(Y2C) EXC. TRANSMISSION CONTROL-SMOOTHER(8GF) (A) ID=10 & 10	1-09709-277-1	01	1	0806-0901	●
16	CLIP; FLEX HOSE 6HK1-TCN ENG(82L) MLD6Q M/T(X5J) EXC. TRANSMISSION CONTROL-SMOOTHER(8GF) (A) ID=10 & 10	1-09709-277-1	01	1	0806-0901		●
16	CLIP; FLEX HOSE EXC. TRANSMISSION CONTROL-SMOOTHER(8GF) (A) ID=10 & 12	1-09709-278-1	01	1	0710-0711	●
16	CLIP; FLEX HOSE EXC. TRANSMISSION CONTROL-SMOOTHER(8GF) (A) ID=10 & 12	1-09709-278-1	01	1	0710-0711	●
16	CLIP; FLEX HOSE EXC. TRANSMISSION CONTROL-SMOOTHER(8GF) (A) ID=10 & 12	1-09709-278-1	01	1	0712-0901	●	●
16	CLIP; FLEX HOSE EXC. TRANSMISSION CONTROL-SMOOTHER(8GF) (A) ID=10 & 12	1-09709-278-1	01	1	0712-0901	●
16	CLIP; FLEX HOSE 6HK1-TCN ENG(82L) EXC. TRANSMISSION CONTROL-SMOOTHER(8GF) (A) ID=10 & 12	1-09709-278-1	01	1	0712-0901		●
16	CLIP; FLEX HOSE MZX6P M/T(RSW) EXC. TRANSMISSION CONTROL-SMOOTHER(8GF) (A) ID=10 & 12	1-09709-278-1	01	1	0902-0906	●	●
16	CLIP; FLEX HOSE MZX6P M/T(RSW),MZW6P M/T(RSZ) EXC. TRANSMISSION CONTROL-SMOOTHER(8GF) (A) ID=10 & 12	1-09709-278-1	01	1	0907-	●	●
16	CLIP; FLEX HOSE 4HK1-TCS ENG(RJS) MLD6Q M/T(X5J) (C) ID=11 H=45 L=25	1-09700-866-0	01	1	0806-		●
16	CLIP; FLEX HOSE 4HK1-TCS ENG(RJS) MLD6Q M/T(X5J) EXC. TRANSMISSION CONTROL-SMOOTHER(8GF) (A) ID=10 & 12	1-09709-278-1	02	1	0808-0901		●
16	CLIP; FLEX HOSE MLD6Q M/T(X5J),MLD6W M/T(Y2C) EXC. TRANSMISSION CONTROL-SMOOTHER(8GF) (A) ID=10 & 12	1-09709-278-1	02	1	0902-	●	●
16	CLIP; FLEX HOSE 4HK1-TCS ENG(RJS) EXC. TRANSMISSION CONTROL-SMOOTHER(8GF) (B) ID=15 L=28	1-09701-216-0	01	1	0712-0803		●
16	CLIP; FLEX HOSE 4HK1-TCS ENG(RJS) MZX6P M/T(RSW) EXC. TRANSMISSION CONTROL-SMOOTHER(8GF) (B) ID=15 L=28	1-09701-216-0	01	1	0804-0906		●
16	CLIP; FLEX HOSE 4HK1-TCS ENG(RJS) MZX6P M/T(RSW),MZW6P M/T(RSZ) EXC. TRANSMISSION CONTROL-SMOOTHER(8GF) (B) ID=15 L=28	1-09701-216-0	01	1	0907-		●
22	UNION; CLU PIPE 15" CLUTCH(RE9) ASSISTOR SHIFT CONTROL<WX8> M12 3WAY	0-92138-706-0	01	1	0710-0711	●
22	UNION; CLU PIPE MZX6P M/T(RSW) 15" CLUTCH(RE9),14" CLUTCH(WF6) ASSISTOR SHIFT CONTROL<WX8> M12 3WAY	0-92138-706-0	01	1	0712-	●	●
23	GROMMET; CLU PIPE EXC. TRANSMISSION CONTROL-SMOOTHER(8GF) ID=15 OD=20 T=17.5	1-09332-130-0	01	1	0710-0711	●
23	GROMMET; CLU PIPE EXC. TRANSMISSION CONTROL-SMOOTHER(8GF) ID=15 OD=20 T=17.5	1-09332-130-0	01	1	0712-	●	●
28	CLIP; OIL PIPE EXC. TRANSMISSION CONTROL-SMOOTHER(8GF) (C) ID=6.35	1-09701-247-1	01	1	0710-0711	●
28	CLIP; OIL PIPE EXC. TRANSMISSION CONTROL-SMOOTHER(8GF) (C) ID=6.35	1-09701-247-1	01	1	0712-0910	●	●
28	CLIP; OIL PIPE EXC. TRANSMISSION CONTROL-SMOOTHER(8GF) (C) ID=6.35	1-09701-247-1	01	1	0911-	●	●
28	CLIP; OIL PIPE EXC. TRANSMISSION CONTROL-SMOOTHER(8GF) (C) ID=6.35	1-09701-247-1	01	1	0911-	●
28	CLIP; OIL PIPE 4HK1-TCS ENG(RJS) EXC. TRANSMISSION CONTROL-SMOOTHER(8GF) (C) ID=6.35	1-09701-247-1	01	1	0911-		●
28	CLIP; OIL PIPE EXC. TRANSMISSION CONTROL-SMOOTHER(8GF) (A) ID=6.35 & 10.0	1-09709-274-1	03	1	0710-0711	●
28	CLIP; OIL PIPE EXC. TRANSMISSION CONTROL-SMOOTHER(8GF) (A) ID=6.35 & 10.0	1-09709-274-1	03	1	0712-	●	●
28	CLIP; OIL PIPE EXC. TRANSMISSION CONTROL-SMOOTHER(8GF) (B)	8-98012-254-1	01	1	0710-	●
28	CLIP; OIL PIPE 6HK1-TCN ENG(82L) EXC. TRANSMISSION CONTROL-SMOOTHER(8GF) (A) ID=4.76 & 6.35	1-09709-304-0	01	1	0803-		●
28	CLIP; OIL PIPE 6HK1-TCN ENG(82L) EXC. TRANSMISSION CONTROL-SMOOTHER(8GF) (B)	8-98012-254-1	02	1	0803-		●
47	HOSE; FLEX,CLU CONT EXC. ASSISTOR SHIFT CONTROL<WX8>,TRANSMISSION CONTROL-SMOOTHER(8GF) (A) L=640	1-09363-974-0	01	1	0712-	●
47	HOSE; FLEX,CLU CONT 6HK1-TCN ENG(82L) EXC. ASSISTOR SHIFT CONTROL<WX8>,TRANSMISSION CONTROL-SMOOTHER(8GF) (A) L=640	1-09363-974-0	01	1	0712-		●
47	HOSE; FLEX,CLU CONT EXC. TRANSMISSION CONTROL-SMOOTHER(8GF) (A) L=540	1-09363-612-1	01	1	0710-0711	●
47	HOSE; FLEX,CLU CONT ASSISTOR SHIFT CONTROL<WX8> EXC. TRANSMISSION CONTROL-SMOOTHER(8GF) (A) L=540	1-09363-612-1	01	1	0712-	●
47	HOSE; FLEX,CLU CONT 6HK1-TCN ENG(82L) ASSISTOR SHIFT CONTROL<WX8> EXC. TRANSMISSION CONTROL-SMOOTHER(8GF) (A) L=540	1-09363-612-1	01	1	0712-		●
47	HOSE; FLEX,CLU CONT EXC. TRANSMISSION CONTROL-SMOOTHER(8GF) (B) L=470	8-98072-353-0	01	1	0710-0906	●
47	HOSE; FLEX,CLU CONT EXC. TRANSMISSION CONTROL-SMOOTHER(8GF) (B) L=470	8-98072-353-0	01	1	0907-	●
47	HOSE; FLEX,CLU CONT 6HK1-TCN ENG(82L) EXC. TRANSMISSION CONTROL-SMOOTHER(8GF) (B) L=470	8-98072-353-0	01	1	0907-		●
47	HOSE; FLEX,CLU CONT 4HK1-TCS ENG(RJS) EXC. ASSISTOR SHIFT CONTROL<WX8>,TRANSMISSION CONTROL-SMOOTHER(8GF) (D) L=740	1-09363-674-0	01	1	0712-		●
47	HOSE; FLEX,CLU CONT 4HK1-TCS ENG(RJS) MLD6Q M/T(X5J) EXC. TRANSMISSION CONTROL-SMOOTHER(8GF) (D) L=520	8-98122-511-0	01	1	0806-		●
47	HOSE; FLEX,CLU CONT 4HK1-TCS ENG(RJS) EXC. TRANSMISSION CONTROL-SMOOTHER(8GF) (D) L=660	1-09363-971-0	01	1	0712-0712		●
47	HOSE; FLEX,CLU CONT 4HK1-TCS ENG(RJS) ASSISTOR SHIFT CONTROL<WX8> EXC. TRANSMISSION CONTROL-SMOOTHER(8GF) (D) L=660	1-09363-971-0	01	1	0712-		●
47	HOSE; FLEX,CLU CONT 4HK1-TCS ENG(RJS) EXC. TRANSMISSION CONTROL-SMOOTHER(8GF) (C) L=550	8-98080-979-0	01	1	0712-0803		●
47	HOSE; FLEX,CLU CONT 4HK1-TCS ENG(RJS) MZX6P M/T(RSW) EXC. TRANSMISSION CONTROL-SMOOTHER(8GF) (C) L=550	8-98080-979-0	01	1	0804-0906		●
47	HOSE; FLEX,CLU CONT 4HK1-TCS ENG(RJS) MZX6P M/T(RSW),MZW6P M/T(RSZ) EXC. TRANSMISSION CONTROL-SMOOTHER(8GF) (C) L=550	8-98080-979-0	01	1	0907-		●
48	GASKET; FLEX HOSE,CLU CONT EXC. TRANSMISSION CONTROL-SMOOTHER(8GF) ID=10.2 OD=16.0	9-09571-410-0	01	1	0710-0711	●
48	GASKET; FLEX HOSE,CLU CONT EXC. TRANSMISSION CONTROL-SMOOTHER(8GF) ID=10.2 OD=16.0	9-09571-410-0	01	1	0712-0712	●	●
48	GASKET; FLEX HOSE,CLU CONT EXC. TRANSMISSION CONTROL-SMOOTHER(8GF) ID=10.2 OD=16.0	9-09571-410-0	02	1	0801-	●	●
49	PIPE; AIR,FLEX HOSE TO CLU BOOSTER 15" CLUTCH(RE9) L=239	1-49117-401-0	01	1	0710-0711	●
49	PIPE; AIR,FLEX HOSE TO CLU BOOSTER 15" CLUTCH(RE9) L=239	1-49117-401-0	01	1	0712-	●
49	PIPE; AIR,FLEX HOSE TO CLU BOOSTER 6HK1-TCN ENG(82L) 15" CLUTCH(RE9),14" CLUTCH(WF6) L=239	1-49117-401-0	01	1	0712-		●
49	PIPE; AIR,FLEX HOSE TO CLU BOOSTER 4HK1-TCS ENG(RJS) 14" CLUTCH(WF6) L=204	1-49117-400-0	01	1	0712-		●
50	NUT; UNION EXC. TRANSMISSION CONTROL-SMOOTHER(8GF) (B) M12	0-91111-512-0	01	1	0710-0711	●
50	NUT; UNION EXC. TRANSMISSION CONTROL-SMOOTHER(8GF) (B) M12	0-91111-512-0	01	1	0712-	●	●
50	NUT; UNION EXC. TRANSMISSION CONTROL-SMOOTHER(8GF) (A) M12	9-09840-280-0	01	1	0710-0711	●
50	NUT; UNION 15" CLUTCH(RE9) ASSISTOR SHIFT CONTROL<WX8> (A) M12	9-09840-280-0	01	1	0710-0711	●
50	NUT; UNION EXC. TRANSMISSION CONTROL-SMOOTHER(8GF) (A) M12	9-09840-280-0	01	1	0712-0712	●	●
50	NUT; UNION 15" CLUTCH(RE9),14" CLUTCH(WF6) ASSISTOR SHIFT CONTROL<WX8> (A) M12	9-09840-280-0	01	1	0712-0712	●	●
50	NUT; UNION EXC. TRANSMISSION CONTROL-SMOOTHER(8GF) (A) M12	9-09840-280-0	01	1	0801-	●	●
50	NUT; UNION 15" CLUTCH(RE9),14" CLUTCH(WF6) ASSISTOR SHIFT CONTROL<WX8> (A) M12	9-09840-280-0	01	1	0801-	●	●
50	NUT; UNION EXC. ASSISTOR SHIFT CONTROL<WX8>,TRANSMISSION CONTROL-SMOOTHER(8GF) (A) M12	9-09840-280-0	01	1	0801-	●	●
51	WASHER; LK 15" CLUTCH(RE9) ASSISTOR SHIFT CONTROL<WX8> ID=12.2	0-91510-512-0	01	1	0710-0711	●
51	WASHER; LK 15" CLUTCH(RE9),14" CLUTCH(WF6) ASSISTOR SHIFT CONTROL<WX8> ID=12.2	0-91510-512-0	01	1	0712-0712	●	●
51	WASHER; LK 15" CLUTCH(RE9),14" CLUTCH(WF6) ASSISTOR SHIFT CONTROL<WX8> ID=12.2	0-91510-512-0	01	1	0801-	●	●
51	WASHER; LK EXC. ASSISTOR SHIFT CONTROL<WX8>,TRANSMISSION CONTROL-SMOOTHER(8GF) ID=12.2	0-91510-512-0	01	1	0801-	●	●
52	BOLT; EYE,AIR PIPE 15" CLUTCH(RE9) M14X27 FLANGE	1-09675-086-0	01	1	0710-0711	●
52	BOLT; EYE,AIR PIPE 15" CLUTCH(RE9) M14X27 FLANGE	1-09675-086-0	01	1	0712-	●
52	BOLT; EYE,AIR PIPE 6HK1-TCN ENG(82L) 15" CLUTCH(RE9),14" CLUTCH(WF6) M14X27 FLANGE	1-09675-086-0	01	1	0712-		●
53	GASKET; JOINT BOLT 15" CLUTCH(RE9) ID=14.2 OD=19.2	1-09630-085-0	02	1	0710-0711	●
53	GASKET; JOINT BOLT 15" CLUTCH(RE9) ID=14.2 OD=19.2	1-09630-085-0	02	1	0712-1312	●
53	GASKET; JOINT BOLT 6HK1-TCN ENG(82L) 15" CLUTCH(RE9),14" CLUTCH(WF6) ID=14.2 OD=19.2	1-09630-085-0	02	1	0712-1312		●
53	GASKET; JOINT BOLT 15" CLUTCH(RE9) ID=14.2 OD=19.2	8-98251-345-0	02	1	1401-	●
53	GASKET; JOINT BOLT 6HK1-TCN ENG(82L) 15" CLUTCH(RE9),14" CLUTCH(WF6) ID=14.2 OD=19.2	8-98251-345-0	02	1	1401-		●
101	HOSE; FLEX,OIL PIPE TO OIL PIPE EXC. TRANSMISSION CONTROL-SMOOTHER(8GF) L=500	8-98072-350-0	01	1	0710-0906	●
101	HOSE; FLEX,OIL PIPE TO OIL PIPE EXC. TRANSMISSION CONTROL-SMOOTHER(8GF) L=500	8-98072-350-0	01	1	0907-	●
101	HOSE; FLEX,OIL PIPE TO OIL PIPE 6HK1-TCN ENG(82L) EXC. TRANSMISSION CONTROL-SMOOTHER(8GF) L=500	8-98072-350-0	01	1	0907-		●
101	HOSE; FLEX,OIL PIPE TO OIL PIPE 4HK1-TCS ENG(RJS) EXC. TRANSMISSION CONTROL-SMOOTHER(8GF) L=440	8-98072-346-0	01	1	0712-		●
104	PIPE; OIL,FLEX HOSE TO CONNECTOR EXC. TRANSMISSION CONTROL-SMOOTHER(8GF) (B) L=336	8-98067-058-0	01	1	0710-0711	●
104	PIPE; OIL,FLEX HOSE TO CONNECTOR EXC. TRANSMISSION CONTROL-SMOOTHER(8GF) (B) L=336	8-98067-058-0	01	1	0712-	●	●
104	PIPE; OIL,FLEX HOSE TO CONNECTOR EXC. TRANSMISSION CONTROL-SMOOTHER(8GF) (A) L=2695	8-98078-148-2	01	1	0710-	●
104	PIPE; OIL,FLEX HOSE TO CONNECTOR 4HK1-TCS ENG(RJS) MLD6Q M/T(X5J) EXC. TRANSMISSION CONTROL-SMOOTHER(8GF) (D) L=2213	8-98115-609-2	01	1	0806-		●
104	PIPE; OIL,FLEX HOSE TO CONNECTOR 4HK1-TCS ENG(RJS) EXC. TRANSMISSION CONTROL-SMOOTHER(8GF) (D) L=2532	8-98101-087-0	01	1	0712-0803		●
104	PIPE; OIL,FLEX HOSE TO CONNECTOR 4HK1-TCS ENG(RJS) MZX6P M/T(RSW) EXC. TRANSMISSION CONTROL-SMOOTHER(8GF) (D) L=2532	8-98101-087-0	01	1	0804-0906		●
104	PIPE; OIL,FLEX HOSE TO CONNECTOR 4HK1-TCS ENG(RJS) MZX6P M/T(RSW),MZW6P M/T(RSZ) EXC. TRANSMISSION CONTROL-SMOOTHER(8GF) (D) L=2532	8-98101-087-0	01	1	0907-		●
104	PIPE; OIL,FLEX HOSE TO CONNECTOR 6HK1-TCN ENG(82L) EXC. TRANSMISSION CONTROL-SMOOTHER(8GF) (C) L=2666	8-98102-839-0	01	1	0712-0802		●
104	PIPE; OIL,FLEX HOSE TO CONNECTOR 6HK1-TCN ENG(82L) EXC. TRANSMISSION CONTROL-SMOOTHER(8GF) (C) SERVICED BY L=2650	1-47428-743-0	01	1	0803-		●
106	UNION; OIL PIPE EXC. TRANSMISSION CONTROL-SMOOTHER(8GF) (A) M12 2WAY	1-09654-059-2	01	1	0710-0711	●
106	UNION; OIL PIPE EXC. TRANSMISSION CONTROL-SMOOTHER(8GF) (A) M12 2WAY	1-09654-059-2	01	1	0712-0803	●	●
106	UNION; OIL PIPE EXC. TRANSMISSION CONTROL-SMOOTHER(8GF) (A) M12 2WAY	1-09654-059-2	01	1	0804-0906	●
106	UNION; OIL PIPE 4HK1-TCS ENG(RJS) MZX6P M/T(RSW) EXC. TRANSMISSION CONTROL-SMOOTHER(8GF) (A) M12 2WAY	1-09654-059-2	01	1	0804-0906		●
106	UNION; OIL PIPE 6HK1-TCN ENG(82L) EXC. TRANSMISSION CONTROL-SMOOTHER(8GF) (A) M12 2WAY	1-09654-059-2	01	1	0804-0906		●
106	UNION; OIL PIPE EXC. TRANSMISSION CONTROL-SMOOTHER(8GF) (A) M12 2WAY	1-09654-059-2	01	1	0907-	●
106	UNION; OIL PIPE 4HK1-TCS ENG(RJS) MZX6P M/T(RSW),MZW6P M/T(RSZ) EXC. TRANSMISSION CONTROL-SMOOTHER(8GF) (A) M12 2WAY	1-09654-059-2	01	1	0907-		●
106	UNION; OIL PIPE 6HK1-TCN ENG(82L) EXC. TRANSMISSION CONTROL-SMOOTHER(8GF) (A) M12 2WAY	1-09654-059-2	01	1	0907-		●
106	UNION; OIL PIPE EXC. TRANSMISSION CONTROL-SMOOTHER(8GF) (B) M12 3WAY	8-98051-113-0	01	1	0710-0711	●
106	UNION; OIL PIPE EXC. TRANSMISSION CONTROL-SMOOTHER(8GF) (B) M12 3WAY	8-98051-113-0	01	1	0712-0910	●	●
106	UNION; OIL PIPE H.S.A SYSTEM<6EP> EXC. TRANSMISSION CONTROL-SMOOTHER(8GF) (B) M12 3WAY	8-98051-113-0	01	1	0911-	●	●
106	UNION; OIL PIPE 4HK1-TCS ENG(RJS) MLD6Q M/T(X5J) EXC. TRANSMISSION CONTROL-SMOOTHER(8GF) (C)	8-98122-650-1	01	1	0806-0806		●
107	NUT; UNION,OIL PIPE EXC. TRANSMISSION CONTROL-SMOOTHER(8GF) M12	0-91111-512-0	01	1	0710-0711	●
107	NUT; UNION,OIL PIPE EXC. TRANSMISSION CONTROL-SMOOTHER(8GF) M12	0-91111-512-0	01	1	0712-0805	●	●
107	NUT; UNION,OIL PIPE EXC. TRANSMISSION CONTROL-SMOOTHER(8GF) M12	0-91111-512-0	01	1	0806-0906	●
107	NUT; UNION,OIL PIPE 4HK1-TCS ENG(RJS) MZX6P M/T(RSW) EXC. TRANSMISSION CONTROL-SMOOTHER(8GF) M12	0-91111-512-0	01	1	0806-0906		●
107	NUT; UNION,OIL PIPE 6HK1-TCN ENG(82L) EXC. TRANSMISSION CONTROL-SMOOTHER(8GF) M12	0-91111-512-0	01	1	0806-0906		●
107	NUT; UNION,OIL PIPE EXC. TRANSMISSION CONTROL-SMOOTHER(8GF) M12	0-91111-512-0	01	1	0907-	●
107	NUT; UNION,OIL PIPE 4HK1-TCS ENG(RJS) MZX6P M/T(RSW),MZW6P M/T(RSZ) EXC. TRANSMISSION CONTROL-SMOOTHER(8GF) M12	0-91111-512-0	01	1	0907-		●
107	NUT; UNION,OIL PIPE 6HK1-TCN ENG(82L) EXC. TRANSMISSION CONTROL-SMOOTHER(8GF) M12	0-91111-512-0	01	1	0907-		●
180	PLUG; PIPE EXC. H.S.A SYSTEM<6EP>,TRANSMISSION CONTROL-SMOOTHER(8GF)	9-09204-510-0	01	1	0710-0711	●
180	PLUG; PIPE EXC. H.S.A SYSTEM<6EP>,TRANSMISSION CONTROL-SMOOTHER(8GF)	9-09204-510-0	01	1	0712-0910	●	●
184	UNION; FLEX HOSE EXC. H.S.A SYSTEM<6EP>,TRANSMISSION CONTROL-SMOOTHER(8GF)	8-98150-865-0	01	1	0911-	●	●
239	UNION; CLU HOSE EXC. TRANSMISSION CONTROL-SMOOTHER(8GF) M12 L=66.5	0-92113-306-0	01	1	0710-0711	●
239	UNION; CLU HOSE EXC. TRANSMISSION CONTROL-SMOOTHER(8GF) M12 L=66.5	0-92113-306-0	01	1	0712-	●	●

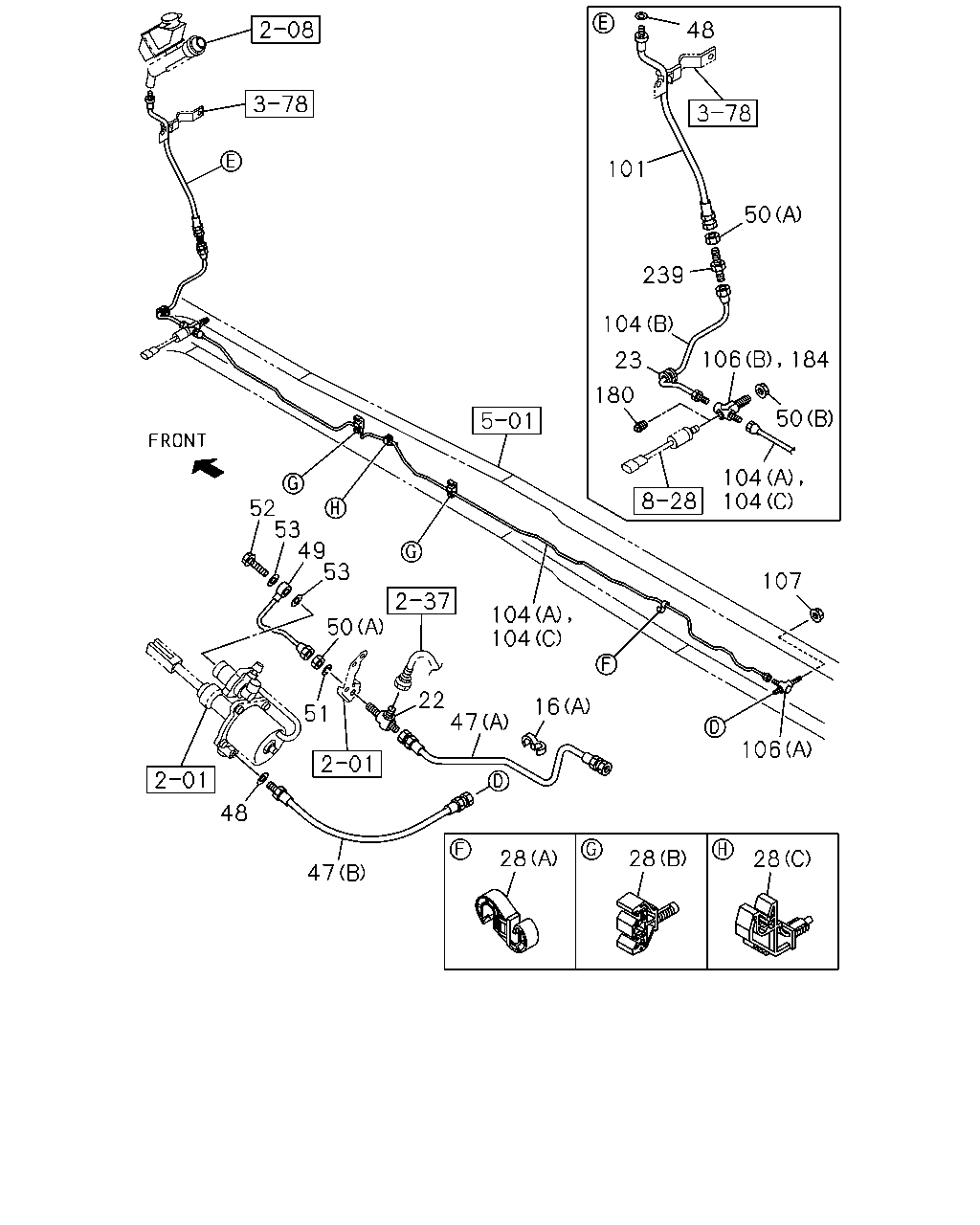

49 48 47 50 51 47 22 139 28 28 106 167 107 104 104 106 28 28 207 16 167 28 48 102 16 16 101 50 106 184 23 239 180 104 104 50 104 4 16

Balon	Parca Adi	Parca No	Adet	Tip	Applied Date	A	B
4	CLIP; FLEX HOSE,CLU CONT 4HK1-TCS ENG(RJS) MLD6Q M/T(X5J) EXC. TRANSMISSION CONTROL-SMOOTHER(8GF) ID=4.76 & 6.35	1-09709-304-0	01	1	0808-		●
16	CLIP; FLEX HOSE MLD6Q M/T(X5J),MLD6W M/T(Y2C) EXC. TRANSMISSION CONTROL-SMOOTHER(8GF) (A) ID=10 & 10	1-09709-277-1	01	1	0806-0901	●
16	CLIP; FLEX HOSE 6HK1-TCN ENG(82L) MLD6Q M/T(X5J) EXC. TRANSMISSION CONTROL-SMOOTHER(8GF) (A) ID=10 & 10	1-09709-277-1	01	1	0806-0901		●
16	CLIP; FLEX HOSE EXC. TRANSMISSION CONTROL-SMOOTHER(8GF) (A) ID=10 & 12	1-09709-278-1	01	1	0710-0711	●
16	CLIP; FLEX HOSE EXC. TRANSMISSION CONTROL-SMOOTHER(8GF) (A) ID=10 & 12	1-09709-278-1	01	1	0710-0711	●
16	CLIP; FLEX HOSE EXC. TRANSMISSION CONTROL-SMOOTHER(8GF) (A) ID=10 & 12	1-09709-278-1	01	1	0712-0901	●	●
16	CLIP; FLEX HOSE EXC. TRANSMISSION CONTROL-SMOOTHER(8GF) (A) ID=10 & 12	1-09709-278-1	01	1	0712-0901	●
16	CLIP; FLEX HOSE 6HK1-TCN ENG(82L) EXC. TRANSMISSION CONTROL-SMOOTHER(8GF) (A) ID=10 & 12	1-09709-278-1	01	1	0712-0901		●
16	CLIP; FLEX HOSE MZX6P M/T(RSW) EXC. TRANSMISSION CONTROL-SMOOTHER(8GF) (A) ID=10 & 12	1-09709-278-1	01	1	0902-0906	●	●
16	CLIP; FLEX HOSE MZX6P M/T(RSW),MZW6P M/T(RSZ) EXC. TRANSMISSION CONTROL-SMOOTHER(8GF) (A) ID=10 & 12	1-09709-278-1	01	1	0907-	●	●
16	CLIP; FLEX HOSE 4HK1-TCS ENG(RJS) MLD6Q M/T(X5J) (C) ID=11 H=45 L=25	1-09700-866-0	01	1	0806-		●
16	CLIP; FLEX HOSE 4HK1-TCS ENG(RJS) MLD6Q M/T(X5J) EXC. TRANSMISSION CONTROL-SMOOTHER(8GF) (A) ID=10 & 12	1-09709-278-1	02	1	0808-0901		●
16	CLIP; FLEX HOSE MLD6Q M/T(X5J),MLD6W M/T(Y2C) EXC. TRANSMISSION CONTROL-SMOOTHER(8GF) (A) ID=10 & 12	1-09709-278-1	02	1	0902-	●	●
16	CLIP; FLEX HOSE 4HK1-TCS ENG(RJS) EXC. TRANSMISSION CONTROL-SMOOTHER(8GF) (B) ID=15 L=28	1-09701-216-0	01	1	0712-0803		●
16	CLIP; FLEX HOSE 4HK1-TCS ENG(RJS) MZX6P M/T(RSW) EXC. TRANSMISSION CONTROL-SMOOTHER(8GF) (B) ID=15 L=28	1-09701-216-0	01	1	0804-0906		●
16	CLIP; FLEX HOSE 4HK1-TCS ENG(RJS) MZX6P M/T(RSW),MZW6P M/T(RSZ) EXC. TRANSMISSION CONTROL-SMOOTHER(8GF) (B) ID=15 L=28	1-09701-216-0	01	1	0907-		●
22	UNION; CLU PIPE 15" CLUTCH(RE9) ASSISTOR SHIFT CONTROL<WX8> M12 3WAY	0-92138-706-0	01	1	0710-0711	●
22	UNION; CLU PIPE MZX6P M/T(RSW) 15" CLUTCH(RE9),14" CLUTCH(WF6) ASSISTOR SHIFT CONTROL<WX8> M12 3WAY	0-92138-706-0	01	1	0712-	●	●
23	GROMMET; CLU PIPE EXC. TRANSMISSION CONTROL-SMOOTHER(8GF) ID=15 OD=20 T=17.5	1-09332-130-0	01	1	0710-0711	●
23	GROMMET; CLU PIPE EXC. TRANSMISSION CONTROL-SMOOTHER(8GF) ID=15 OD=20 T=17.5	1-09332-130-0	01	1	0712-	●	●
28	CLIP; OIL PIPE EXC. TRANSMISSION CONTROL-SMOOTHER(8GF) (C) ID=6.35	1-09701-247-1	01	1	0710-0711	●
28	CLIP; OIL PIPE EXC. TRANSMISSION CONTROL-SMOOTHER(8GF) (C) ID=6.35	1-09701-247-1	01	1	0712-0910	●	●
28	CLIP; OIL PIPE EXC. TRANSMISSION CONTROL-SMOOTHER(8GF) (C) ID=6.35	1-09701-247-1	01	1	0911-	●	●
28	CLIP; OIL PIPE EXC. TRANSMISSION CONTROL-SMOOTHER(8GF) (C) ID=6.35	1-09701-247-1	01	1	0911-	●
28	CLIP; OIL PIPE 4HK1-TCS ENG(RJS) EXC. TRANSMISSION CONTROL-SMOOTHER(8GF) (C) ID=6.35	1-09701-247-1	01	1	0911-		●
28	CLIP; OIL PIPE EXC. TRANSMISSION CONTROL-SMOOTHER(8GF) (A) ID=6.35 & 10.0	1-09709-274-1	03	1	0710-0711	●
28	CLIP; OIL PIPE EXC. TRANSMISSION CONTROL-SMOOTHER(8GF) (A) ID=6.35 & 10.0	1-09709-274-1	03	1	0712-	●	●
28	CLIP; OIL PIPE EXC. TRANSMISSION CONTROL-SMOOTHER(8GF) (B)	8-98012-254-1	01	1	0710-	●
28	CLIP; OIL PIPE 6HK1-TCN ENG(82L) EXC. TRANSMISSION CONTROL-SMOOTHER(8GF) (A) ID=4.76 & 6.35	1-09709-304-0	01	1	0803-		●
28	CLIP; OIL PIPE 6HK1-TCN ENG(82L) EXC. TRANSMISSION CONTROL-SMOOTHER(8GF) (B)	8-98012-254-1	02	1	0803-		●
47	HOSE; FLEX,CLU CONT EXC. ASSISTOR SHIFT CONTROL<WX8>,TRANSMISSION CONTROL-SMOOTHER(8GF) (A) L=640	1-09363-974-0	01	1	0712-	●
47	HOSE; FLEX,CLU CONT 6HK1-TCN ENG(82L) EXC. ASSISTOR SHIFT CONTROL<WX8>,TRANSMISSION CONTROL-SMOOTHER(8GF) (A) L=640	1-09363-974-0	01	1	0712-		●
47	HOSE; FLEX,CLU CONT EXC. TRANSMISSION CONTROL-SMOOTHER(8GF) (A) L=540	1-09363-612-1	01	1	0710-0711	●
47	HOSE; FLEX,CLU CONT ASSISTOR SHIFT CONTROL<WX8> EXC. TRANSMISSION CONTROL-SMOOTHER(8GF) (A) L=540	1-09363-612-1	01	1	0712-	●
47	HOSE; FLEX,CLU CONT 6HK1-TCN ENG(82L) ASSISTOR SHIFT CONTROL<WX8> EXC. TRANSMISSION CONTROL-SMOOTHER(8GF) (A) L=540	1-09363-612-1	01	1	0712-		●
47	HOSE; FLEX,CLU CONT EXC. TRANSMISSION CONTROL-SMOOTHER(8GF) (B) L=470	8-98072-353-0	01	1	0710-0906	●
47	HOSE; FLEX,CLU CONT EXC. TRANSMISSION CONTROL-SMOOTHER(8GF) (B) L=470	8-98072-353-0	01	1	0907-	●
47	HOSE; FLEX,CLU CONT 6HK1-TCN ENG(82L) EXC. TRANSMISSION CONTROL-SMOOTHER(8GF) (B) L=470	8-98072-353-0	01	1	0907-		●
47	HOSE; FLEX,CLU CONT 4HK1-TCS ENG(RJS) EXC. ASSISTOR SHIFT CONTROL<WX8>,TRANSMISSION CONTROL-SMOOTHER(8GF) (D) L=740	1-09363-674-0	01	1	0712-		●
47	HOSE; FLEX,CLU CONT 4HK1-TCS ENG(RJS) MLD6Q M/T(X5J) EXC. TRANSMISSION CONTROL-SMOOTHER(8GF) (D) L=520	8-98122-511-0	01	1	0806-		●
47	HOSE; FLEX,CLU CONT 4HK1-TCS ENG(RJS) EXC. TRANSMISSION CONTROL-SMOOTHER(8GF) (D) L=660	1-09363-971-0	01	1	0712-0712		●
47	HOSE; FLEX,CLU CONT 4HK1-TCS ENG(RJS) ASSISTOR SHIFT CONTROL<WX8> EXC. TRANSMISSION CONTROL-SMOOTHER(8GF) (D) L=660	1-09363-971-0	01	1	0712-		●
47	HOSE; FLEX,CLU CONT 4HK1-TCS ENG(RJS) EXC. TRANSMISSION CONTROL-SMOOTHER(8GF) (C) L=550	8-98080-979-0	01	1	0712-0803		●
47	HOSE; FLEX,CLU CONT 4HK1-TCS ENG(RJS) MZX6P M/T(RSW) EXC. TRANSMISSION CONTROL-SMOOTHER(8GF) (C) L=550	8-98080-979-0	01	1	0804-0906		●
47	HOSE; FLEX,CLU CONT 4HK1-TCS ENG(RJS) MZX6P M/T(RSW),MZW6P M/T(RSZ) EXC. TRANSMISSION CONTROL-SMOOTHER(8GF) (C) L=550	8-98080-979-0	01	1	0907-		●
48	GASKET; FLEX HOSE,CLU CONT EXC. TRANSMISSION CONTROL-SMOOTHER(8GF) ID=10.2 OD=16.0	9-09571-410-0	01	1	0710-0711	●
48	GASKET; FLEX HOSE,CLU CONT EXC. TRANSMISSION CONTROL-SMOOTHER(8GF) ID=10.2 OD=16.0	9-09571-410-0	01	1	0712-0712	●	●
48	GASKET; FLEX HOSE,CLU CONT EXC. TRANSMISSION CONTROL-SMOOTHER(8GF) ID=10.2 OD=16.0	9-09571-410-0	02	1	0801-	●	●
49	PIPE; AIR,FLEX HOSE TO CLU BOOSTER 15" CLUTCH(RE9) L=239	1-49117-401-0	01	1	0710-0711	●
49	PIPE; AIR,FLEX HOSE TO CLU BOOSTER 15" CLUTCH(RE9) L=239	1-49117-401-0	01	1	0712-	●
49	PIPE; AIR,FLEX HOSE TO CLU BOOSTER 6HK1-TCN ENG(82L) 15" CLUTCH(RE9),14" CLUTCH(WF6) L=239	1-49117-401-0	01	1	0712-		●
49	PIPE; AIR,FLEX HOSE TO CLU BOOSTER 4HK1-TCS ENG(RJS) 14" CLUTCH(WF6) L=204	1-49117-400-0	01	1	0712-		●
50	NUT; UNION EXC. TRANSMISSION CONTROL-SMOOTHER(8GF) (B) M12	0-91111-512-0	01	1	0710-0711	●
50	NUT; UNION EXC. TRANSMISSION CONTROL-SMOOTHER(8GF) (B) M12	0-91111-512-0	01	1	0712-	●	●
50	NUT; UNION EXC. TRANSMISSION CONTROL-SMOOTHER(8GF) (A) M12	9-09840-280-0	01	1	0710-0711	●
50	NUT; UNION 15" CLUTCH(RE9) ASSISTOR SHIFT CONTROL<WX8> (A) M12	9-09840-280-0	01	1	0710-0711	●
50	NUT; UNION EXC. TRANSMISSION CONTROL-SMOOTHER(8GF) (A) M12	9-09840-280-0	01	1	0712-0712	●	●
50	NUT; UNION 15" CLUTCH(RE9),14" CLUTCH(WF6) ASSISTOR SHIFT CONTROL<WX8> (A) M12	9-09840-280-0	01	1	0712-0712	●	●
50	NUT; UNION EXC. TRANSMISSION CONTROL-SMOOTHER(8GF) (A) M12	9-09840-280-0	01	1	0801-	●	●
50	NUT; UNION 15" CLUTCH(RE9),14" CLUTCH(WF6) ASSISTOR SHIFT CONTROL<WX8> (A) M12	9-09840-280-0	01	1	0801-	●	●
50	NUT; UNION EXC. ASSISTOR SHIFT CONTROL<WX8>,TRANSMISSION CONTROL-SMOOTHER(8GF) (A) M12	9-09840-280-0	01	1	0801-	●	●
51	WASHER; LK 15" CLUTCH(RE9) ASSISTOR SHIFT CONTROL<WX8> ID=12.2	0-91510-512-0	01	1	0710-0711	●
51	WASHER; LK 15" CLUTCH(RE9),14" CLUTCH(WF6) ASSISTOR SHIFT CONTROL<WX8> ID=12.2	0-91510-512-0	01	1	0712-0712	●	●
51	WASHER; LK 15" CLUTCH(RE9),14" CLUTCH(WF6) ASSISTOR SHIFT CONTROL<WX8> ID=12.2	0-91510-512-0	01	1	0801-	●	●
51	WASHER; LK EXC. ASSISTOR SHIFT CONTROL<WX8>,TRANSMISSION CONTROL-SMOOTHER(8GF) ID=12.2	0-91510-512-0	01	1	0801-	●	●
101	HOSE; FLEX,OIL PIPE TO OIL PIPE EXC. TRANSMISSION CONTROL-SMOOTHER(8GF) L=500	8-98072-350-0	01	1	0710-0906	●
101	HOSE; FLEX,OIL PIPE TO OIL PIPE EXC. TRANSMISSION CONTROL-SMOOTHER(8GF) L=500	8-98072-350-0	01	1	0907-	●
101	HOSE; FLEX,OIL PIPE TO OIL PIPE 6HK1-TCN ENG(82L) EXC. TRANSMISSION CONTROL-SMOOTHER(8GF) L=500	8-98072-350-0	01	1	0907-		●
101	HOSE; FLEX,OIL PIPE TO OIL PIPE 4HK1-TCS ENG(RJS) EXC. TRANSMISSION CONTROL-SMOOTHER(8GF) L=440	8-98072-346-0	01	1	0712-		●
102	NUT; FLEX HOSE,CLU CONT 4HK1-TCS ENG(RJS) MLD6Q M/T(X5J) EXC. TRANSMISSION CONTROL-SMOOTHER(8GF) M8 FLANGE	0-91180-108-0	02	1	0808-		●
102	NUT; FLEX HOSE,CLU CONT 4HK1-TCS ENG(RJS) EXC. TRANSMISSION CONTROL-SMOOTHER(8GF) M10 FLANGE	0-91180-210-0	02	1	0712-0807		●
102	NUT; FLEX HOSE,CLU CONT 4HK1-TCS ENG(RJS) MZX6P M/T(RSW) EXC. TRANSMISSION CONTROL-SMOOTHER(8GF) M10 FLANGE	0-91180-210-0	02	1	0808-0906		●
102	NUT; FLEX HOSE,CLU CONT 4HK1-TCS ENG(RJS) MZX6P M/T(RSW),MZW6P M/T(RSZ) EXC. TRANSMISSION CONTROL-SMOOTHER(8GF) M10 FLANGE	0-91180-210-0	02	1	0907-		●
104	PIPE; OIL,FLEX HOSE TO CONNECTOR EXC. TRANSMISSION CONTROL-SMOOTHER(8GF) (B) L=336	8-98067-058-0	01	1	0710-0711	●
104	PIPE; OIL,FLEX HOSE TO CONNECTOR EXC. TRANSMISSION CONTROL-SMOOTHER(8GF) (B) L=336	8-98067-058-0	01	1	0712-	●	●
104	PIPE; OIL,FLEX HOSE TO CONNECTOR EXC. TRANSMISSION CONTROL-SMOOTHER(8GF) (A) L=2695	8-98078-148-2	01	1	0710-	●
104	PIPE; OIL,FLEX HOSE TO CONNECTOR 4HK1-TCS ENG(RJS) MLD6Q M/T(X5J) EXC. TRANSMISSION CONTROL-SMOOTHER(8GF) (D) L=2213	8-98115-609-2	01	1	0806-		●
104	PIPE; OIL,FLEX HOSE TO CONNECTOR 4HK1-TCS ENG(RJS) EXC. TRANSMISSION CONTROL-SMOOTHER(8GF) (D) L=2532	8-98101-087-0	01	1	0712-0803		●
104	PIPE; OIL,FLEX HOSE TO CONNECTOR 4HK1-TCS ENG(RJS) MZX6P M/T(RSW) EXC. TRANSMISSION CONTROL-SMOOTHER(8GF) (D) L=2532	8-98101-087-0	01	1	0804-0906		●
104	PIPE; OIL,FLEX HOSE TO CONNECTOR 4HK1-TCS ENG(RJS) MZX6P M/T(RSW),MZW6P M/T(RSZ) EXC. TRANSMISSION CONTROL-SMOOTHER(8GF) (D) L=2532	8-98101-087-0	01	1	0907-		●
104	PIPE; OIL,FLEX HOSE TO CONNECTOR 6HK1-TCN ENG(82L) EXC. TRANSMISSION CONTROL-SMOOTHER(8GF) (C) L=2666	8-98102-839-0	01	1	0712-0802		●
104	PIPE; OIL,FLEX HOSE TO CONNECTOR 6HK1-TCN ENG(82L) EXC. TRANSMISSION CONTROL-SMOOTHER(8GF) (C) SERVICED BY L=2650	1-47428-743-0	01	1	0803-		●
106	UNION; OIL PIPE EXC. TRANSMISSION CONTROL-SMOOTHER(8GF) (A) M12 2WAY	1-09654-059-2	01	1	0710-0711	●
106	UNION; OIL PIPE EXC. TRANSMISSION CONTROL-SMOOTHER(8GF) (A) M12 2WAY	1-09654-059-2	01	1	0712-0803	●	●
106	UNION; OIL PIPE EXC. TRANSMISSION CONTROL-SMOOTHER(8GF) (A) M12 2WAY	1-09654-059-2	01	1	0804-0906	●
106	UNION; OIL PIPE 4HK1-TCS ENG(RJS) MZX6P M/T(RSW) EXC. TRANSMISSION CONTROL-SMOOTHER(8GF) (A) M12 2WAY	1-09654-059-2	01	1	0804-0906		●
106	UNION; OIL PIPE 6HK1-TCN ENG(82L) EXC. TRANSMISSION CONTROL-SMOOTHER(8GF) (A) M12 2WAY	1-09654-059-2	01	1	0804-0906		●
106	UNION; OIL PIPE EXC. TRANSMISSION CONTROL-SMOOTHER(8GF) (A) M12 2WAY	1-09654-059-2	01	1	0907-	●
106	UNION; OIL PIPE 4HK1-TCS ENG(RJS) MZX6P M/T(RSW),MZW6P M/T(RSZ) EXC. TRANSMISSION CONTROL-SMOOTHER(8GF) (A) M12 2WAY	1-09654-059-2	01	1	0907-		●
106	UNION; OIL PIPE 6HK1-TCN ENG(82L) EXC. TRANSMISSION CONTROL-SMOOTHER(8GF) (A) M12 2WAY	1-09654-059-2	01	1	0907-		●
106	UNION; OIL PIPE EXC. TRANSMISSION CONTROL-SMOOTHER(8GF) (B) M12 3WAY	8-98051-113-0	01	1	0710-0711	●
106	UNION; OIL PIPE EXC. TRANSMISSION CONTROL-SMOOTHER(8GF) (B) M12 3WAY	8-98051-113-0	01	1	0712-0910	●	●
106	UNION; OIL PIPE H.S.A SYSTEM<6EP> EXC. TRANSMISSION CONTROL-SMOOTHER(8GF) (B) M12 3WAY	8-98051-113-0	01	1	0911-	●	●
106	UNION; OIL PIPE 4HK1-TCS ENG(RJS) MLD6Q M/T(X5J) EXC. TRANSMISSION CONTROL-SMOOTHER(8GF) (C)	8-98122-650-1	01	1	0806-0806		●
107	NUT; UNION,OIL PIPE EXC. TRANSMISSION CONTROL-SMOOTHER(8GF) M12	0-91111-512-0	01	1	0710-0711	●
107	NUT; UNION,OIL PIPE EXC. TRANSMISSION CONTROL-SMOOTHER(8GF) M12	0-91111-512-0	01	1	0712-0805	●	●
107	NUT; UNION,OIL PIPE EXC. TRANSMISSION CONTROL-SMOOTHER(8GF) M12	0-91111-512-0	01	1	0806-0906	●
107	NUT; UNION,OIL PIPE 4HK1-TCS ENG(RJS) MZX6P M/T(RSW) EXC. TRANSMISSION CONTROL-SMOOTHER(8GF) M12	0-91111-512-0	01	1	0806-0906		●
107	NUT; UNION,OIL PIPE 6HK1-TCN ENG(82L) EXC. TRANSMISSION CONTROL-SMOOTHER(8GF) M12	0-91111-512-0	01	1	0806-0906		●
107	NUT; UNION,OIL PIPE EXC. TRANSMISSION CONTROL-SMOOTHER(8GF) M12	0-91111-512-0	01	1	0907-	●
107	NUT; UNION,OIL PIPE 4HK1-TCS ENG(RJS) MZX6P M/T(RSW),MZW6P M/T(RSZ) EXC. TRANSMISSION CONTROL-SMOOTHER(8GF) M12	0-91111-512-0	01	1	0907-		●
107	NUT; UNION,OIL PIPE 6HK1-TCN ENG(82L) EXC. TRANSMISSION CONTROL-SMOOTHER(8GF) M12	0-91111-512-0	01	1	0907-		●
139	BOLT; BRKT 4HK1-TCS ENG(RJS) MLD6Q M/T(X5J) EXC. TRANSMISSION CONTROL-SMOOTHER(8GF) M8X25 FLANGE	0-28650-825-0	02	1	0808-		●
167	BRACKET; UNION 4HK1-TCS ENG(RJS) MLD6Q M/T(X5J) EXC. TRANSMISSION CONTROL-SMOOTHER(8GF) (B)	8-98128-624-0	01	1	0807-		●
167	BRACKET; UNION 4HK1-TCS ENG(RJS) EXC. TRANSMISSION CONTROL-SMOOTHER(8GF) (A)	8-98086-811-0	01	1	0712-0803		●
167	BRACKET; UNION 4HK1-TCS ENG(RJS) MZX6P M/T(RSW) EXC. TRANSMISSION CONTROL-SMOOTHER(8GF) (A)	8-98086-811-1	01	1	0804-0906		●
167	BRACKET; UNION 4HK1-TCS ENG(RJS) MZX6P M/T(RSW),MZW6P M/T(RSZ) EXC. TRANSMISSION CONTROL-SMOOTHER(8GF) (A)	8-98086-811-1	01	1	0907-		●
180	PLUG; PIPE EXC. H.S.A SYSTEM<6EP>,TRANSMISSION CONTROL-SMOOTHER(8GF)	9-09204-510-0	01	1	0710-0711	●
180	PLUG; PIPE EXC. H.S.A SYSTEM<6EP>,TRANSMISSION CONTROL-SMOOTHER(8GF)	9-09204-510-0	01	1	0712-0910	●	●
184	UNION; FLEX HOSE EXC. H.S.A SYSTEM<6EP>,TRANSMISSION CONTROL-SMOOTHER(8GF)	8-98150-865-0	01	1	0911-	●	●
207	BOLT; CLIP 4HK1-TCS ENG(RJS) EXC. TRANSMISSION CONTROL-SMOOTHER(8GF) M8X25 FLANGE	0-28650-825-0	01	1	0712-		●
239	UNION; CLU HOSE EXC. TRANSMISSION CONTROL-SMOOTHER(8GF) M12 L=66.5	0-92113-306-0	01	1	0710-0711	●
239	UNION; CLU HOSE EXC. TRANSMISSION CONTROL-SMOOTHER(8GF) M12 L=66.5	0-92113-306-0	01	1	0712-	●	●

İpucu: çizimdeki balona veya tablodaki Balon sütununa tıkla; ilgili parçalar vurgulanır. Birden çok çizim varsa üstteki seçim kutusu/oklarla gezin.
