1-55 — EXHAUST BRAKE VALVE AND CONTROL CYLINDER (#21750) — 80 parça

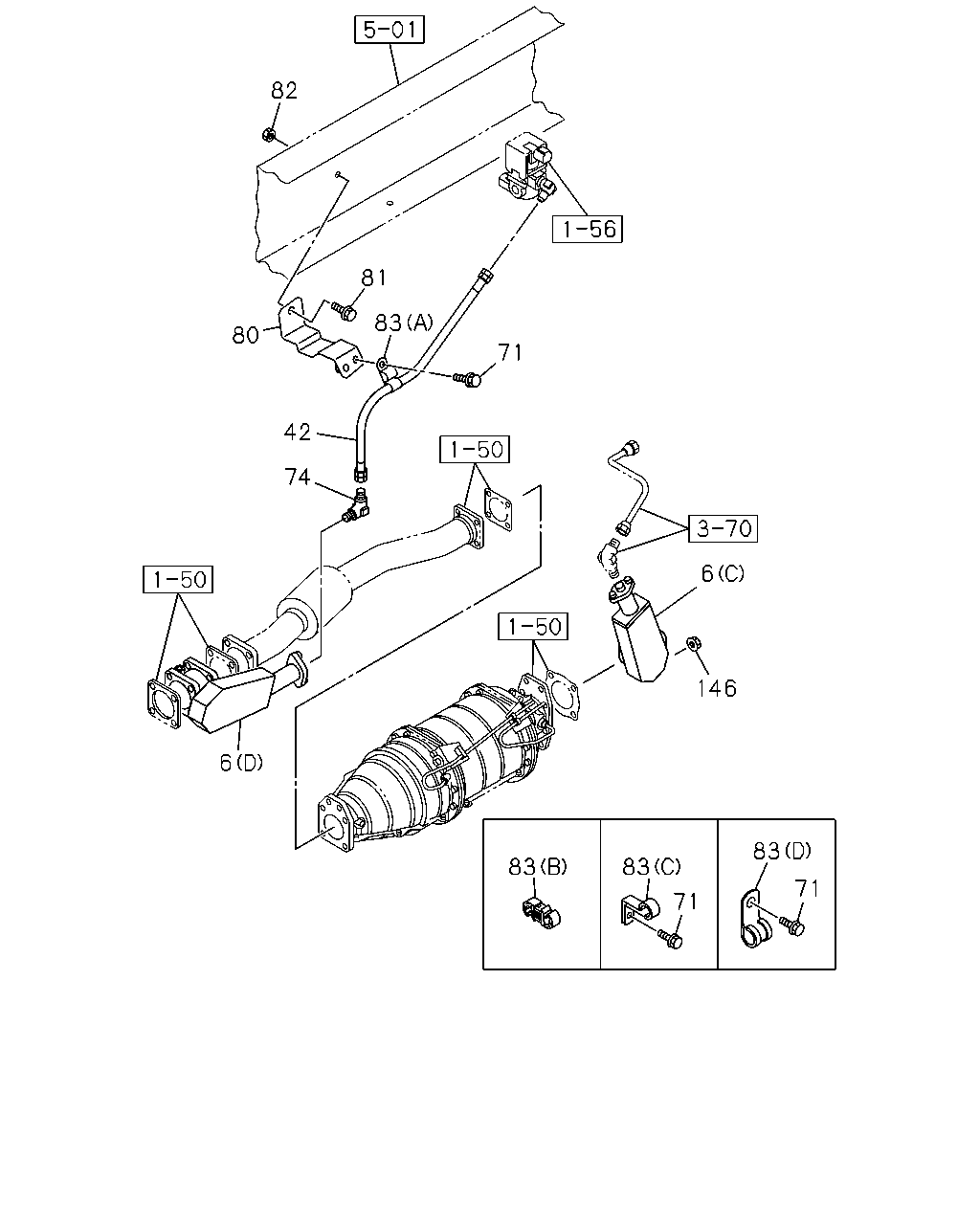

82 81 83 80 71 42 74 6 146 6 83 83 83 71 71

Balon	Parca Adi	Parca No	Adet	Tip	Applied Date	A	B	C
6	VALVE; EXH BRAKE (A)	8-98054-173-6	01	1	0710-1302	●	●
6	VALVE; EXH BRAKE (A)	8-98233-801-0	01	1	1303-	●	●
6	VALVE; EXH BRAKE (B)	8-98054-186-6	01	1	0710-	●	●
6	VALVE; EXH BRAKE (D)	8-98054-172-6	01	1	0712-			●
6	VALVE; EXH BRAKE WHEEL BASE 5100MM(51W) (C)	8-98054-188-6	01	1	0712-			●
42	HOSE; FLEX,EXH BRK L=520	1-09363-957-0	01	1	0710-	●	●
42	HOSE; FLEX,EXH BRK L=500	1-09363-733-0	01	1	0712-0803			●
42	HOSE; FLEX,EXH BRK MZX6P M/T(RSW) L=500	1-09363-733-0	01	1	0804-0906			●
42	HOSE; FLEX,EXH BRK MZX6P M/T(RSW),MZW6P M/T(RSZ) L=500	1-09363-733-0	01	1	0907-			●
42	HOSE; FLEX,EXH BRK MLD6Q M/T(X5J) L=600	1-09363-639-0	01	1	0806-0806			●
42	HOSE; FLEX,EXH BRK MLD6Q M/T(X5J) L=620	1-09363-705-0	01	1	0807-			●
71	BOLT; CLIP M8X25 FLANGE	0-28650-825-0	01	1	0710-0711	●	●
71	BOLT; CLIP M8X25 FLANGE	0-28650-825-0	01	1	0712-	●	●	●
74	CONNECTOR; EXH BRK VLV M12 & PT1/4 ELBOW	1-09650-430-0	01	1	0710-0806	●	●
74	CONNECTOR; EXH BRK VLV M12 & PT1/4 ELBOW	1-09650-430-0	01	1	0807-	●	●
74	CONNECTOR; EXH BRK VLV MLD6Q M/T(X5J) M12 & PT1/4 ELBOW	1-09650-430-0	01	1	0807-			●
74	CONNECTOR; EXH BRK VLV M12 & PT1/4 ELBOW	1-48629-258-0	01	1	0712-0806			●
74	CONNECTOR; EXH BRK VLV MZX6P M/T(RSW) M12 & PT1/4 ELBOW	1-48629-258-0	01	1	0807-0906			●
74	CONNECTOR; EXH BRK VLV MZX6P M/T(RSW),MZW6P M/T(RSZ) M12 & PT1/4 ELBOW	1-48629-258-0	01	1	0907-			●
80	BRACKET; FLEX HOSE	8-98078-153-0	01	1	0710-0711	●
80	BRACKET; FLEX HOSE SGL CAB(FC*M)	8-98078-153-0	01	1	0710-0711		●
80	BRACKET; FLEX HOSE	8-98078-153-0	01	1	0712-	●	●
80	BRACKET; FLEX HOSE	8-98090-040-0	01	1	0712-0806			●
80	BRACKET; FLEX HOSE MZX6P M/T(RSW)	8-98090-040-0	01	1	0807-0906			●
80	BRACKET; FLEX HOSE MZX6P M/T(RSW),MZW6P M/T(RSZ)	8-98090-040-0	01	1	0907-			●
81	BOLT; HOSE BRKT M10X30 FLANGE	0-28651-030-0	01	1	0710-0711	●	●
81	BOLT; HOSE BRKT M10X30 FLANGE	0-28651-030-0	01	1	0712-0801	●	●	●
81	BOLT; HOSE BRKT M10X25 FLANGE	0-28051-025-0	01	1	0802-	●	●	●
82	NUT; HOSE BRKT M10 FLANGE	0-91180-210-0	01	1	0710-0711	●	●
82	NUT; HOSE BRKT M10 FLANGE	0-91180-210-0	01	1	0712-	●	●	●
83	CLIP; FLEX HOSE (A) ID=11X2 L=16	1-09700-820-0	01	1	0710-0711	●	●	●
83	CLIP; FLEX HOSE (A) ID=11X2 L=16	1-09700-820-0	01	1	0712-	●	●
83	CLIP; FLEX HOSE (C) ID=15 L=22 H=30	1-09701-215-1	01	1	0712-0803			●
83	CLIP; FLEX HOSE MZX6P M/T(RSW) (C) ID=15 L=22 H=30	1-09701-215-1	01	1	0804-0906			●
83	CLIP; FLEX HOSE MZX6P M/T(RSW),MZW6P M/T(RSZ) (C) ID=15 L=22 H=30	1-09701-215-1	01	1	0907-			●
83	CLIP; FLEX HOSE MLD6Q M/T(X5J) (D) ID=11 L=50	0-95235-085-0	01	1	0806-			●
83	CLIP; FLEX HOSE EXC. TRANSMISSION CONTROL-SMOOTHER(8GF) (B) ID=10 & 10	1-09709-277-1	01	1	0712-			●
146	NUT; EXH BRK VLV M10	0-91110-510-0	04	1	0710-0712	●	●
146	NUT; EXH BRK VLV M10 FLANGE	0-91180-210-0	04	1	0801-	●	●
146	NUT; EXH BRK VLV M8 W/LK WASHER	8-97581-234-0	04	1	0712-			●

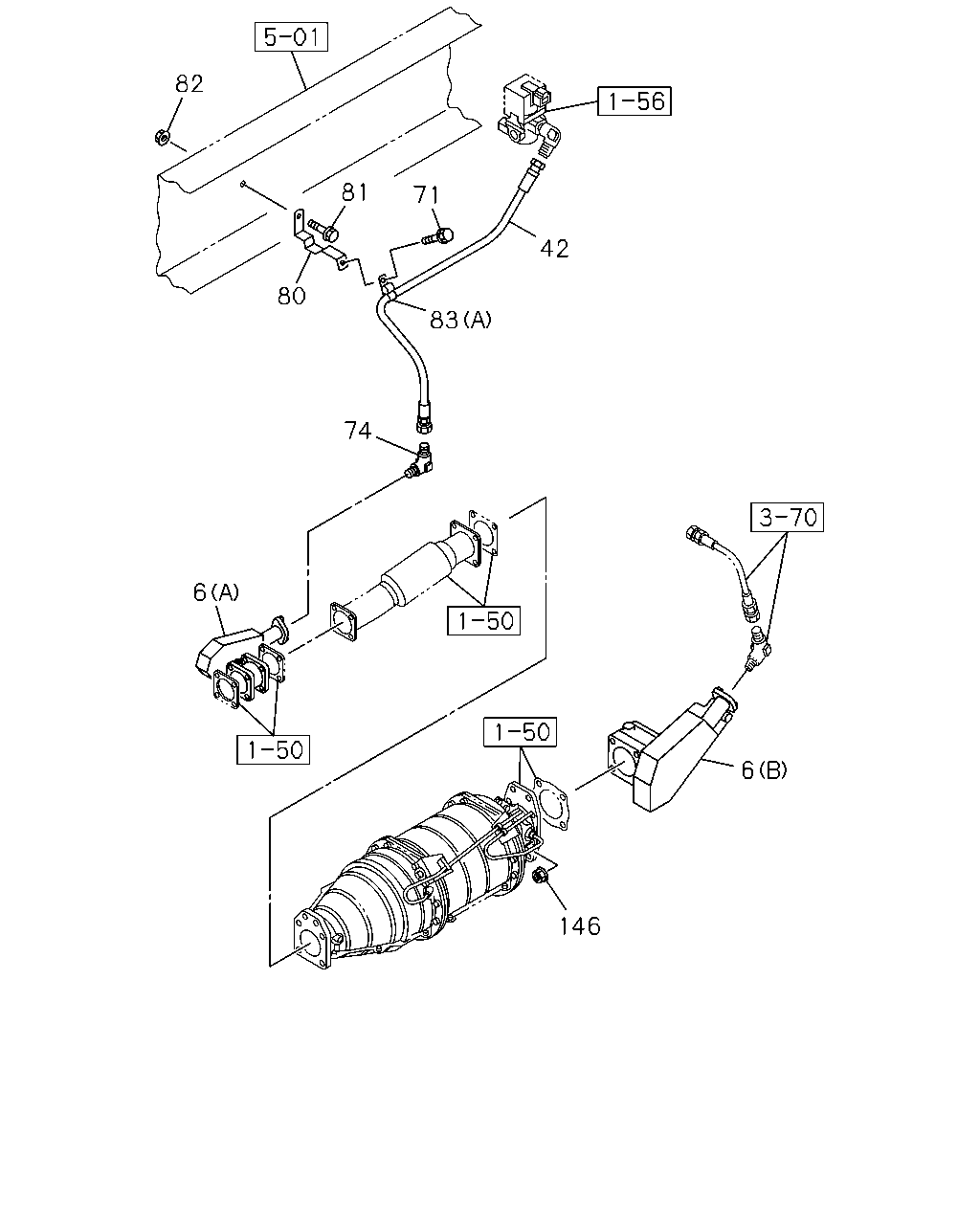

82 81 71 42 80 83 74 6 6 146

Balon	Parca Adi	Parca No	Adet	Tip	Applied Date	A	B	C
6	VALVE; EXH BRAKE (A)	8-98054-173-6	01	1	0710-1302	●	●
6	VALVE; EXH BRAKE (A)	8-98233-801-0	01	1	1303-	●	●
6	VALVE; EXH BRAKE (B)	8-98054-186-6	01	1	0710-	●	●
6	VALVE; EXH BRAKE (D)	8-98054-172-6	01	1	0712-			●
6	VALVE; EXH BRAKE WHEEL BASE 5100MM(51W) (C)	8-98054-188-6	01	1	0712-			●
42	HOSE; FLEX,EXH BRK L=520	1-09363-957-0	01	1	0710-	●	●
42	HOSE; FLEX,EXH BRK L=500	1-09363-733-0	01	1	0712-0803			●
42	HOSE; FLEX,EXH BRK MZX6P M/T(RSW) L=500	1-09363-733-0	01	1	0804-0906			●
42	HOSE; FLEX,EXH BRK MZX6P M/T(RSW),MZW6P M/T(RSZ) L=500	1-09363-733-0	01	1	0907-			●
42	HOSE; FLEX,EXH BRK MLD6Q M/T(X5J) L=600	1-09363-639-0	01	1	0806-0806			●
42	HOSE; FLEX,EXH BRK MLD6Q M/T(X5J) L=620	1-09363-705-0	01	1	0807-			●
71	BOLT; CLIP M8X25 FLANGE	0-28650-825-0	01	1	0710-0711	●	●
71	BOLT; CLIP M8X25 FLANGE	0-28650-825-0	01	1	0712-	●	●	●
74	CONNECTOR; EXH BRK VLV M12 & PT1/4 ELBOW	1-09650-430-0	01	1	0710-0806	●	●
74	CONNECTOR; EXH BRK VLV M12 & PT1/4 ELBOW	1-09650-430-0	01	1	0807-	●	●
74	CONNECTOR; EXH BRK VLV MLD6Q M/T(X5J) M12 & PT1/4 ELBOW	1-09650-430-0	01	1	0807-			●
74	CONNECTOR; EXH BRK VLV M12 & PT1/4 ELBOW	1-48629-258-0	01	1	0712-0806			●
74	CONNECTOR; EXH BRK VLV MZX6P M/T(RSW) M12 & PT1/4 ELBOW	1-48629-258-0	01	1	0807-0906			●
74	CONNECTOR; EXH BRK VLV MZX6P M/T(RSW),MZW6P M/T(RSZ) M12 & PT1/4 ELBOW	1-48629-258-0	01	1	0907-			●
80	BRACKET; FLEX HOSE	8-98078-153-0	01	1	0710-0711	●
80	BRACKET; FLEX HOSE SGL CAB(FC*M)	8-98078-153-0	01	1	0710-0711		●
80	BRACKET; FLEX HOSE	8-98078-153-0	01	1	0712-	●	●
80	BRACKET; FLEX HOSE	8-98090-040-0	01	1	0712-0806			●
80	BRACKET; FLEX HOSE MZX6P M/T(RSW)	8-98090-040-0	01	1	0807-0906			●
80	BRACKET; FLEX HOSE MZX6P M/T(RSW),MZW6P M/T(RSZ)	8-98090-040-0	01	1	0907-			●
81	BOLT; HOSE BRKT M10X30 FLANGE	0-28651-030-0	01	1	0710-0711	●	●
81	BOLT; HOSE BRKT M10X30 FLANGE	0-28651-030-0	01	1	0712-0801	●	●	●
81	BOLT; HOSE BRKT M10X25 FLANGE	0-28051-025-0	01	1	0802-	●	●	●
82	NUT; HOSE BRKT M10 FLANGE	0-91180-210-0	01	1	0710-0711	●	●
82	NUT; HOSE BRKT M10 FLANGE	0-91180-210-0	01	1	0712-	●	●	●
83	CLIP; FLEX HOSE (A) ID=11X2 L=16	1-09700-820-0	01	1	0710-0711	●	●	●
83	CLIP; FLEX HOSE (A) ID=11X2 L=16	1-09700-820-0	01	1	0712-	●	●
83	CLIP; FLEX HOSE (C) ID=15 L=22 H=30	1-09701-215-1	01	1	0712-0803			●
83	CLIP; FLEX HOSE MZX6P M/T(RSW) (C) ID=15 L=22 H=30	1-09701-215-1	01	1	0804-0906			●
83	CLIP; FLEX HOSE MZX6P M/T(RSW),MZW6P M/T(RSZ) (C) ID=15 L=22 H=30	1-09701-215-1	01	1	0907-			●
83	CLIP; FLEX HOSE MLD6Q M/T(X5J) (D) ID=11 L=50	0-95235-085-0	01	1	0806-			●
83	CLIP; FLEX HOSE EXC. TRANSMISSION CONTROL-SMOOTHER(8GF) (B) ID=10 & 10	1-09709-277-1	01	1	0712-			●
146	NUT; EXH BRK VLV M10	0-91110-510-0	04	1	0710-0712	●	●
146	NUT; EXH BRK VLV M10 FLANGE	0-91180-210-0	04	1	0801-	●	●
146	NUT; EXH BRK VLV M8 W/LK WASHER	8-97581-234-0	04	1	0712-			●

İpucu: çizimdeki balona veya tablodaki Balon sütununa tıkla; ilgili parçalar vurgulanır. Birden çok çizim varsa üstteki seçim kutusu/oklarla gezin.
