0-61 — BATTERY AND ENGINE ELECTRICAL PARTS (#2175) — 72 parça

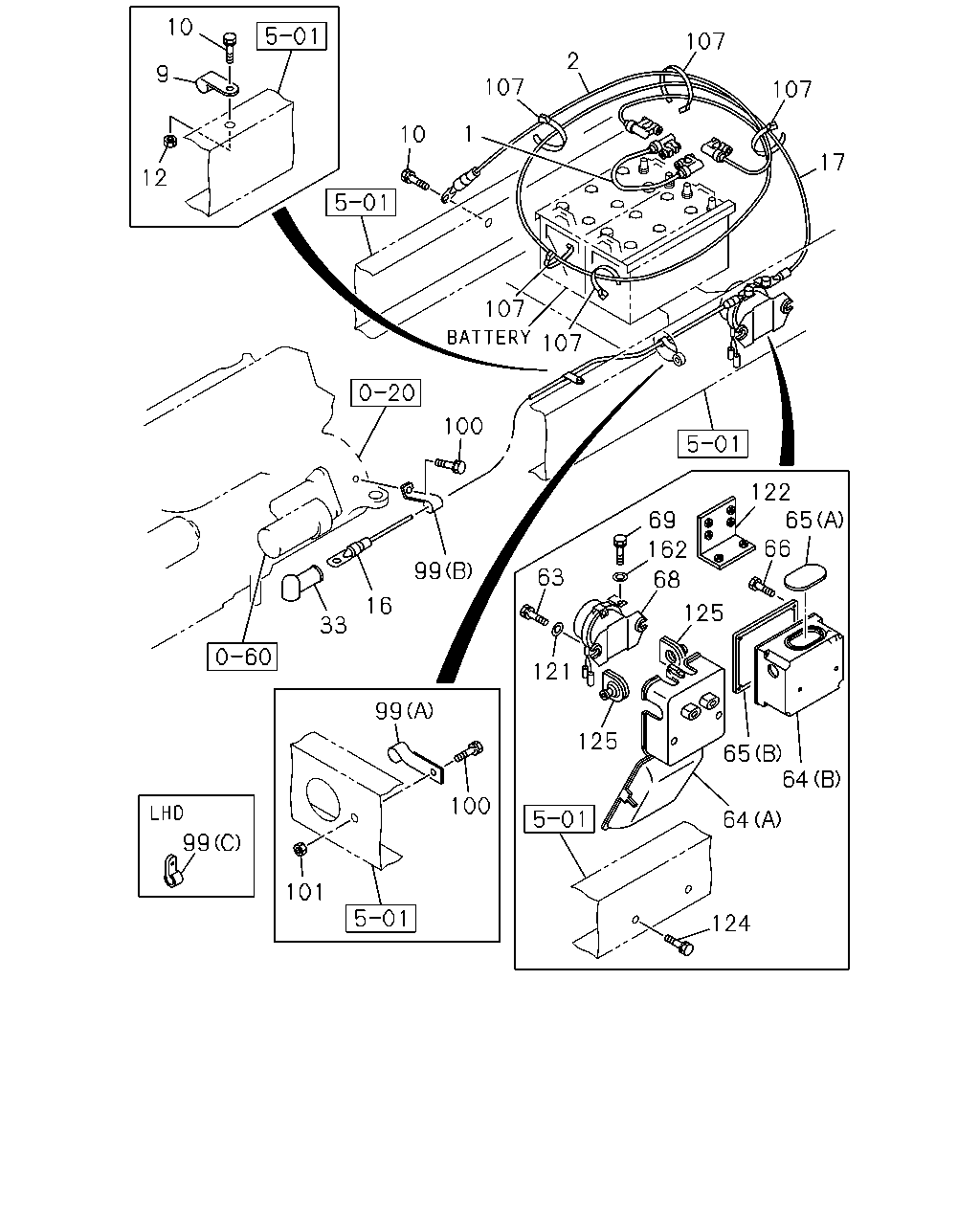

çizim 28593
10 107 2 9 107 107 1 10 17 12 107 107 100 122 65 66 69 162 99 63 68 16 125 33 121 99 125 65 64 100 64 99 101 124
BalonParca AdiParca NoAdetTipApplied Date A B
1 CABLE; BATTERY
BATTERY CABLE COPPER<WP3> L=180 		9-82932-233-1 01 1 9101-9407 ● ●
1 CABLE; BATTERY
BATTERY CABLE COPPER<WP3> L=180 		1-82650-265-0 01 1 9408-0203 ● ●
1 CABLE; BATTERY
EXC. BATTERY CABLE COPPER<WP3> L=700 		1-82652-199-0 01 1 9101-0203 ● ●
1 CABLE; BATTERY
L=700 		1-82652-199-0 01 1 0204- ● ●
2 CABLE; BATTERY
BATTERY CABLE COPPER<WP3> L=600 		1-82652-306-1 01 1 9101-0203 ● ●
2 CABLE; BATTERY
EXC. BATTERY CABLE COPPER<WP3> L=1400 		1-82652-198-0 01 1 9101-0203 ● ●
2 CABLE; BATTERY
L=1400 		1-82652-198-0 01 1 0204- ● ●
9 CLIP; BATTERY CABLE
WHEEL BASE 4600MM(46W) ID=19 L=60 		9-09525-896-0 10 1 9101- ● ●
9 CLIP; BATTERY CABLE
WHEEL BASE 5000MM(50W) ID=19 L=60 		9-09525-896-0 11 1 9101- ● ●
9 CLIP; BATTERY CABLE
RIGHT HAND DRIVE(MTR5FB) WHEEL BASE 6000MM(60W) ID=19 L=60 		9-09525-896-0 14 1 9101- ● ●
10 BOLT; BATTERY CABLE CLIP
M8X20 W/LK WASHER 		9-01900-820-0 01 1 9101-9204 ● ●
10 BOLT; BATTERY CABLE CLIP
M8X20 W/LK WASHER 		0-50040-820-0 01 1 9205-9212 ● ●
10 BOLT; BATTERY CABLE CLIP
M8X25 W/LK&PL WASHER 		8-97087-203-0 01 1 9301- ● ●
10 BOLT; BATTERY CABLE CLIP
WHEEL BASE 4600MM(46W) M8X25 W/LK WASHER 		9-01900-825-0 10 1 9101-9204 ● ●
10 BOLT; BATTERY CABLE CLIP
WHEEL BASE 4600MM(46W) M8X25 W/LK WASHER 		0-50040-825-0 10 1 9205- ● ●
10 BOLT; BATTERY CABLE CLIP
WHEEL BASE 5000MM(50W) M8X25 W/LK WASHER 		9-01900-825-0 11 1 9101-9204 ● ●
10 BOLT; BATTERY CABLE CLIP
WHEEL BASE 5000MM(50W) M8X25 W/LK WASHER 		0-50040-825-0 11 1 9205- ● ●
10 BOLT; BATTERY CABLE CLIP
RIGHT HAND DRIVE(MTR5FB) WHEEL BASE 6000MM(60W) M8X25 W/LK WASHER 		9-01900-825-0 14 1 9101-9204 ● ●
10 BOLT; BATTERY CABLE CLIP
RIGHT HAND DRIVE(MTR5FB) WHEEL BASE 6000MM(60W) M8X25 W/LK WASHER 		0-50040-825-0 14 1 9205- ● ●
12 NUT; BATTERY CABLE CLIP
WHEEL BASE 4600MM(46W) M8 		9-09110-408-0 10 1 9101- ● ●
12 NUT; BATTERY CABLE CLIP
WHEEL BASE 5000MM(50W) M8 		9-09110-408-0 11 1 9101- ● ●
12 NUT; BATTERY CABLE CLIP
RIGHT HAND DRIVE(MTR5FB) WHEEL BASE 6000MM(60W) M6 		9-09110-406-0 14 1 9101-9101 ● ●
12 NUT; BATTERY CABLE CLIP
RIGHT HAND DRIVE(MTR5FB) WHEEL BASE 6000MM(60W) M8 		9-09110-408-0 14 1 9102- ● ●
16 CABLE; STARTER TO RELAY
WHEEL BASE 4600MM(46W) BATTERY CABLE COPPER<WP3> L=5040 		1-82650-121-2 01 1 9101-0203 ● ●
16 CABLE; STARTER TO RELAY
WHEEL BASE 4600MM(46W) STARTER DENSO(RC6) L=5040 		1-82652-413-2 01 1 9101-0203 ● ●
16 CABLE; STARTER TO RELAY
WHEEL BASE 4600MM(46W) EXC. STARTER DENSO(RC6),BATTERY CABLE COPPER<WP3> L=5040 		1-82652-414-2 01 1 9101-0203 ● ●
16 CABLE; STARTER TO RELAY
WHEEL BASE 4600MM(46W) L=5040 		1-82652-414-2 01 1 0204- ● ●
16 CABLE; STARTER TO RELAY
WHEEL BASE 5000MM(50W) BATTERY CABLE COPPER<WP3> L=5440 		1-82650-120-1 01 1 9101-0203 ● ●
16 CABLE; STARTER TO RELAY
WHEEL BASE 5000MM(50W) STARTER DENSO(RC6) L=5440 		1-82652-406-2 01 1 9101-0203 ● ●
16 CABLE; STARTER TO RELAY
WHEEL BASE 5000MM(50W) EXC. STARTER DENSO(RC6),BATTERY CABLE COPPER<WP3> L=5440 		1-82652-395-2 01 1 9101-0203 ● ●
16 CABLE; STARTER TO RELAY
WHEEL BASE 5000MM(50W) L=5440 		1-82652-395-2 01 1 0204- ● ●
16 CABLE; STARTER TO RELAY
RIGHT HAND DRIVE(MTR5FB) WHEEL BASE 6000MM(60W) L=6440 		1-82652-558-0 01 1 9101-9204 ● ●
16 CABLE; STARTER TO RELAY
RIGHT HAND DRIVE(MTR5FB) WHEEL BASE 6000MM(60W) STARTER DENSO(RC6) L=6440 		1-82652-558-0 01 1 9205-0203 ● ●
16 CABLE; STARTER TO RELAY
RIGHT HAND DRIVE(MTR5FB) WHEEL BASE 6000MM(60W) EXC. STARTER DENSO(RC6) L=6440 		1-82652-577-0 01 1 9205-0203 ● ●
16 CABLE; STARTER TO RELAY
RIGHT HAND DRIVE(MTR5FB) WHEEL BASE 6000MM(60W) L=6440 		1-82652-577-0 01 1 0204- ● ●
17 CABLE; BATTERY (+) TO RELAY
BATTERY CABLE COPPER<WP3> L=2470 		1-82650-054-1 01 1 9101-0203 ● ●
17 CABLE; BATTERY (+) TO RELAY
EXC. BATTERY CABLE COPPER<WP3> L=2600 		1-82652-167-0 01 1 9101-0203 ● ●
17 CABLE; BATTERY (+) TO RELAY
L=2600 		1-82652-167-0 01 1 0204- ● ●
33 CAP; INSULATOR
EXC. STARTER DENSO(RC6) 		1-82699-206-0 01 1 9101-0203 ● ●
33 CAP; INSULATOR 1-82699-206-0 01 1 0204- ● ●
33 CAP; INSULATOR
RIGHT HAND DRIVE(MTR5FB) STARTER DENSO(RC6) 		1-82699-205-0 01 1 9101-0203 ● ●
63 BOLT; RELAY BATTERY
M8X40 W/LK WASHER 		9-01900-840-0 02 1 9101-9204 ● ●
63 BOLT; RELAY BATTERY
M8X40 W/LK WASHER 		0-50040-840-0 02 1 9205- ● ●
64 BOX; BATTERY RELAY
(A) 		1-81809-012-2 01 1 9101-0309 ● ●
64 BOX; BATTERY RELAY
(B) 		1-82699-947-0 01 1 0310- ● ●
65 COVER; BATTERY RELAY
(B) 		1-82699-353-1 01 1 0310- ● ●
65 COVER; BATTERY RELAY
(A) 		1-82699-980-0 01 1 0310- ● ●
66 BOLT; COVER,BATTERY RELAY
M6X16 W/LK&PL WASHER 		0-50140-616-0 04 1 0310- ● ●
68 RELAY; BATTERY 1-82550-248-0 01 1 9101-9108 ● ●
68 RELAY; BATTERY 1-82550-226-1 01 1 9109- ● ●
69 BOLT; CABLE BATTERY
M8X18 W/LK WASHER 		9-01900-818-0 02 1 9101-9204 ● ●
69 BOLT; CABLE BATTERY
M8X18 W/LK WASHER 		0-50040-818-0 02 1 9205-9404 ● ●
69 BOLT; CABLE BATTERY
M8X20 W/LK&PL WASHER 		0-50140-820-0 02 1 9405- ● ●
99 CLIP; BATTERY CABLE
WHEEL BASE 4600MM(46W),WHEEL BASE 5000MM(50W) (A) ID=19 L=58 		1-09700-733-1 04 1 9101- ● ●
99 CLIP; BATTERY CABLE
RIGHT HAND DRIVE(MTR5FB) (B) ID=17 H=50 		1-09700-083-0 01 1 9101- ● ●
99 CLIP; BATTERY CABLE
RIGHT HAND DRIVE(MTR5FB) WHEEL BASE 6000MM(60W) (A) ID=19 L=58 		1-09700-733-1 05 1 9101- ● ●
99 CLIP; BATTERY CABLE
LEFT HAND DRIVE(MTR6FB) (C) ID=19 L=20 		9-09525-835-0 01 1 9101- ● ●
100 BOLT; BATTERY CABLE CLIP
M8X25 W/LK WASHER 		9-01900-825-0 01 1 9101-9204 ● ●
100 BOLT; BATTERY CABLE CLIP
M8X25 W/LK WASHER 		0-50040-825-0 01 1 9205- ● ●
100 BOLT; BATTERY CABLE CLIP
WHEEL BASE 4600MM(46W),WHEEL BASE 5000MM(50W) M8X25 W/LK WASHER 		9-01900-825-0 04 1 9101-9204 ● ●
100 BOLT; BATTERY CABLE CLIP
WHEEL BASE 4600MM(46W),WHEEL BASE 5000MM(50W) M8X25 W/LK WASHER 		0-50040-825-0 04 1 9205- ● ●
100 BOLT; BATTERY CABLE CLIP
RIGHT HAND DRIVE(MTR5FB) WHEEL BASE 6000MM(60W) M8X25 W/LK WASHER 		9-01900-825-0 05 1 9101-9204 ● ●
100 BOLT; BATTERY CABLE CLIP
RIGHT HAND DRIVE(MTR5FB) WHEEL BASE 6000MM(60W) M8X25 W/LK WASHER 		0-50040-825-0 05 1 9205- ● ●
101 NUT; BATTERY CABLE CLIP
WHEEL BASE 4600MM(46W),WHEEL BASE 5000MM(50W) M8 		9-09110-408-0 04 1 9101- ● ●
101 NUT; BATTERY CABLE CLIP
RIGHT HAND DRIVE(MTR5FB) WHEEL BASE 6000MM(60W) M8 		9-09110-408-0 05 1 9101- ● ●
107 CLIP; BAND
L=250 		5-09707-030-1 05 1 9101- ● ●
121 WASHER; PL,RELAY,BATTERY
ID=8.4 OD=22 		9-09160-708-0 04 1 9101- ● ●
122 BRACKET; BATTERY RELAY 1-53618-038-0 01 1 9101- ● ●
124 BOLT; RELAY,BATTERY
M10X30 W/LK WASHER 		0-50041-030-0 02 1 9101- ● ●
125 GROMMET; CABLE BATTERY
ID=28 H=45 L=30 		1-09333-061-0 02 1 9101-0309 ● ●
125 GROMMET; CABLE BATTERY
ID=26 		1-09333-140-0 03 1 0310- ● ●
162 WASHER; PL,CABLE,BATTERY
ID=8.4 OD=18 		9-09164-608-0 02 1 9405- ● ●
