Sayfa 1-50 - Isuzu EPC

1-50 — EXHAUST PIPE AND SILENCER (#21749) — 901 parça

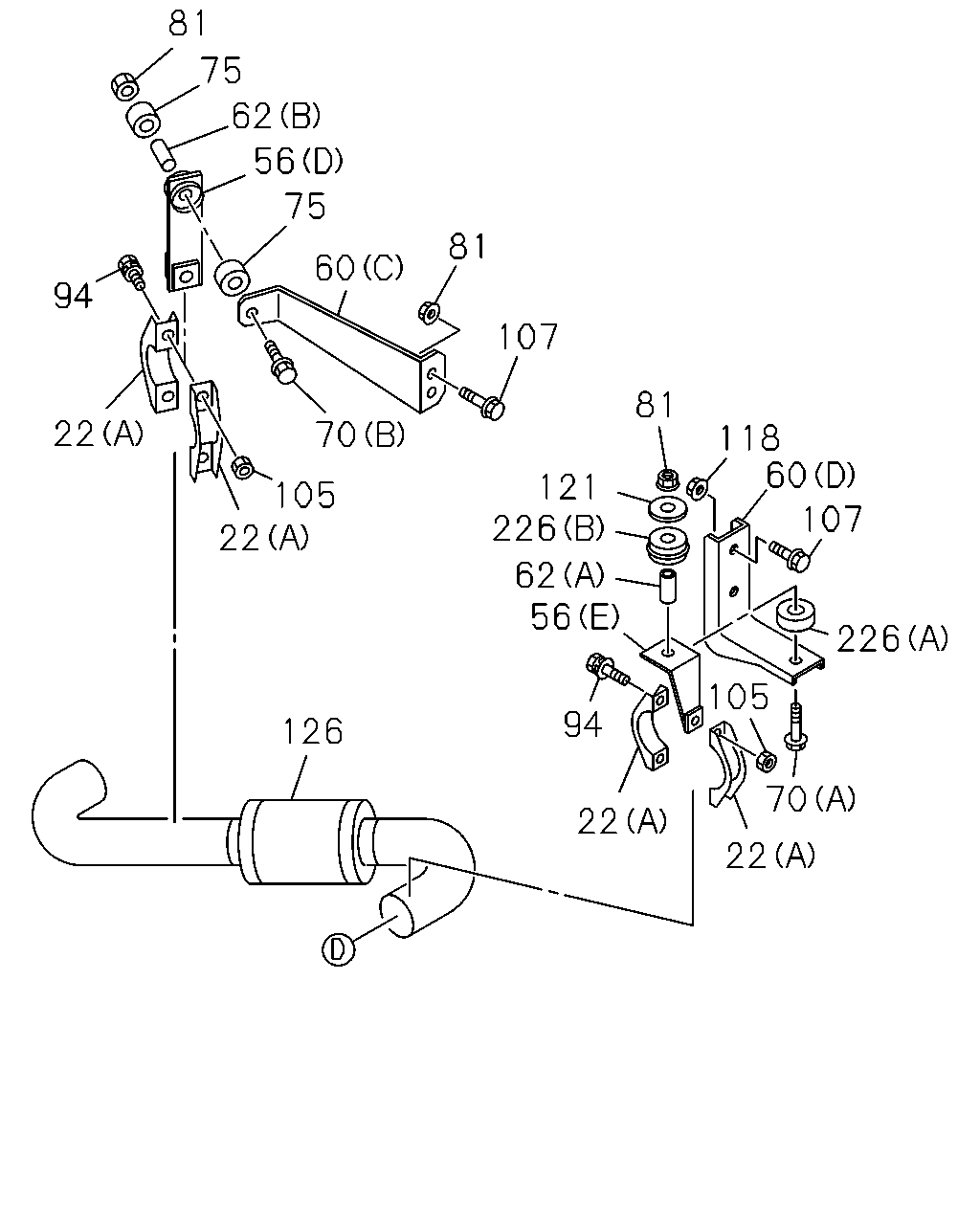

22 105 70 226 107 60 118 81 121 226 62 56 94 22 56 126 22 22 94 105 70 107 81 60 75 56 62 75 81

Balon	Parca Adi	Parca No	Adet	Tip	Applied Date	A	B
22	CLAMP; EXH PIPE (A) ID=80-84	1-22133-233-0	04	1	0710-0711	●
22	CLAMP; EXH PIPE (A) ID=80-84	1-22133-233-0	04	1	0712-1301	●
22	CLAMP; EXH PIPE 6HK1-TCN ENG(82L) (A) ID=80-84	1-22133-233-0	04	1	0712-1301		●
22	CLAMP; EXH PIPE (A) ID=80-84	1-22133-233-0	02	1	0710-0711	●
22	CLAMP; EXH PIPE (A) ID=80-84	1-22133-233-0	02	1	0712-1301	●	●
22	CLAMP; EXH PIPE 4HK1-TCS ENG(RJS) (A) ID=80-84	1-22133-233-0	02	1	0712-1301		●
22	CLAMP; EXH PIPE (A) ID=80-84	1-22133-233-0	02	1	1302-	●	●
22	CLAMP; EXH PIPE (A) ID=80-84	1-22133-233-0	02	1	1302-	●	●
22	CLAMP; EXH PIPE 4HK1-TCS ENG(RJS) (B)	1-22133-295-0	01	1	0712-1309		●
22	CLAMP; EXH PIPE 4HK1-TCS ENG(RJS) (B)	8-97646-674-0	01	1	1310-		●
56	BRACKET; CLAMP,EXH PIPE (C)	8-98059-756-0	02	1	0710-0711	●
56	BRACKET; CLAMP,EXH PIPE (C)	8-98059-756-0	02	1	0712-1301	●
56	BRACKET; CLAMP,EXH PIPE 6HK1-TCN ENG(82L) (C)	8-98059-756-0	02	1	0712-1301		●
56	BRACKET; CLAMP,EXH PIPE (H)	8-98233-506-0	01	1	1302-	●
56	BRACKET; CLAMP,EXH PIPE 6HK1-TCN ENG(82L) (H)	8-98233-506-0	01	1	1302-		●
56	BRACKET; CLAMP,EXH PIPE (D)	1-22131-584-0	01	1	0710-0711	●
56	BRACKET; CLAMP,EXH PIPE (D)	1-22131-584-0	01	1	0712-1007	●	●
56	BRACKET; CLAMP,EXH PIPE (D)	1-22131-584-0	01	1	1008-1309	●	●
56	BRACKET; CLAMP,EXH PIPE (D)	8-98245-522-0	01	1	1310-	●	●
56	BRACKET; CLAMP,EXH PIPE (A)	8-98074-829-1	01	1	0710-0711	●
56	BRACKET; CLAMP,EXH PIPE (A)	8-98074-829-1	01	1	0712-	●
56	BRACKET; CLAMP,EXH PIPE 6HK1-TCN ENG(82L) (A)	8-98074-829-1	01	1	0712-		●
56	BRACKET; CLAMP,EXH PIPE (B)	8-98074-830-0	01	1	0710-0711	●
56	BRACKET; CLAMP,EXH PIPE (B)	8-98074-830-0	01	1	0712-	●
56	BRACKET; CLAMP,EXH PIPE 6HK1-TCN ENG(82L) (B)	8-98074-830-0	01	1	0712-		●
56	BRACKET; CLAMP,EXH PIPE 4HK1-TCS ENG(RJS) (E)	8-98059-755-0	01	1	0712-		●
56	BRACKET; CLAMP,EXH PIPE 4HK1-TCS ENG(RJS) (F)	8-98074-825-0	01	1	0712-		●
56	BRACKET; CLAMP,EXH PIPE 4HK1-TCS ENG(RJS) (G)	8-98074-826-1	01	1	0712-		●
60	BRACKET; FRAME TO BRKT (D)	8-98059-753-1	02	1	0710-0711	●
60	BRACKET; FRAME TO BRKT (D)	8-98059-753-1	02	1	0712-1301	●
60	BRACKET; FRAME TO BRKT 6HK1-TCN ENG(82L) (D)	8-98059-753-1	02	1	0712-1301		●
60	BRACKET; FRAME TO BRKT (D)	8-98233-509-0	01	1	1302-	●
60	BRACKET; FRAME TO BRKT 6HK1-TCN ENG(82L) (D)	8-98233-509-0	01	1	1302-		●
60	BRACKET; FRAME TO BRKT 4HK1-TCS ENG(RJS) (D)	8-98059-753-1	01	1	0712-1309		●
60	BRACKET; FRAME TO BRKT 4HK1-TCS ENG(RJS) (D)	8-98245-530-0	01	1	1310-		●
60	BRACKET; FRAME TO BRKT (A)	1-22152-274-1	01	1	0710-0711	●
60	BRACKET; FRAME TO BRKT (A)	1-22152-274-1	01	1	0712-	●
60	BRACKET; FRAME TO BRKT 6HK1-TCN ENG(82L) (A)	1-22152-274-1	01	1	0712-		●
60	BRACKET; FRAME TO BRKT (B)	8-98059-712-1	01	1	0710-0711	●
60	BRACKET; FRAME TO BRKT (B)	8-98059-712-1	01	1	0712-	●	●
60	BRACKET; FRAME TO BRKT (C)	8-98070-640-0	01	1	0710-0711	●
60	BRACKET; FRAME TO BRKT (C)	8-98070-640-0	01	1	0712-1007	●	●
60	BRACKET; FRAME TO BRKT (C)	8-98070-640-0	01	1	1008-1309	●	●
60	BRACKET; FRAME TO BRKT (C)	8-98245-521-0	01	1	1310-	●	●
60	BRACKET; FRAME TO BRKT 4HK1-TCS ENG(RJS) (E)	8-98061-138-1	01	1	0712-		●
62	TUBE; DIST,BRKT 4HK1-TCS ENG(RJS) (A)	8-98060-852-0	01	1	0712-1301		●
62	TUBE; DIST,BRKT (A)	8-98060-852-0	02	1	1302-	●	●
62	TUBE; DIST,BRKT (B) L=22	1-22159-392-0	01	1	0710-0711	●
62	TUBE; DIST,BRKT (B) L=22	1-22159-392-0	01	1	0712-0906	●	●
62	TUBE; DIST,BRKT (B) L=22	9-22159-024-0	01	1	0907-1007	●	●
62	TUBE; DIST,BRKT (B) L=22	9-22159-024-0	01	1	1008-	●	●
62	TUBE; DIST,BRKT (A)	8-98060-852-0	02	1	0710-0711	●
62	TUBE; DIST,BRKT (A)	8-98060-852-0	02	1	0710-0711	●
62	TUBE; DIST,BRKT (A)	8-98060-852-0	02	1	0712-1301	●	●
62	TUBE; DIST,BRKT (A)	8-98060-852-0	02	1	0712-1301	●
62	TUBE; DIST,BRKT 6HK1-TCN ENG(82L) (A)	8-98060-852-0	02	1	0712-1301		●
62	TUBE; DIST,BRKT (A)	8-98060-852-0	01	1	1302-	●	●
70	BOLT; BRKT 4HK1-TCS ENG(RJS) (A) M10X70 FLANGE	0-28051-070-0	01	1	0712-1301		●
70	BOLT; BRKT (A) M10X70 FLANGE	0-28051-070-0	02	1	1302-	●	●
70	BOLT; BRKT (B) M10X50 FLANGE	0-28051-050-0	01	1	0710-0711	●
70	BOLT; BRKT (B) M10X50 FLANGE	0-28051-050-0	01	1	0712-1007	●	●
70	BOLT; BRKT (B) M10X50 FLANGE	0-28051-050-0	01	1	1008-	●	●
70	BOLT; BRKT (A) M10X70 FLANGE	0-28051-070-0	02	1	0710-0711	●
70	BOLT; BRKT (A) M10X70 FLANGE	0-28051-070-0	02	1	0710-0711	●
70	BOLT; BRKT (A) M10X70 FLANGE	0-28051-070-0	02	1	0712-1301	●	●
70	BOLT; BRKT (A) M10X70 FLANGE	0-28051-070-0	02	1	0712-1301	●
70	BOLT; BRKT 6HK1-TCN ENG(82L) (A) M10X70 FLANGE	0-28051-070-0	02	1	0712-1301		●
70	BOLT; BRKT (A) M10X70 FLANGE	0-28051-070-0	01	1	1302-	●	●
75	RUBBER; SUPPORT,BRKT OD=40	1-22159-193-0	02	1	0710-0711	●
75	RUBBER; SUPPORT,BRKT OD=40	1-22159-193-0	02	1	0712-1007	●	●
75	RUBBER; SUPPORT,BRKT OD=40	1-22159-193-0	02	1	1008-	●	●
81	NUT; BRKT 4HK1-TCS ENG(RJS) M10 FLANGE	0-91180-210-0	01	1	0911-1007		●
81	NUT; BRKT M10 FLANGE	0-91180-210-0	04	1	1302-1304	●
81	NUT; BRKT 6HK1-TCN ENG(82L) M10 FLANGE	0-91180-210-0	04	1	1302-1304		●
81	NUT; BRKT M10 FLANGE	0-91180-210-0	02	1	1305-	●	●
81	NUT; BRKT M10 FLANGE	0-91180-210-0	02	1	1305-	●	●
81	NUT; BRKT M10 FLANGE	0-91180-210-0	02	1	1305-	●
81	NUT; BRKT 6HK1-TCN ENG(82L) M10 FLANGE	0-91180-210-0	02	1	1305-		●
81	NUT; BRKT M10 FLANGE	0-91180-210-0	02	1	0710-0711	●
81	NUT; BRKT M10 FLANGE	0-91180-210-0	02	1	0710-0711	●
81	NUT; BRKT M10 FLANGE	0-91180-210-0	02	1	0710-0711	●
81	NUT; BRKT M10 FLANGE	0-91180-210-0	02	1	0712-0910	●	●
81	NUT; BRKT M10 FLANGE	0-91180-210-0	02	1	0712-0910	●	●
81	NUT; BRKT M10 FLANGE	0-91180-210-0	02	1	0712-0910	●
81	NUT; BRKT 6HK1-TCN ENG(82L) M10 FLANGE	0-91180-210-0	02	1	0712-0910		●
81	NUT; BRKT M10 FLANGE	0-91180-210-0	02	1	0911-1007	●	●
81	NUT; BRKT M10 FLANGE	0-91180-210-0	02	1	0911-1007	●
81	NUT; BRKT 6HK1-TCN ENG(82L) M10 FLANGE	0-91180-210-0	02	1	0911-1007		●
81	NUT; BRKT M10 FLANGE	0-91180-210-0	02	1	1008-1301	●	●
81	NUT; BRKT M10 FLANGE	0-91180-210-0	02	1	1008-1301	●	●
81	NUT; BRKT M10 FLANGE	0-91180-210-0	02	1	1008-1301	●
81	NUT; BRKT 6HK1-TCN ENG(82L) M10 FLANGE	0-91180-210-0	02	1	1008-1301		●
81	NUT; BRKT M10 FLANGE	0-91180-210-0	02	1	1302-1302	●	●
81	NUT; BRKT M10 FLANGE	0-91180-210-0	02	1	1302-1302	●	●
81	NUT; BRKT 6HK1-TCN ENG(82L) M10 FLANGE	0-91180-210-0	02	1	1302-1302		●
81	NUT; BRKT M10 FLANGE	0-91180-210-0	01	1	1302-	●	●
81	NUT; BRKT M10 FLANGE	0-91180-210-0	01	1	1302-	●	●
81	NUT; BRKT M10 FLANGE	0-91180-210-0	01	1	0710-0711	●
81	NUT; BRKT M10 FLANGE	0-91180-210-0	01	1	0712-0910	●	●
81	NUT; BRKT 4HK1-TCS ENG(RJS) M10 FLANGE	0-91180-210-0	01	1	0712-0910		●
81	NUT; BRKT M10 FLANGE	0-91180-210-0	03	1	0911-1007	●	●
81	NUT; BRKT M10 FLANGE	0-91180-210-0	01	1	1008-1301	●	●
81	NUT; BRKT 4HK1-TCS ENG(RJS) M10 FLANGE	0-91180-210-0	01	1	1008-1301		●
81	NUT; BRKT M10 FLANGE	0-91180-210-0	02	1	1302-1304	●	●
81	NUT; BRKT 4HK1-TCS ENG(RJS) M10 FLANGE	0-91180-210-0	02	1	1302-1304		●
94	BOLT; CLAMP M10X40 FLANGE	0-28651-040-0	04	1	0710-0711	●
94	BOLT; CLAMP M10X40 FLANGE	0-28651-040-0	04	1	0712-1301	●
94	BOLT; CLAMP 6HK1-TCN ENG(82L) M10X40 FLANGE	0-28651-040-0	04	1	0712-1301		●
94	BOLT; CLAMP M10X40 FLANGE	0-28651-040-0	02	1	0710-0711	●
94	BOLT; CLAMP M10X40 FLANGE	0-28651-040-0	02	1	0712-1301	●	●
94	BOLT; CLAMP 4HK1-TCS ENG(RJS) M10X40 FLANGE	0-28651-040-0	02	1	0712-1301		●
94	BOLT; CLAMP M10X40 FLANGE	0-28651-040-0	02	1	1302-	●	●
94	BOLT; CLAMP M10X40 FLANGE	0-28651-040-0	02	1	1302-	●	●
105	NUT; CLAMP M10 FLANGE	0-91180-210-0	04	1	0710-0711	●
105	NUT; CLAMP M10 FLANGE	0-91180-210-0	04	1	0712-1301	●
105	NUT; CLAMP 6HK1-TCN ENG(82L) M10 FLANGE	0-91180-210-0	04	1	0712-1301		●
105	NUT; CLAMP M10 FLANGE	0-91180-210-0	02	1	0710-0711	●
105	NUT; CLAMP M10 FLANGE	0-91180-210-0	02	1	0712-1301	●	●
105	NUT; CLAMP 4HK1-TCS ENG(RJS) M10 FLANGE	0-91180-210-0	02	1	0712-1301		●
105	NUT; CLAMP M10 FLANGE	0-91180-210-0	02	1	1302-	●	●
105	NUT; CLAMP M10 FLANGE	0-91180-210-0	02	1	1302-	●	●
107	BOLT; BRKT M10X35 FLANGE	0-28651-035-0	04	1	0710-0711	●
107	BOLT; BRKT M10X35 FLANGE	0-28651-035-0	04	1	0712-	●	●
118	NUT; SILENCER MTG BRKT M10 FLANGE	0-91180-210-0	02	1	0710-0711	●
118	NUT; SILENCER MTG BRKT M10 FLANGE	0-91180-210-0	02	1	0712-	●	●
121	WASHER; PL,BRKT ID=11 OD=54	1-09503-154-1	01	1	0710-0711	●
121	WASHER; PL,BRKT 6HK1-TCC ENG(81L),6HK1-TCN ENG(82L) ID=11 OD=54	1-09503-154-2	01	1	0712-	●
121	WASHER; PL,BRKT 6HK1-TCN ENG(82L) WHEEL BASE 5100MM(51W) ID=11 OD=54	1-09503-154-2	01	1	0712-		●
121	WASHER; PL,BRKT 4HK1-TCS ENG(RJS) ID=11 OD=54	1-09503-154-2	01	1	0712-		●
121	WASHER; PL,BRKT ID=11 OD=54	1-09503-154-1	02	1	0710-0711	●
121	WASHER; PL,BRKT ID=11 OD=54	1-09503-154-2	02	1	0712-	●	●
126	PIPE; EXH,RR	8-98233-516-0	01	1	1302-	●
126	PIPE; EXH,RR 6HK1-TCN ENG(82L)	8-98233-516-0	01	1	1302-		●
126	PIPE; EXH,RR	8-98043-365-2	01	1	0710-0711	●
126	PIPE; EXH,RR	8-98043-365-2	01	1	0712-1301	●
126	PIPE; EXH,RR WHEEL BASE 5100MM(51W)	8-98043-365-2	01	1	0712-1301		●
126	PIPE; EXH,RR 4HK1-TCS ENG(RJS)	8-98043-365-2	01	1	1302-1309		●
126	PIPE; EXH,RR 4HK1-TCS ENG(RJS)	8-98245-503-0	01	1	1310-		●
226	RUBBER; CUSHION 4HK1-TCS ENG(RJS) (A)	8-94457-277-1	01	1	0712-1301		●
226	RUBBER; CUSHION (A)	8-94457-277-1	02	1	1302-	●	●
226	RUBBER; CUSHION 4HK1-TCS ENG(RJS) (B)	8-94457-278-1	01	1	0712-1301		●
226	RUBBER; CUSHION (B)	8-94457-278-1	02	1	1302-	●	●
226	RUBBER; CUSHION (A)	8-94457-277-1	02	1	0710-0711	●
226	RUBBER; CUSHION (A)	8-94457-277-1	02	1	0710-0711	●
226	RUBBER; CUSHION (A)	8-94457-277-1	02	1	0712-1301	●	●
226	RUBBER; CUSHION (A)	8-94457-277-1	02	1	0712-1301	●
226	RUBBER; CUSHION 6HK1-TCN ENG(82L) (A)	8-94457-277-1	02	1	0712-1301		●
226	RUBBER; CUSHION (A)	8-94457-277-1	01	1	1302-	●	●
226	RUBBER; CUSHION (B)	8-94457-278-1	02	1	0710-0711	●
226	RUBBER; CUSHION (B)	8-94457-278-1	02	1	0710-0711	●
226	RUBBER; CUSHION (B)	8-94457-278-1	02	1	0712-1301	●	●
226	RUBBER; CUSHION (B)	8-94457-278-1	02	1	0712-1301	●
226	RUBBER; CUSHION 6HK1-TCN ENG(82L) (B)	8-94457-278-1	02	1	0712-1301		●
226	RUBBER; CUSHION (B)	8-94457-278-1	01	1	1302-	●	●

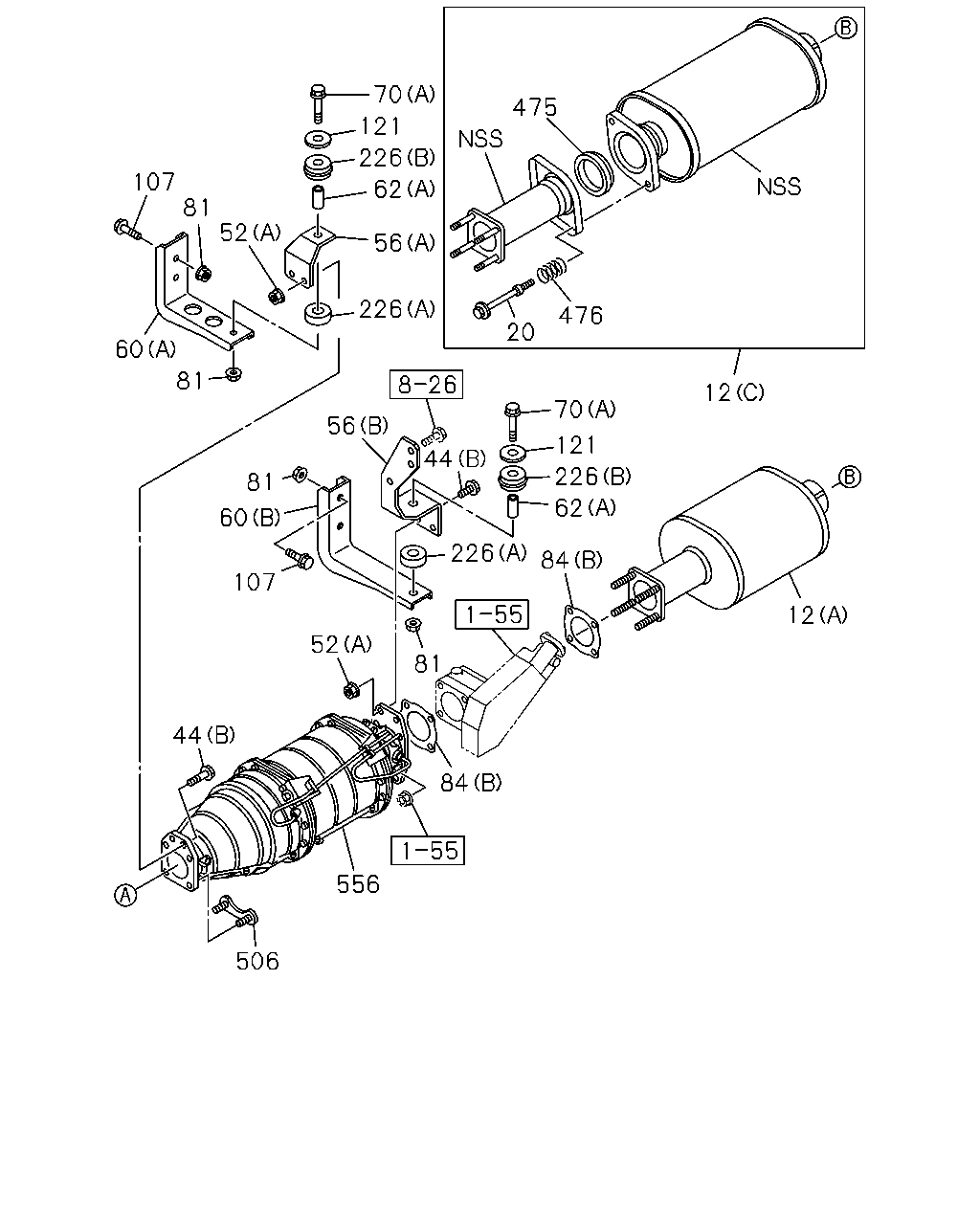

475 476 20 12 70 121 226 62 226 84 12 44 56 81 52 107 60 81 81 60 81 52 107 44 506 556 84 226 56 62 226 121 70

Balon	Parca Adi	Parca No	Adet	Tip	Applied Date	A	B
12	SILENCER ASM; EXH (A)	8-98041-925-1	01	1	0710-0711	●
12	SILENCER ASM; EXH (A)	8-98041-925-1	01	1	0712-1301	●
12	SILENCER ASM; EXH 6HK1-TCN ENG(82L) (A)	8-98041-925-1	01	1	0712-1301		●
12	SILENCER ASM; EXH (C)	8-98234-507-0	01	1	1302-	●
12	SILENCER ASM; EXH 6HK1-TCN ENG(82L) (C)	8-98234-507-0	01	1	1302-		●
12	SILENCER ASM; EXH 4HK1-TCS ENG(RJS) (B)	8-98041-921-0	01	1	0712-		●
20	BOLT; FLANGE,EXH PIPE	8-98233-481-0	02	1	1302-	●
20	BOLT; FLANGE,EXH PIPE 6HK1-TCN ENG(82L)	8-98233-481-0	02	1	1302-		●
20	BOLT; FLANGE,EXH PIPE	8-98233-481-0	02	1	1302-	●
20	BOLT; FLANGE,EXH PIPE 6HK1-TCN ENG(82L)	8-98233-481-0	02	1	1302-		●
44	BOLT; BRKT (A) M10X30 FLANGE	0-28651-030-0	02	1	0710-0711	●
44	BOLT; BRKT (A) M10X30 FLANGE	0-28651-030-0	02	1	0712-0907	●
44	BOLT; BRKT 6HK1-TCN ENG(82L) (A) M10X30 FLANGE	0-28651-030-0	02	1	0712-0907		●
44	BOLT; BRKT (B) M10X35 FLANGE	0-28651-035-0	02	1	0908-	●
44	BOLT; BRKT 6HK1-TCN ENG(82L) (B) M10X35 FLANGE	0-28651-035-0	02	1	0908-		●
44	BOLT; BRKT (B) M10X35 FLANGE	0-28651-035-0	08	1	0710-0711	●
44	BOLT; BRKT (B) M10X35 FLANGE	0-28651-035-0	08	1	0712-	●	●
52	NUT; BRKT (A) M10 FLANGE	0-91180-210-0	08	1	0710-0710	●
52	NUT; BRKT (A) M10 FLANGE	0-91180-210-0	07	1	0710-0711	●
52	NUT; BRKT (A) M10 FLANGE	0-91180-210-0	07	1	0712-	●	●
52	NUT; BRKT (A) M10 FLANGE	0-91180-210-0	02	1	0710-0711	●
52	NUT; BRKT (A) M10 FLANGE	0-91180-210-0	02	1	0712-	●
52	NUT; BRKT 6HK1-TCN ENG(82L) (A) M10 FLANGE	0-91180-210-0	02	1	0712-		●
52	NUT; BRKT 4HK1-TCS ENG(RJS) (B) M12 FLANGE	0-91180-212-0	04	1	0712-		●
56	BRACKET; CLAMP,EXH PIPE (C)	8-98059-756-0	02	1	0710-0711	●
56	BRACKET; CLAMP,EXH PIPE (C)	8-98059-756-0	02	1	0712-1301	●
56	BRACKET; CLAMP,EXH PIPE 6HK1-TCN ENG(82L) (C)	8-98059-756-0	02	1	0712-1301		●
56	BRACKET; CLAMP,EXH PIPE (H)	8-98233-506-0	01	1	1302-	●
56	BRACKET; CLAMP,EXH PIPE 6HK1-TCN ENG(82L) (H)	8-98233-506-0	01	1	1302-		●
56	BRACKET; CLAMP,EXH PIPE (D)	1-22131-584-0	01	1	0710-0711	●
56	BRACKET; CLAMP,EXH PIPE (D)	1-22131-584-0	01	1	0712-1007	●	●
56	BRACKET; CLAMP,EXH PIPE (D)	1-22131-584-0	01	1	1008-1309	●	●
56	BRACKET; CLAMP,EXH PIPE (D)	8-98245-522-0	01	1	1310-	●	●
56	BRACKET; CLAMP,EXH PIPE (A)	8-98074-829-1	01	1	0710-0711	●
56	BRACKET; CLAMP,EXH PIPE (A)	8-98074-829-1	01	1	0712-	●
56	BRACKET; CLAMP,EXH PIPE 6HK1-TCN ENG(82L) (A)	8-98074-829-1	01	1	0712-		●
56	BRACKET; CLAMP,EXH PIPE (B)	8-98074-830-0	01	1	0710-0711	●
56	BRACKET; CLAMP,EXH PIPE (B)	8-98074-830-0	01	1	0712-	●
56	BRACKET; CLAMP,EXH PIPE 6HK1-TCN ENG(82L) (B)	8-98074-830-0	01	1	0712-		●
56	BRACKET; CLAMP,EXH PIPE 4HK1-TCS ENG(RJS) (E)	8-98059-755-0	01	1	0712-		●
56	BRACKET; CLAMP,EXH PIPE 4HK1-TCS ENG(RJS) (F)	8-98074-825-0	01	1	0712-		●
56	BRACKET; CLAMP,EXH PIPE 4HK1-TCS ENG(RJS) (G)	8-98074-826-1	01	1	0712-		●
60	BRACKET; FRAME TO BRKT (D)	8-98059-753-1	02	1	0710-0711	●
60	BRACKET; FRAME TO BRKT (D)	8-98059-753-1	02	1	0712-1301	●
60	BRACKET; FRAME TO BRKT 6HK1-TCN ENG(82L) (D)	8-98059-753-1	02	1	0712-1301		●
60	BRACKET; FRAME TO BRKT (D)	8-98233-509-0	01	1	1302-	●
60	BRACKET; FRAME TO BRKT 6HK1-TCN ENG(82L) (D)	8-98233-509-0	01	1	1302-		●
60	BRACKET; FRAME TO BRKT 4HK1-TCS ENG(RJS) (D)	8-98059-753-1	01	1	0712-1309		●
60	BRACKET; FRAME TO BRKT 4HK1-TCS ENG(RJS) (D)	8-98245-530-0	01	1	1310-		●
60	BRACKET; FRAME TO BRKT (A)	1-22152-274-1	01	1	0710-0711	●
60	BRACKET; FRAME TO BRKT (A)	1-22152-274-1	01	1	0712-	●
60	BRACKET; FRAME TO BRKT 6HK1-TCN ENG(82L) (A)	1-22152-274-1	01	1	0712-		●
60	BRACKET; FRAME TO BRKT (B)	8-98059-712-1	01	1	0710-0711	●
60	BRACKET; FRAME TO BRKT (B)	8-98059-712-1	01	1	0712-	●	●
60	BRACKET; FRAME TO BRKT (C)	8-98070-640-0	01	1	0710-0711	●
60	BRACKET; FRAME TO BRKT (C)	8-98070-640-0	01	1	0712-1007	●	●
60	BRACKET; FRAME TO BRKT (C)	8-98070-640-0	01	1	1008-1309	●	●
60	BRACKET; FRAME TO BRKT (C)	8-98245-521-0	01	1	1310-	●	●
60	BRACKET; FRAME TO BRKT 4HK1-TCS ENG(RJS) (E)	8-98061-138-1	01	1	0712-		●
62	TUBE; DIST,BRKT 4HK1-TCS ENG(RJS) (A)	8-98060-852-0	01	1	0712-1301		●
62	TUBE; DIST,BRKT (A)	8-98060-852-0	02	1	1302-	●	●
62	TUBE; DIST,BRKT (B) L=22	1-22159-392-0	01	1	0710-0711	●
62	TUBE; DIST,BRKT (B) L=22	1-22159-392-0	01	1	0712-0906	●	●
62	TUBE; DIST,BRKT (B) L=22	9-22159-024-0	01	1	0907-1007	●	●
62	TUBE; DIST,BRKT (B) L=22	9-22159-024-0	01	1	1008-	●	●
62	TUBE; DIST,BRKT (A)	8-98060-852-0	02	1	0710-0711	●
62	TUBE; DIST,BRKT (A)	8-98060-852-0	02	1	0710-0711	●
62	TUBE; DIST,BRKT (A)	8-98060-852-0	02	1	0712-1301	●	●
62	TUBE; DIST,BRKT (A)	8-98060-852-0	02	1	0712-1301	●
62	TUBE; DIST,BRKT 6HK1-TCN ENG(82L) (A)	8-98060-852-0	02	1	0712-1301		●
62	TUBE; DIST,BRKT (A)	8-98060-852-0	01	1	1302-	●	●
70	BOLT; BRKT 4HK1-TCS ENG(RJS) (A) M10X70 FLANGE	0-28051-070-0	01	1	0712-1301		●
70	BOLT; BRKT (A) M10X70 FLANGE	0-28051-070-0	02	1	1302-	●	●
70	BOLT; BRKT (B) M10X50 FLANGE	0-28051-050-0	01	1	0710-0711	●
70	BOLT; BRKT (B) M10X50 FLANGE	0-28051-050-0	01	1	0712-1007	●	●
70	BOLT; BRKT (B) M10X50 FLANGE	0-28051-050-0	01	1	1008-	●	●
70	BOLT; BRKT (A) M10X70 FLANGE	0-28051-070-0	02	1	0710-0711	●
70	BOLT; BRKT (A) M10X70 FLANGE	0-28051-070-0	02	1	0710-0711	●
70	BOLT; BRKT (A) M10X70 FLANGE	0-28051-070-0	02	1	0712-1301	●	●
70	BOLT; BRKT (A) M10X70 FLANGE	0-28051-070-0	02	1	0712-1301	●
70	BOLT; BRKT 6HK1-TCN ENG(82L) (A) M10X70 FLANGE	0-28051-070-0	02	1	0712-1301		●
70	BOLT; BRKT (A) M10X70 FLANGE	0-28051-070-0	01	1	1302-	●	●
81	NUT; BRKT 4HK1-TCS ENG(RJS) M10 FLANGE	0-91180-210-0	01	1	0911-1007		●
81	NUT; BRKT M10 FLANGE	0-91180-210-0	04	1	1302-1304	●
81	NUT; BRKT 6HK1-TCN ENG(82L) M10 FLANGE	0-91180-210-0	04	1	1302-1304		●
81	NUT; BRKT M10 FLANGE	0-91180-210-0	02	1	1305-	●	●
81	NUT; BRKT M10 FLANGE	0-91180-210-0	02	1	1305-	●	●
81	NUT; BRKT M10 FLANGE	0-91180-210-0	02	1	1305-	●
81	NUT; BRKT 6HK1-TCN ENG(82L) M10 FLANGE	0-91180-210-0	02	1	1305-		●
81	NUT; BRKT M10 FLANGE	0-91180-210-0	02	1	0710-0711	●
81	NUT; BRKT M10 FLANGE	0-91180-210-0	02	1	0710-0711	●
81	NUT; BRKT M10 FLANGE	0-91180-210-0	02	1	0710-0711	●
81	NUT; BRKT M10 FLANGE	0-91180-210-0	02	1	0712-0910	●	●
81	NUT; BRKT M10 FLANGE	0-91180-210-0	02	1	0712-0910	●	●
81	NUT; BRKT M10 FLANGE	0-91180-210-0	02	1	0712-0910	●
81	NUT; BRKT 6HK1-TCN ENG(82L) M10 FLANGE	0-91180-210-0	02	1	0712-0910		●
81	NUT; BRKT M10 FLANGE	0-91180-210-0	02	1	0911-1007	●	●
81	NUT; BRKT M10 FLANGE	0-91180-210-0	02	1	0911-1007	●
81	NUT; BRKT 6HK1-TCN ENG(82L) M10 FLANGE	0-91180-210-0	02	1	0911-1007		●
81	NUT; BRKT M10 FLANGE	0-91180-210-0	02	1	1008-1301	●	●
81	NUT; BRKT M10 FLANGE	0-91180-210-0	02	1	1008-1301	●	●
81	NUT; BRKT M10 FLANGE	0-91180-210-0	02	1	1008-1301	●
81	NUT; BRKT 6HK1-TCN ENG(82L) M10 FLANGE	0-91180-210-0	02	1	1008-1301		●
81	NUT; BRKT M10 FLANGE	0-91180-210-0	02	1	1302-1302	●	●
81	NUT; BRKT M10 FLANGE	0-91180-210-0	02	1	1302-1302	●	●
81	NUT; BRKT 6HK1-TCN ENG(82L) M10 FLANGE	0-91180-210-0	02	1	1302-1302		●
81	NUT; BRKT M10 FLANGE	0-91180-210-0	01	1	1302-	●	●
81	NUT; BRKT M10 FLANGE	0-91180-210-0	01	1	1302-	●	●
81	NUT; BRKT M10 FLANGE	0-91180-210-0	01	1	0710-0711	●
81	NUT; BRKT M10 FLANGE	0-91180-210-0	01	1	0712-0910	●	●
81	NUT; BRKT 4HK1-TCS ENG(RJS) M10 FLANGE	0-91180-210-0	01	1	0712-0910		●
81	NUT; BRKT M10 FLANGE	0-91180-210-0	03	1	0911-1007	●	●
81	NUT; BRKT M10 FLANGE	0-91180-210-0	01	1	1008-1301	●	●
81	NUT; BRKT 4HK1-TCS ENG(RJS) M10 FLANGE	0-91180-210-0	01	1	1008-1301		●
81	NUT; BRKT M10 FLANGE	0-91180-210-0	02	1	1302-1304	●	●
81	NUT; BRKT 4HK1-TCS ENG(RJS) M10 FLANGE	0-91180-210-0	02	1	1302-1304		●
84	GASKET; EXH PIPE (A)	1-22116-040-0	01	1	0710-0711	●
84	GASKET; EXH PIPE (A)	1-22116-040-0	01	1	0712-	●
84	GASKET; EXH PIPE 6HK1-TCN ENG(82L) (A)	1-22116-040-0	01	1	0712-		●
84	GASKET; EXH PIPE (B)	1-22116-043-0	01	1	0710-0711	●
84	GASKET; EXH PIPE (B)	1-22116-043-0	01	1	0710-0711	●
84	GASKET; EXH PIPE (B)	1-22116-043-0	01	1	0712-	●	●
84	GASKET; EXH PIPE (B)	1-22116-043-0	01	1	0712-	●
84	GASKET; EXH PIPE 6HK1-TCN ENG(82L) (B)	1-22116-043-0	01	1	0712-		●
84	GASKET; EXH PIPE 4HK1-TCS ENG(RJS) (C) ID=64	8-97373-108-0	02	1	0712-		●
107	BOLT; BRKT M10X35 FLANGE	0-28651-035-0	04	1	0710-0711	●
107	BOLT; BRKT M10X35 FLANGE	0-28651-035-0	04	1	0712-	●	●
121	WASHER; PL,BRKT ID=11 OD=54	1-09503-154-1	01	1	0710-0711	●
121	WASHER; PL,BRKT 6HK1-TCC ENG(81L),6HK1-TCN ENG(82L) ID=11 OD=54	1-09503-154-2	01	1	0712-	●
121	WASHER; PL,BRKT 6HK1-TCN ENG(82L) WHEEL BASE 5100MM(51W) ID=11 OD=54	1-09503-154-2	01	1	0712-		●
121	WASHER; PL,BRKT 4HK1-TCS ENG(RJS) ID=11 OD=54	1-09503-154-2	01	1	0712-		●
121	WASHER; PL,BRKT ID=11 OD=54	1-09503-154-1	02	1	0710-0711	●
121	WASHER; PL,BRKT ID=11 OD=54	1-09503-154-2	02	1	0712-	●	●
226	RUBBER; CUSHION 4HK1-TCS ENG(RJS) (A)	8-94457-277-1	01	1	0712-1301		●
226	RUBBER; CUSHION (A)	8-94457-277-1	02	1	1302-	●	●
226	RUBBER; CUSHION 4HK1-TCS ENG(RJS) (B)	8-94457-278-1	01	1	0712-1301		●
226	RUBBER; CUSHION (B)	8-94457-278-1	02	1	1302-	●	●
226	RUBBER; CUSHION (A)	8-94457-277-1	02	1	0710-0711	●
226	RUBBER; CUSHION (A)	8-94457-277-1	02	1	0710-0711	●
226	RUBBER; CUSHION (A)	8-94457-277-1	02	1	0712-1301	●	●
226	RUBBER; CUSHION (A)	8-94457-277-1	02	1	0712-1301	●
226	RUBBER; CUSHION 6HK1-TCN ENG(82L) (A)	8-94457-277-1	02	1	0712-1301		●
226	RUBBER; CUSHION (A)	8-94457-277-1	01	1	1302-	●	●
226	RUBBER; CUSHION (B)	8-94457-278-1	02	1	0710-0711	●
226	RUBBER; CUSHION (B)	8-94457-278-1	02	1	0710-0711	●
226	RUBBER; CUSHION (B)	8-94457-278-1	02	1	0712-1301	●	●
226	RUBBER; CUSHION (B)	8-94457-278-1	02	1	0712-1301	●
226	RUBBER; CUSHION 6HK1-TCN ENG(82L) (B)	8-94457-278-1	02	1	0712-1301		●
226	RUBBER; CUSHION (B)	8-94457-278-1	01	1	1302-	●	●
475	BEARING; SEAL,VIBNON,EXH PIPE	8-98233-479-0	01	1	1302-	●
475	BEARING; SEAL,VIBNON,EXH PIPE 6HK1-TCN ENG(82L)	8-98233-479-0	01	1	1302-		●
476	SPRING; VIBNON,EXH PIPE	8-98233-482-0	02	1	1302-	●
476	SPRING; VIBNON,EXH PIPE 6HK1-TCN ENG(82L)	8-98233-482-0	02	1	1302-		●
506	BRACKET; STUD M12X35	1-22131-963-0	02	1	0710-0711	●
506	BRACKET; STUD M12X35	1-22131-963-0	02	1	0712-	●	●
556	DPD ASM	8-97613-331-1	01	1	0710-0711	●
556	DPD ASM	8-97613-331-6	01	1	0712-1010	●	●
556	DPD ASM	8-97622-883-3	01	1	1011-	●	●

226 70 121 62 56 81 107 60 52 226 81 70 121 56 81 226 62 226 81 107 60 52 84 12 555 84 36 556 506 44 44

Balon	Parca Adi	Parca No	Adet	Tip	Applied Date	A	B
12	SILENCER ASM; EXH (A)	8-98041-925-1	01	1	0710-0711	●
12	SILENCER ASM; EXH (A)	8-98041-925-1	01	1	0712-1301	●
12	SILENCER ASM; EXH 6HK1-TCN ENG(82L) (A)	8-98041-925-1	01	1	0712-1301		●
12	SILENCER ASM; EXH (C)	8-98234-507-0	01	1	1302-	●
12	SILENCER ASM; EXH 6HK1-TCN ENG(82L) (C)	8-98234-507-0	01	1	1302-		●
12	SILENCER ASM; EXH 4HK1-TCS ENG(RJS) (B)	8-98041-921-0	01	1	0712-		●
36	NUT; EXH PIPE (B) M12 FLANGE	0-91180-212-0	07	1	0710-0711	●
36	NUT; EXH PIPE (B) M12 FLANGE	0-91180-212-0	07	1	0712-	●
36	NUT; EXH PIPE 6HK1-TCN ENG(82L) (B) M12 FLANGE	0-91180-212-0	07	1	0712-		●
36	NUT; EXH PIPE (A) M12	1-09400-010-0	03	1	0710-0711	●
36	NUT; EXH PIPE (A) M12	1-09400-010-0	03	1	0712-	●
36	NUT; EXH PIPE 6HK1-TCN ENG(82L) (A) M12	1-09400-010-0	03	1	0712-		●
36	NUT; EXH PIPE 4HK1-TCS ENG(RJS) (D) M10	0-91110-510-0	04	1	0712-		●
36	NUT; EXH PIPE 4HK1-TCS ENG(RJS) (C) M10 FLANGE	8-97096-192-1	03	1	0712-		●
44	BOLT; BRKT (A) M10X30 FLANGE	0-28651-030-0	02	1	0710-0711	●
44	BOLT; BRKT (A) M10X30 FLANGE	0-28651-030-0	02	1	0712-0907	●
44	BOLT; BRKT 6HK1-TCN ENG(82L) (A) M10X30 FLANGE	0-28651-030-0	02	1	0712-0907		●
44	BOLT; BRKT (B) M10X35 FLANGE	0-28651-035-0	02	1	0908-	●
44	BOLT; BRKT 6HK1-TCN ENG(82L) (B) M10X35 FLANGE	0-28651-035-0	02	1	0908-		●
44	BOLT; BRKT (B) M10X35 FLANGE	0-28651-035-0	08	1	0710-0711	●
44	BOLT; BRKT (B) M10X35 FLANGE	0-28651-035-0	08	1	0712-	●	●
52	NUT; BRKT (A) M10 FLANGE	0-91180-210-0	08	1	0710-0710	●
52	NUT; BRKT (A) M10 FLANGE	0-91180-210-0	07	1	0710-0711	●
52	NUT; BRKT (A) M10 FLANGE	0-91180-210-0	07	1	0712-	●	●
52	NUT; BRKT (A) M10 FLANGE	0-91180-210-0	02	1	0710-0711	●
52	NUT; BRKT (A) M10 FLANGE	0-91180-210-0	02	1	0712-	●
52	NUT; BRKT 6HK1-TCN ENG(82L) (A) M10 FLANGE	0-91180-210-0	02	1	0712-		●
52	NUT; BRKT 4HK1-TCS ENG(RJS) (B) M12 FLANGE	0-91180-212-0	04	1	0712-		●
56	BRACKET; CLAMP,EXH PIPE (C)	8-98059-756-0	02	1	0710-0711	●
56	BRACKET; CLAMP,EXH PIPE (C)	8-98059-756-0	02	1	0712-1301	●
56	BRACKET; CLAMP,EXH PIPE 6HK1-TCN ENG(82L) (C)	8-98059-756-0	02	1	0712-1301		●
56	BRACKET; CLAMP,EXH PIPE (H)	8-98233-506-0	01	1	1302-	●
56	BRACKET; CLAMP,EXH PIPE 6HK1-TCN ENG(82L) (H)	8-98233-506-0	01	1	1302-		●
56	BRACKET; CLAMP,EXH PIPE (D)	1-22131-584-0	01	1	0710-0711	●
56	BRACKET; CLAMP,EXH PIPE (D)	1-22131-584-0	01	1	0712-1007	●	●
56	BRACKET; CLAMP,EXH PIPE (D)	1-22131-584-0	01	1	1008-1309	●	●
56	BRACKET; CLAMP,EXH PIPE (D)	8-98245-522-0	01	1	1310-	●	●
56	BRACKET; CLAMP,EXH PIPE (A)	8-98074-829-1	01	1	0710-0711	●
56	BRACKET; CLAMP,EXH PIPE (A)	8-98074-829-1	01	1	0712-	●
56	BRACKET; CLAMP,EXH PIPE 6HK1-TCN ENG(82L) (A)	8-98074-829-1	01	1	0712-		●
56	BRACKET; CLAMP,EXH PIPE (B)	8-98074-830-0	01	1	0710-0711	●
56	BRACKET; CLAMP,EXH PIPE (B)	8-98074-830-0	01	1	0712-	●
56	BRACKET; CLAMP,EXH PIPE 6HK1-TCN ENG(82L) (B)	8-98074-830-0	01	1	0712-		●
56	BRACKET; CLAMP,EXH PIPE 4HK1-TCS ENG(RJS) (E)	8-98059-755-0	01	1	0712-		●
56	BRACKET; CLAMP,EXH PIPE 4HK1-TCS ENG(RJS) (F)	8-98074-825-0	01	1	0712-		●
56	BRACKET; CLAMP,EXH PIPE 4HK1-TCS ENG(RJS) (G)	8-98074-826-1	01	1	0712-		●
60	BRACKET; FRAME TO BRKT (D)	8-98059-753-1	02	1	0710-0711	●
60	BRACKET; FRAME TO BRKT (D)	8-98059-753-1	02	1	0712-1301	●
60	BRACKET; FRAME TO BRKT 6HK1-TCN ENG(82L) (D)	8-98059-753-1	02	1	0712-1301		●
60	BRACKET; FRAME TO BRKT (D)	8-98233-509-0	01	1	1302-	●
60	BRACKET; FRAME TO BRKT 6HK1-TCN ENG(82L) (D)	8-98233-509-0	01	1	1302-		●
60	BRACKET; FRAME TO BRKT 4HK1-TCS ENG(RJS) (D)	8-98059-753-1	01	1	0712-1309		●
60	BRACKET; FRAME TO BRKT 4HK1-TCS ENG(RJS) (D)	8-98245-530-0	01	1	1310-		●
60	BRACKET; FRAME TO BRKT (A)	1-22152-274-1	01	1	0710-0711	●
60	BRACKET; FRAME TO BRKT (A)	1-22152-274-1	01	1	0712-	●
60	BRACKET; FRAME TO BRKT 6HK1-TCN ENG(82L) (A)	1-22152-274-1	01	1	0712-		●
60	BRACKET; FRAME TO BRKT (B)	8-98059-712-1	01	1	0710-0711	●
60	BRACKET; FRAME TO BRKT (B)	8-98059-712-1	01	1	0712-	●	●
60	BRACKET; FRAME TO BRKT (C)	8-98070-640-0	01	1	0710-0711	●
60	BRACKET; FRAME TO BRKT (C)	8-98070-640-0	01	1	0712-1007	●	●
60	BRACKET; FRAME TO BRKT (C)	8-98070-640-0	01	1	1008-1309	●	●
60	BRACKET; FRAME TO BRKT (C)	8-98245-521-0	01	1	1310-	●	●
60	BRACKET; FRAME TO BRKT 4HK1-TCS ENG(RJS) (E)	8-98061-138-1	01	1	0712-		●
62	TUBE; DIST,BRKT 4HK1-TCS ENG(RJS) (A)	8-98060-852-0	01	1	0712-1301		●
62	TUBE; DIST,BRKT (A)	8-98060-852-0	02	1	1302-	●	●
62	TUBE; DIST,BRKT (B) L=22	1-22159-392-0	01	1	0710-0711	●
62	TUBE; DIST,BRKT (B) L=22	1-22159-392-0	01	1	0712-0906	●	●
62	TUBE; DIST,BRKT (B) L=22	9-22159-024-0	01	1	0907-1007	●	●
62	TUBE; DIST,BRKT (B) L=22	9-22159-024-0	01	1	1008-	●	●
62	TUBE; DIST,BRKT (A)	8-98060-852-0	02	1	0710-0711	●
62	TUBE; DIST,BRKT (A)	8-98060-852-0	02	1	0710-0711	●
62	TUBE; DIST,BRKT (A)	8-98060-852-0	02	1	0712-1301	●	●
62	TUBE; DIST,BRKT (A)	8-98060-852-0	02	1	0712-1301	●
62	TUBE; DIST,BRKT 6HK1-TCN ENG(82L) (A)	8-98060-852-0	02	1	0712-1301		●
62	TUBE; DIST,BRKT (A)	8-98060-852-0	01	1	1302-	●	●
70	BOLT; BRKT 4HK1-TCS ENG(RJS) (A) M10X70 FLANGE	0-28051-070-0	01	1	0712-1301		●
70	BOLT; BRKT (A) M10X70 FLANGE	0-28051-070-0	02	1	1302-	●	●
70	BOLT; BRKT (B) M10X50 FLANGE	0-28051-050-0	01	1	0710-0711	●
70	BOLT; BRKT (B) M10X50 FLANGE	0-28051-050-0	01	1	0712-1007	●	●
70	BOLT; BRKT (B) M10X50 FLANGE	0-28051-050-0	01	1	1008-	●	●
70	BOLT; BRKT (A) M10X70 FLANGE	0-28051-070-0	02	1	0710-0711	●
70	BOLT; BRKT (A) M10X70 FLANGE	0-28051-070-0	02	1	0710-0711	●
70	BOLT; BRKT (A) M10X70 FLANGE	0-28051-070-0	02	1	0712-1301	●	●
70	BOLT; BRKT (A) M10X70 FLANGE	0-28051-070-0	02	1	0712-1301	●
70	BOLT; BRKT 6HK1-TCN ENG(82L) (A) M10X70 FLANGE	0-28051-070-0	02	1	0712-1301		●
70	BOLT; BRKT (A) M10X70 FLANGE	0-28051-070-0	01	1	1302-	●	●
81	NUT; BRKT 4HK1-TCS ENG(RJS) M10 FLANGE	0-91180-210-0	01	1	0911-1007		●
81	NUT; BRKT M10 FLANGE	0-91180-210-0	04	1	1302-1304	●
81	NUT; BRKT 6HK1-TCN ENG(82L) M10 FLANGE	0-91180-210-0	04	1	1302-1304		●
81	NUT; BRKT M10 FLANGE	0-91180-210-0	02	1	1305-	●	●
81	NUT; BRKT M10 FLANGE	0-91180-210-0	02	1	1305-	●	●
81	NUT; BRKT M10 FLANGE	0-91180-210-0	02	1	1305-	●
81	NUT; BRKT 6HK1-TCN ENG(82L) M10 FLANGE	0-91180-210-0	02	1	1305-		●
81	NUT; BRKT M10 FLANGE	0-91180-210-0	02	1	0710-0711	●
81	NUT; BRKT M10 FLANGE	0-91180-210-0	02	1	0710-0711	●
81	NUT; BRKT M10 FLANGE	0-91180-210-0	02	1	0710-0711	●
81	NUT; BRKT M10 FLANGE	0-91180-210-0	02	1	0712-0910	●	●
81	NUT; BRKT M10 FLANGE	0-91180-210-0	02	1	0712-0910	●	●
81	NUT; BRKT M10 FLANGE	0-91180-210-0	02	1	0712-0910	●
81	NUT; BRKT 6HK1-TCN ENG(82L) M10 FLANGE	0-91180-210-0	02	1	0712-0910		●
81	NUT; BRKT M10 FLANGE	0-91180-210-0	02	1	0911-1007	●	●
81	NUT; BRKT M10 FLANGE	0-91180-210-0	02	1	0911-1007	●
81	NUT; BRKT 6HK1-TCN ENG(82L) M10 FLANGE	0-91180-210-0	02	1	0911-1007		●
81	NUT; BRKT M10 FLANGE	0-91180-210-0	02	1	1008-1301	●	●
81	NUT; BRKT M10 FLANGE	0-91180-210-0	02	1	1008-1301	●	●
81	NUT; BRKT M10 FLANGE	0-91180-210-0	02	1	1008-1301	●
81	NUT; BRKT 6HK1-TCN ENG(82L) M10 FLANGE	0-91180-210-0	02	1	1008-1301		●
81	NUT; BRKT M10 FLANGE	0-91180-210-0	02	1	1302-1302	●	●
81	NUT; BRKT M10 FLANGE	0-91180-210-0	02	1	1302-1302	●	●
81	NUT; BRKT 6HK1-TCN ENG(82L) M10 FLANGE	0-91180-210-0	02	1	1302-1302		●
81	NUT; BRKT M10 FLANGE	0-91180-210-0	01	1	1302-	●	●
81	NUT; BRKT M10 FLANGE	0-91180-210-0	01	1	1302-	●	●
81	NUT; BRKT M10 FLANGE	0-91180-210-0	01	1	0710-0711	●
81	NUT; BRKT M10 FLANGE	0-91180-210-0	01	1	0712-0910	●	●
81	NUT; BRKT 4HK1-TCS ENG(RJS) M10 FLANGE	0-91180-210-0	01	1	0712-0910		●
81	NUT; BRKT M10 FLANGE	0-91180-210-0	03	1	0911-1007	●	●
81	NUT; BRKT M10 FLANGE	0-91180-210-0	01	1	1008-1301	●	●
81	NUT; BRKT 4HK1-TCS ENG(RJS) M10 FLANGE	0-91180-210-0	01	1	1008-1301		●
81	NUT; BRKT M10 FLANGE	0-91180-210-0	02	1	1302-1304	●	●
81	NUT; BRKT 4HK1-TCS ENG(RJS) M10 FLANGE	0-91180-210-0	02	1	1302-1304		●
84	GASKET; EXH PIPE (A)	1-22116-040-0	01	1	0710-0711	●
84	GASKET; EXH PIPE (A)	1-22116-040-0	01	1	0712-	●
84	GASKET; EXH PIPE 6HK1-TCN ENG(82L) (A)	1-22116-040-0	01	1	0712-		●
84	GASKET; EXH PIPE (B)	1-22116-043-0	01	1	0710-0711	●
84	GASKET; EXH PIPE (B)	1-22116-043-0	01	1	0710-0711	●
84	GASKET; EXH PIPE (B)	1-22116-043-0	01	1	0712-	●	●
84	GASKET; EXH PIPE (B)	1-22116-043-0	01	1	0712-	●
84	GASKET; EXH PIPE 6HK1-TCN ENG(82L) (B)	1-22116-043-0	01	1	0712-		●
84	GASKET; EXH PIPE 4HK1-TCS ENG(RJS) (C) ID=64	8-97373-108-0	02	1	0712-		●
107	BOLT; BRKT M10X35 FLANGE	0-28651-035-0	04	1	0710-0711	●
107	BOLT; BRKT M10X35 FLANGE	0-28651-035-0	04	1	0712-	●	●
121	WASHER; PL,BRKT ID=11 OD=54	1-09503-154-1	01	1	0710-0711	●
121	WASHER; PL,BRKT 6HK1-TCC ENG(81L),6HK1-TCN ENG(82L) ID=11 OD=54	1-09503-154-2	01	1	0712-	●
121	WASHER; PL,BRKT 6HK1-TCN ENG(82L) WHEEL BASE 5100MM(51W) ID=11 OD=54	1-09503-154-2	01	1	0712-		●
121	WASHER; PL,BRKT 4HK1-TCS ENG(RJS) ID=11 OD=54	1-09503-154-2	01	1	0712-		●
121	WASHER; PL,BRKT ID=11 OD=54	1-09503-154-1	02	1	0710-0711	●
121	WASHER; PL,BRKT ID=11 OD=54	1-09503-154-2	02	1	0712-	●	●
226	RUBBER; CUSHION 4HK1-TCS ENG(RJS) (A)	8-94457-277-1	01	1	0712-1301		●
226	RUBBER; CUSHION (A)	8-94457-277-1	02	1	1302-	●	●
226	RUBBER; CUSHION 4HK1-TCS ENG(RJS) (B)	8-94457-278-1	01	1	0712-1301		●
226	RUBBER; CUSHION (B)	8-94457-278-1	02	1	1302-	●	●
226	RUBBER; CUSHION (A)	8-94457-277-1	02	1	0710-0711	●
226	RUBBER; CUSHION (A)	8-94457-277-1	02	1	0710-0711	●
226	RUBBER; CUSHION (A)	8-94457-277-1	02	1	0712-1301	●	●
226	RUBBER; CUSHION (A)	8-94457-277-1	02	1	0712-1301	●
226	RUBBER; CUSHION 6HK1-TCN ENG(82L) (A)	8-94457-277-1	02	1	0712-1301		●
226	RUBBER; CUSHION (A)	8-94457-277-1	01	1	1302-	●	●
226	RUBBER; CUSHION (B)	8-94457-278-1	02	1	0710-0711	●
226	RUBBER; CUSHION (B)	8-94457-278-1	02	1	0710-0711	●
226	RUBBER; CUSHION (B)	8-94457-278-1	02	1	0712-1301	●	●
226	RUBBER; CUSHION (B)	8-94457-278-1	02	1	0712-1301	●
226	RUBBER; CUSHION 6HK1-TCN ENG(82L) (B)	8-94457-278-1	02	1	0712-1301		●
226	RUBBER; CUSHION (B)	8-94457-278-1	01	1	1302-	●	●
506	BRACKET; STUD M12X35	1-22131-963-0	02	1	0710-0711	●
506	BRACKET; STUD M12X35	1-22131-963-0	02	1	0712-	●	●
555	PIPE; EXH,DPD 4HK1-TCS ENG(RJS)	8-98060-847-0	01	1	0712-		●
556	DPD ASM	8-97613-331-1	01	1	0710-0711	●
556	DPD ASM	8-97613-331-6	01	1	0712-1010	●	●
556	DPD ASM	8-97622-883-3	01	1	1011-	●	●

81 75 62 56 75 81 60 94 107 81 22 70 118 60 107 121 226 105 22 62 56 226 105 94 126 70 22 22

Balon	Parca Adi	Parca No	Adet	Tip	Applied Date	A	B
22	CLAMP; EXH PIPE (A) ID=80-84	1-22133-233-0	04	1	0710-0711	●
22	CLAMP; EXH PIPE (A) ID=80-84	1-22133-233-0	04	1	0712-1301	●
22	CLAMP; EXH PIPE 6HK1-TCN ENG(82L) (A) ID=80-84	1-22133-233-0	04	1	0712-1301		●
22	CLAMP; EXH PIPE (A) ID=80-84	1-22133-233-0	02	1	0710-0711	●
22	CLAMP; EXH PIPE (A) ID=80-84	1-22133-233-0	02	1	0712-1301	●	●
22	CLAMP; EXH PIPE 4HK1-TCS ENG(RJS) (A) ID=80-84	1-22133-233-0	02	1	0712-1301		●
22	CLAMP; EXH PIPE (A) ID=80-84	1-22133-233-0	02	1	1302-	●	●
22	CLAMP; EXH PIPE (A) ID=80-84	1-22133-233-0	02	1	1302-	●	●
22	CLAMP; EXH PIPE 4HK1-TCS ENG(RJS) (B)	1-22133-295-0	01	1	0712-1309		●
22	CLAMP; EXH PIPE 4HK1-TCS ENG(RJS) (B)	8-97646-674-0	01	1	1310-		●
56	BRACKET; CLAMP,EXH PIPE (C)	8-98059-756-0	02	1	0710-0711	●
56	BRACKET; CLAMP,EXH PIPE (C)	8-98059-756-0	02	1	0712-1301	●
56	BRACKET; CLAMP,EXH PIPE 6HK1-TCN ENG(82L) (C)	8-98059-756-0	02	1	0712-1301		●
56	BRACKET; CLAMP,EXH PIPE (H)	8-98233-506-0	01	1	1302-	●
56	BRACKET; CLAMP,EXH PIPE 6HK1-TCN ENG(82L) (H)	8-98233-506-0	01	1	1302-		●
56	BRACKET; CLAMP,EXH PIPE (D)	1-22131-584-0	01	1	0710-0711	●
56	BRACKET; CLAMP,EXH PIPE (D)	1-22131-584-0	01	1	0712-1007	●	●
56	BRACKET; CLAMP,EXH PIPE (D)	1-22131-584-0	01	1	1008-1309	●	●
56	BRACKET; CLAMP,EXH PIPE (D)	8-98245-522-0	01	1	1310-	●	●
56	BRACKET; CLAMP,EXH PIPE (A)	8-98074-829-1	01	1	0710-0711	●
56	BRACKET; CLAMP,EXH PIPE (A)	8-98074-829-1	01	1	0712-	●
56	BRACKET; CLAMP,EXH PIPE 6HK1-TCN ENG(82L) (A)	8-98074-829-1	01	1	0712-		●
56	BRACKET; CLAMP,EXH PIPE (B)	8-98074-830-0	01	1	0710-0711	●
56	BRACKET; CLAMP,EXH PIPE (B)	8-98074-830-0	01	1	0712-	●
56	BRACKET; CLAMP,EXH PIPE 6HK1-TCN ENG(82L) (B)	8-98074-830-0	01	1	0712-		●
56	BRACKET; CLAMP,EXH PIPE 4HK1-TCS ENG(RJS) (E)	8-98059-755-0	01	1	0712-		●
56	BRACKET; CLAMP,EXH PIPE 4HK1-TCS ENG(RJS) (F)	8-98074-825-0	01	1	0712-		●
56	BRACKET; CLAMP,EXH PIPE 4HK1-TCS ENG(RJS) (G)	8-98074-826-1	01	1	0712-		●
60	BRACKET; FRAME TO BRKT (D)	8-98059-753-1	02	1	0710-0711	●
60	BRACKET; FRAME TO BRKT (D)	8-98059-753-1	02	1	0712-1301	●
60	BRACKET; FRAME TO BRKT 6HK1-TCN ENG(82L) (D)	8-98059-753-1	02	1	0712-1301		●
60	BRACKET; FRAME TO BRKT (D)	8-98233-509-0	01	1	1302-	●
60	BRACKET; FRAME TO BRKT 6HK1-TCN ENG(82L) (D)	8-98233-509-0	01	1	1302-		●
60	BRACKET; FRAME TO BRKT 4HK1-TCS ENG(RJS) (D)	8-98059-753-1	01	1	0712-1309		●
60	BRACKET; FRAME TO BRKT 4HK1-TCS ENG(RJS) (D)	8-98245-530-0	01	1	1310-		●
60	BRACKET; FRAME TO BRKT (A)	1-22152-274-1	01	1	0710-0711	●
60	BRACKET; FRAME TO BRKT (A)	1-22152-274-1	01	1	0712-	●
60	BRACKET; FRAME TO BRKT 6HK1-TCN ENG(82L) (A)	1-22152-274-1	01	1	0712-		●
60	BRACKET; FRAME TO BRKT (B)	8-98059-712-1	01	1	0710-0711	●
60	BRACKET; FRAME TO BRKT (B)	8-98059-712-1	01	1	0712-	●	●
60	BRACKET; FRAME TO BRKT (C)	8-98070-640-0	01	1	0710-0711	●
60	BRACKET; FRAME TO BRKT (C)	8-98070-640-0	01	1	0712-1007	●	●
60	BRACKET; FRAME TO BRKT (C)	8-98070-640-0	01	1	1008-1309	●	●
60	BRACKET; FRAME TO BRKT (C)	8-98245-521-0	01	1	1310-	●	●
60	BRACKET; FRAME TO BRKT 4HK1-TCS ENG(RJS) (E)	8-98061-138-1	01	1	0712-		●
62	TUBE; DIST,BRKT 4HK1-TCS ENG(RJS) (A)	8-98060-852-0	01	1	0712-1301		●
62	TUBE; DIST,BRKT (A)	8-98060-852-0	02	1	1302-	●	●
62	TUBE; DIST,BRKT (B) L=22	1-22159-392-0	01	1	0710-0711	●
62	TUBE; DIST,BRKT (B) L=22	1-22159-392-0	01	1	0712-0906	●	●
62	TUBE; DIST,BRKT (B) L=22	9-22159-024-0	01	1	0907-1007	●	●
62	TUBE; DIST,BRKT (B) L=22	9-22159-024-0	01	1	1008-	●	●
62	TUBE; DIST,BRKT (A)	8-98060-852-0	02	1	0710-0711	●
62	TUBE; DIST,BRKT (A)	8-98060-852-0	02	1	0710-0711	●
62	TUBE; DIST,BRKT (A)	8-98060-852-0	02	1	0712-1301	●	●
62	TUBE; DIST,BRKT (A)	8-98060-852-0	02	1	0712-1301	●
62	TUBE; DIST,BRKT 6HK1-TCN ENG(82L) (A)	8-98060-852-0	02	1	0712-1301		●
62	TUBE; DIST,BRKT (A)	8-98060-852-0	01	1	1302-	●	●
70	BOLT; BRKT 4HK1-TCS ENG(RJS) (A) M10X70 FLANGE	0-28051-070-0	01	1	0712-1301		●
70	BOLT; BRKT (A) M10X70 FLANGE	0-28051-070-0	02	1	1302-	●	●
70	BOLT; BRKT (B) M10X50 FLANGE	0-28051-050-0	01	1	0710-0711	●
70	BOLT; BRKT (B) M10X50 FLANGE	0-28051-050-0	01	1	0712-1007	●	●
70	BOLT; BRKT (B) M10X50 FLANGE	0-28051-050-0	01	1	1008-	●	●
70	BOLT; BRKT (A) M10X70 FLANGE	0-28051-070-0	02	1	0710-0711	●
70	BOLT; BRKT (A) M10X70 FLANGE	0-28051-070-0	02	1	0710-0711	●
70	BOLT; BRKT (A) M10X70 FLANGE	0-28051-070-0	02	1	0712-1301	●	●
70	BOLT; BRKT (A) M10X70 FLANGE	0-28051-070-0	02	1	0712-1301	●
70	BOLT; BRKT 6HK1-TCN ENG(82L) (A) M10X70 FLANGE	0-28051-070-0	02	1	0712-1301		●
70	BOLT; BRKT (A) M10X70 FLANGE	0-28051-070-0	01	1	1302-	●	●
75	RUBBER; SUPPORT,BRKT OD=40	1-22159-193-0	02	1	0710-0711	●
75	RUBBER; SUPPORT,BRKT OD=40	1-22159-193-0	02	1	0712-1007	●	●
75	RUBBER; SUPPORT,BRKT OD=40	1-22159-193-0	02	1	1008-	●	●
81	NUT; BRKT 4HK1-TCS ENG(RJS) M10 FLANGE	0-91180-210-0	01	1	0911-1007		●
81	NUT; BRKT M10 FLANGE	0-91180-210-0	04	1	1302-1304	●
81	NUT; BRKT 6HK1-TCN ENG(82L) M10 FLANGE	0-91180-210-0	04	1	1302-1304		●
81	NUT; BRKT M10 FLANGE	0-91180-210-0	02	1	1305-	●	●
81	NUT; BRKT M10 FLANGE	0-91180-210-0	02	1	1305-	●	●
81	NUT; BRKT M10 FLANGE	0-91180-210-0	02	1	1305-	●
81	NUT; BRKT 6HK1-TCN ENG(82L) M10 FLANGE	0-91180-210-0	02	1	1305-		●
81	NUT; BRKT M10 FLANGE	0-91180-210-0	02	1	0710-0711	●
81	NUT; BRKT M10 FLANGE	0-91180-210-0	02	1	0710-0711	●
81	NUT; BRKT M10 FLANGE	0-91180-210-0	02	1	0710-0711	●
81	NUT; BRKT M10 FLANGE	0-91180-210-0	02	1	0712-0910	●	●
81	NUT; BRKT M10 FLANGE	0-91180-210-0	02	1	0712-0910	●	●
81	NUT; BRKT M10 FLANGE	0-91180-210-0	02	1	0712-0910	●
81	NUT; BRKT 6HK1-TCN ENG(82L) M10 FLANGE	0-91180-210-0	02	1	0712-0910		●
81	NUT; BRKT M10 FLANGE	0-91180-210-0	02	1	0911-1007	●	●
81	NUT; BRKT M10 FLANGE	0-91180-210-0	02	1	0911-1007	●
81	NUT; BRKT 6HK1-TCN ENG(82L) M10 FLANGE	0-91180-210-0	02	1	0911-1007		●
81	NUT; BRKT M10 FLANGE	0-91180-210-0	02	1	1008-1301	●	●
81	NUT; BRKT M10 FLANGE	0-91180-210-0	02	1	1008-1301	●	●
81	NUT; BRKT M10 FLANGE	0-91180-210-0	02	1	1008-1301	●
81	NUT; BRKT 6HK1-TCN ENG(82L) M10 FLANGE	0-91180-210-0	02	1	1008-1301		●
81	NUT; BRKT M10 FLANGE	0-91180-210-0	02	1	1302-1302	●	●
81	NUT; BRKT M10 FLANGE	0-91180-210-0	02	1	1302-1302	●	●
81	NUT; BRKT 6HK1-TCN ENG(82L) M10 FLANGE	0-91180-210-0	02	1	1302-1302		●
81	NUT; BRKT M10 FLANGE	0-91180-210-0	01	1	1302-	●	●
81	NUT; BRKT M10 FLANGE	0-91180-210-0	01	1	1302-	●	●
81	NUT; BRKT M10 FLANGE	0-91180-210-0	01	1	0710-0711	●
81	NUT; BRKT M10 FLANGE	0-91180-210-0	01	1	0712-0910	●	●
81	NUT; BRKT 4HK1-TCS ENG(RJS) M10 FLANGE	0-91180-210-0	01	1	0712-0910		●
81	NUT; BRKT M10 FLANGE	0-91180-210-0	03	1	0911-1007	●	●
81	NUT; BRKT M10 FLANGE	0-91180-210-0	01	1	1008-1301	●	●
81	NUT; BRKT 4HK1-TCS ENG(RJS) M10 FLANGE	0-91180-210-0	01	1	1008-1301		●
81	NUT; BRKT M10 FLANGE	0-91180-210-0	02	1	1302-1304	●	●
81	NUT; BRKT 4HK1-TCS ENG(RJS) M10 FLANGE	0-91180-210-0	02	1	1302-1304		●
94	BOLT; CLAMP M10X40 FLANGE	0-28651-040-0	04	1	0710-0711	●
94	BOLT; CLAMP M10X40 FLANGE	0-28651-040-0	04	1	0712-1301	●
94	BOLT; CLAMP 6HK1-TCN ENG(82L) M10X40 FLANGE	0-28651-040-0	04	1	0712-1301		●
94	BOLT; CLAMP M10X40 FLANGE	0-28651-040-0	02	1	0710-0711	●
94	BOLT; CLAMP M10X40 FLANGE	0-28651-040-0	02	1	0712-1301	●	●
94	BOLT; CLAMP 4HK1-TCS ENG(RJS) M10X40 FLANGE	0-28651-040-0	02	1	0712-1301		●
94	BOLT; CLAMP M10X40 FLANGE	0-28651-040-0	02	1	1302-	●	●
94	BOLT; CLAMP M10X40 FLANGE	0-28651-040-0	02	1	1302-	●	●
105	NUT; CLAMP M10 FLANGE	0-91180-210-0	04	1	0710-0711	●
105	NUT; CLAMP M10 FLANGE	0-91180-210-0	04	1	0712-1301	●
105	NUT; CLAMP 6HK1-TCN ENG(82L) M10 FLANGE	0-91180-210-0	04	1	0712-1301		●
105	NUT; CLAMP M10 FLANGE	0-91180-210-0	02	1	0710-0711	●
105	NUT; CLAMP M10 FLANGE	0-91180-210-0	02	1	0712-1301	●	●
105	NUT; CLAMP 4HK1-TCS ENG(RJS) M10 FLANGE	0-91180-210-0	02	1	0712-1301		●
105	NUT; CLAMP M10 FLANGE	0-91180-210-0	02	1	1302-	●	●
105	NUT; CLAMP M10 FLANGE	0-91180-210-0	02	1	1302-	●	●
107	BOLT; BRKT M10X35 FLANGE	0-28651-035-0	04	1	0710-0711	●
107	BOLT; BRKT M10X35 FLANGE	0-28651-035-0	04	1	0712-	●	●
118	NUT; SILENCER MTG BRKT M10 FLANGE	0-91180-210-0	02	1	0710-0711	●
118	NUT; SILENCER MTG BRKT M10 FLANGE	0-91180-210-0	02	1	0712-	●	●
121	WASHER; PL,BRKT ID=11 OD=54	1-09503-154-1	01	1	0710-0711	●
121	WASHER; PL,BRKT 6HK1-TCC ENG(81L),6HK1-TCN ENG(82L) ID=11 OD=54	1-09503-154-2	01	1	0712-	●
121	WASHER; PL,BRKT 6HK1-TCN ENG(82L) WHEEL BASE 5100MM(51W) ID=11 OD=54	1-09503-154-2	01	1	0712-		●
121	WASHER; PL,BRKT 4HK1-TCS ENG(RJS) ID=11 OD=54	1-09503-154-2	01	1	0712-		●
121	WASHER; PL,BRKT ID=11 OD=54	1-09503-154-1	02	1	0710-0711	●
121	WASHER; PL,BRKT ID=11 OD=54	1-09503-154-2	02	1	0712-	●	●
126	PIPE; EXH,RR	8-98233-516-0	01	1	1302-	●
126	PIPE; EXH,RR 6HK1-TCN ENG(82L)	8-98233-516-0	01	1	1302-		●
126	PIPE; EXH,RR	8-98043-365-2	01	1	0710-0711	●
126	PIPE; EXH,RR	8-98043-365-2	01	1	0712-1301	●
126	PIPE; EXH,RR WHEEL BASE 5100MM(51W)	8-98043-365-2	01	1	0712-1301		●
126	PIPE; EXH,RR 4HK1-TCS ENG(RJS)	8-98043-365-2	01	1	1302-1309		●
126	PIPE; EXH,RR 4HK1-TCS ENG(RJS)	8-98245-503-0	01	1	1310-		●
226	RUBBER; CUSHION 4HK1-TCS ENG(RJS) (A)	8-94457-277-1	01	1	0712-1301		●
226	RUBBER; CUSHION (A)	8-94457-277-1	02	1	1302-	●	●
226	RUBBER; CUSHION 4HK1-TCS ENG(RJS) (B)	8-94457-278-1	01	1	0712-1301		●
226	RUBBER; CUSHION (B)	8-94457-278-1	02	1	1302-	●	●
226	RUBBER; CUSHION (A)	8-94457-277-1	02	1	0710-0711	●
226	RUBBER; CUSHION (A)	8-94457-277-1	02	1	0710-0711	●
226	RUBBER; CUSHION (A)	8-94457-277-1	02	1	0712-1301	●	●
226	RUBBER; CUSHION (A)	8-94457-277-1	02	1	0712-1301	●
226	RUBBER; CUSHION 6HK1-TCN ENG(82L) (A)	8-94457-277-1	02	1	0712-1301		●
226	RUBBER; CUSHION (A)	8-94457-277-1	01	1	1302-	●	●
226	RUBBER; CUSHION (B)	8-94457-278-1	02	1	0710-0711	●
226	RUBBER; CUSHION (B)	8-94457-278-1	02	1	0710-0711	●
226	RUBBER; CUSHION (B)	8-94457-278-1	02	1	0712-1301	●	●
226	RUBBER; CUSHION (B)	8-94457-278-1	02	1	0712-1301	●
226	RUBBER; CUSHION 6HK1-TCN ENG(82L) (B)	8-94457-278-1	02	1	0712-1301		●
226	RUBBER; CUSHION (B)	8-94457-278-1	01	1	1302-	●	●

84 36 1 46 49 8 36 571 1 2 34 17 36 1 44 44 8 49 294 236 509 318 52 571 571

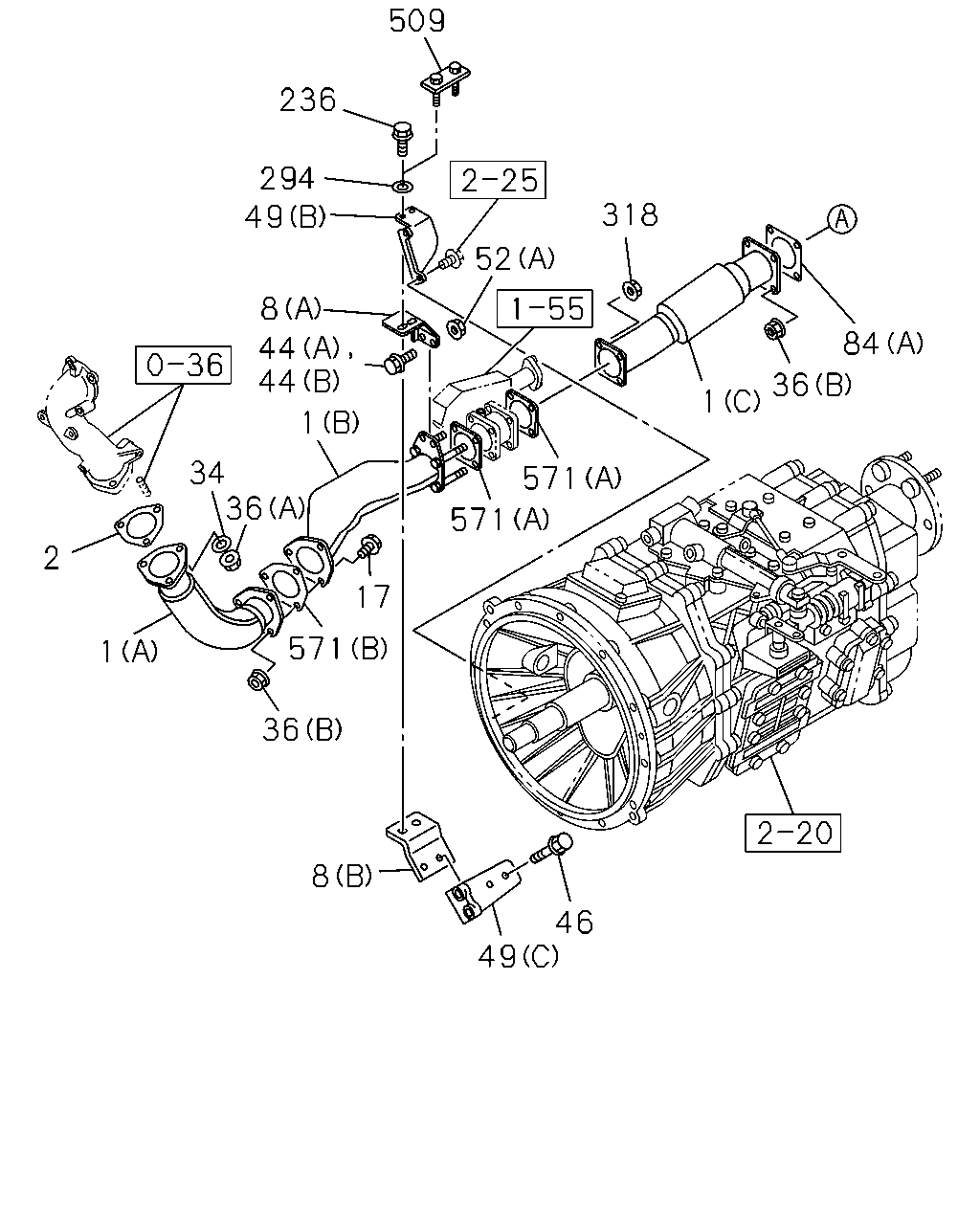

Balon	Parca Adi	Parca No	Adet	Tip	Applied Date	A	B
1	PIPE; EXH (C)	1-22123-885-1	01	1	0710-0711	●
1	PIPE; EXH (C)	1-22123-885-1	01	1	0712-	●
1	PIPE; EXH 6HK1-TCN ENG(82L) (C)	1-22123-885-1	01	1	0712-		●
1	PIPE; EXH (B)	8-98056-496-1	01	1	0710-0711	●
1	PIPE; EXH (B)	8-98056-496-1	01	1	0712-1209	●
1	PIPE; EXH 6HK1-TCN ENG(82L) (B)	8-98056-496-1	01	1	0712-1209		●
1	PIPE; EXH (A)	8-98215-406-0	01	1	1210-	●
1	PIPE; EXH 6HK1-TCN ENG(82L) (A)	8-98215-406-0	01	1	1210-		●
1	PIPE; EXH (A)	8-98061-088-1	01	1	0710-0711	●
1	PIPE; EXH (A)	8-98061-088-1	01	1	0712-0902	●
1	PIPE; EXH 6HK1-TCN ENG(82L) (A)	8-98061-088-1	01	1	0712-0902		●
1	PIPE; EXH (A)	8-98120-560-0	01	1	0903-1209	●
1	PIPE; EXH 6HK1-TCN ENG(82L) (A)	8-98120-560-0	01	1	0903-1209		●
1	PIPE; EXH (B)	8-98215-407-1	01	1	1210-	●
1	PIPE; EXH 6HK1-TCN ENG(82L) (B)	8-98215-407-1	01	1	1210-		●

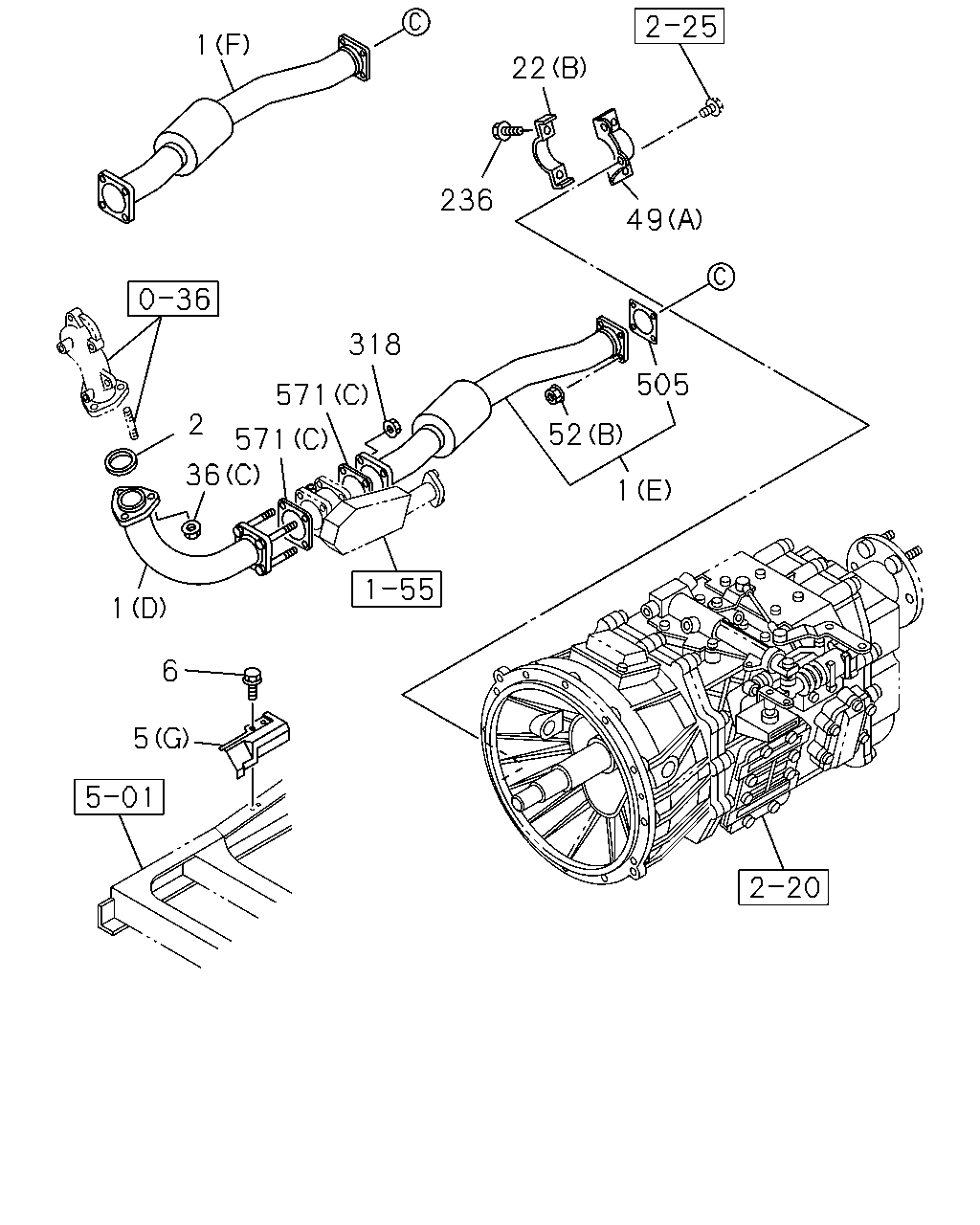

1	PIPE; EXH 4HK1-TCS ENG(RJS) (E)	8-98035-936-4	01	1	0712-1107		●
1	PIPE; EXH 4HK1-TCS ENG(RJS) (F)	8-98198-849-0	01	1	1108-		●
1	PIPE; EXH 4HK1-TCS ENG(RJS) (D)	8-98043-016-3	01	1	0712-0912		●
1	PIPE; EXH 4HK1-TCS ENG(RJS) (D)	8-98161-196-0	01	1	1001-1202		●
1	PIPE; EXH 4HK1-TCS ENG(RJS) (D)	8-98208-160-0	01	1	1203-1303		●
1	PIPE; EXH 4HK1-TCS ENG(RJS) (D)	8-98243-546-0	01	1	1304-		●
2	GASKET; PIPE TO MANIF ALSO INCLUDED IN GASKET SET(ENGINE).	8-98043-481-0	01	1	0710-0711	●
2	GASKET; PIPE TO MANIF ALSO INCLUDED IN GASKET SET(ENGINE).	8-98043-481-0	01	1	0712-	●
2	GASKET; PIPE TO MANIF ALSO INCLUDED IN GASKET SET(ENGINE). 6HK1-TCN ENG(82L)	8-98043-481-0	01	1	0712-		●
2	GASKET; PIPE TO MANIF ALSO INCLUDED IN GASKET SET(ENGINE). 4HK1-TCS ENG(RJS)	8-97381-455-0	01	1	0712-		●
8	BRACKET; EXH PIPE MZX6P M/T(RSW),MZW6P M/T(RSZ) (B)	8-98122-677-0	01	1	1210-1301	●
8	BRACKET; EXH PIPE 6HK1-TCN ENG(82L) MZX6P M/T(RSW),MZW6P M/T(RSZ) (B)	8-98122-677-0	01	1	1210-1301		●
8	BRACKET; EXH PIPE MZX6P M/T(RSW),MZW6P M/T(RSZ) (B)	8-98233-626-0	01	1	1302-1310	●
8	BRACKET; EXH PIPE 6HK1-TCN ENG(82L) MZX6P M/T(RSW),MZW6P M/T(RSZ) (B)	8-98233-626-0	01	1	1302-1310		●
8	BRACKET; EXH PIPE MZX6P M/T(RSW),MZW6P M/T(RSZ) (B)	8-98259-870-0	01	1	1311-	●
8	BRACKET; EXH PIPE 6HK1-TCN ENG(82L) MZX6P M/T(RSW),MZW6P M/T(RSZ) (B)	8-98259-870-0	01	1	1311-		●
8	BRACKET; EXH PIPE MLD6Q M/T(X5J),MLD6W M/T(Y2C) (A)	8-98113-013-0	01	1	0806-1301	●
8	BRACKET; EXH PIPE 6HK1-TCN ENG(82L) MLD6Q M/T(X5J) (A)	8-98113-013-0	01	1	0806-1301		●
8	BRACKET; EXH PIPE MLD6Q M/T(X5J),MLD6W M/T(Y2C) (B)	8-98233-345-0	01	1	1302-1310	●
8	BRACKET; EXH PIPE 6HK1-TCN ENG(82L) MLD6Q M/T(X5J) (B)	8-98233-345-0	01	1	1302-1310		●
8	BRACKET; EXH PIPE MLD6Q M/T(X5J),MLD6W M/T(Y2C) (B)	8-98259-873-0	01	1	1311-	●
8	BRACKET; EXH PIPE 6HK1-TCN ENG(82L) MLD6Q M/T(X5J) (B)	8-98259-873-0	01	1	1311-		●
8	BRACKET; EXH PIPE MLD6Q M/T(X5J),MLD6W M/T(Y2C) (B)	8-98114-390-0	01	1	0806-1301	●
8	BRACKET; EXH PIPE 6HK1-TCN ENG(82L) MLD6Q M/T(X5J) (B)	8-98114-390-0	01	1	0806-1301		●
8	BRACKET; EXH PIPE MLD6Q M/T(X5J),MLD6W M/T(Y2C) (A)	8-98233-348-0	01	1	1302-	●
8	BRACKET; EXH PIPE 6HK1-TCN ENG(82L) MLD6Q M/T(X5J) (A)	8-98233-348-0	01	1	1302-		●
8	BRACKET; EXH PIPE MZX6P M/T(RSW) (A)	8-98089-802-0	01	1	0710-0711	●
8	BRACKET; EXH PIPE MZX6P M/T(RSW) (A)	8-98089-802-0	01	1	0712-0906	●
8	BRACKET; EXH PIPE 6HK1-TCN ENG(82L) MZX6P M/T(RSW) (A)	8-98089-802-0	01	1	0712-0906		●
8	BRACKET; EXH PIPE MZX6P M/T(RSW),MZW6P M/T(RSZ) (A)	8-98089-802-0	01	1	0907-1006	●
8	BRACKET; EXH PIPE 6HK1-TCN ENG(82L) MZX6P M/T(RSW),MZW6P M/T(RSZ) (A)	8-98089-802-0	01	1	0907-1006		●
8	BRACKET; EXH PIPE MZX6P M/T(RSW),MZW6P M/T(RSZ) (A)	8-98122-679-1	01	1	1007-1301	●
8	BRACKET; EXH PIPE 6HK1-TCN ENG(82L) MZX6P M/T(RSW),MZW6P M/T(RSZ) (A)	8-98122-679-1	01	1	1007-1301		●
8	BRACKET; EXH PIPE MZX6P M/T(RSW),MZW6P M/T(RSZ) (A)	8-98233-627-0	01	1	1302-1404	●
8	BRACKET; EXH PIPE 6HK1-TCN ENG(82L) MZX6P M/T(RSW),MZW6P M/T(RSZ) (A)	8-98233-627-0	01	1	1302-1404		●
8	BRACKET; EXH PIPE MZX6P M/T(RSW),MZW6P M/T(RSZ) (A)	8-98275-817-0	01	1	1405-	●
8	BRACKET; EXH PIPE 6HK1-TCN ENG(82L) MZX6P M/T(RSW),MZW6P M/T(RSZ) (A)	8-98275-817-0	01	1	1405-		●
17	BOLT; EXH PIPE M12X35 FLANGE	0-28051-235-0	03	1	0710-0711	●
17	BOLT; EXH PIPE M12X35 FLANGE	0-28051-235-0	03	1	0712-	●
17	BOLT; EXH PIPE 6HK1-TCN ENG(82L) M12X35 FLANGE	0-28051-235-0	03	1	0712-		●
34	WASHER; EXH PIPE ID=13 OD=24 DISH	1-09500-030-0	03	1	0710-0711	●
34	WASHER; EXH PIPE ID=13 OD=24 DISH	1-09500-030-0	03	1	0712-	●
34	WASHER; EXH PIPE 6HK1-TCN ENG(82L) ID=13 OD=24 DISH	1-09500-030-0	03	1	0712-		●
36	NUT; EXH PIPE (B) M12 FLANGE	0-91180-212-0	07	1	0710-0711	●
36	NUT; EXH PIPE (B) M12 FLANGE	0-91180-212-0	07	1	0712-	●
36	NUT; EXH PIPE 6HK1-TCN ENG(82L) (B) M12 FLANGE	0-91180-212-0	07	1	0712-		●
36	NUT; EXH PIPE (A) M12	1-09400-010-0	03	1	0710-0711	●
36	NUT; EXH PIPE (A) M12	1-09400-010-0	03	1	0712-	●
36	NUT; EXH PIPE 6HK1-TCN ENG(82L) (A) M12	1-09400-010-0	03	1	0712-		●
36	NUT; EXH PIPE 4HK1-TCS ENG(RJS) (D) M10	0-91110-510-0	04	1	0712-		●
36	NUT; EXH PIPE 4HK1-TCS ENG(RJS) (C) M10 FLANGE	8-97096-192-1	03	1	0712-		●
44	BOLT; BRKT (A) M10X30 FLANGE	0-28651-030-0	02	1	0710-0711	●
44	BOLT; BRKT (A) M10X30 FLANGE	0-28651-030-0	02	1	0712-0907	●
44	BOLT; BRKT 6HK1-TCN ENG(82L) (A) M10X30 FLANGE	0-28651-030-0	02	1	0712-0907		●
44	BOLT; BRKT (B) M10X35 FLANGE	0-28651-035-0	02	1	0908-	●
44	BOLT; BRKT 6HK1-TCN ENG(82L) (B) M10X35 FLANGE	0-28651-035-0	02	1	0908-		●
44	BOLT; BRKT (B) M10X35 FLANGE	0-28651-035-0	08	1	0710-0711	●
44	BOLT; BRKT (B) M10X35 FLANGE	0-28651-035-0	08	1	0712-	●	●
46	BOLT; BRKT,EXH PIPE MLD6Q M/T(X5J),MLD6W M/T(Y2C) M10X30 FLANGE	0-28051-030-0	02	1	0806-1209	●
46	BOLT; BRKT,EXH PIPE 6HK1-TCN ENG(82L) MLD6Q M/T(X5J) M10X30 FLANGE	0-28051-030-0	02	1	0806-1209		●
46	BOLT; BRKT,EXH PIPE 6HK1-TCC ENG(81L),6HK1-TCN ENG(82L) M10X30 FLANGE	0-28051-030-0	02	1	1210-	●
46	BOLT; BRKT,EXH PIPE 6HK1-TCN ENG(82L) MZX6P M/T(RSW),MZW6P M/T(RSZ),MLD6Q M/T(X5J) M10X30 FLANGE	0-28051-030-0	02	1	1210-		●
49	BRACKET; EXH PIPE TO TRANS 6HK1-TCC ENG(81L),6HK1-TCN ENG(82L) MZX6P M/T(RSW),MZW6P M/T(RSZ) TRANSMISSION CONTROL-SMOOTHER(8GF) (C)	8-98122-673-0	01	1	1210-	●
49	BRACKET; EXH PIPE TO TRANS 6HK1-TCN ENG(82L) MZX6P M/T(RSW),MZW6P M/T(RSZ) TRANSMISSION CONTROL-SMOOTHER(8GF) (C)	8-98122-673-0	01	1	1210-		●
49	BRACKET; EXH PIPE TO TRANS MLD6Q M/T(X5J),MLD6W M/T(Y2C) (C)	8-98113-008-0	01	1	0806-	●
49	BRACKET; EXH PIPE TO TRANS 6HK1-TCN ENG(82L) MLD6Q M/T(X5J) (C)	8-98113-008-0	01	1	0806-		●
49	BRACKET; EXH PIPE TO TRANS MZX6P M/T(RSW) (B)	8-98085-317-2	01	1	0710-0711	●
49	BRACKET; EXH PIPE TO TRANS MZX6P M/T(RSW) (B)	8-98085-317-2	01	1	0712-0906	●
49	BRACKET; EXH PIPE TO TRANS 6HK1-TCN ENG(82L) MZX6P M/T(RSW) (B)	8-98085-317-2	01	1	0712-0906		●
49	BRACKET; EXH PIPE TO TRANS MZX6P M/T(RSW),MZW6P M/T(RSZ) (B)	8-98085-317-2	01	1	0907-1209	●
49	BRACKET; EXH PIPE TO TRANS 6HK1-TCN ENG(82L) MZX6P M/T(RSW),MZW6P M/T(RSZ) (B)	8-98085-317-2	01	1	0907-1209		●
49	BRACKET; EXH PIPE TO TRANS 6HK1-TCC ENG(81L),6HK1-TCN ENG(82L) MZX6P M/T(RSW),MZW6P M/T(RSZ) TRANSMISSION CONTROL-SMOOTHER DELETE(8GJ) (C)	8-98122-671-0	01	1	1210-	●
49	BRACKET; EXH PIPE TO TRANS 6HK1-TCN ENG(82L) MZX6P M/T(RSW),MZW6P M/T(RSZ) TRANSMISSION CONTROL-SMOOTHER DELETE(8GJ) (C)	8-98122-671-0	01	1	1210-		●
49	BRACKET; EXH PIPE TO TRANS 4HK1-TCS ENG(RJS) (A)	8-98042-786-0	01	1	0712-1301		●
49	BRACKET; EXH PIPE TO TRANS 4HK1-TCS ENG(RJS) (A)	8-98234-530-0	01	1	1302-		●
52	NUT; BRKT (A) M10 FLANGE	0-91180-210-0	08	1	0710-0710	●
52	NUT; BRKT (A) M10 FLANGE	0-91180-210-0	07	1	0710-0711	●
52	NUT; BRKT (A) M10 FLANGE	0-91180-210-0	07	1	0712-	●	●
52	NUT; BRKT (A) M10 FLANGE	0-91180-210-0	02	1	0710-0711	●
52	NUT; BRKT (A) M10 FLANGE	0-91180-210-0	02	1	0712-	●
52	NUT; BRKT 6HK1-TCN ENG(82L) (A) M10 FLANGE	0-91180-210-0	02	1	0712-		●
52	NUT; BRKT 4HK1-TCS ENG(RJS) (B) M12 FLANGE	0-91180-212-0	04	1	0712-		●
84	GASKET; EXH PIPE (A)	1-22116-040-0	01	1	0710-0711	●
84	GASKET; EXH PIPE (A)	1-22116-040-0	01	1	0712-	●
84	GASKET; EXH PIPE 6HK1-TCN ENG(82L) (A)	1-22116-040-0	01	1	0712-		●
84	GASKET; EXH PIPE (B)	1-22116-043-0	01	1	0710-0711	●
84	GASKET; EXH PIPE (B)	1-22116-043-0	01	1	0710-0711	●
84	GASKET; EXH PIPE (B)	1-22116-043-0	01	1	0712-	●	●
84	GASKET; EXH PIPE (B)	1-22116-043-0	01	1	0712-	●
84	GASKET; EXH PIPE 6HK1-TCN ENG(82L) (B)	1-22116-043-0	01	1	0712-		●
84	GASKET; EXH PIPE 4HK1-TCS ENG(RJS) (C) ID=64	8-97373-108-0	02	1	0712-		●
236	BOLT; PIPE CLAMP TO BRKT M10X35 FLANGE	0-28051-035-0	02	1	0710-0711	●
236	BOLT; PIPE CLAMP TO BRKT M10X35 FLANGE	0-28051-035-0	02	1	0712-1301	●
236	BOLT; PIPE CLAMP TO BRKT 6HK1-TCN ENG(82L) M10X35 FLANGE	0-28051-035-0	02	1	0712-1301		●
236	BOLT; PIPE CLAMP TO BRKT 4HK1-TCS ENG(RJS) M10X30 FLANGE	0-28051-030-0	02	1	0712-		●
294	WASHER; PL,CLAMP TO BRKT,EXH PIPE ID=10.5	8-98073-091-0	02	1	0710-0711	●
294	WASHER; PL,CLAMP TO BRKT,EXH PIPE ID=10.5	8-98073-091-0	02	1	0712-	●
294	WASHER; PL,CLAMP TO BRKT,EXH PIPE 6HK1-TCN ENG(82L) ID=10.5	8-98073-091-0	02	1	0712-		●
318	NUT; EXH PIPE,FRT M10	0-91110-510-0	04	1	0710-0711	●
318	NUT; EXH PIPE,FRT M10	0-91110-510-0	04	1	0712-0712	●
318	NUT; EXH PIPE,FRT 6HK1-TCN ENG(82L) M10	0-91110-510-0	04	1	0712-0712		●
318	NUT; EXH PIPE,FRT M10 FLANGE	0-91180-210-0	04	1	0801-	●
318	NUT; EXH PIPE,FRT 6HK1-TCN ENG(82L) M10 FLANGE	0-91180-210-0	04	1	0801-		●
318	NUT; EXH PIPE,FRT 4HK1-TCS ENG(RJS) M8 W/LK WASHER	8-97581-234-0	04	1	0712-		●
509	STUD; BRKT	8-98233-625-0	01	1	1302-1311	●
509	STUD; BRKT 6HK1-TCN ENG(82L)	8-98233-625-0	01	1	1302-1311		●
509	STUD; BRKT	8-98259-983-0	01	1	1312-	●
509	STUD; BRKT 6HK1-TCN ENG(82L)	8-98259-983-0	01	1	1312-		●
571	GASKET (A)	1-22116-043-0	02	1	0710-0711	●
571	GASKET (A)	1-22116-043-0	02	1	0712-	●
571	GASKET 6HK1-TCN ENG(82L) (A)	1-22116-043-0	02	1	0712-		●
571	GASKET (B)	8-98043-481-0	01	1	0710-0711	●
571	GASKET (B)	8-98043-481-0	01	1	0712-	●
571	GASKET 6HK1-TCN ENG(82L) (B)	8-98043-481-0	01	1	0712-		●
571	GASKET 4HK1-TCS ENG(RJS) (C) ID=64	8-97373-108-0	02	1	0712-		●

1 22 236 49 318 505 571 2 52 571 36 1 1 6 5

Balon	Parca Adi	Parca No	Adet	Tip	Applied Date	A	B
1	PIPE; EXH (C)	1-22123-885-1	01	1	0710-0711	●
1	PIPE; EXH (C)	1-22123-885-1	01	1	0712-	●
1	PIPE; EXH 6HK1-TCN ENG(82L) (C)	1-22123-885-1	01	1	0712-		●
1	PIPE; EXH (B)	8-98056-496-1	01	1	0710-0711	●
1	PIPE; EXH (B)	8-98056-496-1	01	1	0712-1209	●
1	PIPE; EXH 6HK1-TCN ENG(82L) (B)	8-98056-496-1	01	1	0712-1209		●
1	PIPE; EXH (A)	8-98215-406-0	01	1	1210-	●
1	PIPE; EXH 6HK1-TCN ENG(82L) (A)	8-98215-406-0	01	1	1210-		●
1	PIPE; EXH (A)	8-98061-088-1	01	1	0710-0711	●
1	PIPE; EXH (A)	8-98061-088-1	01	1	0712-0902	●
1	PIPE; EXH 6HK1-TCN ENG(82L) (A)	8-98061-088-1	01	1	0712-0902		●
1	PIPE; EXH (A)	8-98120-560-0	01	1	0903-1209	●
1	PIPE; EXH 6HK1-TCN ENG(82L) (A)	8-98120-560-0	01	1	0903-1209		●
1	PIPE; EXH (B)	8-98215-407-1	01	1	1210-	●
1	PIPE; EXH 6HK1-TCN ENG(82L) (B)	8-98215-407-1	01	1	1210-		●
1	PIPE; EXH 4HK1-TCS ENG(RJS) (E)	8-98035-936-4	01	1	0712-1107		●
1	PIPE; EXH 4HK1-TCS ENG(RJS) (F)	8-98198-849-0	01	1	1108-		●
1	PIPE; EXH 4HK1-TCS ENG(RJS) (D)	8-98043-016-3	01	1	0712-0912		●
1	PIPE; EXH 4HK1-TCS ENG(RJS) (D)	8-98161-196-0	01	1	1001-1202		●
1	PIPE; EXH 4HK1-TCS ENG(RJS) (D)	8-98208-160-0	01	1	1203-1303		●
1	PIPE; EXH 4HK1-TCS ENG(RJS) (D)	8-98243-546-0	01	1	1304-		●
2	GASKET; PIPE TO MANIF ALSO INCLUDED IN GASKET SET(ENGINE).	8-98043-481-0	01	1	0710-0711	●
2	GASKET; PIPE TO MANIF ALSO INCLUDED IN GASKET SET(ENGINE).	8-98043-481-0	01	1	0712-	●
2	GASKET; PIPE TO MANIF ALSO INCLUDED IN GASKET SET(ENGINE). 6HK1-TCN ENG(82L)	8-98043-481-0	01	1	0712-		●
2	GASKET; PIPE TO MANIF ALSO INCLUDED IN GASKET SET(ENGINE). 4HK1-TCS ENG(RJS)	8-97381-455-0	01	1	0712-		●
5	PROTECTOR; HEAT (A)	8-97605-172-0	01	1	0710-0711	●
5	PROTECTOR; HEAT (A)	8-97605-172-0	01	1	0712-	●	●
5	PROTECTOR; HEAT (B)	8-97611-086-0	01	1	0710-0711	●
5	PROTECTOR; HEAT (B)	8-97611-086-0	01	1	0712-	●	●
5	PROTECTOR; HEAT (C)	8-97611-087-0	01	1	0710-0711	●
5	PROTECTOR; HEAT (C)	8-97611-087-0	01	1	0712-	●	●
5	PROTECTOR; HEAT (D)	8-97611-088-0	01	1	0710-0711	●
5	PROTECTOR; HEAT (D)	8-97611-088-0	01	1	0712-	●	●
5	PROTECTOR; HEAT (E)	8-97611-089-0	01	1	0710-0711	●
5	PROTECTOR; HEAT (E)	8-97611-089-0	01	1	0712-	●	●
5	PROTECTOR; HEAT (F)	8-97613-390-0	01	1	0710-0711	●
5	PROTECTOR; HEAT (F)	8-97613-390-0	01	1	0712-	●	●
5	PROTECTOR; HEAT 4HK1-TCS ENG(RJS) (G)	8-98044-122-0	01	1	0712-0712		●
5	PROTECTOR; HEAT 4HK1-TCS ENG(RJS) EXC. TRANSMISSION CONTROL-SMOOTHER(8GF) (G)	8-98044-122-0	01	1	0712-		●
6	BOLT; HEAT PROTECTOR 4HK1-TCS ENG(RJS) EXC. TRANSMISSION CONTROL-SMOOTHER(8GF) M8X25 FLANGE	0-28650-825-0	02	1	0712-		●
22	CLAMP; EXH PIPE (A) ID=80-84	1-22133-233-0	04	1	0710-0711	●
22	CLAMP; EXH PIPE (A) ID=80-84	1-22133-233-0	04	1	0712-1301	●
22	CLAMP; EXH PIPE 6HK1-TCN ENG(82L) (A) ID=80-84	1-22133-233-0	04	1	0712-1301		●
22	CLAMP; EXH PIPE (A) ID=80-84	1-22133-233-0	02	1	0710-0711	●
22	CLAMP; EXH PIPE (A) ID=80-84	1-22133-233-0	02	1	0712-1301	●	●
22	CLAMP; EXH PIPE 4HK1-TCS ENG(RJS) (A) ID=80-84	1-22133-233-0	02	1	0712-1301		●
22	CLAMP; EXH PIPE (A) ID=80-84	1-22133-233-0	02	1	1302-	●	●
22	CLAMP; EXH PIPE (A) ID=80-84	1-22133-233-0	02	1	1302-	●	●
22	CLAMP; EXH PIPE 4HK1-TCS ENG(RJS) (B)	1-22133-295-0	01	1	0712-1309		●
22	CLAMP; EXH PIPE 4HK1-TCS ENG(RJS) (B)	8-97646-674-0	01	1	1310-		●
36	NUT; EXH PIPE (B) M12 FLANGE	0-91180-212-0	07	1	0710-0711	●
36	NUT; EXH PIPE (B) M12 FLANGE	0-91180-212-0	07	1	0712-	●
36	NUT; EXH PIPE 6HK1-TCN ENG(82L) (B) M12 FLANGE	0-91180-212-0	07	1	0712-		●
36	NUT; EXH PIPE (A) M12	1-09400-010-0	03	1	0710-0711	●
36	NUT; EXH PIPE (A) M12	1-09400-010-0	03	1	0712-	●
36	NUT; EXH PIPE 6HK1-TCN ENG(82L) (A) M12	1-09400-010-0	03	1	0712-		●
36	NUT; EXH PIPE 4HK1-TCS ENG(RJS) (D) M10	0-91110-510-0	04	1	0712-		●
36	NUT; EXH PIPE 4HK1-TCS ENG(RJS) (C) M10 FLANGE	8-97096-192-1	03	1	0712-		●
49	BRACKET; EXH PIPE TO TRANS 6HK1-TCC ENG(81L),6HK1-TCN ENG(82L) MZX6P M/T(RSW),MZW6P M/T(RSZ) TRANSMISSION CONTROL-SMOOTHER(8GF) (C)	8-98122-673-0	01	1	1210-	●
49	BRACKET; EXH PIPE TO TRANS 6HK1-TCN ENG(82L) MZX6P M/T(RSW),MZW6P M/T(RSZ) TRANSMISSION CONTROL-SMOOTHER(8GF) (C)	8-98122-673-0	01	1	1210-		●
49	BRACKET; EXH PIPE TO TRANS MLD6Q M/T(X5J),MLD6W M/T(Y2C) (C)	8-98113-008-0	01	1	0806-	●
49	BRACKET; EXH PIPE TO TRANS 6HK1-TCN ENG(82L) MLD6Q M/T(X5J) (C)	8-98113-008-0	01	1	0806-		●
49	BRACKET; EXH PIPE TO TRANS MZX6P M/T(RSW) (B)	8-98085-317-2	01	1	0710-0711	●
49	BRACKET; EXH PIPE TO TRANS MZX6P M/T(RSW) (B)	8-98085-317-2	01	1	0712-0906	●
49	BRACKET; EXH PIPE TO TRANS 6HK1-TCN ENG(82L) MZX6P M/T(RSW) (B)	8-98085-317-2	01	1	0712-0906		●
49	BRACKET; EXH PIPE TO TRANS MZX6P M/T(RSW),MZW6P M/T(RSZ) (B)	8-98085-317-2	01	1	0907-1209	●
49	BRACKET; EXH PIPE TO TRANS 6HK1-TCN ENG(82L) MZX6P M/T(RSW),MZW6P M/T(RSZ) (B)	8-98085-317-2	01	1	0907-1209		●
49	BRACKET; EXH PIPE TO TRANS 6HK1-TCC ENG(81L),6HK1-TCN ENG(82L) MZX6P M/T(RSW),MZW6P M/T(RSZ) TRANSMISSION CONTROL-SMOOTHER DELETE(8GJ) (C)	8-98122-671-0	01	1	1210-	●
49	BRACKET; EXH PIPE TO TRANS 6HK1-TCN ENG(82L) MZX6P M/T(RSW),MZW6P M/T(RSZ) TRANSMISSION CONTROL-SMOOTHER DELETE(8GJ) (C)	8-98122-671-0	01	1	1210-		●
49	BRACKET; EXH PIPE TO TRANS 4HK1-TCS ENG(RJS) (A)	8-98042-786-0	01	1	0712-1301		●
49	BRACKET; EXH PIPE TO TRANS 4HK1-TCS ENG(RJS) (A)	8-98234-530-0	01	1	1302-		●
52	NUT; BRKT (A) M10 FLANGE	0-91180-210-0	08	1	0710-0710	●
52	NUT; BRKT (A) M10 FLANGE	0-91180-210-0	07	1	0710-0711	●
52	NUT; BRKT (A) M10 FLANGE	0-91180-210-0	07	1	0712-	●	●
52	NUT; BRKT (A) M10 FLANGE	0-91180-210-0	02	1	0710-0711	●
52	NUT; BRKT (A) M10 FLANGE	0-91180-210-0	02	1	0712-	●
52	NUT; BRKT 6HK1-TCN ENG(82L) (A) M10 FLANGE	0-91180-210-0	02	1	0712-		●
52	NUT; BRKT 4HK1-TCS ENG(RJS) (B) M12 FLANGE	0-91180-212-0	04	1	0712-		●
236	BOLT; PIPE CLAMP TO BRKT M10X35 FLANGE	0-28051-035-0	02	1	0710-0711	●
236	BOLT; PIPE CLAMP TO BRKT M10X35 FLANGE	0-28051-035-0	02	1	0712-1301	●
236	BOLT; PIPE CLAMP TO BRKT 6HK1-TCN ENG(82L) M10X35 FLANGE	0-28051-035-0	02	1	0712-1301		●
236	BOLT; PIPE CLAMP TO BRKT 4HK1-TCS ENG(RJS) M10X30 FLANGE	0-28051-030-0	02	1	0712-		●
318	NUT; EXH PIPE,FRT M10	0-91110-510-0	04	1	0710-0711	●
318	NUT; EXH PIPE,FRT M10	0-91110-510-0	04	1	0712-0712	●
318	NUT; EXH PIPE,FRT 6HK1-TCN ENG(82L) M10	0-91110-510-0	04	1	0712-0712		●
318	NUT; EXH PIPE,FRT M10 FLANGE	0-91180-210-0	04	1	0801-	●
318	NUT; EXH PIPE,FRT 6HK1-TCN ENG(82L) M10 FLANGE	0-91180-210-0	04	1	0801-		●
318	NUT; EXH PIPE,FRT 4HK1-TCS ENG(RJS) M8 W/LK WASHER	8-97581-234-0	04	1	0712-		●
505	GASKET; CONV TO EXH PIPE 4HK1-TCS ENG(RJS)	8-94394-391-0	01	1	0712-1107		●
571	GASKET (A)	1-22116-043-0	02	1	0710-0711	●
571	GASKET (A)	1-22116-043-0	02	1	0712-	●
571	GASKET 6HK1-TCN ENG(82L) (A)	1-22116-043-0	02	1	0712-		●
571	GASKET (B)	8-98043-481-0	01	1	0710-0711	●
571	GASKET (B)	8-98043-481-0	01	1	0712-	●
571	GASKET 6HK1-TCN ENG(82L) (B)	8-98043-481-0	01	1	0712-		●
571	GASKET 4HK1-TCS ENG(RJS) (C) ID=64	8-97373-108-0	02	1	0712-		●

556 467 5 558 5 5 557 559 5 5 5 550 560 422 560 423 423 534 547 422 561 550 561 547 550

Balon	Parca Adi	Parca No	Adet	Tip	Applied Date	A	B
5	PROTECTOR; HEAT (A)	8-97605-172-0	01	1	0710-0711	●
5	PROTECTOR; HEAT (A)	8-97605-172-0	01	1	0712-	●	●
5	PROTECTOR; HEAT (B)	8-97611-086-0	01	1	0710-0711	●
5	PROTECTOR; HEAT (B)	8-97611-086-0	01	1	0712-	●	●
5	PROTECTOR; HEAT (C)	8-97611-087-0	01	1	0710-0711	●
5	PROTECTOR; HEAT (C)	8-97611-087-0	01	1	0712-	●	●
5	PROTECTOR; HEAT (D)	8-97611-088-0	01	1	0710-0711	●
5	PROTECTOR; HEAT (D)	8-97611-088-0	01	1	0712-	●	●
5	PROTECTOR; HEAT (E)	8-97611-089-0	01	1	0710-0711	●
5	PROTECTOR; HEAT (E)	8-97611-089-0	01	1	0712-	●	●
5	PROTECTOR; HEAT (F)	8-97613-390-0	01	1	0710-0711	●
5	PROTECTOR; HEAT (F)	8-97613-390-0	01	1	0712-	●	●
5	PROTECTOR; HEAT 4HK1-TCS ENG(RJS) (G)	8-98044-122-0	01	1	0712-0712		●
5	PROTECTOR; HEAT 4HK1-TCS ENG(RJS) EXC. TRANSMISSION CONTROL-SMOOTHER(8GF) (G)	8-98044-122-0	01	1	0712-		●
422	NUT; PIPE M8 FLANGE	0-91180-108-0	20	1	0710-0711	●
422	NUT; PIPE M8 FLANGE	0-91180-108-0	20	1	0712-	●	●
423	BOLT; PIPE M8X35 FLANGE	0-28650-835-0	20	1	0710-0711	●
423	BOLT; PIPE M8X35 FLANGE	0-28650-835-0	20	1	0712-	●	●
467	BOLT; PROTECTOR M6X16	8-98019-179-0	14	1	0710-0711	●
467	BOLT; PROTECTOR M6X16	8-98019-179-0	14	1	0712-	●	●
534	BOLT; CLIP M6X35 FLANGE	0-28650-635-0	03	1	0710-0711	●
534	BOLT; CLIP M6X35 FLANGE	0-28650-635-0	03	1	0712-	●	●
547	CLIP; PIPE (A)	8-97381-635-0	03	1	0710-0711	●
547	CLIP; PIPE (A)	8-97381-635-0	03	1	0712-	●	●
547	CLIP; PIPE (B)	8-97381-636-0	03	1	0710-0711	●
547	CLIP; PIPE (B)	8-97381-636-0	03	1	0712-	●	●
550	BRACKET; DPD (A)	8-97611-083-0	01	1	0710-0711	●
550	BRACKET; DPD (A)	8-97611-083-0	01	1	0712-	●	●
550	BRACKET; DPD (B)	8-97611-084-0	01	1	0710-0711	●
550	BRACKET; DPD (B)	8-97611-084-0	01	1	0712-	●	●
550	BRACKET; DPD (C)	8-97611-085-0	01	1	0710-0711	●
550	BRACKET; DPD (C)	8-97611-085-0	01	1	0712-	●	●
556	DPD ASM	8-97613-331-1	01	1	0710-0711	●
556	DPD ASM	8-97613-331-6	01	1	0712-1010	●	●
556	DPD ASM	8-97622-883-3	01	1	1011-	●	●
557	CATALYST ASM	8-97608-055-1	01	1	0710-0711	●
557	CATALYST ASM	8-97608-055-7	01	1	0712-	●	●
558	FILTER ASM	8-97608-057-0	01	1	0710-0711	●
558	FILTER ASM	8-97608-057-3	01	1	0712-	●	●
559	COVER; RR	8-97611-078-0	01	1	0710-0711	●
559	COVER; RR	8-97611-078-0	01	1	0712-1010	●	●
559	COVER; RR	8-97622-887-0	01	1	1011-	●	●
560	GASKET; DPD	8-97611-080-0	02	1	0710-0711	●
560	GASKET; DPD	8-97611-080-0	02	1	0712-	●	●
561	PIPE; DPD (A)	8-97611-081-0	01	1	0710-0711	●
561	PIPE; DPD (A)	8-97611-081-0	01	1	0712-1010	●	●
561	PIPE; DPD (A)	8-97622-888-0	01	1	1011-	●	●
561	PIPE; DPD (B)	8-97611-082-0	01	1	0710-0711	●
561	PIPE; DPD (B)	8-97611-082-0	01	1	0712-1010	●	●
561	PIPE; DPD (B)	8-97622-889-0	01	1	1011-	●	●

İpucu: çizimdeki balona veya tablodaki Balon sütununa tıkla; ilgili parçalar vurgulanır. Birden çok çizim varsa üstteki seçim kutusu/oklarla gezin.
