24 |
CLIP; FUEL HOSE
(C)
ID=15 H=24 L=20
|
1-09700-606-0 |
01 |
1 |
0710-0711 |
● |
|
| |
24 |
CLIP; FUEL HOSE
(C)
ID=15 H=24 L=20
|
1-09700-606-0 |
01 |
1 |
0712- |
● |
● |
| |
24 |
CLIP; FUEL HOSE
(B)
ID=14X29 H=15 L=20
|
1-09700-744-0 |
01 |
1 |
0710-0711 |
● |
|
| |
24 |
CLIP; FUEL HOSE
(B)
ID=14X29 H=15 L=20
|
1-09700-744-0 |
01 |
1 |
0712- |
● |
|
| |
24 |
CLIP; FUEL HOSE
6HK1-TCN ENG(82L)
(B)
ID=14X29 H=15 L=20
|
1-09700-744-0 |
01 |
1 |
0712- |
|
● |
| |
24 |
CLIP; FUEL HOSE
WHEEL BASE 4300MM(43W)
(A)
ID=14.5 & 14.5
|
1-09701-246-1 |
05 |
1 |
0710- |
● |
|
| |
24 |
CLIP; FUEL HOSE
WHEEL BASE 5100MM(51W),WHEEL BASE 5500MM(55W)
(A)
ID=14.5 & 14.5
|
1-09701-246-1 |
08 |
1 |
0710-0711 |
● |
|
| |
24 |
CLIP; FUEL HOSE
WHEEL BASE 5100MM(51W),WHEEL BASE 5500MM(55W)
(A)
ID=14.5 & 14.5
|
1-09701-246-1 |
08 |
1 |
0712-0801 |
● |
|
| |
24 |
CLIP; FUEL HOSE
6HK1-TCN ENG(82L)
WHEEL BASE 5100MM(51W)
(A)
ID=14.5 & 14.5
|
1-09701-246-1 |
08 |
1 |
0712-0801 |
|
● |
| |
24 |
CLIP; FUEL HOSE
WHEEL BASE 5100MM(51W),WHEEL BASE 5500MM(55W)
(A)
ID=14.5 & 14.5
|
1-09701-246-1 |
08 |
1 |
0802-0810 |
● |
|
| |
24 |
CLIP; FUEL HOSE
WHEEL BASE 5100MM(51W),WHEEL BASE 5500MM(55W)
(A)
ID=14.5 & 14.5
|
1-09701-246-1 |
08 |
1 |
0811- |
● |
|
| |
24 |
CLIP; FUEL HOSE
6HK1-TCN ENG(82L)
WHEEL BASE 5100MM(51W)
(A)
ID=14.5 & 14.5
|
1-09701-246-1 |
08 |
1 |
0811- |
|
● |
| |
24 |
CLIP; FUEL HOSE
4HK1-TCS ENG(RJS)
(A)
ID=14.5 & 14.5
|
1-09701-246-1 |
07 |
1 |
0712-0801 |
|
● |
| |
24 |
CLIP; FUEL HOSE
4HK1-TCS ENG(RJS),6HK1-TCN ENG(82L)
(A)
ID=14.5 & 14.5
|
1-09701-246-1 |
07 |
1 |
0802-0810 |
|
● |
| |
24 |
CLIP; FUEL HOSE
4HK1-TCS ENG(RJS)
(A)
ID=14.5 & 14.5
|
1-09701-246-1 |
07 |
1 |
0811- |
|
● |
| |
41 |
CLIP; FUEL PIPE,FUEL TANK
(B)
ID=11 & 9 L=17.5 & 17.5
|
1-09700-747-0 |
02 |
1 |
0710-0711 |
● |
|
| |
41 |
CLIP; FUEL PIPE,FUEL TANK
(B)
ID=11 & 9 L=17.5 & 17.5
|
1-09700-747-0 |
02 |
1 |
0712- |
● |
|
| |
41 |
CLIP; FUEL PIPE,FUEL TANK
6HK1-TCN ENG(82L)
(B)
ID=11 & 9 L=17.5 & 17.5
|
1-09700-747-0 |
02 |
1 |
0712- |
|
● |
| |
41 |
CLIP; FUEL PIPE,FUEL TANK
(C)
ID=14
|
1-09704-102-0 |
04 |
1 |
0710-0711 |
● |
|
| |
41 |
CLIP; FUEL PIPE,FUEL TANK
(C)
ID=14
|
1-09704-102-0 |
04 |
1 |
0712- |
● |
|
| |
41 |
CLIP; FUEL PIPE,FUEL TANK
6HK1-TCN ENG(82L)
(C)
ID=14
|
1-09704-102-0 |
04 |
1 |
0712- |
|
● |
| |
41 |
CLIP; FUEL PIPE,FUEL TANK
(E)
L=140
|
5-09707-031-1 |
01 |
1 |
0710-0711 |
● |
|
| |
41 |
CLIP; FUEL PIPE,FUEL TANK
(E)
L=140
|
5-09707-031-1 |
01 |
1 |
0712-0712 |
● |
● |
| |
41 |
CLIP; FUEL PIPE,FUEL TANK
WHEEL BASE 4300MM(43W)
(E)
L=140
|
5-09707-031-1 |
01 |
1 |
0801-0804 |
● |
|
| |
41 |
CLIP; FUEL PIPE,FUEL TANK
(E)
L=140
|
5-09707-031-1 |
01 |
1 |
0805-1003 |
● |
● |
| |
41 |
CLIP; FUEL PIPE,FUEL TANK
(E)
L=250
|
5-09707-030-1 |
01 |
1 |
1004- |
● |
● |
| |
41 |
CLIP; FUEL PIPE,FUEL TANK
(D)
ID=16
|
8-94238-568-0 |
02 |
1 |
0710-0711 |
● |
|
| |
41 |
CLIP; FUEL PIPE,FUEL TANK
(D)
ID=16
|
8-94238-568-0 |
02 |
1 |
0712- |
● |
● |
| |
41 |
CLIP; FUEL PIPE,FUEL TANK
(A)
ID=13
|
8-94238-571-0 |
06 |
1 |
0710-0711 |
● |
|
| |
41 |
CLIP; FUEL PIPE,FUEL TANK
(A)
ID=13
|
8-94238-571-0 |
06 |
1 |
0712- |
● |
|
| |
41 |
CLIP; FUEL PIPE,FUEL TANK
6HK1-TCN ENG(82L)
(A)
ID=13
|
8-94238-571-0 |
06 |
1 |
0712- |
|
● |
| |
41 |
CLIP; FUEL PIPE,FUEL TANK
WHEEL BASE 5100MM(51W),WHEEL BASE 5500MM(55W)
(E)
L=140
|
5-09707-031-1 |
03 |
1 |
0801-0804 |
● |
|
| |
41 |
CLIP; FUEL PIPE,FUEL TANK
WHEEL BASE 5100MM(51W)
(E)
L=140
|
5-09707-031-1 |
03 |
1 |
0801-0804 |
|
● |
| |
41 |
CLIP; FUEL PIPE,FUEL TANK
4HK1-TCS ENG(RJS)
(B)
ID=11 & 9 L=17.5 & 17.5
|
1-09700-747-0 |
04 |
1 |
0712-0808 |
|
● |
| |
41 |
CLIP; FUEL PIPE,FUEL TANK
4HK1-TCS ENG(RJS)
(B)
ID=11 & 9 L=17.5 & 17.5
|
1-09700-747-0 |
03 |
1 |
0809- |
|
● |
| |
41 |
CLIP; FUEL PIPE,FUEL TANK
4HK1-TCS ENG(RJS)
(C)
ID=14
|
1-09704-102-0 |
06 |
1 |
0712- |
|
● |
| |
41 |
CLIP; FUEL PIPE,FUEL TANK
4HK1-TCS ENG(RJS)
(A)
ID=13
|
8-94238-571-0 |
08 |
1 |
0712- |
|
● |
| |
41 |
CLIP; FUEL PIPE,FUEL TANK
6HK1-TCN ENG(82L)
(E)
L=250
|
5-09707-030-1 |
02 |
1 |
0802-0810 |
|
● |
| |
47 |
PIPE; FUEL,RETURN
L=413
|
8-98078-210-0 |
01 |
1 |
0710-0712 |
● |
|
| |
47 |
PIPE; FUEL,RETURN
L=413
|
8-98078-210-0 |
01 |
1 |
0801- |
● |
|
| |
47 |
PIPE; FUEL,RETURN
6HK1-TCN ENG(82L)
L=413
|
8-98078-210-0 |
01 |
1 |
0801- |
|
● |
| |
47 |
PIPE; FUEL,RETURN
4HK1-TCS ENG(RJS)
L=1518
|
8-98090-796-0 |
01 |
1 |
0712- |
|
● |
| |
55 |
COVER; PIPE,FUEL TANK
L=150
SERVICED BY L=1300
|
1-09360-677-1 |
01 |
1 |
0710-0711 |
● |
|
| |
55 |
COVER; PIPE,FUEL TANK
L=150
SERVICED BY L=1300
|
1-09360-677-1 |
01 |
1 |
0712-0712 |
● |
● |
| |
55 |
COVER; PIPE,FUEL TANK
WHEEL BASE 4300MM(43W)
L=150
SERVICED BY L=1300
|
1-09360-677-1 |
01 |
1 |
0801-0804 |
● |
|
| |
55 |
COVER; PIPE,FUEL TANK
L=150
SERVICED BY L=1300
|
1-09360-677-1 |
01 |
1 |
0805- |
● |
● |
| |
55 |
COVER; PIPE,FUEL TANK
WHEEL BASE 5100MM(51W),WHEEL BASE 5500MM(55W)
L=150
SERVICED BY L=1300
|
1-09360-677-1 |
02 |
1 |
0801-0801 |
● |
|
| |
55 |
COVER; PIPE,FUEL TANK
WHEEL BASE 5100MM(51W)
L=150
SERVICED BY L=1300
|
1-09360-677-1 |
02 |
1 |
0801-0801 |
|
● |
| |
55 |
COVER; PIPE,FUEL TANK
WHEEL BASE 5100MM(51W),WHEEL BASE 5500MM(55W)
L=150
SERVICED BY L=1300
|
1-09360-677-1 |
02 |
1 |
0802-0804 |
● |
|
| |
55 |
COVER; PIPE,FUEL TANK
6HK1-TCN ENG(82L)
L=150
SERVICED BY L=1300
|
1-09360-677-1 |
02 |
1 |
0802-0804 |
|
● |
| |
55 |
COVER; PIPE,FUEL TANK
WHEEL BASE 5100MM(51W)
L=150
SERVICED BY L=1300
|
1-09360-677-1 |
02 |
1 |
0802-0804 |
|
● |
| |
55 |
COVER; PIPE,FUEL TANK
6HK1-TCN ENG(82L)
L=150
SERVICED BY L=1300
|
1-09360-677-1 |
02 |
1 |
0805-0810 |
|
● |
| |
65 |
HOSE; FUEL,DELIVERY PIPE
WHEEL BASE 4300MM(43W)
(A)
L=2050
SERVICED BY L=3000
|
0-01260-300-0 |
01 |
1 |
0710- |
● |
|
| |
65 |
HOSE; FUEL,DELIVERY PIPE
WHEEL BASE 5100MM(51W),WHEEL BASE 5500MM(55W)
(A)
L=2850
SERVICED BY L=3000
|
0-01260-300-0 |
01 |
1 |
0710-0711 |
● |
|
| |
65 |
HOSE; FUEL,DELIVERY PIPE
WHEEL BASE 5100MM(51W),WHEEL BASE 5500MM(55W)
(A)
L=2850
SERVICED BY L=3000
|
0-01260-300-0 |
01 |
1 |
0712- |
● |
|
| |
65 |
HOSE; FUEL,DELIVERY PIPE
6HK1-TCN ENG(82L)
WHEEL BASE 5100MM(51W)
(A)
L=2850
SERVICED BY L=3000
|
0-01260-300-0 |
01 |
1 |
0712- |
|
● |
| |
65 |
HOSE; FUEL,DELIVERY PIPE
4HK1-TCS ENG(RJS)
(B)
L=60
SERVICED BY L=3000
|
0-01260-300-0 |
01 |
1 |
0712- |
|
● |
| |
65 |
HOSE; FUEL,DELIVERY PIPE
4HK1-TCS ENG(RJS)
(A)
L=2400
SERVICED BY L=3000
|
0-01260-300-0 |
01 |
1 |
0712- |
|
● |
| |
66 |
HOSE; FUEL,RETURN PIPE
4HK1-TCS ENG(RJS)
L=130
SERVICED BY L=3000
|
0-01558-300-0 |
01 |
1 |
0712- |
|
● |
| |
80 |
BOLT; CLIP,FUEL TANK
M8X20 FLANGE
|
0-28650-820-0 |
01 |
1 |
0710-0711 |
● |
|
| |
80 |
BOLT; CLIP,FUEL TANK
M8X20 FLANGE
|
0-28650-820-0 |
01 |
1 |
0712- |
● |
|
| |
80 |
BOLT; CLIP,FUEL TANK
6HK1-TCN ENG(82L)
M8X20 FLANGE
|
0-28650-820-0 |
01 |
1 |
0712- |
|
● |
| |
80 |
BOLT; CLIP,FUEL TANK
4HK1-TCS ENG(RJS)
M8X50 FLANGE
|
0-28050-850-0 |
02 |
1 |
0712-1011 |
|
● |
| |
80 |
BOLT; CLIP,FUEL TANK
4HK1-TCS ENG(RJS)
M8X50 FLANGE
|
0-28050-850-0 |
01 |
1 |
1012- |
|
● |
| |
83 |
NUT; CLIP,FUEL TANK
M8 FLANGE
|
0-91180-108-0 |
01 |
1 |
0710-0711 |
● |
|
| |
83 |
NUT; CLIP,FUEL TANK
M8 FLANGE
|
0-91180-108-0 |
01 |
1 |
0712- |
● |
|
| |
83 |
NUT; CLIP,FUEL TANK
6HK1-TCN ENG(82L)
M8 FLANGE
|
0-91180-108-0 |
01 |
1 |
0712- |
|
● |
| |
83 |
NUT; CLIP,FUEL TANK
4HK1-TCS ENG(RJS)
M8 FLANGE
|
0-91180-108-0 |
05 |
1 |
0712- |
|
● |
| |
95 |
BUSHING; PIPE,FUEL TANK
ID=28 OD=35 T=17
|
9-09956-256-2 |
01 |
1 |
0710-0711 |
● |
|
| |
95 |
BUSHING; PIPE,FUEL TANK
ID=28 OD=35 T=17
|
9-09956-256-2 |
01 |
1 |
0712- |
● |
● |
| |
97 |
BRACKET; CLIP
(B)
|
8-98077-895-1 |
01 |
1 |
0710-0810 |
● |
|
| |
97 |
BRACKET; CLIP
(C)
|
8-98077-896-0 |
01 |
1 |
0710-0711 |
● |
|
| |
97 |
BRACKET; CLIP
(C)
|
8-98077-896-0 |
01 |
1 |
0712- |
● |
|
| |
97 |
BRACKET; CLIP
6HK1-TCN ENG(82L)
(C)
|
8-98077-896-0 |
01 |
1 |
0712- |
|
● |
| |
97 |
BRACKET; CLIP
(D)
|
8-98098-427-1 |
01 |
1 |
0710-0711 |
● |
|
| |
97 |
BRACKET; CLIP
(D)
|
8-98098-427-1 |
01 |
1 |
0712-0712 |
● |
● |
| |
97 |
BRACKET; CLIP
WHEEL BASE 4300MM(43W)
(D)
|
8-98098-427-1 |
01 |
1 |
0801-0804 |
● |
|
| |
97 |
BRACKET; CLIP
WHEEL BASE 4300MM(43W)
(D)
|
8-98109-768-0 |
01 |
1 |
0805-0806 |
● |
|
| |
97 |
BRACKET; CLIP
(D)
|
8-98109-768-0 |
01 |
1 |
0807-0810 |
● |
● |
| |
97 |
BRACKET; CLIP
(D)
|
8-98109-768-0 |
01 |
1 |
0811-1005 |
● |
|
| |
97 |
BRACKET; CLIP
4HK1-TCS ENG(RJS)
(D)
|
8-98109-768-0 |
01 |
1 |
0811-1005 |
|
● |
| |
97 |
BRACKET; CLIP
4HK1-TCS ENG(RJS)
(D)
|
8-98109-768-0 |
01 |
1 |
1006-1006 |
|
● |
| |
97 |
BRACKET; CLIP
(D)
|
8-98109-768-0 |
01 |
1 |
1007- |
● |
|
| |
97 |
BRACKET; CLIP
4HK1-TCS ENG(RJS)
(D)
|
8-98109-768-0 |
01 |
1 |
1007- |
|
● |
| |
97 |
BRACKET; CLIP
WHEEL BASE 5100MM(51W),WHEEL BASE 5500MM(55W)
(A)
|
8-98083-349-0 |
01 |
1 |
0710-0711 |
● |
|
| |
97 |
BRACKET; CLIP
WHEEL BASE 5100MM(51W),WHEEL BASE 5500MM(55W)
(A)
|
8-98083-349-0 |
01 |
1 |
0712- |
● |
|
| |
97 |
BRACKET; CLIP
(A)
|
8-98083-349-0 |
01 |
1 |
0712- |
|
● |
| |
97 |
BRACKET; CLIP
4HK1-TCS ENG(RJS)
(G)
L=50
|
1-47475-299-2 |
01 |
1 |
0712- |
|
● |
| |
97 |
BRACKET; CLIP
4HK1-TCS ENG(RJS)
(E)
|
8-98078-201-0 |
01 |
1 |
0712- |
|
● |
| |
97 |
BRACKET; CLIP
4HK1-TCS ENG(RJS)
(F)
|
8-98083-537-0 |
01 |
1 |
0712- |
|
● |
| |
97 |
BRACKET; CLIP
6HK1-TCN ENG(82L)
(B)
|
8-98105-216-0 |
01 |
1 |
0712-0810 |
|
● |
| |
97 |
BRACKET; CLIP
6HK1-TCN ENG(82L)
(D)
|
8-98109-768-0 |
02 |
1 |
0811- |
|
● |
| |
98 |
BOLT; BRKT,FUEL PIPE
4HK1-TCS ENG(RJS)
M10X30 FLANGE
|
0-28651-030-0 |
01 |
1 |
0806- |
|
● |
| |
103 |
NUT; BRKT
4HK1-TCS ENG(RJS)
M10 FLANGE
|
0-91180-210-0 |
01 |
1 |
0712-0805 |
|
● |
| |
174 |
PIPE; FUEL,FEED,FRT
|
8-98078-209-0 |
01 |
1 |
0710-0711 |
● |
|
| |
174 |
PIPE; FUEL,FEED,FRT
|
8-98078-209-0 |
01 |
1 |
0712- |
● |
|
| |
174 |
PIPE; FUEL,FEED,FRT
6HK1-TCN ENG(82L)
|
8-98078-209-0 |
01 |
1 |
0712- |
|
● |
| |
174 |
PIPE; FUEL,FEED,FRT
4HK1-TCS ENG(RJS)
|
8-98086-754-0 |
01 |
1 |
0712- |
|
● |
| |
213 |
BOLT; FUEL PIPE FIX
4HK1-TCS ENG(RJS)
M8X20 FLANGE
|
0-28650-820-0 |
01 |
1 |
0712- |
|
● |
| |
303 |
BOLT; BRKT
(B)
M10X30 FLANGE
|
0-28651-030-0 |
01 |
1 |
0710-0711 |
● |
|
| |
303 |
BOLT; BRKT
(B)
M10X30 FLANGE
|
0-28651-030-0 |
01 |
1 |
0712-0712 |
● |
● |
| |
303 |
BOLT; BRKT
(B)
M10X30 FLANGE
|
0-28651-030-0 |
01 |
1 |
0801-0803 |
● |
● |
| |
303 |
BOLT; BRKT
WHEEL BASE 4300MM(43W)
(B)
M10X30 FLANGE
|
0-28651-030-0 |
01 |
1 |
0801-0803 |
● |
|
| |
303 |
BOLT; BRKT
WHEEL BASE 4300MM(43W)
(B)
M10X30 FLANGE
|
0-28651-030-0 |
01 |
1 |
0804-0804 |
● |
|
| |
303 |
BOLT; BRKT
(B)
M10X30 FLANGE
|
0-28651-030-0 |
01 |
1 |
0805-0810 |
● |
● |
| |
303 |
BOLT; BRKT
(B)
M10X30 FLANGE
|
0-28651-030-0 |
01 |
1 |
0811-1005 |
● |
|
| |
303 |
BOLT; BRKT
4HK1-TCS ENG(RJS)
(B)
M10X30 FLANGE
|
0-28651-030-0 |
01 |
1 |
0811-1005 |
|
● |
| |
303 |
BOLT; BRKT
4HK1-TCS ENG(RJS)
(B)
M10X30 FLANGE
|
0-28651-030-0 |
01 |
1 |
1006-1006 |
|
● |
| |
303 |
BOLT; BRKT
(B)
M10X30 FLANGE
|
0-28651-030-0 |
01 |
1 |
1007- |
● |
|
| |
303 |
BOLT; BRKT
4HK1-TCS ENG(RJS)
(B)
M10X30 FLANGE
|
0-28651-030-0 |
01 |
1 |
1007- |
|
● |
| |
303 |
BOLT; BRKT
WHEEL BASE 5100MM(51W),WHEEL BASE 5500MM(55W)
(A)
M8X30 FLANGE
|
0-28650-830-0 |
01 |
1 |
0710-0711 |
● |
|
| |
303 |
BOLT; BRKT
WHEEL BASE 5100MM(51W),WHEEL BASE 5500MM(55W)
(A)
M8X30 FLANGE
|
0-28650-830-0 |
01 |
1 |
0712-1011 |
● |
|
| |
303 |
BOLT; BRKT
(A)
M8X30 FLANGE
|
0-28650-830-0 |
01 |
1 |
0712-1011 |
|
● |
| |
303 |
BOLT; BRKT
WHEEL BASE 5100MM(51W),WHEEL BASE 5500MM(55W)
(A)
M8X30 FLANGE
|
0-28650-830-0 |
01 |
1 |
1012- |
● |
|
| |
303 |
BOLT; BRKT
(A)
M8X30 FLANGE
|
0-28650-830-0 |
01 |
1 |
1012- |
|
● |
| |
303 |
BOLT; BRKT
4HK1-TCS ENG(RJS)
(A)
M8X30 FLANGE
|
0-28650-830-0 |
01 |
1 |
1012- |
|
● |
| |
303 |
BOLT; BRKT
4HK1-TCS ENG(RJS)
(A)
M8X30 FLANGE
|
0-28650-830-0 |
02 |
1 |
0712-1011 |
|
● |
| |
303 |
BOLT; BRKT
6HK1-TCN ENG(82L)
(B)
M10X30 FLANGE
|
0-28651-030-0 |
02 |
1 |
0811- |
|
● |
| |
304 |
NUT; BRKT
(A)
M8 FLANGE
|
0-91180-108-0 |
04 |
1 |
0710-0711 |
● |
|
| |
304 |
NUT; BRKT
(A)
M8 FLANGE
|
0-91180-108-0 |
04 |
1 |
0712-0810 |
● |
|
| |
304 |
NUT; BRKT
6HK1-TCN ENG(82L)
(A)
M8 FLANGE
|
0-91180-108-0 |
04 |
1 |
0712-0810 |
|
● |
| |
304 |
NUT; BRKT
(A)
M8 FLANGE
|
0-91180-108-0 |
02 |
1 |
0811- |
● |
● |
| |
304 |
NUT; BRKT
(B)
M10 FLANGE
|
0-91180-210-0 |
01 |
1 |
0710-0711 |
● |
|
| |
304 |
NUT; BRKT
(B)
M10 FLANGE
|
0-91180-210-0 |
01 |
1 |
0712-0712 |
● |
● |
| |
304 |
NUT; BRKT
(B)
M10 FLANGE
|
0-91180-210-0 |
01 |
1 |
0801-0803 |
● |
● |
| |
304 |
NUT; BRKT
WHEEL BASE 4300MM(43W)
(B)
M10 FLANGE
|
0-91180-210-0 |
01 |
1 |
0801-0803 |
● |
|
| |
304 |
NUT; BRKT
WHEEL BASE 4300MM(43W)
(B)
M10 FLANGE
|
0-91180-210-0 |
01 |
1 |
0804-0804 |
● |
|
| |
304 |
NUT; BRKT
(B)
M10 FLANGE
|
0-91180-210-0 |
01 |
1 |
0805-0810 |
● |
● |
| |
304 |
NUT; BRKT
(B)
M10 FLANGE
|
0-91180-210-0 |
01 |
1 |
0811-1005 |
● |
|
| |
304 |
NUT; BRKT
4HK1-TCS ENG(RJS)
(B)
M10 FLANGE
|
0-91180-210-0 |
01 |
1 |
0811-1005 |
|
● |
| |
304 |
NUT; BRKT
4HK1-TCS ENG(RJS)
(B)
M10 FLANGE
|
0-91180-210-0 |
01 |
1 |
1006-1006 |
|
● |
| |
304 |
NUT; BRKT
(B)
M10 FLANGE
|
0-91180-210-0 |
01 |
1 |
1007- |
● |
|
| |
304 |
NUT; BRKT
4HK1-TCS ENG(RJS)
(B)
M10 FLANGE
|
0-91180-210-0 |
01 |
1 |
1007- |
|
● |
| |
304 |
NUT; BRKT
WHEEL BASE 5100MM(51W),WHEEL BASE 5500MM(55W)
(A)
M8 FLANGE
|
0-91180-108-0 |
01 |
1 |
0710-0711 |
● |
|
| |
304 |
NUT; BRKT
WHEEL BASE 5100MM(51W),WHEEL BASE 5500MM(55W)
(A)
M8 FLANGE
|
0-91180-108-0 |
01 |
1 |
0712- |
● |
|
| |
304 |
NUT; BRKT
(A)
M8 FLANGE
|
0-91180-108-0 |
01 |
1 |
0712- |
|
● |
| |
304 |
NUT; BRKT
4HK1-TCS ENG(RJS)
(A)
M8 FLANGE
|
0-91180-108-0 |
02 |
1 |
0712-0810 |
|
● |
| |
304 |
NUT; BRKT
6HK1-TCN ENG(82L)
(B)
M10 FLANGE
|
0-91180-210-0 |
02 |
1 |
0811- |
|
● |
| |

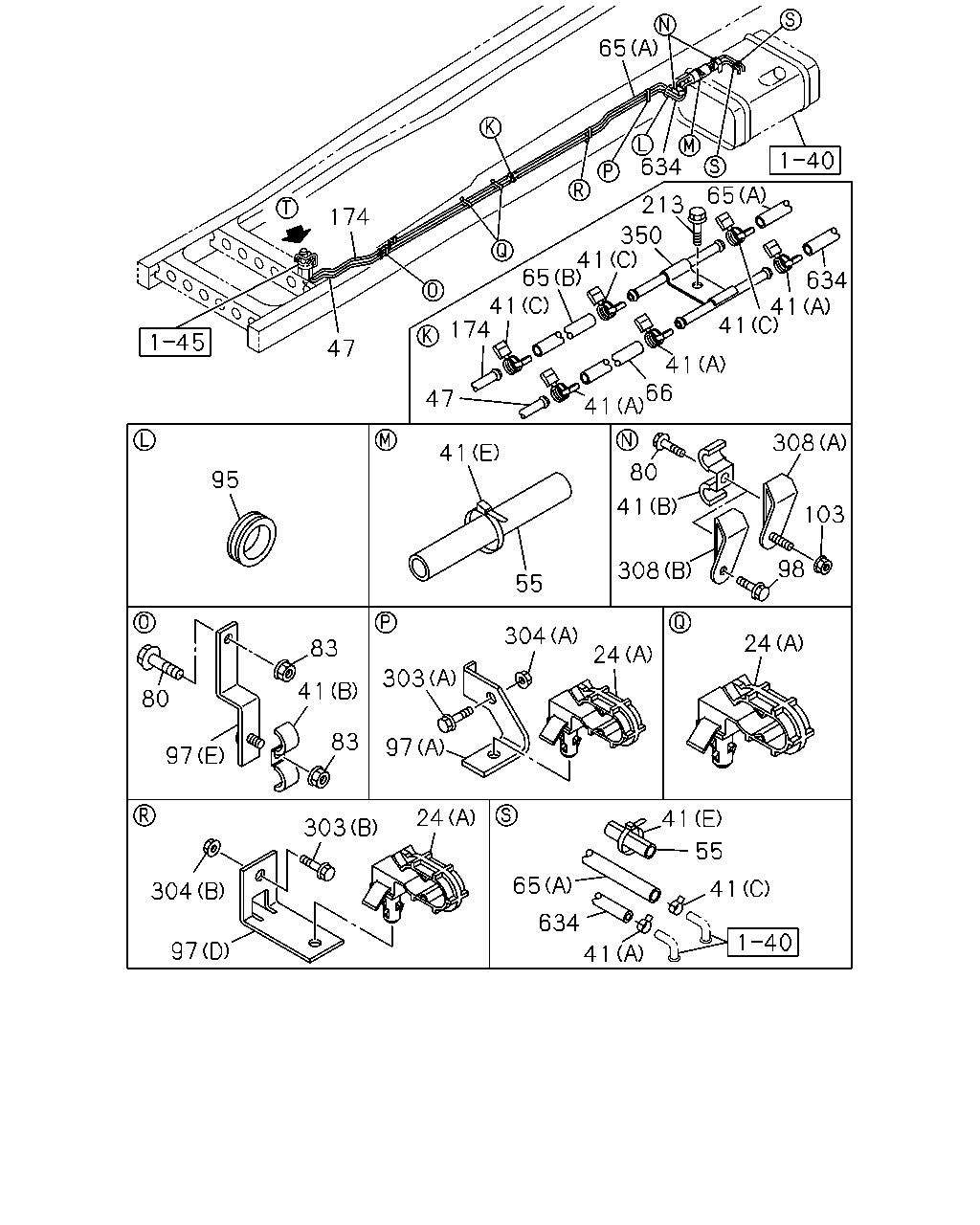

308 |
BRACKET; FUEL PIPE
4HK1-TCS ENG(RJS)
(A)
|
8-98080-065-0 |
01 |
1 |
0712-0805 |
|
● |
| |
308 |
BRACKET; FUEL PIPE
4HK1-TCS ENG(RJS)
(B)
|
8-98117-691-0 |
01 |
1 |
0806- |
|
● |
| |
350 |
PIPE; FUEL,DEL & RET
4HK1-TCS ENG(RJS)
|
8-98084-131-0 |
01 |
1 |
0712- |
|
● |
| |
634 |
HOSE; RUBBER RETURN
WHEEL BASE 4300MM(43W)
L=2000
SERVICED BY L=3000
|
0-01558-300-0 |
01 |
1 |
0710- |
● |
|
| |
634 |
HOSE; RUBBER RETURN
WHEEL BASE 5100MM(51W),WHEEL BASE 5500MM(55W)
L=2850
SERVICED BY L=3000
|
0-01558-300-0 |
01 |
1 |
0710-0711 |
● |
|
| |
634 |
HOSE; RUBBER RETURN
WHEEL BASE 5100MM(51W),WHEEL BASE 5500MM(55W)
L=2850
SERVICED BY L=3000
|
0-01558-300-0 |
01 |
1 |
0712- |
● |
|
| |
634 |
HOSE; RUBBER RETURN
6HK1-TCN ENG(82L)
WHEEL BASE 5100MM(51W)
L=2850
SERVICED BY L=3000
|
0-01558-300-0 |
01 |
1 |
0712- |
|
● |
| |
634 |
HOSE; RUBBER RETURN
4HK1-TCS ENG(RJS)
L=2400
SERVICED BY L=3000
|
0-01558-300-0 |
01 |
1 |
0712- |
|
● |
