◀ 🏠 ▶ Isuzu WW ▶ TRUCKS ▶ FRR ▶ 11415 - FRR AUSTRALIA EURO4 EXC.SPACECAB ▶ 1 - Fuel Tank, Cooling, Air Intake, Exhaust System ▶ 1-31 - AIR DUCT ▶
1-31 — AIR DUCT (#21744) — 461 parça

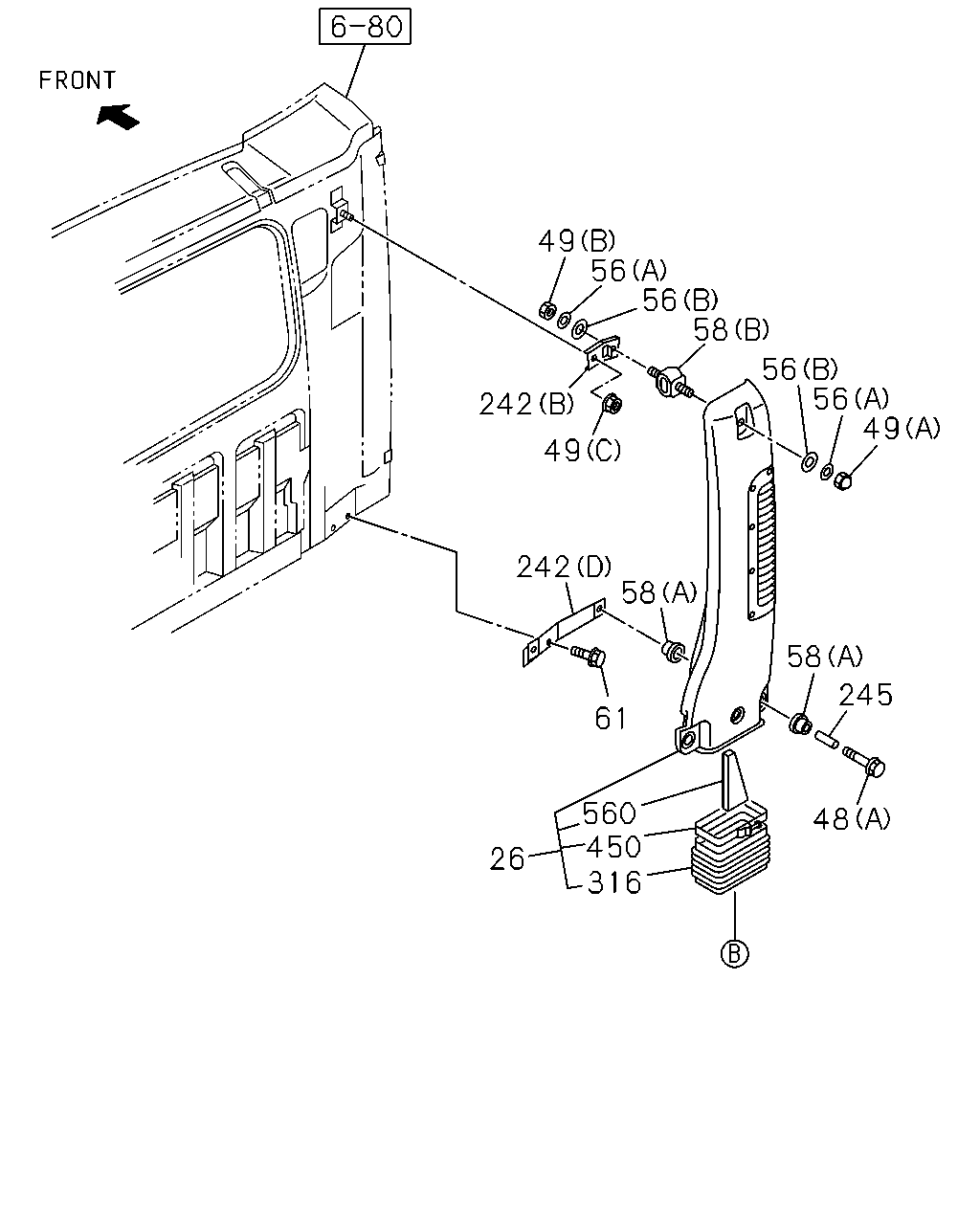

çizim 109064
49 56 56 58 56 56 49 242 49 242 58 58 245 61 560 450 316 48 26
BalonParca AdiParca NoAdetTipApplied Date A B C
26 DUCT; AIR INT 8-98010-361-2 01 1 0710-0711 ● ●
26 DUCT; AIR INT 8-98010-361-2 01 1 0712- ● ● ●
48 BOLT; AIR DUCT
(A) M10X26 		1-09030-044-1 02 1 0710-0711 ● ●
48 BOLT; AIR DUCT
(A) M10X26 		1-09030-044-1 02 1 0712- ● ● ●
48 BOLT; AIR DUCT
DBL CAB(FC**W*) (B) M10X25 FLANGE 		0-28651-025-0 04 1 0712- ●
48 BOLT; AIR DUCT
(B) M10X25 FLANGE 		0-28651-025-0 04 1 0712- ●
49 NUT; AIR DUCT
(C) M8 FLANGE 		8-94279-517-0 02 1 0710- ●
49 NUT; AIR DUCT
SGL CAB(FC**M*) (C) M8 FLANGE 		8-94279-517-0 02 1 0710- ●
49 NUT; AIR DUCT
(B) M8 FLANGE 		1-09984-122-0 01 1 0710-0711 ● ●
49 NUT; AIR DUCT
(B) M8 FLANGE 		1-09984-122-0 01 1 0712- ● ● ●
49 NUT; AIR DUCT
(A) M8 FLANGE 		1-09984-126-0 01 1 0710-0711 ● ●
49 NUT; AIR DUCT
(A) M8 FLANGE 		1-09984-126-0 01 1 0712- ● ● ●
49 NUT; AIR DUCT
DBL CAB(FC**W*) (C) M8 FLANGE 		8-94279-517-0 01 1 0712- ●
49 NUT; AIR DUCT
(C) M8 FLANGE 		8-94279-517-0 01 1 0712- ●
56 WASHER; LK,AIR INT DUCT
(A) ID=8.2 		1-09985-177-0 02 1 0710-0711 ● ●
56 WASHER; LK,AIR INT DUCT
(A) ID=8.2 		1-09985-177-0 02 1 0712- ● ● ●
56 WASHER; LK,AIR INT DUCT
(B) ID=8.4 OD=22 		1-09985-188-0 02 1 0710-0711 ● ●
56 WASHER; LK,AIR INT DUCT
(B) ID=8.4 OD=22 		1-09985-188-0 02 1 0712- ● ● ●
58 SUPPORT; AIR INL DUCT
(A) OD=40 T=18.5 		1-14119-267-0 04 1 0710-0711 ● ●
58 SUPPORT; AIR INL DUCT
(A) OD=40 T=18.5 		1-14119-267-0 04 1 0712- ● ● ●
58 SUPPORT; AIR INL DUCT
(B) 		1-14119-452-0 01 1 0710-0711 ● ●
58 SUPPORT; AIR INL DUCT
(B) 		1-14119-452-0 01 1 0712-0810 ● ● ●
58 SUPPORT; AIR INL DUCT
(B) 		8-98125-944-1 01 1 0811- ● ● ●
61 BOLT; BRKT,AIR DUCT
M8X20 FLANGE 		8-98061-920-0 02 1 0710-0711 ● ●
61 BOLT; BRKT,AIR DUCT
M8X20 FLANGE 		8-98061-920-0 02 1 0712-0807 ● ● ●
61 BOLT; BRKT,AIR DUCT
M8X25 FLANGE 		8-98074-570-0 02 1 0808- ● ● ●
242 BRACKET; AIR DUCT
(C) 		8-98019-302-1 01 1 0710- ●
242 BRACKET; AIR DUCT
SGL CAB(FC**M*) (C) 		8-98019-302-1 01 1 0710- ●
242 BRACKET; AIR DUCT
(A) 		8-98019-303-1 01 1 0710- ●
242 BRACKET; AIR DUCT
SGL CAB(FC**M*) (A) 		8-98019-303-1 01 1 0710- ●
242 BRACKET; AIR DUCT
(B) 		8-98019-301-3 01 1 0710-0711 ● ●
242 BRACKET; AIR DUCT
(B) 		8-98019-301-3 01 1 0712- ● ● ●
242 BRACKET; AIR DUCT
DBL CAB(FC**W*) (D) 		8-98050-679-1 01 1 0712- ●
242 BRACKET; AIR DUCT
(D) 		8-98050-679-1 01 1 0712- ●
242 BRACKET; AIR DUCT
DBL CAB(FC**W*) (G) 		8-98089-456-1 01 1 0712- ●
242 BRACKET; AIR DUCT
DBL CAB(FC**W*) (F) 		8-98092-771-0 01 1 0712- ●
242 BRACKET; AIR DUCT
(F) 		8-98092-771-0 01 1 0712- ●
242 BRACKET; AIR DUCT
(E) 		8-98084-231-1 01 1 0712- ●
245 PIECE; DIST,AIR DUCT 1-79998-228-0 02 1 0710-0711 ● ●
245 PIECE; DIST,AIR DUCT 1-79998-228-0 02 1 0712- ● ● ●
316 RUBBER; CUSHION,DUCT 8-98152-269-0 01 1 0908- ● ● ●
450 CLAMP; HOSE 9-09915-504-1 01 1 0710-0711 ● ●
450 CLAMP; HOSE 9-09915-504-1 01 1 0712- ● ● ●
560 FILTER; VERTICAL DUCT 8-98061-675-0 01 1 0710-0711 ●
560 FILTER; VERTICAL DUCT
SGL CAB(FC**M*) 		8-98061-675-0 01 1 0710-0711 ●
560 FILTER; VERTICAL DUCT 8-98061-675-0 01 1 0712- ● ● ●

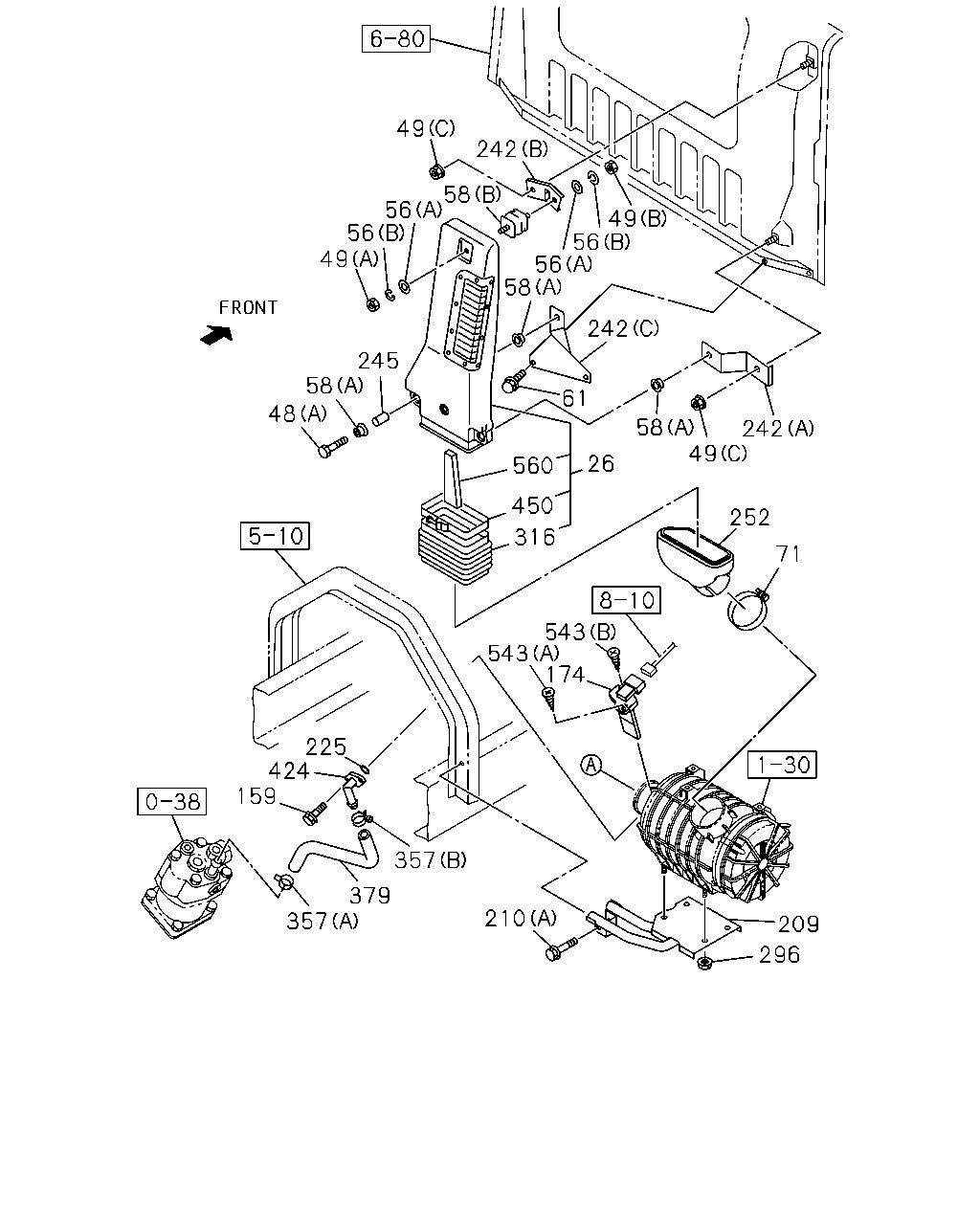

çizim 109065
49 242 58 56 56 49 49 56 56 58 242 245 61 58 242 49 48 58 26 560 450 252 316 71 543 543 174 225 424 159 357 379 210 357 209 296
BalonParca AdiParca NoAdetTipApplied Date A B C
26 DUCT; AIR INT 8-98010-361-2 01 1 0710-0711 ● ●
26 DUCT; AIR INT 8-98010-361-2 01 1 0712- ● ● ●
48 BOLT; AIR DUCT
(A) M10X26 		1-09030-044-1 02 1 0710-0711 ● ●
48 BOLT; AIR DUCT
(A) M10X26 		1-09030-044-1 02 1 0712- ● ● ●
48 BOLT; AIR DUCT
DBL CAB(FC**W*) (B) M10X25 FLANGE 		0-28651-025-0 04 1 0712- ●
48 BOLT; AIR DUCT
(B) M10X25 FLANGE 		0-28651-025-0 04 1 0712- ●
49 NUT; AIR DUCT
(C) M8 FLANGE 		8-94279-517-0 02 1 0710- ●
49 NUT; AIR DUCT
SGL CAB(FC**M*) (C) M8 FLANGE 		8-94279-517-0 02 1 0710- ●
49 NUT; AIR DUCT
(B) M8 FLANGE 		1-09984-122-0 01 1 0710-0711 ● ●
49 NUT; AIR DUCT
(B) M8 FLANGE 		1-09984-122-0 01 1 0712- ● ● ●
49 NUT; AIR DUCT
(A) M8 FLANGE 		1-09984-126-0 01 1 0710-0711 ● ●
49 NUT; AIR DUCT
(A) M8 FLANGE 		1-09984-126-0 01 1 0712- ● ● ●
49 NUT; AIR DUCT
DBL CAB(FC**W*) (C) M8 FLANGE 		8-94279-517-0 01 1 0712- ●
49 NUT; AIR DUCT
(C) M8 FLANGE 		8-94279-517-0 01 1 0712- ●
56 WASHER; LK,AIR INT DUCT
(A) ID=8.2 		1-09985-177-0 02 1 0710-0711 ● ●
56 WASHER; LK,AIR INT DUCT
(A) ID=8.2 		1-09985-177-0 02 1 0712- ● ● ●
56 WASHER; LK,AIR INT DUCT
(B) ID=8.4 OD=22 		1-09985-188-0 02 1 0710-0711 ● ●
56 WASHER; LK,AIR INT DUCT
(B) ID=8.4 OD=22 		1-09985-188-0 02 1 0712- ● ● ●
58 SUPPORT; AIR INL DUCT
(A) OD=40 T=18.5 		1-14119-267-0 04 1 0710-0711 ● ●
58 SUPPORT; AIR INL DUCT
(A) OD=40 T=18.5 		1-14119-267-0 04 1 0712- ● ● ●
58 SUPPORT; AIR INL DUCT
(B) 		1-14119-452-0 01 1 0710-0711 ● ●
58 SUPPORT; AIR INL DUCT
(B) 		1-14119-452-0 01 1 0712-0810 ● ● ●
58 SUPPORT; AIR INL DUCT
(B) 		8-98125-944-1 01 1 0811- ● ● ●
61 BOLT; BRKT,AIR DUCT
M8X20 FLANGE 		8-98061-920-0 02 1 0710-0711 ● ●
61 BOLT; BRKT,AIR DUCT
M8X20 FLANGE 		8-98061-920-0 02 1 0712-0807 ● ● ●
61 BOLT; BRKT,AIR DUCT
M8X25 FLANGE 		8-98074-570-0 02 1 0808- ● ● ●
71 CLIP; AIR DUCT
ID=104-139 		1-09707-200-0 01 1 0710-0711 ● ●
71 CLIP; AIR DUCT
ID=104-139 		1-09707-200-0 01 1 0712-0812 ● ● ●
71 CLIP; AIR DUCT
ID=120-140 		8-98133-367-0 01 1 0901- ● ● ●
159 BOLT; AIR PIPE
M6X16 FLANGE 		0-28050-616-0 02 1 0710- ●
159 BOLT; AIR PIPE
SGL CAB(FC**M*) M6X16 FLANGE 		0-28050-616-0 02 1 0710- ●
174 SENSOR; AIR FLOW CONT 8-97601-967-0 01 1 0710-0711 ● ●
174 SENSOR; AIR FLOW CONT 8-97601-967-0 01 1 0712- ● ● ●
209 BRACKET; ACL 8-98010-344-6 01 1 0710-0711 ● ●
209 BRACKET; ACL 8-98099-677-0 01 1 0712- ●
209 BRACKET; ACL
SGL CAB(FC**M*) 		8-98099-677-0 01 1 0712- ●
209 BRACKET; ACL
DBL CAB(FC**W*) 		8-98089-455-1 01 1 0712- ●
209 BRACKET; ACL 8-98058-687-0 01 1 0712- ●
210 BOLT; ACL BRKT
(A) M10X25 FLANGE 		0-28651-025-0 03 1 0710- ●
210 BOLT; ACL BRKT
SGL CAB(FC**M*) (A) M10X25 FLANGE 		0-28651-025-0 03 1 0710- ●
210 BOLT; ACL BRKT
DBL CAB(FC**W*) (A) M10X25 FLANGE 		0-28651-025-0 04 1 0712- ●
210 BOLT; ACL BRKT
(B) M8X25 FLANGE 		0-28650-825-0 02 1 0712- ●
210 BOLT; ACL BRKT
(A) M10X25 FLANGE 		0-28651-025-0 02 1 0712- ●
225 GASKET; AIR PIPE
ID=24.4 		1-09623-057-0 01 1 0710-0711 ● ●
225 GASKET; AIR PIPE
ID=24.4 		1-09623-057-0 01 1 0712- ● ● ●
242 BRACKET; AIR DUCT
(C) 		8-98019-302-1 01 1 0710- ●
242 BRACKET; AIR DUCT
SGL CAB(FC**M*) (C) 		8-98019-302-1 01 1 0710- ●
242 BRACKET; AIR DUCT
(A) 		8-98019-303-1 01 1 0710- ●
242 BRACKET; AIR DUCT
SGL CAB(FC**M*) (A) 		8-98019-303-1 01 1 0710- ●
242 BRACKET; AIR DUCT
(B) 		8-98019-301-3 01 1 0710-0711 ● ●
242 BRACKET; AIR DUCT
(B) 		8-98019-301-3 01 1 0712- ● ● ●
242 BRACKET; AIR DUCT
DBL CAB(FC**W*) (D) 		8-98050-679-1 01 1 0712- ●
242 BRACKET; AIR DUCT
(D) 		8-98050-679-1 01 1 0712- ●
242 BRACKET; AIR DUCT
DBL CAB(FC**W*) (G) 		8-98089-456-1 01 1 0712- ●
242 BRACKET; AIR DUCT
DBL CAB(FC**W*) (F) 		8-98092-771-0 01 1 0712- ●
242 BRACKET; AIR DUCT
(F) 		8-98092-771-0 01 1 0712- ●
242 BRACKET; AIR DUCT
(E) 		8-98084-231-1 01 1 0712- ●
245 PIECE; DIST,AIR DUCT 1-79998-228-0 02 1 0710-0711 ● ●
245 PIECE; DIST,AIR DUCT 1-79998-228-0 02 1 0712- ● ● ●
252 DUCT; AIR INT 8-98019-843-0 01 1 0710- ●
252 DUCT; AIR INT
SGL CAB(FC**M*) 		8-98019-843-0 01 1 0710- ●
252 DUCT; AIR INT
DBL CAB(FC**W*) 		8-98050-681-0 01 1 0712- ●
252 DUCT; AIR INT 8-98050-681-0 01 1 0712- ●
296 NUT; ACL
M8 FLANGE 		0-91180-108-0 04 1 0710-0711 ● ●
296 NUT; ACL
M8 FLANGE 		0-91180-108-0 04 1 0712- ● ● ●
316 RUBBER; CUSHION,DUCT 8-98152-269-0 01 1 0908- ● ● ●
357 CLIP; RUBBER HOSE
(A) ID=26 		1-09707-091-0 01 1 0710- ● ●
357 CLIP; RUBBER HOSE
(B) ID=29.5 		8-97354-979-0 01 1 0710- ● ●
357 CLIP; RUBBER HOSE
(D) ID=77-95 		1-09707-198-0 01 1 0712-0810 ●
357 CLIP; RUBBER HOSE
(D) ID=75-95 		8-98133-357-0 01 1 0811-1001 ●
357 CLIP; RUBBER HOSE
(D) ID=77-99 		1-09707-141-0 01 1 1002- ●
357 CLIP; RUBBER HOSE
(C) ID=58-76 		1-09707-203-0 02 1 0712-0811 ●
357 CLIP; RUBBER HOSE
(C) ID=55-75 		8-98133-349-0 02 1 0812-1001 ●
357 CLIP; RUBBER HOSE
(C) ID=58-79 		1-09707-136-0 02 1 1002- ●
357 CLIP; RUBBER HOSE
(E) ID=24 		8-98025-921-0 02 1 0712- ●
379 HOSE; RUBBER 8-98063-172-0 01 1 0710- ●
379 HOSE; RUBBER
SGL CAB(FC**M*) 		8-98063-172-0 01 1 0710- ●
379 HOSE; RUBBER
DBL CAB(FC**W*) 		8-98073-021-0 01 1 0712- ●
379 HOSE; RUBBER 8-98082-252-0 01 1 0712- ●
424 PIPE; AIR,INL 8-98081-834-0 01 1 0710- ●
424 PIPE; AIR,INL
SGL CAB(FC**M*) 		8-98081-834-0 01 1 0710- ●
450 CLAMP; HOSE 9-09915-504-1 01 1 0710-0711 ● ●
450 CLAMP; HOSE 9-09915-504-1 01 1 0712- ● ● ●
543 SCREW; SENSOR
(B) M4X10 W/LK&PL WASHER 		0-36230-410-0 02 1 0710-0711 ● ●
543 SCREW; SENSOR
(B) M4X10 W/LK&PL WASHER 		0-36230-410-0 02 1 0712- ● ● ●
543 SCREW; SENSOR
(A) M4X12 W/LK&PL WASHER 		0-36230-412-0 02 1 0712- ●
560 FILTER; VERTICAL DUCT 8-98061-675-0 01 1 0710-0711 ●
560 FILTER; VERTICAL DUCT
SGL CAB(FC**M*) 		8-98061-675-0 01 1 0710-0711 ●
560 FILTER; VERTICAL DUCT 8-98061-675-0 01 1 0712- ● ● ●

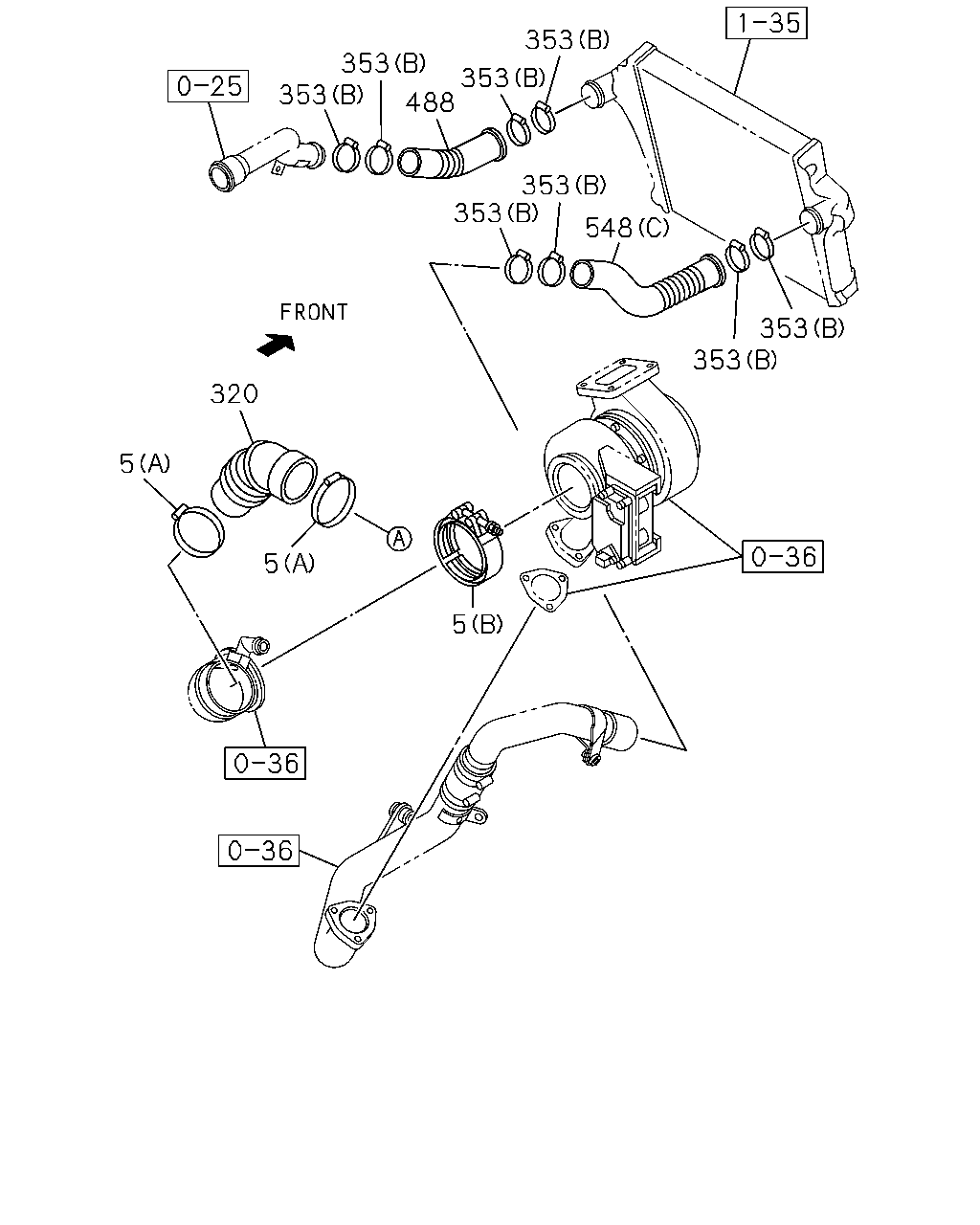

çizim 109066
353 353 353 353 488 353 353 548 353 353 320 5 5 5
BalonParca AdiParca NoAdetTipApplied Date A B C
5 CLIP; AIR DUCT
(A) ID=104-139 		1-09707-200-0 01 1 0710-0711 ● ●
5 CLIP; AIR DUCT
(A) ID=104-139 		1-09707-200-0 01 1 0710-0711 ● ●
5 CLIP; AIR DUCT
(A) ID=104-139 		1-09707-200-0 01 1 0712-0812 ● ●
5 CLIP; AIR DUCT
(A) ID=104-139 		1-09707-200-0 01 1 0712-0812 ●
5 CLIP; AIR DUCT
SGL CAB(FC**M*) (A) ID=104-139 		1-09707-200-0 01 1 0712-0812 ●
5 CLIP; AIR DUCT
(A) ID=110-130 		8-98133-359-0 01 1 0901-1001 ●
5 CLIP; AIR DUCT
SGL CAB(FC**M*) (A) ID=110-130 		8-98133-359-0 01 1 0901-1001 ●
5 CLIP; AIR DUCT
(A) ID=104-142 		1-09707-139-0 01 1 1002- ● ●
5 CLIP; AIR DUCT
(A) ID=104-142 		1-09707-139-0 01 1 1002- ●
5 CLIP; AIR DUCT
SGL CAB(FC**M*) (A) ID=104-142 		1-09707-139-0 01 1 1002- ●
5 CLIP; AIR DUCT
(B) ID=114 		8-15178-030-0 01 1 0710- ● ●
5 CLIP; AIR DUCT
(A) ID=100-120 		8-98133-366-0 01 1 0901-1001 ● ●
5 CLIP; AIR DUCT
DBL CAB(FC**W*) (A) ID=104-139 		1-09707-200-0 03 1 0712-0812 ●
5 CLIP; AIR DUCT
(A) ID=104-139 		1-09707-200-0 03 1 0712-0812 ●
5 CLIP; AIR DUCT
DBL CAB(FC**W*) (A) ID=110-130 		8-98133-359-0 03 1 0901-1001 ●
5 CLIP; AIR DUCT
(A) ID=110-130 		8-98133-359-0 03 1 0901-1001 ●
5 CLIP; AIR DUCT
DBL CAB(FC**W*) (A) ID=104-142 		1-09707-139-0 03 1 1002- ●
5 CLIP; AIR DUCT
(A) ID=104-142 		1-09707-139-0 03 1 1002- ●
5 CLIP; AIR DUCT
(B) ID=77-95 		1-09707-198-0 01 1 0712-0810 ●
5 CLIP; AIR DUCT
(B) ID=75-95 		8-98133-357-0 01 1 0811-1001 ●
5 CLIP; AIR DUCT
(B) ID=77-99 		1-09707-141-0 01 1 1002- ●
320 HOSE; CONN,ACL 8-98077-619-1 01 1 0710- ●
320 HOSE; CONN,ACL
SGL CAB(FC**M*) 		8-98077-619-1 01 1 0710- ●
320 HOSE; CONN,ACL
DBL CAB(FC**W*) 		8-98092-944-1 01 1 0712- ●
320 HOSE; CONN,ACL 8-98084-232-0 01 1 0712- ●
353 CLIP; RUBBER HOSE
(B) ID=58-76 		1-09707-203-0 08 1 0710-0811 ● ●
353 CLIP; RUBBER HOSE
(B) ID=55-75 		8-98133-349-0 08 1 0812-1001 ● ●
353 CLIP; RUBBER HOSE
(B) ID=58-79 		1-09707-136-0 08 1 1002- ● ●
353 CLIP; RUBBER HOSE
(A) ID=50-69 		1-09707-135-0 02 1 0712-0712 ●
353 CLIP; RUBBER HOSE
(A) ID=60-65 		8-98096-418-0 02 1 0712- ●
353 CLIP; RUBBER HOSE
(B) ID=58-76 		1-09707-203-0 02 1 0712-0811 ●
353 CLIP; RUBBER HOSE
(B) ID=55-75 		8-98133-349-0 02 1 0812-1001 ●
353 CLIP; RUBBER HOSE
(B) ID=58-79 		1-09707-136-0 02 1 1002- ●
488 HOSE; RUBBER,PIPE 8-98017-224-1 01 1 0710- ● ●
488 HOSE; RUBBER,PIPE 8-98010-723-0 01 1 0712- ●
548 HOSE; RUBBER,TURBO TO INL PIPE
(C) 		8-98017-223-2 01 1 0710- ● ●
548 HOSE; RUBBER,TURBO TO INL PIPE
(A) 		8-98061-809-1 01 1 0712- ●
548 HOSE; RUBBER,TURBO TO INL PIPE
(B) 		8-98061-810-0 01 1 0712- ●

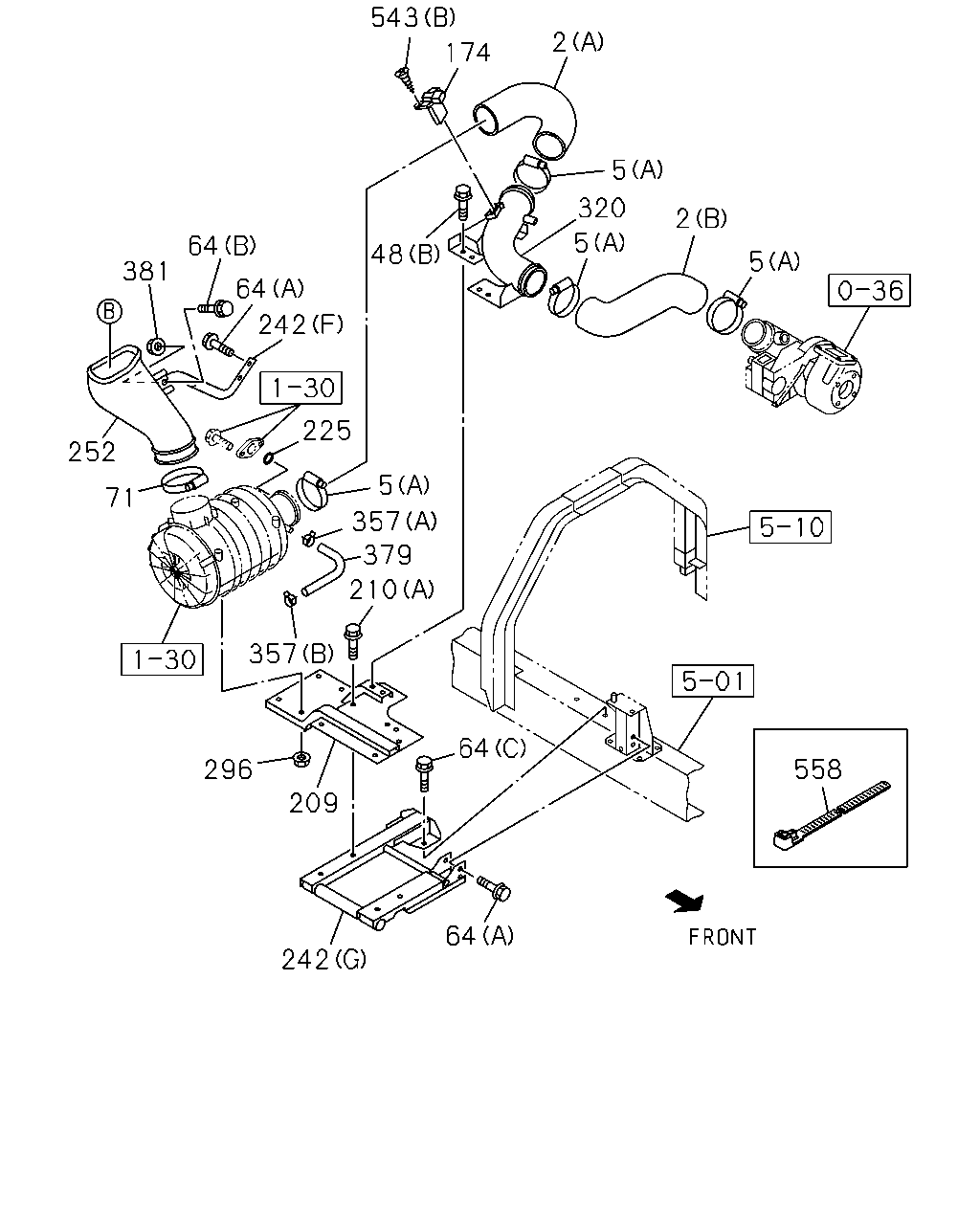

çizim 109067
543 2 174 5 320 2 5 64 48 5 381 64 242 225 252 5 71 357 379 210 357 64 558 296 209 64 242
BalonParca AdiParca NoAdetTipApplied Date A B C
2 HOSE; ACL
DBL CAB(FC**W*) (A) 		8-98050-682-0 01 1 0712- ●
2 HOSE; ACL
DBL CAB(FC**W*) (B) 		8-98065-313-0 01 1 0712- ●
2 HOSE; ACL
(A) 		8-98058-691-1 01 1 0712- ●
2 HOSE; ACL
(B) 		8-98081-763-0 01 1 0712- ●
5 CLIP; AIR DUCT
(A) ID=104-139 		1-09707-200-0 01 1 0710-0711 ● ●
5 CLIP; AIR DUCT
(A) ID=104-139 		1-09707-200-0 01 1 0710-0711 ● ●
5 CLIP; AIR DUCT
(A) ID=104-139 		1-09707-200-0 01 1 0712-0812 ● ●
5 CLIP; AIR DUCT
(A) ID=104-139 		1-09707-200-0 01 1 0712-0812 ●
5 CLIP; AIR DUCT
SGL CAB(FC**M*) (A) ID=104-139 		1-09707-200-0 01 1 0712-0812 ●
5 CLIP; AIR DUCT
(A) ID=110-130 		8-98133-359-0 01 1 0901-1001 ●
5 CLIP; AIR DUCT
SGL CAB(FC**M*) (A) ID=110-130 		8-98133-359-0 01 1 0901-1001 ●
5 CLIP; AIR DUCT
(A) ID=104-142 		1-09707-139-0 01 1 1002- ● ●
5 CLIP; AIR DUCT
(A) ID=104-142 		1-09707-139-0 01 1 1002- ●
5 CLIP; AIR DUCT
SGL CAB(FC**M*) (A) ID=104-142 		1-09707-139-0 01 1 1002- ●
5 CLIP; AIR DUCT
(B) ID=114 		8-15178-030-0 01 1 0710- ● ●
5 CLIP; AIR DUCT
(A) ID=100-120 		8-98133-366-0 01 1 0901-1001 ● ●
5 CLIP; AIR DUCT
DBL CAB(FC**W*) (A) ID=104-139 		1-09707-200-0 03 1 0712-0812 ●
5 CLIP; AIR DUCT
(A) ID=104-139 		1-09707-200-0 03 1 0712-0812 ●
5 CLIP; AIR DUCT
DBL CAB(FC**W*) (A) ID=110-130 		8-98133-359-0 03 1 0901-1001 ●
5 CLIP; AIR DUCT
(A) ID=110-130 		8-98133-359-0 03 1 0901-1001 ●
5 CLIP; AIR DUCT
DBL CAB(FC**W*) (A) ID=104-142 		1-09707-139-0 03 1 1002- ●
5 CLIP; AIR DUCT
(A) ID=104-142 		1-09707-139-0 03 1 1002- ●
5 CLIP; AIR DUCT
(B) ID=77-95 		1-09707-198-0 01 1 0712-0810 ●
5 CLIP; AIR DUCT
(B) ID=75-95 		8-98133-357-0 01 1 0811-1001 ●
5 CLIP; AIR DUCT
(B) ID=77-99 		1-09707-141-0 01 1 1002- ●
48 BOLT; AIR DUCT
(A) M10X26 		1-09030-044-1 02 1 0710-0711 ● ●
48 BOLT; AIR DUCT
(A) M10X26 		1-09030-044-1 02 1 0712- ● ● ●
48 BOLT; AIR DUCT
DBL CAB(FC**W*) (B) M10X25 FLANGE 		0-28651-025-0 04 1 0712- ●
48 BOLT; AIR DUCT
(B) M10X25 FLANGE 		0-28651-025-0 04 1 0712- ●
64 BOLT; BRKT,AIR DUCT
DBL CAB(FC**W*) (A) M10X25 FLANGE 		0-28651-025-0 02 1 0712- ●
64 BOLT; BRKT,AIR DUCT
(A) M10X25 FLANGE 		0-28651-025-0 02 1 0712- ●
64 BOLT; BRKT,AIR DUCT
(A) M10X25 FLANGE 		0-28651-025-0 02 1 0712- ●
64 BOLT; BRKT,AIR DUCT
DBL CAB(FC**W*) (A) M10X25 FLANGE 		0-28651-025-0 03 1 0712- ●
64 BOLT; BRKT,AIR DUCT
DBL CAB(FC**W*) (C) M10X35 FLANGE 		0-28651-035-0 02 1 0712- ●
64 BOLT; BRKT,AIR DUCT
DBL CAB(FC**W*) (B) M8X25 W/LK&PL WASHER 		1-09030-074-0 01 1 0712-0805 ●
64 BOLT; BRKT,AIR DUCT
(B) M8X25 W/LK&PL WASHER 		1-09030-074-0 01 1 0712-0805 ●
64 BOLT; BRKT,AIR DUCT
DBL CAB(FC**W*) (B) M8X25 W/LK&PL WASHER 		1-09030-093-0 01 1 0806- ●
64 BOLT; BRKT,AIR DUCT
(B) M8X25 W/LK&PL WASHER 		1-09030-093-0 01 1 0806- ●
71 CLIP; AIR DUCT
ID=104-139 		1-09707-200-0 01 1 0710-0711 ● ●
71 CLIP; AIR DUCT
ID=104-139 		1-09707-200-0 01 1 0712-0812 ● ● ●
71 CLIP; AIR DUCT
ID=120-140 		8-98133-367-0 01 1 0901- ● ● ●
174 SENSOR; AIR FLOW CONT 8-97601-967-0 01 1 0710-0711 ● ●
174 SENSOR; AIR FLOW CONT 8-97601-967-0 01 1 0712- ● ● ●
209 BRACKET; ACL 8-98010-344-6 01 1 0710-0711 ● ●
209 BRACKET; ACL 8-98099-677-0 01 1 0712- ●
209 BRACKET; ACL
SGL CAB(FC**M*) 		8-98099-677-0 01 1 0712- ●
209 BRACKET; ACL
DBL CAB(FC**W*) 		8-98089-455-1 01 1 0712- ●
209 BRACKET; ACL 8-98058-687-0 01 1 0712- ●
210 BOLT; ACL BRKT
(A) M10X25 FLANGE 		0-28651-025-0 03 1 0710- ●
210 BOLT; ACL BRKT
SGL CAB(FC**M*) (A) M10X25 FLANGE 		0-28651-025-0 03 1 0710- ●
210 BOLT; ACL BRKT
DBL CAB(FC**W*) (A) M10X25 FLANGE 		0-28651-025-0 04 1 0712- ●
210 BOLT; ACL BRKT
(B) M8X25 FLANGE 		0-28650-825-0 02 1 0712- ●
210 BOLT; ACL BRKT
(A) M10X25 FLANGE 		0-28651-025-0 02 1 0712- ●
225 GASKET; AIR PIPE
ID=24.4 		1-09623-057-0 01 1 0710-0711 ● ●
225 GASKET; AIR PIPE
ID=24.4 		1-09623-057-0 01 1 0712- ● ● ●
242 BRACKET; AIR DUCT
(C) 		8-98019-302-1 01 1 0710- ●
242 BRACKET; AIR DUCT
SGL CAB(FC**M*) (C) 		8-98019-302-1 01 1 0710- ●
242 BRACKET; AIR DUCT
(A) 		8-98019-303-1 01 1 0710- ●
242 BRACKET; AIR DUCT
SGL CAB(FC**M*) (A) 		8-98019-303-1 01 1 0710- ●
242 BRACKET; AIR DUCT
(B) 		8-98019-301-3 01 1 0710-0711 ● ●
242 BRACKET; AIR DUCT
(B) 		8-98019-301-3 01 1 0712- ● ● ●
242 BRACKET; AIR DUCT
DBL CAB(FC**W*) (D) 		8-98050-679-1 01 1 0712- ●
242 BRACKET; AIR DUCT
(D) 		8-98050-679-1 01 1 0712- ●
242 BRACKET; AIR DUCT
DBL CAB(FC**W*) (G) 		8-98089-456-1 01 1 0712- ●
242 BRACKET; AIR DUCT
DBL CAB(FC**W*) (F) 		8-98092-771-0 01 1 0712- ●
242 BRACKET; AIR DUCT
(F) 		8-98092-771-0 01 1 0712- ●
242 BRACKET; AIR DUCT
(E) 		8-98084-231-1 01 1 0712- ●
252 DUCT; AIR INT 8-98019-843-0 01 1 0710- ●
252 DUCT; AIR INT
SGL CAB(FC**M*) 		8-98019-843-0 01 1 0710- ●
252 DUCT; AIR INT
DBL CAB(FC**W*) 		8-98050-681-0 01 1 0712- ●
252 DUCT; AIR INT 8-98050-681-0 01 1 0712- ●
296 NUT; ACL
M8 FLANGE 		0-91180-108-0 04 1 0710-0711 ● ●
296 NUT; ACL
M8 FLANGE 		0-91180-108-0 04 1 0712- ● ● ●
320 HOSE; CONN,ACL 8-98077-619-1 01 1 0710- ●
320 HOSE; CONN,ACL
SGL CAB(FC**M*) 		8-98077-619-1 01 1 0710- ●
320 HOSE; CONN,ACL
DBL CAB(FC**W*) 		8-98092-944-1 01 1 0712- ●
320 HOSE; CONN,ACL 8-98084-232-0 01 1 0712- ●
357 CLIP; RUBBER HOSE
(A) ID=26 		1-09707-091-0 01 1 0710- ● ●
357 CLIP; RUBBER HOSE
(B) ID=29.5 		8-97354-979-0 01 1 0710- ● ●
357 CLIP; RUBBER HOSE
(D) ID=77-95 		1-09707-198-0 01 1 0712-0810 ●
357 CLIP; RUBBER HOSE
(D) ID=75-95 		8-98133-357-0 01 1 0811-1001 ●
357 CLIP; RUBBER HOSE
(D) ID=77-99 		1-09707-141-0 01 1 1002- ●
357 CLIP; RUBBER HOSE
(C) ID=58-76 		1-09707-203-0 02 1 0712-0811 ●
357 CLIP; RUBBER HOSE
(C) ID=55-75 		8-98133-349-0 02 1 0812-1001 ●
357 CLIP; RUBBER HOSE
(C) ID=58-79 		1-09707-136-0 02 1 1002- ●
357 CLIP; RUBBER HOSE
(E) ID=24 		8-98025-921-0 02 1 0712- ●
379 HOSE; RUBBER 8-98063-172-0 01 1 0710- ●
379 HOSE; RUBBER
SGL CAB(FC**M*) 		8-98063-172-0 01 1 0710- ●
379 HOSE; RUBBER
DBL CAB(FC**W*) 		8-98073-021-0 01 1 0712- ●
379 HOSE; RUBBER 8-98082-252-0 01 1 0712- ●
381 NUT; BRKT,AIR DUCT
DBL CAB(FC**W*) M8 FLANGE 		0-91180-108-0 01 1 0712- ●
381 NUT; BRKT,AIR DUCT
M8 FLANGE 		0-91180-108-0 01 1 0712- ●
543 SCREW; SENSOR
(B) M4X10 W/LK&PL WASHER 		0-36230-410-0 02 1 0710-0711 ● ●
543 SCREW; SENSOR
(B) M4X10 W/LK&PL WASHER 		0-36230-410-0 02 1 0712- ● ● ●
543 SCREW; SENSOR
(A) M4X12 W/LK&PL WASHER 		0-36230-412-0 02 1 0712- ●
558 CLIP; AIR FLOW SENSOR
DBL CAB(FC**W*) L=600 		1-09707-107-1 01 1 0712- ●
558 CLIP; AIR FLOW SENSOR
L=600 		1-09707-107-1 01 1 0712- ●

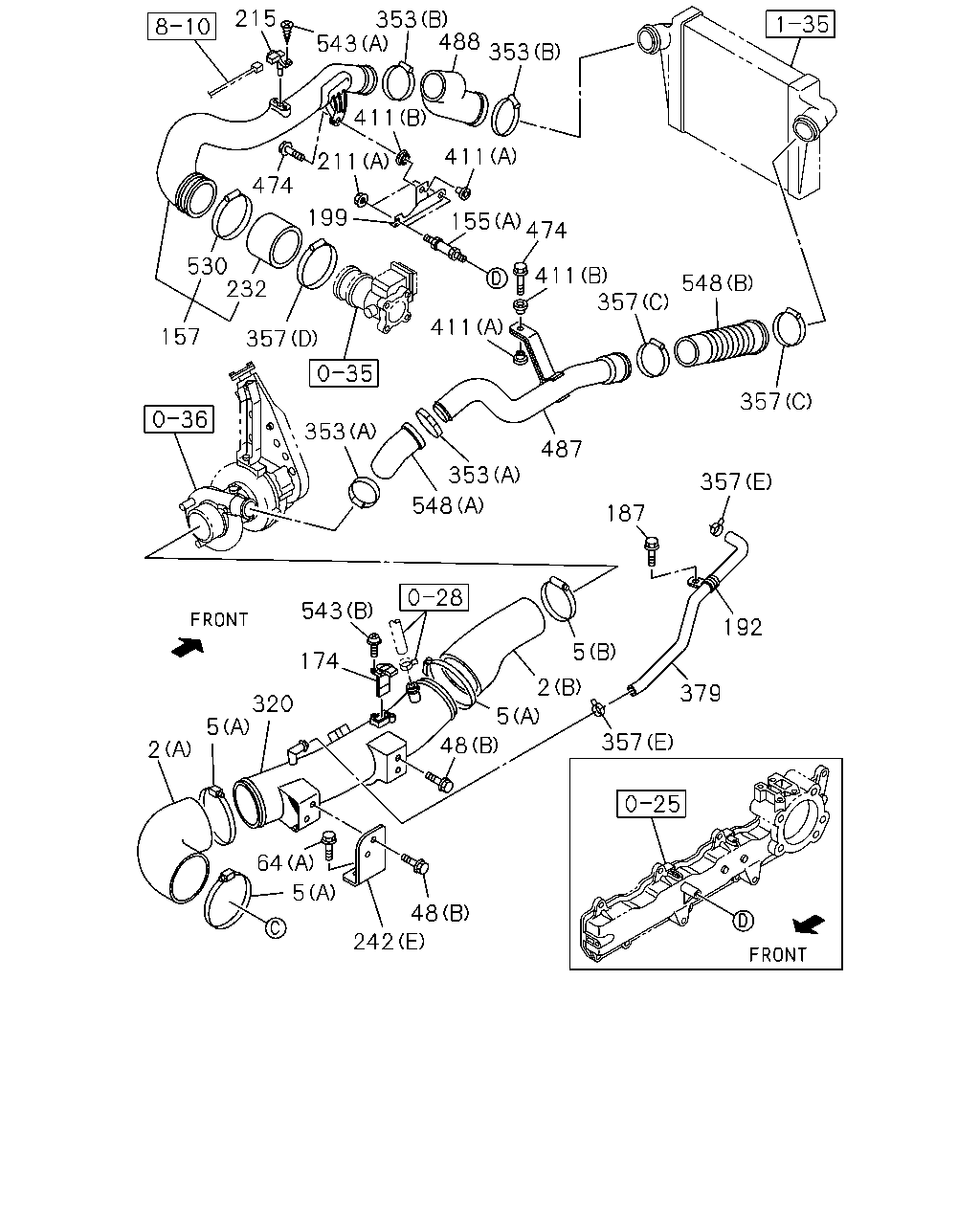

çizim 109068
215 353 543 488 353 411 411 211 474 199 155 474 530 232 411 357 548 411 157 357 357 353 487 353 357 548 187 543 192 5 174 2 379 320 5 5 357 48 2 64 5 48 242
BalonParca AdiParca NoAdetTipApplied Date A B C
2 HOSE; ACL
DBL CAB(FC**W*) (A) 		8-98050-682-0 01 1 0712- ●
2 HOSE; ACL
DBL CAB(FC**W*) (B) 		8-98065-313-0 01 1 0712- ●
2 HOSE; ACL
(A) 		8-98058-691-1 01 1 0712- ●
2 HOSE; ACL
(B) 		8-98081-763-0 01 1 0712- ●
5 CLIP; AIR DUCT
(A) ID=104-139 		1-09707-200-0 01 1 0710-0711 ● ●
5 CLIP; AIR DUCT
(A) ID=104-139 		1-09707-200-0 01 1 0710-0711 ● ●
5 CLIP; AIR DUCT
(A) ID=104-139 		1-09707-200-0 01 1 0712-0812 ● ●
5 CLIP; AIR DUCT
(A) ID=104-139 		1-09707-200-0 01 1 0712-0812 ●
5 CLIP; AIR DUCT
SGL CAB(FC**M*) (A) ID=104-139 		1-09707-200-0 01 1 0712-0812 ●
5 CLIP; AIR DUCT
(A) ID=110-130 		8-98133-359-0 01 1 0901-1001 ●
5 CLIP; AIR DUCT
SGL CAB(FC**M*) (A) ID=110-130 		8-98133-359-0 01 1 0901-1001 ●
5 CLIP; AIR DUCT
(A) ID=104-142 		1-09707-139-0 01 1 1002- ● ●
5 CLIP; AIR DUCT
(A) ID=104-142 		1-09707-139-0 01 1 1002- ●
5 CLIP; AIR DUCT
SGL CAB(FC**M*) (A) ID=104-142 		1-09707-139-0 01 1 1002- ●
5 CLIP; AIR DUCT
(B) ID=114 		8-15178-030-0 01 1 0710- ● ●
5 CLIP; AIR DUCT
(A) ID=100-120 		8-98133-366-0 01 1 0901-1001 ● ●
5 CLIP; AIR DUCT
DBL CAB(FC**W*) (A) ID=104-139 		1-09707-200-0 03 1 0712-0812 ●
5 CLIP; AIR DUCT
(A) ID=104-139 		1-09707-200-0 03 1 0712-0812 ●
5 CLIP; AIR DUCT
DBL CAB(FC**W*) (A) ID=110-130 		8-98133-359-0 03 1 0901-1001 ●
5 CLIP; AIR DUCT
(A) ID=110-130 		8-98133-359-0 03 1 0901-1001 ●
5 CLIP; AIR DUCT
DBL CAB(FC**W*) (A) ID=104-142 		1-09707-139-0 03 1 1002- ●
5 CLIP; AIR DUCT
(A) ID=104-142 		1-09707-139-0 03 1 1002- ●
5 CLIP; AIR DUCT
(B) ID=77-95 		1-09707-198-0 01 1 0712-0810 ●
5 CLIP; AIR DUCT
(B) ID=75-95 		8-98133-357-0 01 1 0811-1001 ●
5 CLIP; AIR DUCT
(B) ID=77-99 		1-09707-141-0 01 1 1002- ●
48 BOLT; AIR DUCT
(A) M10X26 		1-09030-044-1 02 1 0710-0711 ● ●
48 BOLT; AIR DUCT
(A) M10X26 		1-09030-044-1 02 1 0712- ● ● ●
48 BOLT; AIR DUCT
DBL CAB(FC**W*) (B) M10X25 FLANGE 		0-28651-025-0 04 1 0712- ●
48 BOLT; AIR DUCT
(B) M10X25 FLANGE 		0-28651-025-0 04 1 0712- ●
64 BOLT; BRKT,AIR DUCT
DBL CAB(FC**W*) (A) M10X25 FLANGE 		0-28651-025-0 02 1 0712- ●
64 BOLT; BRKT,AIR DUCT
(A) M10X25 FLANGE 		0-28651-025-0 02 1 0712- ●
64 BOLT; BRKT,AIR DUCT
(A) M10X25 FLANGE 		0-28651-025-0 02 1 0712- ●
64 BOLT; BRKT,AIR DUCT
DBL CAB(FC**W*) (A) M10X25 FLANGE 		0-28651-025-0 03 1 0712- ●
64 BOLT; BRKT,AIR DUCT
DBL CAB(FC**W*) (C) M10X35 FLANGE 		0-28651-035-0 02 1 0712- ●
64 BOLT; BRKT,AIR DUCT
DBL CAB(FC**W*) (B) M8X25 W/LK&PL WASHER 		1-09030-074-0 01 1 0712-0805 ●
64 BOLT; BRKT,AIR DUCT
(B) M8X25 W/LK&PL WASHER 		1-09030-074-0 01 1 0712-0805 ●
64 BOLT; BRKT,AIR DUCT
DBL CAB(FC**W*) (B) M8X25 W/LK&PL WASHER 		1-09030-093-0 01 1 0806- ●
64 BOLT; BRKT,AIR DUCT
(B) M8X25 W/LK&PL WASHER 		1-09030-093-0 01 1 0806- ●
155 BOLT; BRKT
(B) M10X30 FLANGE 		0-28651-030-0 02 1 0712- ●
155 BOLT; BRKT
(A) M10X17,M10X30 L=105 		8-97233-428-0 02 1 0712- ●
157 PIPE; AIR 8-98010-719-3 01 1 0712- ●
174 SENSOR; AIR FLOW CONT 8-97601-967-0 01 1 0710-0711 ● ●
174 SENSOR; AIR FLOW CONT 8-97601-967-0 01 1 0712- ● ● ●
187 BOLT; INL HOSE
M8X16 FLANGE 		0-28050-816-0 01 1 0712- ●
192 CLIP; HOSE
ID=26 L=26 		1-09701-236-0 01 1 0712- ●
199 BRACKET; PIPE 8-97385-293-1 01 1 0712- ●
211 NUT; BRKT
(B) M8 FLANGE 		0-91180-208-0 02 1 0712-0803 ●
211 NUT; BRKT
(B) M8 FLANGE 		0-91180-108-0 02 1 0804- ●
211 NUT; BRKT
(A) M10 FLANGE 		0-91180-210-0 02 1 0712- ●
215 SENSOR; MAP 8-98009-418-0 01 1 0712- ●
232 HOSE; CONN 8-98067-929-0 01 1 0712- ●
242 BRACKET; AIR DUCT
(C) 		8-98019-302-1 01 1 0710- ●
242 BRACKET; AIR DUCT
SGL CAB(FC**M*) (C) 		8-98019-302-1 01 1 0710- ●
242 BRACKET; AIR DUCT
(A) 		8-98019-303-1 01 1 0710- ●
242 BRACKET; AIR DUCT
SGL CAB(FC**M*) (A) 		8-98019-303-1 01 1 0710- ●
242 BRACKET; AIR DUCT
(B) 		8-98019-301-3 01 1 0710-0711 ● ●
242 BRACKET; AIR DUCT
(B) 		8-98019-301-3 01 1 0712- ● ● ●
242 BRACKET; AIR DUCT
DBL CAB(FC**W*) (D) 		8-98050-679-1 01 1 0712- ●
242 BRACKET; AIR DUCT
(D) 		8-98050-679-1 01 1 0712- ●
242 BRACKET; AIR DUCT
DBL CAB(FC**W*) (G) 		8-98089-456-1 01 1 0712- ●
242 BRACKET; AIR DUCT
DBL CAB(FC**W*) (F) 		8-98092-771-0 01 1 0712- ●
242 BRACKET; AIR DUCT
(F) 		8-98092-771-0 01 1 0712- ●
242 BRACKET; AIR DUCT
(E) 		8-98084-231-1 01 1 0712- ●
320 HOSE; CONN,ACL 8-98077-619-1 01 1 0710- ●
320 HOSE; CONN,ACL
SGL CAB(FC**M*) 		8-98077-619-1 01 1 0710- ●
320 HOSE; CONN,ACL
DBL CAB(FC**W*) 		8-98092-944-1 01 1 0712- ●
320 HOSE; CONN,ACL 8-98084-232-0 01 1 0712- ●
353 CLIP; RUBBER HOSE
(B) ID=58-76 		1-09707-203-0 08 1 0710-0811 ● ●
353 CLIP; RUBBER HOSE
(B) ID=55-75 		8-98133-349-0 08 1 0812-1001 ● ●
353 CLIP; RUBBER HOSE
(B) ID=58-79 		1-09707-136-0 08 1 1002- ● ●
353 CLIP; RUBBER HOSE
(A) ID=50-69 		1-09707-135-0 02 1 0712-0712 ●
353 CLIP; RUBBER HOSE
(A) ID=60-65 		8-98096-418-0 02 1 0712- ●
353 CLIP; RUBBER HOSE
(B) ID=58-76 		1-09707-203-0 02 1 0712-0811 ●
353 CLIP; RUBBER HOSE
(B) ID=55-75 		8-98133-349-0 02 1 0812-1001 ●
353 CLIP; RUBBER HOSE
(B) ID=58-79 		1-09707-136-0 02 1 1002- ●
357 CLIP; RUBBER HOSE
(A) ID=26 		1-09707-091-0 01 1 0710- ● ●
357 CLIP; RUBBER HOSE
(B) ID=29.5 		8-97354-979-0 01 1 0710- ● ●
357 CLIP; RUBBER HOSE
(D) ID=77-95 		1-09707-198-0 01 1 0712-0810 ●
357 CLIP; RUBBER HOSE
(D) ID=75-95 		8-98133-357-0 01 1 0811-1001 ●
357 CLIP; RUBBER HOSE
(D) ID=77-99 		1-09707-141-0 01 1 1002- ●
357 CLIP; RUBBER HOSE
(C) ID=58-76 		1-09707-203-0 02 1 0712-0811 ●
357 CLIP; RUBBER HOSE
(C) ID=55-75 		8-98133-349-0 02 1 0812-1001 ●
357 CLIP; RUBBER HOSE
(C) ID=58-79 		1-09707-136-0 02 1 1002- ●
357 CLIP; RUBBER HOSE
(E) ID=24 		8-98025-921-0 02 1 0712- ●
379 HOSE; RUBBER 8-98063-172-0 01 1 0710- ●
379 HOSE; RUBBER
SGL CAB(FC**M*) 		8-98063-172-0 01 1 0710- ●
379 HOSE; RUBBER
DBL CAB(FC**W*) 		8-98073-021-0 01 1 0712- ●
379 HOSE; RUBBER 8-98082-252-0 01 1 0712- ●
411 RUBBER; CUSHION
(A) 		8-94395-766-0 02 1 0712- ●
411 RUBBER; CUSHION
(B) OD=23 		8-97105-689-6 02 1 0712- ●
474 BOLT; PIPE
M8X40 FLANGE 		0-28650-840-0 02 1 0712- ●
487 PIPE; TURBO TO CHARGE AIR COOLER 8-98038-759-3 01 1 0712- ●
488 HOSE; RUBBER,PIPE 8-98017-224-1 01 1 0710- ● ●
488 HOSE; RUBBER,PIPE 8-98010-723-0 01 1 0712- ●
530 CLAMP; AIR DUCT 8-98068-074-0 01 1 0712-0805 ●
530 CLAMP; AIR DUCT
ID=77-95 		1-09707-198-0 01 1 0806-0810 ●
530 CLAMP; AIR DUCT
ID=75-95 		8-98133-357-0 01 1 0811- ●
543 SCREW; SENSOR
(B) M4X10 W/LK&PL WASHER 		0-36230-410-0 02 1 0710-0711 ● ●
543 SCREW; SENSOR
(B) M4X10 W/LK&PL WASHER 		0-36230-410-0 02 1 0712- ● ● ●
543 SCREW; SENSOR
(A) M4X12 W/LK&PL WASHER 		0-36230-412-0 02 1 0712- ●
548 HOSE; RUBBER,TURBO TO INL PIPE
(C) 		8-98017-223-2 01 1 0710- ● ●
548 HOSE; RUBBER,TURBO TO INL PIPE
(A) 		8-98061-809-1 01 1 0712- ●
548 HOSE; RUBBER,TURBO TO INL PIPE
(B) 		8-98061-810-0 01 1 0712- ●

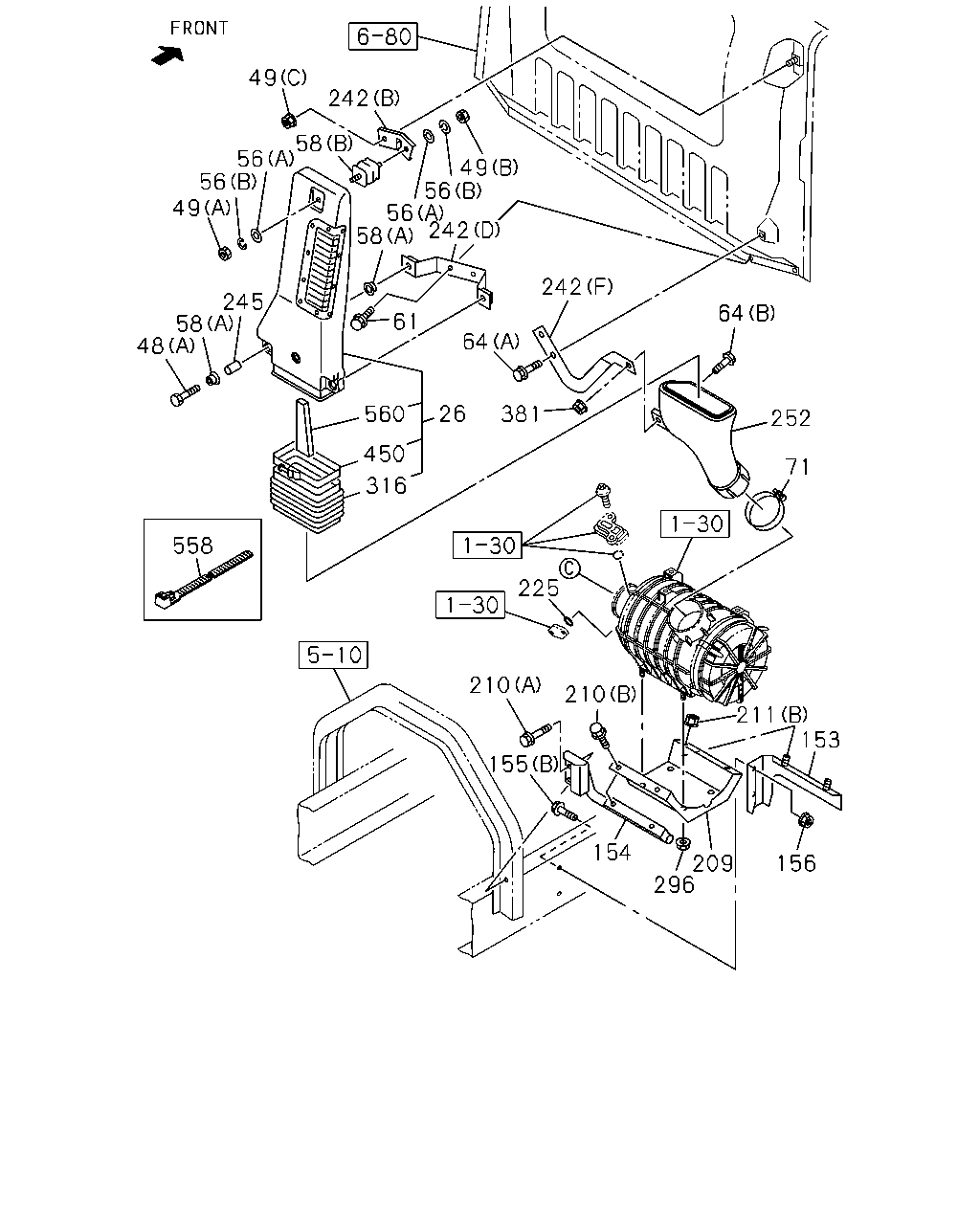

çizim 109072
49 242 58 56 56 49 49 56 56 242 58 242 245 58 48 64 61 64 26 381 560 252 450 71 316 558 225 210 210 211 153 155 154 209 296 156
BalonParca AdiParca NoAdetTipApplied Date A B C
26 DUCT; AIR INT 8-98010-361-2 01 1 0710-0711 ● ●
26 DUCT; AIR INT 8-98010-361-2 01 1 0712- ● ● ●
48 BOLT; AIR DUCT
(A) M10X26 		1-09030-044-1 02 1 0710-0711 ● ●
48 BOLT; AIR DUCT
(A) M10X26 		1-09030-044-1 02 1 0712- ● ● ●
48 BOLT; AIR DUCT
DBL CAB(FC**W*) (B) M10X25 FLANGE 		0-28651-025-0 04 1 0712- ●
48 BOLT; AIR DUCT
(B) M10X25 FLANGE 		0-28651-025-0 04 1 0712- ●
49 NUT; AIR DUCT
(C) M8 FLANGE 		8-94279-517-0 02 1 0710- ●
49 NUT; AIR DUCT
SGL CAB(FC**M*) (C) M8 FLANGE 		8-94279-517-0 02 1 0710- ●
49 NUT; AIR DUCT
(B) M8 FLANGE 		1-09984-122-0 01 1 0710-0711 ● ●
49 NUT; AIR DUCT
(B) M8 FLANGE 		1-09984-122-0 01 1 0712- ● ● ●
49 NUT; AIR DUCT
(A) M8 FLANGE 		1-09984-126-0 01 1 0710-0711 ● ●
49 NUT; AIR DUCT
(A) M8 FLANGE 		1-09984-126-0 01 1 0712- ● ● ●
49 NUT; AIR DUCT
DBL CAB(FC**W*) (C) M8 FLANGE 		8-94279-517-0 01 1 0712- ●
49 NUT; AIR DUCT
(C) M8 FLANGE 		8-94279-517-0 01 1 0712- ●
56 WASHER; LK,AIR INT DUCT
(A) ID=8.2 		1-09985-177-0 02 1 0710-0711 ● ●
56 WASHER; LK,AIR INT DUCT
(A) ID=8.2 		1-09985-177-0 02 1 0712- ● ● ●
56 WASHER; LK,AIR INT DUCT
(B) ID=8.4 OD=22 		1-09985-188-0 02 1 0710-0711 ● ●
56 WASHER; LK,AIR INT DUCT
(B) ID=8.4 OD=22 		1-09985-188-0 02 1 0712- ● ● ●
58 SUPPORT; AIR INL DUCT
(A) OD=40 T=18.5 		1-14119-267-0 04 1 0710-0711 ● ●
58 SUPPORT; AIR INL DUCT
(A) OD=40 T=18.5 		1-14119-267-0 04 1 0712- ● ● ●
58 SUPPORT; AIR INL DUCT
(B) 		1-14119-452-0 01 1 0710-0711 ● ●
58 SUPPORT; AIR INL DUCT
(B) 		1-14119-452-0 01 1 0712-0810 ● ● ●
58 SUPPORT; AIR INL DUCT
(B) 		8-98125-944-1 01 1 0811- ● ● ●
61 BOLT; BRKT,AIR DUCT
M8X20 FLANGE 		8-98061-920-0 02 1 0710-0711 ● ●
61 BOLT; BRKT,AIR DUCT
M8X20 FLANGE 		8-98061-920-0 02 1 0712-0807 ● ● ●
61 BOLT; BRKT,AIR DUCT
M8X25 FLANGE 		8-98074-570-0 02 1 0808- ● ● ●
64 BOLT; BRKT,AIR DUCT
DBL CAB(FC**W*) (A) M10X25 FLANGE 		0-28651-025-0 02 1 0712- ●
64 BOLT; BRKT,AIR DUCT
(A) M10X25 FLANGE 		0-28651-025-0 02 1 0712- ●
64 BOLT; BRKT,AIR DUCT
(A) M10X25 FLANGE 		0-28651-025-0 02 1 0712- ●
64 BOLT; BRKT,AIR DUCT
DBL CAB(FC**W*) (A) M10X25 FLANGE 		0-28651-025-0 03 1 0712- ●
64 BOLT; BRKT,AIR DUCT
DBL CAB(FC**W*) (C) M10X35 FLANGE 		0-28651-035-0 02 1 0712- ●
64 BOLT; BRKT,AIR DUCT
DBL CAB(FC**W*) (B) M8X25 W/LK&PL WASHER 		1-09030-074-0 01 1 0712-0805 ●
64 BOLT; BRKT,AIR DUCT
(B) M8X25 W/LK&PL WASHER 		1-09030-074-0 01 1 0712-0805 ●
64 BOLT; BRKT,AIR DUCT
DBL CAB(FC**W*) (B) M8X25 W/LK&PL WASHER 		1-09030-093-0 01 1 0806- ●
64 BOLT; BRKT,AIR DUCT
(B) M8X25 W/LK&PL WASHER 		1-09030-093-0 01 1 0806- ●
71 CLIP; AIR DUCT
ID=104-139 		1-09707-200-0 01 1 0710-0711 ● ●
71 CLIP; AIR DUCT
ID=104-139 		1-09707-200-0 01 1 0712-0812 ● ● ●
71 CLIP; AIR DUCT
ID=120-140 		8-98133-367-0 01 1 0901- ● ● ●
153 BRACKET; ACL,FRT 8-98058-686-0 01 1 0712- ●
154 BRACKET; ACL,RR 8-98058-688-1 01 1 0712- ●
155 BOLT; BRKT
(B) M10X30 FLANGE 		0-28651-030-0 02 1 0712- ●
155 BOLT; BRKT
(A) M10X17,M10X30 L=105 		8-97233-428-0 02 1 0712- ●
156 NUT; BRKT
M10 FLANGE 		0-91180-210-0 02 1 0712- ●
209 BRACKET; ACL 8-98010-344-6 01 1 0710-0711 ● ●
209 BRACKET; ACL 8-98099-677-0 01 1 0712- ●
209 BRACKET; ACL
SGL CAB(FC**M*) 		8-98099-677-0 01 1 0712- ●
209 BRACKET; ACL
DBL CAB(FC**W*) 		8-98089-455-1 01 1 0712- ●
209 BRACKET; ACL 8-98058-687-0 01 1 0712- ●
210 BOLT; ACL BRKT
(A) M10X25 FLANGE 		0-28651-025-0 03 1 0710- ●
210 BOLT; ACL BRKT
SGL CAB(FC**M*) (A) M10X25 FLANGE 		0-28651-025-0 03 1 0710- ●
210 BOLT; ACL BRKT
DBL CAB(FC**W*) (A) M10X25 FLANGE 		0-28651-025-0 04 1 0712- ●
210 BOLT; ACL BRKT
(B) M8X25 FLANGE 		0-28650-825-0 02 1 0712- ●
210 BOLT; ACL BRKT
(A) M10X25 FLANGE 		0-28651-025-0 02 1 0712- ●
211 NUT; BRKT
(B) M8 FLANGE 		0-91180-208-0 02 1 0712-0803 ●
211 NUT; BRKT
(B) M8 FLANGE 		0-91180-108-0 02 1 0804- ●
211 NUT; BRKT
(A) M10 FLANGE 		0-91180-210-0 02 1 0712- ●
225 GASKET; AIR PIPE
ID=24.4 		1-09623-057-0 01 1 0710-0711 ● ●
225 GASKET; AIR PIPE
ID=24.4 		1-09623-057-0 01 1 0712- ● ● ●
242 BRACKET; AIR DUCT
(C) 		8-98019-302-1 01 1 0710- ●
242 BRACKET; AIR DUCT
SGL CAB(FC**M*) (C) 		8-98019-302-1 01 1 0710- ●
242 BRACKET; AIR DUCT
(A) 		8-98019-303-1 01 1 0710- ●
242 BRACKET; AIR DUCT
SGL CAB(FC**M*) (A) 		8-98019-303-1 01 1 0710- ●
242 BRACKET; AIR DUCT
(B) 		8-98019-301-3 01 1 0710-0711 ● ●
242 BRACKET; AIR DUCT
(B) 		8-98019-301-3 01 1 0712- ● ● ●
242 BRACKET; AIR DUCT
DBL CAB(FC**W*) (D) 		8-98050-679-1 01 1 0712- ●
242 BRACKET; AIR DUCT
(D) 		8-98050-679-1 01 1 0712- ●
242 BRACKET; AIR DUCT
DBL CAB(FC**W*) (G) 		8-98089-456-1 01 1 0712- ●
242 BRACKET; AIR DUCT
DBL CAB(FC**W*) (F) 		8-98092-771-0 01 1 0712- ●
242 BRACKET; AIR DUCT
(F) 		8-98092-771-0 01 1 0712- ●
242 BRACKET; AIR DUCT
(E) 		8-98084-231-1 01 1 0712- ●
245 PIECE; DIST,AIR DUCT 1-79998-228-0 02 1 0710-0711 ● ●
245 PIECE; DIST,AIR DUCT 1-79998-228-0 02 1 0712- ● ● ●
252 DUCT; AIR INT 8-98019-843-0 01 1 0710- ●
252 DUCT; AIR INT
SGL CAB(FC**M*) 		8-98019-843-0 01 1 0710- ●
252 DUCT; AIR INT
DBL CAB(FC**W*) 		8-98050-681-0 01 1 0712- ●
252 DUCT; AIR INT 8-98050-681-0 01 1 0712- ●
296 NUT; ACL
M8 FLANGE 		0-91180-108-0 04 1 0710-0711 ● ●
296 NUT; ACL
M8 FLANGE 		0-91180-108-0 04 1 0712- ● ● ●
316 RUBBER; CUSHION,DUCT 8-98152-269-0 01 1 0908- ● ● ●
381 NUT; BRKT,AIR DUCT
DBL CAB(FC**W*) M8 FLANGE 		0-91180-108-0 01 1 0712- ●
381 NUT; BRKT,AIR DUCT
M8 FLANGE 		0-91180-108-0 01 1 0712- ●
450 CLAMP; HOSE 9-09915-504-1 01 1 0710-0711 ● ●
450 CLAMP; HOSE 9-09915-504-1 01 1 0712- ● ● ●
558 CLIP; AIR FLOW SENSOR
DBL CAB(FC**W*) L=600 		1-09707-107-1 01 1 0712- ●
558 CLIP; AIR FLOW SENSOR
L=600 		1-09707-107-1 01 1 0712- ●
560 FILTER; VERTICAL DUCT 8-98061-675-0 01 1 0710-0711 ●
560 FILTER; VERTICAL DUCT
SGL CAB(FC**M*) 		8-98061-675-0 01 1 0710-0711 ●
560 FILTER; VERTICAL DUCT 8-98061-675-0 01 1 0712- ● ● ●
İpucu: çizimdeki balona veya tablodaki Balon sütununa tıkla; ilgili parçalar vurgulanır. Birden çok çizim varsa üstteki seçim kutusu/oklarla gezin.
Isuzu EPC — test · veri: yerel (eski sürüm)
