1-11 — RADIATOR HOSE AND SUB TANK (#21742) — 108 parça

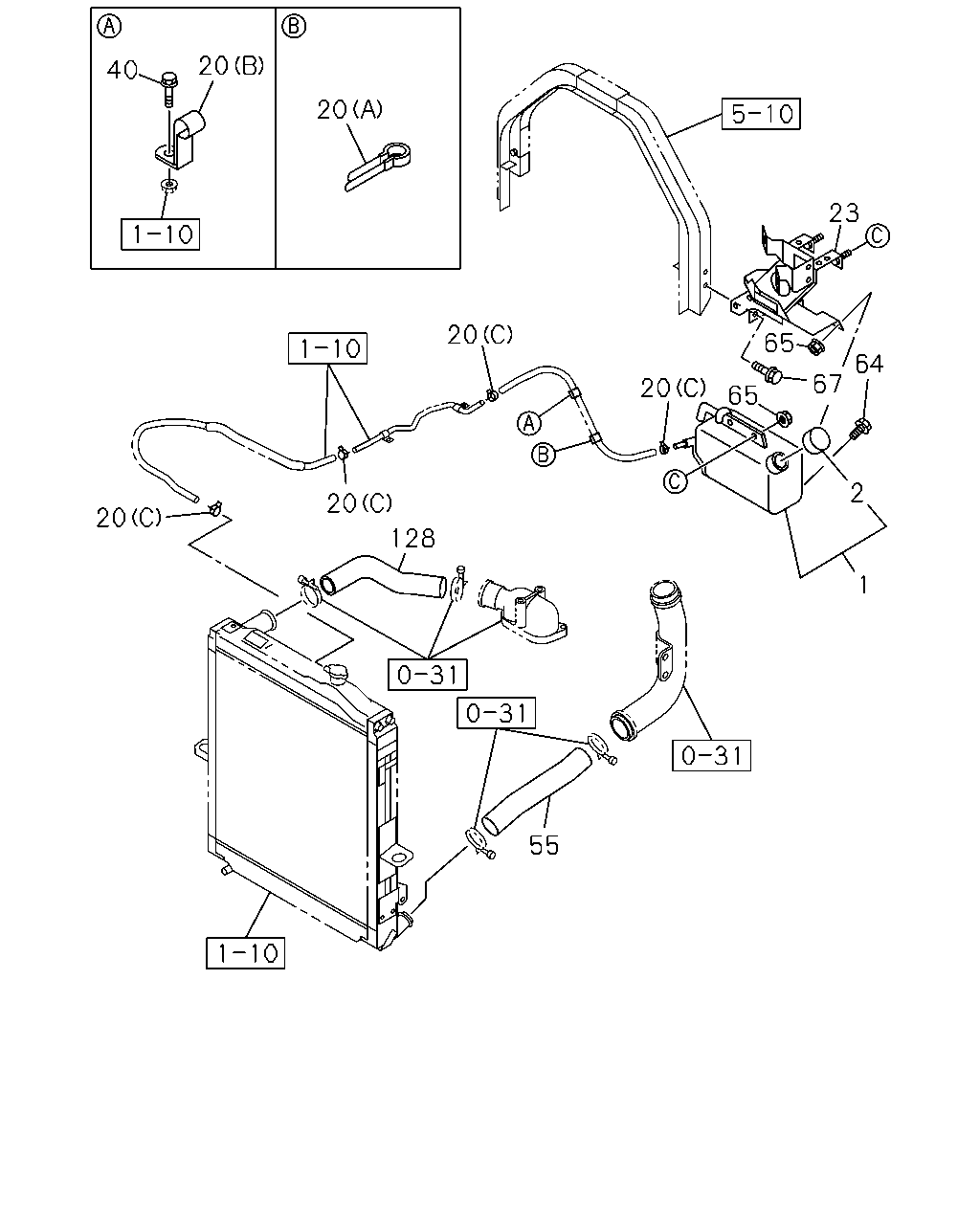

20 40 20 23 20 65 64 67 20 65 2 20 20 128 1 55

Balon	Parca Adi	Parca No	Adet	Tip	Applied Date	A	B	C
1	TANK; SURGE,RAD	8-98010-309-2	01	1	0710-0711	●	●
1	TANK; SURGE,RAD	8-98010-309-2	01	1	0712-1009	●	●	●
1	TANK; SURGE,RAD	8-98171-757-0	01	1	1010-	●	●	●
2	CAP; SURGE TANK	8-97217-796-0	01	1	0710-0711	●	●
2	CAP; SURGE TANK	8-97217-796-0	01	1	0712-1009	●	●	●
2	CAP; SURGE TANK	8-98178-074-0	01	1	1010-	●	●	●
20	CLIP; HOSE,RAD (B) ID=13 H=40 L=25	1-09700-620-0	01	1	0710-0711	●
20	CLIP; HOSE,RAD SGL CAB(FC*M) (B) ID=13 H=40 L=25	1-09700-620-0	01	1	0710-0711		●
20	CLIP; HOSE,RAD (B) ID=13 H=40 L=25	1-09700-620-0	01	1	0712-0805	●	●
20	CLIP; HOSE,RAD (B) ID=13 H=40 L=25	1-09700-620-0	01	1	0806-	●
20	CLIP; HOSE,RAD SGL CAB(FC*M) (B) ID=13 H=40 L=25	1-09700-620-0	01	1	0806-		●
20	CLIP; HOSE,RAD (A) ID=20 L=50	9-09917-430-0	01	1	0710-0711	●
20	CLIP; HOSE,RAD SGL CAB(FC*M) (A) ID=20 L=50	9-09917-430-0	01	1	0710-0711		●
20	CLIP; HOSE,RAD (A) ID=20 L=50	9-09917-430-0	01	1	0712-	●		●
20	CLIP; HOSE,RAD SGL CAB(FC*M) (A) ID=20 L=50	9-09917-430-0	01	1	0712-		●
20	CLIP; HOSE,RAD (C) ID=11.5	8-97375-638-0	04	1	0710-	●	●
20	CLIP; HOSE,RAD DBL CAB(FC*W) (B) ID=15 H=24 L=20	1-09700-606-0	01	1	0712-0801		●
20	CLIP; HOSE,RAD DBL CAB(FC*W) (I) ID=13 L=50	0-95235-286-0	02	1	0806-		●
20	CLIP; HOSE,RAD (H) ID=13 L=20	0-95235-235-0	02	1	0712-			●
20	CLIP; HOSE,RAD (I) ID=13 L=50	0-95235-286-0	01	1	0712-0801			●
20	CLIP; HOSE,RAD DBL CAB(FC*W) (I) ID=13 L=50	0-95235-286-0	01	1	0802-0805		●
20	CLIP; HOSE,RAD (I) ID=13 L=50	0-95235-286-0	01	1	0802-0805			●
20	CLIP; HOSE,RAD (I) ID=13 L=50	0-95235-286-0	01	1	0806-			●
20	CLIP; HOSE,RAD (D) ID=12 L=70	1-09700-097-1	02	1	0712-			●
20	CLIP; HOSE,RAD (B) ID=15 H=30 L=30	1-09700-832-0	01	1	0712-			●
20	CLIP; HOSE,RAD (E) ID=10 & 12	8-94155-296-0	01	1	0712-			●
20	CLIP; HOSE,RAD (C) ID=11.5	8-97375-638-0	02	1	0712-			●
20	CLIP; HOSE,RAD (F) ID=12	8-98029-256-0	03	1	0712-			●
20	CLIP; HOSE,RAD (G) ID=14 L=44	9-09917-427-0	01	1	0712-			●
23	BRACKET; RESERVE TANK	8-98013-534-4	01	1	0710-	●
23	BRACKET; RESERVE TANK SGL CAB(FC*M)	8-98013-534-4	01	1	0710-		●
23	BRACKET; RESERVE TANK DBL CAB(FC*W)	8-98058-220-2	01	1	0712-		●
23	BRACKET; RESERVE TANK	8-98058-220-2	01	1	0712-			●
40	BOLT; CLIP M8X20 FLANGE	0-28650-820-0	01	1	0710-	●
40	BOLT; CLIP SGL CAB(FC*M) M8X20 FLANGE	0-28650-820-0	01	1	0710-		●
40	BOLT; CLIP DBL CAB(FC*W) M8X20 FLANGE	0-28650-820-0	02	1	0712-		●
40	BOLT; CLIP M8X20 FLANGE	0-28650-820-0	06	1	0712-			●
55	HOSE; WATER,RAD OUTLET	8-98010-577-1	01	1	0710-	●	●
55	HOSE; WATER,RAD OUTLET	8-98010-573-2	01	1	0712-			●
64	BOLT; BRKT,SUB TANK M8X25 W/LK&PL WASHER	1-09030-093-0	01	1	0710-	●
64	BOLT; BRKT,SUB TANK SGL CAB(FC*M) M8X25 W/LK&PL WASHER	1-09030-093-0	01	1	0710-		●
64	BOLT; BRKT,SUB TANK DBL CAB(FC*W) M8X25 W/LK&PL WASHER	1-09030-093-0	03	1	0712-		●
64	BOLT; BRKT,SUB TANK M8X25 W/LK&PL WASHER	1-09030-093-0	03	1	0712-			●
65	NUT; BRKT,SUB TANK M8 FLANGE	0-91180-108-0	03	1	0710-	●
65	NUT; BRKT,SUB TANK SGL CAB(FC*M) M8 FLANGE	0-91180-108-0	03	1	0710-		●
65	NUT; BRKT,SUB TANK DBL CAB(FC*W) M8 FLANGE	0-91180-108-0	01	1	0712-		●
65	NUT; BRKT,SUB TANK M8 FLANGE	0-91180-108-0	01	1	0712-			●
67	BOLT; BRKT M8X20 FLANGE	0-28650-820-0	03	1	0710-0711	●	●
67	BOLT; BRKT M8X20 FLANGE	0-28650-820-0	03	1	0712-	●	●	●
128	HOSE; WATER,RAD INL	8-98010-576-2	01	1	0710-	●	●
128	HOSE; WATER,RAD INL	8-98010-572-1	01	1	0712-			●

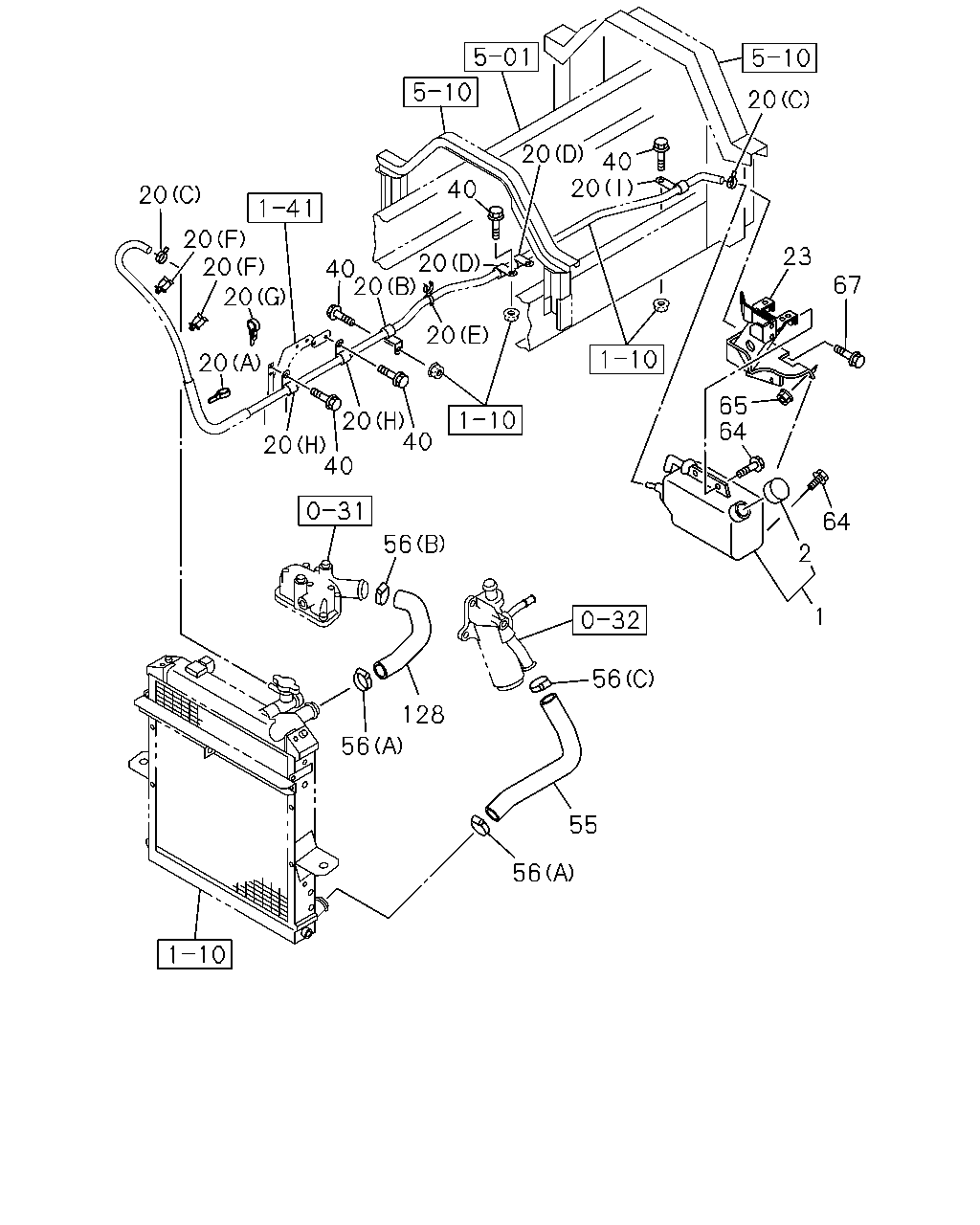

20 20 40 20 40 20 20 20 20 20 40 20 23 67 20 20 65 64 20 40 20 40 64 56 2 1 56 128 56 55 56

Balon	Parca Adi	Parca No	Adet	Tip	Applied Date	A	B	C
1	TANK; SURGE,RAD	8-98010-309-2	01	1	0710-0711	●	●
1	TANK; SURGE,RAD	8-98010-309-2	01	1	0712-1009	●	●	●
1	TANK; SURGE,RAD	8-98171-757-0	01	1	1010-	●	●	●
2	CAP; SURGE TANK	8-97217-796-0	01	1	0710-0711	●	●
2	CAP; SURGE TANK	8-97217-796-0	01	1	0712-1009	●	●	●
2	CAP; SURGE TANK	8-98178-074-0	01	1	1010-	●	●	●
20	CLIP; HOSE,RAD (B) ID=13 H=40 L=25	1-09700-620-0	01	1	0710-0711	●
20	CLIP; HOSE,RAD SGL CAB(FC*M) (B) ID=13 H=40 L=25	1-09700-620-0	01	1	0710-0711		●
20	CLIP; HOSE,RAD (B) ID=13 H=40 L=25	1-09700-620-0	01	1	0712-0805	●	●
20	CLIP; HOSE,RAD (B) ID=13 H=40 L=25	1-09700-620-0	01	1	0806-	●
20	CLIP; HOSE,RAD SGL CAB(FC*M) (B) ID=13 H=40 L=25	1-09700-620-0	01	1	0806-		●
20	CLIP; HOSE,RAD (A) ID=20 L=50	9-09917-430-0	01	1	0710-0711	●
20	CLIP; HOSE,RAD SGL CAB(FC*M) (A) ID=20 L=50	9-09917-430-0	01	1	0710-0711		●
20	CLIP; HOSE,RAD (A) ID=20 L=50	9-09917-430-0	01	1	0712-	●		●
20	CLIP; HOSE,RAD SGL CAB(FC*M) (A) ID=20 L=50	9-09917-430-0	01	1	0712-		●
20	CLIP; HOSE,RAD (C) ID=11.5	8-97375-638-0	04	1	0710-	●	●
20	CLIP; HOSE,RAD DBL CAB(FC*W) (B) ID=15 H=24 L=20	1-09700-606-0	01	1	0712-0801		●
20	CLIP; HOSE,RAD DBL CAB(FC*W) (I) ID=13 L=50	0-95235-286-0	02	1	0806-		●
20	CLIP; HOSE,RAD (H) ID=13 L=20	0-95235-235-0	02	1	0712-			●
20	CLIP; HOSE,RAD (I) ID=13 L=50	0-95235-286-0	01	1	0712-0801			●
20	CLIP; HOSE,RAD DBL CAB(FC*W) (I) ID=13 L=50	0-95235-286-0	01	1	0802-0805		●
20	CLIP; HOSE,RAD (I) ID=13 L=50	0-95235-286-0	01	1	0802-0805			●
20	CLIP; HOSE,RAD (I) ID=13 L=50	0-95235-286-0	01	1	0806-			●
20	CLIP; HOSE,RAD (D) ID=12 L=70	1-09700-097-1	02	1	0712-			●
20	CLIP; HOSE,RAD (B) ID=15 H=30 L=30	1-09700-832-0	01	1	0712-			●
20	CLIP; HOSE,RAD (E) ID=10 & 12	8-94155-296-0	01	1	0712-			●
20	CLIP; HOSE,RAD (C) ID=11.5	8-97375-638-0	02	1	0712-			●
20	CLIP; HOSE,RAD (F) ID=12	8-98029-256-0	03	1	0712-			●
20	CLIP; HOSE,RAD (G) ID=14 L=44	9-09917-427-0	01	1	0712-			●
23	BRACKET; RESERVE TANK	8-98013-534-4	01	1	0710-	●
23	BRACKET; RESERVE TANK SGL CAB(FC*M)	8-98013-534-4	01	1	0710-		●
23	BRACKET; RESERVE TANK DBL CAB(FC*W)	8-98058-220-2	01	1	0712-		●
23	BRACKET; RESERVE TANK	8-98058-220-2	01	1	0712-			●
40	BOLT; CLIP M8X20 FLANGE	0-28650-820-0	01	1	0710-	●
40	BOLT; CLIP SGL CAB(FC*M) M8X20 FLANGE	0-28650-820-0	01	1	0710-		●
40	BOLT; CLIP DBL CAB(FC*W) M8X20 FLANGE	0-28650-820-0	02	1	0712-		●
40	BOLT; CLIP M8X20 FLANGE	0-28650-820-0	06	1	0712-			●
55	HOSE; WATER,RAD OUTLET	8-98010-577-1	01	1	0710-	●	●
55	HOSE; WATER,RAD OUTLET	8-98010-573-2	01	1	0712-			●
56	CLIP; WATER HOSE,RAD (A) ID=48	8-98036-282-0	02	1	0712-0912			●
56	CLIP; WATER HOSE,RAD (A) ID=48	8-98133-956-0	02	1	1001-			●
56	CLIP; WATER HOSE,RAD (B) ID=52	8-98036-283-0	01	1	0712-0912			●
56	CLIP; WATER HOSE,RAD (B) ID=52	1-09704-057-0	01	1	1001-			●
56	CLIP; WATER HOSE,RAD (C) ID=62	8-98036-284-0	01	1	0712-0912			●
56	CLIP; WATER HOSE,RAD (C) ID=62	8-98133-957-0	01	1	1001-			●
64	BOLT; BRKT,SUB TANK M8X25 W/LK&PL WASHER	1-09030-093-0	01	1	0710-	●
64	BOLT; BRKT,SUB TANK SGL CAB(FC*M) M8X25 W/LK&PL WASHER	1-09030-093-0	01	1	0710-		●
64	BOLT; BRKT,SUB TANK DBL CAB(FC*W) M8X25 W/LK&PL WASHER	1-09030-093-0	03	1	0712-		●
64	BOLT; BRKT,SUB TANK M8X25 W/LK&PL WASHER	1-09030-093-0	03	1	0712-			●
65	NUT; BRKT,SUB TANK M8 FLANGE	0-91180-108-0	03	1	0710-	●
65	NUT; BRKT,SUB TANK SGL CAB(FC*M) M8 FLANGE	0-91180-108-0	03	1	0710-		●
65	NUT; BRKT,SUB TANK DBL CAB(FC*W) M8 FLANGE	0-91180-108-0	01	1	0712-		●
65	NUT; BRKT,SUB TANK M8 FLANGE	0-91180-108-0	01	1	0712-			●
67	BOLT; BRKT M8X20 FLANGE	0-28650-820-0	03	1	0710-0711	●	●
67	BOLT; BRKT M8X20 FLANGE	0-28650-820-0	03	1	0712-	●	●	●
128	HOSE; WATER,RAD INL	8-98010-576-2	01	1	0710-	●	●
128	HOSE; WATER,RAD INL	8-98010-572-1	01	1	0712-			●
