◀ 🏠 ▶ Isuzu WW ▶ TRUCKS ▶ FRR ▶ 11415 - FRR AUSTRALIA EURO4 EXC.SPACECAB ▶ 1 - Fuel Tank, Cooling, Air Intake, Exhaust System ▶ 1-10 - RADIATOR ▶
1-10 — RADIATOR (#21741) — 227 parça

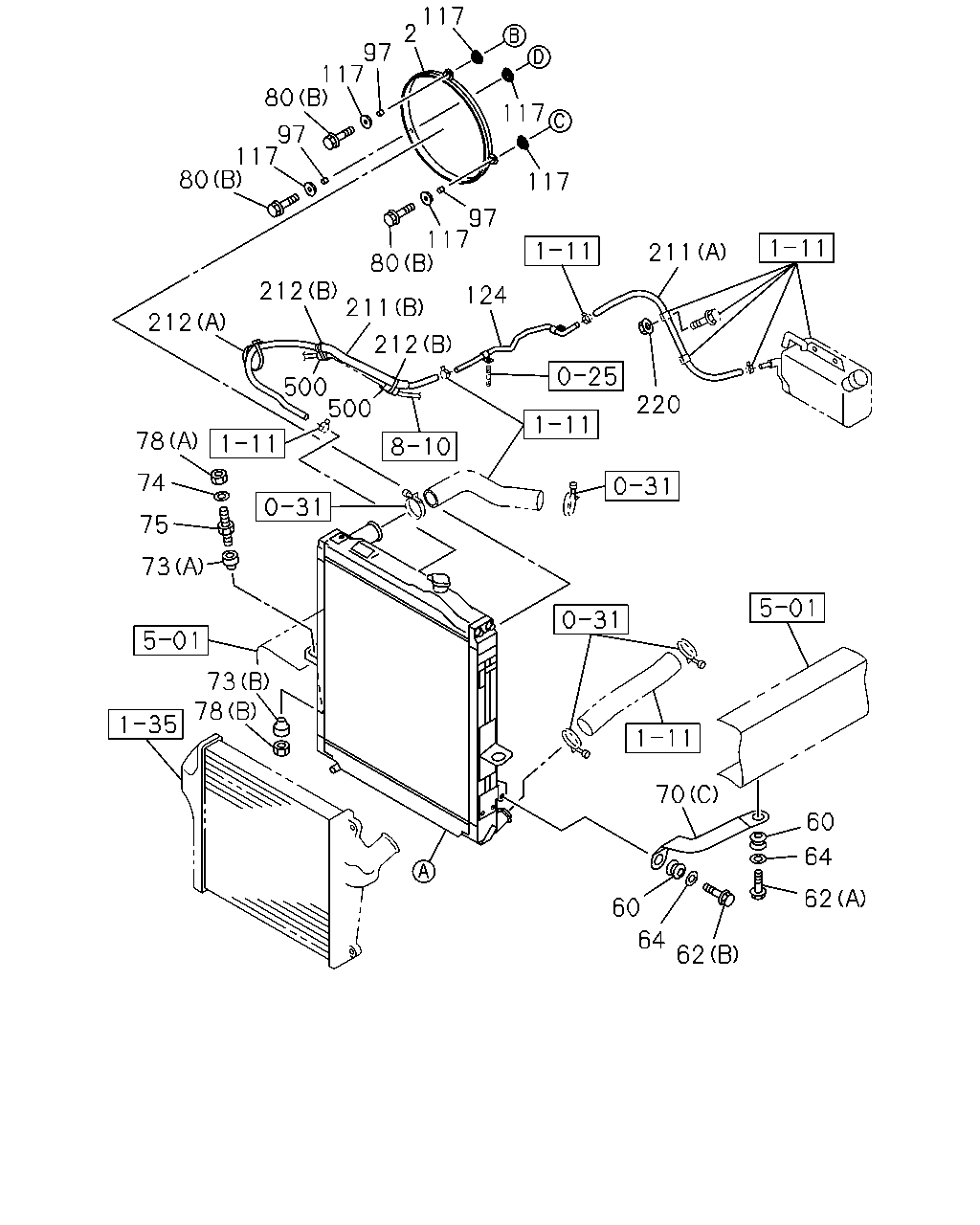

çizim 109056
117 2 97 117 80 117 97 117 80 117 97 117 80 211 212 211 124 212 212 500 500 220 78 74 75 73 73 78 70 60 64 62 60 64 62
BalonParca AdiParca NoAdetTipApplied Date A B C
2 GUIDE; FAN 8-94393-779-1 01 1 0710- ● ●
2 GUIDE; FAN 8-97350-995-0 01 1 0712- ●
60 GROMMET 1-09332-117-0 04 1 0710- ● ●
62 BOLT; STAY
(A) M8X30 		1-09009-020-1 02 1 0710- ● ●
62 BOLT; STAY
(B) M8X26 		1-09009-175-0 02 1 0710- ● ●
62 BOLT; STAY
(C) M8X12 FLANGE 		0-28050-812-0 02 1 0712- ●
64 WASHER; STAY TO RAD
ID=12.5 OD=26 		0-91610-612-0 04 1 0710- ● ●
64 WASHER; STAY TO RAD
ID=10.5 		0-91610-510-0 02 1 0712- ●
70 STAY; RAD
(C) 		8-98078-897-0 01 1 0710- ●
70 STAY; RAD
SGL CAB(FC**M*) (C) 		8-98078-897-0 01 1 0710- ●
70 STAY; RAD
(C) 		8-98078-896-0 01 1 0710- ●
70 STAY; RAD
SGL CAB(FC**M*) (C) 		8-98078-896-0 01 1 0710- ●
70 STAY; RAD
DBL CAB(FC**W*) (C) 		8-98078-905-0 01 1 0712- ●
70 STAY; RAD
DBL CAB(FC**W*) (C) 		8-98078-903-0 01 1 0712- ●
70 STAY; RAD
(B) 		8-98010-657-0 01 1 0712- ●
70 STAY; RAD
(A) 		8-98018-941-0 01 1 0712- ●
73 RUBBER; CUSHION,RAD MTG
(A) T=14 		1-21467-004-0 02 1 0710-0711 ● ●
73 RUBBER; CUSHION,RAD MTG
(A) T=14 		1-21467-004-0 02 1 0712- ● ● ●
73 RUBBER; CUSHION,RAD MTG
(B) T=24 		1-21467-011-1 02 1 0710-0711 ● ●
73 RUBBER; CUSHION,RAD MTG
(B) T=24 		1-21467-011-1 02 1 0712- ● ● ●
74 WASHER; PL,CUSHION RUBBER
ID=11 OD=54 		1-09503-154-2 02 1 0710-0711 ● ●
74 WASHER; PL,CUSHION RUBBER
ID=11 OD=54 		1-09503-154-2 02 1 0712- ● ● ●
75 BOLT; CUSHION RUBBER,RAD MTG
M12X26.5,M10X19 L=86.5 		1-21466-007-3 02 1 0710-0711 ● ●
75 BOLT; CUSHION RUBBER,RAD MTG
M12X26.5,M10X19 L=86.5 		1-21466-007-3 02 1 0712- ● ● ●
78 NUT; CUSHION RUBBER
(A) M10 FLANGE 		0-91180-210-0 02 1 0710-0711 ● ●
78 NUT; CUSHION RUBBER
(A) M10 FLANGE 		0-91180-210-0 02 1 0712- ● ● ●
78 NUT; CUSHION RUBBER
(B) M12 FLANGE 		0-91180-212-0 02 1 0710-0711 ● ●
78 NUT; CUSHION RUBBER
(B) M12 FLANGE 		0-91180-212-0 02 1 0712- ● ● ●
80 BOLT; FAN GUIDE
(B) M8X30 FLANGE 		0-28650-830-0 03 1 0710-0711 ● ●
80 BOLT; FAN GUIDE
(B) M8X30 FLANGE 		0-28650-830-0 03 1 0712- ● ● ●
80 BOLT; FAN GUIDE
(A) M8X14 		8-98046-222-0 04 1 0710- ● ●
80 BOLT; FAN GUIDE
(C) M6X16 		1-21559-481-0 04 1 0712- ●
97 TUBE; DIST,FAN GUIDE 9-09651-072-0 03 1 0710- ● ●
117 RUBBER; MTG,FAN GUIDE 8-94395-766-0 06 1 0710- ● ●
117 RUBBER; MTG,FAN GUIDE 1-09337-027-0 06 1 0712- ●
124 PIPE; WATER,TANK TO RAD 8-97611-022-1 01 1 0710- ● ●
211 HOSE; RAD TO PIPE
(A) 		8-98067-261-2 01 1 0710-0805 ●
211 HOSE; RAD TO PIPE
SGL CAB(FC**M*) (A) 		8-98067-261-2 01 1 0710-0805 ●
211 HOSE; RAD TO PIPE
(A) L=560 		8-98119-375-0 01 1 0806- ●
211 HOSE; RAD TO PIPE
SGL CAB(FC**M*) (A) L=560 		8-98119-375-0 01 1 0806- ●
211 HOSE; RAD TO PIPE
(B) L=940 		8-98073-544-0 01 1 0710- ● ●
211 HOSE; RAD TO PIPE
DBL CAB(FC**W*) (A) L=1100 SERVICED BY L=3000 		0-03557-300-0 01 1 0712-0712 ●
211 HOSE; RAD TO PIPE
DBL CAB(FC**W*) (A) L=1050 SERVICED BY L=3000 		0-03557-300-0 01 1 0801-0801 ●
211 HOSE; RAD TO PIPE
DBL CAB(FC**W*) (A) 		8-98113-423-0 01 1 0802-0805 ●
211 HOSE; RAD TO PIPE
DBL CAB(FC**W*) (A) 		8-98119-760-0 01 1 0806- ●
211 HOSE; RAD TO PIPE
(C) 		8-98099-137-0 01 1 0712- ●
212 CLIP; HOSE
(A) L=250 		5-09707-030-1 01 1 0710-0711 ● ●
212 CLIP; HOSE
(A) L=250 		5-09707-030-1 01 1 0712- ● ●
212 CLIP; HOSE
DBL CAB(FC**W*) (A) L=250 		5-09707-030-1 01 1 0712- ●
212 CLIP; HOSE
(B) L=140 		5-09707-031-1 02 1 0710- ● ●
220 NUT; CLIP
M8 FLANGE 		0-91180-108-0 01 1 0710- ●
220 NUT; CLIP
SGL CAB(FC**M*) M8 FLANGE 		0-91180-108-0 01 1 0710- ●
220 NUT; CLIP
DBL CAB(FC**W*) M8 FLANGE 		0-91180-108-0 02 1 0712- ●
220 NUT; CLIP
M8 FLANGE 		0-91180-108-0 04 1 0712- ●
500 SLEEVE; RUBBER
ID=17 OD=21 L=40 		1-09337-012-0 02 1 0710- ● ●

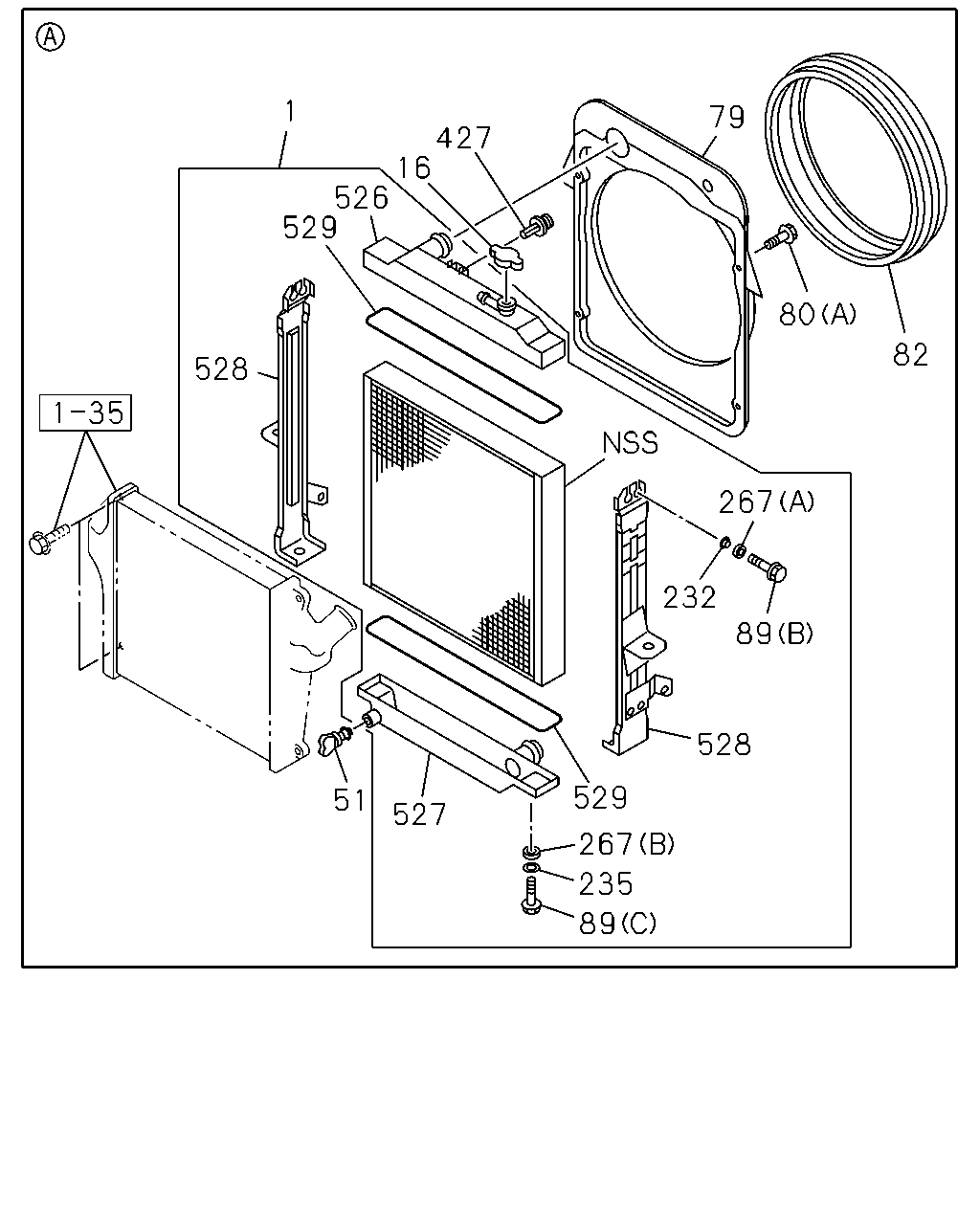

çizim 109057
1 79 427 16 526 529 80 82 528 267 232 89 528 529 51 527 267 235 89
BalonParca AdiParca NoAdetTipApplied Date A B C
1 RADIATOR ASM
TRANSMISSION CONTROL-SMOOTHER(8GF) 		8-98043-040-1 01 1 0710- ● ●
1 RADIATOR ASM
EXC. TRANSMISSION CONTROL-SMOOTHER(8GF) 		8-98043-027-1 01 1 0710- ● ●
1 RADIATOR ASM
TRANSMISSION CONTROL-SMOOTHER(8GF) 		8-98139-322-0 01 1 0712- ●
1 RADIATOR ASM
EXC. TRANSMISSION CONTROL-SMOOTHER(8GF) 		8-98139-320-0 01 1 0712- ●
16 CAP; RAD 8-97239-187-0 01 1 0710-0711 ● ●
16 CAP; RAD 8-97239-187-0 01 1 0712-0712 ● ● ●
16 CAP; RAD
TRANSMISSION CONTROL-SMOOTHER(8GF) 		8-97239-187-0 01 1 0801- ● ●
16 CAP; RAD 8-97239-187-0 01 1 0801- ●
16 CAP; RAD
EXC. TRANSMISSION CONTROL-SMOOTHER(8GF) 		8-98096-226-0 01 1 0801- ● ●
51 PLUG; DRAIN
W/GASKET 		8-97171-437-0 01 1 0710-0711 ● ●
51 PLUG; DRAIN
W/GASKET 		8-97171-437-0 01 1 0712- ● ● ●
79 GUIDE; FAN,RAD 8-98004-207-0 01 1 0710- ● ●
79 GUIDE; FAN,RAD 8-98010-297-0 01 1 0712- ●
80 BOLT; FAN GUIDE
(B) M8X30 FLANGE 		0-28650-830-0 03 1 0710-0711 ● ●
80 BOLT; FAN GUIDE
(B) M8X30 FLANGE 		0-28650-830-0 03 1 0712- ● ● ●
80 BOLT; FAN GUIDE
(A) M8X14 		8-98046-222-0 04 1 0710- ● ●
80 BOLT; FAN GUIDE
(C) M6X16 		1-21559-481-0 04 1 0712- ●
82 COVER; FAN,RAD 8-98004-211-0 01 1 0710- ● ●
82 COVER; FAN,RAD 8-98006-478-0 01 1 0712- ●
89 BOLT
(C) M6X12 FLANGE 		0-28050-612-0 02 1 0710- ● ●
89 BOLT
(B) M8X25 		1-21469-153-0 04 1 0710- ● ●
89 BOLT
(A) M8X12 FLANGE 		0-28050-812-0 02 1 0712- ●
89 BOLT
(B) M8X25 		1-21469-153-0 02 1 0712- ●
232 COLLAR; DIST,CUSHION RUBBER 8-98141-232-0 04 1 0710- ● ●
232 COLLAR; DIST,CUSHION RUBBER 8-98141-232-0 02 1 0712- ●
235 WASHER; CUSHION RUBBER 1-21469-133-0 02 1 0710- ● ●
267 RUBBER; CUSHION
(A) 		1-21469-130-0 04 1 0710- ● ●
267 RUBBER; CUSHION
(B) 		1-21469-131-0 02 1 0710- ● ●
267 RUBBER; CUSHION
(C) 		1-21467-023-0 02 1 0712- ●
427 CLIP; FAN GUIDE 1-09470-009-0 01 1 0710-0711 ● ●
427 CLIP; FAN GUIDE 1-09470-009-0 01 1 0712- ● ● ●
526 TANK; UPR,RADIATOR CORE 8-98010-271-2 01 1 0712- ●
526 TANK; UPR,RADIATOR CORE 8-98004-202-2 01 1 0710- ● ●
527 TANK; LWR,RADIATOR CORE
TRANSMISSION CONTROL-SMOOTHER(8GF) 		8-98010-279-0 01 1 0712- ●
527 TANK; LWR,RADIATOR CORE
EXC. TRANSMISSION CONTROL-SMOOTHER(8GF) 		8-98032-433-1 01 1 0712- ●
527 TANK; LWR,RADIATOR CORE
TRANSMISSION CONTROL-SMOOTHER(8GF) 		8-98010-365-0 01 1 0710- ● ●
527 TANK; LWR,RADIATOR CORE
EXC. TRANSMISSION CONTROL-SMOOTHER(8GF) 		8-98004-203-0 01 1 0710- ● ●
528 PLATE; SIDE,RADIATOR CORE 8-98010-290-1 01 1 0712- ●
528 PLATE; SIDE,RADIATOR CORE 8-98010-291-1 01 1 0712- ●
528 PLATE; SIDE,RADIATOR CORE 8-98043-028-0 01 1 0710-0805 ● ●
528 PLATE; SIDE,RADIATOR CORE 8-98035-117-3 01 1 0806- ● ●
528 PLATE; SIDE,RADIATOR CORE 8-98043-029-1 01 1 0710- ● ●
529 GASKET; CORE,RADIATOR 8-98032-435-0 02 1 0712- ●
529 GASKET; CORE,RADIATOR 8-98004-206-0 02 1 0710- ● ●

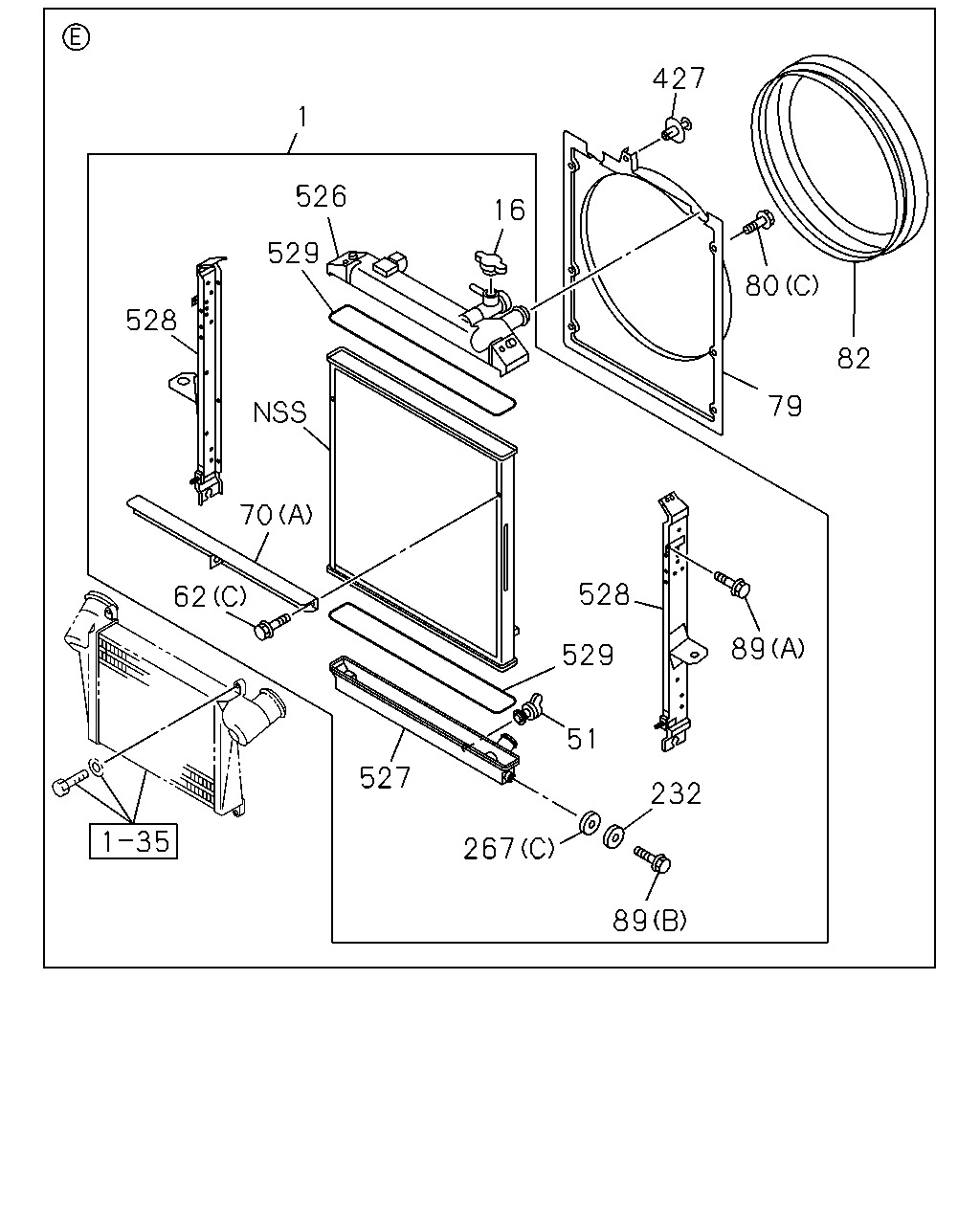

çizim 109058
427 80 82 79 89 528 529 232 51 267 89 527 16 1 526 529 528 70 62
BalonParca AdiParca NoAdetTipApplied Date A B C
1 RADIATOR ASM
TRANSMISSION CONTROL-SMOOTHER(8GF) 		8-98043-040-1 01 1 0710- ● ●
1 RADIATOR ASM
EXC. TRANSMISSION CONTROL-SMOOTHER(8GF) 		8-98043-027-1 01 1 0710- ● ●
1 RADIATOR ASM
TRANSMISSION CONTROL-SMOOTHER(8GF) 		8-98139-322-0 01 1 0712- ●
1 RADIATOR ASM
EXC. TRANSMISSION CONTROL-SMOOTHER(8GF) 		8-98139-320-0 01 1 0712- ●
16 CAP; RAD 8-97239-187-0 01 1 0710-0711 ● ●
16 CAP; RAD 8-97239-187-0 01 1 0712-0712 ● ● ●
16 CAP; RAD
TRANSMISSION CONTROL-SMOOTHER(8GF) 		8-97239-187-0 01 1 0801- ● ●
16 CAP; RAD 8-97239-187-0 01 1 0801- ●
16 CAP; RAD
EXC. TRANSMISSION CONTROL-SMOOTHER(8GF) 		8-98096-226-0 01 1 0801- ● ●
51 PLUG; DRAIN
W/GASKET 		8-97171-437-0 01 1 0710-0711 ● ●
51 PLUG; DRAIN
W/GASKET 		8-97171-437-0 01 1 0712- ● ● ●
62 BOLT; STAY
(A) M8X30 		1-09009-020-1 02 1 0710- ● ●
62 BOLT; STAY
(B) M8X26 		1-09009-175-0 02 1 0710- ● ●
62 BOLT; STAY
(C) M8X12 FLANGE 		0-28050-812-0 02 1 0712- ●
70 STAY; RAD
(C) 		8-98078-897-0 01 1 0710- ●
70 STAY; RAD
SGL CAB(FC**M*) (C) 		8-98078-897-0 01 1 0710- ●
70 STAY; RAD
(C) 		8-98078-896-0 01 1 0710- ●
70 STAY; RAD
SGL CAB(FC**M*) (C) 		8-98078-896-0 01 1 0710- ●
70 STAY; RAD
DBL CAB(FC**W*) (C) 		8-98078-905-0 01 1 0712- ●
70 STAY; RAD
DBL CAB(FC**W*) (C) 		8-98078-903-0 01 1 0712- ●
70 STAY; RAD
(B) 		8-98010-657-0 01 1 0712- ●
70 STAY; RAD
(A) 		8-98018-941-0 01 1 0712- ●
79 GUIDE; FAN,RAD 8-98004-207-0 01 1 0710- ● ●
79 GUIDE; FAN,RAD 8-98010-297-0 01 1 0712- ●
80 BOLT; FAN GUIDE
(B) M8X30 FLANGE 		0-28650-830-0 03 1 0710-0711 ● ●
80 BOLT; FAN GUIDE
(B) M8X30 FLANGE 		0-28650-830-0 03 1 0712- ● ● ●
80 BOLT; FAN GUIDE
(A) M8X14 		8-98046-222-0 04 1 0710- ● ●
80 BOLT; FAN GUIDE
(C) M6X16 		1-21559-481-0 04 1 0712- ●
82 COVER; FAN,RAD 8-98004-211-0 01 1 0710- ● ●
82 COVER; FAN,RAD 8-98006-478-0 01 1 0712- ●
89 BOLT
(C) M6X12 FLANGE 		0-28050-612-0 02 1 0710- ● ●
89 BOLT
(B) M8X25 		1-21469-153-0 04 1 0710- ● ●
89 BOLT
(A) M8X12 FLANGE 		0-28050-812-0 02 1 0712- ●
89 BOLT
(B) M8X25 		1-21469-153-0 02 1 0712- ●
232 COLLAR; DIST,CUSHION RUBBER 8-98141-232-0 04 1 0710- ● ●
232 COLLAR; DIST,CUSHION RUBBER 8-98141-232-0 02 1 0712- ●
267 RUBBER; CUSHION
(A) 		1-21469-130-0 04 1 0710- ● ●
267 RUBBER; CUSHION
(B) 		1-21469-131-0 02 1 0710- ● ●
267 RUBBER; CUSHION
(C) 		1-21467-023-0 02 1 0712- ●
427 CLIP; FAN GUIDE 1-09470-009-0 01 1 0710-0711 ● ●
427 CLIP; FAN GUIDE 1-09470-009-0 01 1 0712- ● ● ●
526 TANK; UPR,RADIATOR CORE 8-98010-271-2 01 1 0712- ●
526 TANK; UPR,RADIATOR CORE 8-98004-202-2 01 1 0710- ● ●
527 TANK; LWR,RADIATOR CORE
TRANSMISSION CONTROL-SMOOTHER(8GF) 		8-98010-279-0 01 1 0712- ●
527 TANK; LWR,RADIATOR CORE
EXC. TRANSMISSION CONTROL-SMOOTHER(8GF) 		8-98032-433-1 01 1 0712- ●
527 TANK; LWR,RADIATOR CORE
TRANSMISSION CONTROL-SMOOTHER(8GF) 		8-98010-365-0 01 1 0710- ● ●
527 TANK; LWR,RADIATOR CORE
EXC. TRANSMISSION CONTROL-SMOOTHER(8GF) 		8-98004-203-0 01 1 0710- ● ●
528 PLATE; SIDE,RADIATOR CORE 8-98010-290-1 01 1 0712- ●
528 PLATE; SIDE,RADIATOR CORE 8-98010-291-1 01 1 0712- ●
528 PLATE; SIDE,RADIATOR CORE 8-98043-028-0 01 1 0710-0805 ● ●
528 PLATE; SIDE,RADIATOR CORE 8-98035-117-3 01 1 0806- ● ●
528 PLATE; SIDE,RADIATOR CORE 8-98043-029-1 01 1 0710- ● ●
529 GASKET; CORE,RADIATOR 8-98032-435-0 02 1 0712- ●
529 GASKET; CORE,RADIATOR 8-98004-206-0 02 1 0710- ● ●
çizim 109060
87 96 96 486 87 87 96 100
BalonParca AdiParca NoAdetTipApplied Date A B C
87 STAY; FAN GUIDE
(B) 		8-94393-776-1 01 1 0710- ● ●
87 STAY; FAN GUIDE
(C) 		8-94393-778-2 01 1 0710- ● ●
87 STAY; FAN GUIDE
(A) 		8-97602-988-0 01 1 0710- ● ●
96 BOLT; STAY FIX
(C) M10X75 FLANGE 		8-94399-669-1 02 1 1110- ●
96 BOLT; STAY FIX
(B) M8X16 FLANGE 		0-28050-816-0 02 1 0710- ● ●
96 BOLT; STAY FIX
(A) M10X16 FLANGE 		0-28151-016-0 02 1 0710- ● ●
96 BOLT; STAY FIX
(C) M10X20 FLANGE 		0-28151-020-0 02 1 0712-0803 ●
96 BOLT; STAY FIX
GENERATOR 24V90A(K44) (C) M10X20 FLANGE 		0-28151-020-0 02 1 0712-0803 ●
96 BOLT; STAY FIX
EXC. GENERATOR 24V90A(K44) (C) M10X20 FLANGE 		0-28151-020-0 02 1 0804-0811 ●
96 BOLT; STAY FIX
(C) M10X20 FLANGE 		0-28151-020-0 02 1 0812- ●
96 BOLT; STAY FIX
GENERATOR 24V90A(K44) (C) M10X25 FLANGE 		0-28751-025-0 02 1 0712- ●
100 RUBBER; MTG 8-94394-268-1 01 1 0710-0910 ● ●
100 RUBBER; MTG 8-98148-109-0 01 1 0911- ● ●
486 NUT; MTG RUBBER
M8 FLANGE 		0-91180-108-0 01 1 0710- ● ●

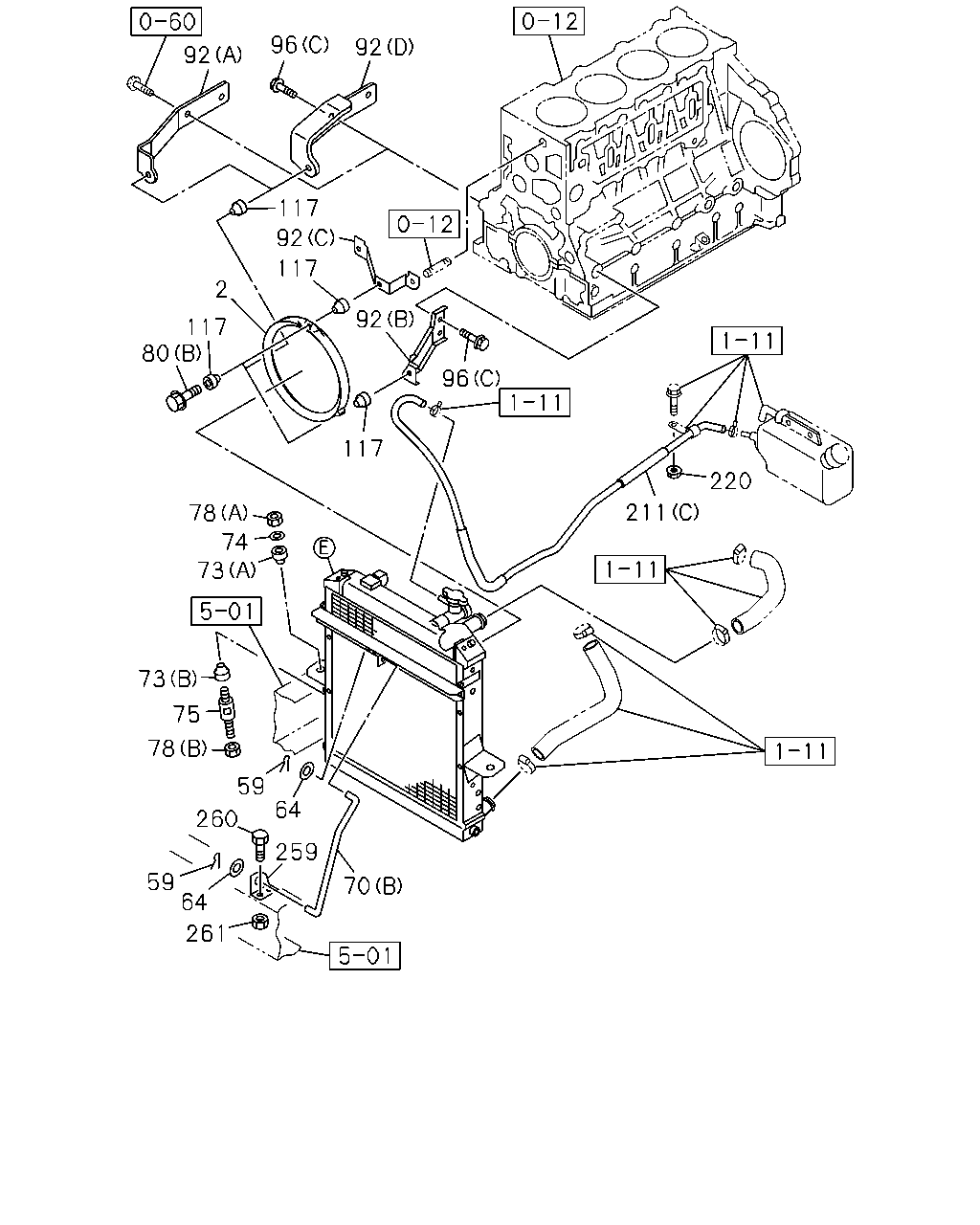

çizim 109075
96 92 92 117 92 117 2 92 117 80 96 117 220 211 78 74 73 73 75 78 59 64 260 259 59 64 70 261
BalonParca AdiParca NoAdetTipApplied Date A B C
2 GUIDE; FAN 8-94393-779-1 01 1 0710- ● ●
2 GUIDE; FAN 8-97350-995-0 01 1 0712- ●
59 PIN; SNAP,STAY
L=32.6 		8-97359-052-0 02 1 0712- ●
64 WASHER; STAY TO RAD
ID=12.5 OD=26 		0-91610-612-0 04 1 0710- ● ●
64 WASHER; STAY TO RAD
ID=10.5 		0-91610-510-0 02 1 0712- ●
70 STAY; RAD
(C) 		8-98078-897-0 01 1 0710- ●
70 STAY; RAD
SGL CAB(FC**M*) (C) 		8-98078-897-0 01 1 0710- ●
70 STAY; RAD
(C) 		8-98078-896-0 01 1 0710- ●
70 STAY; RAD
SGL CAB(FC**M*) (C) 		8-98078-896-0 01 1 0710- ●
70 STAY; RAD
DBL CAB(FC**W*) (C) 		8-98078-905-0 01 1 0712- ●
70 STAY; RAD
DBL CAB(FC**W*) (C) 		8-98078-903-0 01 1 0712- ●
70 STAY; RAD
(B) 		8-98010-657-0 01 1 0712- ●
70 STAY; RAD
(A) 		8-98018-941-0 01 1 0712- ●
73 RUBBER; CUSHION,RAD MTG
(A) T=14 		1-21467-004-0 02 1 0710-0711 ● ●
73 RUBBER; CUSHION,RAD MTG
(A) T=14 		1-21467-004-0 02 1 0712- ● ● ●
73 RUBBER; CUSHION,RAD MTG
(B) T=24 		1-21467-011-1 02 1 0710-0711 ● ●
73 RUBBER; CUSHION,RAD MTG
(B) T=24 		1-21467-011-1 02 1 0712- ● ● ●
74 WASHER; PL,CUSHION RUBBER
ID=11 OD=54 		1-09503-154-2 02 1 0710-0711 ● ●
74 WASHER; PL,CUSHION RUBBER
ID=11 OD=54 		1-09503-154-2 02 1 0712- ● ● ●
75 BOLT; CUSHION RUBBER,RAD MTG
M12X26.5,M10X19 L=86.5 		1-21466-007-3 02 1 0710-0711 ● ●
75 BOLT; CUSHION RUBBER,RAD MTG
M12X26.5,M10X19 L=86.5 		1-21466-007-3 02 1 0712- ● ● ●
78 NUT; CUSHION RUBBER
(A) M10 FLANGE 		0-91180-210-0 02 1 0710-0711 ● ●
78 NUT; CUSHION RUBBER
(A) M10 FLANGE 		0-91180-210-0 02 1 0712- ● ● ●
78 NUT; CUSHION RUBBER
(B) M12 FLANGE 		0-91180-212-0 02 1 0710-0711 ● ●
78 NUT; CUSHION RUBBER
(B) M12 FLANGE 		0-91180-212-0 02 1 0712- ● ● ●
80 BOLT; FAN GUIDE
(B) M8X30 FLANGE 		0-28650-830-0 03 1 0710-0711 ● ●
80 BOLT; FAN GUIDE
(B) M8X30 FLANGE 		0-28650-830-0 03 1 0712- ● ● ●
80 BOLT; FAN GUIDE
(A) M8X14 		8-98046-222-0 04 1 0710- ● ●
80 BOLT; FAN GUIDE
(C) M6X16 		1-21559-481-0 04 1 0712- ●
92 BRACKET; FAN GUIDE
(C) 		8-97382-827-2 01 1 0712- ●
92 BRACKET; FAN GUIDE
(B) 		8-97386-233-0 01 1 0712- ●
92 BRACKET; FAN GUIDE
GENERATOR 24V90A(K44) (D) 		8-98032-526-0 01 1 0712- ●
92 BRACKET; FAN GUIDE
EXC. GENERATOR 24V90A(K44) (A) 		8-97350-997-0 01 1 0712- ●
96 BOLT; STAY FIX
(C) M10X75 FLANGE 		8-94399-669-1 02 1 1110- ●
96 BOLT; STAY FIX
(B) M8X16 FLANGE 		0-28050-816-0 02 1 0710- ● ●
96 BOLT; STAY FIX
(A) M10X16 FLANGE 		0-28151-016-0 02 1 0710- ● ●
96 BOLT; STAY FIX
(C) M10X20 FLANGE 		0-28151-020-0 02 1 0712-0803 ●
96 BOLT; STAY FIX
GENERATOR 24V90A(K44) (C) M10X20 FLANGE 		0-28151-020-0 02 1 0712-0803 ●
96 BOLT; STAY FIX
EXC. GENERATOR 24V90A(K44) (C) M10X20 FLANGE 		0-28151-020-0 02 1 0804-0811 ●
96 BOLT; STAY FIX
(C) M10X20 FLANGE 		0-28151-020-0 02 1 0812- ●
96 BOLT; STAY FIX
GENERATOR 24V90A(K44) (C) M10X25 FLANGE 		0-28751-025-0 02 1 0712- ●
117 RUBBER; MTG,FAN GUIDE 8-94395-766-0 06 1 0710- ● ●
117 RUBBER; MTG,FAN GUIDE 1-09337-027-0 06 1 0712- ●
211 HOSE; RAD TO PIPE
(A) 		8-98067-261-2 01 1 0710-0805 ●
211 HOSE; RAD TO PIPE
SGL CAB(FC**M*) (A) 		8-98067-261-2 01 1 0710-0805 ●
211 HOSE; RAD TO PIPE
(A) L=560 		8-98119-375-0 01 1 0806- ●
211 HOSE; RAD TO PIPE
SGL CAB(FC**M*) (A) L=560 		8-98119-375-0 01 1 0806- ●
211 HOSE; RAD TO PIPE
(B) L=940 		8-98073-544-0 01 1 0710- ● ●
211 HOSE; RAD TO PIPE
DBL CAB(FC**W*) (A) L=1100 SERVICED BY L=3000 		0-03557-300-0 01 1 0712-0712 ●
211 HOSE; RAD TO PIPE
DBL CAB(FC**W*) (A) L=1050 SERVICED BY L=3000 		0-03557-300-0 01 1 0801-0801 ●
211 HOSE; RAD TO PIPE
DBL CAB(FC**W*) (A) 		8-98113-423-0 01 1 0802-0805 ●
211 HOSE; RAD TO PIPE
DBL CAB(FC**W*) (A) 		8-98119-760-0 01 1 0806- ●
211 HOSE; RAD TO PIPE
(C) 		8-98099-137-0 01 1 0712- ●
220 NUT; CLIP
M8 FLANGE 		0-91180-108-0 01 1 0710- ●
220 NUT; CLIP
SGL CAB(FC**M*) M8 FLANGE 		0-91180-108-0 01 1 0710- ●
220 NUT; CLIP
DBL CAB(FC**W*) M8 FLANGE 		0-91180-108-0 02 1 0712- ●
220 NUT; CLIP
M8 FLANGE 		0-91180-108-0 04 1 0712- ●
259 BRACKET; RAD STAY 8-98063-603-0 01 1 0712- ●
260 BOLT; BRKT
M8X20 FLANGE 		0-28650-820-0 02 1 0712- ●
261 NUT; BRKT
M8 FLANGE 		0-91180-108-0 02 1 0712- ●
İpucu: çizimdeki balona veya tablodaki Balon sütununa tıkla; ilgili parçalar vurgulanır. Birden çok çizim varsa üstteki seçim kutusu/oklarla gezin.
Isuzu EPC — test · veri: yerel (eski sürüm)
