11415 - FRR AUSTRALIA EURO4 EXC.SPACECAB
▶
0 - Engine, Emission, Engine Electrical
▶
0-91 - REFRIGERATION
▶

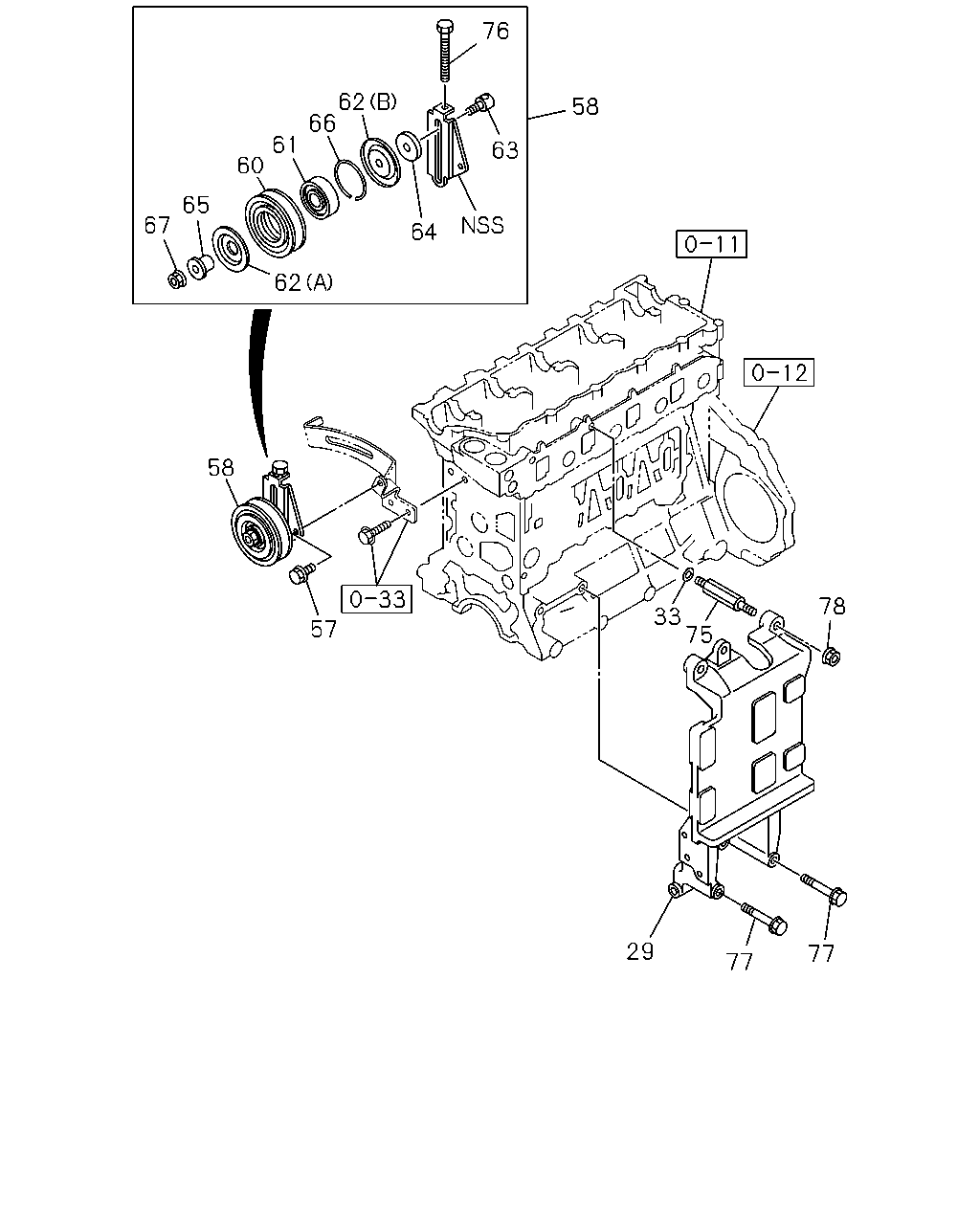

0-91 — REFRIGERATION
(#21739) — 18 parça
76
62
66
58
61
60
63
65
67
64
62
58
78
33
75
57
29
77
77
Balon
Parca Adi
Parca No
Adet
Tip
Applied Date
29
BRACKET; CMPR
GENERATOR 24V90A(K44)
8-98053-843-0
01
1
0712-0803
33
WASHER; PL,BRKT
GENERATOR 24V90A(K44) ID=10.5 OD=22
0-91614-610-0
02
1
0712-0803
57
BOLT; TENSIONER
GENERATOR 24V90A(K44) M8X16 FLANGE
0-28050-816-0
06
1
0712-0803
58
PULLEY ASM; FREEZE CMPR
GENERATOR 24V90A(K44)
8-98054-169-0
01
1
0712-0803
60
PULLEY; TENSIONER
GENERATOR 24V90A(K44)
8-98054-170-0
01
1
0712-0803
61
BEARING; TENSIONER
GENERATOR 24V90A(K44)
8-97028-786-0
01
1
0712-0803
62
COVER; TENSIONER
GENERATOR 24V90A(K44) (A)
8-97028-787-0
01
1
0712-0803
62
COVER; TENSIONER
GENERATOR 24V90A(K44) (B)
8-97147-098-0
01
1
0712-0803
63
SHAFT; TENSIONER
GENERATOR 24V90A(K44)
8-97305-491-0
01
1
0712-0803
64
COLLAR; TENSIONER
GENERATOR 24V90A(K44)
8-97028-790-1
01
1
0712-0803
65
BUSHING; TENSIONER
GENERATOR 24V90A(K44)
8-97146-844-0
01
1
0712-0803
66
CLIP; TENSIONER
GENERATOR 24V90A(K44)
8-97028-792-0
01
1
0712-0803
67
NUT; TENSIONER
GENERATOR 24V90A(K44) M10 FLANGE
0-91280-110-0
01
1
0712-0803
75
SPACER
GENERATOR 24V90A(K44) M10X17,M10X30 L=105
8-97233-428-0
02
1
0712-0803
76
BOLT
GENERATOR 24V90A(K44) M8X120 FLANGE
8-97062-091-1
01
1
0712-0803
77
BOLT; BRKT
GENERATOR 24V90A(K44) M10X90 FLANGE
0-28161-090-0
02
1
0712-0803
77
BOLT; BRKT
GENERATOR 24V90A(K44) M8X35 FLANGE
0-28650-835-0
01
1
0712-0803
78
NUT; BRKT
GENERATOR 24V90A(K44) M10 FLANGE
0-91180-210-0
02
1
0712-0803
