◀ 🏠 ▶ Isuzu WW ▶ TRUCKS ▶ FRR ▶ 11415 - FRR AUSTRALIA EURO4 EXC.SPACECAB ▶ 0 - Engine, Emission, Engine Electrical ▶ 0-60 - ENGINE ELECTRICAL CONTROL PARTS ▶
0-60 — ENGINE ELECTRICAL CONTROL PARTS (#21733) — 368 parça

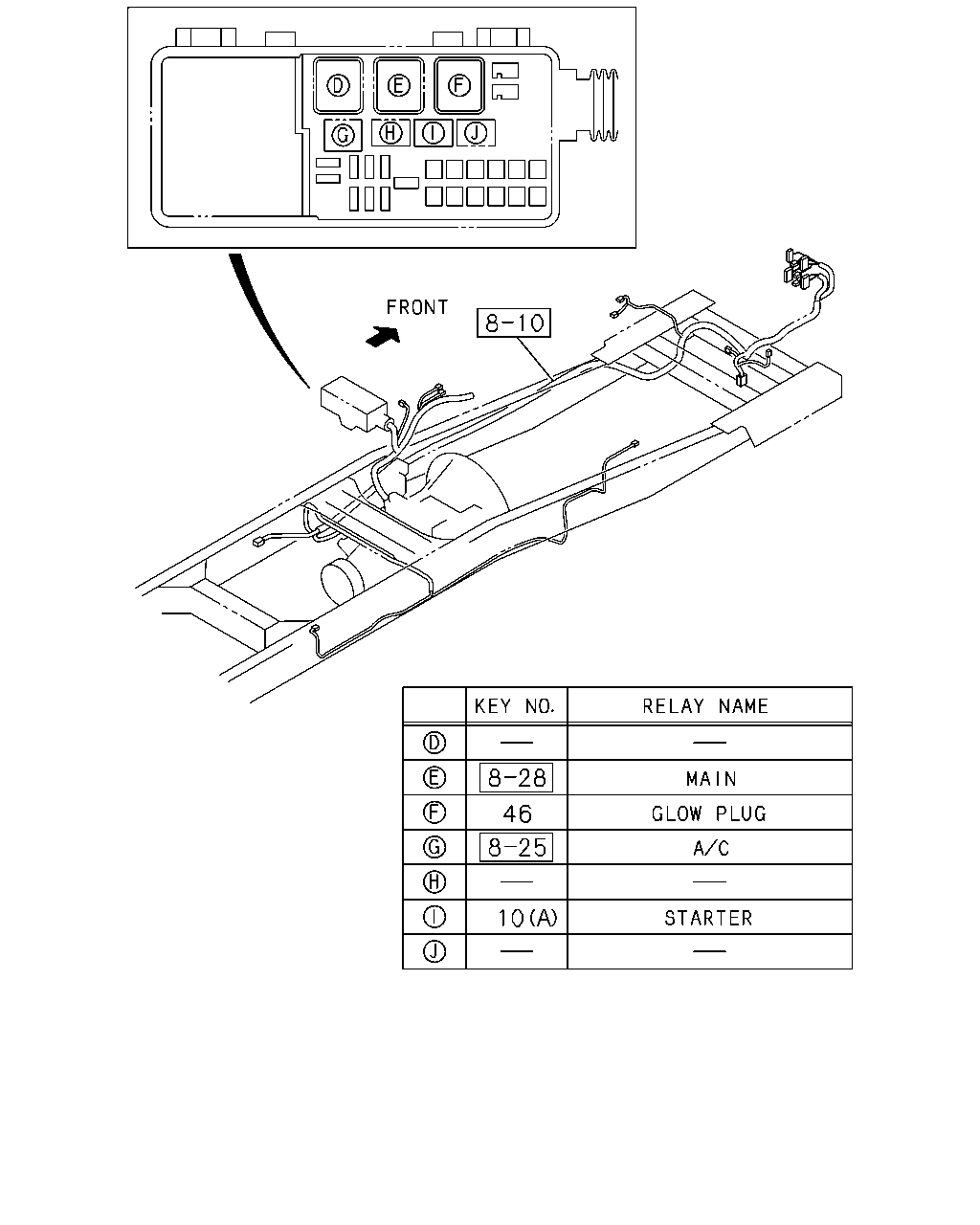

çizim 109029
46 10
BalonParca AdiParca NoAdetTipApplied Date A B
10 RELAY; STARTER
(A) 24V 10A PANASONIC 		8-97173-035-1 01 1 0710-0711 ●
10 RELAY; STARTER
(A) 24V 10A PANASONIC 		8-97173-035-1 01 1 0712-1005 ● ●
10 RELAY; STARTER
(A) 24V 10A 		8-98167-173-0 01 1 1006- ● ●
10 RELAY; STARTER
(B) 24V NIKKO 		8-98005-631-1 01 1 0710-0711 ●
10 RELAY; STARTER
(B) 24V NIKKO 		8-98005-631-1 01 1 0712- ●
10 RELAY; STARTER
6HK1-TCN ENG(82L) (B) 24V NIKKO 		8-98005-631-1 01 1 0712- ●
10 RELAY; STARTER
4HK1-TCS ENG(RJS) (C) 24V 50A 		8-97264-947-0 01 1 0712- ●
46 RELAY; GLOW PLUG
24V 50A 		8-97173-947-0 01 1 0710-0711 ●
46 RELAY; GLOW PLUG
24V 50A 		8-97173-947-0 01 1 0712- ● ●

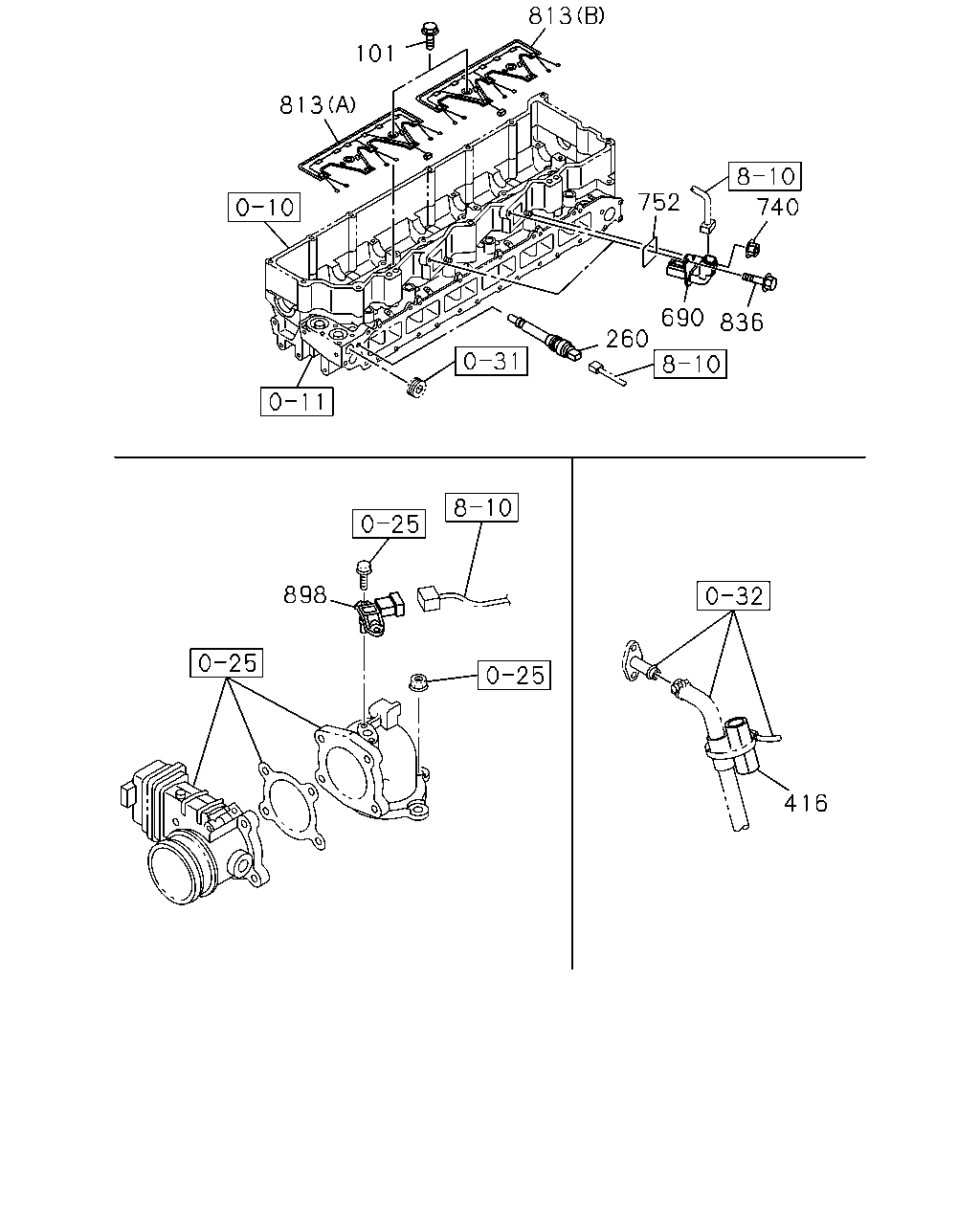

çizim 109030
813 101 813 752 740 690 836 260 898 416
BalonParca AdiParca NoAdetTipApplied Date A B
101 BOLT; HARNESS
M8X40 FLANGE 		0-28650-840-0 04 1 0710-0711 ●
101 BOLT; HARNESS
M8X40 FLANGE 		0-28650-840-0 04 1 0712- ●
101 BOLT; HARNESS
6HK1-TCN ENG(82L) M8X40 FLANGE 		0-28650-840-0 04 1 0712- ●
260 SENSOR; WATER TEMP
MITSUBISHI 		8-98023-883-0 01 1 0710-0711 ●
260 SENSOR; WATER TEMP
MITSUBISHI 		8-98023-883-0 01 1 0712- ●
260 SENSOR; WATER TEMP
6HK1-TCN ENG(82L) MITSUBISHI 		8-98023-883-0 01 1 0712- ●
416 SLEEVE; RUBBER
EXC. HEATER & DEFROSTER(C41),AIR CONDITIONER MANUAL CONTROL(C60),FULLAUTO AIR CONDITIONER(C68) ID=17 OD=21 L=40 		1-09337-012-0 01 1 0710-0711 ●
416 SLEEVE; RUBBER
6HK1-TCC ENG(81L),6HK1-TCN ENG(82L) EXC. HEATER & DEFROSTER(C41),AIR CONDITIONER MANUAL CONTROL(C60),FULLAUTO AIR CONDITIONER(C68) ID=17 OD=21 L=40 		1-09337-012-0 01 1 0712- ● ●
690 CONNECTOR 8-94390-858-1 02 1 0710-0711 ●
690 CONNECTOR 8-94390-858-1 02 1 0712- ●
690 CONNECTOR
6HK1-TCN ENG(82L) 		8-94390-858-1 02 1 0712- ●
740 NUT
M8 FLANGE 		0-91180-108-0 04 1 0710-0711 ●
740 NUT
M8 FLANGE 		0-91180-108-0 04 1 0712-0906 ●
740 NUT
6HK1-TCN ENG(82L) M8 FLANGE 		0-91180-108-0 04 1 0712-0906 ●
740 NUT
6HK1-TCC ENG(81L),6HK1-TCN ENG(82L) M8 FLANGE 		0-91180-108-0 04 1 0907-1011 ● ●
740 NUT
M8 FLANGE 		0-91180-108-0 02 1 1012- ●
740 NUT
6HK1-TCN ENG(82L) M8 FLANGE 		0-91180-108-0 02 1 1012- ●
752 GASKET
ALSO INCLUDED IN GASKET SET(ENGINE). 		8-94391-310-0 02 1 0710-0711 ●
752 GASKET
ALSO INCLUDED IN GASKET SET(ENGINE). 		8-94391-310-0 02 1 0712- ●
752 GASKET
ALSO INCLUDED IN GASKET SET(ENGINE). 6HK1-TCN ENG(82L) 		8-94391-310-0 02 1 0712- ●
813 HARNESS; INJECTOR
(A) FRONT 		8-97602-748-2 01 1 0710-0711 ●
813 HARNESS; INJECTOR
(A) FRONT 		8-97602-748-2 01 1 0712-0906 ●
813 HARNESS; INJECTOR
6HK1-TCN ENG(82L) (A) FRONT 		8-97602-748-2 01 1 0712-0906 ●
813 HARNESS; INJECTOR
6HK1-TCC ENG(81L),6HK1-TCN ENG(82L) (A) FRONT 		8-97602-748-2 01 1 0907-1008 ● ●
813 HARNESS; INJECTOR
(A) FRONT 		8-98177-447-0 01 1 1009-1112 ●
813 HARNESS; INJECTOR
6HK1-TCN ENG(82L) (A) FRONT 		8-98177-447-0 01 1 1009-1112 ●
813 HARNESS; INJECTOR
6HK1-TCC ENG(81L),6HK1-TCN ENG(82L) (A) FRONT 		8-98204-717-0 01 1 1201- ● ●
813 HARNESS; INJECTOR
(B) REAR 		8-97602-749-2 01 1 0710-0711 ●
813 HARNESS; INJECTOR
(B) REAR 		8-97602-749-2 01 1 0712-0906 ●
813 HARNESS; INJECTOR
6HK1-TCN ENG(82L) (B) REAR 		8-97602-749-2 01 1 0712-0906 ●
813 HARNESS; INJECTOR
6HK1-TCC ENG(81L),6HK1-TCN ENG(82L) (B) REAR 		8-97602-749-2 01 1 0907-1008 ● ●
813 HARNESS; INJECTOR
(B) REAR 		8-98177-448-0 01 1 1009-1112 ●
813 HARNESS; INJECTOR
6HK1-TCN ENG(82L) (B) REAR 		8-98177-448-0 01 1 1009-1112 ●
813 HARNESS; INJECTOR
6HK1-TCC ENG(81L),6HK1-TCN ENG(82L) (B) REAR 		8-98204-718-0 01 1 1201- ● ●
836 BOLT; CONNECTOR
M8X12 FLANGE 		0-28050-812-0 02 1 1012- ●
836 BOLT; CONNECTOR
6HK1-TCN ENG(82L) M8X12 FLANGE 		0-28050-812-0 02 1 1012- ●
898 SENSOR; BOOST 8-98009-418-0 01 1 0710-0711 ●
898 SENSOR; BOOST 8-98009-418-0 01 1 0712- ●
898 SENSOR; BOOST
6HK1-TCN ENG(82L) 		8-98009-418-0 01 1 0712- ●

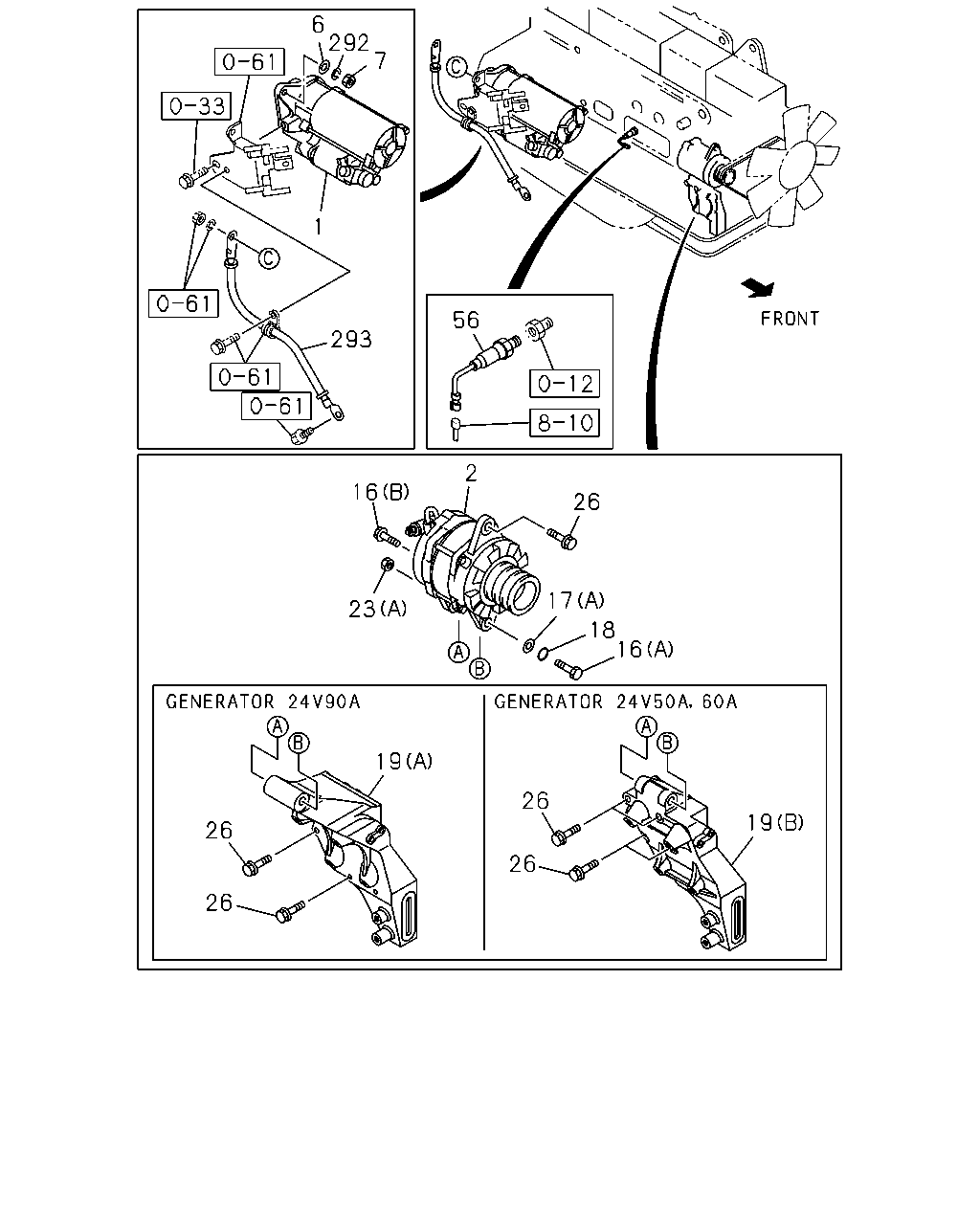

çizim 109032
6 292 7 1 56 293 2 16 26 17 23 18 16 19 26 19 26 26 26
BalonParca AdiParca NoAdetTipApplied Date A B
1 STARTER ASM
SEE FIG-NO 0-65 FOR COMPONENT. 24V 5.0KW MITSUBISHI 		8-98060-854-0 01 1 0710-0711 ●
1 STARTER ASM
SEE FIG-NO 0-65 FOR COMPONENT. 		8-98060-854-0 01 1 0712-0906 ●
1 STARTER ASM
SEE FIG-NO 0-65 FOR COMPONENT. 6HK1-TCN ENG(82L) 24V 5.0KW MITSUBISHI 		8-98060-854-0 01 1 0712-0906 ●
1 STARTER ASM
SEE FIG-NO 0-65 FOR COMPONENT. 6HK1-TCC ENG(81L),6HK1-TCN ENG(82L) 24V 5.0KW MITSUBISHI 		8-98060-854-0 01 1 0907-0909 ● ●
1 STARTER ASM
SEE FIG-NO 0-65 FOR COMPONENT. 		8-98141-206-3 01 1 0910- ●
1 STARTER ASM
SEE FIG-NO 0-65 FOR COMPONENT. 6HK1-TCN ENG(82L) 24V 5.0KW MITSUBISHI 		8-98141-206-3 01 1 0910- ●
1 STARTER ASM
SEE FIG-NO 0-65 FOR COMPONENT. 4HK1-TCS ENG(RJS) TRANSMISSION CONTROL-SMOOTHER DELETE(8GJ) 24V 4.5KW HITACHI 		8-98009-043-2 01 1 0712-1207 ●
1 STARTER ASM
SEE FIG-NO 0-65 FOR COMPONENT. 4HK1-TCS ENG(RJS) TRANSMISSION CONTROL-SMOOTHER DELETE(8GJ) 24V 4.5KW HITACHI 		8-98222-023-0 01 1 1208-1311 ●
1 STARTER ASM
SEE FIG-NO 0-65 FOR COMPONENT. 4HK1-TCS ENG(RJS) TRANSMISSION CONTROL-SMOOTHER DELETE(8GJ) 24V 4.5KW HITACHI 		8-98245-260-0 01 1 1312- ●
1 STARTER ASM
SEE FIG-NO 0-65 FOR COMPONENT. 4HK1-TCS ENG(RJS) TRANSMISSION CONTROL-SMOOTHER(8GF) 24V 4.5KW HITACHI 		8-97323-935-4 01 1 0712-1010 ●
1 STARTER ASM
SEE FIG-NO 0-65 FOR COMPONENT. 4HK1-TCS ENG(RJS) TRANSMISSION CONTROL-SMOOTHER(8GF) 24V 4.5KW HITACHI 		8-98179-204-1 01 1 1011-1207 ●
1 STARTER ASM
SEE FIG-NO 0-65 FOR COMPONENT. 4HK1-TCS ENG(RJS) TRANSMISSION CONTROL-SMOOTHER(8GF) 24V 4.5KW HITACHI 		8-98222-021-0 01 1 1208-1310 ●
1 STARTER ASM
SEE FIG-NO 0-65 FOR COMPONENT. 4HK1-TCS ENG(RJS) TRANSMISSION CONTROL-SMOOTHER(8GF) 24V 4.5KW HITACHI 		8-98245-258-0 01 1 1311- ●
2 GENERATOR ASM
SEE FIG-NO 0-66 FOR COMPONENT. 6HK1-TCC ENG(81L),6HK1-TCN ENG(82L) GENERATOR 24V50A(K89) 24V 50A NIKKO 		8-98013-461-1 01 1 0710-0711 ●
2 GENERATOR ASM
SEE FIG-NO 0-66 FOR COMPONENT. 6HK1-TCC ENG(81L),6HK1-TCN ENG(82L) GENERATOR 24V50A(K89) 24V 50A NIKKO 		8-98013-461-4 01 1 0712- ● ●
2 GENERATOR ASM
SEE FIG-NO 0-66 FOR COMPONENT. 6HK1-TCC ENG(81L),6HK1-TCN ENG(82L) GENERATOR 24V60A(KG2) 24V 60A NIKKO 		8-98013-462-1 01 1 0710-0711 ●
2 GENERATOR ASM
SEE FIG-NO 0-66 FOR COMPONENT. 6HK1-TCC ENG(81L),6HK1-TCN ENG(82L) GENERATOR 24V60A(KG2) 24V 60A NIKKO 		8-98013-462-4 01 1 0712- ● ●
2 GENERATOR ASM
SEE FIG-NO 0-66 FOR COMPONENT. 6HK1-TCC ENG(81L),6HK1-TCN ENG(82L) GENERATOR 24V90A(K44) 24V 90A NIKKO 		8-98013-463-0 01 1 0710-0711 ●
2 GENERATOR ASM
SEE FIG-NO 0-66 FOR COMPONENT. 6HK1-TCC ENG(81L),6HK1-TCN ENG(82L) GENERATOR 24V90A(K44) 24V 90A NIKKO 		8-98013-463-2 01 1 0712- ● ●
2 GENERATOR ASM
SEE FIG-NO 0-66 FOR COMPONENT. 4HK1-TCS ENG(RJS) GENERATOR 24V50A(K89) 24V 50A NIKKO 		8-98013-455-3 01 1 0712- ●
2 GENERATOR ASM
SEE FIG-NO 0-66 FOR COMPONENT. 4HK1-TCS ENG(RJS) GENERATOR 24V60A(KG2) 24V 60A NIKKO 		8-98013-456-3 01 1 0712- ●
2 GENERATOR ASM
SEE FIG-NO 0-66 FOR COMPONENT. 4HK1-TCS ENG(RJS) GENERATOR 24V90A(K44) 24V 90A NIKKO 		8-98013-459-3 01 1 0712- ●
6 WASHER; PL,STARTER
ID=15 		0-91610-514-0 01 1 0710-0711 ●
6 WASHER; PL,STARTER
ID=15 		0-91610-514-0 01 1 0712- ●
6 WASHER; PL,STARTER
6HK1-TCN ENG(82L) ID=15 		0-91610-514-0 01 1 0712- ●
7 NUT; STARTER
M14 		0-91110-514-0 02 1 0710-0711 ●
7 NUT; STARTER
M14 		0-91110-514-0 02 1 0712- ●
7 NUT; STARTER
6HK1-TCN ENG(82L) M14 		0-91110-514-0 02 1 0712- ●
16 BOLT; GEN
AIR CONDITIONER MANUAL CONTROL(C60),FULLAUTO AIR CONDITIONER(C68) (B) M6X10 FLANGE 		0-28050-610-0 02 1 0710-0711 ●
16 BOLT; GEN
AIR CONDITIONER MANUAL CONTROL(C60),FULLAUTO AIR CONDITIONER(C68) (B) M6X10 FLANGE 		0-28050-610-0 02 1 0712- ●
16 BOLT; GEN
6HK1-TCN ENG(82L) AIR CONDITIONER MANUAL CONTROL(C60) (B) M6X10 FLANGE 		0-28050-610-0 02 1 0712- ●
16 BOLT; GEN
EXC. AIR CONDITIONER MANUAL CONTROL(C60),FULLAUTO AIR CONDITIONER(C68) (B) M6X10 FLANGE 		0-28050-610-0 01 1 0710-0711 ●
16 BOLT; GEN
6HK1-TCC ENG(81L),6HK1-TCN ENG(82L) EXC. AIR CONDITIONER MANUAL CONTROL(C60),FULLAUTO AIR CONDITIONER(C68) (B) M6X10 FLANGE 		0-28050-610-0 01 1 0712- ● ●
16 BOLT; GEN
(A) M14X135 		1-09000-133-1 01 1 0710-0711 ●
16 BOLT; GEN
(A) M14X135 		1-09000-133-1 01 1 0712- ● ●
16 BOLT; GEN
4HK1-TCS ENG(RJS) GENERATOR 24V90A(K44) (C) M10X45 FLANGE 		0-28051-045-0 01 1 0712- ●
17 WASHER; PL,GEN
(A) ID=15 		0-91610-514-0 01 1 0710-0711 ●
17 WASHER; PL,GEN
(A) ID=15 		0-91610-514-0 01 1 0712-0712 ● ●
17 WASHER; PL,GEN
4HK1-TCS ENG(RJS) GENERATOR 24V90A(K44) (A) ID=15 		0-91610-514-0 01 1 0712-0712 ●
17 WASHER; PL,GEN
(A) ID=15 		0-91610-514-0 01 1 0712- ● ●
17 WASHER; PL,GEN
4HK1-TCS ENG(RJS) (B) ID=14.2 		0-91510-514-0 01 1 0712- ●
17 WASHER; PL,GEN
4HK1-TCS ENG(RJS) (C) ID=12.5 OD=32 		9-09160-712-0 01 1 0712-0804 ●
17 WASHER; PL,GEN
4HK1-TCS ENG(RJS) EXC. GENERATOR 24V90A(K44) (C) ID=12.5 OD=32 		9-09160-712-0 01 1 0805- ●
18 WASHER; LK,GEN
ID=14.2 		0-91510-514-0 01 1 0710-0711 ●
18 WASHER; LK,GEN
ID=14.2 		0-91510-514-0 01 1 0712- ●
18 WASHER; LK,GEN
6HK1-TCN ENG(82L) ID=14.2 		0-91510-514-0 01 1 0712- ●
19 BRACKET; GEN
GENERATOR 24V60A(KG2),GENERATOR 24V50A(K89) (B) 		8-97609-149-0 01 1 0710-0711 ●
19 BRACKET; GEN
6HK1-TCC ENG(81L),6HK1-TCN ENG(82L) GENERATOR 24V60A(KG2),GENERATOR 24V50A(K89) (B) 		8-97609-149-0 01 1 0712-0803 ● ●
19 BRACKET; GEN
6HK1-TCC ENG(81L),6HK1-TCN ENG(82L) GENERATOR 24V60A(KG2),GENERATOR 24V50A(K89) (B) 		8-98082-615-1 01 1 0804- ● ●
19 BRACKET; GEN
6HK1-TCC ENG(81L),6HK1-TCN ENG(82L) GENERATOR 24V90A(K44) (A) 		8-98082-617-0 01 1 0710-0711 ●
19 BRACKET; GEN
6HK1-TCC ENG(81L),6HK1-TCN ENG(82L) GENERATOR 24V90A(K44) (A) 		8-98082-617-0 01 1 0712- ● ●
19 BRACKET; GEN
4HK1-TCS ENG(RJS) GENERATOR 24V90A(K44) (C) 		8-98032-273-0 01 1 0712- ●
23 NUT; GEN
(A) M14 		0-91110-514-0 01 1 0710-0711 ●
23 NUT; GEN
(A) M14 		0-91110-514-0 01 1 0712- ● ●
23 NUT; GEN
4HK1-TCS ENG(RJS) (B) M12 FLANGE 		0-91180-112-0 01 1 0712-0804 ●
23 NUT; GEN
4HK1-TCS ENG(RJS) EXC. GENERATOR 24V90A(K44) (B) M12 FLANGE 		0-91180-112-0 01 1 0805- ●
23 NUT; GEN
4HK1-TCS ENG(RJS) GENERATOR 24V90A(K44) (C) M10 FLANGE 		8-97065-439-0 01 1 0712- ●
26 BOLT; GEN BRKT
M10X40 FLANGE 		0-28151-040-0 02 1 0710-0711 ●
26 BOLT; GEN BRKT
M10X40 FLANGE 		0-28151-040-0 02 1 0712- ●
26 BOLT; GEN BRKT
6HK1-TCN ENG(82L) M10X40 FLANGE 		0-28151-040-0 02 1 0712- ●
26 BOLT; GEN BRKT
M10X80 FLANGE 		0-28151-080-0 02 1 0710-0711 ●
26 BOLT; GEN BRKT
6HK1-TCC ENG(81L),6HK1-TCN ENG(82L) M10X80 FLANGE 		0-28151-080-0 02 1 0712-0712 ● ●
26 BOLT; GEN BRKT
4HK1-TCS ENG(RJS) GENERATOR 24V60A(KG2),GENERATOR 24V50A(K89) M10X80 FLANGE 		0-28151-080-0 02 1 0712-0712 ●
26 BOLT; GEN BRKT
M10X80 FLANGE 		0-28151-080-0 02 1 0801- ●
26 BOLT; GEN BRKT
6HK1-TCN ENG(82L) M10X80 FLANGE 		0-28151-080-0 02 1 0801- ●
26 BOLT; GEN BRKT
6HK1-TCC ENG(81L),6HK1-TCN ENG(82L) GENERATOR 24V90A(K44) M10X25 FLANGE 		0-28151-025-0 01 1 0710-0711 ●
26 BOLT; GEN BRKT
6HK1-TCC ENG(81L),6HK1-TCN ENG(82L) GENERATOR 24V90A(K44) M10X25 FLANGE 		0-28151-025-0 01 1 0712- ● ●
26 BOLT; GEN BRKT
6HK1-TCC ENG(81L),6HK1-TCN ENG(82L) GENERATOR 24V90A(K44) M10X135 		8-94397-139-1 01 1 0710-0711 ●
26 BOLT; GEN BRKT
6HK1-TCC ENG(81L),6HK1-TCN ENG(82L) GENERATOR 24V90A(K44) M10X135 		8-94397-139-1 01 1 0712- ● ●
26 BOLT; GEN BRKT
4HK1-TCS ENG(RJS) GENERATOR 24V60A(KG2),GENERATOR 24V50A(K89) M10X50 FLANGE 		0-28151-050-0 01 1 0712- ●
26 BOLT; GEN BRKT
4HK1-TCS ENG(RJS) GENERATOR 24V60A(KG2),GENERATOR 24V50A(K89) M10X70 FLANGE 		0-28151-070-0 02 1 0801- ●
26 BOLT; GEN BRKT
4HK1-TCS ENG(RJS) GENERATOR 24V90A(K44) M8X70 FLANGE 		0-28050-870-0 01 1 0712- ●
26 BOLT; GEN BRKT
4HK1-TCS ENG(RJS) GENERATOR 24V90A(K44) M8X90 FLANGE 		0-28050-890-0 02 1 0712-1004 ●
26 BOLT; GEN BRKT
4HK1-TCS ENG(RJS) GENERATOR 24V90A(K44) M10X60 FLANGE 		0-28151-060-0 02 1 0712- ●
26 BOLT; GEN BRKT
4HK1-TCS ENG(RJS) GENERATOR 24V90A(K44) M10X70 FLANGE 		0-28151-070-0 01 1 0712- ●
26 BOLT; GEN BRKT
4HK1-TCS ENG(RJS) GENERATOR 24V90A(K44) M10X25 FLANGE 		0-28751-025-0 02 1 0712-0803 ●
56 SWITCH; OIL PRESSURE WARNING 1-82410-170-1 01 1 0710-0711 ●
56 SWITCH; OIL PRESSURE WARNING 1-82410-170-1 01 1 0712- ●
56 SWITCH; OIL PRESSURE WARNING
6HK1-TCN ENG(82L) 		1-82410-170-1 01 1 0712- ●
292 WASHER; LK,STARTER
ID=14.2 		0-91510-514-0 01 1 0710-0711 ●
292 WASHER; LK,STARTER
ID=14.2 		0-91510-514-0 01 1 0712- ●
292 WASHER; LK,STARTER
6HK1-TCN ENG(82L) ID=14.2 		0-91510-514-0 01 1 0712- ●
293 CABLE; STARTER EARTH
L=530 		8-97621-354-0 01 1 0710-0710 ●
293 CABLE; STARTER EARTH
L=530 		8-98097-226-0 01 1 0711-0711 ●
293 CABLE; STARTER EARTH
L=530 		8-98097-226-0 01 1 0712- ●
293 CABLE; STARTER EARTH
6HK1-TCN ENG(82L) L=530 		8-98097-226-0 01 1 0712- ●
293 CABLE; STARTER EARTH
4HK1-TCS ENG(RJS) L=410 		8-97620-375-0 01 1 0712- ●

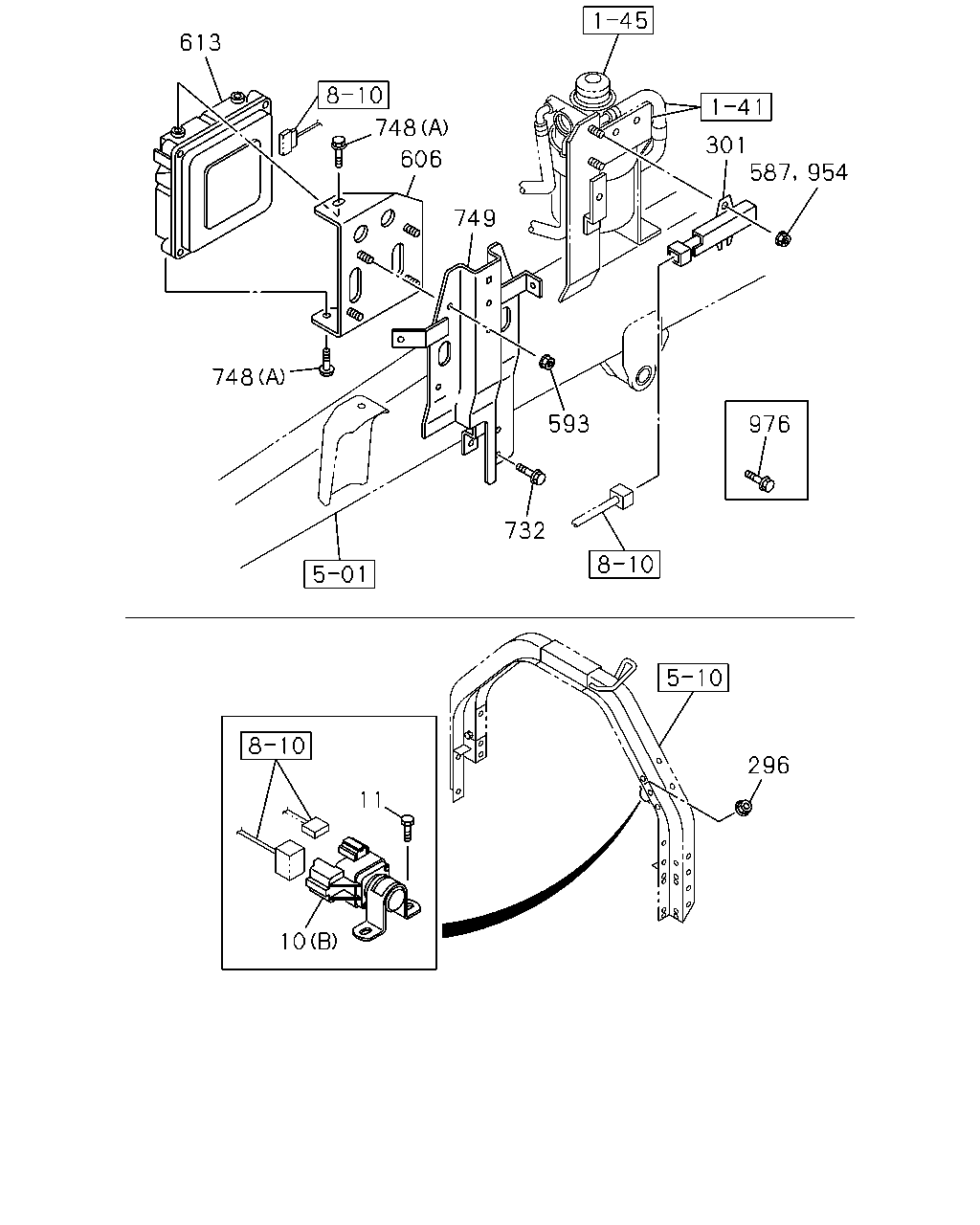

çizim 109034
613 748 301 587 606 954 749 748 593 976 732 296 11 10
BalonParca AdiParca NoAdetTipApplied Date A B
10 RELAY; STARTER
(A) 24V 10A PANASONIC 		8-97173-035-1 01 1 0710-0711 ●
10 RELAY; STARTER
(A) 24V 10A PANASONIC 		8-97173-035-1 01 1 0712-1005 ● ●
10 RELAY; STARTER
(A) 24V 10A 		8-98167-173-0 01 1 1006- ● ●
10 RELAY; STARTER
(B) 24V NIKKO 		8-98005-631-1 01 1 0710-0711 ●
10 RELAY; STARTER
(B) 24V NIKKO 		8-98005-631-1 01 1 0712- ●
10 RELAY; STARTER
6HK1-TCN ENG(82L) (B) 24V NIKKO 		8-98005-631-1 01 1 0712- ●
10 RELAY; STARTER
4HK1-TCS ENG(RJS) (C) 24V 50A 		8-97264-947-0 01 1 0712- ●
11 BOLT; RELAY STARTER
M8X20 FLANGE 		0-28650-820-0 02 1 0710-0711 ●
11 BOLT; RELAY STARTER
M8X20 FLANGE 		0-28650-820-0 02 1 0712- ●
11 BOLT; RELAY STARTER
6HK1-TCN ENG(82L) M8X20 FLANGE 		0-28650-820-0 02 1 0712- ●
296 NUT; RELAY,STARTER
M8 FLANGE 		0-91180-108-0 02 1 0710-0711 ●
296 NUT; RELAY,STARTER
M8 FLANGE 		0-91180-108-0 02 1 0712- ●
296 NUT; RELAY,STARTER
6HK1-TCN ENG(82L) M8 FLANGE 		0-91180-108-0 02 1 0712- ●
301 RESISTOR; DROPPING 8-97357-613-0 01 1 0710-0711 ●
301 RESISTOR; DROPPING 8-97357-613-0 01 1 0712- ● ●
587 NUT; RESISTOR & RELAY
M6 FLANGE 		0-91180-106-0 02 1 0710-0711 ●
587 NUT; RESISTOR & RELAY
M6 FLANGE 		0-91180-106-0 02 1 0712- ● ●
593 NUT; BRKT
M6 FLANGE 		0-91180-106-0 04 1 0710-0711 ●
593 NUT; BRKT
M6 FLANGE 		0-91180-106-0 04 1 0712- ● ●
606 BRACKET; CONT UNIT 1-53194-675-0 01 1 0710-0711 ●
606 BRACKET; CONT UNIT 1-53194-675-0 01 1 0712- ● ●
613 CONTROL UNIT; ENG
6HK1-TCC ENG(81L) AUTO CRUISE<K30> TRANSMISSION CONTROL-SMOOTHER DELETE(8GJ) 		8-98160-227-0 01 1 0911-1004 ●
613 CONTROL UNIT; ENG
6HK1-TCC ENG(81L) AUTO CRUISE<K30> TRANSMISSION CONTROL-SMOOTHER DELETE(8GJ) 		8-98163-639-1 01 1 1005- ●
613 CONTROL UNIT; ENG
6HK1-TCC ENG(81L) AUTO CRUISE<K30> TRANSMISSION CONTROL-SMOOTHER(8GF) 		8-98074-897-2 01 1 0710-0804 ●
613 CONTROL UNIT; ENG
6HK1-TCC ENG(81L) AUTO CRUISE<K30> TRANSMISSION CONTROL-SMOOTHER(8GF) 		8-98105-576-2 01 1 0805-1004 ●
613 CONTROL UNIT; ENG
6HK1-TCC ENG(81L) AUTO CRUISE<K30> TRANSMISSION CONTROL-SMOOTHER(8GF) 		8-98163-631-1 01 1 1005- ●
613 CONTROL UNIT; ENG
6HK1-TCC ENG(81L) TRANSMISSION CONTROL-SMOOTHER DELETE(8GJ) EXC. AUTO CRUISE<K30> 		8-98074-892-2 01 1 0710-0804 ●
613 CONTROL UNIT; ENG
6HK1-TCC ENG(81L) TRANSMISSION CONTROL-SMOOTHER DELETE(8GJ) EXC. AUTO CRUISE<K30> 		8-98105-571-1 01 1 0805-1004 ●
613 CONTROL UNIT; ENG
6HK1-TCC ENG(81L) TRANSMISSION CONTROL-SMOOTHER DELETE(8GJ) EXC. AUTO CRUISE<K30> 		8-98163-626-1 01 1 1005- ●
613 CONTROL UNIT; ENG
6HK1-TCC ENG(81L) TRANSMISSION CONTROL-SMOOTHER(8GF) EXC. AUTO CRUISE<K30> 		8-98074-895-2 01 1 0710-0804 ●
613 CONTROL UNIT; ENG
6HK1-TCC ENG(81L) TRANSMISSION CONTROL-SMOOTHER(8GF) EXC. AUTO CRUISE<K30> 		8-98105-574-1 01 1 0805-1004 ●
613 CONTROL UNIT; ENG
6HK1-TCC ENG(81L) TRANSMISSION CONTROL-SMOOTHER(8GF) EXC. AUTO CRUISE<K30> 		8-98163-629-0 01 1 1005- ●
613 CONTROL UNIT; ENG
6HK1-TCN ENG(82L) AUTO CRUISE<K30> TRANSMISSION CONTROL-SMOOTHER DELETE(8GJ) 		8-98160-226-0 01 1 0911-0911 ●
613 CONTROL UNIT; ENG
6HK1-TCN ENG(82L) AUTO CRUISE<K30> TRANSMISSION CONTROL-SMOOTHER DELETE(8GJ) 		8-98160-225-0 01 1 0911-1004 ●
613 CONTROL UNIT; ENG
6HK1-TCN ENG(82L) AUTO CRUISE<K30> TRANSMISSION CONTROL-SMOOTHER DELETE(8GJ) 		8-98163-637-1 01 1 1005- ●
613 CONTROL UNIT; ENG
6HK1-TCN ENG(82L) AUTO CRUISE<K30> TRANSMISSION CONTROL-SMOOTHER(8GF) 		8-98074-875-2 01 1 0710-0804 ●
613 CONTROL UNIT; ENG
6HK1-TCN ENG(82L) AUTO CRUISE<K30> TRANSMISSION CONTROL-SMOOTHER(8GF) 		8-98105-551-2 01 1 0805-1004 ●
613 CONTROL UNIT; ENG
6HK1-TCN ENG(82L) AUTO CRUISE<K30> TRANSMISSION CONTROL-SMOOTHER(8GF) 		8-98163-606-1 01 1 1005- ●
613 CONTROL UNIT; ENG
6HK1-TCN ENG(82L) TRANSMISSION CONTROL-SMOOTHER DELETE(8GJ) EXC. AUTO CRUISE<K30> 		8-98074-869-2 01 1 0710-0804 ●
613 CONTROL UNIT; ENG
6HK1-TCN ENG(82L) TRANSMISSION CONTROL-SMOOTHER DELETE(8GJ) EXC. AUTO CRUISE<K30> 		8-98105-546-1 01 1 0805-1004 ●
613 CONTROL UNIT; ENG
6HK1-TCN ENG(82L) TRANSMISSION CONTROL-SMOOTHER DELETE(8GJ) EXC. AUTO CRUISE<K30> 		8-98163-601-1 01 1 1005- ●
613 CONTROL UNIT; ENG
6HK1-TCN ENG(82L) TRANSMISSION CONTROL-SMOOTHER(8GF) EXC. AUTO CRUISE<K30> 		8-98074-877-2 01 1 0710-0804 ●
613 CONTROL UNIT; ENG
6HK1-TCN ENG(82L) TRANSMISSION CONTROL-SMOOTHER(8GF) EXC. AUTO CRUISE<K30> 		8-98105-553-1 01 1 0805-1004 ●
613 CONTROL UNIT; ENG
6HK1-TCN ENG(82L) TRANSMISSION CONTROL-SMOOTHER(8GF) EXC. AUTO CRUISE<K30> 		8-98163-608-1 01 1 1005- ●
613 CONTROL UNIT; ENG
4HK1-TCS ENG(RJS) AUTO CRUISE<K30> TRANSMISSION CONTROL-SMOOTHER DELETE(8GJ) 		8-98160-224-1 01 1 0911- ●
613 CONTROL UNIT; ENG
4HK1-TCS ENG(RJS) AUTO CRUISE<K30> TRANSMISSION CONTROL-SMOOTHER(8GF) 		8-98081-125-5 01 1 0712- ●
613 CONTROL UNIT; ENG
4HK1-TCS ENG(RJS) TRANSMISSION CONTROL-SMOOTHER DELETE(8GJ) EXC. AUTO CRUISE<K30> 		8-98081-123-4 01 1 0712- ●
613 CONTROL UNIT; ENG
4HK1-TCS ENG(RJS) TRANSMISSION CONTROL-SMOOTHER(8GF) EXC. AUTO CRUISE<K30> 		8-98081-124-4 01 1 0712- ●
613 CONTROL UNIT; ENG
6HK1-TCN ENG(82L) AUTO CRUISE<K30> TRANSMISSION CONTROL-SMOOTHER(8GF) 		8-98074-876-2 01 1 0712-0804 ●
613 CONTROL UNIT; ENG
6HK1-TCN ENG(82L) AUTO CRUISE<K30> TRANSMISSION CONTROL-SMOOTHER(8GF) 		8-98105-552-2 01 1 0805-1004 ●
613 CONTROL UNIT; ENG
6HK1-TCN ENG(82L) AUTO CRUISE<K30> TRANSMISSION CONTROL-SMOOTHER(8GF) 		8-98163-607-1 01 1 1005- ●
613 CONTROL UNIT; ENG
6HK1-TCN ENG(82L) TRANSMISSION CONTROL-SMOOTHER DELETE(8GJ) EXC. AUTO CRUISE<K30> 		8-98074-874-2 01 1 0712-0804 ●
613 CONTROL UNIT; ENG
6HK1-TCN ENG(82L) TRANSMISSION CONTROL-SMOOTHER DELETE(8GJ) EXC. AUTO CRUISE<K30> 		8-98105-548-1 01 1 0805-1004 ●
613 CONTROL UNIT; ENG
6HK1-TCN ENG(82L) TRANSMISSION CONTROL-SMOOTHER DELETE(8GJ) EXC. AUTO CRUISE<K30> 		8-98163-603-1 01 1 1005- ●
613 CONTROL UNIT; ENG
6HK1-TCN ENG(82L) TRANSMISSION CONTROL-SMOOTHER DELETE(8GJ) AUTO CRUISE<K30> 		8-98160-225-0 01 1 0911-0911 ●
613 CONTROL UNIT; ENG
6HK1-TCN ENG(82L) TRANSMISSION CONTROL-SMOOTHER DELETE(8GJ) AUTO CRUISE<K30> 		8-98160-226-0 01 1 0911-1004 ●
613 CONTROL UNIT; ENG
6HK1-TCN ENG(82L) TRANSMISSION CONTROL-SMOOTHER DELETE(8GJ) AUTO CRUISE<K30> 		8-98163-638-1 01 1 1005- ●
613 CONTROL UNIT; ENG
6HK1-TCN ENG(82L) TRANSMISSION CONTROL-SMOOTHER(8GF) EXC. AUTO CRUISE<K30> 		8-98074-878-2 01 1 0712-0804 ●
613 CONTROL UNIT; ENG
6HK1-TCN ENG(82L) TRANSMISSION CONTROL-SMOOTHER(8GF) EXC. AUTO CRUISE<K30> 		8-98105-554-1 01 1 0805-1004 ●
613 CONTROL UNIT; ENG
6HK1-TCN ENG(82L) TRANSMISSION CONTROL-SMOOTHER(8GF) EXC. AUTO CRUISE<K30> 		8-98163-609-0 01 1 1005- ●
732 BOLT; BRKT
M10X30 FLANGE 		0-28651-030-0 03 1 0710-0711 ●
732 BOLT; BRKT
M10X30 FLANGE 		0-28651-030-0 03 1 0712- ● ●
748 BOLT; CONT UNIT
(A) M6X12 FLANGE 		0-28050-612-0 03 1 0710-0711 ●
748 BOLT; CONT UNIT
(A) M6X12 FLANGE 		0-28050-612-0 03 1 0712- ● ●
748 BOLT; CONT UNIT
EXC. MULTI INFORMATION DISPLAY<7NY> (B) M6X16 FLANGE 		0-28650-616-0 02 1 0710-0711 ●
748 BOLT; CONT UNIT
EXC. MULTI INFORMATION DISPLAY<7NY> (B) M6X16 FLANGE 		0-28650-616-0 02 1 0712- ● ●
749 STAY; CONT UNIT 1-53194-595-3 01 1 0710-0711 ●
749 STAY; CONT UNIT 1-53194-595-3 01 1 0712- ●
749 STAY; CONT UNIT
6HK1-TCN ENG(82L) 		1-53194-595-3 01 1 0712- ●
749 STAY; CONT UNIT
4HK1-TCS ENG(RJS) 		1-53194-596-3 01 1 0712- ●
954 NUT; RESISTOR
M6 FLANGE 		0-91180-106-0 02 1 0710-0711 ●
954 NUT; RESISTOR
M6 FLANGE 		0-91180-106-0 02 1 0712-0906 ● ●
976 BOLT; RESISTOR
M6X20 FLANGE 		0-28050-620-0 02 1 0710-0711 ●
976 BOLT; RESISTOR
M6X20 FLANGE 		0-28050-620-0 02 1 0712-0906 ● ●

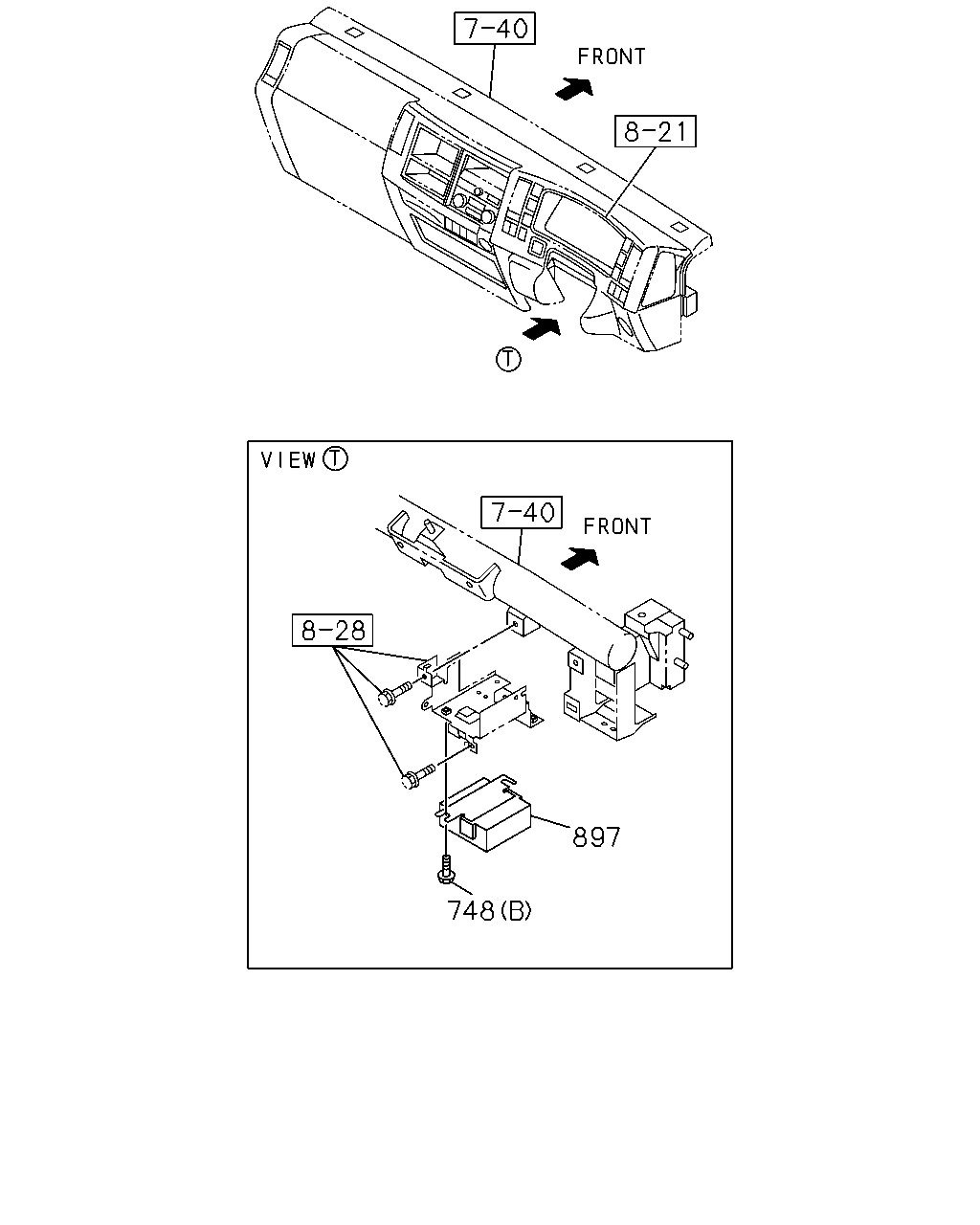

çizim 109036
897 748
BalonParca AdiParca NoAdetTipApplied Date A B
748 BOLT; CONT UNIT
(A) M6X12 FLANGE 		0-28050-612-0 03 1 0710-0711 ●
748 BOLT; CONT UNIT
(A) M6X12 FLANGE 		0-28050-612-0 03 1 0712- ● ●
748 BOLT; CONT UNIT
EXC. MULTI INFORMATION DISPLAY<7NY> (B) M6X16 FLANGE 		0-28650-616-0 02 1 0710-0711 ●
748 BOLT; CONT UNIT
EXC. MULTI INFORMATION DISPLAY<7NY> (B) M6X16 FLANGE 		0-28650-616-0 02 1 0712- ● ●
897 DRM
EXC. MULTI INFORMATION DISPLAY<7NY> 		8-98013-144-8 01 1 0710-0711 ●
897 DRM
EXC. MULTI INFORMATION DISPLAY<7NY> 		8-98013-144-8 01 1 0712-1401 ● ●
897 DRM
EXC. MULTI INFORMATION DISPLAY<7NY> 		8-98260-912-0 01 1 1402- ● ●

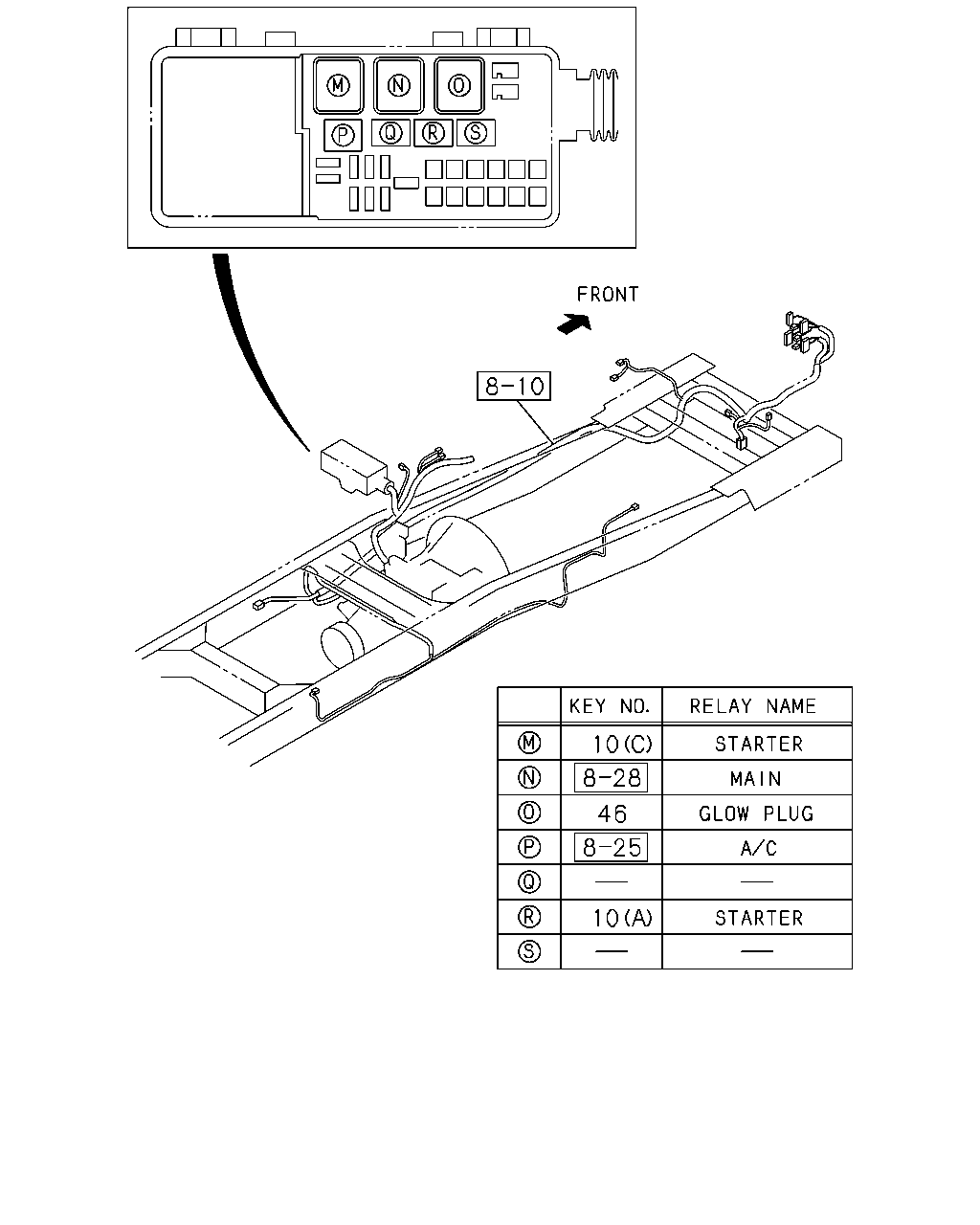

çizim 109037
10 46 10
BalonParca AdiParca NoAdetTipApplied Date A B
10 RELAY; STARTER
(A) 24V 10A PANASONIC 		8-97173-035-1 01 1 0710-0711 ●
10 RELAY; STARTER
(A) 24V 10A PANASONIC 		8-97173-035-1 01 1 0712-1005 ● ●
10 RELAY; STARTER
(A) 24V 10A 		8-98167-173-0 01 1 1006- ● ●
10 RELAY; STARTER
(B) 24V NIKKO 		8-98005-631-1 01 1 0710-0711 ●
10 RELAY; STARTER
(B) 24V NIKKO 		8-98005-631-1 01 1 0712- ●
10 RELAY; STARTER
6HK1-TCN ENG(82L) (B) 24V NIKKO 		8-98005-631-1 01 1 0712- ●
10 RELAY; STARTER
4HK1-TCS ENG(RJS) (C) 24V 50A 		8-97264-947-0 01 1 0712- ●
46 RELAY; GLOW PLUG
24V 50A 		8-97173-947-0 01 1 0710-0711 ●
46 RELAY; GLOW PLUG
24V 50A 		8-97173-947-0 01 1 0712- ● ●

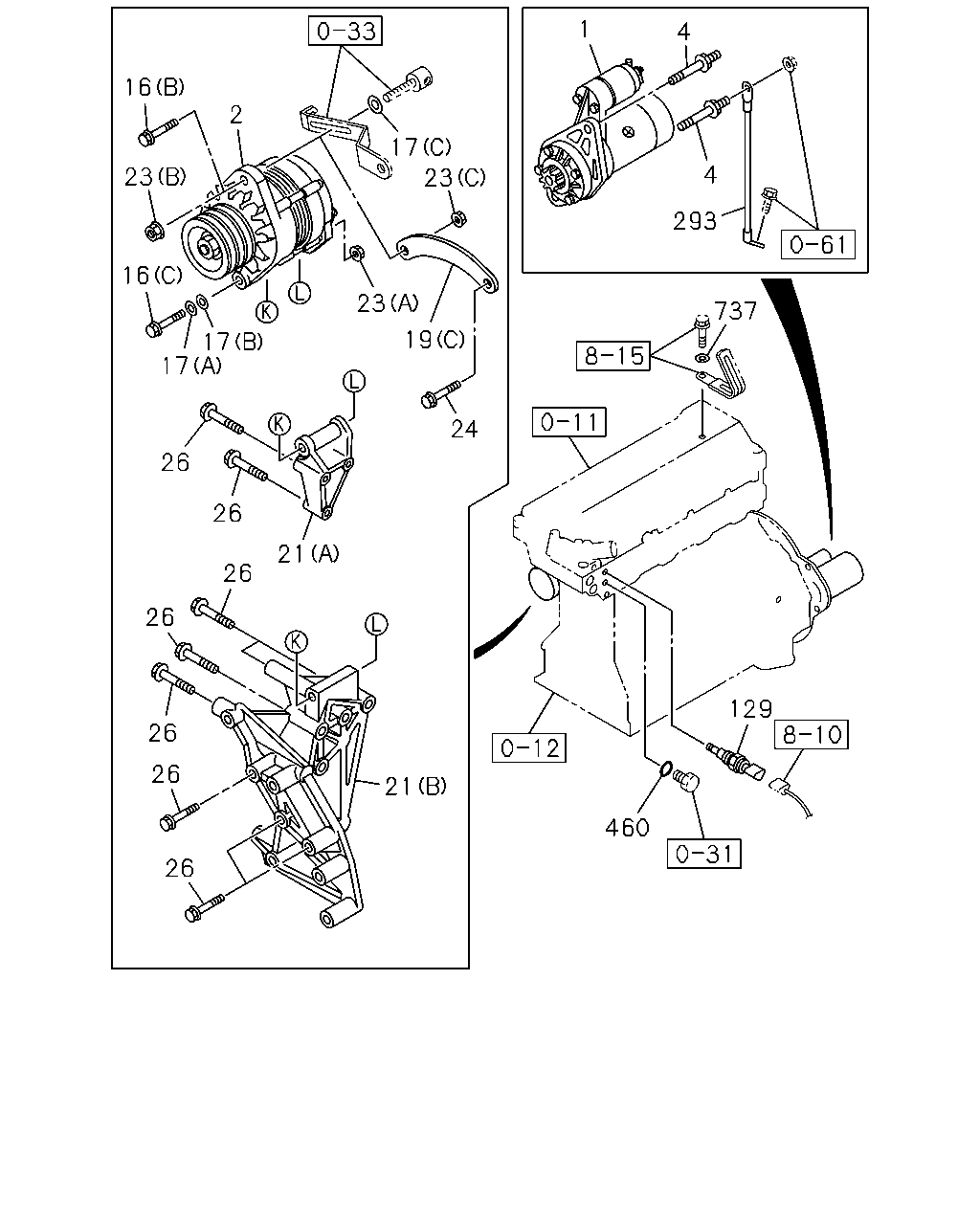

çizim 109039
1 4 16 2 17 4 23 23 293 16 23 737 19 17 17 24 26 26 21 26 26 129 26 26 21 460 26
BalonParca AdiParca NoAdetTipApplied Date A B
1 STARTER ASM
SEE FIG-NO 0-65 FOR COMPONENT. 24V 5.0KW MITSUBISHI 		8-98060-854-0 01 1 0710-0711 ●
1 STARTER ASM
SEE FIG-NO 0-65 FOR COMPONENT. 		8-98060-854-0 01 1 0712-0906 ●
1 STARTER ASM
SEE FIG-NO 0-65 FOR COMPONENT. 6HK1-TCN ENG(82L) 24V 5.0KW MITSUBISHI 		8-98060-854-0 01 1 0712-0906 ●
1 STARTER ASM
SEE FIG-NO 0-65 FOR COMPONENT. 6HK1-TCC ENG(81L),6HK1-TCN ENG(82L) 24V 5.0KW MITSUBISHI 		8-98060-854-0 01 1 0907-0909 ● ●
1 STARTER ASM
SEE FIG-NO 0-65 FOR COMPONENT. 		8-98141-206-3 01 1 0910- ●
1 STARTER ASM
SEE FIG-NO 0-65 FOR COMPONENT. 6HK1-TCN ENG(82L) 24V 5.0KW MITSUBISHI 		8-98141-206-3 01 1 0910- ●
1 STARTER ASM
SEE FIG-NO 0-65 FOR COMPONENT. 4HK1-TCS ENG(RJS) TRANSMISSION CONTROL-SMOOTHER DELETE(8GJ) 24V 4.5KW HITACHI 		8-98009-043-2 01 1 0712-1207 ●
1 STARTER ASM
SEE FIG-NO 0-65 FOR COMPONENT. 4HK1-TCS ENG(RJS) TRANSMISSION CONTROL-SMOOTHER DELETE(8GJ) 24V 4.5KW HITACHI 		8-98222-023-0 01 1 1208-1311 ●
1 STARTER ASM
SEE FIG-NO 0-65 FOR COMPONENT. 4HK1-TCS ENG(RJS) TRANSMISSION CONTROL-SMOOTHER DELETE(8GJ) 24V 4.5KW HITACHI 		8-98245-260-0 01 1 1312- ●
1 STARTER ASM
SEE FIG-NO 0-65 FOR COMPONENT. 4HK1-TCS ENG(RJS) TRANSMISSION CONTROL-SMOOTHER(8GF) 24V 4.5KW HITACHI 		8-97323-935-4 01 1 0712-1010 ●
1 STARTER ASM
SEE FIG-NO 0-65 FOR COMPONENT. 4HK1-TCS ENG(RJS) TRANSMISSION CONTROL-SMOOTHER(8GF) 24V 4.5KW HITACHI 		8-98179-204-1 01 1 1011-1207 ●
1 STARTER ASM
SEE FIG-NO 0-65 FOR COMPONENT. 4HK1-TCS ENG(RJS) TRANSMISSION CONTROL-SMOOTHER(8GF) 24V 4.5KW HITACHI 		8-98222-021-0 01 1 1208-1310 ●
1 STARTER ASM
SEE FIG-NO 0-65 FOR COMPONENT. 4HK1-TCS ENG(RJS) TRANSMISSION CONTROL-SMOOTHER(8GF) 24V 4.5KW HITACHI 		8-98245-258-0 01 1 1311- ●
2 GENERATOR ASM
SEE FIG-NO 0-66 FOR COMPONENT. 6HK1-TCC ENG(81L),6HK1-TCN ENG(82L) GENERATOR 24V50A(K89) 24V 50A NIKKO 		8-98013-461-1 01 1 0710-0711 ●
2 GENERATOR ASM
SEE FIG-NO 0-66 FOR COMPONENT. 6HK1-TCC ENG(81L),6HK1-TCN ENG(82L) GENERATOR 24V50A(K89) 24V 50A NIKKO 		8-98013-461-4 01 1 0712- ● ●
2 GENERATOR ASM
SEE FIG-NO 0-66 FOR COMPONENT. 6HK1-TCC ENG(81L),6HK1-TCN ENG(82L) GENERATOR 24V60A(KG2) 24V 60A NIKKO 		8-98013-462-1 01 1 0710-0711 ●
2 GENERATOR ASM
SEE FIG-NO 0-66 FOR COMPONENT. 6HK1-TCC ENG(81L),6HK1-TCN ENG(82L) GENERATOR 24V60A(KG2) 24V 60A NIKKO 		8-98013-462-4 01 1 0712- ● ●
2 GENERATOR ASM
SEE FIG-NO 0-66 FOR COMPONENT. 6HK1-TCC ENG(81L),6HK1-TCN ENG(82L) GENERATOR 24V90A(K44) 24V 90A NIKKO 		8-98013-463-0 01 1 0710-0711 ●
2 GENERATOR ASM
SEE FIG-NO 0-66 FOR COMPONENT. 6HK1-TCC ENG(81L),6HK1-TCN ENG(82L) GENERATOR 24V90A(K44) 24V 90A NIKKO 		8-98013-463-2 01 1 0712- ● ●
2 GENERATOR ASM
SEE FIG-NO 0-66 FOR COMPONENT. 4HK1-TCS ENG(RJS) GENERATOR 24V50A(K89) 24V 50A NIKKO 		8-98013-455-3 01 1 0712- ●
2 GENERATOR ASM
SEE FIG-NO 0-66 FOR COMPONENT. 4HK1-TCS ENG(RJS) GENERATOR 24V60A(KG2) 24V 60A NIKKO 		8-98013-456-3 01 1 0712- ●
2 GENERATOR ASM
SEE FIG-NO 0-66 FOR COMPONENT. 4HK1-TCS ENG(RJS) GENERATOR 24V90A(K44) 24V 90A NIKKO 		8-98013-459-3 01 1 0712- ●
4 BOLT; STARTER
4HK1-TCS ENG(RJS) M10X15,M14X82 L=110 		8-98029-095-0 02 1 0712- ●
16 BOLT; GEN
AIR CONDITIONER MANUAL CONTROL(C60),FULLAUTO AIR CONDITIONER(C68) (B) M6X10 FLANGE 		0-28050-610-0 02 1 0710-0711 ●
16 BOLT; GEN
AIR CONDITIONER MANUAL CONTROL(C60),FULLAUTO AIR CONDITIONER(C68) (B) M6X10 FLANGE 		0-28050-610-0 02 1 0712- ●
16 BOLT; GEN
6HK1-TCN ENG(82L) AIR CONDITIONER MANUAL CONTROL(C60) (B) M6X10 FLANGE 		0-28050-610-0 02 1 0712- ●
16 BOLT; GEN
EXC. AIR CONDITIONER MANUAL CONTROL(C60),FULLAUTO AIR CONDITIONER(C68) (B) M6X10 FLANGE 		0-28050-610-0 01 1 0710-0711 ●
16 BOLT; GEN
6HK1-TCC ENG(81L),6HK1-TCN ENG(82L) EXC. AIR CONDITIONER MANUAL CONTROL(C60),FULLAUTO AIR CONDITIONER(C68) (B) M6X10 FLANGE 		0-28050-610-0 01 1 0712- ● ●
16 BOLT; GEN
(A) M14X135 		1-09000-133-1 01 1 0710-0711 ●
16 BOLT; GEN
(A) M14X135 		1-09000-133-1 01 1 0712- ● ●
16 BOLT; GEN
4HK1-TCS ENG(RJS) GENERATOR 24V90A(K44) (C) M10X45 FLANGE 		0-28051-045-0 01 1 0712- ●
17 WASHER; PL,GEN
(A) ID=15 		0-91610-514-0 01 1 0710-0711 ●
17 WASHER; PL,GEN
(A) ID=15 		0-91610-514-0 01 1 0712-0712 ● ●
17 WASHER; PL,GEN
4HK1-TCS ENG(RJS) GENERATOR 24V90A(K44) (A) ID=15 		0-91610-514-0 01 1 0712-0712 ●
17 WASHER; PL,GEN
(A) ID=15 		0-91610-514-0 01 1 0712- ● ●
17 WASHER; PL,GEN
4HK1-TCS ENG(RJS) (B) ID=14.2 		0-91510-514-0 01 1 0712- ●
17 WASHER; PL,GEN
4HK1-TCS ENG(RJS) (C) ID=12.5 OD=32 		9-09160-712-0 01 1 0712-0804 ●
17 WASHER; PL,GEN
4HK1-TCS ENG(RJS) EXC. GENERATOR 24V90A(K44) (C) ID=12.5 OD=32 		9-09160-712-0 01 1 0805- ●
19 BRACKET; GEN
GENERATOR 24V60A(KG2),GENERATOR 24V50A(K89) (B) 		8-97609-149-0 01 1 0710-0711 ●
19 BRACKET; GEN
6HK1-TCC ENG(81L),6HK1-TCN ENG(82L) GENERATOR 24V60A(KG2),GENERATOR 24V50A(K89) (B) 		8-97609-149-0 01 1 0712-0803 ● ●
19 BRACKET; GEN
6HK1-TCC ENG(81L),6HK1-TCN ENG(82L) GENERATOR 24V60A(KG2),GENERATOR 24V50A(K89) (B) 		8-98082-615-1 01 1 0804- ● ●
19 BRACKET; GEN
6HK1-TCC ENG(81L),6HK1-TCN ENG(82L) GENERATOR 24V90A(K44) (A) 		8-98082-617-0 01 1 0710-0711 ●
19 BRACKET; GEN
6HK1-TCC ENG(81L),6HK1-TCN ENG(82L) GENERATOR 24V90A(K44) (A) 		8-98082-617-0 01 1 0712- ● ●
19 BRACKET; GEN
4HK1-TCS ENG(RJS) GENERATOR 24V90A(K44) (C) 		8-98032-273-0 01 1 0712- ●
21 BRACKET; GEN
4HK1-TCS ENG(RJS) GENERATOR 24V60A(KG2),GENERATOR 24V50A(K89) (A) 		8-97381-404-0 01 1 0712- ●
21 BRACKET; GEN
4HK1-TCS ENG(RJS) GENERATOR 24V90A(K44) (B) 		8-98032-271-1 01 1 0712-1004 ●
21 BRACKET; GEN
4HK1-TCS ENG(RJS) GENERATOR 24V90A(K44) (B) 		8-98075-340-0 01 1 1005- ●
23 NUT; GEN
(A) M14 		0-91110-514-0 01 1 0710-0711 ●
23 NUT; GEN
(A) M14 		0-91110-514-0 01 1 0712- ● ●
23 NUT; GEN
4HK1-TCS ENG(RJS) (B) M12 FLANGE 		0-91180-112-0 01 1 0712-0804 ●
23 NUT; GEN
4HK1-TCS ENG(RJS) EXC. GENERATOR 24V90A(K44) (B) M12 FLANGE 		0-91180-112-0 01 1 0805- ●
23 NUT; GEN
4HK1-TCS ENG(RJS) GENERATOR 24V90A(K44) (C) M10 FLANGE 		8-97065-439-0 01 1 0712- ●
24 BOLT; GEN BRKT
4HK1-TCS ENG(RJS) GENERATOR 24V90A(K44) M10X20 FLANGE 		0-28151-020-0 02 1 0712-0804 ●
24 BOLT; GEN BRKT
4HK1-TCS ENG(RJS) GENERATOR 24V90A(K44) M10X20 FLANGE 		0-28151-020-0 01 1 0805- ●
26 BOLT; GEN BRKT
M10X40 FLANGE 		0-28151-040-0 02 1 0710-0711 ●
26 BOLT; GEN BRKT
M10X40 FLANGE 		0-28151-040-0 02 1 0712- ●
26 BOLT; GEN BRKT
6HK1-TCN ENG(82L) M10X40 FLANGE 		0-28151-040-0 02 1 0712- ●
26 BOLT; GEN BRKT
M10X80 FLANGE 		0-28151-080-0 02 1 0710-0711 ●
26 BOLT; GEN BRKT
6HK1-TCC ENG(81L),6HK1-TCN ENG(82L) M10X80 FLANGE 		0-28151-080-0 02 1 0712-0712 ● ●
26 BOLT; GEN BRKT
4HK1-TCS ENG(RJS) GENERATOR 24V60A(KG2),GENERATOR 24V50A(K89) M10X80 FLANGE 		0-28151-080-0 02 1 0712-0712 ●
26 BOLT; GEN BRKT
M10X80 FLANGE 		0-28151-080-0 02 1 0801- ●
26 BOLT; GEN BRKT
6HK1-TCN ENG(82L) M10X80 FLANGE 		0-28151-080-0 02 1 0801- ●
26 BOLT; GEN BRKT
6HK1-TCC ENG(81L),6HK1-TCN ENG(82L) GENERATOR 24V90A(K44) M10X25 FLANGE 		0-28151-025-0 01 1 0710-0711 ●
26 BOLT; GEN BRKT
6HK1-TCC ENG(81L),6HK1-TCN ENG(82L) GENERATOR 24V90A(K44) M10X25 FLANGE 		0-28151-025-0 01 1 0712- ● ●
26 BOLT; GEN BRKT
6HK1-TCC ENG(81L),6HK1-TCN ENG(82L) GENERATOR 24V90A(K44) M10X135 		8-94397-139-1 01 1 0710-0711 ●
26 BOLT; GEN BRKT
6HK1-TCC ENG(81L),6HK1-TCN ENG(82L) GENERATOR 24V90A(K44) M10X135 		8-94397-139-1 01 1 0712- ● ●
26 BOLT; GEN BRKT
4HK1-TCS ENG(RJS) GENERATOR 24V60A(KG2),GENERATOR 24V50A(K89) M10X50 FLANGE 		0-28151-050-0 01 1 0712- ●
26 BOLT; GEN BRKT
4HK1-TCS ENG(RJS) GENERATOR 24V60A(KG2),GENERATOR 24V50A(K89) M10X70 FLANGE 		0-28151-070-0 02 1 0801- ●
26 BOLT; GEN BRKT
4HK1-TCS ENG(RJS) GENERATOR 24V90A(K44) M8X70 FLANGE 		0-28050-870-0 01 1 0712- ●
26 BOLT; GEN BRKT
4HK1-TCS ENG(RJS) GENERATOR 24V90A(K44) M8X90 FLANGE 		0-28050-890-0 02 1 0712-1004 ●
26 BOLT; GEN BRKT
4HK1-TCS ENG(RJS) GENERATOR 24V90A(K44) M10X60 FLANGE 		0-28151-060-0 02 1 0712- ●
26 BOLT; GEN BRKT
4HK1-TCS ENG(RJS) GENERATOR 24V90A(K44) M10X70 FLANGE 		0-28151-070-0 01 1 0712- ●
26 BOLT; GEN BRKT
4HK1-TCS ENG(RJS) GENERATOR 24V90A(K44) M10X25 FLANGE 		0-28751-025-0 02 1 0712-0803 ●
129 SENSOR; GLOW PLUG,THERMO
4HK1-TCS ENG(RJS) MITSUBISHI 		8-98023-883-0 01 1 0712- ●
293 CABLE; STARTER EARTH
L=530 		8-97621-354-0 01 1 0710-0710 ●
293 CABLE; STARTER EARTH
L=530 		8-98097-226-0 01 1 0711-0711 ●
293 CABLE; STARTER EARTH
L=530 		8-98097-226-0 01 1 0712- ●
293 CABLE; STARTER EARTH
6HK1-TCN ENG(82L) L=530 		8-98097-226-0 01 1 0712- ●
293 CABLE; STARTER EARTH
4HK1-TCS ENG(RJS) L=410 		8-97620-375-0 01 1 0712- ●
460 GASKET; PLUG
ALSO INCLUDED IN GASKET SET(ENGINE). 4HK1-TCS ENG(RJS) ID=16.2 		1-09630-086-0 01 1 0712- ●
737 WASHER; PL
4HK1-TCS ENG(RJS) ID=6.4 OD=18 		0-91610-706-0 01 1 1005-1009 ●
737 WASHER; PL
4HK1-TCS ENG(RJS) ID=6.4 OD=18 		0-91610-706-0 02 1 1010- ●

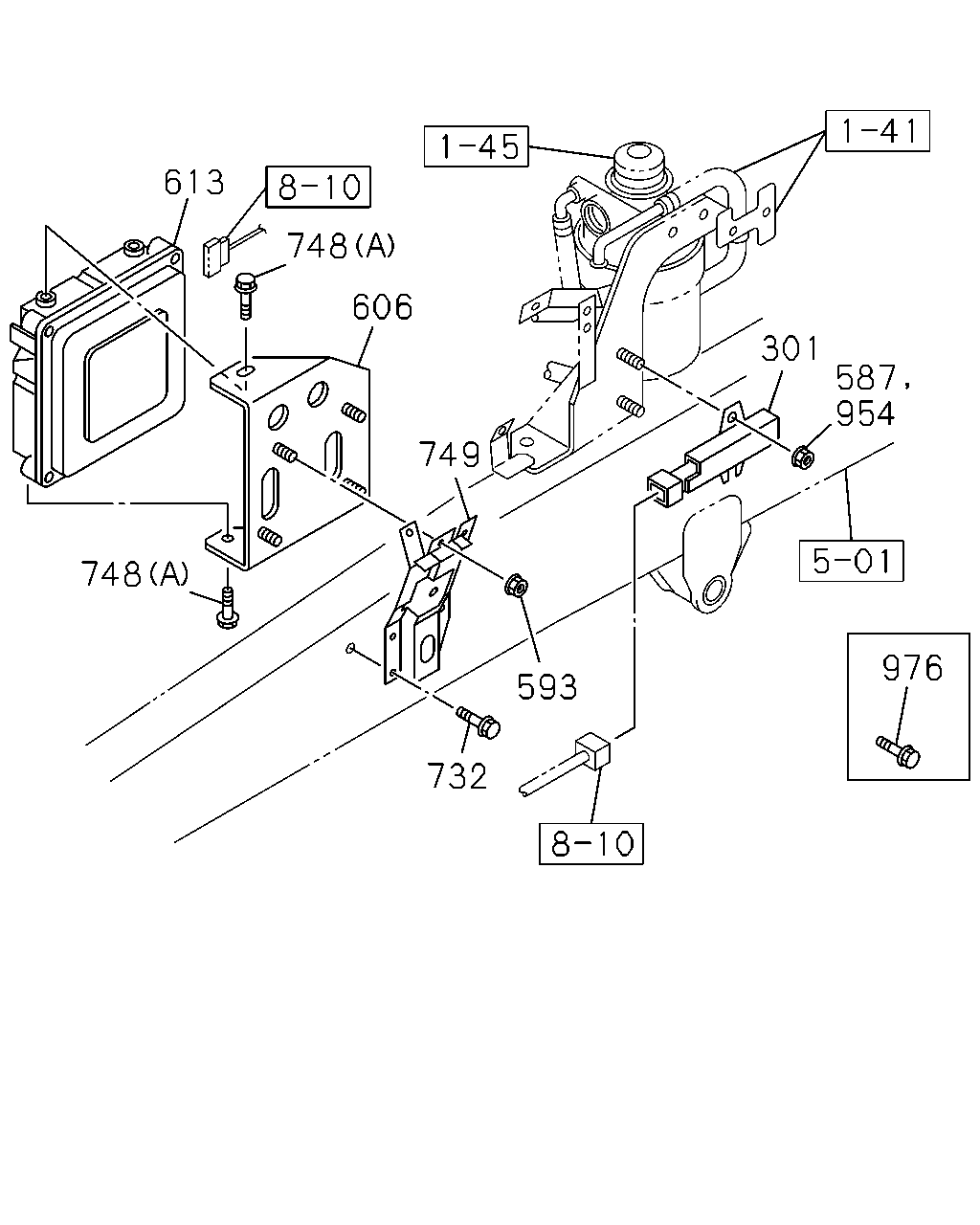

çizim 109042
613 748 606 301 587 954 749 748 976 593 732
BalonParca AdiParca NoAdetTipApplied Date A B
301 RESISTOR; DROPPING 8-97357-613-0 01 1 0710-0711 ●
301 RESISTOR; DROPPING 8-97357-613-0 01 1 0712- ● ●
587 NUT; RESISTOR & RELAY
M6 FLANGE 		0-91180-106-0 02 1 0710-0711 ●
587 NUT; RESISTOR & RELAY
M6 FLANGE 		0-91180-106-0 02 1 0712- ● ●
593 NUT; BRKT
M6 FLANGE 		0-91180-106-0 04 1 0710-0711 ●
593 NUT; BRKT
M6 FLANGE 		0-91180-106-0 04 1 0712- ● ●
606 BRACKET; CONT UNIT 1-53194-675-0 01 1 0710-0711 ●
606 BRACKET; CONT UNIT 1-53194-675-0 01 1 0712- ● ●
613 CONTROL UNIT; ENG
6HK1-TCC ENG(81L) AUTO CRUISE<K30> TRANSMISSION CONTROL-SMOOTHER DELETE(8GJ) 		8-98160-227-0 01 1 0911-1004 ●
613 CONTROL UNIT; ENG
6HK1-TCC ENG(81L) AUTO CRUISE<K30> TRANSMISSION CONTROL-SMOOTHER DELETE(8GJ) 		8-98163-639-1 01 1 1005- ●
613 CONTROL UNIT; ENG
6HK1-TCC ENG(81L) AUTO CRUISE<K30> TRANSMISSION CONTROL-SMOOTHER(8GF) 		8-98074-897-2 01 1 0710-0804 ●
613 CONTROL UNIT; ENG
6HK1-TCC ENG(81L) AUTO CRUISE<K30> TRANSMISSION CONTROL-SMOOTHER(8GF) 		8-98105-576-2 01 1 0805-1004 ●
613 CONTROL UNIT; ENG
6HK1-TCC ENG(81L) AUTO CRUISE<K30> TRANSMISSION CONTROL-SMOOTHER(8GF) 		8-98163-631-1 01 1 1005- ●
613 CONTROL UNIT; ENG
6HK1-TCC ENG(81L) TRANSMISSION CONTROL-SMOOTHER DELETE(8GJ) EXC. AUTO CRUISE<K30> 		8-98074-892-2 01 1 0710-0804 ●
613 CONTROL UNIT; ENG
6HK1-TCC ENG(81L) TRANSMISSION CONTROL-SMOOTHER DELETE(8GJ) EXC. AUTO CRUISE<K30> 		8-98105-571-1 01 1 0805-1004 ●
613 CONTROL UNIT; ENG
6HK1-TCC ENG(81L) TRANSMISSION CONTROL-SMOOTHER DELETE(8GJ) EXC. AUTO CRUISE<K30> 		8-98163-626-1 01 1 1005- ●
613 CONTROL UNIT; ENG
6HK1-TCC ENG(81L) TRANSMISSION CONTROL-SMOOTHER(8GF) EXC. AUTO CRUISE<K30> 		8-98074-895-2 01 1 0710-0804 ●
613 CONTROL UNIT; ENG
6HK1-TCC ENG(81L) TRANSMISSION CONTROL-SMOOTHER(8GF) EXC. AUTO CRUISE<K30> 		8-98105-574-1 01 1 0805-1004 ●
613 CONTROL UNIT; ENG
6HK1-TCC ENG(81L) TRANSMISSION CONTROL-SMOOTHER(8GF) EXC. AUTO CRUISE<K30> 		8-98163-629-0 01 1 1005- ●
613 CONTROL UNIT; ENG
6HK1-TCN ENG(82L) AUTO CRUISE<K30> TRANSMISSION CONTROL-SMOOTHER DELETE(8GJ) 		8-98160-226-0 01 1 0911-0911 ●
613 CONTROL UNIT; ENG
6HK1-TCN ENG(82L) AUTO CRUISE<K30> TRANSMISSION CONTROL-SMOOTHER DELETE(8GJ) 		8-98160-225-0 01 1 0911-1004 ●
613 CONTROL UNIT; ENG
6HK1-TCN ENG(82L) AUTO CRUISE<K30> TRANSMISSION CONTROL-SMOOTHER DELETE(8GJ) 		8-98163-637-1 01 1 1005- ●
613 CONTROL UNIT; ENG
6HK1-TCN ENG(82L) AUTO CRUISE<K30> TRANSMISSION CONTROL-SMOOTHER(8GF) 		8-98074-875-2 01 1 0710-0804 ●
613 CONTROL UNIT; ENG
6HK1-TCN ENG(82L) AUTO CRUISE<K30> TRANSMISSION CONTROL-SMOOTHER(8GF) 		8-98105-551-2 01 1 0805-1004 ●
613 CONTROL UNIT; ENG
6HK1-TCN ENG(82L) AUTO CRUISE<K30> TRANSMISSION CONTROL-SMOOTHER(8GF) 		8-98163-606-1 01 1 1005- ●
613 CONTROL UNIT; ENG
6HK1-TCN ENG(82L) TRANSMISSION CONTROL-SMOOTHER DELETE(8GJ) EXC. AUTO CRUISE<K30> 		8-98074-869-2 01 1 0710-0804 ●
613 CONTROL UNIT; ENG
6HK1-TCN ENG(82L) TRANSMISSION CONTROL-SMOOTHER DELETE(8GJ) EXC. AUTO CRUISE<K30> 		8-98105-546-1 01 1 0805-1004 ●
613 CONTROL UNIT; ENG
6HK1-TCN ENG(82L) TRANSMISSION CONTROL-SMOOTHER DELETE(8GJ) EXC. AUTO CRUISE<K30> 		8-98163-601-1 01 1 1005- ●
613 CONTROL UNIT; ENG
6HK1-TCN ENG(82L) TRANSMISSION CONTROL-SMOOTHER(8GF) EXC. AUTO CRUISE<K30> 		8-98074-877-2 01 1 0710-0804 ●
613 CONTROL UNIT; ENG
6HK1-TCN ENG(82L) TRANSMISSION CONTROL-SMOOTHER(8GF) EXC. AUTO CRUISE<K30> 		8-98105-553-1 01 1 0805-1004 ●
613 CONTROL UNIT; ENG
6HK1-TCN ENG(82L) TRANSMISSION CONTROL-SMOOTHER(8GF) EXC. AUTO CRUISE<K30> 		8-98163-608-1 01 1 1005- ●
613 CONTROL UNIT; ENG
4HK1-TCS ENG(RJS) AUTO CRUISE<K30> TRANSMISSION CONTROL-SMOOTHER DELETE(8GJ) 		8-98160-224-1 01 1 0911- ●
613 CONTROL UNIT; ENG
4HK1-TCS ENG(RJS) AUTO CRUISE<K30> TRANSMISSION CONTROL-SMOOTHER(8GF) 		8-98081-125-5 01 1 0712- ●
613 CONTROL UNIT; ENG
4HK1-TCS ENG(RJS) TRANSMISSION CONTROL-SMOOTHER DELETE(8GJ) EXC. AUTO CRUISE<K30> 		8-98081-123-4 01 1 0712- ●
613 CONTROL UNIT; ENG
4HK1-TCS ENG(RJS) TRANSMISSION CONTROL-SMOOTHER(8GF) EXC. AUTO CRUISE<K30> 		8-98081-124-4 01 1 0712- ●
613 CONTROL UNIT; ENG
6HK1-TCN ENG(82L) AUTO CRUISE<K30> TRANSMISSION CONTROL-SMOOTHER(8GF) 		8-98074-876-2 01 1 0712-0804 ●
613 CONTROL UNIT; ENG
6HK1-TCN ENG(82L) AUTO CRUISE<K30> TRANSMISSION CONTROL-SMOOTHER(8GF) 		8-98105-552-2 01 1 0805-1004 ●
613 CONTROL UNIT; ENG
6HK1-TCN ENG(82L) AUTO CRUISE<K30> TRANSMISSION CONTROL-SMOOTHER(8GF) 		8-98163-607-1 01 1 1005- ●
613 CONTROL UNIT; ENG
6HK1-TCN ENG(82L) TRANSMISSION CONTROL-SMOOTHER DELETE(8GJ) EXC. AUTO CRUISE<K30> 		8-98074-874-2 01 1 0712-0804 ●
613 CONTROL UNIT; ENG
6HK1-TCN ENG(82L) TRANSMISSION CONTROL-SMOOTHER DELETE(8GJ) EXC. AUTO CRUISE<K30> 		8-98105-548-1 01 1 0805-1004 ●
613 CONTROL UNIT; ENG
6HK1-TCN ENG(82L) TRANSMISSION CONTROL-SMOOTHER DELETE(8GJ) EXC. AUTO CRUISE<K30> 		8-98163-603-1 01 1 1005- ●
613 CONTROL UNIT; ENG
6HK1-TCN ENG(82L) TRANSMISSION CONTROL-SMOOTHER DELETE(8GJ) AUTO CRUISE<K30> 		8-98160-225-0 01 1 0911-0911 ●
613 CONTROL UNIT; ENG
6HK1-TCN ENG(82L) TRANSMISSION CONTROL-SMOOTHER DELETE(8GJ) AUTO CRUISE<K30> 		8-98160-226-0 01 1 0911-1004 ●
613 CONTROL UNIT; ENG
6HK1-TCN ENG(82L) TRANSMISSION CONTROL-SMOOTHER DELETE(8GJ) AUTO CRUISE<K30> 		8-98163-638-1 01 1 1005- ●
613 CONTROL UNIT; ENG
6HK1-TCN ENG(82L) TRANSMISSION CONTROL-SMOOTHER(8GF) EXC. AUTO CRUISE<K30> 		8-98074-878-2 01 1 0712-0804 ●
613 CONTROL UNIT; ENG
6HK1-TCN ENG(82L) TRANSMISSION CONTROL-SMOOTHER(8GF) EXC. AUTO CRUISE<K30> 		8-98105-554-1 01 1 0805-1004 ●
613 CONTROL UNIT; ENG
6HK1-TCN ENG(82L) TRANSMISSION CONTROL-SMOOTHER(8GF) EXC. AUTO CRUISE<K30> 		8-98163-609-0 01 1 1005- ●
732 BOLT; BRKT
M10X30 FLANGE 		0-28651-030-0 03 1 0710-0711 ●
732 BOLT; BRKT
M10X30 FLANGE 		0-28651-030-0 03 1 0712- ● ●
748 BOLT; CONT UNIT
(A) M6X12 FLANGE 		0-28050-612-0 03 1 0710-0711 ●
748 BOLT; CONT UNIT
(A) M6X12 FLANGE 		0-28050-612-0 03 1 0712- ● ●
748 BOLT; CONT UNIT
EXC. MULTI INFORMATION DISPLAY<7NY> (B) M6X16 FLANGE 		0-28650-616-0 02 1 0710-0711 ●
748 BOLT; CONT UNIT
EXC. MULTI INFORMATION DISPLAY<7NY> (B) M6X16 FLANGE 		0-28650-616-0 02 1 0712- ● ●
749 STAY; CONT UNIT 1-53194-595-3 01 1 0710-0711 ●
749 STAY; CONT UNIT 1-53194-595-3 01 1 0712- ●
749 STAY; CONT UNIT
6HK1-TCN ENG(82L) 		1-53194-595-3 01 1 0712- ●
749 STAY; CONT UNIT
4HK1-TCS ENG(RJS) 		1-53194-596-3 01 1 0712- ●
954 NUT; RESISTOR
M6 FLANGE 		0-91180-106-0 02 1 0710-0711 ●
954 NUT; RESISTOR
M6 FLANGE 		0-91180-106-0 02 1 0712-0906 ● ●
976 BOLT; RESISTOR
M6X20 FLANGE 		0-28050-620-0 02 1 0710-0711 ●
976 BOLT; RESISTOR
M6X20 FLANGE 		0-28050-620-0 02 1 0712-0906 ● ●
İpucu: çizimdeki balona veya tablodaki Balon sütununa tıkla; ilgili parçalar vurgulanır. Birden çok çizim varsa üstteki seçim kutusu/oklarla gezin.
Isuzu EPC — test · veri: yerel (eski sürüm)
