Isuzu WW
▶
TRUCKS
▶
FRR
▶
11415 - FRR AUSTRALIA EURO4 EXC.SPACECAB
▶
0 - Engine, Emission, Engine Electrical
▶
0-57 - EMISSION PIPING
▶
0-57 — EMISSION PIPING
(#21732) — 149 parça
Tümü
A - 6HK1-TCC ENG
B - 6HK1-TCN ENG
C - 4HK1-TCS ENG
◀
[057A] 6HK1 NO.2 (33 parça)
[057A] 4HK1 NO.1 (40 parça)
[057A] 6HK1 NO.1 (35 parça)
[057A] 4HK1 NO.2 (41 parça)
▶

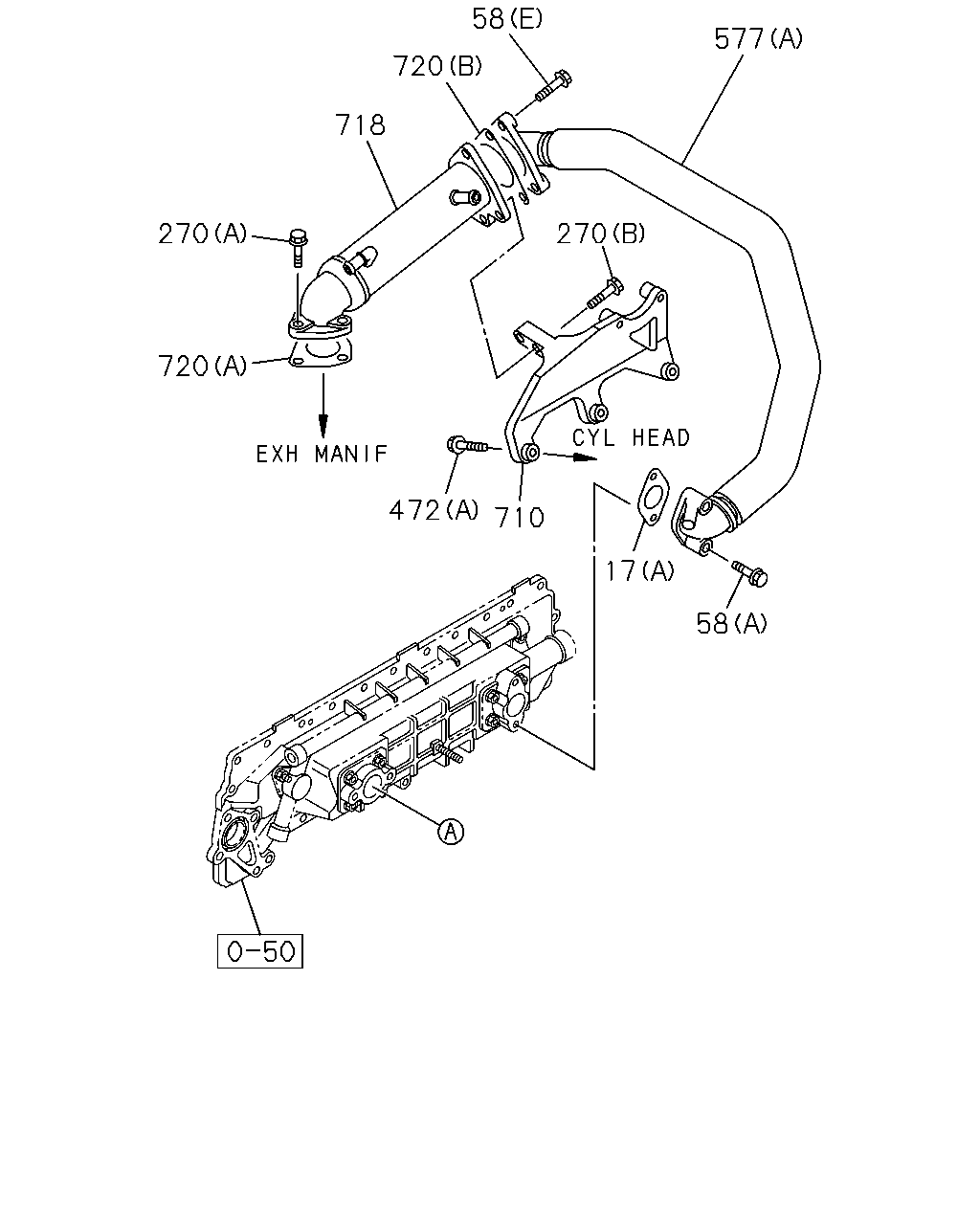

58
577
720
718
270
270
720
472
710
17
58
Balon
Parca Adi
Parca No
Adet
Tip
Applied Date
A
B
C
17
GASKET; EGR PIPE
ALSO INCLUDED IN GASKET SET(ENGINE). (A)
8-97601-144-0
02
1
0710-
●
●
17
GASKET; EGR PIPE
ALSO INCLUDED IN GASKET SET(ENGINE). (D)
8-97388-919-0
04
1
0712-
●
17
GASKET; EGR PIPE
ALSO INCLUDED IN GASKET SET(ENGINE). (B)
8-97601-836-0
01
1
0712-
●
17
GASKET; EGR PIPE
ALSO INCLUDED IN GASKET SET(ENGINE). (C)
8-98036-507-0
01
1
0712-
●
58
BOLT; PIPE
(A) M8X60 FLANGE
0-28050-860-0
02
1
0710-
●
●
58
BOLT; PIPE
(B) M10X30 FLANGE
0-28151-030-0
04
1
0710-0808
●
●
58
BOLT; PIPE
(B) M10X30 FLANGE
0-28151-030-0
01
1
0809-
●
●
58
BOLT; PIPE
(C) M8X30 FLANGE
0-28650-830-0
01
1
0710-
●
●
58
BOLT; PIPE
(E) M10X35 FLANGE
0-28751-035-0
03
1
0710-
●
●
58
BOLT; PIPE
(D) M8X30 FLANGE
8-98034-764-0
01
1
0710-
●
●
58
BOLT; PIPE
(F) M8X45 FLANGE
0-28050-845-0
02
1
0712-
●
58
BOLT; PIPE
(C) M8X30 FLANGE
0-28650-830-0
02
1
0712-
●
270
BOLT
(D) M8X25 FLANGE
0-28050-825-0
02
1
0710-
●
●
270
BOLT
(B) M8X35 FLANGE
0-28050-835-0
02
1
0710-
●
●
270
BOLT
(C) M10X45 FLANGE
0-28151-045-0
02
1
0710-
●
●
270
BOLT
(A) M8X28 FLANGE
8-98043-528-0
03
1
0710-
●
●
270
BOLT
(E) M10X60 FLANGE
0-28151-060-0
03
1
0712-
●
472
BOLT; BRKT
(A) M8X35 FLANGE
0-28060-835-0
03
1
0710-
●
●
472
BOLT; BRKT
(C) M8X25 FLANGE
0-28660-825-0
03
1
0712-
●
472
BOLT; BRKT
(B) M10X40 FLANGE
0-28751-040-0
01
1
0712-
●
577
PIPE; AIR,EGR
(A)
8-98031-049-0
01
1
0710-0909
●
●
577
PIPE; AIR,EGR
TRANSMISSION CONTROL-SMOOTHER DELETE(8GJ) (A)
8-98147-787-0
01
1
0910-
●
●
577
PIPE; AIR,EGR
TRANSMISSION CONTROL-SMOOTHER(8GF) (A)
8-98147-786-0
01
1
0910-
●
●
577
PIPE; AIR,EGR
(C)
8-98028-113-2
01
1
0712-
●
577
PIPE; AIR,EGR
(B)
8-98055-858-2
01
1
0712-
●
710
BRACKET; EGR COOLER
8-98030-581-0
01
1
0710-0810
●
●
710
BRACKET; EGR COOLER
8-98125-359-0
01
1
0811-1202
●
●
710
BRACKET; EGR COOLER
8-98186-437-0
01
1
1203-
●
●
710
BRACKET; EGR COOLER
8-98025-254-1
01
1
0712-
●
718
COOLER; EGR
8-98030-582-3
01
1
0710-1401
●
●
718
COOLER; EGR
8-98250-860-0
01
1
1402-
●
●
720
GASKET; COOLER
ALSO INCLUDED IN GASKET SET(ENGINE). (B)
8-97603-889-0
01
1
0710-
●
●
720
GASKET; COOLER
ALSO INCLUDED IN GASKET SET(ENGINE). (A)
8-98046-192-1
01
1
0710-
●
●

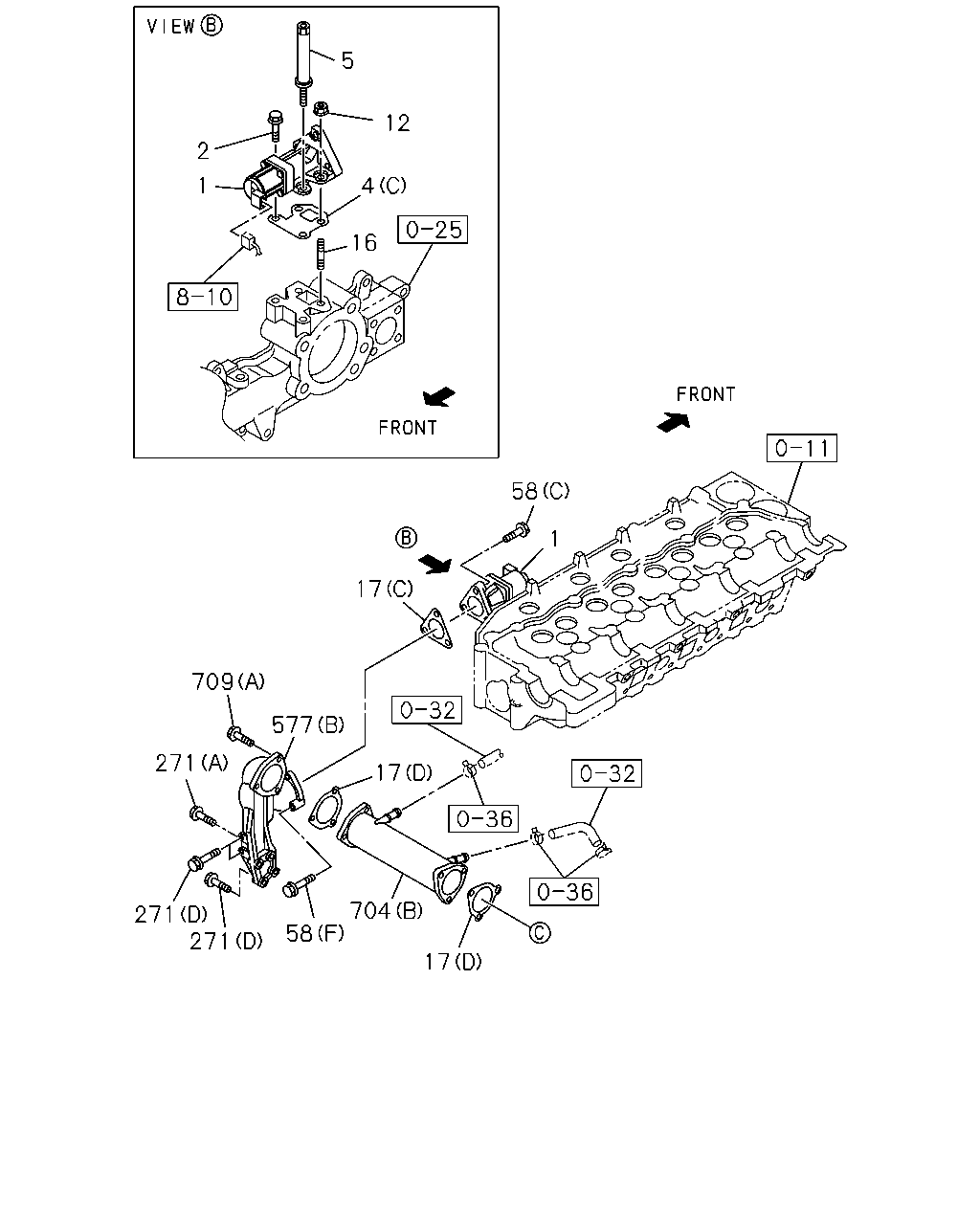

5
12
2
1
4
16
58
1
17
709
577
271
17
704
58
271
271
17
Balon
Parca Adi
Parca No
Adet
Tip
Applied Date
A
B
C
1
VALVE; EGR
8-97383-005-8
01
1
0710-
●
●
1
VALVE; EGR
8-98018-264-6
01
1
0712-
●
2
BOLT; EGR VLV
M10X35 FLANGE
0-28751-035-0
04
1
0710-
●
●
2
BOLT; EGR VLV
M8X25 FLANGE
0-28650-825-0
01
1
0712-
●
4
GASKET; EGR VLV
ALSO INCLUDED IN GASKET SET(ENGINE). (B)
8-97603-282-0
01
1
0710-
●
●
4
GASKET; EGR VLV
ALSO INCLUDED IN GASKET SET(ENGINE). (A)
8-97608-423-0
01
1
0710-
●
●
4
GASKET; EGR VLV
ALSO INCLUDED IN GASKET SET(ENGINE). (C)
8-97306-040-0
01
1
0712-
●
5
ADAPTER ASM
8-97606-201-3
01
1
0710-1305
●
●
5
ADAPTER ASM
8-98240-157-0
01
1
1306-
●
●
5
ADAPTER ASM
8-97377-804-0
01
1
0905-
●
12
NUT; EGR VLV
M8 FLANGE
0-91180-108-0
02
1
0712-
●
16
STUD; EGR VLV
M8X20 L=32
0-41010-820-0
02
1
0712-
●
17
GASKET; EGR PIPE
ALSO INCLUDED IN GASKET SET(ENGINE). (A)
8-97601-144-0
02
1
0710-
●
●
17
GASKET; EGR PIPE
ALSO INCLUDED IN GASKET SET(ENGINE). (D)
8-97388-919-0
04
1
0712-
●
17
GASKET; EGR PIPE
ALSO INCLUDED IN GASKET SET(ENGINE). (B)
8-97601-836-0
01
1
0712-
●
17
GASKET; EGR PIPE
ALSO INCLUDED IN GASKET SET(ENGINE). (C)
8-98036-507-0
01
1
0712-
●
58
BOLT; PIPE
(A) M8X60 FLANGE
0-28050-860-0
02
1
0710-
●
●
58
BOLT; PIPE
(B) M10X30 FLANGE
0-28151-030-0
04
1
0710-0808
●
●
58
BOLT; PIPE
(B) M10X30 FLANGE
0-28151-030-0
01
1
0809-
●
●
58
BOLT; PIPE
(C) M8X30 FLANGE
0-28650-830-0
01
1
0710-
●
●
58
BOLT; PIPE
(E) M10X35 FLANGE
0-28751-035-0
03
1
0710-
●
●
58
BOLT; PIPE
(D) M8X30 FLANGE
8-98034-764-0
01
1
0710-
●
●
58
BOLT; PIPE
(F) M8X45 FLANGE
0-28050-845-0
02
1
0712-
●
58
BOLT; PIPE
(C) M8X30 FLANGE
0-28650-830-0
02
1
0712-
●
271
BOLT; BRKT
(A) M12X50 FLANGE
0-28151-250-0
03
1
0712-
●
271
BOLT; BRKT
(B) M12X60 FLANGE
0-28151-260-0
01
1
0712-
●
271
BOLT; BRKT
(C) M8X25 FLANGE
0-28660-825-0
02
1
0712-
●
271
BOLT; BRKT
(D) M12X30 FLANGE
0-28751-230-0
03
1
0712-0804
●
577
PIPE; AIR,EGR
(A)
8-98031-049-0
01
1
0710-0909
●
●
577
PIPE; AIR,EGR
TRANSMISSION CONTROL-SMOOTHER DELETE(8GJ) (A)
8-98147-787-0
01
1
0910-
●
●
577
PIPE; AIR,EGR
TRANSMISSION CONTROL-SMOOTHER(8GF) (A)
8-98147-786-0
01
1
0910-
●
●
577
PIPE; AIR,EGR
(C)
8-98028-113-2
01
1
0712-
●
577
PIPE; AIR,EGR
(B)
8-98055-858-2
01
1
0712-
●
704
COOLER ASM; EGR
(A)
8-98028-110-1
01
1
0712-1306
●
704
COOLER ASM; EGR
(A)
8-98244-305-0
01
1
1307-
●
704
COOLER ASM; EGR
(B)
8-98028-112-1
01
1
0712-1204
●
704
COOLER ASM; EGR
(B)
8-98212-715-0
01
1
1205-
●
709
BOLT; EGR COOLER
(A) M10X30 FLANGE
0-28751-030-0
06
1
0712-0808
●
709
BOLT; EGR COOLER
(A) M10X35 FLANGE
0-28751-035-0
06
1
0809-
●
709
BOLT; EGR COOLER
(B) M10X30 FLANGE
8-98032-158-0
03
1
0712-
●

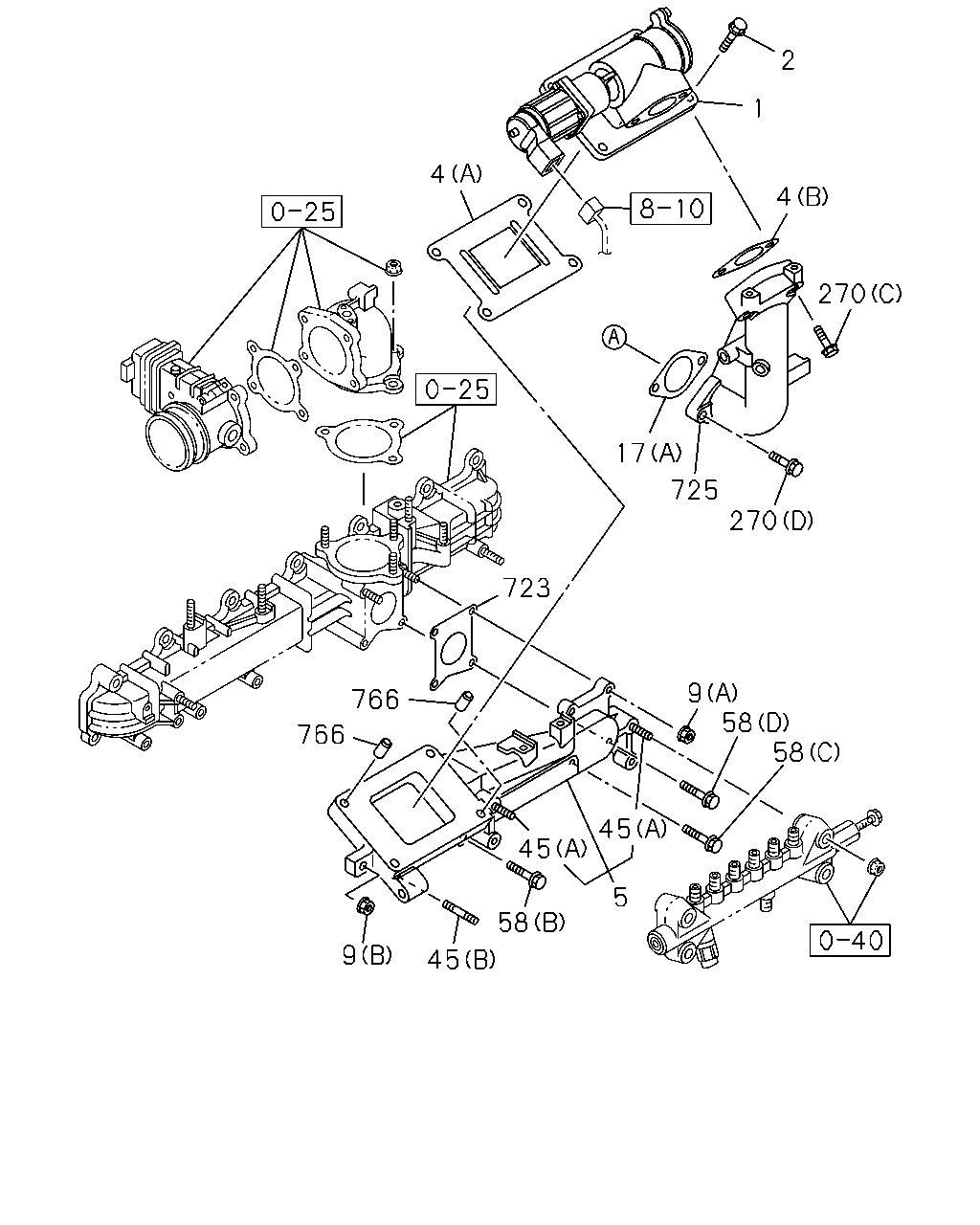

2
1
4
4
270
17
725
270
723
9
58
58
766
766
45
45
5
58
9
45
Balon
Parca Adi
Parca No
Adet
Tip
Applied Date
A
B
C
1
VALVE; EGR
8-97383-005-8
01
1
0710-
●
●
1
VALVE; EGR
8-98018-264-6
01
1
0712-
●
2
BOLT; EGR VLV
M10X35 FLANGE
0-28751-035-0
04
1
0710-
●
●
2
BOLT; EGR VLV
M8X25 FLANGE
0-28650-825-0
01
1
0712-
●
4
GASKET; EGR VLV
ALSO INCLUDED IN GASKET SET(ENGINE). (B)
8-97603-282-0
01
1
0710-
●
●
4
GASKET; EGR VLV
ALSO INCLUDED IN GASKET SET(ENGINE). (A)
8-97608-423-0
01
1
0710-
●
●
4
GASKET; EGR VLV
ALSO INCLUDED IN GASKET SET(ENGINE). (C)
8-97306-040-0
01
1
0712-
●
5
ADAPTER ASM
8-97606-201-3
01
1
0710-1305
●
●
5
ADAPTER ASM
8-98240-157-0
01
1
1306-
●
●
5
ADAPTER ASM
8-97377-804-0
01
1
0905-
●
9
NUT; EGR ADAPTER
(A) M8 FLANGE
0-91180-108-0
02
1
0710-
●
●
9
NUT; EGR ADAPTER
(B) M10 FLANGE
0-91180-110-0
02
1
0710-
●
●
17
GASKET; EGR PIPE
ALSO INCLUDED IN GASKET SET(ENGINE). (A)
8-97601-144-0
02
1
0710-
●
●
17
GASKET; EGR PIPE
ALSO INCLUDED IN GASKET SET(ENGINE). (D)
8-97388-919-0
04
1
0712-
●
17
GASKET; EGR PIPE
ALSO INCLUDED IN GASKET SET(ENGINE). (B)
8-97601-836-0
01
1
0712-
●
17
GASKET; EGR PIPE
ALSO INCLUDED IN GASKET SET(ENGINE). (C)
8-98036-507-0
01
1
0712-
●
45
STUD; ADAPTER,EGR
(B) M10X30 L=45
0-44011-030-0
01
1
0710-
●
●
45
STUD; ADAPTER,EGR
(A) M10X50 L=65
0-44011-050-0
02
1
0710-
●
●
58
BOLT; PIPE
(A) M8X60 FLANGE
0-28050-860-0
02
1
0710-
●
●
58
BOLT; PIPE
(B) M10X30 FLANGE
0-28151-030-0
04
1
0710-0808
●
●
58
BOLT; PIPE
(B) M10X30 FLANGE
0-28151-030-0
01
1
0809-
●
●
58
BOLT; PIPE
(C) M8X30 FLANGE
0-28650-830-0
01
1
0710-
●
●
58
BOLT; PIPE
(E) M10X35 FLANGE
0-28751-035-0
03
1
0710-
●
●
58
BOLT; PIPE
(D) M8X30 FLANGE
8-98034-764-0
01
1
0710-
●
●
58
BOLT; PIPE
(F) M8X45 FLANGE
0-28050-845-0
02
1
0712-
●
58
BOLT; PIPE
(C) M8X30 FLANGE
0-28650-830-0
02
1
0712-
●
270
BOLT
(D) M8X25 FLANGE
0-28050-825-0
02
1
0710-
●
●
270
BOLT
(B) M8X35 FLANGE
0-28050-835-0
02
1
0710-
●
●
270
BOLT
(C) M10X45 FLANGE
0-28151-045-0
02
1
0710-
●
●
270
BOLT
(A) M8X28 FLANGE
8-98043-528-0
03
1
0710-
●
●
270
BOLT
(E) M10X60 FLANGE
0-28151-060-0
03
1
0712-
●
723
GASKET; REED VLV
ALSO INCLUDED IN GASKET SET(ENGINE).
8-97605-995-0
01
1
0710-
●
●
725
DUCT; EGR VLV
8-97604-972-2
01
1
0710-1305
●
●
725
DUCT; EGR VLV
8-98240-120-0
01
1
1306-
●
●
766
DOWEL; EGR VLV
OD=14 L=10
9-11319-065-3
02
1
0710-
●
●

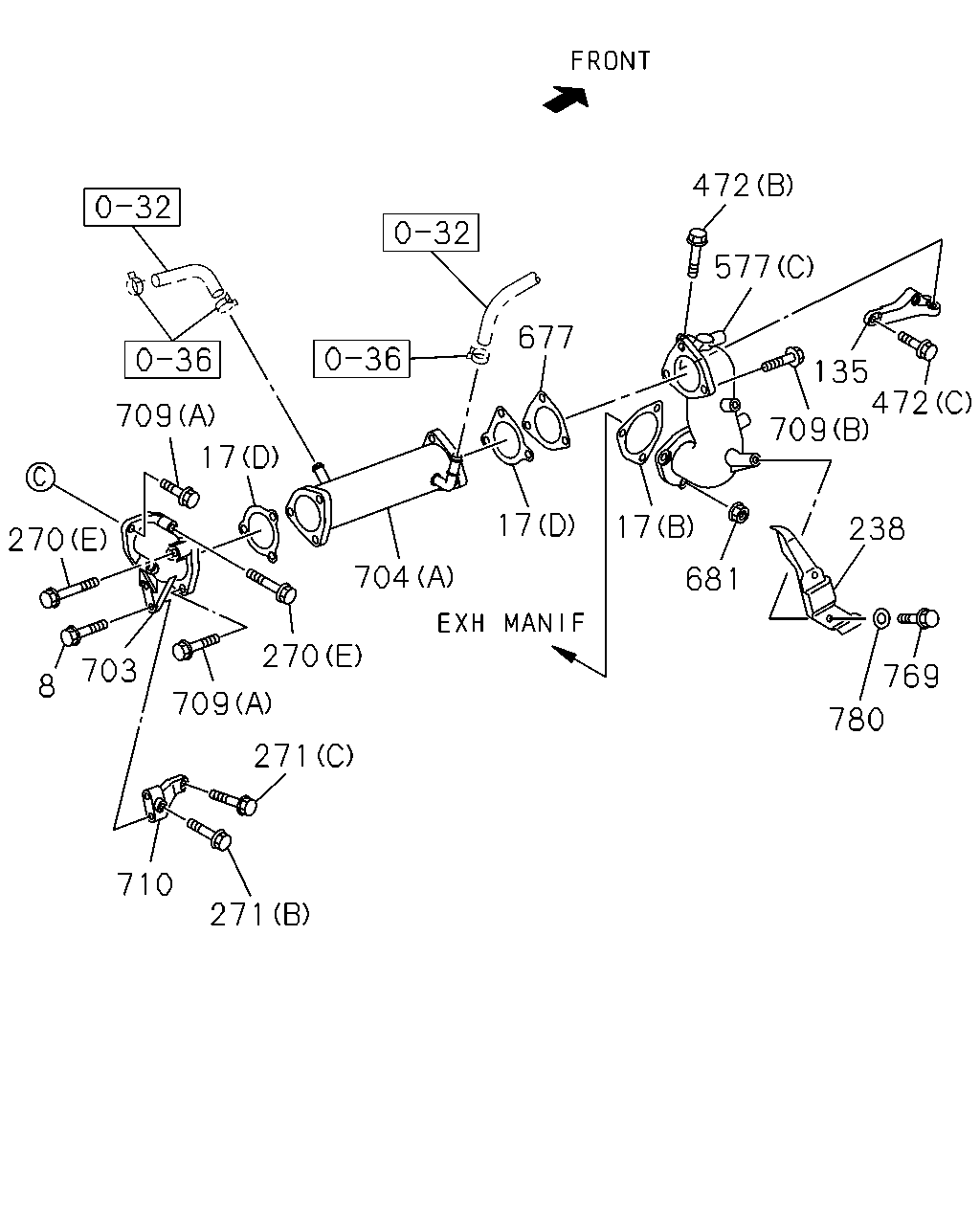

472
577
677
135
472
709
709
17
17
17
238
270
704
681
270
703
769
8
709
780
271
710
271
Balon
Parca Adi
Parca No
Adet
Tip
Applied Date
A
B
C
8
BOLT; EGR ADAPTER
M10X40 FLANGE
0-28751-040-0
02
1
0712-
●
17
GASKET; EGR PIPE
ALSO INCLUDED IN GASKET SET(ENGINE). (A)
8-97601-144-0
02
1
0710-
●
●
17
GASKET; EGR PIPE
ALSO INCLUDED IN GASKET SET(ENGINE). (D)
8-97388-919-0
04
1
0712-
●
17
GASKET; EGR PIPE
ALSO INCLUDED IN GASKET SET(ENGINE). (B)
8-97601-836-0
01
1
0712-
●
17
GASKET; EGR PIPE
ALSO INCLUDED IN GASKET SET(ENGINE). (C)
8-98036-507-0
01
1
0712-
●
135
BRACKET; EGR
8-98025-253-2
01
1
0712-
●
238
PROTECTOR; HEAT,EGR
8-97386-177-0
01
1
0712-
●
270
BOLT
(D) M8X25 FLANGE
0-28050-825-0
02
1
0710-
●
●
270
BOLT
(B) M8X35 FLANGE
0-28050-835-0
02
1
0710-
●
●
270
BOLT
(C) M10X45 FLANGE
0-28151-045-0
02
1
0710-
●
●
270
BOLT
(A) M8X28 FLANGE
8-98043-528-0
03
1
0710-
●
●
270
BOLT
(E) M10X60 FLANGE
0-28151-060-0
03
1
0712-
●
271
BOLT; BRKT
(A) M12X50 FLANGE
0-28151-250-0
03
1
0712-
●
271
BOLT; BRKT
(B) M12X60 FLANGE
0-28151-260-0
01
1
0712-
●
271
BOLT; BRKT
(C) M8X25 FLANGE
0-28660-825-0
02
1
0712-
●
271
BOLT; BRKT
(D) M12X30 FLANGE
0-28751-230-0
03
1
0712-0804
●
472
BOLT; BRKT
(A) M8X35 FLANGE
0-28060-835-0
03
1
0710-
●
●
472
BOLT; BRKT
(C) M8X25 FLANGE
0-28660-825-0
03
1
0712-
●
472
BOLT; BRKT
(B) M10X40 FLANGE
0-28751-040-0
01
1
0712-
●
577
PIPE; AIR,EGR
(A)
8-98031-049-0
01
1
0710-0909
●
●
577
PIPE; AIR,EGR
TRANSMISSION CONTROL-SMOOTHER DELETE(8GJ) (A)
8-98147-787-0
01
1
0910-
●
●
577
PIPE; AIR,EGR
TRANSMISSION CONTROL-SMOOTHER(8GF) (A)
8-98147-786-0
01
1
0910-
●
●
577
PIPE; AIR,EGR
(C)
8-98028-113-2
01
1
0712-
●
577
PIPE; AIR,EGR
(B)
8-98055-858-2
01
1
0712-
●
677
PLATE; DUCT
8-98015-035-0
01
1
0712-
●
681
NUT; EGR PIPE
M8 FLANGE
8-97061-401-1
03
1
0712-
●
703
DUCT; EGR
8-98028-114-0
01
1
0712-
●
704
COOLER ASM; EGR
(A)
8-98028-110-1
01
1
0712-1306
●
704
COOLER ASM; EGR
(A)
8-98244-305-0
01
1
1307-
●
704
COOLER ASM; EGR
(B)
8-98028-112-1
01
1
0712-1204
●
704
COOLER ASM; EGR
(B)
8-98212-715-0
01
1
1205-
●
709
BOLT; EGR COOLER
(A) M10X30 FLANGE
0-28751-030-0
06
1
0712-0808
●
709
BOLT; EGR COOLER
(A) M10X35 FLANGE
0-28751-035-0
06
1
0809-
●
709
BOLT; EGR COOLER
(B) M10X30 FLANGE
8-98032-158-0
03
1
0712-
●
710
BRACKET; EGR COOLER
8-98030-581-0
01
1
0710-0810
●
●
710
BRACKET; EGR COOLER
8-98125-359-0
01
1
0811-1202
●
●
710
BRACKET; EGR COOLER
8-98186-437-0
01
1
1203-
●
●
710
BRACKET; EGR COOLER
8-98025-254-1
01
1
0712-
●
769
BOLT; HEAT PROTECTOR
M6X12 FLANGE
8-97108-669-0
04
1
0712-1107
●
769
BOLT; HEAT PROTECTOR
M6X12 W/PL WASHER
8-98054-289-0
04
1
1108-
●
780
WASHER; PROTECTOR
ID=6.4 OD=18
0-91610-706-0
04
1
0712-1107
●
Seçili parçaları sepete ekle
İpucu: çizimdeki balona veya tablodaki
Balon
sütununa tıkla; ilgili parçalar vurgulanır. Birden çok çizim varsa üstteki seçim kutusu/oklarla gezin.
Isuzu EPC — test · veri: yerel (eski sürüm)
