0-38 — AIR COMPRESSOR PIPING; ENGINE SIDE (#21725) — 99 parça

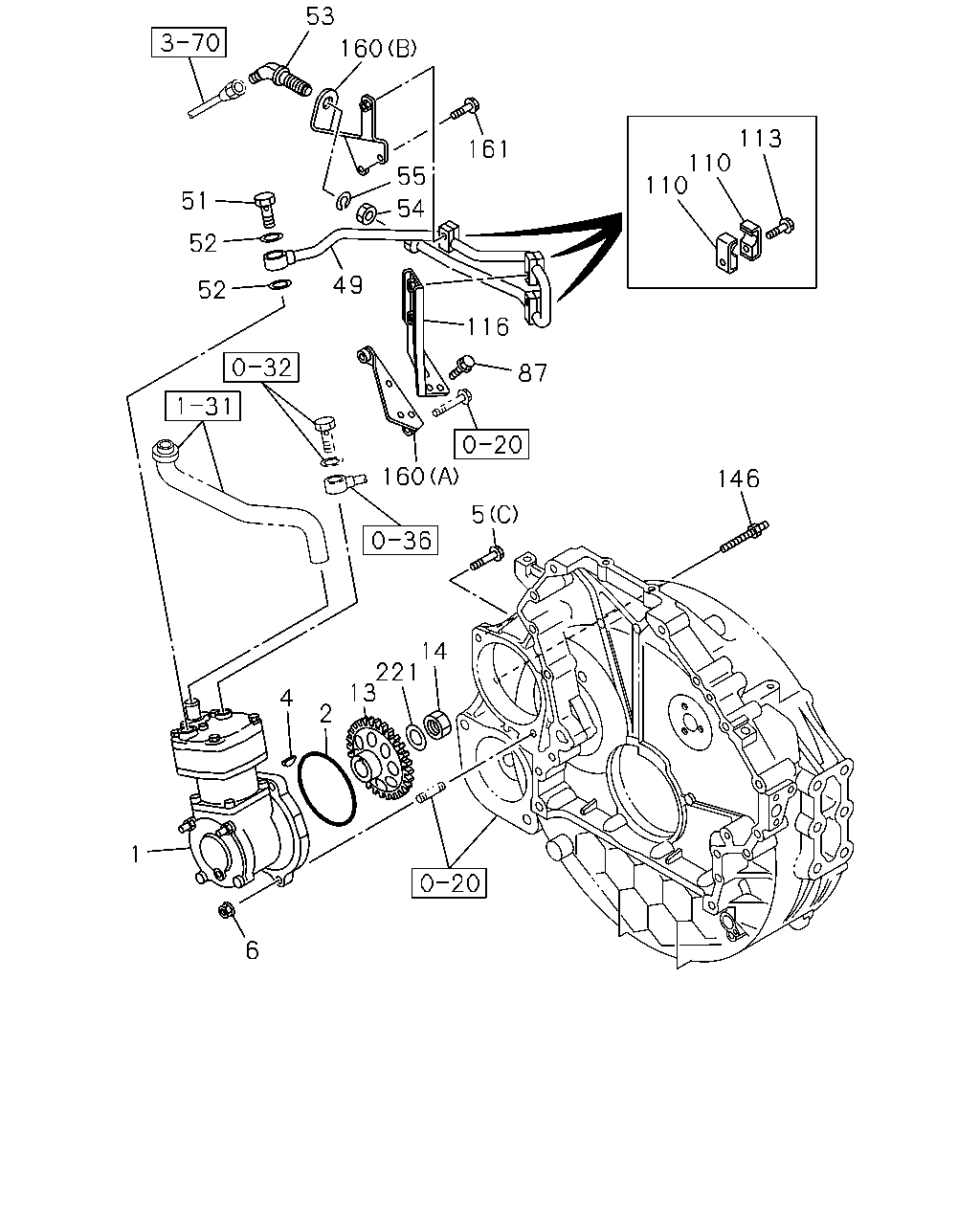

53 160 113 110 110 161 55 51 54 52 49 52 116 87 160 146 5 14 221 13 4 2 1 6

Balon	Parca Adi	Parca No	Adet	Tip	Applied Date	A	B	C
1	COMPRESSOR ASM; AIR SEE FIG-NO 0-39 FOR COMPONENT.	8-98055-879-2	01	1	0710-1107	●	●
1	COMPRESSOR ASM; AIR SEE FIG-NO 0-39 FOR COMPONENT.	8-98187-303-0	01	1	1108-	●	●
1	COMPRESSOR ASM; AIR SEE FIG-NO 0-39 FOR COMPONENT.	8-97601-449-5	01	1	0712-1109			●
1	COMPRESSOR ASM; AIR SEE FIG-NO 0-39 FOR COMPONENT.	8-98187-308-0	01	1	1110-1405			●
1	COMPRESSOR ASM; AIR SEE FIG-NO 0-39 FOR COMPONENT.	8-98270-233-0	01	1	1406-			●
2	GASKET; AIR CMPR ALSO INCLUDED IN GASKET SET(ENGINE). ID=162.6	1-09623-570-0	01	1	0710-	●	●
2	GASKET; AIR CMPR ALSO INCLUDED IN GASKET SET(ENGINE). ID=139.6	1-09623-464-0	01	1	0712-			●
4	KEY; INJ PUMP GEAR	9-08055-516-0	01	1	0710-	●	●
4	KEY; INJ PUMP GEAR	9-08055-519-0	01	1	0712-			●
5	BOLT; AIR CMPR FIX (C) M12X70 FLANGE	0-28151-270-0	02	1	0710-	●	●
5	BOLT; AIR CMPR FIX (B) M12X70 FLANGE	0-28151-270-0	01	1	0712-			●
5	BOLT; AIR CMPR FIX (A) M12X95 FLANGE	8-94396-485-1	01	1	0712-			●
6	NUT; AIR CMPR M12 FLANGE	0-91180-212-0	01	1	0710-	●	●
6	NUT; AIR CMPR M10 FLANGE	0-91180-110-0	02	1	0712-			●
13	GEAR; AIR CMPR DRIVE Z=49	8-94394-511-4	01	1	0710-	●	●
14	NUT; GEAR M20	0-91110-520-0	01	1	0710-	●	●
14	NUT; GEAR M18	8-97141-154-0	01	1	0712-			●
49	PIPE; AIR,CHARGE	8-98042-002-0	01	1	0710-	●	●
49	PIPE; AIR,CHARGE	8-98057-015-0	01	1	0712-			●
51	BOLT; EYE,AIR PIPE TO CMPR M24X39	1-09675-175-2	01	1	0710-1404	●	●
51	BOLT; EYE,AIR PIPE TO CMPR M24X39	1-09675-175-2	01	1	1405-	●	●	●
51	BOLT; EYE,AIR PIPE TO CMPR M24X39	1-09675-132-1	01	1	0712-1404			●
52	GASKET; EYE BOLT,AIR PIPE ALSO INCLUDED IN GASKET SET(ENGINE). ID=24.5 OD=32	9-09571-424-0	02	1	0710-0711	●	●
52	GASKET; EYE BOLT,AIR PIPE ALSO INCLUDED IN GASKET SET(ENGINE). ID=24.5 OD=32	9-09571-424-0	02	1	0712-	●	●	●
53	UNION; CHARGE PIPE	1-09654-318-1	01	1	0905-	●
53	UNION; CHARGE PIPE SGL CAB(FC*M)	1-09654-318-1	01	1	0905-		●
53	UNION; CHARGE PIPE	8-98080-118-0	01	1	0710-0904	●	●
53	UNION; CHARGE PIPE DBL CAB(FC*W)	8-98080-118-0	01	1	0905-		●
54	NUT; PIPE UNION M22	0-91111-522-0	01	1	0905-	●
54	NUT; PIPE UNION SGL CAB(FC*M) M22	0-91111-522-0	01	1	0905-		●
54	NUT; PIPE UNION	8-98049-390-0	01	1	0710-0904	●	●
54	NUT; PIPE UNION DBL CAB(FC*W)	8-98049-390-0	01	1	0905-		●
55	WASHER; LK,PIPE UNION ID=22.5	0-91510-522-0	01	1	0905-	●
55	WASHER; LK,PIPE UNION SGL CAB(FC*M) ID=22.5	0-91510-522-0	01	1	0905-		●
55	WASHER; LK,PIPE UNION ID=27.5	0-91510-527-0	01	1	0710-0904	●	●
55	WASHER; LK,PIPE UNION DBL CAB(FC*W) ID=27.5	0-91510-527-0	01	1	0905-		●
87	BOLT; BRKT FIX M8X20 FLANGE	0-28050-820-0	03	1	0710-	●	●
110	CLIP; AIR PIPE	1-09701-284-0	06	1	0710-	●	●
113	BOLT; CLIP,AIR PIPE M8X45 FLANGE	0-28050-845-0	03	1	0710-	●	●
116	BRACKET; AIR PIPE	8-97614-183-1	01	1	0710-	●	●
146	STUD; AIR CMPR M10X16,M12X70 L=97.7	1-09049-038-1	01	1	0710-	●	●
160	BRACKET; AIR PIPE (B)	8-98042-844-1	01	1	0905-	●
160	BRACKET; AIR PIPE SGL CAB(FC*M) (B)	8-98042-844-1	01	1	0905-		●
160	BRACKET; AIR PIPE (A)	8-97614-182-2	01	1	0710-	●	●
160	BRACKET; AIR PIPE (B)	8-97615-888-3	01	1	0710-0801	●	●
160	BRACKET; AIR PIPE (B)	8-98042-844-1	01	1	0802-0808	●	●
160	BRACKET; AIR PIPE (B)	8-98117-350-0	01	1	0809-0904	●	●
160	BRACKET; AIR PIPE DBL CAB(FC*W) (B)	8-98117-350-0	01	1	0905-		●
160	BRACKET; AIR PIPE (C)	8-98076-098-0	01	1	0712-			●
161	BOLT; BRKT,AIR PIPE M8X16 FLANGE	0-28050-816-0	02	1	0710-	●	●
221	WASHER; PL,GEAR ID=21	0-91610-520-0	01	1	0710-	●	●

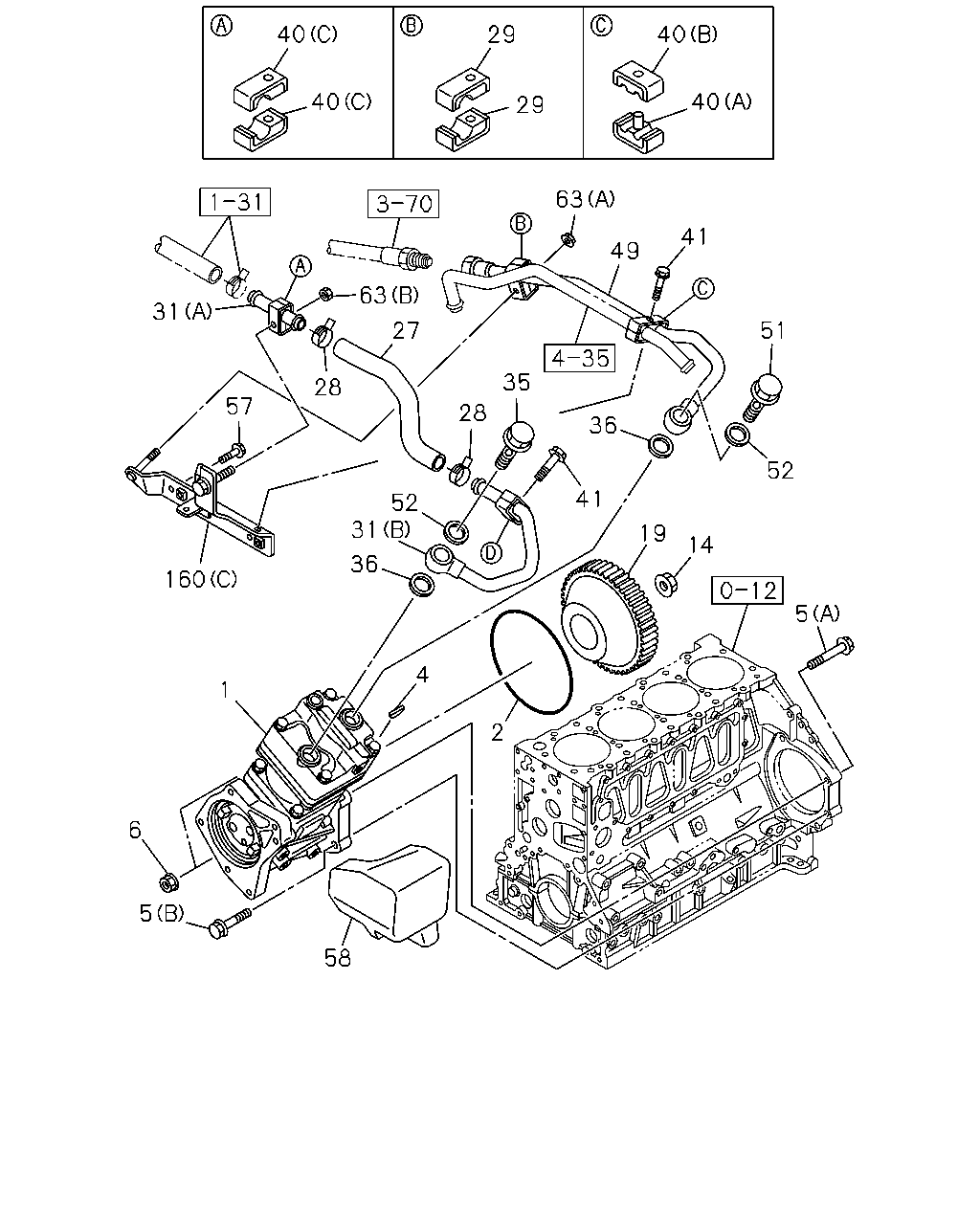

40 29 40 40 40 29 63 41 49 63 31 51 27 35 28 57 28 36 52 41 52 31 19 14 36 160 5 4 1 2 6 5 58

Balon	Parca Adi	Parca No	Adet	Tip	Applied Date	A	B	C
1	COMPRESSOR ASM; AIR SEE FIG-NO 0-39 FOR COMPONENT.	8-98055-879-2	01	1	0710-1107	●	●
1	COMPRESSOR ASM; AIR SEE FIG-NO 0-39 FOR COMPONENT.	8-98187-303-0	01	1	1108-	●	●
1	COMPRESSOR ASM; AIR SEE FIG-NO 0-39 FOR COMPONENT.	8-97601-449-5	01	1	0712-1109			●
1	COMPRESSOR ASM; AIR SEE FIG-NO 0-39 FOR COMPONENT.	8-98187-308-0	01	1	1110-1405			●
1	COMPRESSOR ASM; AIR SEE FIG-NO 0-39 FOR COMPONENT.	8-98270-233-0	01	1	1406-			●
2	GASKET; AIR CMPR ALSO INCLUDED IN GASKET SET(ENGINE). ID=162.6	1-09623-570-0	01	1	0710-	●	●
2	GASKET; AIR CMPR ALSO INCLUDED IN GASKET SET(ENGINE). ID=139.6	1-09623-464-0	01	1	0712-			●
4	KEY; INJ PUMP GEAR	9-08055-516-0	01	1	0710-	●	●
4	KEY; INJ PUMP GEAR	9-08055-519-0	01	1	0712-			●
5	BOLT; AIR CMPR FIX (C) M12X70 FLANGE	0-28151-270-0	02	1	0710-	●	●
5	BOLT; AIR CMPR FIX (B) M12X70 FLANGE	0-28151-270-0	01	1	0712-			●
5	BOLT; AIR CMPR FIX (A) M12X95 FLANGE	8-94396-485-1	01	1	0712-			●
6	NUT; AIR CMPR M12 FLANGE	0-91180-212-0	01	1	0710-	●	●
6	NUT; AIR CMPR M10 FLANGE	0-91180-110-0	02	1	0712-			●
14	NUT; GEAR M20	0-91110-520-0	01	1	0710-	●	●
14	NUT; GEAR M18	8-97141-154-0	01	1	0712-			●
19	GEAR; INJ PUMP Z=35	8-97600-987-2	01	1	0712-			●
27	HOSE; AIR CMPR,SUCTION	8-98057-031-1	01	1	0712-			●
28	CLIP; HOSE,AIR CMPR ID=24	8-98025-921-0	02	1	0712-			●
29	CLIP; AIR PIPE	1-09701-282-0	02	1	0712-			●
31	PIPE; AIR,AIR CMPR SUCTION (B)	8-98023-170-0	01	1	0712-			●
31	PIPE; AIR,AIR CMPR SUCTION (A)	8-98076-324-0	01	1	0712-			●
35	BOLT; EYE,AIR PIPE M24X39	1-09675-132-1	01	1	0712-1404			●
35	BOLT; EYE,AIR PIPE M24X39	1-09675-175-2	01	1	1405-			●
36	GASKET; AIR PIPE TO AIR CMPR ALSO INCLUDED IN GASKET SET(ENGINE). ID=24.5 OD=32	9-09571-424-0	02	1	0712-			●
40	CLIP; AIR PIPE (C)	1-09701-284-0	04	1	0712-			●
40	CLIP; AIR PIPE (A)	8-97619-417-0	01	1	0712-			●
40	CLIP; AIR PIPE (B)	8-97619-418-0	01	1	0712-			●
41	BOLT; CLIP M8X45 FLANGE	0-28050-845-0	02	1	0712-			●
49	PIPE; AIR,CHARGE	8-98042-002-0	01	1	0710-	●	●
49	PIPE; AIR,CHARGE	8-98057-015-0	01	1	0712-			●
51	BOLT; EYE,AIR PIPE TO CMPR M24X39	1-09675-175-2	01	1	0710-1404	●	●
51	BOLT; EYE,AIR PIPE TO CMPR M24X39	1-09675-175-2	01	1	1405-	●	●	●
51	BOLT; EYE,AIR PIPE TO CMPR M24X39	1-09675-132-1	01	1	0712-1404			●
52	GASKET; EYE BOLT,AIR PIPE ALSO INCLUDED IN GASKET SET(ENGINE). ID=24.5 OD=32	9-09571-424-0	02	1	0710-0711	●	●
52	GASKET; EYE BOLT,AIR PIPE ALSO INCLUDED IN GASKET SET(ENGINE). ID=24.5 OD=32	9-09571-424-0	02	1	0712-	●	●	●
57	BOLT; BRKT,AIR PIPE M8X16 FLANGE	0-28050-816-0	02	1	0712-			●
58	SPACER; AIR CMPR	8-98059-817-1	01	1	0712-			●
63	NUT; CLIP (A) M6 FLANGE	0-91180-106-0	03	1	0712-			●
63	NUT; CLIP (B) M8 FLANGE	0-91180-108-0	01	1	0712-			●
160	BRACKET; AIR PIPE (B)	8-98042-844-1	01	1	0905-	●
160	BRACKET; AIR PIPE SGL CAB(FC*M) (B)	8-98042-844-1	01	1	0905-		●
160	BRACKET; AIR PIPE (A)	8-97614-182-2	01	1	0710-	●	●
160	BRACKET; AIR PIPE (B)	8-97615-888-3	01	1	0710-0801	●	●
160	BRACKET; AIR PIPE (B)	8-98042-844-1	01	1	0802-0808	●	●
160	BRACKET; AIR PIPE (B)	8-98117-350-0	01	1	0809-0904	●	●
160	BRACKET; AIR PIPE DBL CAB(FC*W) (B)	8-98117-350-0	01	1	0905-		●
160	BRACKET; AIR PIPE (C)	8-98076-098-0	01	1	0712-			●
