0-36 — TURBOCHARGER SYSTEM (#21724) — 125 parça

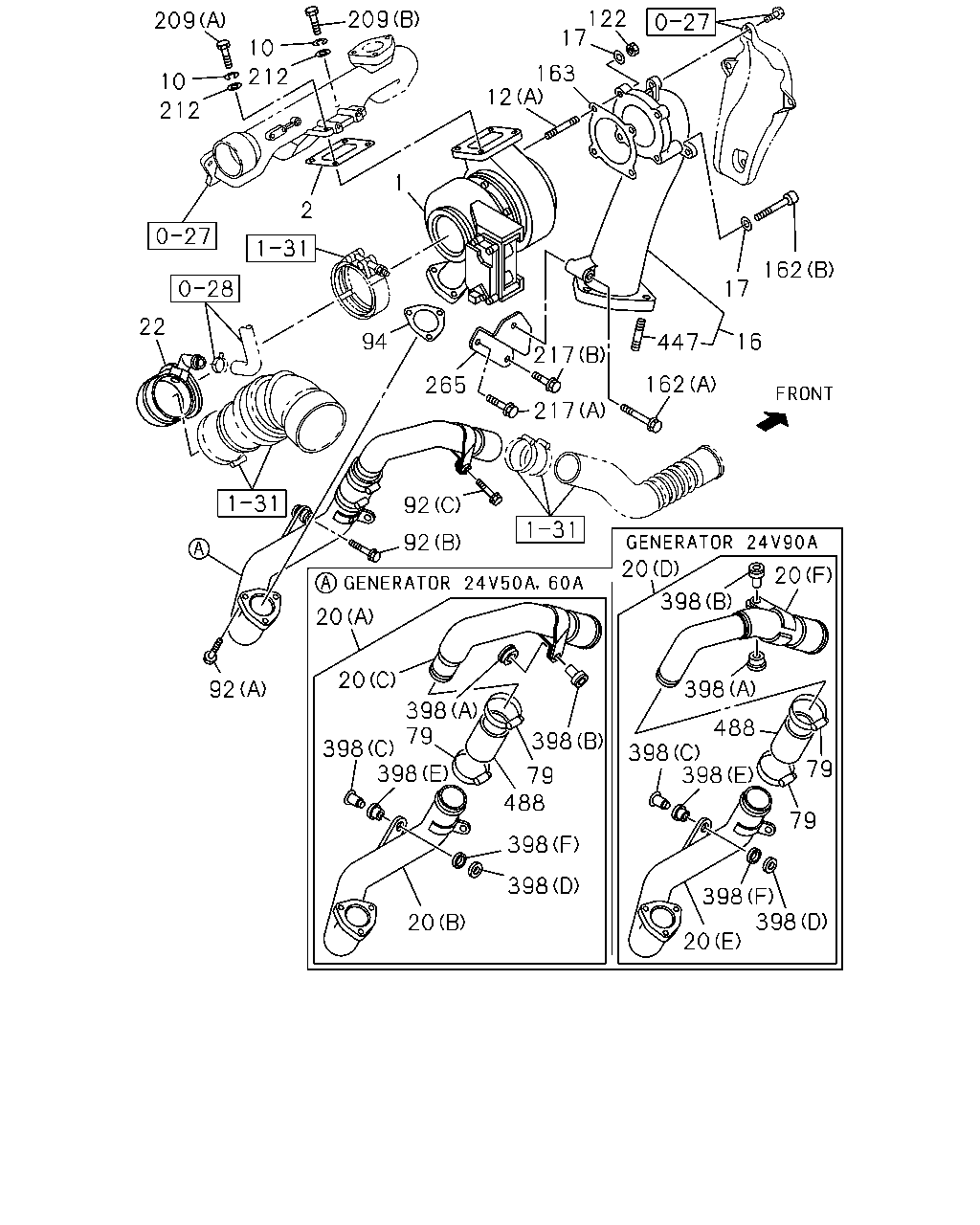

çizim 109005
122 17 209 209 10 163 212 10 12 212 1 2 162 17 22 94 16 447 217 162 265 217 92 92 20 20 398 20 20 398 488 92 398 79 398 398 398 398 398 79 79 488 79 398 398 398 398 20 20
BalonParca AdiParca NoAdetTipApplied Date A B C
1 TURBOCHARGER ASM 8-97604-975-9 01 1 0710- ● ●
1 TURBOCHARGER ASM 8-98027-772-5 01 1 0712- ●
2 GASKET; TURBOCHARGER TO EXH MANIF
ALSO INCLUDED IN GASKET SET(ENG. & HEAD) 		8-97024-124-0 01 1 0710- ● ●
10 WASHER; LK,TURBOCHARGER
T=2.2 		1-09556-015-0 04 1 0710- ● ●
12 STUD; TURBOCHARGER
(A) M8X25 L=36 		8-94476-282-0 02 1 0710- ● ●
12 STUD; TURBOCHARGER
(B) M10X30,M10X22.5 L=45 		9-04731-030-0 02 1 0712-0805 ●
12 STUD; TURBOCHARGER
(B) M10X30 L=45 		1-09302-106-0 02 1 0806- ●
16 ADAPTER; EXH PIPE 8-98018-241-1 01 1 0710- ● ●
16 ADAPTER; EXH PIPE 8-98030-080-3 01 1 0712- ●
17 WASHER; PL,ADAPTER
T=1.9 		5-09500-012-0 04 1 0710- ● ●
20 PIPE; INL,TURBOCHARGER OUT
GENERATOR 24V60A(KG2),GENERATOR 24V50A(K89) (A) 		8-98046-167-4 01 1 0710-1408 ● ●
20 PIPE; INL,TURBOCHARGER OUT
GENERATOR 24V60A(KG2),GENERATOR 24V50A(K89) (A) 		8-98251-581-0 01 1 1409- ● ●
20 PIPE; INL,TURBOCHARGER OUT
GENERATOR 24V60A(KG2),GENERATOR 24V50A(K89) (B) 		8-98046-168-1 01 1 0710- ● ●
20 PIPE; INL,TURBOCHARGER OUT
GENERATOR 24V60A(KG2),GENERATOR 24V50A(K89) (C) 		8-98046-169-2 01 1 0710- ● ●
20 PIPE; INL,TURBOCHARGER OUT
GENERATOR 24V90A(K44) (D) 		8-97617-214-2 01 1 0710-1408 ● ●
20 PIPE; INL,TURBOCHARGER OUT
GENERATOR 24V90A(K44) (D) 		8-98251-580-0 01 1 1409- ● ●
20 PIPE; INL,TURBOCHARGER OUT
GENERATOR 24V90A(K44) (E) 		8-97617-215-0 01 1 0710- ● ●
20 PIPE; INL,TURBOCHARGER OUT
GENERATOR 24V90A(K44) (F) 		8-97617-216-0 01 1 0710- ● ●
22 DUCT; INL,ACL TO TURBOCHARGER 8-98036-164-1 01 1 0710- ● ●
79 CLIP; RUBBER HOSE
ID=58-76 		1-09707-203-0 02 1 0710-0811 ● ●
79 CLIP; RUBBER HOSE
ID=55-75 		8-98133-349-0 02 1 0812-0902 ● ●
79 CLIP; RUBBER HOSE
ID=58-79 		1-09707-136-0 02 1 0903- ● ●
92 BOLT; INL PIPE
(A) M8X30 FLANGE 		0-28650-830-0 03 1 0710- ● ●
92 BOLT; INL PIPE
(B) M8X35 FLANGE 		0-28650-835-0 01 1 0710- ● ●
92 BOLT; INL PIPE
(C) M8X40 FLANGE 		0-28650-840-0 01 1 0710- ● ●
94 GASKET; INL PIPE 8-98053-830-0 01 1 0710- ● ●
122 NUT; ADAPTER
M8 		1-09400-118-1 02 1 0710- ● ●
162 BOLT; ADAPTER
(A) M10X60 FLANGE 		0-28051-060-0 01 1 0710- ● ●
162 BOLT; ADAPTER
(B) M8X60 		1-09000-464-0 02 1 0710-0910 ● ●
162 BOLT; ADAPTER
(B) M8X60 		8-98158-604-0 02 1 0911- ● ●
162 BOLT; ADAPTER
(C) M8X57 		5-09000-275-0 01 1 0712- ●
163 GASKET; ADAPTER TO EXH PIPE 8-94392-553-2 01 1 0710- ● ●
209 BOLT; BRACE,TURBOCHARGER
(B) M10X80 		8-98049-825-0 02 1 0710- ● ●
209 BOLT; BRACE,TURBOCHARGER
(A) M10X40 		9-09604-007-1 02 1 0710- ● ●
212 WASHER; PL,TURBOCHARGER
ID=10 		1-09503-033-1 04 1 0710- ● ●
217 BOLT; BRKT
(A) M8X20 FLANGE 		0-28650-820-0 01 1 0710- ● ●
217 BOLT; BRKT
(B) M10X25 FLANGE 		0-28751-025-0 01 1 0710- ● ●
265 BRACKET; EXH PIPE 8-98260-415-0 01 1 0710- ● ●
398 MOUNTING
(F) 		8-94160-177-0 01 1 0710- ● ●
398 MOUNTING
(C) 		8-94390-551-1 01 1 0710- ● ●
398 MOUNTING
(D) 		8-94394-504-0 01 1 0710- ● ●
398 MOUNTING
(E) 		8-94394-529-0 01 1 0710- ● ●
398 MOUNTING
(A) 		8-94395-766-0 01 1 0710- ● ●
398 MOUNTING
(B) OD=23 		8-97105-689-6 01 1 0710- ● ●
447 STUD; ADAPTER
M12X30 L=48 		0-44011-230-0 03 1 0710- ● ●
488 HOSE; RUBBER 8-98046-356-0 01 1 0710-1408 ● ●
488 HOSE; RUBBER 8-98245-242-0 01 1 1409- ● ●

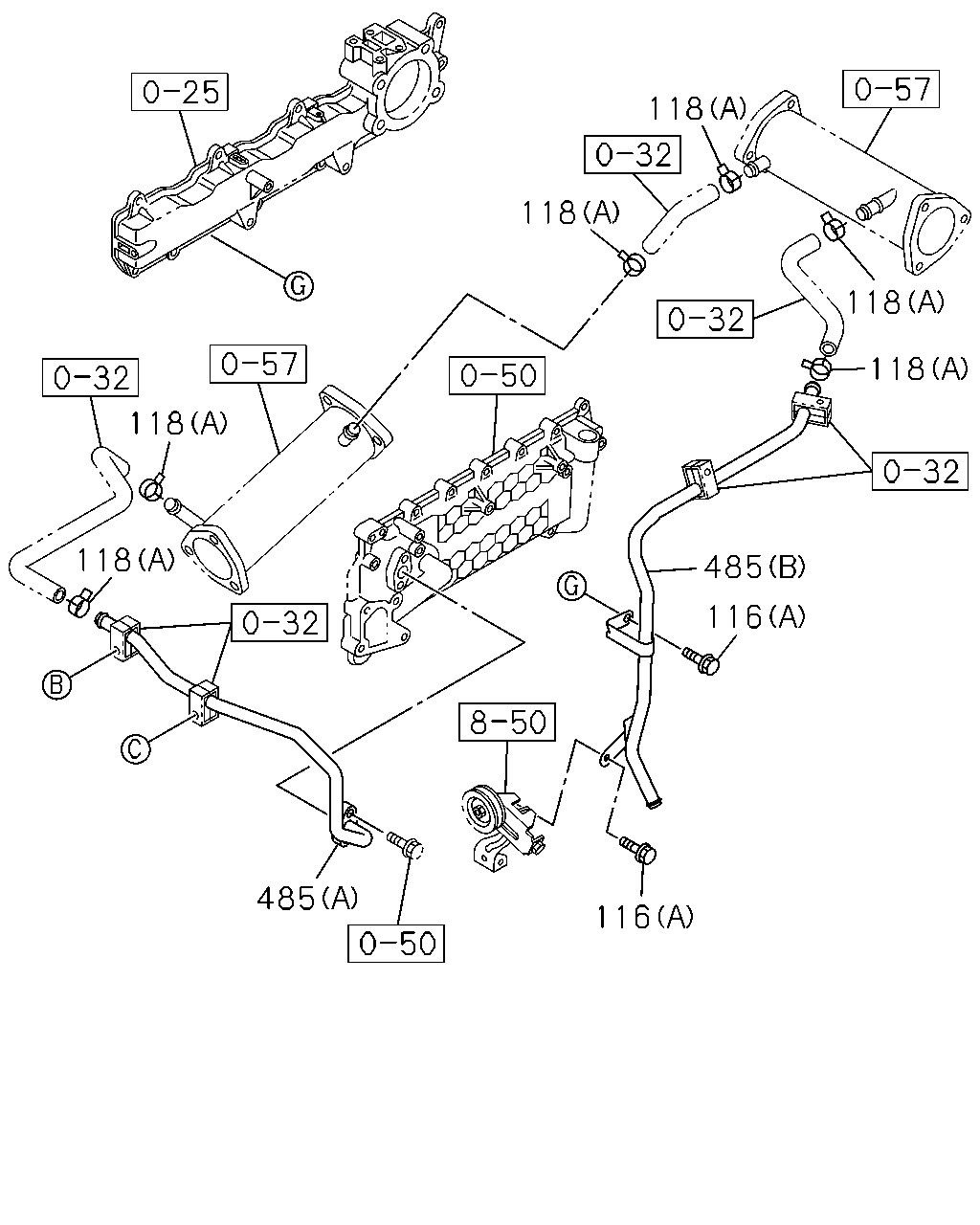

çizim 109006
118 118 118 118 118 118 485 116 485 116
BalonParca AdiParca NoAdetTipApplied Date A B C
116 BOLT; WATER PIPE
(A) M8X20 FLANGE 		0-28650-820-0 02 1 0712- ●
116 BOLT; WATER PIPE
(B) M12X24 EYE-BOLT 		1-09675-081-0 02 1 0712- ●
116 BOLT; WATER PIPE
(C) M14X30 EYE-BOLT 		8-94455-144-0 01 1 0712- ●
118 CLIP; WATER HOSE
(A) ID=20 		1-09707-084-1 06 1 0712- ●
118 CLIP; WATER HOSE
(B) ID=15.5 		8-94221-519-0 06 1 0712- ●
485 PIPE; WATER EGR
(A) 		8-97376-773-0 01 1 0712- ●
485 PIPE; WATER EGR
(B) 		8-97376-775-2 01 1 0712- ●

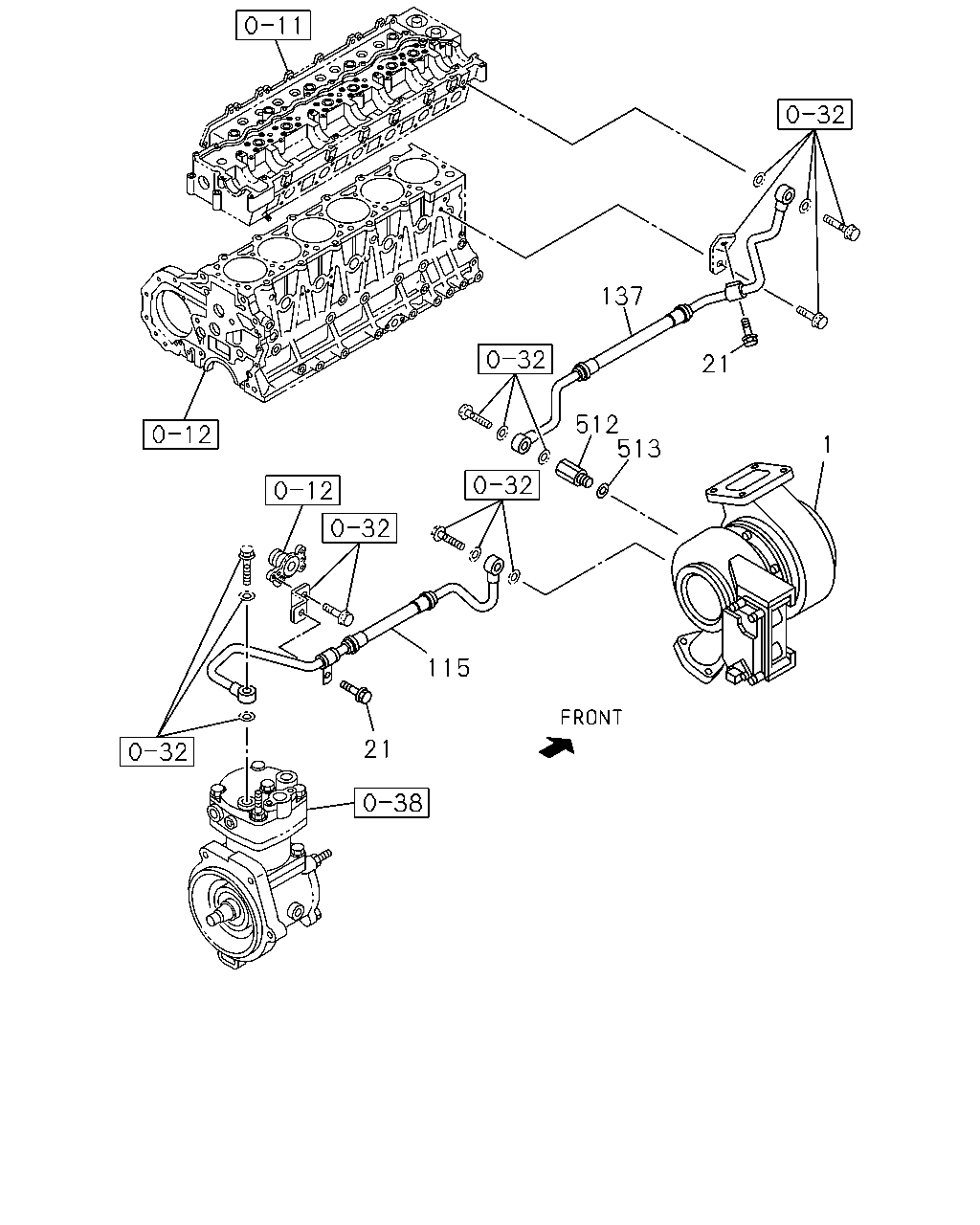

çizim 109007
137 21 512 513 1 115 21
BalonParca AdiParca NoAdetTipApplied Date A B C
1 TURBOCHARGER ASM 8-97604-975-9 01 1 0710- ● ●
1 TURBOCHARGER ASM 8-98027-772-5 01 1 0712- ●
21 BOLT; PIPE
M8X16 FLANGE 		0-28050-816-0 02 1 0710- ● ●
115 PIPE; WATER,TURBOCHARGER OUT 8-97615-877-0 01 1 0710- ● ●
115 PIPE; WATER,TURBOCHARGER OUT 8-97387-270-2 01 1 0712- ●
137 PIPE; WATER,TURBOCHARGER IN 8-98046-783-0 01 1 0710- ● ●
137 PIPE; WATER,TURBOCHARGER IN 8-97387-271-0 01 1 0712- ●
512 CONNECTOR; TURBO 8-98031-856-0 01 1 0710- ● ●
513 GASKET; CONNECTOR
ID=14.2 OD=19.2 		1-09630-085-0 01 1 0710-1312 ● ●
513 GASKET; CONNECTOR
ID=14.2 OD=19.2 		8-98251-345-0 01 1 1401- ● ●

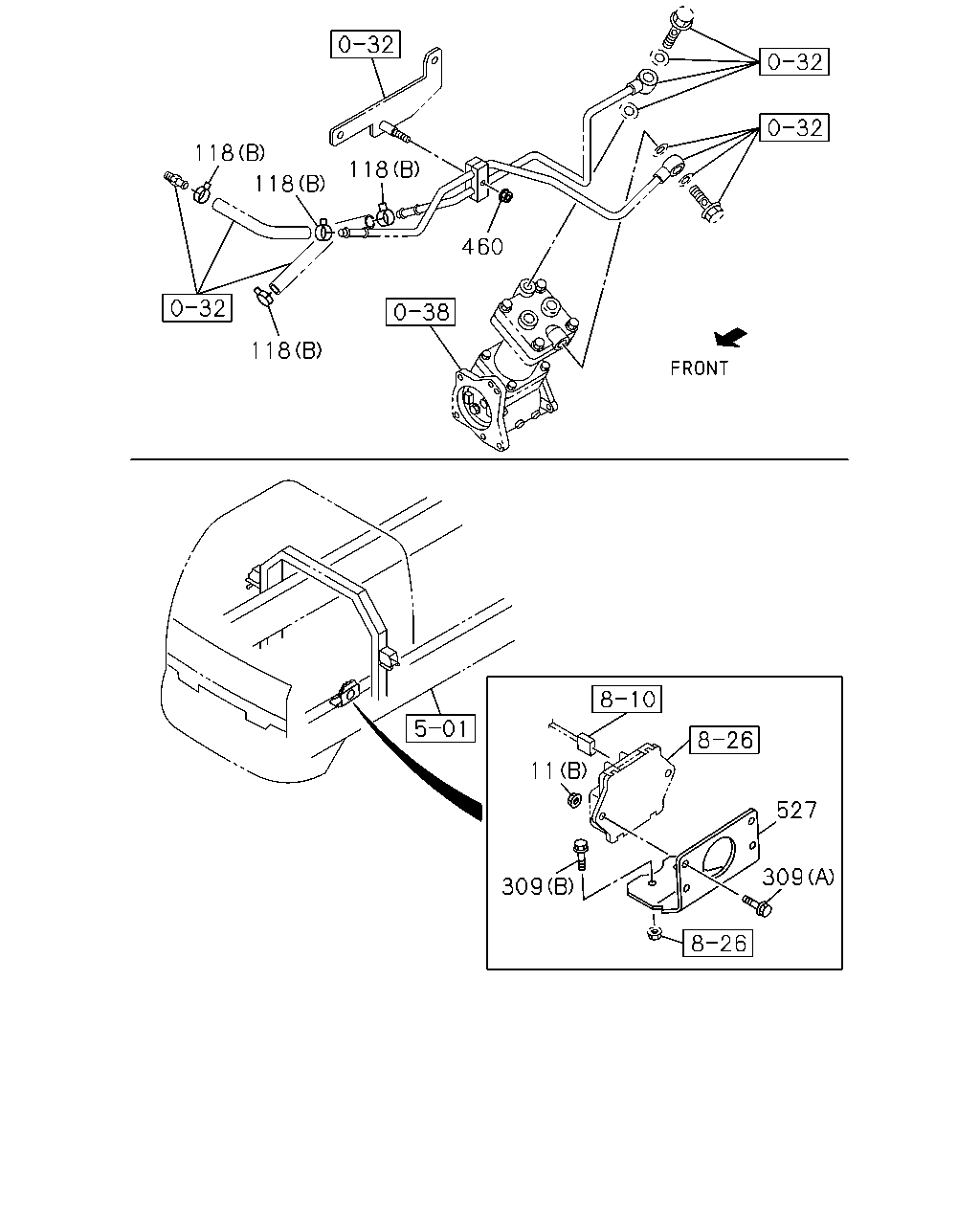

çizim 109013
118 118 118 460 118 11 527 309 309
BalonParca AdiParca NoAdetTipApplied Date A B C
11 NUT; TURBOCHARGER
(B) M6 FLANGE 		0-91180-106-0 02 1 0712- ●
11 NUT; TURBOCHARGER
(A) M10 		1-09420-005-0 04 1 0712-0805 ●
11 NUT; TURBOCHARGER
(A) M10 FLANGE 		8-97381-617-0 04 1 0806- ●
118 CLIP; WATER HOSE
(A) ID=20 		1-09707-084-1 06 1 0712- ●
118 CLIP; WATER HOSE
(B) ID=15.5 		8-94221-519-0 06 1 0712- ●
309 BOLT; TURBOCHARGER
(A) M6X20 FLANGE 		0-28650-620-0 02 1 0712- ●
309 BOLT; TURBOCHARGER
(B) M8X25 FLANGE 		0-28650-825-0 02 1 0712-0901 ●
460 NUT; PIPE
M6 FLANGE 		0-91180-106-0 01 1 0712- ●
527 BRACKET; TURBOCHARGER 8-98036-206-1 01 1 0712- ●

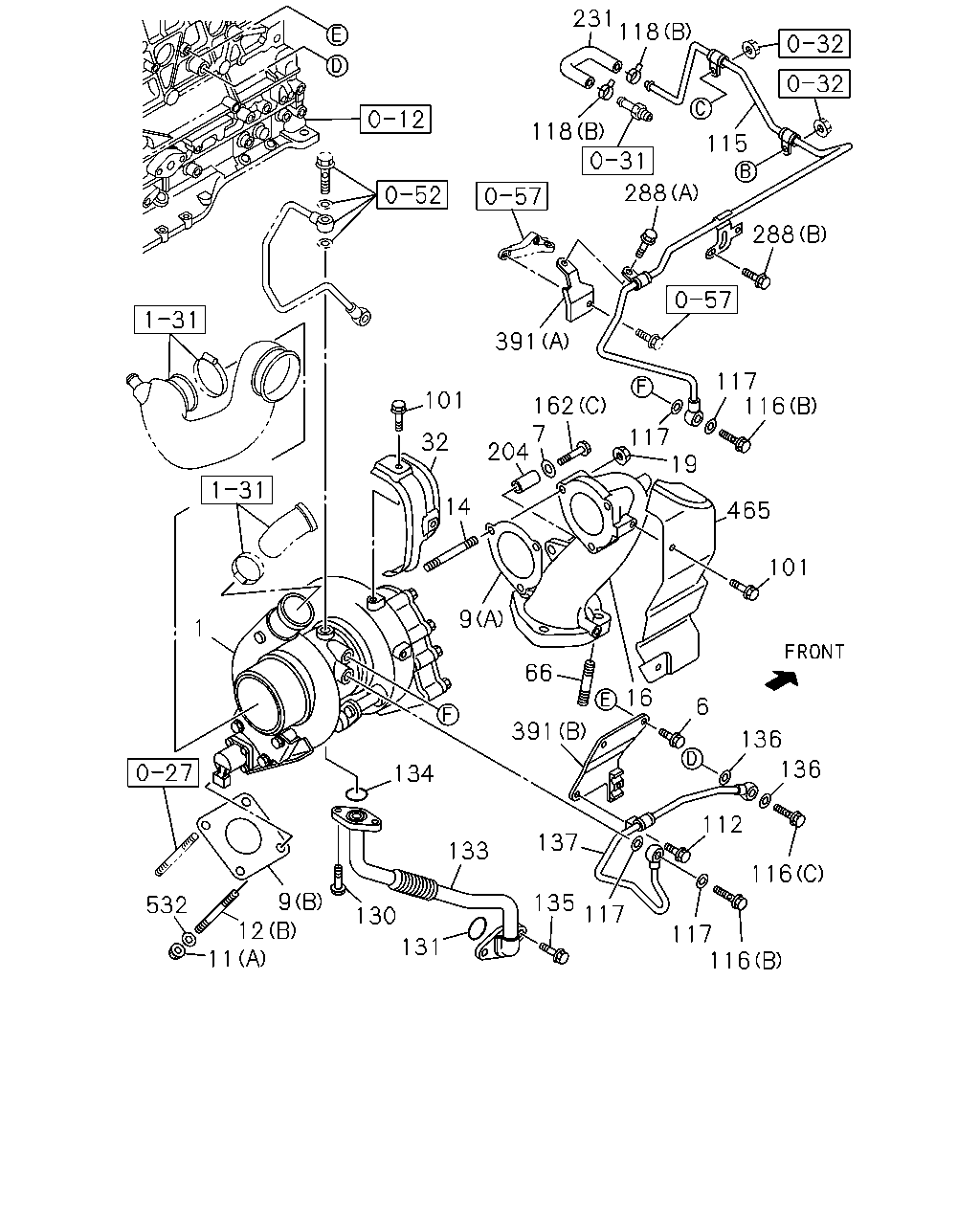

çizim 109025
231 118 118 115 288 288 391 117 116 101 162 7 204 117 19 32 14 465 101 9 1 66 16 6 391 136 136 134 112 137 133 116 9 12 11 135 532 117 130 117 116 131
BalonParca AdiParca NoAdetTipApplied Date A B C
1 TURBOCHARGER ASM 8-97604-975-9 01 1 0710- ● ●
1 TURBOCHARGER ASM 8-98027-772-5 01 1 0712- ●
6 BOLT; BRKT TO C/BL
M8X16 FLANGE 		0-28050-816-0 02 1 0712- ●
7 WASHER; PL,BRKT
ID=8 OD=18 T=3 		8-94174-537-0 01 1 0712- ●
9 GASKET; TURBOCHARGER TO EXH DUCT
ALSO INCLUDED IN GASKET SET(ENG. & HEAD) (A) 		8-97376-758-0 01 1 0712- ●
9 GASKET; TURBOCHARGER TO EXH DUCT
ALSO INCLUDED IN GASKET SET(ENG. & HEAD) (B) 		8-98046-241-0 01 1 0712- ●
11 NUT; TURBOCHARGER
(B) M6 FLANGE 		0-91180-106-0 02 1 0712- ●
11 NUT; TURBOCHARGER
(A) M10 		1-09420-005-0 04 1 0712-0805 ●
11 NUT; TURBOCHARGER
(A) M10 FLANGE 		8-97381-617-0 04 1 0806- ●
12 STUD; TURBOCHARGER
(A) M8X25 L=36 		8-94476-282-0 02 1 0710- ● ●
12 STUD; TURBOCHARGER
(B) M10X30,M10X22.5 L=45 		9-04731-030-0 02 1 0712-0805 ●
12 STUD; TURBOCHARGER
(B) M10X30 L=45 		1-09302-106-0 02 1 0806- ●
14 STUD; TURBOCHARGER TO EXH PIPE
M8X49 L=63 		8-97019-478-0 03 1 0712- ●
16 ADAPTER; EXH PIPE 8-98018-241-1 01 1 0710- ● ●
16 ADAPTER; EXH PIPE 8-98030-080-3 01 1 0712- ●
19 NUT; EXH PIPE,TURBOCHARGER
M8 FLANGE 		8-94170-486-0 03 1 0712- ●
32 PROTECTOR; HEAT,TURBOCHARGER 8-98031-888-3 01 1 0712- ●
66 STUD; EXH PIPE
M10X25 L=40 		0-44011-025-0 03 1 0712- ●
101 BOLT; HEAT PROTECTOR
M6X12 W/PL WASHER 		8-98054-289-0 06 1 0712- ●
112 BOLT; CLIP
M8X12 FLANGE 		0-28050-812-0 01 1 0712- ●
115 PIPE; WATER,TURBOCHARGER OUT 8-97615-877-0 01 1 0710- ● ●
115 PIPE; WATER,TURBOCHARGER OUT 8-97387-270-2 01 1 0712- ●
116 BOLT; WATER PIPE
(A) M8X20 FLANGE 		0-28650-820-0 02 1 0712- ●
116 BOLT; WATER PIPE
(B) M12X24 EYE-BOLT 		1-09675-081-0 02 1 0712- ●
116 BOLT; WATER PIPE
(C) M14X30 EYE-BOLT 		8-94455-144-0 01 1 0712- ●
117 GASKET; WATER PIPE
ALSO INCLUDED IN GASKET SET(ENGINE). ID=12.2 		9-09571-412-0 04 1 0712- ●
118 CLIP; WATER HOSE
(A) ID=20 		1-09707-084-1 06 1 0712- ●
118 CLIP; WATER HOSE
(B) ID=15.5 		8-94221-519-0 06 1 0712- ●
130 BOLT; OIL PIPE TO TURBOCHARGER DRAIN
M6X20 W/LK WASHER 		0-50540-620-0 02 1 0712- ●
131 GASKET; OIL PIPE,C/BL
ALSO INCLUDED IN GASKET SET(ENGINE). ID=27.7 		9-09566-228-0 01 1 0712-1006 ●
131 GASKET; OIL PIPE,C/BL
ALSO INCLUDED IN GASKET SET(ENGINE). ID=30 		8-94394-671-0 01 1 1007- ●
133 PIPE; OIL DRAIN,TURBOCHARGER 8-97386-642-1 01 1 0712-1006 ●
133 PIPE; OIL DRAIN,TURBOCHARGER 8-98172-661-0 01 1 1007- ●
134 GASKET; OIL PIPE,TURBOCHARGER DRAIN
ALSO INCLUDED IN GASKET SET(ENGINE). ID=22.8 		1-09623-462-0 01 1 0712- ●
135 BOLT; OIL PIPE TO C/BL
M8X20 FLANGE 		0-28050-820-0 02 1 0712- ●
136 GASKET; WATER PIPE
ALSO INCLUDED IN GASKET SET(ENGINE). ID=14.2 OD=19.2 		1-09630-085-0 02 1 0712-1312 ●
136 GASKET; WATER PIPE
ALSO INCLUDED IN GASKET SET(ENGINE). ID=14.2 OD=19.2 		8-98251-345-0 02 1 1401- ●
137 PIPE; WATER,TURBOCHARGER IN 8-98046-783-0 01 1 0710- ● ●
137 PIPE; WATER,TURBOCHARGER IN 8-97387-271-0 01 1 0712- ●
162 BOLT; ADAPTER
(A) M10X60 FLANGE 		0-28051-060-0 01 1 0710- ● ●
162 BOLT; ADAPTER
(B) M8X60 		1-09000-464-0 02 1 0710-0910 ● ●
162 BOLT; ADAPTER
(B) M8X60 		8-98158-604-0 02 1 0911- ● ●
162 BOLT; ADAPTER
(C) M8X57 		5-09000-275-0 01 1 0712- ●
204 COLLAR; PIPE ADAPTER 8-97214-384-1 01 1 0712- ●
231 HOSE; RUBBER,TURBOCHARGER OUT 8-97209-950-0 01 1 0712- ●
288 BOLT; WATER PIPE CLIP
(A) M8X10 FLANGE 		0-28050-810-0 01 1 0712- ●
288 BOLT; WATER PIPE CLIP
(B) M8X16 FLANGE 		0-28050-816-0 02 1 0712-0803 ●
288 BOLT; WATER PIPE CLIP
(B) M8X16 FLANGE 		0-28050-816-0 01 1 0804- ●
391 BRACKET; WATER PIPE
(A) 		8-98013-958-0 01 1 0712- ●
391 BRACKET; WATER PIPE
(B) 		8-98057-168-2 01 1 0712- ●
465 PROTECTOR; HEAT,EXH ADAPTER 8-98052-394-0 01 1 0712- ●
532 WASHER; TURBOCHARGER
ID=10 		1-09503-033-1 04 1 0712-0805 ●
