Isuzu WW
▶
TRUCKS
▶
FRR
▶
11415 - FRR AUSTRALIA EURO4 EXC.SPACECAB
▶
0 - Engine, Emission, Engine Electrical
▶
0-31 - THERMOSTAT AND HOUSING
▶
0-31 — THERMOSTAT AND HOUSING
(#21720) — 40 parça
Tümü
A - 6HK1-TCC ENG
B - 6HK1-TCN ENG
C - 4HK1-TCS ENG
◀

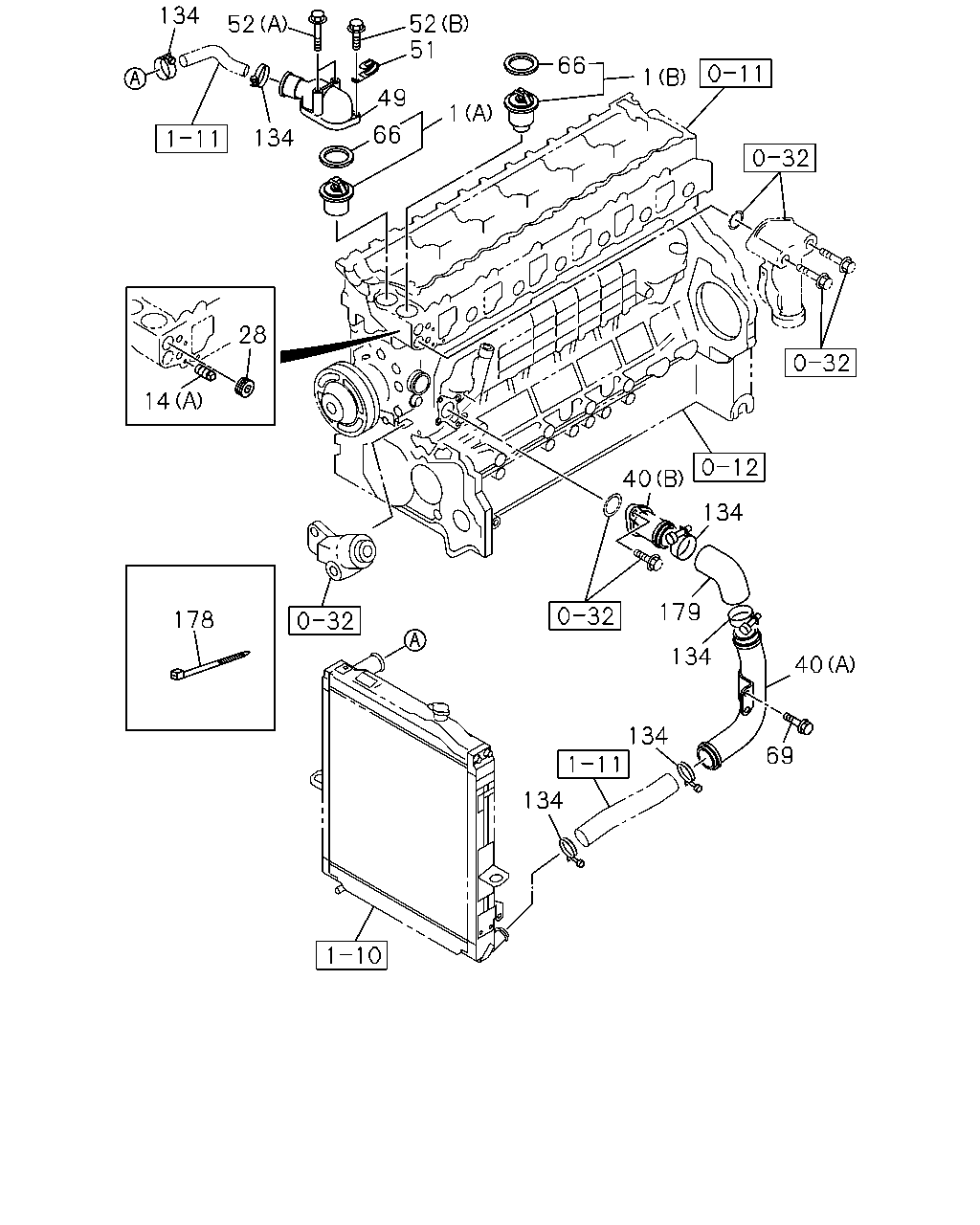

[031A] 6HK1 (23 parça)

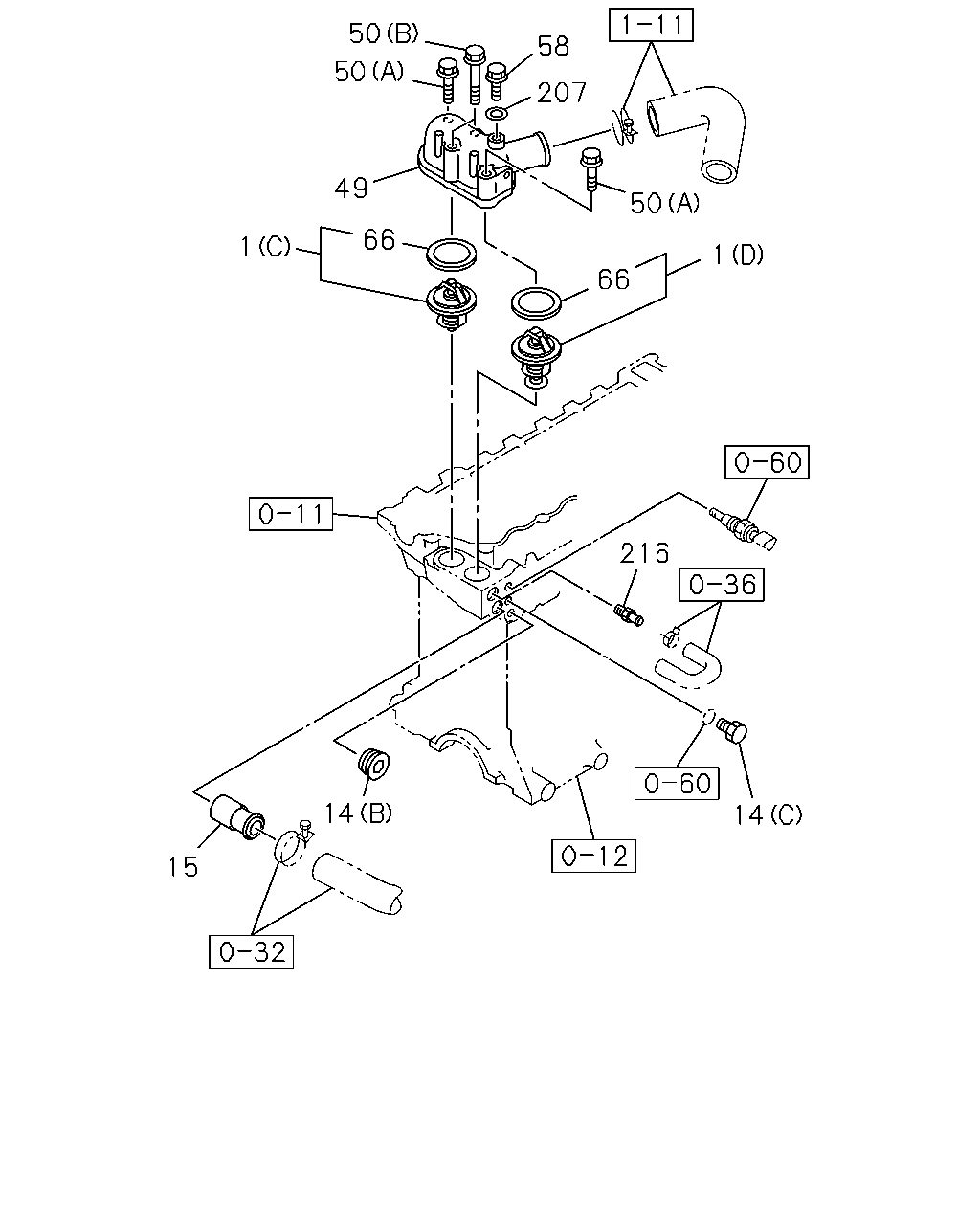

[031A] 4HK1 (17 parça)
▶
134
52
51
52
66
1
49
1
66
134
28
14
40
134
179
178
134
40
134
69
134
Balon
Parca Adi
Parca No
Adet
Tip
Applied Date
A
B
C
1
THERMOSTAT
(A) 82 CELSIUS
8-97602-048-2
01
1
0710-
●
●
1
THERMOSTAT
(B) 82 CELSIUS
8-97602-393-1
01
1
0710-
●
●
1
THERMOSTAT
(C) 85 CELSIUS
8-97300-787-2
01
1
0712-
●
1
THERMOSTAT
(D) 82 CELSIUS
8-97300-790-2
01
1
0712-
●
14
PLUG; SW
(A) PT3/8
8-94397-338-0
01
1
0710-
●
●
14
PLUG; SW
(B) PT3/8
5-09605-005-0
01
1
0712-0712
●
14
PLUG; SW
(C) M16X8 PLUG
9-09661-005-0
01
1
0712-
●
28
PLUG; HTR
PT3/4
1-09605-020-0
01
1
0710-
●
●
40
DUCT; WATER,SUCTION
(B)
8-94391-091-1
01
1
0710-
●
●
40
DUCT; WATER,SUCTION
(A)
8-94394-404-1
01
1
0710-
●
●
49
PIPE; WATER OUTLET
8-97602-047-0
01
1
0710-
●
●
49
PIPE; WATER OUTLET
8-97329-914-0
01
1
0712-
●
51
CLIP; JOINT,THERMOSTAT
ID=18 L=44
8-94225-185-0
01
1
0710-0801
●
●
51
CLIP; JOINT,THERMOSTAT
ID=18 L=44
8-97367-985-1
01
1
0802-
●
●
52
BOLT; JOINT,THERMOSTAT
(B) M8X25 FLANGE
0-28650-825-0
02
1
0710-
●
●
52
BOLT; JOINT,THERMOSTAT
(A) M8X85 FLANGE
8-97023-062-0
02
1
0710-
●
●
66
GASKET; THERMOSTAT HSG
ALSO INCLUDED IN GASKET SET(ENG. & HEAD)
8-97300-793-0
02
1
0710-0711
●
●
66
GASKET; THERMOSTAT HSG
ALSO INCLUDED IN GASKET SET(ENG. & HEAD)
8-97300-793-0
02
1
0712-
●
●
●
69
BOLT; DUCT,WATER OUTLET
M8X20 FLANGE
0-28650-820-0
02
1
0710-
●
●
134
CLIP; RUBBER HOSE
ID=63
1-09704-067-0
06
1
0710-
●
●
178
CLIP; BAND,HARNESS
EXC. HEATER & DEFROSTER(C41),AIR CONDITIONER MANUAL CONTROL(C60),FULLAUTO AIR CONDITIONER(C68) L=250
5-09707-030-1
01
1
0710-1205
●
●
178
CLIP; BAND,HARNESS
EXC. HEATER & DEFROSTER(C41),AIR CONDITIONER MANUAL CONTROL(C60),FULLAUTO AIR CONDITIONER(C68) L=250
8-98216-430-0
01
1
1206-
●
●
179
HOSE; RUBBER,WATER DUCT
8-94390-400-3
01
1
0710-
●
●
50
58
50
207
49
50
66
1
1
66
216
14
14
15
Balon
Parca Adi
Parca No
Adet
Tip
Applied Date
A
B
C
1
THERMOSTAT
(A) 82 CELSIUS
8-97602-048-2
01
1
0710-
●
●
1
THERMOSTAT
(B) 82 CELSIUS
8-97602-393-1
01
1
0710-
●
●
1
THERMOSTAT
(C) 85 CELSIUS
8-97300-787-2
01
1
0712-
●
1
THERMOSTAT
(D) 82 CELSIUS
8-97300-790-2
01
1
0712-
●
14
PLUG; SW
(A) PT3/8
8-94397-338-0
01
1
0710-
●
●
14
PLUG; SW
(B) PT3/8
5-09605-005-0
01
1
0712-0712
●
14
PLUG; SW
(C) M16X8 PLUG
9-09661-005-0
01
1
0712-
●
15
PIPE; BYPASS
8-94342-574-0
01
1
0712-
●
49
PIPE; WATER OUTLET
8-97602-047-0
01
1
0710-
●
●
49
PIPE; WATER OUTLET
8-97329-914-0
01
1
0712-
●
50
BOLT; OUTLET PIPE
(A) M8X25 FLANGE
0-28650-825-0
02
1
0712-
●
50
BOLT; OUTLET PIPE
(B) M8X65 FLANGE
1-09044-072-1
02
1
0712-
●
58
PLUG; WATER OUTLET PIPE
M8X16
8-97021-211-1
01
1
0712-
●
66
GASKET; THERMOSTAT HSG
ALSO INCLUDED IN GASKET SET(ENG. & HEAD)
8-97300-793-0
02
1
0710-0711
●
●
66
GASKET; THERMOSTAT HSG
ALSO INCLUDED IN GASKET SET(ENG. & HEAD)
8-97300-793-0
02
1
0712-
●
●
●
207
GASKET
ALSO INCLUDED IN GASKET SET(ENGINE). ID=8.2 OD=13.2
1-09630-082-0
01
1
0712-
●
216
PIPE ASM; WATER,TURBOCHARGER RETURN
8-97358-699-0
01
1
0712-
●
