Isuzu WW
▶
TRUCKS
▶
FRR
▶
11415 - FRR AUSTRALIA EURO4 EXC.SPACECAB
▶
0 - Engine, Emission, Engine Electrical
▶
0-27 - EXHAUST MANIFOLD
▶
0-27 — EXHAUST MANIFOLD
(#21717) — 36 parça
Tümü

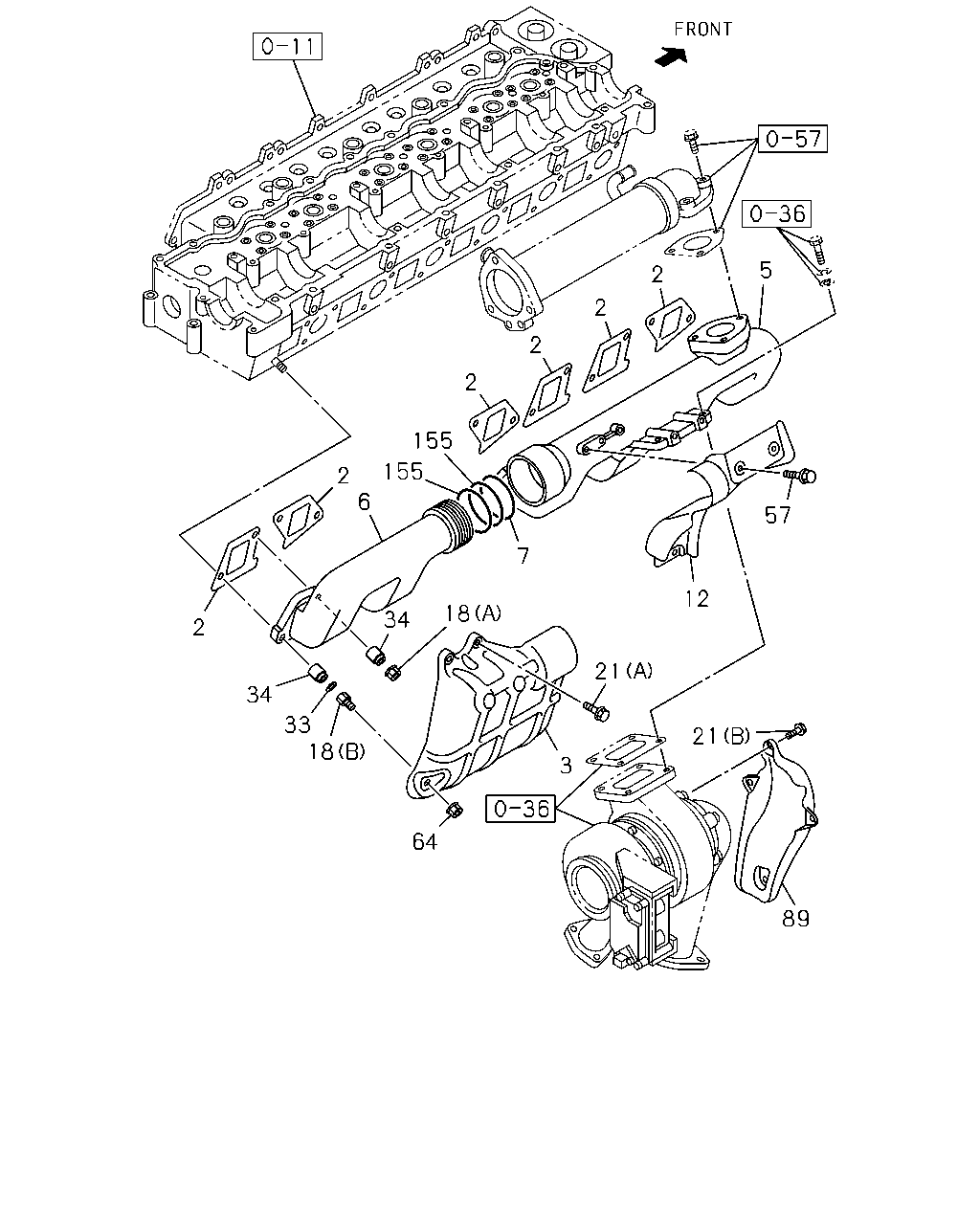

A - 6HK1-TCC ENG
B - 6HK1-TCN ENG
C - 4HK1-TCS ENG
◀
[027A] 6HK1 (21 parça)

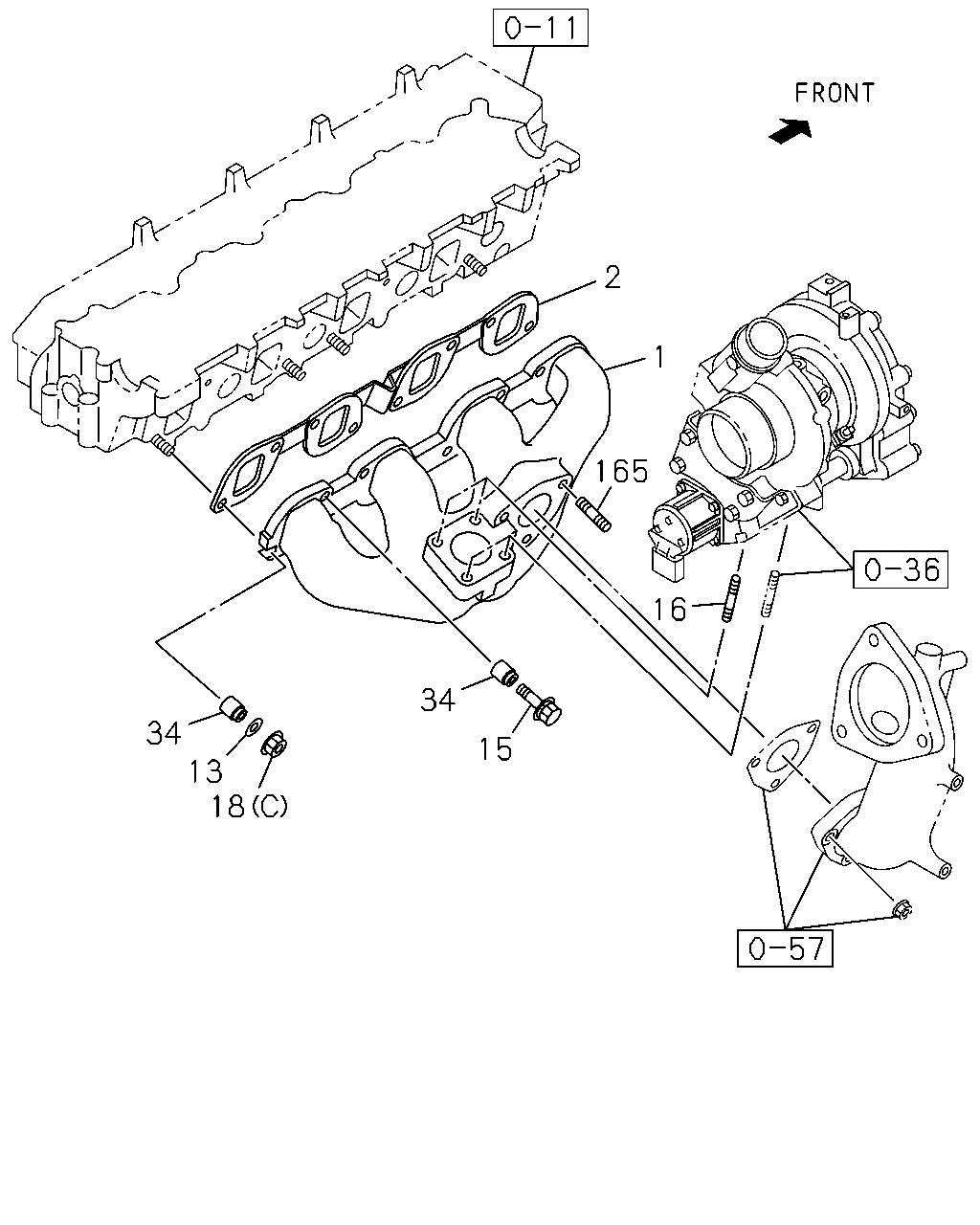

[027A] 4HK1 (15 parça)
▶
5
2
2
2
2
155
155
2
6
57
7
12
18
34
2
21
34
33
18
21
3
64
89
Balon
Parca Adi
Parca No
Adet
Tip
Applied Date
A
B
C
2
GASKET; EXH MANIF TO HD
ALSO INCLUDED IN GASKET SET(ENG. & HEAD)
8-94393-672-4
06
1
0710-
●
●
2
GASKET; EXH MANIF TO HD
ALSO INCLUDED IN GASKET SET(ENG. & HEAD)
8-97146-499-2
01
1
0712-
●
3
PROTECTOR; HEAT,EXH MANIF
8-97611-986-1
01
1
0710-1202
●
●
3
PROTECTOR; HEAT,EXH MANIF
8-98205-395-0
01
1
1203-
●
●
5
MANIFOLD; EXH,FRT
8-97604-942-1
01
1
0710-
●
●
6
MANIFOLD; EXH,RR
8-97604-944-0
01
1
0710-
●
●
7
RING; SEAL,EXH MANIF
1-14149-151-0
01
1
0710-
●
●
12
PROTECTOR; HEAT,TURBOCHARGER,EXH MANIF
8-97610-717-3
01
1
0710-
●
●
18
NUT; EXH MANIF
(A) M10 LOCK NUT
0-91370-010-0
10
1
0710-
●
●
18
NUT; EXH MANIF
(B) M10 L=51
8-94394-991-1
02
1
0710-1202
●
●
18
NUT; EXH MANIF
(B)
8-98205-394-0
02
1
1203-
●
●
18
NUT; EXH MANIF
(C) M10
0-91110-510-0
02
1
0712-
●
21
BOLT; HEAT PROTECTOR
(A) M8X16 FLANGE
0-28050-816-0
02
1
0710-
●
●
21
BOLT; HEAT PROTECTOR
(B) M8X14 FLANGE
8-97378-075-0
04
1
0710-
●
●
33
WASHER; EXH MANIF
T=2.2
1-09556-015-0
02
1
0710-
●
●
34
COLLAR; DIST,EXH MANIF
L=28
8-97250-073-1
12
1
0710-
●
●
34
COLLAR; DIST,EXH MANIF
L=28
8-97250-073-1
08
1
0712-
●
57
BOLT; HEAT PROTECTOR,EXH MANIF
M8X14 FLANGE
8-97378-075-0
03
1
0710-
●
●
64
NUT; HEAT PROTECTOR
M10 FLANGE
0-91180-210-0
02
1
0710-
●
●
89
PROTECTOR; HEAT
8-97611-985-3
01
1
0710-
●
●
155
RING; SEAL,EXH MANIF
1-14149-184-0
02
1
0710-
●
●
2
1
165
16
34
34
13
18
15
Balon
Parca Adi
Parca No
Adet
Tip
Applied Date
A
B
C
1
MANIFOLD; EXHAUST
8-97387-873-4
01
1
0712-1405
●
1
MANIFOLD; EXHAUST
8-98271-447-0
01
1
1406-
●
2
GASKET; EXH MANIF TO HD
ALSO INCLUDED IN GASKET SET(ENG. & HEAD)
8-94393-672-4
06
1
0710-
●
●
2
GASKET; EXH MANIF TO HD
ALSO INCLUDED IN GASKET SET(ENG. & HEAD)
8-97146-499-2
01
1
0712-
●
13
WASHER; LK,EXH MANIF
T=2.2
1-09556-015-0
02
1
0712-
●
15
BOLT; EXH MANIF
M10X60
8-97061-543-0
06
1
0712-
●
16
STUD; EXH PIPE TO MANIF
M10X25 L=40
9-04731-025-0
02
1
0712-0805
●
16
STUD; EXH PIPE TO MANIF
M10X30 L=45
1-09302-106-0
02
1
0806-
●
18
NUT; EXH MANIF
(A) M10 LOCK NUT
0-91370-010-0
10
1
0710-
●
●
18
NUT; EXH MANIF
(B) M10 L=51
8-94394-991-1
02
1
0710-1202
●
●
18
NUT; EXH MANIF
(B)
8-98205-394-0
02
1
1203-
●
●
18
NUT; EXH MANIF
(C) M10
0-91110-510-0
02
1
0712-
●
34
COLLAR; DIST,EXH MANIF
L=28
8-97250-073-1
12
1
0710-
●
●
34
COLLAR; DIST,EXH MANIF
L=28
8-97250-073-1
08
1
0712-
●
165
STUD; EGR PIPE
M8X25 L=36
8-94476-282-0
03
1
0712-
●
