Isuzu WW
▶
TRUCKS
▶
FRR
▶
11415 - FRR AUSTRALIA EURO4 EXC.SPACECAB
▶
0 - Engine, Emission, Engine Electrical
▶
0-25 - INLET MANIFOLD
▶
0-25 — INLET MANIFOLD
(#21716) — 59 parça
Tümü
A - 6HK1-TCC ENG
B - 6HK1-TCN ENG
C - 4HK1-TCS ENG
◀

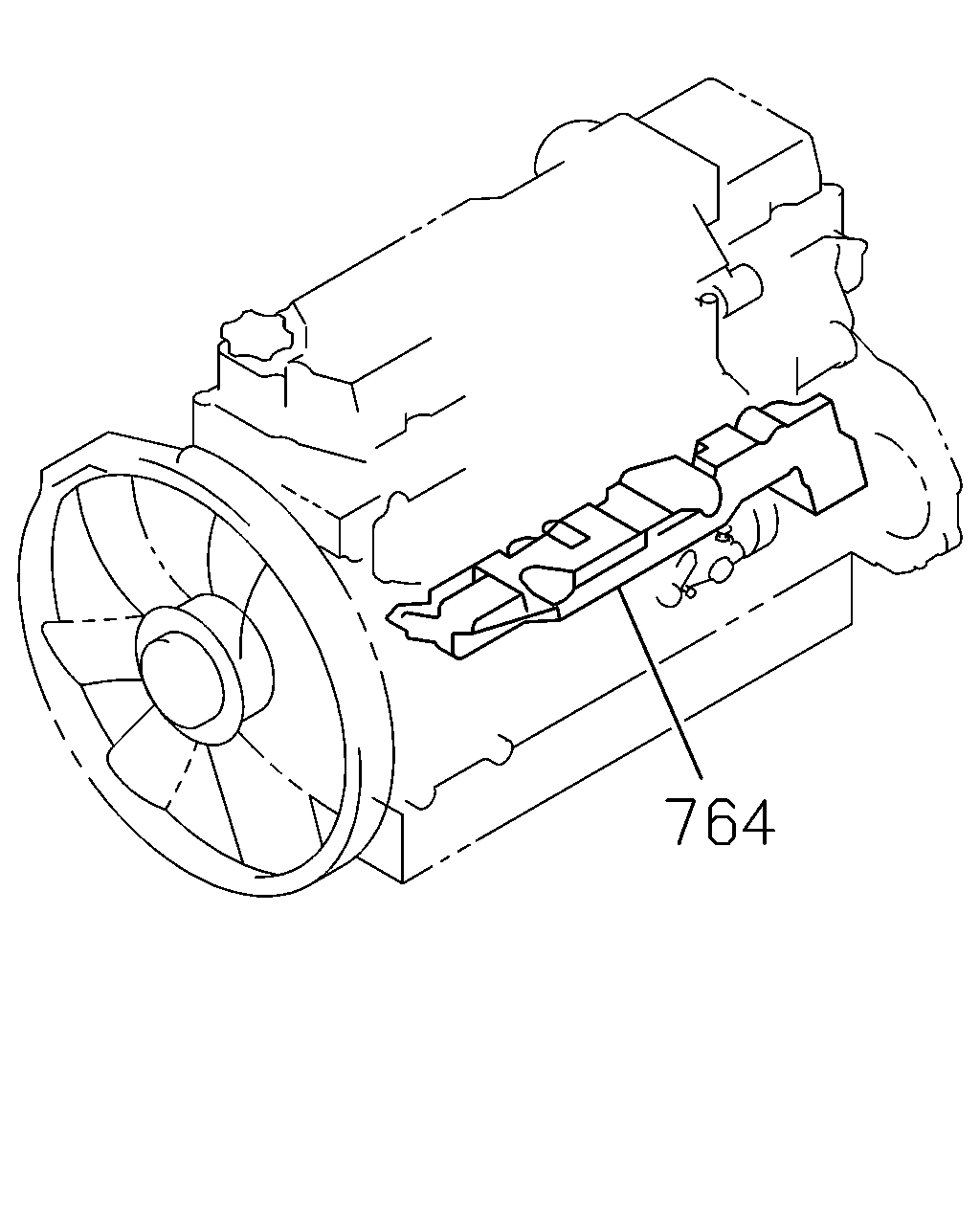

[025A] 6HK1;SPACER INL COVER (1 parça)

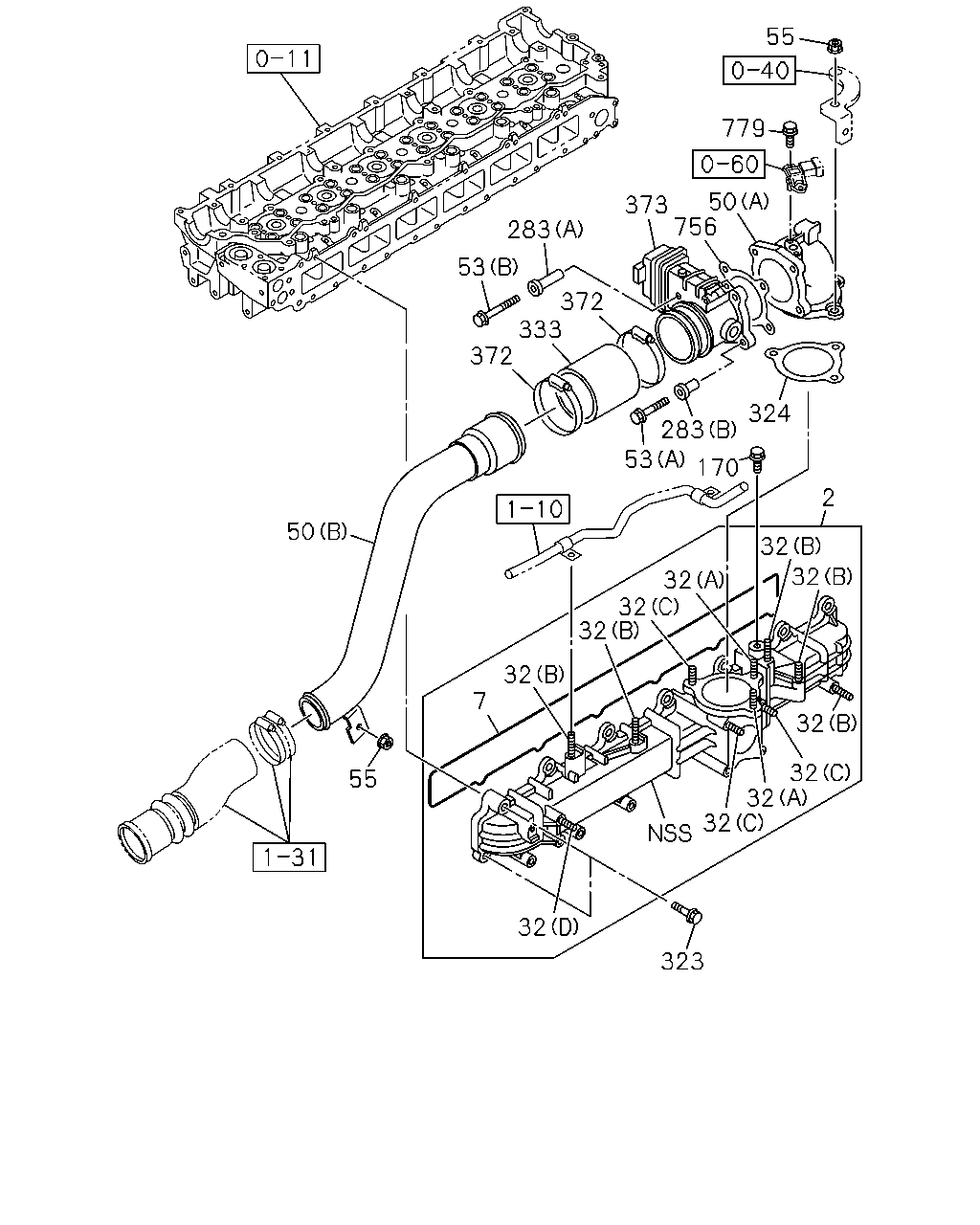

[025A] 6HK1 INLET MANIF AND PIPE (32 parça)
[025A] 6HK1;GASKET;INTAKE DUCT (1 parça)

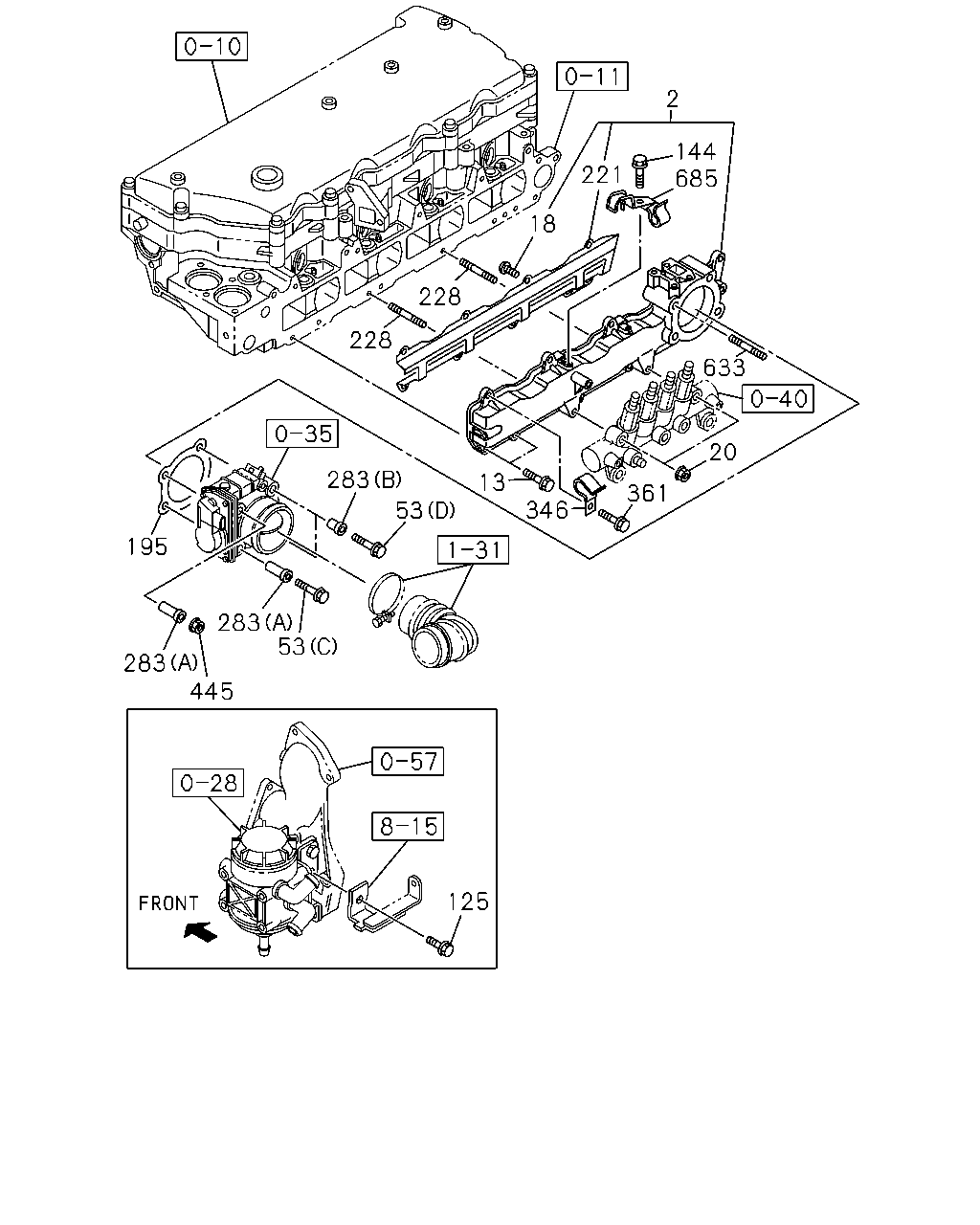

[025A] 4HK1 (25 parça)
▶
764
Balon
Parca Adi
Parca No
Adet
Tip
Applied Date
A
B
C
764
SPACER; INL COVER
8-98023-639-2
01
1
0710-
●
●
55
779
373
50
756
283
53
372
333
372
324
283
53
170
2
50
32
32
32
32
32
32
7
32
32
32
32
55
32
323
Balon
Parca Adi
Parca No
Adet
Tip
Applied Date
A
B
C
2
COVER; INL
8-98061-091-0
01
1
0710-
●
●
2
COVER; INL
8-97387-038-0
01
1
0712-
●
7
GASKET; INL MANIF TO HD
ALSO INCLUDED IN GASKET SET(ENG. & HEAD)
8-94390-775-0
01
1
0710-
●
●
32
STUD; INL PIPE
(B) M6X30 L=38
0-41010-630-0
05
1
0710-
●
●
32
STUD; INL PIPE
(C) M8X28 L=40
0-41010-828-0
03
1
0710-
●
●
32
STUD; INL PIPE
(A) M8X40 L=52
0-41010-840-0
02
1
0710-
●
●
32
STUD; INL PIPE
(D) M10X30 L=45
0-44011-030-0
01
1
0710-
●
●
50
PIPE; INL
(A)
8-97604-940-0
01
1
0710-1305
●
●
50
PIPE; INL
(A)
8-98239-524-0
01
1
1306-
●
●
50
PIPE; INL
(B)
8-97607-412-2
01
1
0710-
●
●
53
BOLT; INL PIPE
(A) M8X30 FLANGE
0-28050-830-0
02
1
0710-
●
●
53
BOLT; INL PIPE
(B) M8X70 FLANGE
0-28050-870-0
02
1
0710-
●
●
53
BOLT; INL PIPE
(C) M8X70 FLANGE
0-28050-870-0
01
1
0712-
●
53
BOLT; INL PIPE
(D) M8X30 FLANGE
0-28650-830-0
02
1
0712-
●
55
NUT; INL PIPE
M8 FLANGE
0-91180-108-0
04
1
0710-
●
●
170
BOLT; BRKT
M8X35 FLANGE
0-28050-835-0
01
1
0710-
●
●
283
RUBBER
(B) L=18
8-97219-650-0
02
1
0710-0711
●
●
283
RUBBER
(B) L=18
8-97219-650-0
02
1
0712-
●
●
●
283
RUBBER
(A) L=58
8-97387-995-0
02
1
0710-0711
●
●
283
RUBBER
(A) L=58
8-97387-995-1
02
1
0712-
●
●
●
323
BOLT; DUCT
M8X50 FLANGE
0-28050-850-0
06
1
0710-
●
●
323
BOLT; DUCT
M8X25 FLANGE
0-28650-825-0
06
1
0710-
●
●
323
BOLT; DUCT
M8X48 FLANGE
8-97229-317-1
02
1
0710-
●
●
324
GASKET; INL PIPE TO INL CVR
ALSO INCLUDED IN GASKET SET(ENG. & HEAD)
8-97601-777-0
01
1
0710-
●
●
333
HOSE; RUBBER,INL PIPE
8-97611-306-0
01
1
0710-
●
●
372
CLIP; HOSE
ID=77-95
1-09707-198-0
02
1
0710-0810
●
●
372
CLIP; HOSE
ID=75-95
8-98133-357-0
02
1
0811-0902
●
●
372
CLIP; HOSE
ID=77-99
1-09707-141-0
02
1
0903-
●
●
373
THROTTLE ASM; INT
8-98061-061-3
01
1
0710-
●
●
756
GASKET; INTAKE,THROTTLE
8-97387-009-0
01
1
0710-
●
●
779
BOLT; SENSOR
M4X10 W/PL WASHER
8-98040-191-0
02
1
0710-0712
●
●
779
BOLT; SENSOR
M4X10 W/PL WASHER
8-97316-615-0
02
1
0801-
●
●
8
Balon
Parca Adi
Parca No
Adet
Tip
Applied Date
A
B
C
8
GASKET; INT DUCT
ALSO INCLUDED IN GASKET SET(ENG. & HEAD)
8-98196-271-0
01
1
1107-
●
●
2
144
685
221
18
228
228
633
20
361
283
13
346
53
195
283
53
283
445
125
Balon
Parca Adi
Parca No
Adet
Tip
Applied Date
A
B
C
2
COVER; INL
8-98061-091-0
01
1
0710-
●
●
2
COVER; INL
8-97387-038-0
01
1
0712-
●
13
BOLT; INL MANIF
M8X30 FLANGE
0-28050-830-0
09
1
0712-
●
13
BOLT; INL MANIF
M8X80 FLANGE
0-28050-880-0
01
1
0712-
●
18
SCREW; PLATE,INL CVR
M6X10
9-03490-610-0
09
1
0712-
●
20
NUT; INL MANIF
M8 FLANGE
0-91180-108-0
02
1
0712-
●
53
BOLT; INL PIPE
(A) M8X30 FLANGE
0-28050-830-0
02
1
0710-
●
●
53
BOLT; INL PIPE
(B) M8X70 FLANGE
0-28050-870-0
02
1
0710-
●
●
53
BOLT; INL PIPE
(C) M8X70 FLANGE
0-28050-870-0
01
1
0712-
●
53
BOLT; INL PIPE
(D) M8X30 FLANGE
0-28650-830-0
02
1
0712-
●
125
BOLT; BRKT TO INL MANIF
M12X30 FLANGE
0-28151-230-0
01
1
0712-0803
●
144
BOLT; BRKT FIX
M8X12 FLANGE
0-28050-812-0
01
1
0712-
●
195
GASKET; THROTTLE BODY INJECTOR
ALSO INCLUDED IN GASKET SET(ENGINE).
8-97387-009-0
01
1
0712-
●
221
PLATE; INL COVER
8-97379-202-0
01
1
0712-
●
228
STUD; INL COVER
M8X117 L=128
8-97111-477-0
02
1
0712-
●
283
RUBBER
(B) L=18
8-97219-650-0
02
1
0710-0711
●
●
283
RUBBER
(B) L=18
8-97219-650-0
02
1
0712-
●
●
●
283
RUBBER
(A) L=58
8-97387-995-0
02
1
0710-0711
●
●
283
RUBBER
(A) L=58
8-97387-995-1
02
1
0712-
●
●
●
346
CLIP; ENG HARNESS
ID=12 B=14 ID=8.5
5-09700-350-0
01
1
0712-0801
●
346
CLIP; ENG HARNESS
ID=12 VINYL CHLORIDE
8-97367-984-1
01
1
0802-
●
361
BOLT; CLIP
M8X12 FLANGE
0-28050-812-0
01
1
0712-0803
●
445
NUT; THROTTLE BODY TO MANIF
M8 FLANGE
0-91180-108-0
01
1
0712-
●
633
STUD; THROTTLE BODY
M8X71 L=83
9-09830-212-0
01
1
0712-
●
685
BRACKET; HARNESS
8-97331-921-1
01
1
0712-
●
