◀ 🏠 ▶ Isuzu WW ▶ TRUCKS ▶ FRR ▶ 11415 - FRR AUSTRALIA EURO4 EXC.SPACECAB ▶ 0 - Engine, Emission, Engine Electrical ▶ 0-22 - ENGINE MOUNTING ▶
0-22 — ENGINE MOUNTING (#21715) — 110 parça

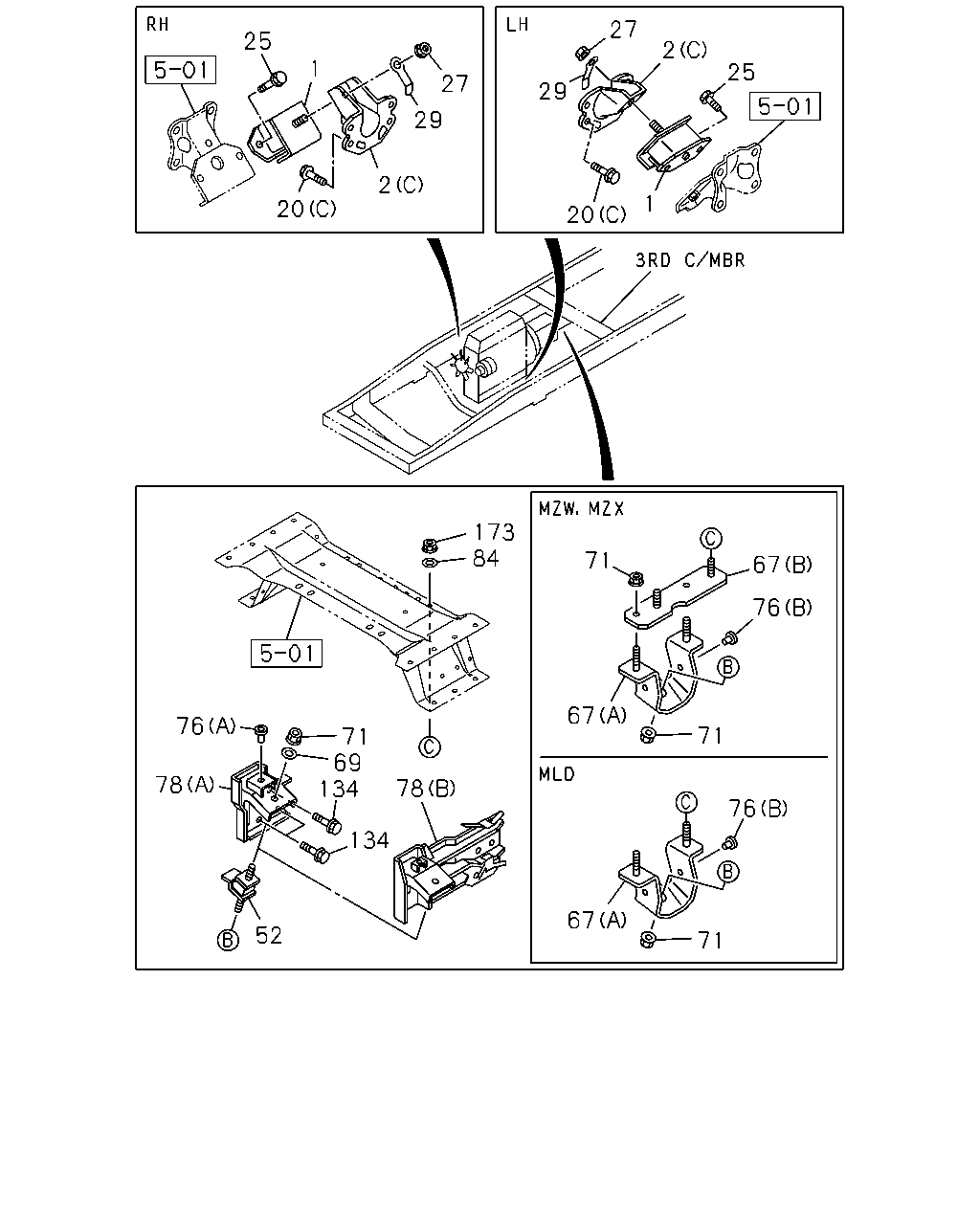

çizim 108980
27 25 2 1 25 27 29 29 2 1 20 20 173 84 71 67 76 67 76 71 71 69 134 78 78 76 134 67 52 71
BalonParca AdiParca NoAdetTipApplied Date A B C
1 RUBBER; ENG FOOT,FRT
WHEEL BASE 4300MM(43W) 		1-53215-173-0 02 1 0710- ●
1 RUBBER; ENG FOOT,FRT
SGL CAB(FC**M*) WHEEL BASE 4300MM(43W) 		1-53215-173-0 02 1 0710- ●
1 RUBBER; ENG FOOT,FRT
WHEEL BASE 5100MM(51W),WHEEL BASE 5500MM(55W) 		1-53215-172-0 02 1 0710- ●
1 RUBBER; ENG FOOT,FRT
SGL CAB(FC**M*) WHEEL BASE 5100MM(51W),WHEEL BASE 5500MM(55W) 		1-53215-172-0 02 1 0710- ●
1 RUBBER; ENG FOOT,FRT
DBL CAB(FC**W*) 		1-53215-184-0 02 1 0712- ●
1 RUBBER; ENG FOOT,FRT 1-53215-184-0 02 1 0712- ●
2 FOOT; ENG
(A) 		8-94390-563-1 01 1 0710- ● ●
2 FOOT; ENG
(A) 		8-94390-564-1 01 1 0710- ● ●
2 FOOT; ENG
(B) 		8-94392-141-3 02 1 0710-1008 ● ●
2 FOOT; ENG
(B) 		8-97602-589-1 02 1 1009- ● ●
2 FOOT; ENG
(C) 		8-97376-076-1 02 1 0712- ●
20 BOLT; ENG FOOT
(B) M12X55 		8-94399-884-1 08 1 0710- ● ●
20 BOLT; ENG FOOT
(A) M10X30 		8-97011-732-0 08 1 0710-1008 ● ●
20 BOLT; ENG FOOT
(A) M10X20 FLANGE 		8-94395-721-0 08 1 1009- ● ●
20 BOLT; ENG FOOT
(C) M10X30 FLANGE 		0-28161-030-0 08 1 0712- ●
25 BOLT; CUSHION RUBBER TO BRKT
M12X35 FLANGE 		0-28651-235-0 04 1 0710-0711 ● ●
25 BOLT; CUSHION RUBBER TO BRKT
M12X35 FLANGE 		0-28651-235-0 04 1 0712- ● ● ●
27 NUT; CUSHION RUBBER TO ENG FOOT
M12 FLANGE 		0-91180-212-0 02 1 0710-0711 ● ●
27 NUT; CUSHION RUBBER TO ENG FOOT
M12 FLANGE 		0-91180-212-0 02 1 0712- ● ● ●
29 PLATE; LK,CUSHION RUBBER,FRT 8-98010-312-0 02 1 0710-0711 ● ●
29 PLATE; LK,CUSHION RUBBER,FRT 8-98010-312-0 02 1 0712- ● ● ●
52 RUBBER; CUSHION,ENG MTG,RR 1-53225-314-1 01 1 0710- ● ●
52 RUBBER; CUSHION,ENG MTG,RR 1-53225-313-1 01 1 0710- ● ●
52 RUBBER; CUSHION,ENG MTG,RR 8-97039-277-0 02 1 0712- ●
67 BRACKET; SUPPORT,ENG MTG,RR
MLD6Q M/T(X5J) (A) 		8-98118-881-0 02 1 0806- ●
67 BRACKET; SUPPORT,ENG MTG,RR
TRANSMISSION CONTROL-SMOOTHER DELETE(8GJ) (B) 		8-98013-942-0 02 1 0712-0803 ●
67 BRACKET; SUPPORT,ENG MTG,RR
MZX6P M/T(RSW) TRANSMISSION CONTROL-SMOOTHER DELETE(8GJ) (B) 		8-98013-942-0 02 1 0804-0906 ●
67 BRACKET; SUPPORT,ENG MTG,RR
MZX6P M/T(RSW),MZW6P M/T(RSZ) TRANSMISSION CONTROL-SMOOTHER DELETE(8GJ) (B) 		8-98013-942-0 02 1 0907- ●
67 BRACKET; SUPPORT,ENG MTG,RR
TRANSMISSION CONTROL-SMOOTHER DELETE(8GJ) (A) 		8-98051-918-0 01 1 0712-0803 ●
67 BRACKET; SUPPORT,ENG MTG,RR
MZX6P M/T(RSW) TRANSMISSION CONTROL-SMOOTHER DELETE(8GJ) (A) 		8-98051-918-0 01 1 0804-0906 ●
67 BRACKET; SUPPORT,ENG MTG,RR
MZX6P M/T(RSW),MZW6P M/T(RSZ) TRANSMISSION CONTROL-SMOOTHER DELETE(8GJ) (A) 		8-98051-918-0 01 1 0907- ●
67 BRACKET; SUPPORT,ENG MTG,RR
TRANSMISSION CONTROL-SMOOTHER DELETE(8GJ) (A) 		8-98051-917-0 01 1 0712-0803 ●
67 BRACKET; SUPPORT,ENG MTG,RR
MZX6P M/T(RSW) TRANSMISSION CONTROL-SMOOTHER DELETE(8GJ) (A) 		8-98051-917-0 01 1 0804-0906 ●
67 BRACKET; SUPPORT,ENG MTG,RR
MZX6P M/T(RSW),MZW6P M/T(RSZ) TRANSMISSION CONTROL-SMOOTHER DELETE(8GJ) (A) 		8-98051-917-0 01 1 0907- ●
67 BRACKET; SUPPORT,ENG MTG,RR
TRANSMISSION CONTROL-SMOOTHER(8GF) (B) 		8-98055-142-0 02 1 0712-0803 ●
67 BRACKET; SUPPORT,ENG MTG,RR
MZX6P M/T(RSW) TRANSMISSION CONTROL-SMOOTHER(8GF) (B) 		8-98055-142-0 02 1 0804-0906 ●
67 BRACKET; SUPPORT,ENG MTG,RR
MZX6P M/T(RSW),MZW6P M/T(RSZ) TRANSMISSION CONTROL-SMOOTHER(8GF) (B) 		8-98055-142-0 02 1 0907- ●
69 WASHER; PL,SUPPORT RUBBER TO BRKT
ID=10.5 OD=22 T=4 		1-09503-045-0 04 1 0712-0803 ●
69 WASHER; PL,SUPPORT RUBBER TO BRKT
MZX6P M/T(RSW) ID=10.5 OD=22 T=4 		1-09503-045-0 04 1 0804-0905 ●
69 WASHER; PL,SUPPORT RUBBER TO BRKT
MZX6P M/T(RSW) ID=10.5 OD=22 T=4 		1-09503-045-0 03 1 0906- ●
69 WASHER; PL,SUPPORT RUBBER TO BRKT
MLD6Q M/T(X5J) ID=10.5 OD=22 T=4 		1-09503-045-0 02 1 0806-0906 ●
69 WASHER; PL,SUPPORT RUBBER TO BRKT
MZW6P M/T(RSZ),MLD6Q M/T(X5J) ID=10.5 OD=22 T=4 		1-09503-045-0 02 1 0907- ●
71 NUT; SUPPORT RUBBER TO BRKT
TRANSMISSION CONTROL-SMOOTHER DELETE(8GJ) M10 FLANGE 		0-91180-110-0 08 1 0712-0803 ●
71 NUT; SUPPORT RUBBER TO BRKT
MZX6P M/T(RSW) TRANSMISSION CONTROL-SMOOTHER DELETE(8GJ) M10 FLANGE 		0-91180-110-0 08 1 0804-0906 ●
71 NUT; SUPPORT RUBBER TO BRKT
MZX6P M/T(RSW),MZW6P M/T(RSZ) TRANSMISSION CONTROL-SMOOTHER DELETE(8GJ) M10 FLANGE 		0-91180-110-0 08 1 0907- ●
71 NUT; SUPPORT RUBBER TO BRKT
TRANSMISSION CONTROL-SMOOTHER(8GF) M10 FLANGE 		0-91180-110-0 04 1 0712-0803 ●
71 NUT; SUPPORT RUBBER TO BRKT
MZX6P M/T(RSW) TRANSMISSION CONTROL-SMOOTHER(8GF) M10 FLANGE 		0-91180-110-0 04 1 0804-0805 ●
71 NUT; SUPPORT RUBBER TO BRKT
MZX6P M/T(RSW) TRANSMISSION CONTROL-SMOOTHER(8GF) M10 FLANGE 		0-91180-110-0 04 1 0806-0906 ●
71 NUT; SUPPORT RUBBER TO BRKT
MLD6Q M/T(X5J) M10 FLANGE 		0-91180-110-0 04 1 0806-0906 ●
71 NUT; SUPPORT RUBBER TO BRKT
TRANSMISSION CONTROL-SMOOTHER(8GF) M10 FLANGE 		0-91180-110-0 04 1 0907- ●
71 NUT; SUPPORT RUBBER TO BRKT
MLD6Q M/T(X5J) M10 FLANGE 		0-91180-110-0 04 1 0907- ●
76 STOPPER; ENG MTG RUBBER
(A) 		8-94111-904-0 02 1 0712- ●
76 STOPPER; ENG MTG RUBBER
(B) 		8-97039-947-1 04 1 0712- ●
78 BRACKET; ENG MTG,RR
MLD6Q M/T(X5J) (B) 		8-98113-957-2 01 1 0806- ●
78 BRACKET; ENG MTG,RR
MLD6Q M/T(X5J) (B) 		8-98113-956-1 01 1 0806- ●
78 BRACKET; ENG MTG,RR
MZW6P M/T(RSZ) TRANSMISSION CONTROL-SMOOTHER DELETE(8GJ) (A) 		8-98127-068-1 01 1 0907-1302 ●
78 BRACKET; ENG MTG,RR
MZW6P M/T(RSZ) TRANSMISSION CONTROL-SMOOTHER DELETE(8GJ) (A) 		8-98229-175-0 01 1 1303- ●
78 BRACKET; ENG MTG,RR
MZW6P M/T(RSZ) TRANSMISSION CONTROL-SMOOTHER DELETE(8GJ) (A) 		8-98127-067-0 01 1 0907-1302 ●
78 BRACKET; ENG MTG,RR
MZW6P M/T(RSZ) TRANSMISSION CONTROL-SMOOTHER DELETE(8GJ) (A) 		8-98229-167-0 01 1 1303- ●
78 BRACKET; ENG MTG,RR
MZW6P M/T(RSZ) TRANSMISSION CONTROL-SMOOTHER(8GF) (A) 		8-98127-071-1 01 1 0907- ●
78 BRACKET; ENG MTG,RR
MZW6P M/T(RSZ) TRANSMISSION CONTROL-SMOOTHER(8GF) (A) 		8-98127-070-0 01 1 0907- ●
78 BRACKET; ENG MTG,RR
TRANSMISSION CONTROL-SMOOTHER DELETE(8GJ) (A) 		8-98013-947-0 01 1 0712-0803 ●
78 BRACKET; ENG MTG,RR
MZX6P M/T(RSW) TRANSMISSION CONTROL-SMOOTHER DELETE(8GJ) (A) 		8-98013-947-1 01 1 0804- ●
78 BRACKET; ENG MTG,RR
TRANSMISSION CONTROL-SMOOTHER DELETE(8GJ) (A) 		8-98013-946-0 01 1 0712-0803 ●
78 BRACKET; ENG MTG,RR
MZX6P M/T(RSW) TRANSMISSION CONTROL-SMOOTHER DELETE(8GJ) (A) 		8-98013-946-0 01 1 0804- ●
78 BRACKET; ENG MTG,RR
TRANSMISSION CONTROL-SMOOTHER(8GF) (A) 		8-98013-949-0 01 1 0712-0803 ●
78 BRACKET; ENG MTG,RR
MZX6P M/T(RSW) TRANSMISSION CONTROL-SMOOTHER(8GF) (A) 		8-98013-949-1 01 1 0804- ●
78 BRACKET; ENG MTG,RR
TRANSMISSION CONTROL-SMOOTHER(8GF) (A) 		8-98013-948-0 01 1 0712-0803 ●
78 BRACKET; ENG MTG,RR
MZX6P M/T(RSW) TRANSMISSION CONTROL-SMOOTHER(8GF) (A) 		8-98013-948-0 01 1 0804- ●
84 WASHER; PL,ENG MTG RR TO FRAME
ID=17 		9-09164-516-0 02 1 0710- ● ●
84 WASHER; PL,ENG MTG RR TO FRAME
ID=10.5 OD=32 		0-91614-810-0 04 1 0712- ●
134 BOLT; SUPPORT BRKT
M14X35 FLANGE 		0-28751-435-0 08 1 0712-0803 ●
134 BOLT; SUPPORT BRKT
MZX6P M/T(RSW) M14X35 FLANGE 		0-28751-435-0 08 1 0804-0906 ●
134 BOLT; SUPPORT BRKT
MZX6P M/T(RSW),MZW6P M/T(RSZ) M14X35 FLANGE 		0-28751-435-0 08 1 0907- ●
134 BOLT; SUPPORT BRKT
MLD6Q M/T(X5J) M14X40 FLANGE 		0-28761-440-0 08 1 0806-0807 ●
134 BOLT; SUPPORT BRKT
MLD6Q M/T(X5J) M14X40 FLANGE 		8-98124-492-0 08 1 0808- ●
173 NUT; ENG MTG RR TO FRAME
M12 FLANGE 		0-91180-212-0 04 1 0710- ● ●
173 NUT; ENG MTG RR TO FRAME
M10 FLANGE 		0-91180-210-0 04 1 0712- ●

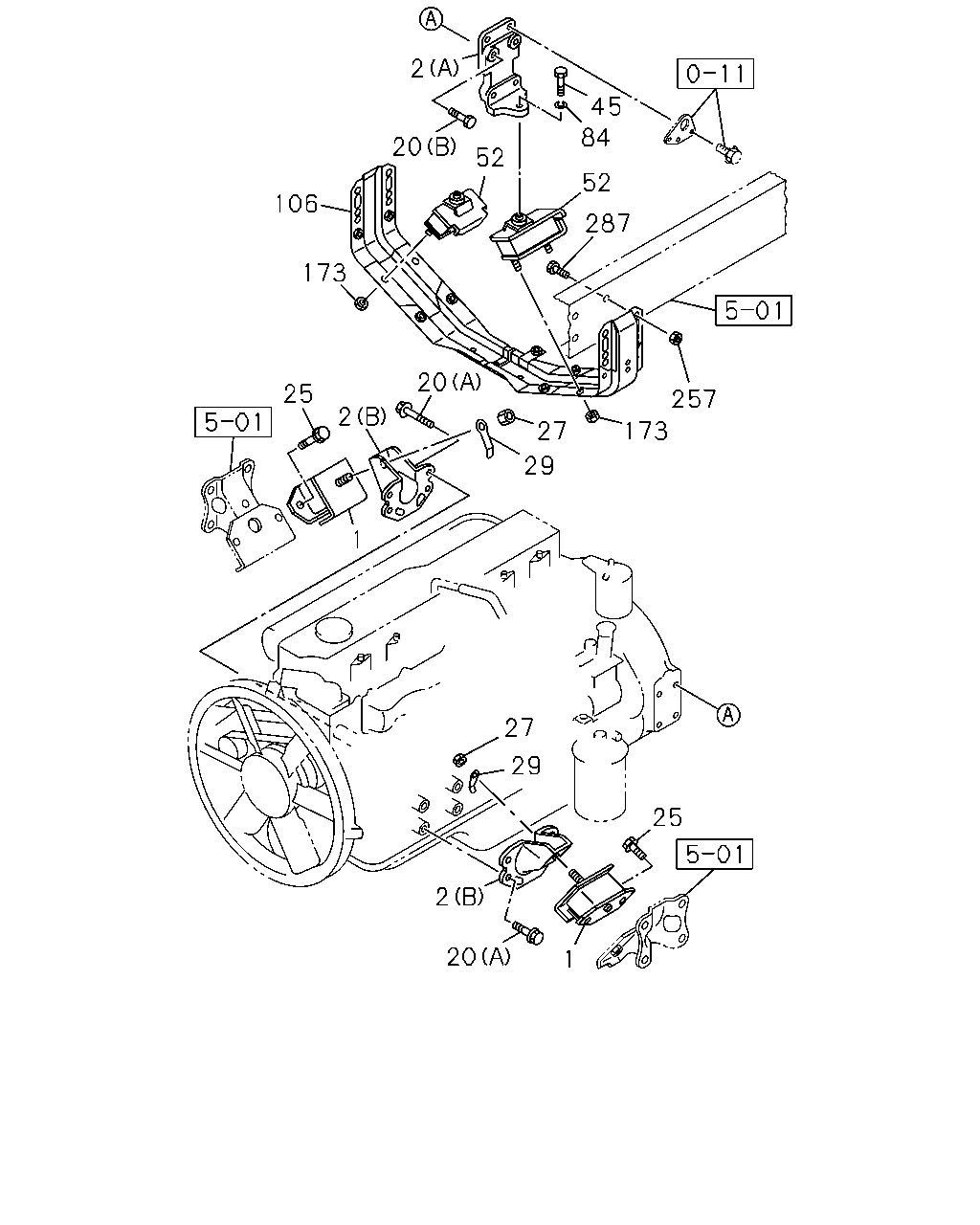

çizim 108983
2 45 84 20 52 52 106 173 287 20 25 257 2 27 173 29 1 27 29 25 2 20 1
BalonParca AdiParca NoAdetTipApplied Date A B C
1 RUBBER; ENG FOOT,FRT
WHEEL BASE 4300MM(43W) 		1-53215-173-0 02 1 0710- ●
1 RUBBER; ENG FOOT,FRT
SGL CAB(FC**M*) WHEEL BASE 4300MM(43W) 		1-53215-173-0 02 1 0710- ●
1 RUBBER; ENG FOOT,FRT
WHEEL BASE 5100MM(51W),WHEEL BASE 5500MM(55W) 		1-53215-172-0 02 1 0710- ●
1 RUBBER; ENG FOOT,FRT
SGL CAB(FC**M*) WHEEL BASE 5100MM(51W),WHEEL BASE 5500MM(55W) 		1-53215-172-0 02 1 0710- ●
1 RUBBER; ENG FOOT,FRT
DBL CAB(FC**W*) 		1-53215-184-0 02 1 0712- ●
1 RUBBER; ENG FOOT,FRT 1-53215-184-0 02 1 0712- ●
2 FOOT; ENG
(A) 		8-94390-563-1 01 1 0710- ● ●
2 FOOT; ENG
(A) 		8-94390-564-1 01 1 0710- ● ●
2 FOOT; ENG
(B) 		8-94392-141-3 02 1 0710-1008 ● ●
2 FOOT; ENG
(B) 		8-97602-589-1 02 1 1009- ● ●
2 FOOT; ENG
(C) 		8-97376-076-1 02 1 0712- ●
20 BOLT; ENG FOOT
(B) M12X55 		8-94399-884-1 08 1 0710- ● ●
20 BOLT; ENG FOOT
(A) M10X30 		8-97011-732-0 08 1 0710-1008 ● ●
20 BOLT; ENG FOOT
(A) M10X20 FLANGE 		8-94395-721-0 08 1 1009- ● ●
20 BOLT; ENG FOOT
(C) M10X30 FLANGE 		0-28161-030-0 08 1 0712- ●
25 BOLT; CUSHION RUBBER TO BRKT
M12X35 FLANGE 		0-28651-235-0 04 1 0710-0711 ● ●
25 BOLT; CUSHION RUBBER TO BRKT
M12X35 FLANGE 		0-28651-235-0 04 1 0712- ● ● ●
27 NUT; CUSHION RUBBER TO ENG FOOT
M12 FLANGE 		0-91180-212-0 02 1 0710-0711 ● ●
27 NUT; CUSHION RUBBER TO ENG FOOT
M12 FLANGE 		0-91180-212-0 02 1 0712- ● ● ●
29 PLATE; LK,CUSHION RUBBER,FRT 8-98010-312-0 02 1 0710-0711 ● ●
29 PLATE; LK,CUSHION RUBBER,FRT 8-98010-312-0 02 1 0712- ● ● ●
45 BOLT; CUSHION RUBBER TO FRAME
M16X60 		0-10956-660-0 02 1 0710- ● ●
52 RUBBER; CUSHION,ENG MTG,RR 1-53225-314-1 01 1 0710- ● ●
52 RUBBER; CUSHION,ENG MTG,RR 1-53225-313-1 01 1 0710- ● ●
52 RUBBER; CUSHION,ENG MTG,RR 8-97039-277-0 02 1 0712- ●
84 WASHER; PL,ENG MTG RR TO FRAME
ID=17 		9-09164-516-0 02 1 0710- ● ●
84 WASHER; PL,ENG MTG RR TO FRAME
ID=10.5 OD=32 		0-91614-810-0 04 1 0712- ●
106 MEMBER; MTG,RR 1-53221-199-0 01 1 0710- ● ●
173 NUT; ENG MTG RR TO FRAME
M12 FLANGE 		0-91180-212-0 04 1 0710- ● ●
173 NUT; ENG MTG RR TO FRAME
M10 FLANGE 		0-91180-210-0 04 1 0712- ●
257 NUT; MEMBER
M12 FLANGE 		0-91180-212-0 08 1 0710- ● ●
287 BOLT; MEMBER
M12X40 FLANGE 		0-28651-240-0 08 1 0710- ● ●
