0-15 — CRANKSHAFT,PISTON AND FLYWHEEL (#21713) — 131 parça

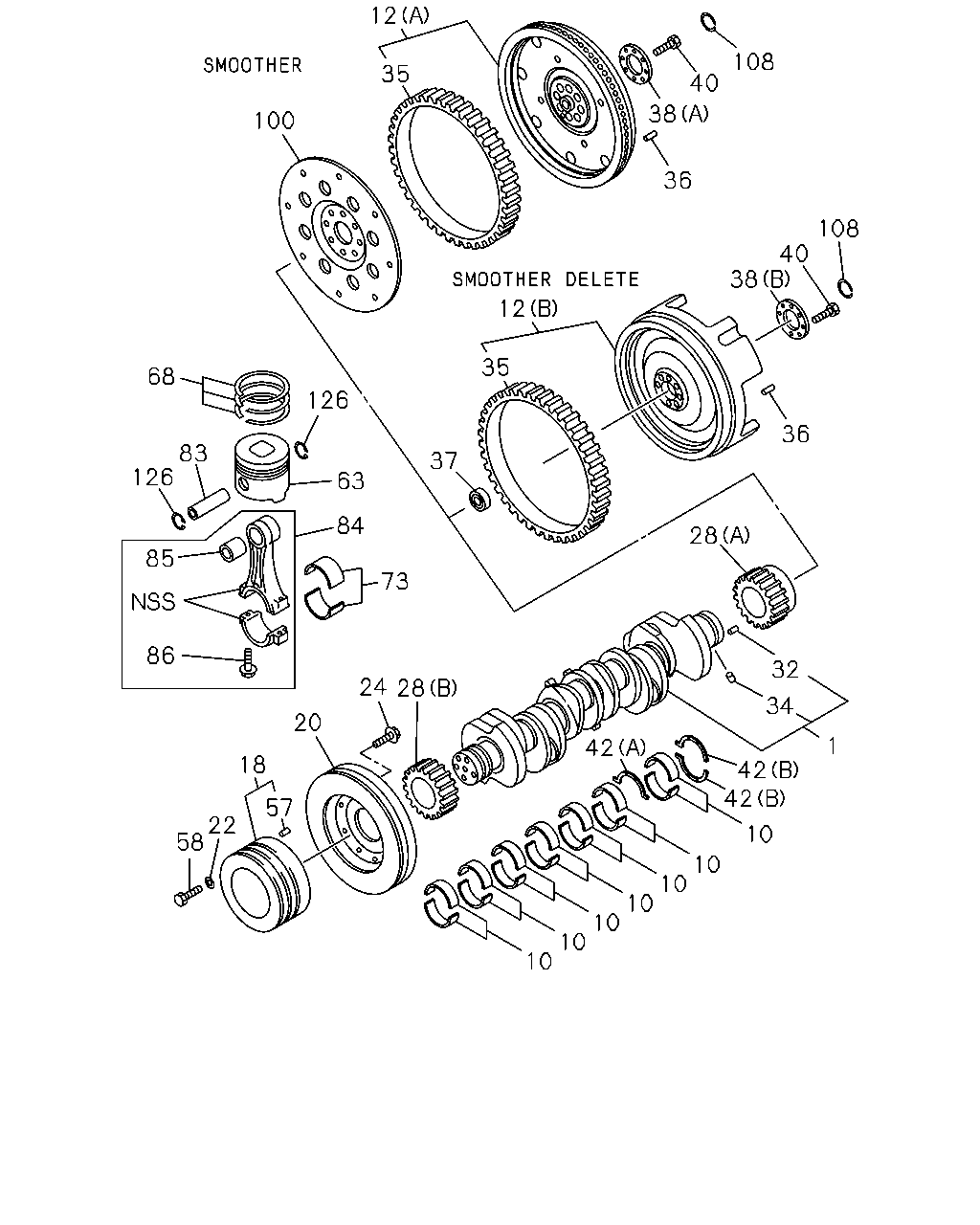

12 108 35 40 38 100 36 108 40 38 12 35 68 126 36 83 126 37 63 84 28 85 73 86 32 34 20 1 42 18 42 42 57 22 58 10 10 10 10 10 10 10 24 28

Balon	Parca Adi	Parca No	Adet	Tip	Applied Date	A	B	C
1	CRANKSHAFT	8-97603-004-0	01	1	0710-	●	●
1	CRANKSHAFT	8-98029-270-0	01	1	0712-			●
10	METAL SET; CRANKSHAFT,STANDARD BLUE	8-97372-076-1	07	1	0710-	●	●
10	METAL SET; CRANKSHAFT,STANDARD BLACK	8-97372-077-1	07	1	0710-	●	●
10	METAL SET; CRANKSHAFT,STANDARD BROWN	8-97372-078-1	07	1	0710-	●	●
10	METAL SET; CRANKSHAFT,STANDARD BLUE	8-97372-076-1	05	1	0712-			●
10	METAL SET; CRANKSHAFT,STANDARD BLACK	8-97372-077-1	05	1	0712-			●
10	METAL SET; CRANKSHAFT,STANDARD BROWN	8-97372-078-1	05	1	0803-			●
12	FLYWHEEL TRANSMISSION CONTROL-SMOOTHER DELETE(8GJ) (B)	8-97602-463-2	01	1	0710-	●	●
12	FLYWHEEL TRANSMISSION CONTROL-SMOOTHER(8GF) (A)	8-97604-545-2	01	1	0710-	●	●
12	FLYWHEEL TRANSMISSION CONTROL-SMOOTHER DELETE(8GJ) (D)	8-98056-355-2	01	1	0712-			●
12	FLYWHEEL TRANSMISSION CONTROL-SMOOTHER(8GF) (C)	8-98020-543-1	01	1	0712-			●
18	PULLEY; CR/SHF 3-GROOVE	8-97606-944-0	01	1	0710-	●	●
20	DAMPER; CR/SHF	8-94392-276-2	01	1	0710-1004	●	●
20	DAMPER; CR/SHF	8-97613-696-1	01	1	1005-	●	●
22	PLATE; PULLEY ID=17 OD=30	9-09851-935-0	04	1	0710-	●	●
24	BOLT; DAMPER M10X16 FLANGE	0-28151-016-0	06	1	0710-	●	●
24	BOLT; DAMPER M16X42	8-97028-733-0	04	1	0712-			●
28	GEAR; CR/SHF (A) Z=42	8-94392-255-1	01	1	0710-	●	●
28	GEAR; CR/SHF (B) Z=41	8-94396-954-2	01	1	0710-	●	●
28	GEAR; CR/SHF (C) Z=42	8-94394-342-4	01	1	0712-			●
32	PIN; FLYWHEEL OD=8 L=16	9-08150-816-0	02	1	0710-	●	●
34	PIN; GEAR SETTING OD=5 L=6	9-09878-626-0	01	1	0710-0711	●	●
34	PIN; GEAR SETTING OD=5 L=6	9-09878-626-0	01	1	0712-	●	●	●
35	GEAR; RING Z=140	8-94396-784-1	01	1	0710-	●	●
35	GEAR; RING TRANSMISSION CONTROL-SMOOTHER DELETE(8GJ) Z=143	8-97375-675-1	01	1	0712-			●
36	PIN; FLYWHEEL TRANSMISSION CONTROL-SMOOTHER DELETE(8GJ) OD=10 L=22	9-08151-022-0	02	1	0710-	●	●
37	BEARING; PILOT,TOP GEAR SHAFT TRANSMISSION CONTROL-SMOOTHER DELETE(8GJ)	8-94392-288-0	01	1	0710-	●	●
38	WASHER; FLYWHEEL TRANSMISSION CONTROL-SMOOTHER DELETE(8GJ) (B) ID=55 OD=110	8-94397-496-1	01	1	0710-0711	●	●
38	WASHER; FLYWHEEL TRANSMISSION CONTROL-SMOOTHER DELETE(8GJ) (B) ID=55 OD=110	8-94397-496-1	01	1	0712-	●	●	●
38	WASHER; FLYWHEEL TRANSMISSION CONTROL-SMOOTHER(8GF) (A) ID=50 OD=120	8-98001-510-0	01	1	0710-0711	●	●
38	WASHER; FLYWHEEL TRANSMISSION CONTROL-SMOOTHER(8GF) (A) ID=50 OD=120	8-98001-510-0	01	1	0712-1009	●	●	●
38	WASHER; FLYWHEEL TRANSMISSION CONTROL-SMOOTHER(8GF) (A) ID=50 OD=120	8-98176-500-0	01	1	1010-	●	●	●
40	BOLT; FLYWHEEL M16X62	8-94393-070-2	08	1	0710-	●	●
40	BOLT; FLYWHEEL M16X51	8-94334-870-1	08	1	0712-			●
42	WASHER; THRUST,CR/SHF (A)	8-97386-548-0	01	1	0710-0711	●	●
42	WASHER; THRUST,CR/SHF (A)	8-97386-548-0	01	1	0712-	●	●	●
42	WASHER; THRUST,CR/SHF (B)	8-97386-549-0	02	1	0710-0711	●	●
42	WASHER; THRUST,CR/SHF (B)	8-97386-549-0	02	1	0712-	●	●	●
57	PIN; PULLEY OD=8 L=16	8-94391-156-0	01	1	0710-	●	●
57	PIN; PULLEY OD=8 L=20	9-08150-820-0	02	1	0712-			●
58	BOLT; CR/SHF PULLEY M16X50	0-20951-650-0	04	1	0710-	●	●
63	PISTON ALSO INCLUDED IN LINER SET. NON GRADE	8-98041-141-2	06	1	0710-	●	●
63	PISTON ALSO INCLUDED IN LINER SET. NON GRADE	8-98041-141-2	08	1	0712-			●
68	RING SET; PISTON,STANDARD ALSO INCLUDED IN LINER SET.	8-98040-125-0	06	1	0710-	●	●
68	RING SET; PISTON,STANDARD ALSO INCLUDED IN LINER SET.	8-98040-125-0	04	1	0712-			●
73	METAL SET; CONN ROD,STANDARD GREEN	8-97616-358-0	06	1	0710-	●	●
73	METAL SET; CONN ROD,STANDARD YELLOW	8-97616-359-0	06	1	0710-	●	●
73	METAL SET; CONN ROD,STANDARD YELLOW	8-98055-479-0	04	1	0712-			●
73	METAL SET; CONN ROD,STANDARD GREEN	8-98055-480-0	04	1	0712-			●
83	PIN; PISTON ALSO INCLUDED IN LINER SET.	8-98018-863-1	06	1	0710-	●	●
83	PIN; PISTON ALSO INCLUDED IN LINER SET.	8-98018-863-1	04	1	0712-			●
84	ROD ASM; CONN	8-98018-425-2	06	1	0710-	●	●
84	ROD ASM; CONN	8-98018-425-2	04	1	0712-			●
85	BUSHING; CONNROD ALSO INCLUDED IN LINER SET.	8-94391-794-1	06	1	0710-	●	●
85	BUSHING; CONNROD ALSO INCLUDED IN LINER SET.	8-94391-794-1	04	1	0712-			●
86	BOLT; CONNROD M13X57 FLANGE	1-12235-035-0	12	1	0710-1004	●	●
86	BOLT; CONNROD M13X57 FLANGE	8-98091-141-0	12	1	1005-	●	●
86	BOLT; CONNROD M13X57 FLANGE	1-12235-035-0	08	1	0712-1004			●
86	BOLT; CONNROD M13X57 FLANGE	8-98091-141-0	08	1	1005-			●
100	PLATE; FLEX TRANSMISSION CONTROL-SMOOTHER(8GF)	8-97304-287-0	01	1	0710-1007	●	●
100	PLATE; FLEX TRANSMISSION CONTROL-SMOOTHER(8GF)	8-98148-782-1	01	1	1008-	●	●
100	PLATE; FLEX TRANSMISSION CONTROL-SMOOTHER(8GF)	8-98020-542-2	01	1	0712-			●
108	RING; SNAP,BRG SET TRANSMISSION CONTROL-SMOOTHER DELETE(8GJ) OD=59.2	9-09180-155-0	01	1	0710-0711	●	●
108	RING; SNAP,BRG SET TRANSMISSION CONTROL-SMOOTHER DELETE(8GJ) OD=59.2	9-09180-155-0	01	1	0712-1006	●	●	●
108	RING; SNAP,BRG SET TRANSMISSION CONTROL-SMOOTHER DELETE(8GJ) OD=59.2	9-09180-155-0	01	1	1007-	●	●
126	RING; SNAP,PISTON PIN ALSO INCLUDED IN LINER SET. OD=43.7	8-98006-828-0	12	1	0710-	●	●
126	RING; SNAP,PISTON PIN ALSO INCLUDED IN LINER SET. OD=43.7	8-98006-828-0	08	1	0712-			●

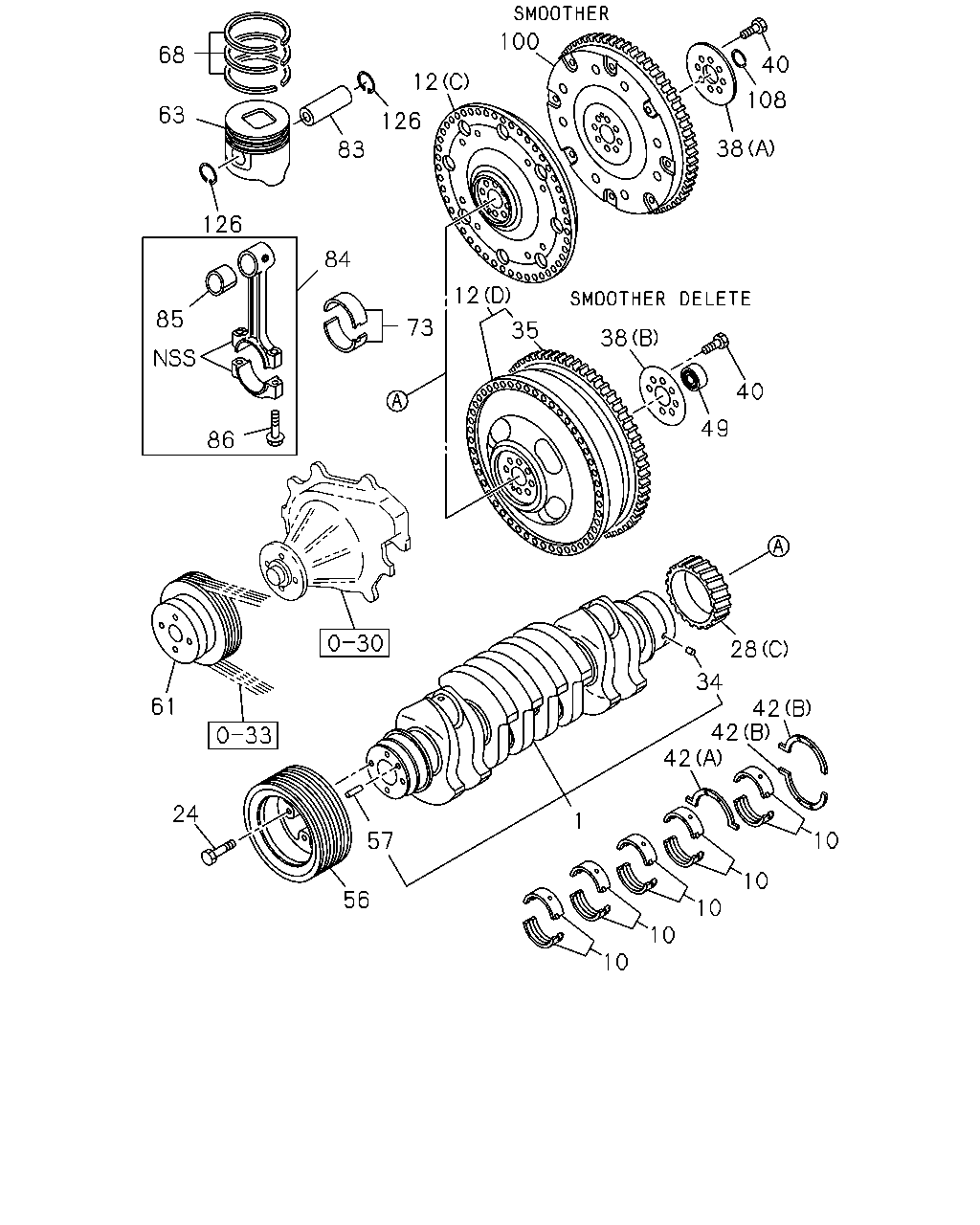

100 68 40 12 108 63 12 126 38 83 126 84 85 73 35 38 40 49 86 28 34 61 42 42 42 24 1 10 57 10 56 10 10 10

Balon	Parca Adi	Parca No	Adet	Tip	Applied Date	A	B	C
1	CRANKSHAFT	8-97603-004-0	01	1	0710-	●	●
1	CRANKSHAFT	8-98029-270-0	01	1	0712-			●
10	METAL SET; CRANKSHAFT,STANDARD BLUE	8-97372-076-1	07	1	0710-	●	●
10	METAL SET; CRANKSHAFT,STANDARD BLACK	8-97372-077-1	07	1	0710-	●	●
10	METAL SET; CRANKSHAFT,STANDARD BROWN	8-97372-078-1	07	1	0710-	●	●
10	METAL SET; CRANKSHAFT,STANDARD BLUE	8-97372-076-1	05	1	0712-			●
10	METAL SET; CRANKSHAFT,STANDARD BLACK	8-97372-077-1	05	1	0712-			●
10	METAL SET; CRANKSHAFT,STANDARD BROWN	8-97372-078-1	05	1	0803-			●
12	FLYWHEEL TRANSMISSION CONTROL-SMOOTHER DELETE(8GJ) (B)	8-97602-463-2	01	1	0710-	●	●
12	FLYWHEEL TRANSMISSION CONTROL-SMOOTHER(8GF) (A)	8-97604-545-2	01	1	0710-	●	●
12	FLYWHEEL TRANSMISSION CONTROL-SMOOTHER DELETE(8GJ) (D)	8-98056-355-2	01	1	0712-			●
12	FLYWHEEL TRANSMISSION CONTROL-SMOOTHER(8GF) (C)	8-98020-543-1	01	1	0712-			●
24	BOLT; DAMPER M10X16 FLANGE	0-28151-016-0	06	1	0710-	●	●
24	BOLT; DAMPER M16X42	8-97028-733-0	04	1	0712-			●
28	GEAR; CR/SHF (A) Z=42	8-94392-255-1	01	1	0710-	●	●
28	GEAR; CR/SHF (B) Z=41	8-94396-954-2	01	1	0710-	●	●
28	GEAR; CR/SHF (C) Z=42	8-94394-342-4	01	1	0712-			●
34	PIN; GEAR SETTING OD=5 L=6	9-09878-626-0	01	1	0710-0711	●	●
34	PIN; GEAR SETTING OD=5 L=6	9-09878-626-0	01	1	0712-	●	●	●
35	GEAR; RING Z=140	8-94396-784-1	01	1	0710-	●	●
35	GEAR; RING TRANSMISSION CONTROL-SMOOTHER DELETE(8GJ) Z=143	8-97375-675-1	01	1	0712-			●
38	WASHER; FLYWHEEL TRANSMISSION CONTROL-SMOOTHER DELETE(8GJ) (B) ID=55 OD=110	8-94397-496-1	01	1	0710-0711	●	●
38	WASHER; FLYWHEEL TRANSMISSION CONTROL-SMOOTHER DELETE(8GJ) (B) ID=55 OD=110	8-94397-496-1	01	1	0712-	●	●	●
38	WASHER; FLYWHEEL TRANSMISSION CONTROL-SMOOTHER(8GF) (A) ID=50 OD=120	8-98001-510-0	01	1	0710-0711	●	●
38	WASHER; FLYWHEEL TRANSMISSION CONTROL-SMOOTHER(8GF) (A) ID=50 OD=120	8-98001-510-0	01	1	0712-1009	●	●	●
38	WASHER; FLYWHEEL TRANSMISSION CONTROL-SMOOTHER(8GF) (A) ID=50 OD=120	8-98176-500-0	01	1	1010-	●	●	●
40	BOLT; FLYWHEEL M16X62	8-94393-070-2	08	1	0710-	●	●
40	BOLT; FLYWHEEL M16X51	8-94334-870-1	08	1	0712-			●
42	WASHER; THRUST,CR/SHF (A)	8-97386-548-0	01	1	0710-0711	●	●
42	WASHER; THRUST,CR/SHF (A)	8-97386-548-0	01	1	0712-	●	●	●
42	WASHER; THRUST,CR/SHF (B)	8-97386-549-0	02	1	0710-0711	●	●
42	WASHER; THRUST,CR/SHF (B)	8-97386-549-0	02	1	0712-	●	●	●
49	BEARING; PILOT TRANSMISSION CONTROL-SMOOTHER DELETE(8GJ)	8-97258-239-0	01	1	0712-			●
56	PULLEY; CR/SHF DAMPER 3-GROOVE	8-98004-024-3	01	1	0712-			●
57	PIN; PULLEY OD=8 L=16	8-94391-156-0	01	1	0710-	●	●
57	PIN; PULLEY OD=8 L=20	9-08150-820-0	02	1	0712-			●
61	PULLEY; FAN DRIVE 1-GROOVE	8-98003-384-1	01	1	0712-			●
63	PISTON ALSO INCLUDED IN LINER SET. NON GRADE	8-98041-141-2	06	1	0710-	●	●
63	PISTON ALSO INCLUDED IN LINER SET. NON GRADE	8-98041-141-2	08	1	0712-			●
68	RING SET; PISTON,STANDARD ALSO INCLUDED IN LINER SET.	8-98040-125-0	06	1	0710-	●	●
68	RING SET; PISTON,STANDARD ALSO INCLUDED IN LINER SET.	8-98040-125-0	04	1	0712-			●
73	METAL SET; CONN ROD,STANDARD GREEN	8-97616-358-0	06	1	0710-	●	●
73	METAL SET; CONN ROD,STANDARD YELLOW	8-97616-359-0	06	1	0710-	●	●
73	METAL SET; CONN ROD,STANDARD YELLOW	8-98055-479-0	04	1	0712-			●
73	METAL SET; CONN ROD,STANDARD GREEN	8-98055-480-0	04	1	0712-			●
83	PIN; PISTON ALSO INCLUDED IN LINER SET.	8-98018-863-1	06	1	0710-	●	●
83	PIN; PISTON ALSO INCLUDED IN LINER SET.	8-98018-863-1	04	1	0712-			●
84	ROD ASM; CONN	8-98018-425-2	06	1	0710-	●	●
84	ROD ASM; CONN	8-98018-425-2	04	1	0712-			●
85	BUSHING; CONNROD ALSO INCLUDED IN LINER SET.	8-94391-794-1	06	1	0710-	●	●
85	BUSHING; CONNROD ALSO INCLUDED IN LINER SET.	8-94391-794-1	04	1	0712-			●
86	BOLT; CONNROD M13X57 FLANGE	1-12235-035-0	12	1	0710-1004	●	●
86	BOLT; CONNROD M13X57 FLANGE	8-98091-141-0	12	1	1005-	●	●
86	BOLT; CONNROD M13X57 FLANGE	1-12235-035-0	08	1	0712-1004			●
86	BOLT; CONNROD M13X57 FLANGE	8-98091-141-0	08	1	1005-			●
100	PLATE; FLEX TRANSMISSION CONTROL-SMOOTHER(8GF)	8-97304-287-0	01	1	0710-1007	●	●
100	PLATE; FLEX TRANSMISSION CONTROL-SMOOTHER(8GF)	8-98148-782-1	01	1	1008-	●	●
100	PLATE; FLEX TRANSMISSION CONTROL-SMOOTHER(8GF)	8-98020-542-2	01	1	0712-			●
108	RING; SNAP,BRG SET TRANSMISSION CONTROL-SMOOTHER DELETE(8GJ) OD=59.2	9-09180-155-0	01	1	0710-0711	●	●
108	RING; SNAP,BRG SET TRANSMISSION CONTROL-SMOOTHER DELETE(8GJ) OD=59.2	9-09180-155-0	01	1	0712-1006	●	●	●
108	RING; SNAP,BRG SET TRANSMISSION CONTROL-SMOOTHER DELETE(8GJ) OD=59.2	9-09180-155-0	01	1	1007-	●	●
126	RING; SNAP,PISTON PIN ALSO INCLUDED IN LINER SET. OD=43.7	8-98006-828-0	12	1	0710-	●	●
126	RING; SNAP,PISTON PIN ALSO INCLUDED IN LINER SET. OD=43.7	8-98006-828-0	08	1	0712-			●
