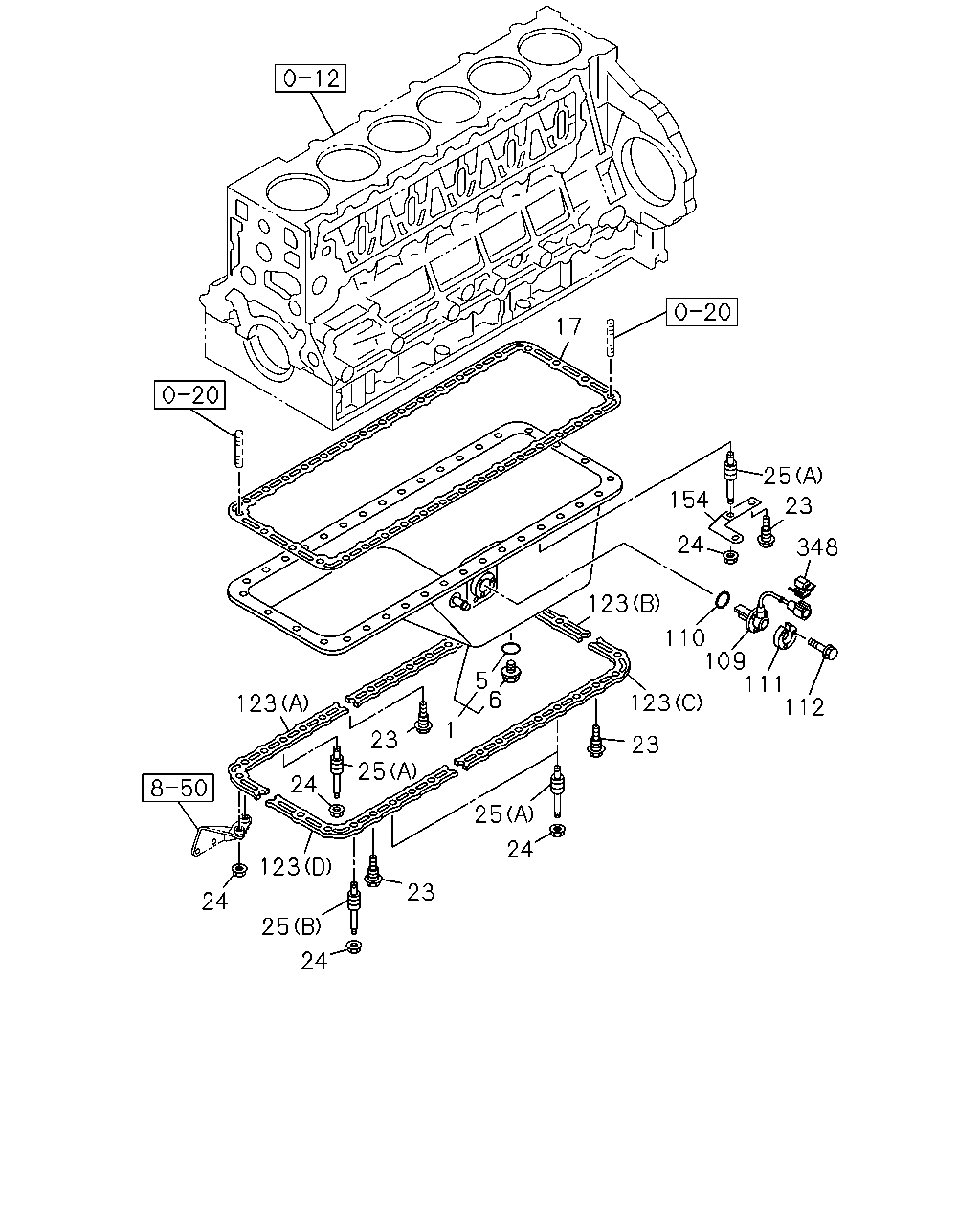

0-13 — OIL PAN AND LEVEL GAUGE (#21711) — 125 parça

17 25 154 23 24 348 123 110 109 111 112 5 6 123 123 1 23 23 25 24 25 24 123 23 24 25 24

Balon	Parca Adi	Parca No	Adet	Tip	Applied Date	A	B	C
1	PAN ASM; OIL	8-98061-543-0	01	1	0710-	●	●
1	PAN ASM; OIL	8-97386-772-0	01	1	0712-			●
5	GASKET; PLUG,OIL DRAIN ALSO INCLUDED IN GASKET SET(ENGINE). ID=24.5	8-94399-398-0	01	1	0710-	●	●
6	PLUG; OIL DRAIN	9-09662-012-0	01	1	0710-	●	●
17	GASKET; OIL PAN ALSO INCLUDED IN GASKET SET(ENGINE).	8-94390-617-1	01	1	0710-	●	●
17	GASKET; OIL PAN ALSO INCLUDED IN GASKET SET(ENGINE).	8-97364-386-0	01	1	0712-			●
23	BOLT; OIL PAN M8X12.8 W/PL WASHER,RUBBER TUBE	8-97087-634-0	20	1	0710-	●	●
23	BOLT; OIL PAN M8X12.8 W/PL WASHER,RUBBER TUBE	8-97190-390-0	13	1	0712-			●
24	NUT; OIL PAN M8 FLANGE	0-91180-108-0	14	1	0710-	●	●
24	NUT; OIL PAN M8 FLANGE	0-91180-108-0	13	1	0712-			●
25	STUD; OIL PAN (A) M8X12.8 M8X16.5 L=43.1 W/WASHER&RUBBER	8-97087-632-2	05	1	0710-	●	●
25	STUD; OIL PAN (B) M8X12.8 M8X30 L=56.6 W/WASHER&RUBBER	8-97601-889-0	02	1	0710-	●	●
25	STUD; OIL PAN (C) M8X16,M8X17 L=37 W/PL WASHER,RUBBER TUBE	8-97190-391-0	01	1	0712-			●
25	STUD; OIL PAN (D) M8X16,M8X19 L=39 W/PL WASHER,RUBBER TUBE	8-97190-392-0	09	1	0712-			●
109	SWITCH; OIL LEVEL	8-97601-121-0	01	1	0710-	●	●
109	SWITCH; OIL LEVEL	8-97328-993-1	01	1	0712-			●
110	GASKET; SW,OIL LEVEL ID=27	8-98056-488-0	01	1	0710-	●	●
110	GASKET; SW,OIL LEVEL	8-98048-191-0	01	1	0712-			●
111	SPACER; SW,OIL LEVEL	5-11369-072-0	01	1	0710-	●	●
112	BOLT; SW,OIL LEVEL M6X25 FLANGE	0-28050-625-0	03	1	0710-	●	●
123	RUBBER; SEAL OIL (A)	8-94391-755-0	01	1	0710-	●	●
123	RUBBER; SEAL OIL (B)	8-94391-757-0	01	1	0710-	●	●
123	RUBBER; SEAL OIL (C)	8-94391-758-0	01	1	0710-	●	●
123	RUBBER; SEAL OIL (D)	8-94392-548-0	01	1	0710-	●	●
123	RUBBER; SEAL OIL (E)	8-97186-988-0	01	1	0712-			●
123	RUBBER; SEAL OIL (F)	8-97186-994-0	01	1	0712-			●
123	RUBBER; SEAL OIL (G)	8-97186-998-0	01	1	0712-			●
123	RUBBER; SEAL OIL (H)	8-97187-000-0	01	1	0712-			●
154	BRACKET; CLIP,ENG HARNESS	8-98064-103-0	01	1	0710-	●	●
348	CONNECTOR OD=9 H=6	1-09709-178-0	01	1	0710-	●	●

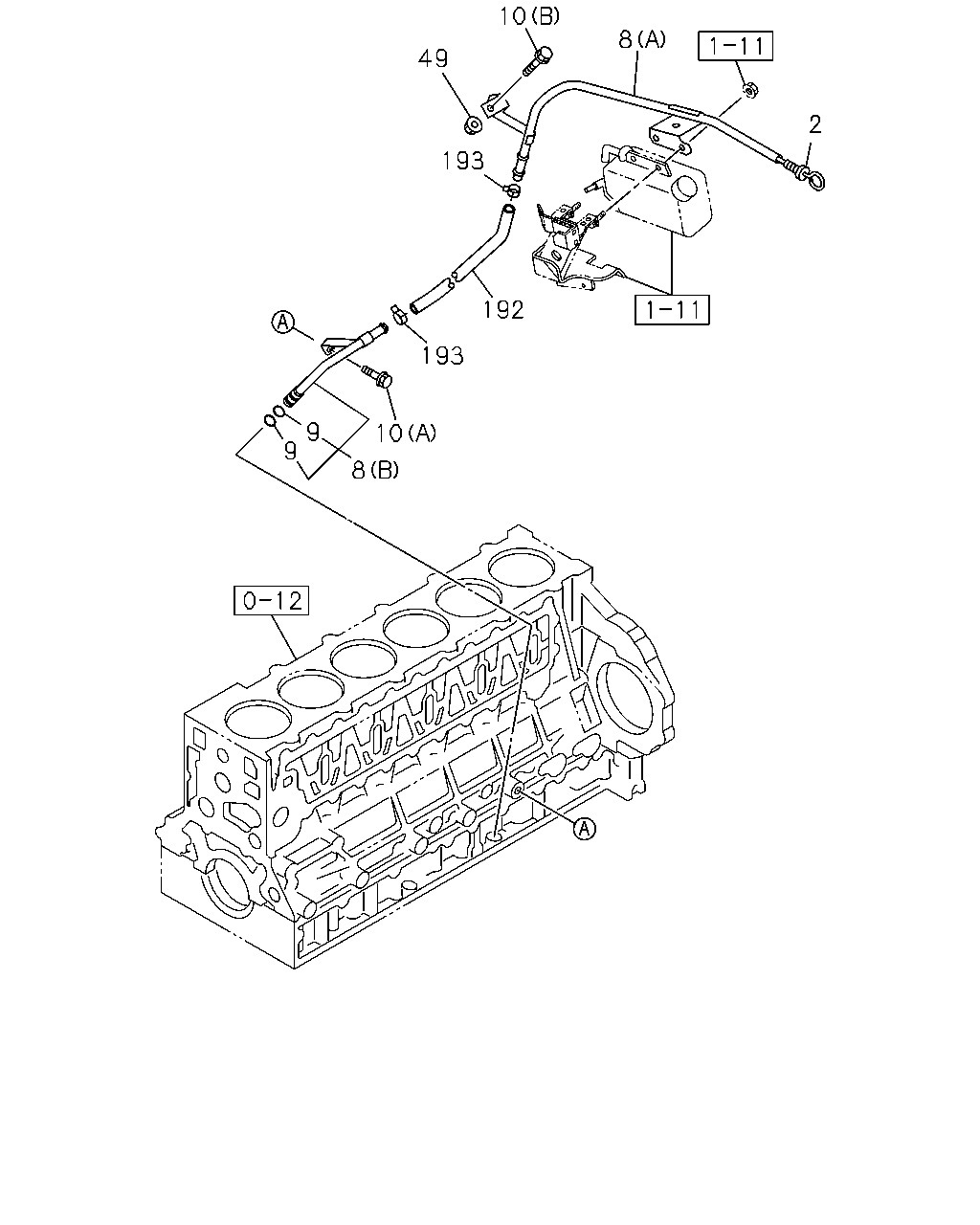

2 8 380 193 192 193 379 8 9 10 9

Balon	Parca Adi	Parca No	Adet	Tip	Applied Date	A	B	C
2	GAUGE; OIL LEVEL	8-98092-125-1	01	1	0710-	●
2	GAUGE; OIL LEVEL SGL CAB(FC*M)	8-98092-125-1	01	1	0710-		●
2	GAUGE; OIL LEVEL DBL CAB(FC*W)	8-98084-260-0	01	1	0712-		●
2	GAUGE; OIL LEVEL	8-98092-124-0	01	1	0712-0806			●
2	GAUGE; OIL LEVEL	8-98127-076-0	01	1	0807-1406			●
2	GAUGE; OIL LEVEL	8-98245-517-0	01	1	1407-			●
8	TUBE; GUIDE,OIL LEVEL GAUGE (A)	8-98084-773-0	01	1	0710-0710	●
8	TUBE; GUIDE,OIL LEVEL GAUGE SGL CAB(FC*M) (A)	8-98084-773-0	01	1	0710-0710		●
8	TUBE; GUIDE,OIL LEVEL GAUGE TRANSMISSION CONTROL-SMOOTHER(8GF),TRANSMISSION CONTROL-SMOOTHER DELETE(8GJ) (A)	8-97618-220-1	01	1	0710-	●
8	TUBE; GUIDE,OIL LEVEL GAUGE SGL CAB(FC*M) TRANSMISSION CONTROL-SMOOTHER(8GF),TRANSMISSION CONTROL-SMOOTHER DELETE(8GJ) (A)	8-97618-220-1	01	1	0710-		●
8	TUBE; GUIDE,OIL LEVEL GAUGE EXC. TRANSMISSION CONTROL-SMOOTHER(8GF), TRANSMISSION CONTROL-SMOOTHER DELETE(8GJ) (A)	8-98098-761-0	01	1	0710-	●
8	TUBE; GUIDE,OIL LEVEL GAUGE SGL CAB(FC*M) EXC. TRANSMISSION CONTROL-SMOOTHER(8GF), TRANSMISSION CONTROL-SMOOTHER DELETE(8GJ) (A)	8-98098-761-0	01	1	0710-		●
8	TUBE; GUIDE,OIL LEVEL GAUGE (B)	8-98063-554-0	01	1	0710-	●	●
8	TUBE; GUIDE,OIL LEVEL GAUGE DBL CAB(FC*W) (A)	8-98093-643-0	01	1	0712-		●
8	TUBE; GUIDE,OIL LEVEL GAUGE (D)	8-98009-115-1	01	1	0712-			●
8	TUBE; GUIDE,OIL LEVEL GAUGE (C)	8-98091-027-0	01	1	0712-			●
9	GASKET; GUIDE TUBE,OIL LEVEL GAUGE ALSO INCLUDED IN GASKET SET(ENGINE). ID=11	1-09623-469-0	02	1	0710-	●	●
10	BOLT; GUIDE TUBE (B) M8X20 FLANGE	0-28650-820-0	01	1	0710-	●
10	BOLT; GUIDE TUBE SGL CAB(FC*M) (B) M8X20 FLANGE	0-28650-820-0	01	1	0710-		●
10	BOLT; GUIDE TUBE (A) M10X35 FLANGE	0-28151-035-0	01	1	0710-	●	●
10	BOLT; GUIDE TUBE (C) M6X12 FLANGE	0-28050-612-0	01	1	0712-			●
192	HOSE; GUIDE TUBE L=463	8-98054-844-1	01	1	0710-0710	●
192	HOSE; GUIDE TUBE SGL CAB(FC*M) L=463	8-98054-844-1	01	1	0710-0710		●
192	HOSE; GUIDE TUBE L=310	8-98092-068-0	01	1	0710-0711	●
192	HOSE; GUIDE TUBE SGL CAB(FC*M) L=310	8-98092-068-0	01	1	0710-0711		●
192	HOSE; GUIDE TUBE L=310	8-98092-068-0	01	1	0712-	●		●
192	HOSE; GUIDE TUBE SGL CAB(FC*M) L=310	8-98092-068-0	01	1	0712-		●
192	HOSE; GUIDE TUBE DBL CAB(FC*W) L=395	8-98093-949-0	01	1	0712-		●
193	CLIP; HOSE,GUIDE TUBE ID=17	1-09707-158-0	02	1	0710-0711	●	●
193	CLIP; HOSE,GUIDE TUBE ID=17	1-09707-158-0	02	1	0712-	●	●	●
379	CLIP; PIPE TO HOSE ID=18 & 18	8-94323-068-0	01	1	0712-			●
380	PROTECTOR; PIPE ID=18 L=40	8-98070-445-0	01	1	0712-			●

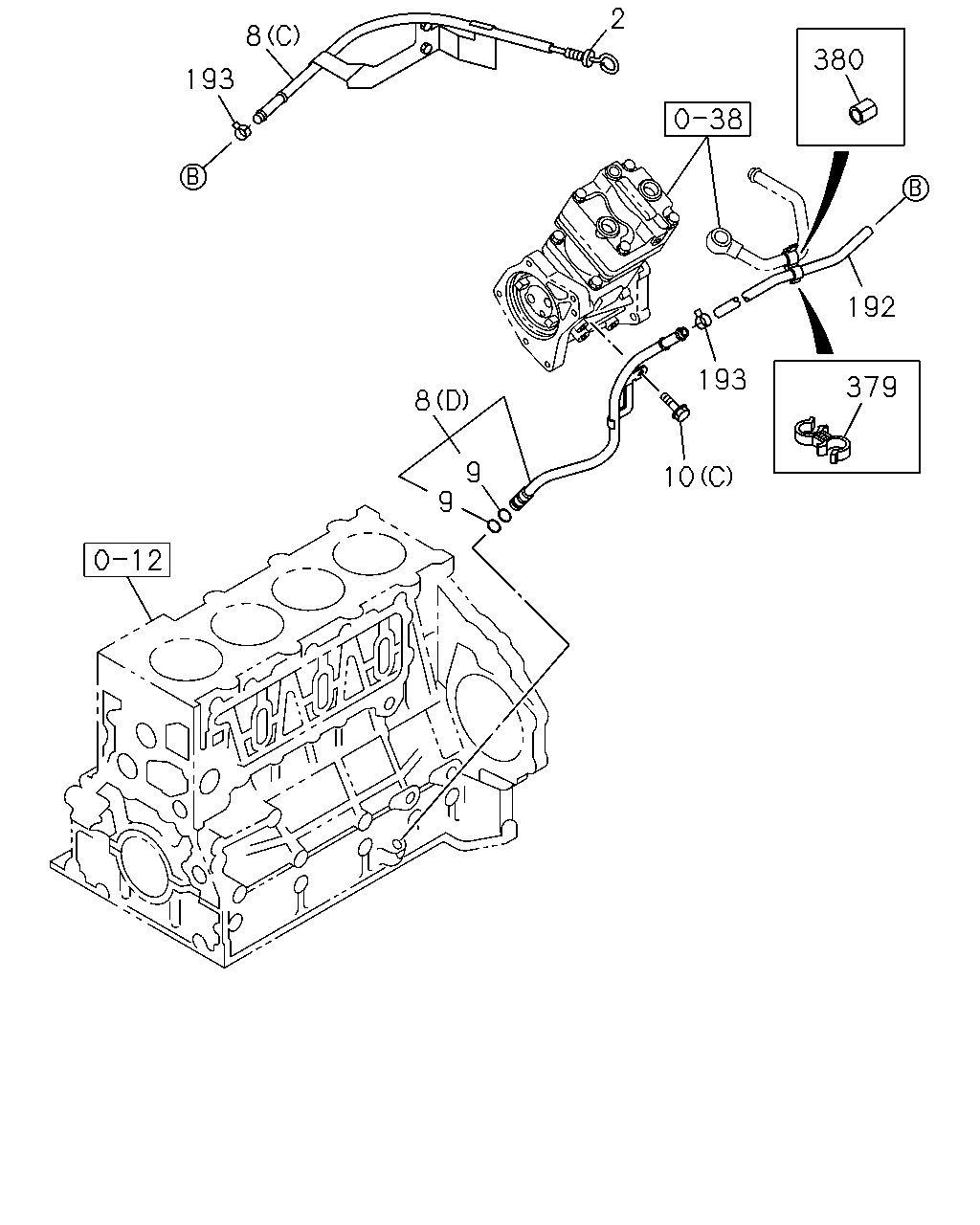

10 8 49 2 193 192 193 9 9 10 8

Balon	Parca Adi	Parca No	Adet	Tip	Applied Date	A	B	C
2	GAUGE; OIL LEVEL	8-98092-125-1	01	1	0710-	●
2	GAUGE; OIL LEVEL SGL CAB(FC*M)	8-98092-125-1	01	1	0710-		●
2	GAUGE; OIL LEVEL DBL CAB(FC*W)	8-98084-260-0	01	1	0712-		●
2	GAUGE; OIL LEVEL	8-98092-124-0	01	1	0712-0806			●
2	GAUGE; OIL LEVEL	8-98127-076-0	01	1	0807-1406			●
2	GAUGE; OIL LEVEL	8-98245-517-0	01	1	1407-			●
8	TUBE; GUIDE,OIL LEVEL GAUGE (A)	8-98084-773-0	01	1	0710-0710	●
8	TUBE; GUIDE,OIL LEVEL GAUGE SGL CAB(FC*M) (A)	8-98084-773-0	01	1	0710-0710		●
8	TUBE; GUIDE,OIL LEVEL GAUGE TRANSMISSION CONTROL-SMOOTHER(8GF),TRANSMISSION CONTROL-SMOOTHER DELETE(8GJ) (A)	8-97618-220-1	01	1	0710-	●
8	TUBE; GUIDE,OIL LEVEL GAUGE SGL CAB(FC*M) TRANSMISSION CONTROL-SMOOTHER(8GF),TRANSMISSION CONTROL-SMOOTHER DELETE(8GJ) (A)	8-97618-220-1	01	1	0710-		●
8	TUBE; GUIDE,OIL LEVEL GAUGE EXC. TRANSMISSION CONTROL-SMOOTHER(8GF), TRANSMISSION CONTROL-SMOOTHER DELETE(8GJ) (A)	8-98098-761-0	01	1	0710-	●
8	TUBE; GUIDE,OIL LEVEL GAUGE SGL CAB(FC*M) EXC. TRANSMISSION CONTROL-SMOOTHER(8GF), TRANSMISSION CONTROL-SMOOTHER DELETE(8GJ) (A)	8-98098-761-0	01	1	0710-		●
8	TUBE; GUIDE,OIL LEVEL GAUGE (B)	8-98063-554-0	01	1	0710-	●	●
8	TUBE; GUIDE,OIL LEVEL GAUGE DBL CAB(FC*W) (A)	8-98093-643-0	01	1	0712-		●
8	TUBE; GUIDE,OIL LEVEL GAUGE (D)	8-98009-115-1	01	1	0712-			●
8	TUBE; GUIDE,OIL LEVEL GAUGE (C)	8-98091-027-0	01	1	0712-			●
9	GASKET; GUIDE TUBE,OIL LEVEL GAUGE ALSO INCLUDED IN GASKET SET(ENGINE). ID=11	1-09623-469-0	02	1	0710-	●	●
10	BOLT; GUIDE TUBE (B) M8X20 FLANGE	0-28650-820-0	01	1	0710-	●
10	BOLT; GUIDE TUBE SGL CAB(FC*M) (B) M8X20 FLANGE	0-28650-820-0	01	1	0710-		●
10	BOLT; GUIDE TUBE (A) M10X35 FLANGE	0-28151-035-0	01	1	0710-	●	●
10	BOLT; GUIDE TUBE (C) M6X12 FLANGE	0-28050-612-0	01	1	0712-			●
49	NUT; GUIDE TUBE M8 FLANGE	0-91180-108-0	01	1	0710-	●
49	NUT; GUIDE TUBE SGL CAB(FC*M) M8 FLANGE	0-91180-108-0	01	1	0710-		●
49	NUT; GUIDE TUBE DBL CAB(FC*W) M8 FLANGE	0-91180-108-0	02	1	0712-		●
49	NUT; GUIDE TUBE M8 FLANGE	0-91180-108-0	02	1	0712-			●
192	HOSE; GUIDE TUBE L=463	8-98054-844-1	01	1	0710-0710	●
192	HOSE; GUIDE TUBE SGL CAB(FC*M) L=463	8-98054-844-1	01	1	0710-0710		●
192	HOSE; GUIDE TUBE L=310	8-98092-068-0	01	1	0710-0711	●
192	HOSE; GUIDE TUBE SGL CAB(FC*M) L=310	8-98092-068-0	01	1	0710-0711		●
192	HOSE; GUIDE TUBE L=310	8-98092-068-0	01	1	0712-	●		●
192	HOSE; GUIDE TUBE SGL CAB(FC*M) L=310	8-98092-068-0	01	1	0712-		●
192	HOSE; GUIDE TUBE DBL CAB(FC*W) L=395	8-98093-949-0	01	1	0712-		●
193	CLIP; HOSE,GUIDE TUBE ID=17	1-09707-158-0	02	1	0710-0711	●	●
193	CLIP; HOSE,GUIDE TUBE ID=17	1-09707-158-0	02	1	0712-	●	●	●

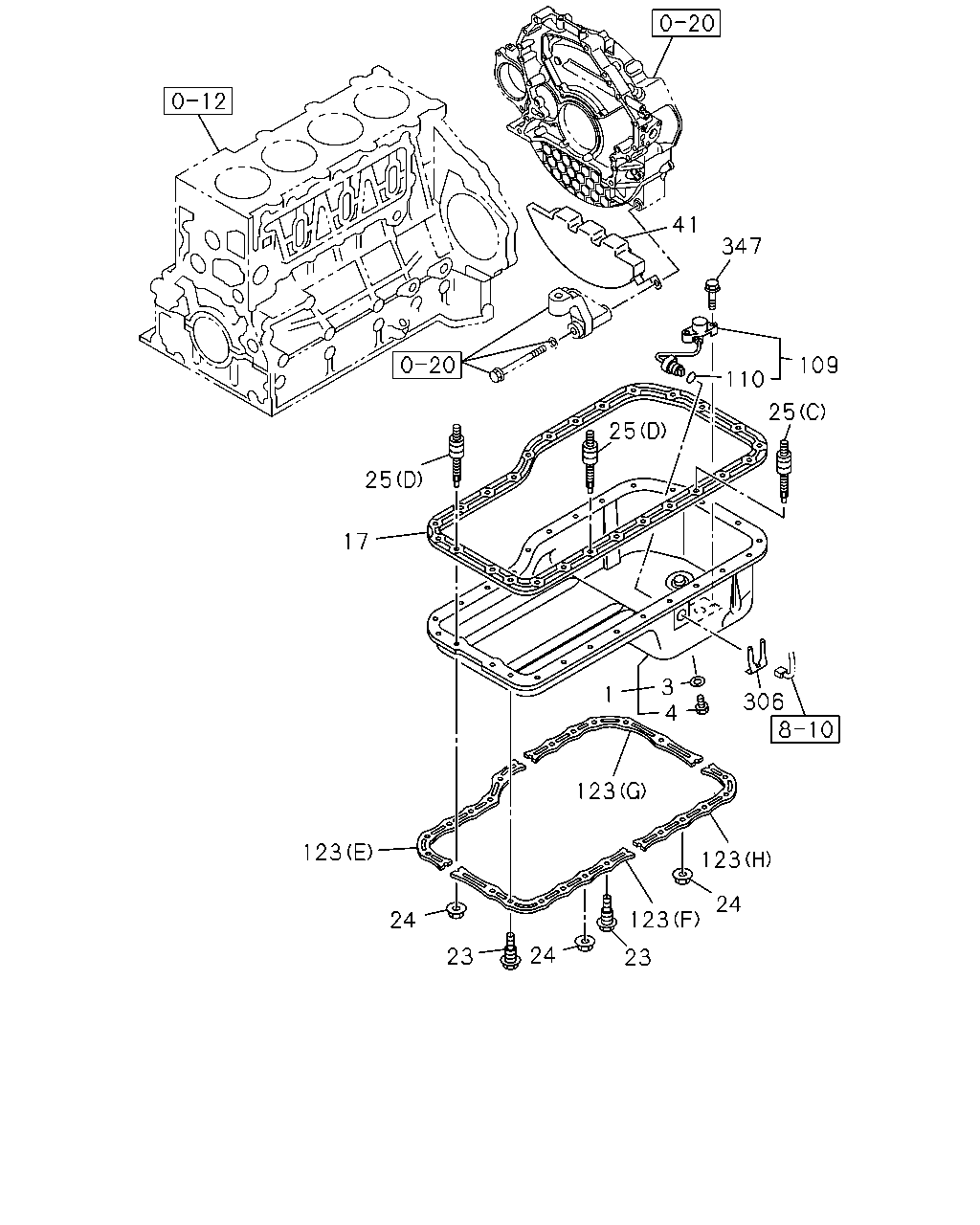

41 347 109 110 25 25 25 17 3 4 1 306 123 123 123 24 123 24 24 23 23

Balon	Parca Adi	Parca No	Adet	Tip	Applied Date	A	B	C
1	PAN ASM; OIL	8-98061-543-0	01	1	0710-	●	●
1	PAN ASM; OIL	8-97386-772-0	01	1	0712-			●
3	GASKET; DRAIN PLUG ALSO INCLUDED IN GASKET SET(ENGINE). ID=14.2 OD=24	8-94158-328-0	01	1	0712-			●
4	PLUG; DRAIN,OIL M14X14	8-94152-613-0	01	1	0712-			●
17	GASKET; OIL PAN ALSO INCLUDED IN GASKET SET(ENGINE).	8-94390-617-1	01	1	0710-	●	●
17	GASKET; OIL PAN ALSO INCLUDED IN GASKET SET(ENGINE).	8-97364-386-0	01	1	0712-			●
23	BOLT; OIL PAN M8X12.8 W/PL WASHER,RUBBER TUBE	8-97087-634-0	20	1	0710-	●	●
23	BOLT; OIL PAN M8X12.8 W/PL WASHER,RUBBER TUBE	8-97190-390-0	13	1	0712-			●
24	NUT; OIL PAN M8 FLANGE	0-91180-108-0	14	1	0710-	●	●
24	NUT; OIL PAN M8 FLANGE	0-91180-108-0	13	1	0712-			●
25	STUD; OIL PAN (A) M8X12.8 M8X16.5 L=43.1 W/WASHER&RUBBER	8-97087-632-2	05	1	0710-	●	●
25	STUD; OIL PAN (B) M8X12.8 M8X30 L=56.6 W/WASHER&RUBBER	8-97601-889-0	02	1	0710-	●	●
25	STUD; OIL PAN (C) M8X16,M8X17 L=37 W/PL WASHER,RUBBER TUBE	8-97190-391-0	01	1	0712-			●
25	STUD; OIL PAN (D) M8X16,M8X19 L=39 W/PL WASHER,RUBBER TUBE	8-97190-392-0	09	1	0712-			●
41	RUBBER; SPACE	8-97380-615-0	01	1	0712-			●
109	SWITCH; OIL LEVEL	8-97601-121-0	01	1	0710-	●	●
109	SWITCH; OIL LEVEL	8-97328-993-1	01	1	0712-			●
110	GASKET; SW,OIL LEVEL ID=27	8-98056-488-0	01	1	0710-	●	●
110	GASKET; SW,OIL LEVEL	8-98048-191-0	01	1	0712-			●
123	RUBBER; SEAL OIL (A)	8-94391-755-0	01	1	0710-	●	●
123	RUBBER; SEAL OIL (B)	8-94391-757-0	01	1	0710-	●	●
123	RUBBER; SEAL OIL (C)	8-94391-758-0	01	1	0710-	●	●
123	RUBBER; SEAL OIL (D)	8-94392-548-0	01	1	0710-	●	●
123	RUBBER; SEAL OIL (E)	8-97186-988-0	01	1	0712-			●
123	RUBBER; SEAL OIL (F)	8-97186-994-0	01	1	0712-			●
123	RUBBER; SEAL OIL (G)	8-97186-998-0	01	1	0712-			●
123	RUBBER; SEAL OIL (H)	8-97187-000-0	01	1	0712-			●
306	CLIP; CONNECTOR	8-97229-219-0	01	1	0712-			●
347	BOLT; OIL LEVEL SW M6X25 FLANGE	0-28650-625-0	02	1	0712-			●
