0-12 — CYLINDER BLOCK (#21710) — 154 parça

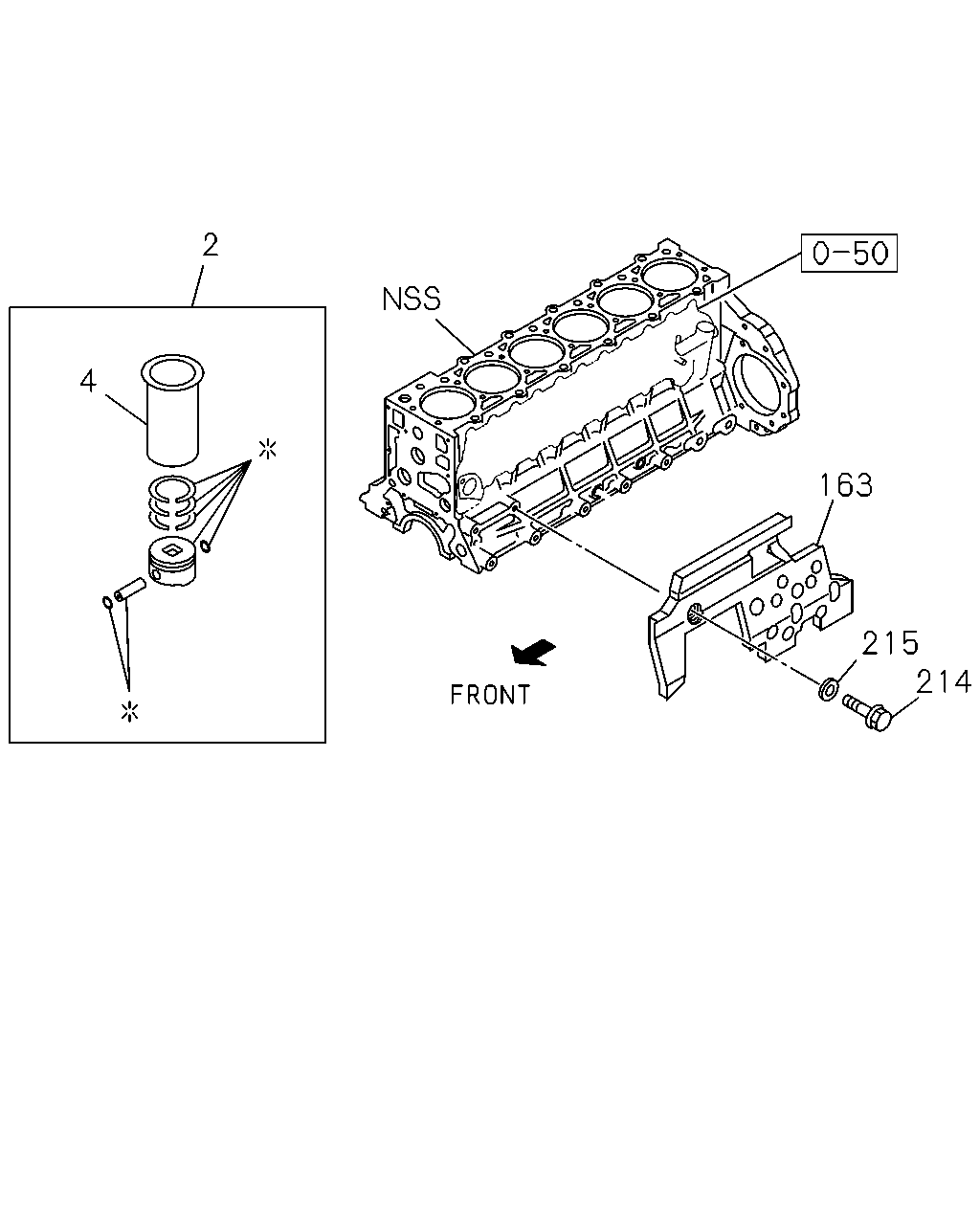

2 4 163 215 214

Balon	Parca Adi	Parca No	Adet	Tip	Applied Date	A	B	C
2	LINER SET; ENG CYL GRADE=1X	1-87813-119-6	06	1	0710-	●	●
2	LINER SET; ENG CYL GRADE=3X	1-87813-120-6	06	1	0710-	●	●
2	LINER SET; ENG CYL GRADE=1X	1-87813-119-6	04	1	0712-1405			●
2	LINER SET; ENG CYL GRADE=1X	1-87814-726-0	04	1	1406-			●
2	LINER SET; ENG CYL GRADE=3X	1-87813-120-6	04	1	0712-1405			●
2	LINER SET; ENG CYL GRADE=3X	1-87814-727-0	04	1	1406-			●
4	LINER; C/BL ALSO INCLUDED IN LINER SET. OD GRADE=1X,ID GRADE=NON	8-98014-046-1	06	1	0710-	●	●
4	LINER; C/BL ALSO INCLUDED IN LINER SET. OD GRADE=3X,ID GRADE=NON	8-98014-047-1	06	1	0710-	●	●
4	LINER; C/BL ALSO INCLUDED IN LINER SET. OD GRADE=1X,ID GRADE=NON	8-98014-046-1	04	1	0712-1405			●
4	LINER; C/BL ALSO INCLUDED IN LINER SET. OD GRADE=1X,ID GRADE=NON	8-94391-602-1	04	1	1406-			●
4	LINER; C/BL ALSO INCLUDED IN LINER SET. OD GRADE=3X,ID GRADE=NON	8-98014-047-1	04	1	0712-1405			●
4	LINER; C/BL ALSO INCLUDED IN LINER SET. OD GRADE=3X,ID GRADE=NON	8-94391-603-1	04	1	1406-			●
163	COVER ASM; C/BL SKIRT	8-97601-248-0	01	1	0710-	●	●
214	BOLT; NOISE COVER M10X16 FLANGE	0-28151-016-0	03	1	0710-	●	●
215	WASHER; PL,NOISE COVER ID=10.5 OD=32	0-91614-810-0	02	1	0710-	●	●

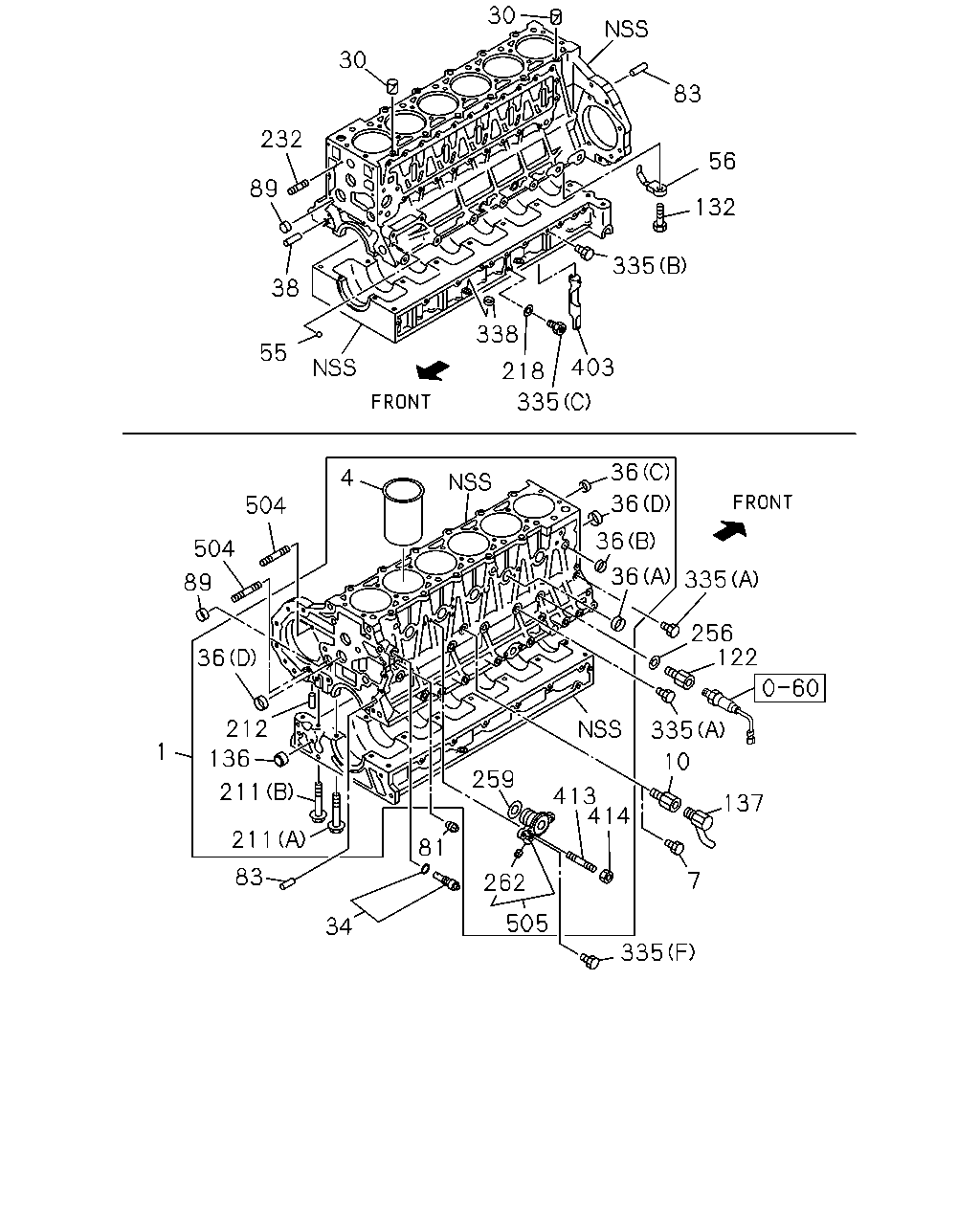

30 30 83 232 56 89 132 335 38 338 55 403 218 335 36 4 36 504 36 36 504 335 89 256 122 36 212 335 1 136 10 259 211 413 414 137 211 81 83 7 262 505 34 335

Balon	Parca Adi	Parca No	Adet	Tip	Applied Date	A	B	C
1	BLOCK ASM; CYL	8-97618-664-3	01	1	0710-1209	●	●
1	BLOCK ASM; CYL	8-98206-967-0	01	1	1210-	●	●
1	BLOCK ASM; CYL	8-98046-721-3	01	1	0712-1209			●
1	BLOCK ASM; CYL	8-98204-529-0	01	1	1210-1405			●
1	BLOCK ASM; CYL	8-98204-528-0	01	1	1406-			●
4	LINER; C/BL ALSO INCLUDED IN LINER SET. OD GRADE=1X,ID GRADE=NON	8-98014-046-1	06	1	0710-	●	●
4	LINER; C/BL ALSO INCLUDED IN LINER SET. OD GRADE=3X,ID GRADE=NON	8-98014-047-1	06	1	0710-	●	●
4	LINER; C/BL ALSO INCLUDED IN LINER SET. OD GRADE=1X,ID GRADE=NON	8-98014-046-1	04	1	0712-1405			●
4	LINER; C/BL ALSO INCLUDED IN LINER SET. OD GRADE=1X,ID GRADE=NON	8-94391-602-1	04	1	1406-			●
4	LINER; C/BL ALSO INCLUDED IN LINER SET. OD GRADE=3X,ID GRADE=NON	8-98014-047-1	04	1	0712-1405			●
4	LINER; C/BL ALSO INCLUDED IN LINER SET. OD GRADE=3X,ID GRADE=NON	8-94391-603-1	04	1	1406-			●
7	PLUG; WATER DRAIN M10X10	8-97352-537-0	01	1	0712-			●
10	CONNECTOR; WATER DRAIN	8-94396-378-0	01	1	0710-	●	●
30	PIN; CYL HD GASKET SETTING OD=18.15	8-94399-688-1	02	1	0710-	●	●
34	VALVE; OIL RELIEF	8-94393-077-1	01	1	0710-	●	●
34	VALVE; OIL RELIEF	8-97328-859-0	01	1	0712-			●
36	CUP; SEALING,WATER JACKET (A) OD=45	1-09600-005-2	04	1	0710-	●	●
36	CUP; SEALING,WATER JACKET (B) OD=25	1-09600-016-0	01	1	0710-	●	●
36	CUP; SEALING,WATER JACKET (C) OD=25	8-94399-005-0	01	1	0710-	●	●
36	CUP; SEALING,WATER JACKET (D) OD=40	8-97096-824-0	04	1	0710-	●	●
38	PIN; TIMING GEAR CASE L=22	8-94483-674-0	02	1	0710-	●	●
55	PLUG; OIL GALLERY 3/8" BALL	9-00097-011-0	01	1	0710-	●	●
56	JET; OIL,PISTON COOLING	8-98020-649-0	06	1	0710-1007	●	●
56	JET; OIL,PISTON COOLING	8-98173-342-0	06	1	1008-	●	●
56	JET; OIL,PISTON COOLING	8-98020-649-0	04	1	0712-1007			●
56	JET; OIL,PISTON COOLING	8-98173-342-0	04	1	1008-			●
81	PLUG; WATER JACKET PT3/8	8-94397-338-0	01	1	0710-	●	●
83	PIN; FLYWHEEL HSG L=22	8-94483-674-0	02	1	0710-	●	●
89	CUP; SEALING,OIL GALLERY OD=20	9-11219-192-0	03	1	0710-0908	●	●
89	CUP; SEALING,OIL GALLERY OD=20	9-11129-128-0	03	1	0712-0908			●
89	CUP; SEALING,OIL GALLERY OD=20	9-11129-128-0	03	1	0909-	●	●	●
122	ADAPTER; OIL PRESSURE SWITCH	8-97603-667-0	01	1	0710-	●	●
132	VALVE; CHECK,OIL M12X18.5	8-94394-419-1	06	1	0710-	●	●
132	VALVE; CHECK,OIL M10X18.5	8-97329-618-0	04	1	0712-			●
136	BUSHING; DRIVE SHAFT,OIL PUMP	8-94393-596-1	02	1	0710-0812	●	●
136	BUSHING; DRIVE SHAFT,OIL PUMP	8-98091-566-0	02	1	0901-	●	●
136	BUSHING; DRIVE SHAFT,OIL PUMP	8-94393-596-1	02	1	0712-0812			●
136	BUSHING; DRIVE SHAFT,OIL PUMP	8-98091-566-0	02	1	0901-			●
137	COCK; DRAIN,WATER	8-94393-716-1	01	1	0710-	●	●
211	BOLT; CRANKCASE (A) M14X115 W/FLANGE	8-94396-207-3	14	1	0710-0905	●	●
211	BOLT; CRANKCASE (A) M14X115 W/FLANGE	8-97077-638-0	14	1	0906-	●	●
211	BOLT; CRANKCASE (B) M10X82	8-94399-553-2	25	1	0710-	●	●
211	BOLT; CRANKCASE (D) M10X82	8-94399-553-2	17	1	0712-			●
211	BOLT; CRANKCASE (C) M14X115 W/FLANGE	8-97077-638-0	10	1	0712-			●
212	PIN; CRANKCASE OD=10 L=20	8-97135-423-0	02	1	0710-	●	●
212	PIN; CRANKCASE OD=10 L=20	8-97135-423-0	02	1	0712-			●
218	GASKET; PLUG,C/BL SIDE ALSO INCLUDED IN GASKET SET(ENGINE). ID=12.2	1-09630-084-0	01	1	0710-1312	●	●
218	GASKET; PLUG,C/BL SIDE ALSO INCLUDED IN GASKET SET(ENGINE). ID=12.2	8-98251-344-0	01	1	1401-	●	●
232	STUD; WATER PUMP M8X55 L=67	0-41010-855-0	03	1	0710-	●	●
256	GASKET; ADAPTER ALSO INCLUDED IN GASKET SET(ENGINE). ID=14.2 OD=25	1-09630-141-0	01	1	0710-	●	●
259	GASKET; ADAPTER ALSO INCLUDED IN GASKET SET(ENGINE). ID=38.7	1-09623-184-0	01	1	0710-	●	●
262	PLUG; ADAPTER	1-13163-002-0	01	1	1101-	●	●
335	PLUG; C/BL,SIDE (C) M12X10	5-13265-001-0	01	1	0710-	●	●
335	PLUG; C/BL,SIDE (A) M14X16.5	8-97329-617-0	02	1	0710-0712	●	●
335	PLUG; C/BL,SIDE (A) M14X16.5	8-97329-617-0	02	1	0801-	●	●	●
335	PLUG; C/BL,SIDE (B) M8X10	8-98003-416-0	01	1	0710-	●	●
335	PLUG; C/BL,SIDE (F) M14	8-94399-225-0	01	1	1101-	●	●
335	PLUG; C/BL,SIDE (D) M14X18	0-20801-418-0	01	1	0712-0805			●
335	PLUG; C/BL,SIDE (D) M14X18	8-98038-403-0	01	1	0806-			●
335	PLUG; C/BL,SIDE (E) M14X16.5	8-97018-606-0	02	1	0712-0712			●
338	CUP; SEALING,GUIDE TUBE HOLE OD=15.6	5-11129-003-0	02	1	0710-	●	●
403	GUIDE; GALLERY	8-94395-351-1	01	1	0710-	●	●
413	STUD; ADAPTER M8X30 L=41	0-41010-830-0	02	1	0710-	●	●
414	NUT; ADAPTER M8 FLANGE	0-91180-208-0	02	1	0710-	●	●
504	STUD; INJ PUMP M10X46.5 L=58.5	8-97363-237-0	02	1	0710-	●	●
505	ADAPTER; WATER FEED	8-97607-409-0	01	1	0710-1012	●	●
505	ADAPTER; WATER FEED	8-98145-412-1	01	1	1101-	●	●

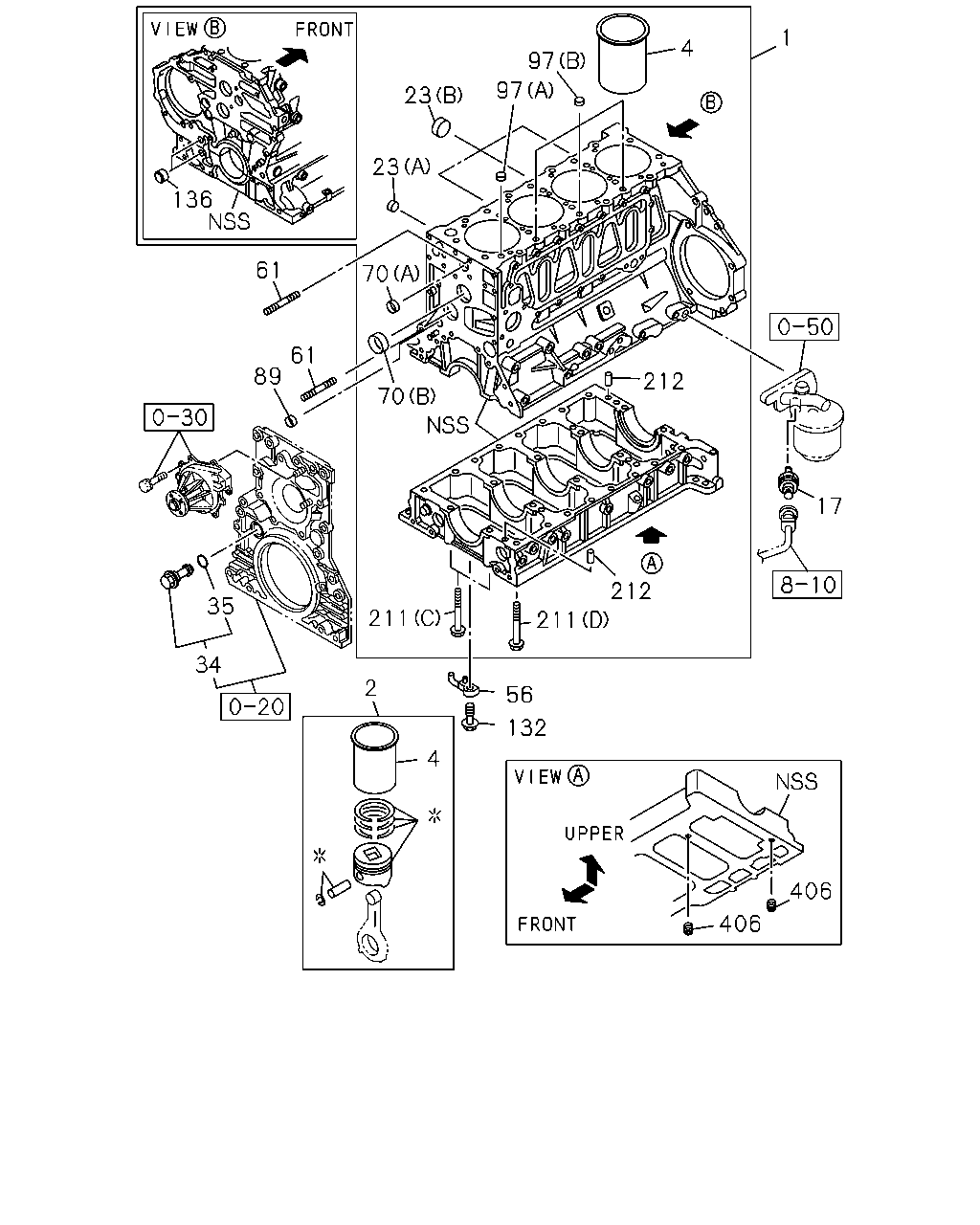

1 4 97 97 23 23 136 61 70 61 89 212 70 17 212 35 211 211 34 2 56 132 4 406 406

Balon	Parca Adi	Parca No	Adet	Tip	Applied Date	A	B	C
1	BLOCK ASM; CYL	8-97618-664-3	01	1	0710-1209	●	●
1	BLOCK ASM; CYL	8-98206-967-0	01	1	1210-	●	●
1	BLOCK ASM; CYL	8-98046-721-3	01	1	0712-1209			●
1	BLOCK ASM; CYL	8-98204-529-0	01	1	1210-1405			●
1	BLOCK ASM; CYL	8-98204-528-0	01	1	1406-			●
2	LINER SET; ENG CYL GRADE=1X	1-87813-119-6	06	1	0710-	●	●
2	LINER SET; ENG CYL GRADE=3X	1-87813-120-6	06	1	0710-	●	●
2	LINER SET; ENG CYL GRADE=1X	1-87813-119-6	04	1	0712-1405			●
2	LINER SET; ENG CYL GRADE=1X	1-87814-726-0	04	1	1406-			●
2	LINER SET; ENG CYL GRADE=3X	1-87813-120-6	04	1	0712-1405			●
2	LINER SET; ENG CYL GRADE=3X	1-87814-727-0	04	1	1406-			●
4	LINER; C/BL ALSO INCLUDED IN LINER SET. OD GRADE=1X,ID GRADE=NON	8-98014-046-1	06	1	0710-	●	●
4	LINER; C/BL ALSO INCLUDED IN LINER SET. OD GRADE=3X,ID GRADE=NON	8-98014-047-1	06	1	0710-	●	●
4	LINER; C/BL ALSO INCLUDED IN LINER SET. OD GRADE=1X,ID GRADE=NON	8-98014-046-1	04	1	0712-1405			●
4	LINER; C/BL ALSO INCLUDED IN LINER SET. OD GRADE=1X,ID GRADE=NON	8-94391-602-1	04	1	1406-			●
4	LINER; C/BL ALSO INCLUDED IN LINER SET. OD GRADE=3X,ID GRADE=NON	8-98014-047-1	04	1	0712-1405			●
4	LINER; C/BL ALSO INCLUDED IN LINER SET. OD GRADE=3X,ID GRADE=NON	8-94391-603-1	04	1	1406-			●
17	SWITCH; OIL PRESSURE	8-97176-230-0	01	1	0712-			●
23	CUP; SEALING,C/BL FRT & RR (A) OD=25	1-09600-016-0	01	1	0712-			●
23	CUP; SEALING,C/BL FRT & RR (B) OD=45	8-97036-550-1	03	1	0712-			●
34	VALVE; OIL RELIEF	8-94393-077-1	01	1	0710-	●	●
34	VALVE; OIL RELIEF	8-97328-859-0	01	1	0712-			●
35	GASKET; RELIEF VLV ALSO INCLUDED IN GASKET SET(ENGINE). ID=27.7	5-09623-035-0	01	1	0710-	●	●
35	GASKET; RELIEF VLV ALSO INCLUDED IN GASKET SET(ENGINE). ID=23.3	8-94173-412-0	01	1	0712-			●
56	JET; OIL,PISTON COOLING	8-98020-649-0	06	1	0710-1007	●	●
56	JET; OIL,PISTON COOLING	8-98173-342-0	06	1	1008-	●	●
56	JET; OIL,PISTON COOLING	8-98020-649-0	04	1	0712-1007			●
56	JET; OIL,PISTON COOLING	8-98173-342-0	04	1	1008-			●
61	PIN; STRAIGHT L=22	8-94483-674-0	04	1	0712-			●
70	CUP; SEALING,FRT & RR (A) OD=25	1-09600-016-0	01	1	0712-			●
70	CUP; SEALING,FRT & RR (B) OD=40	8-97096-824-0	04	1	0712-			●
89	CUP; SEALING,OIL GALLERY OD=20	9-11219-192-0	03	1	0710-0908	●	●
89	CUP; SEALING,OIL GALLERY OD=20	9-11129-128-0	03	1	0712-0908			●
89	CUP; SEALING,OIL GALLERY OD=20	9-11129-128-0	03	1	0909-	●	●	●
97	CUP; SEALING (A) OD=16	5-11129-006-0	01	1	0712-			●
97	CUP; SEALING (C) OD=12	8-97036-335-1	01	1	0712-			●
97	CUP; SEALING (B) OD=22	8-97209-609-0	03	1	0712-			●
132	VALVE; CHECK,OIL M12X18.5	8-94394-419-1	06	1	0710-	●	●
132	VALVE; CHECK,OIL M10X18.5	8-97329-618-0	04	1	0712-			●
136	BUSHING; DRIVE SHAFT,OIL PUMP	8-94393-596-1	02	1	0710-0812	●	●
136	BUSHING; DRIVE SHAFT,OIL PUMP	8-98091-566-0	02	1	0901-	●	●
136	BUSHING; DRIVE SHAFT,OIL PUMP	8-94393-596-1	02	1	0712-0812			●
136	BUSHING; DRIVE SHAFT,OIL PUMP	8-98091-566-0	02	1	0901-			●
211	BOLT; CRANKCASE (A) M14X115 W/FLANGE	8-94396-207-3	14	1	0710-0905	●	●
211	BOLT; CRANKCASE (A) M14X115 W/FLANGE	8-97077-638-0	14	1	0906-	●	●
211	BOLT; CRANKCASE (B) M10X82	8-94399-553-2	25	1	0710-	●	●
211	BOLT; CRANKCASE (D) M10X82	8-94399-553-2	17	1	0712-			●
211	BOLT; CRANKCASE (C) M14X115 W/FLANGE	8-97077-638-0	10	1	0712-			●
212	PIN; CRANKCASE OD=10 L=20	8-97135-423-0	02	1	0710-	●	●
212	PIN; CRANKCASE OD=10 L=20	8-97135-423-0	02	1	0712-			●
406	PLUG; CRANK CASE PT3/8	5-09605-005-0	02	1	0712-			●

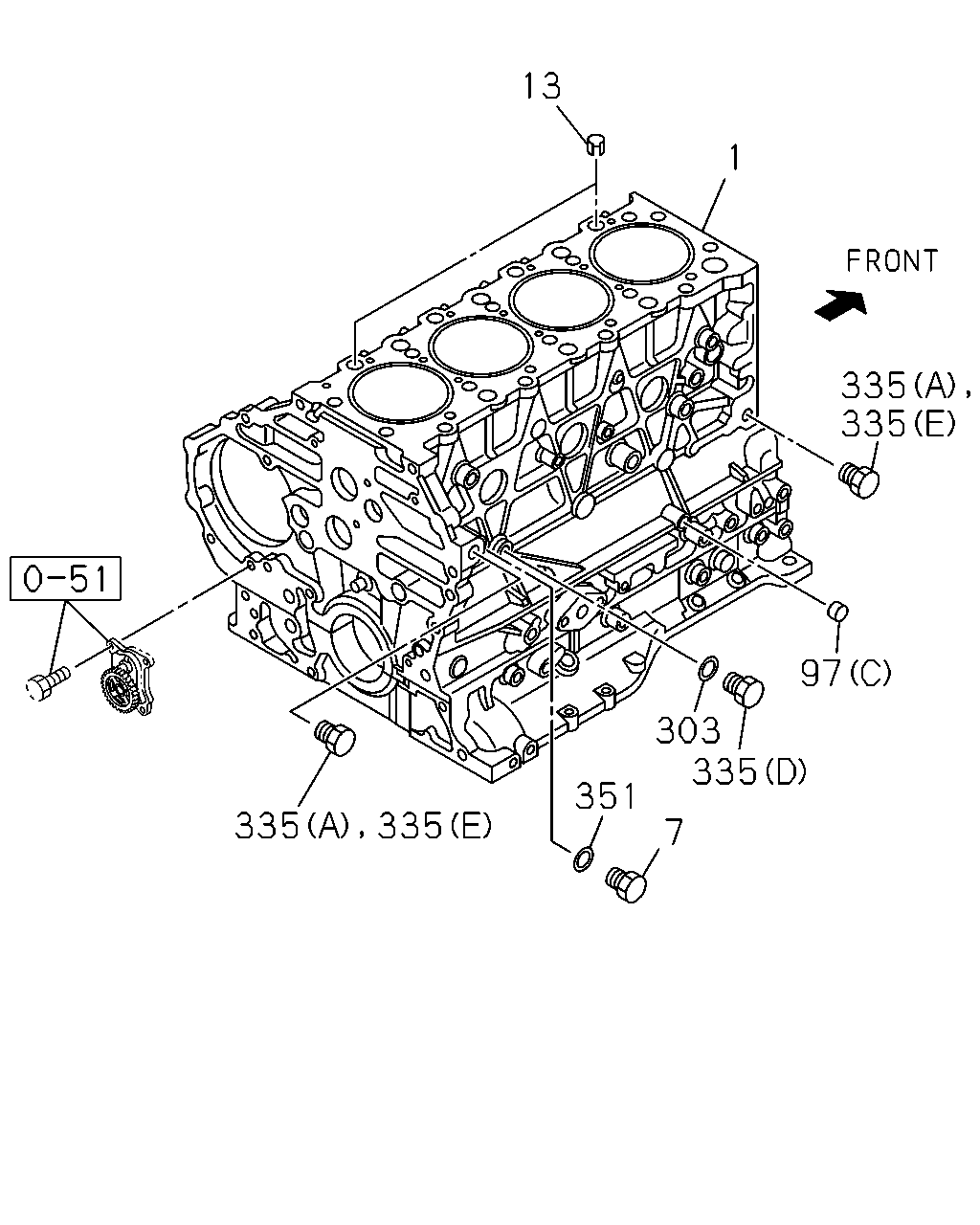

13 1 335 335 97 303 335 351 335 7 335

Balon	Parca Adi	Parca No	Adet	Tip	Applied Date	A	B	C
1	BLOCK ASM; CYL	8-97618-664-3	01	1	0710-1209	●	●
1	BLOCK ASM; CYL	8-98206-967-0	01	1	1210-	●	●
1	BLOCK ASM; CYL	8-98046-721-3	01	1	0712-1209			●
1	BLOCK ASM; CYL	8-98204-529-0	01	1	1210-1405			●
1	BLOCK ASM; CYL	8-98204-528-0	01	1	1406-			●
7	PLUG; WATER DRAIN M10X10	8-97352-537-0	01	1	0712-			●
13	DOWEL; C/BL TO HD OD=18.15	8-94399-688-1	02	1	0712-			●
97	CUP; SEALING (A) OD=16	5-11129-006-0	01	1	0712-			●
97	CUP; SEALING (C) OD=12	8-97036-335-1	01	1	0712-			●
97	CUP; SEALING (B) OD=22	8-97209-609-0	03	1	0712-			●
303	GASKET; PLUG ALSO INCLUDED IN GASKET SET(ENGINE). ID=14.2 OD=19.2	1-09630-085-0	01	1	0712-1312			●
303	GASKET; PLUG ALSO INCLUDED IN GASKET SET(ENGINE). ID=14.2 OD=19.2	8-98251-345-0	01	1	1401-			●
335	PLUG; C/BL,SIDE (C) M12X10	5-13265-001-0	01	1	0710-	●	●
335	PLUG; C/BL,SIDE (A) M14X16.5	8-97329-617-0	02	1	0710-0712	●	●
335	PLUG; C/BL,SIDE (A) M14X16.5	8-97329-617-0	02	1	0801-	●	●	●
335	PLUG; C/BL,SIDE (B) M8X10	8-98003-416-0	01	1	0710-	●	●
335	PLUG; C/BL,SIDE (F) M14	8-94399-225-0	01	1	1101-	●	●
335	PLUG; C/BL,SIDE (D) M14X18	0-20801-418-0	01	1	0712-0805			●
335	PLUG; C/BL,SIDE (D) M14X18	8-98038-403-0	01	1	0806-			●
335	PLUG; C/BL,SIDE (E) M14X16.5	8-97018-606-0	02	1	0712-0712			●
351	GASKET; COCK,WATER DRAIN ALSO INCLUDED IN GASKET SET(ENGINE). ID=10.2 OD=15.2	1-09630-083-0	01	1	0712-			●
