0-11 — CYLINDER HEAD (#21709) — 143 parça

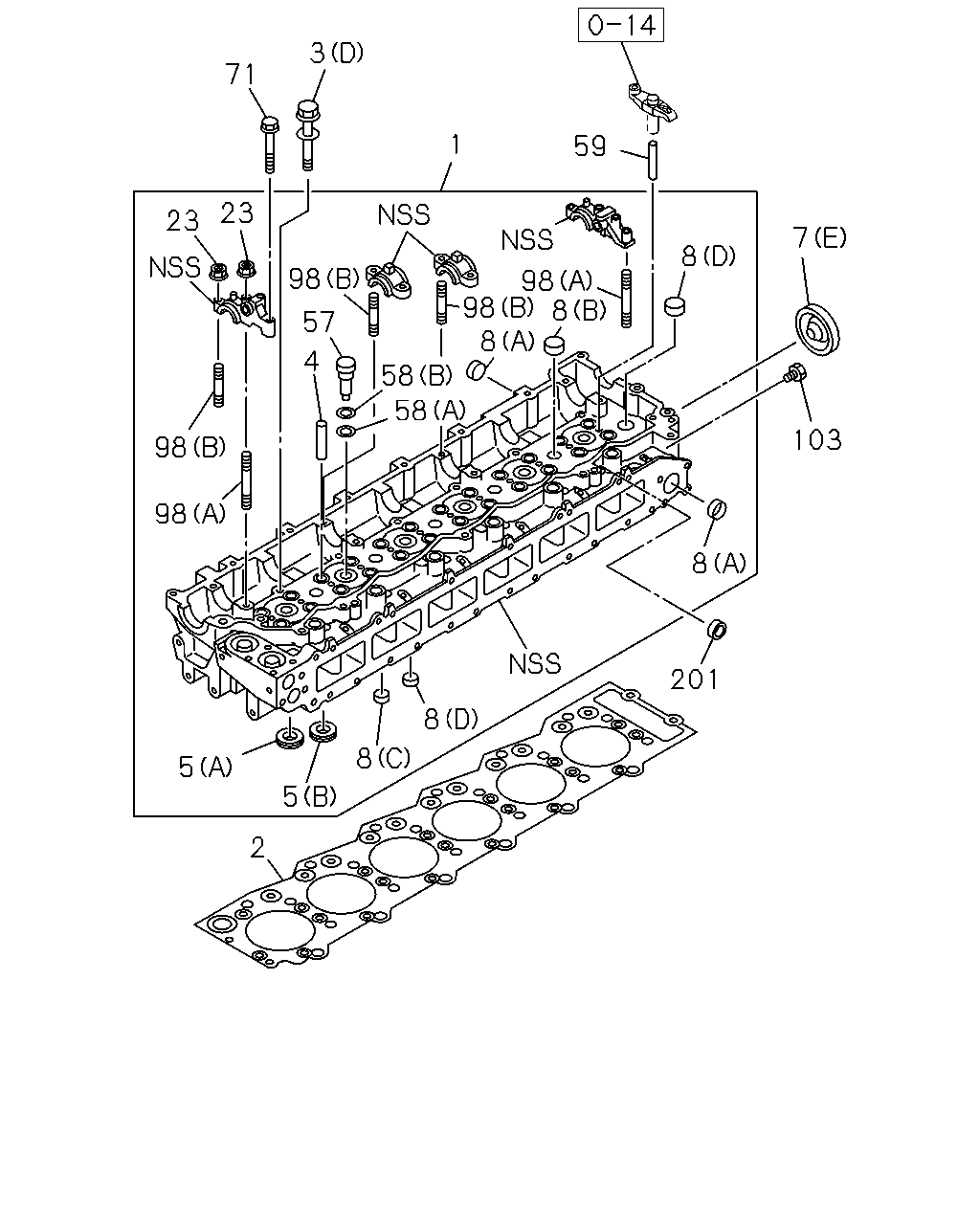

3 71 1 59 23 23 7 8 98 98 98 8 8 57 4 58 58 103 98 98 8 201 8 8 5 5 2

Balon	Parca Adi	Parca No	Adet	Tip	Applied Date	A	B	C
1	HEAD ASM; CYL	8-97604-903-7	01	1	0710-1305	●	●
1	HEAD ASM; CYL	8-98243-824-0	01	1	1306-	●	●
1	HEAD ASM; CYL	8-98045-019-3	01	1	0712-1005			●
1	HEAD ASM; CYL	8-98170-620-0	01	1	1006-			●
2	GASKET; CYL HD ALSO INCLUDED IN GASKET SET(ENG. & HEAD)	8-97601-819-5	01	1	0710-	●	●
2	GASKET; CYL HD ALSO INCLUDED IN GASKET SET(ENG. & HEAD) T=1.475 NON-HOLE	8-98055-540-0	01	1	0712-			●
2	GASKET; CYL HD ALSO INCLUDED IN GASKET SET(ENG. & HEAD) T=1.525 1-HOLE	8-98055-541-0	01	1	0712-			●
2	GASKET; CYL HD ALSO INCLUDED IN GASKET SET(ENG. & HEAD) T=1.575 2-HOLE	8-98055-542-0	01	1	0712-			●
3	BOLT; CYL HD TO BLOCK (D) M14X115 W/FLANGE	8-94396-207-3	26	1	0710-0901	●	●
3	BOLT; CYL HD TO BLOCK (D) M14X115 W/FLANGE	8-97077-638-0	26	1	0902-1407	●	●
3	BOLT; CYL HD TO BLOCK (D) M14X115 W/FLANGE	8-98260-005-0	26	1	1408-	●	●
3	BOLT; CYL HD TO BLOCK (A) M10X73	8-94399-554-0	01	1	0712-			●
3	BOLT; CYL HD TO BLOCK (B) M10X43	8-94399-555-0	01	1	0712-			●
3	BOLT; CYL HD TO BLOCK (C) M14X115 W/FLANGE	8-97077-638-0	18	1	0712-			●
4	GUIDE; VLV L=57	8-97376-719-2	24	1	0710-	●	●
4	GUIDE; VLV L=57	8-97376-719-2	16	1	0712-			●
5	SEAT; VLV INSERT (A) INLET ID=32 OD=38	8-98028-874-0	12	1	0710-	●	●
5	SEAT; VLV INSERT (B) EXHAUST ID=31 OD=38	8-98028-875-0	12	1	0710-	●	●
5	SEAT; VLV INSERT (A) INLET ID=32 OD=38	8-98028-874-0	08	1	0712-			●
5	SEAT; VLV INSERT (B) EXHAUST ID=31 OD=38	8-98028-875-0	08	1	0712-			●
7	CUP; SEALING,CYL HEAD (E) OD=51	8-97096-826-0	01	1	0710-	●	●
7	CUP; SEALING,CYL HEAD (B) OD=25	1-09600-016-0	04	1	0712-			●
7	CUP; SEALING,CYL HEAD (C) OD=16	5-11129-006-0	05	1	0712-			●
7	CUP; SEALING,CYL HEAD (A) OD=32	8-97096-821-0	05	1	0712-			●
7	CUP; SEALING,CYL HEAD (D) OD=20	9-11129-128-0	07	1	0712-			●
8	CUP; SEALING,WATER JACKET (A) OD=32	1-09600-012-2	07	1	0710-	●	●
8	CUP; SEALING,WATER JACKET (B) OD=25	1-09600-016-0	06	1	0710-	●	●
8	CUP; SEALING,WATER JACKET (C) OD=16	5-11129-006-0	07	1	0710-	●	●
8	CUP; SEALING,WATER JACKET (D) OD=20	9-11129-128-0	11	1	0710-	●	●
23	NUT; CAM BRKT M8 FLANGE	0-91180-208-0	08	1	0710-	●	●
23	NUT; CAM BRKT M8 FLANGE	0-91180-208-0	10	1	0712-			●
57	SLEEVE; NOZZLE HOLDER	8-97606-661-0	06	1	0710-	●	●
57	SLEEVE; NOZZLE HOLDER	8-97606-661-0	04	1	0712-			●
58	GASKET; SLEEVE,NOZZLE HOLDER ALSO INCLUDED IN GASKET SET(ENG. & HEAD) (A) ID=26.4	8-97604-916-0	06	1	0710-	●	●
58	GASKET; SLEEVE,NOZZLE HOLDER ALSO INCLUDED IN GASKET SET(ENG. & HEAD) (B) ID=26.2	8-98004-187-0	06	1	0710-	●	●
58	GASKET; SLEEVE,NOZZLE HOLDER ALSO INCLUDED IN GASKET SET(ENG. & HEAD) (A) ID=26.4	8-97604-916-0	04	1	0712-			●
58	GASKET; SLEEVE,NOZZLE HOLDER ALSO INCLUDED IN GASKET SET(ENG. & HEAD) (B) ID=26.2	8-98004-187-0	04	1	0712-			●
59	GUIDE; BRIDGE	8-97381-603-1	12	1	0710-	●	●
59	GUIDE; BRIDGE	8-97381-603-1	08	1	0712-			●
71	BOLT; CAM BRKT M8X35 FLANGE	0-28050-835-0	02	1	0710-0711	●	●
71	BOLT; CAM BRKT M8X35 FLANGE	0-28050-835-0	02	1	0712-	●	●	●
98	STUD; CAM BRKT (A) M8X54 L=79	8-94322-512-2	02	1	0710-	●	●
98	STUD; CAM BRKT (B) M8X41 L=66	8-94322-513-2	06	1	0710-	●	●
103	PLUG; HD M8X10	8-98003-416-0	01	1	0710-	●	●
201	GASKET; SLEEVE,INJ PUMP ALSO INCLUDED IN GASKET SET(ENG. & HEAD)	1-09639-034-0	06	1	0710-	●	●
201	GASKET; SLEEVE,INJ PUMP ALSO INCLUDED IN GASKET SET(ENG. & HEAD)	1-09639-034-0	04	1	0712-			●

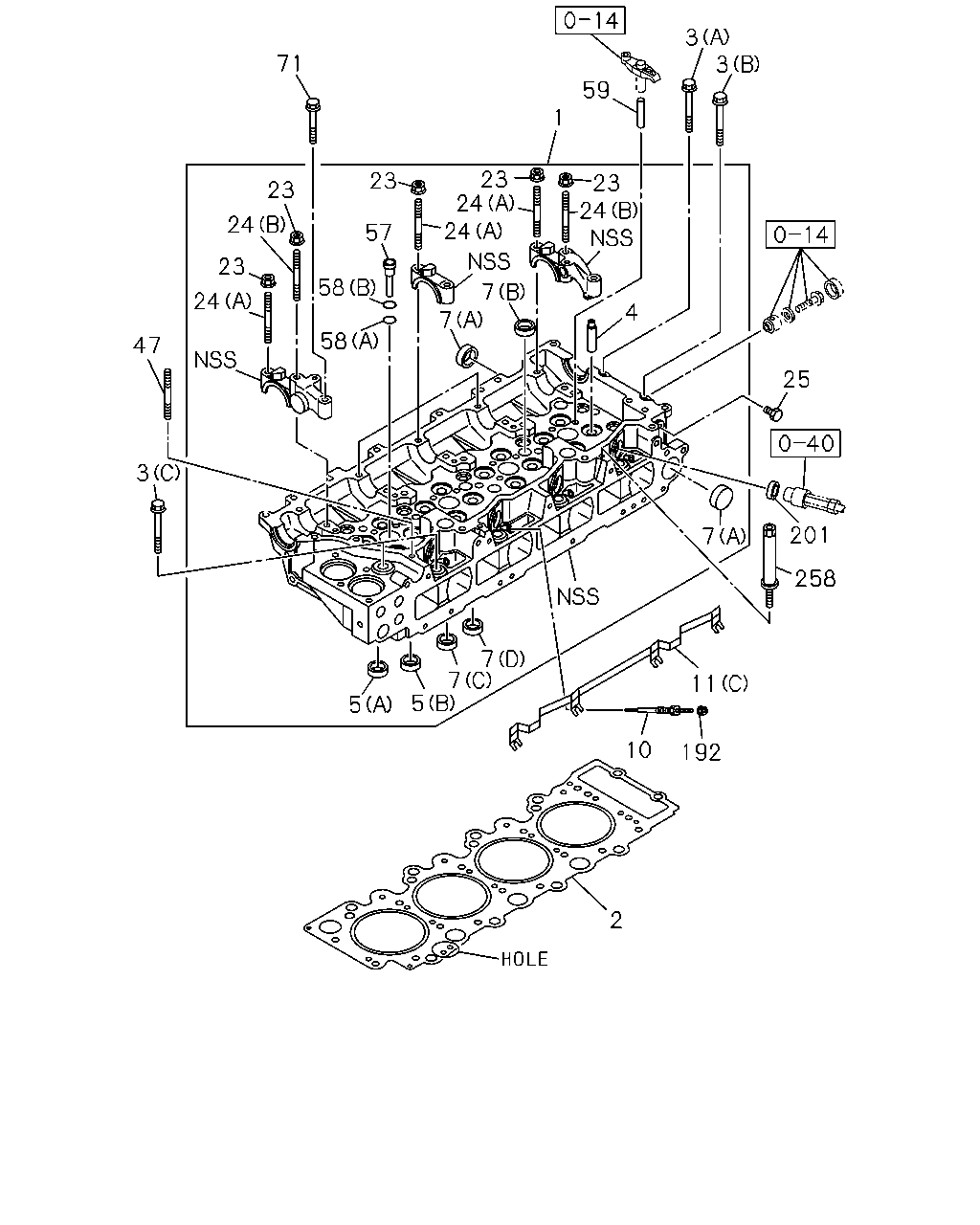

3 3 71 59 1 23 24 24 23 23 24 23 24 57 23 58 7 24 4 7 58 47 25 3 201 7 258 7 7 5 11 5 10 192 2

Balon	Parca Adi	Parca No	Adet	Tip	Applied Date	A	B	C
1	HEAD ASM; CYL	8-97604-903-7	01	1	0710-1305	●	●
1	HEAD ASM; CYL	8-98243-824-0	01	1	1306-	●	●
1	HEAD ASM; CYL	8-98045-019-3	01	1	0712-1005			●
1	HEAD ASM; CYL	8-98170-620-0	01	1	1006-			●
2	GASKET; CYL HD ALSO INCLUDED IN GASKET SET(ENG. & HEAD)	8-97601-819-5	01	1	0710-	●	●
2	GASKET; CYL HD ALSO INCLUDED IN GASKET SET(ENG. & HEAD) T=1.475 NON-HOLE	8-98055-540-0	01	1	0712-			●
2	GASKET; CYL HD ALSO INCLUDED IN GASKET SET(ENG. & HEAD) T=1.525 1-HOLE	8-98055-541-0	01	1	0712-			●
2	GASKET; CYL HD ALSO INCLUDED IN GASKET SET(ENG. & HEAD) T=1.575 2-HOLE	8-98055-542-0	01	1	0712-			●
3	BOLT; CYL HD TO BLOCK (D) M14X115 W/FLANGE	8-94396-207-3	26	1	0710-0901	●	●
3	BOLT; CYL HD TO BLOCK (D) M14X115 W/FLANGE	8-97077-638-0	26	1	0902-1407	●	●
3	BOLT; CYL HD TO BLOCK (D) M14X115 W/FLANGE	8-98260-005-0	26	1	1408-	●	●
3	BOLT; CYL HD TO BLOCK (A) M10X73	8-94399-554-0	01	1	0712-			●
3	BOLT; CYL HD TO BLOCK (B) M10X43	8-94399-555-0	01	1	0712-			●
3	BOLT; CYL HD TO BLOCK (C) M14X115 W/FLANGE	8-97077-638-0	18	1	0712-			●
4	GUIDE; VLV L=57	8-97376-719-2	24	1	0710-	●	●
4	GUIDE; VLV L=57	8-97376-719-2	16	1	0712-			●
5	SEAT; VLV INSERT (A) INLET ID=32 OD=38	8-98028-874-0	12	1	0710-	●	●
5	SEAT; VLV INSERT (B) EXHAUST ID=31 OD=38	8-98028-875-0	12	1	0710-	●	●
5	SEAT; VLV INSERT (A) INLET ID=32 OD=38	8-98028-874-0	08	1	0712-			●
5	SEAT; VLV INSERT (B) EXHAUST ID=31 OD=38	8-98028-875-0	08	1	0712-			●
7	CUP; SEALING,CYL HEAD (E) OD=51	8-97096-826-0	01	1	0710-	●	●
7	CUP; SEALING,CYL HEAD (B) OD=25	1-09600-016-0	04	1	0712-			●
7	CUP; SEALING,CYL HEAD (C) OD=16	5-11129-006-0	05	1	0712-			●
7	CUP; SEALING,CYL HEAD (A) OD=32	8-97096-821-0	05	1	0712-			●
7	CUP; SEALING,CYL HEAD (D) OD=20	9-11129-128-0	07	1	0712-			●
10	PLUG; GLOW NGK	8-94390-777-6	06	1	0710-	●	●
10	PLUG; GLOW NGK	8-94390-777-6	04	1	0712-			●
11	CONNECTOR; GLOW PLUG (B)	8-98040-648-0	01	1	0710-	●	●
11	CONNECTOR; GLOW PLUG (A)	8-98040-649-0	01	1	0710-	●	●
11	CONNECTOR; GLOW PLUG (C)	8-97332-358-2	01	1	0712-			●
23	NUT; CAM BRKT M8 FLANGE	0-91180-208-0	08	1	0710-	●	●
23	NUT; CAM BRKT M8 FLANGE	0-91180-208-0	10	1	0712-			●
24	STUD; CM/SHF BRKT (B) M8X54 L=79	8-94322-512-2	02	1	0712-			●
24	STUD; CM/SHF BRKT (A) M8X41 L=66	8-94322-513-2	08	1	0712-			●
25	PLUG; CYL HD M8X10	8-98003-416-0	01	1	0712-			●
47	STUD; CYL HD M8X60 L=72	0-49140-860-0	02	1	0712-			●
57	SLEEVE; NOZZLE HOLDER	8-97606-661-0	06	1	0710-	●	●
57	SLEEVE; NOZZLE HOLDER	8-97606-661-0	04	1	0712-			●
58	GASKET; SLEEVE,NOZZLE HOLDER ALSO INCLUDED IN GASKET SET(ENG. & HEAD) (A) ID=26.4	8-97604-916-0	06	1	0710-	●	●
58	GASKET; SLEEVE,NOZZLE HOLDER ALSO INCLUDED IN GASKET SET(ENG. & HEAD) (B) ID=26.2	8-98004-187-0	06	1	0710-	●	●
58	GASKET; SLEEVE,NOZZLE HOLDER ALSO INCLUDED IN GASKET SET(ENG. & HEAD) (A) ID=26.4	8-97604-916-0	04	1	0712-			●
58	GASKET; SLEEVE,NOZZLE HOLDER ALSO INCLUDED IN GASKET SET(ENG. & HEAD) (B) ID=26.2	8-98004-187-0	04	1	0712-			●
59	GUIDE; BRIDGE	8-97381-603-1	12	1	0710-	●	●
59	GUIDE; BRIDGE	8-97381-603-1	08	1	0712-			●
71	BOLT; CAM BRKT M8X35 FLANGE	0-28050-835-0	02	1	0710-0711	●	●
71	BOLT; CAM BRKT M8X35 FLANGE	0-28050-835-0	02	1	0712-	●	●	●
192	NUT; GLOW PLUG M4 FLANGE	8-97368-853-0	06	1	0710-	●	●
192	NUT; GLOW PLUG M4 FLANGE	8-97368-853-0	04	1	0712-			●
201	GASKET; SLEEVE,INJ PUMP ALSO INCLUDED IN GASKET SET(ENG. & HEAD)	1-09639-034-0	06	1	0710-	●	●
201	GASKET; SLEEVE,INJ PUMP ALSO INCLUDED IN GASKET SET(ENG. & HEAD)	1-09639-034-0	04	1	0712-			●
258	ADAPTER; CLIP	8-97377-804-0	01	1	0712-0904			●

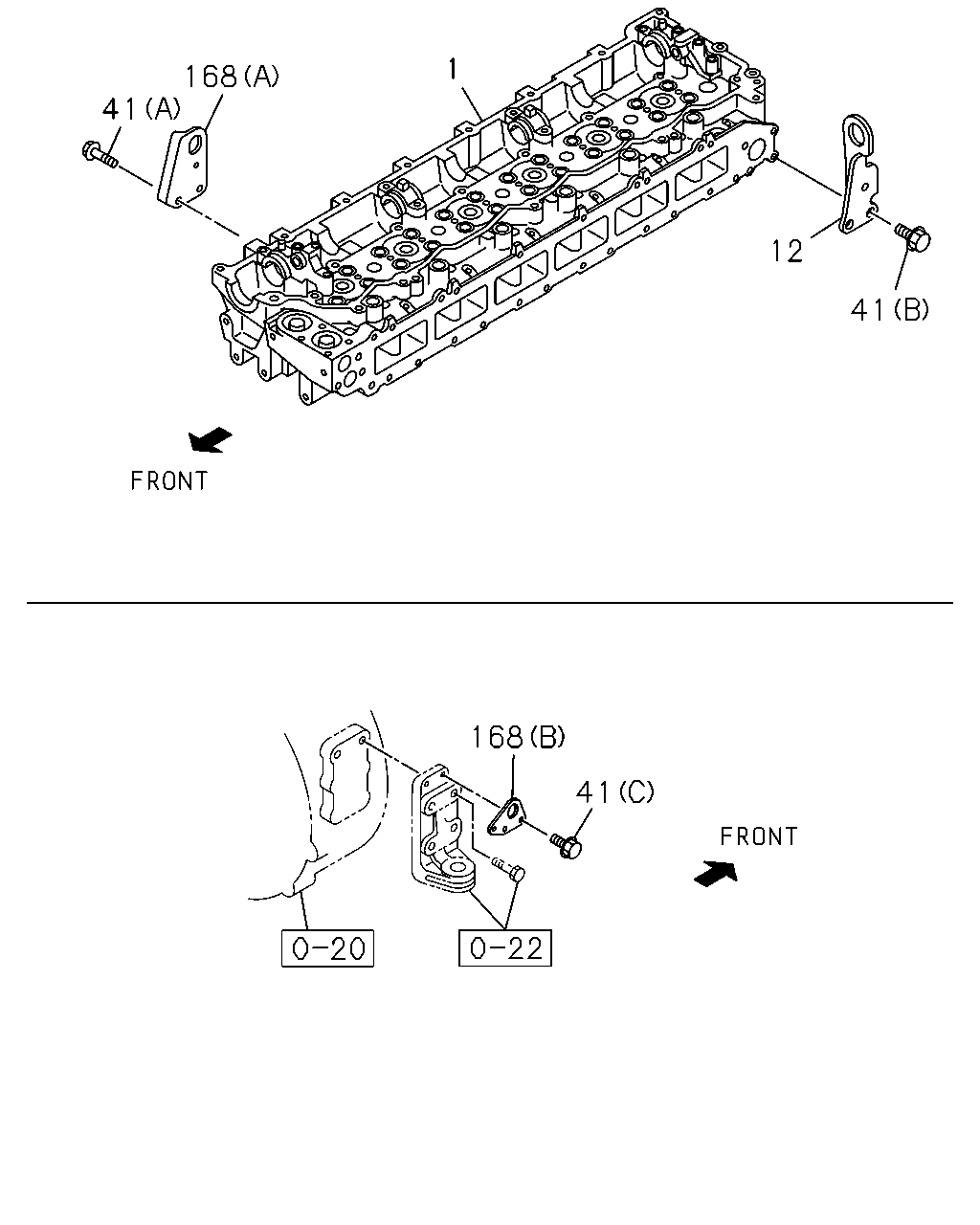

1 168 41 12 41 168 41

Balon	Parca Adi	Parca No	Adet	Tip	Applied Date	A	B	C
1	HEAD ASM; CYL	8-97604-903-7	01	1	0710-1305	●	●
1	HEAD ASM; CYL	8-98243-824-0	01	1	1306-	●	●
1	HEAD ASM; CYL	8-98045-019-3	01	1	0712-1005			●
1	HEAD ASM; CYL	8-98170-620-0	01	1	1006-			●
12	HANGER; ENG,RR	8-94392-081-1	01	1	0710-	●	●
41	BOLT; ENG HANGER (A) M10X20 FLANGE	0-28151-020-0	02	1	0710-	●	●
41	BOLT; ENG HANGER (B) M10X25 FLANGE	0-28751-025-0	02	1	0710-	●	●
41	BOLT; ENG HANGER (C) M12X25 FLANGE	0-28751-225-0	02	1	0710-	●	●
168	HANGER; ENG,FRT (B)	8-94394-398-1	01	1	0710-	●	●
168	HANGER; ENG,FRT (A)	8-98043-134-0	01	1	0710-	●	●
168	HANGER; ENG,FRT (C)	8-97383-001-1	01	1	0712-			●

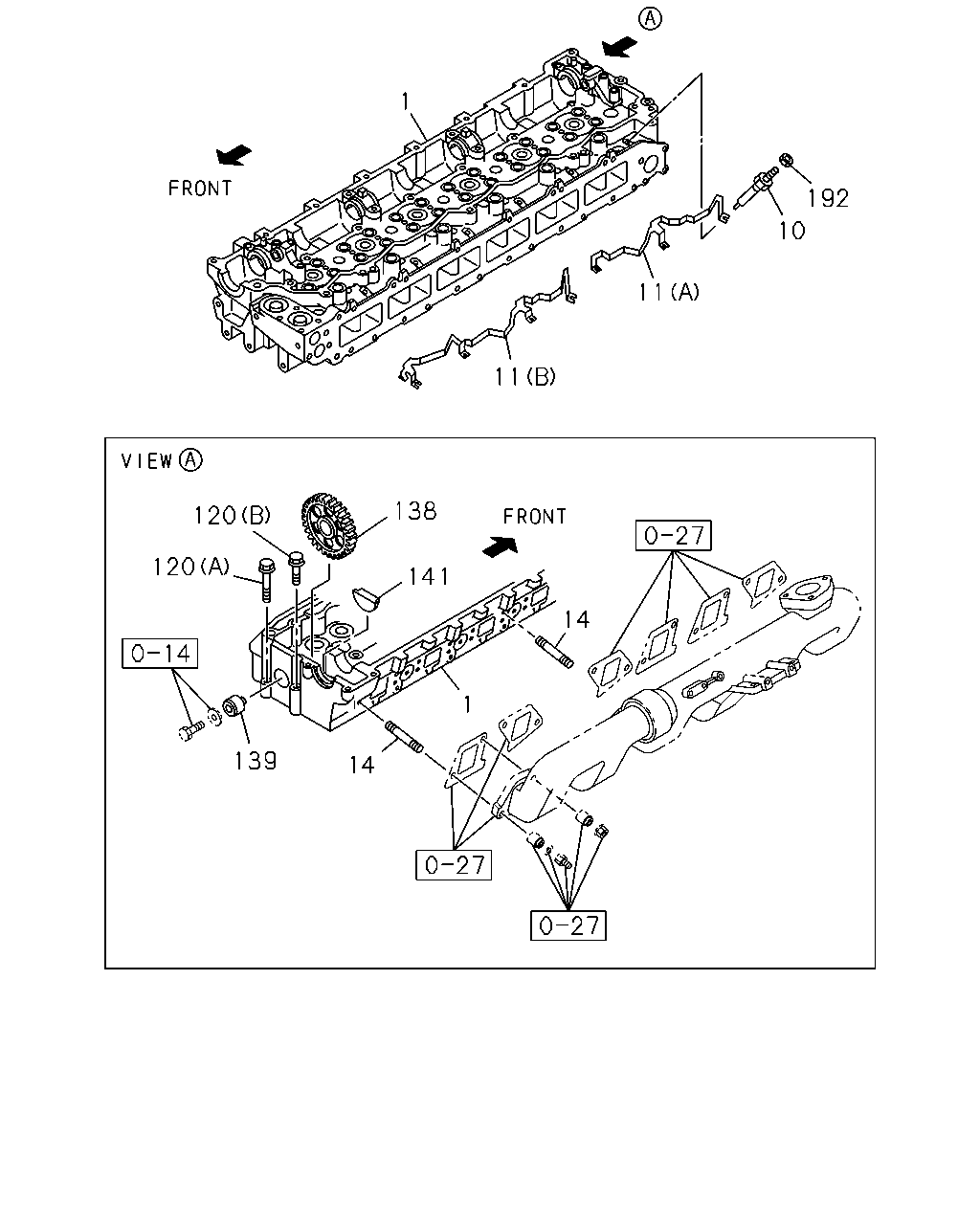

1 192 10 11 11 138 120 120 141 14 1 139 14

Balon	Parca Adi	Parca No	Adet	Tip	Applied Date	A	B	C
1	HEAD ASM; CYL	8-97604-903-7	01	1	0710-1305	●	●
1	HEAD ASM; CYL	8-98243-824-0	01	1	1306-	●	●
1	HEAD ASM; CYL	8-98045-019-3	01	1	0712-1005			●
1	HEAD ASM; CYL	8-98170-620-0	01	1	1006-			●
10	PLUG; GLOW NGK	8-94390-777-6	06	1	0710-	●	●
10	PLUG; GLOW NGK	8-94390-777-6	04	1	0712-			●
11	CONNECTOR; GLOW PLUG (B)	8-98040-648-0	01	1	0710-	●	●
11	CONNECTOR; GLOW PLUG (A)	8-98040-649-0	01	1	0710-	●	●
11	CONNECTOR; GLOW PLUG (C)	8-97332-358-2	01	1	0712-			●
14	STUD; EXH MANIF M10X60 L=75	8-94397-286-0	12	1	0710-	●	●
14	STUD; EXH MANIF M10X60 L=75	8-94397-286-0	02	1	0712-			●
120	BOLT; CYL HD TO HSG (A) M10X73	8-94399-554-0	01	1	0710-	●	●
120	BOLT; CYL HD TO HSG (B) M10X43	8-94399-555-0	01	1	0710-	●	●
138	GEAR; IDLE Z=41	8-98058-321-1	01	1	0710-	●	●
139	SHAFT; IDLE GEAR	8-97606-990-1	01	1	0710-	●	●
141	PLUG; RUBBER,CYL HD	8-94399-605-0	02	1	0710-1005	●	●
141	PLUG; RUBBER,CYL HD	8-98163-813-0	02	1	1006-	●	●
192	NUT; GLOW PLUG M4 FLANGE	8-97368-853-0	06	1	0710-	●	●
192	NUT; GLOW PLUG M4 FLANGE	8-97368-853-0	04	1	0712-			●

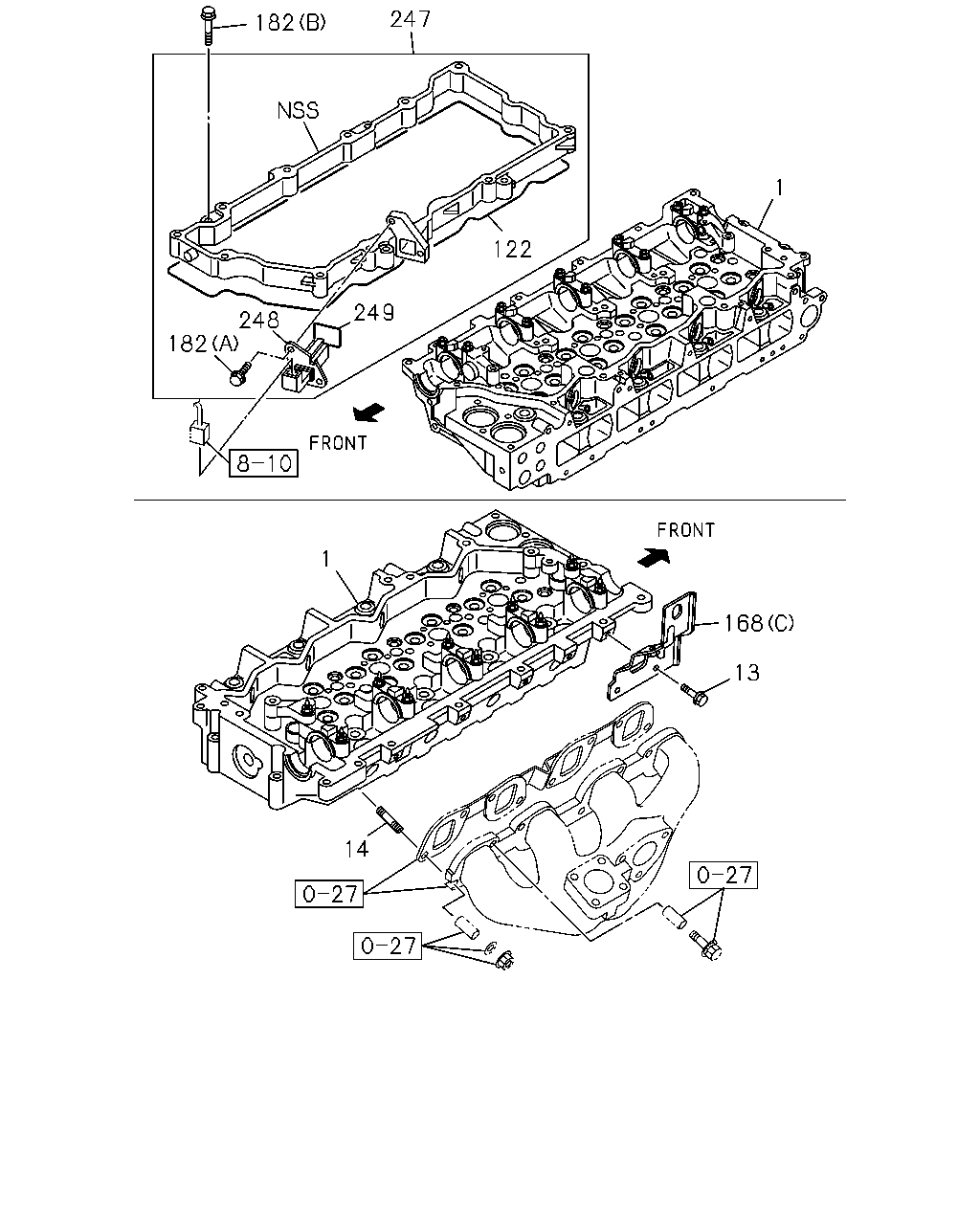

247 182 1 122 249 248 182 1 168 13 14

Balon	Parca Adi	Parca No	Adet	Tip	Applied Date	A	B	C
1	HEAD ASM; CYL	8-97604-903-7	01	1	0710-1305	●	●
1	HEAD ASM; CYL	8-98243-824-0	01	1	1306-	●	●
1	HEAD ASM; CYL	8-98045-019-3	01	1	0712-1005			●
1	HEAD ASM; CYL	8-98170-620-0	01	1	1006-			●
13	BOLT; HANGER M10X20 FLANGE	0-28151-020-0	02	1	0712-			●
14	STUD; EXH MANIF M10X60 L=75	8-94397-286-0	12	1	0710-	●	●
14	STUD; EXH MANIF M10X60 L=75	8-94397-286-0	02	1	0712-			●
122	GASKET; COVER ALSO INCLUDED IN GASKET SET(ENG. & HEAD)	8-97331-360-1	01	1	0712-			●
168	HANGER; ENG,FRT (B)	8-94394-398-1	01	1	0710-	●	●
168	HANGER; ENG,FRT (A)	8-98043-134-0	01	1	0710-	●	●
168	HANGER; ENG,FRT (C)	8-97383-001-1	01	1	0712-			●
182	BOLT; CASE (A) M8X12 FLANGE	0-28050-812-0	02	1	0712-			●
182	BOLT; CASE (B) M8X45 FLANGE	0-28050-845-0	04	1	0712-			●
247	CASE; CYL HEAD,C/H COVER	8-97331-362-1	01	1	0712-			●
248	CONNECTOR	8-94390-858-1	01	1	0712-			●
249	GASKET; CONNECTOR ALSO INCLUDED IN GASKET SET(ENGINE).	8-94391-310-0	01	1	0712-			●
