Isuzu WW
▶
BUSES
▶
MT
▶
10650 - MT111,112
▶
0 - Engine, Emission, Engine Electrical
▶
0-42 - FUEL PUMP AND PIPE
▶

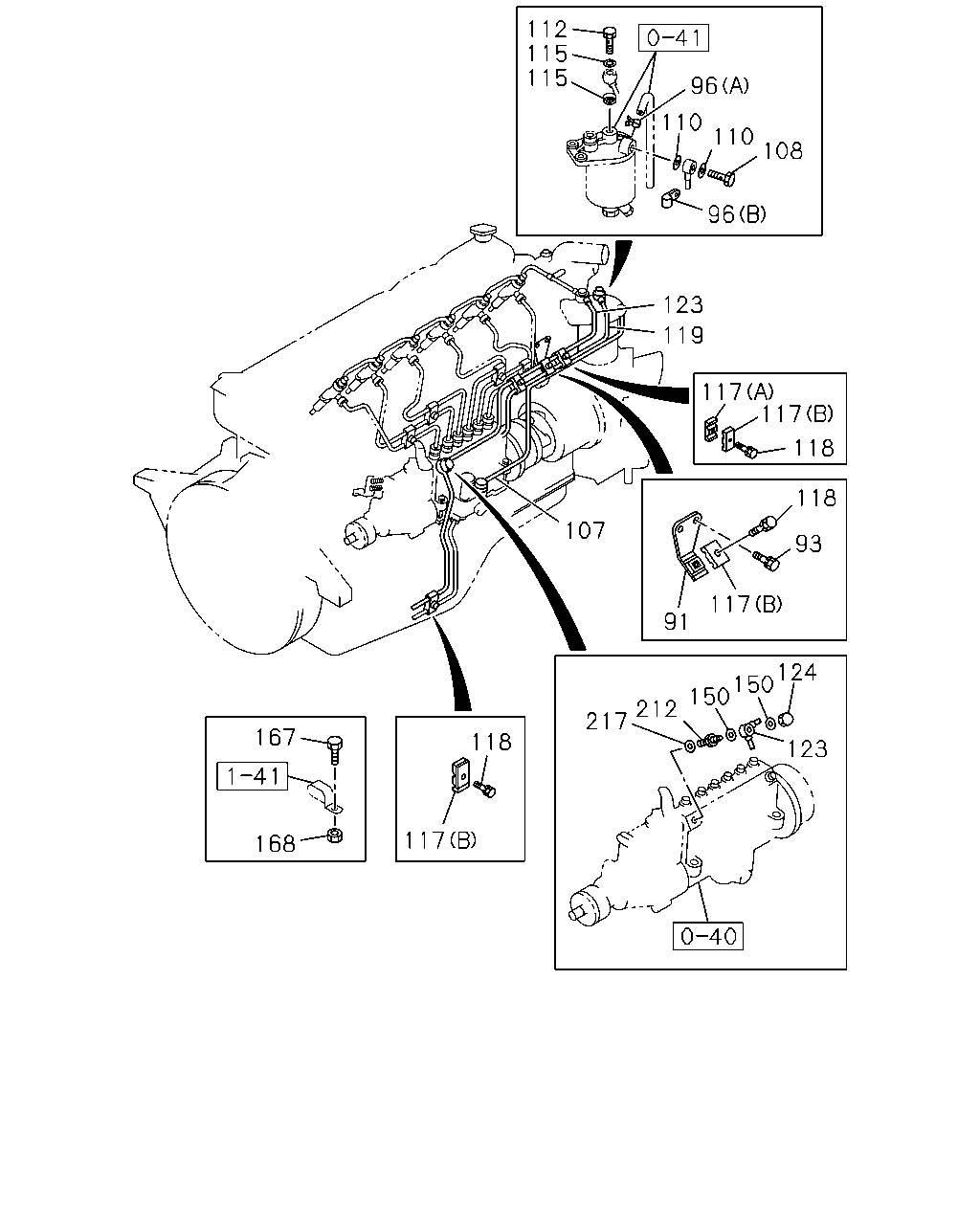

0-42 — FUEL PUMP AND PIPE
(#2170) — 24 parça
Tümü
A - 6BG1 STD ENG
B - 6BD1 STD ENG
112
115
115
96
110
110
108
96
123
119
117
117
118
118
107
93
117
91
124
150
150
212
217
167
118
123
117
168
Balon
Parca Adi
Parca No
Adet
Tip
Applied Date
A
B
91
BRACKET; FUEL PIPE TO INL MANIF
1-15419-246-0
01
1
9101-
●
●
93
BOLT; PIPE BRKT
M6X16 W/LK WASHER
0-50040-616-0
02
1
9101-9707
●
●
93
BOLT; PIPE BRKT
M6X16 FLANGE
0-28680-616-0
02
1
9708-
●
●
96
CLIP; VINYL PIPE
(A) ID=8
8-94107-762-0
01
1
9101-
●
●
96
CLIP; VINYL PIPE
(B) ID=13 L=20
9-09525-235-0
01
1
9101-
●
●
107
PIPE; FUEL,FEED PUMP TO FUEL FILTER
1-15413-200-0
01
1
9101-
●
●
108
BOLT; JOINT,FUEL FILTER
M14X27 FLANGE
1-09675-086-0
01
1
9101-
●
●
110
GASKET; JOINT BOLT,FUEL PIPE
ALSO INCLUDED IN GASKET SET(ENG. & HEAD) ID=14.2 OD=19.2
1-09630-085-0
02
1
9101-
●
●
112
BOLT; JOINT,FUEL FILTER
M14X27 FLANGE
1-09675-086-0
01
1
9101-
●
●
115
GASKET; JOINT BOLT,FUEL PIPE
ALSO INCLUDED IN GASKET SET(ENG. & HEAD) ID=14.2 OD=19.2
1-09630-085-0
02
1
9101-
●
●
117
CLIP; FUEL PIPE
(B) L=48
5-09709-103-0
04
1
9101-
●
●
117
CLIP; FUEL PIPE
(A) L=45
5-09709-104-0
02
1
9101-
●
●
118
BOLT; CLIP,FUEL PIPE
M6X30 W/LK WASHER
9-01900-630-0
04
1
9101-9204
●
●
118
BOLT; CLIP,FUEL PIPE
M6X30 W/LK WASHER
0-50040-630-0
04
1
9205-
●
●
119
PIPE; FUEL,FUEL FILTER TO INJ PUMP
1-15414-344-0
01
1
9101-
●
●
123
PIPE; FUEL,FUEL FILTER LEAK OFF
1-15413-397-1
01
1
9101-9205
●
●
123
PIPE; FUEL,FUEL FILTER LEAK OFF
1-15415-399-0
01
1
9206-
●
●
124
NUT; CAP,FUEL PIPE
M14
1-09468-002-1
01
1
9101-
●
●
150
GASKET; FUEL PIPE
ALSO INCLUDED IN GASKET SET(ENG. & HEAD) ID=14.2 OD=19.2
1-09630-085-0
02
1
9101-
●
●
167
BOLT; CLIP FIX,ENG SIDE
LEFT HAND DRIVE(MTR6FB) M8X25 W/LK WASHER
9-01900-825-0
01
1
9101-9204
●
●
167
BOLT; CLIP FIX,ENG SIDE
LEFT HAND DRIVE(MTR6FB) M8X25 W/LK WASHER
0-50040-825-0
01
1
9205-
●
●
168
NUT; CLIP FIX,ENG SIDE
LEFT HAND DRIVE(MTR6FB) M8
9-09110-408-0
01
1
9101-
●
●
212
VALVE; OVERFLOW
1-13260-001-1
01
1
9101-
●
●
217
GASKET; OVERFLOW VLV
ALSO INCLUDED IN GASKET SET(ENG. & HEAD) ID=14.2 OD=19.2
1-09630-085-0
01
1
9101-
●
●
