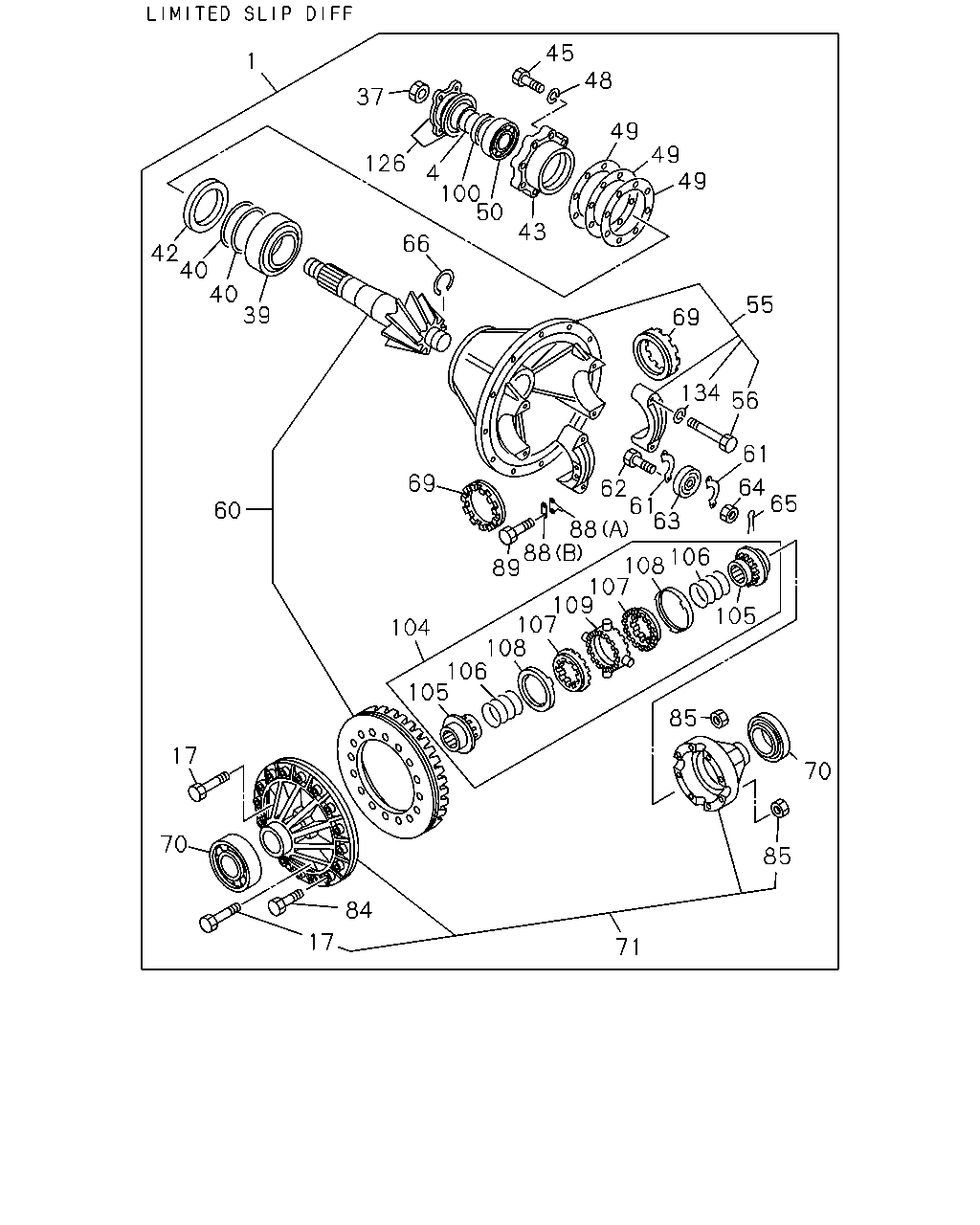

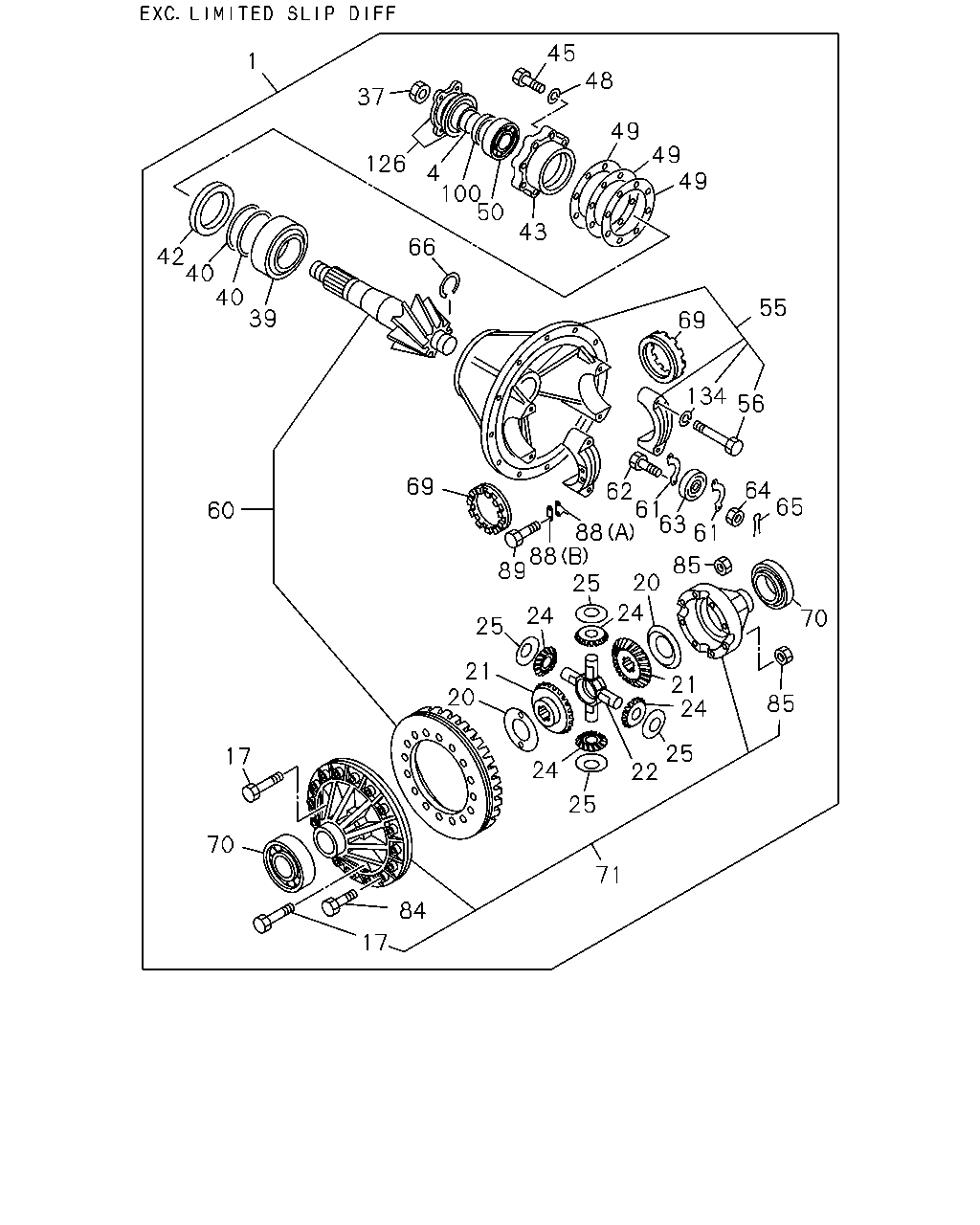

4-25B — REAR FINAL DRIVE (#217) — 183 parça

45 48 1 37 49 49 49 126 4 100 50 43 66 42 40 40 39 55 69 134 56 69 64 65 62 61 63 61 60 88 88 89 25 85 20 24 24 70 25 21 20 21 24 85 25 22 17 24 25 70 71 84 17

Balon	Parca Adi	Parca No	Adet	Tip	Applied Date	A	B	C	D
1	DRIVE ASM; FINAL,RR LIMITED SLIP DIFF(G86) 43/7	1-41001-339-0	01	1	9212-	●
1	DRIVE ASM; FINAL,RR EXC. LIMITED SLIP DIFF(G86) 43/7	1-41001-307-0	01	1	9212-	●
1	DRIVE ASM; FINAL,RR LIMITED SLIP DIFF(G86) 39/7	1-41001-338-0	01	1	9212-		●
1	DRIVE ASM; FINAL,RR EXC. LIMITED SLIP DIFF(G86) 39/7	1-41001-276-0	01	1	9212-		●
1	DRIVE ASM; FINAL,RR LIMITED SLIP DIFF(G86) 41/8	1-41001-337-0	01	1	9212-			●
1	DRIVE ASM; FINAL,RR EXC. LIMITED SLIP DIFF(G86) 41/8	1-41001-306-0	01	1	9212-			●
1	DRIVE ASM; FINAL,RR LIMITED SLIP DIFF(G86) 43/9	1-41001-587-0	01	1	9212-				●
1	DRIVE ASM; FINAL,RR EXC. LIMITED SLIP DIFF(G86) 43/9	1-41001-351-0	01	1	9212-				●
4	GASKET; FLANGE,FINAL PINION ID=42	1-09623-475-0	01	1	9212-	●	●	●	●
17	BOLT; DIFF CAGE SETTING M14X95 FLANGE	1-09044-007-0	12	1	9212-	●	●	●	●
20	WASHER; THRUST,SIDE GEAR EXC. LIMITED SLIP DIFF(G86) T=2.75	1-41562-139-0	AR	1	9212-	●	●	●	●
20	WASHER; THRUST,SIDE GEAR EXC. LIMITED SLIP DIFF(G86) T=2.80	1-41562-140-0	AR	1	9212-	●	●	●	●
20	WASHER; THRUST,SIDE GEAR EXC. LIMITED SLIP DIFF(G86) T=2.85	1-41562-141-0	AR	1	9212-	●	●	●	●
20	WASHER; THRUST,SIDE GEAR EXC. LIMITED SLIP DIFF(G86) T=2.90	1-41562-142-0	AR	1	9212-	●	●	●	●
20	WASHER; THRUST,SIDE GEAR EXC. LIMITED SLIP DIFF(G86) T=2.95	1-41562-143-0	AR	1	9212-	●	●	●	●
20	WASHER; THRUST,SIDE GEAR EXC. LIMITED SLIP DIFF(G86) T=3.00	1-41562-144-0	AR	1	9212-	●	●	●	●
20	WASHER; THRUST,SIDE GEAR EXC. LIMITED SLIP DIFF(G86) T=3.05	1-41562-145-0	AR	1	9212-	●	●	●	●
20	WASHER; THRUST,SIDE GEAR EXC. LIMITED SLIP DIFF(G86) T=3.10	1-41562-146-0	AR	1	9212-	●	●	●	●
20	WASHER; THRUST,SIDE GEAR EXC. LIMITED SLIP DIFF(G86) T=3.15	1-41562-147-0	AR	1	9212-	●	●	●	●
20	WASHER; THRUST,SIDE GEAR EXC. LIMITED SLIP DIFF(G86) T=3.20	1-41562-148-0	AR	1	9212-	●	●	●	●
20	WASHER; THRUST,SIDE GEAR EXC. LIMITED SLIP DIFF(G86) T=3.25	1-41562-149-0	AR	1	9212-	●	●	●	●
20	WASHER; THRUST,SIDE GEAR EXC. LIMITED SLIP DIFF(G86) T=3.30	1-41562-150-0	AR	1	9212-	●	●	●	●
20	WASHER; THRUST,SIDE GEAR EXC. LIMITED SLIP DIFF(G86) T=3.35	1-41562-151-0	AR	1	9212-	●	●	●	●
20	WASHER; THRUST,SIDE GEAR EXC. LIMITED SLIP DIFF(G86) T=3.40	1-41562-152-0	AR	1	9212-	●	●	●	●
20	WASHER; THRUST,SIDE GEAR EXC. LIMITED SLIP DIFF(G86) T=3.45	1-41562-153-0	AR	1	9212-	●	●	●	●
21	GEAR; SIDE,DIFF EXC. LIMITED SLIP DIFF(G86) Z=16	1-41561-075-0	02	1	9212-	●	●	●	●
22	PIN; CROSS,DIFF PINION EXC. LIMITED SLIP DIFF(G86) OD=30	1-41521-014-1	01	1	9212-	●	●	●	●
24	GEAR; PINION,DIFF EXC. LIMITED SLIP DIFF(G86) Z=10	1-41551-010-2	04	1	9212-	●	●	●	●
25	WASHER; THRUST,PINION EXC. LIMITED SLIP DIFF(G86)	1-41552-012-0	04	1	9212-	●	●	●	●
37	NUT; DRIVING PINION M36 FLANGE	1-09449-067-0	01	1	9212-	●	●	●	●
39	BEARING; FINAL PINION NTN	1-09812-007-0	01	1	9212-	●	●	●	●
40	SHIM; FINAL PINION T=3.50	1-41229-020-0	AR	1	9212-9404	●	●	●	●
40	SHIM; FINAL PINION T=3.50	1-41229-256-0	AR	1	9405-	●	●	●	●
40	SHIM; FINAL PINION T=3.51	1-41229-021-0	AR	1	9212-9404	●	●	●	●
40	SHIM; FINAL PINION T=3.51	1-41229-257-0	AR	1	9405-	●	●	●	●
40	SHIM; FINAL PINION T=3.52	1-41229-022-0	AR	1	9212-9404	●	●	●	●
40	SHIM; FINAL PINION T=3.52	1-41229-258-0	AR	1	9405-	●	●	●	●
40	SHIM; FINAL PINION T=3.53	1-41229-023-0	AR	1	9212-9404	●	●	●	●
40	SHIM; FINAL PINION T=3.53	1-41229-259-0	AR	1	9405-	●	●	●	●
40	SHIM; FINAL PINION T=3.54	1-41229-024-0	AR	1	9212-9404	●	●	●	●
40	SHIM; FINAL PINION T=3.54	1-41229-260-0	AR	1	9405-	●	●	●	●
40	SHIM; FINAL PINION T=3.55	1-41229-025-0	AR	1	9212-9404	●	●	●	●
40	SHIM; FINAL PINION T=3.55	1-41229-261-0	AR	1	9405-	●	●	●	●
40	SHIM; FINAL PINION T=3.56	1-41229-026-0	AR	1	9212-9404	●	●	●	●
40	SHIM; FINAL PINION T=3.56	1-41229-262-0	AR	1	9405-	●	●	●	●
40	SHIM; FINAL PINION T=3.57	1-41229-027-0	AR	1	9212-9404	●	●	●	●
40	SHIM; FINAL PINION T=3.57	1-41229-263-0	AR	1	9405-	●	●	●	●
40	SHIM; FINAL PINION T=3.58	1-41229-028-0	AR	1	9212-9404	●	●	●	●
40	SHIM; FINAL PINION T=3.58	1-41229-264-0	AR	1	9405-	●	●	●	●
40	SHIM; FINAL PINION T=3.59	1-41229-029-0	AR	1	9212-9404	●	●	●	●
40	SHIM; FINAL PINION T=3.59	1-41229-265-0	AR	1	9405-	●	●	●	●
40	SHIM; FINAL PINION T=3.60	1-41229-030-0	AR	1	9212-9404	●	●	●	●
40	SHIM; FINAL PINION T=3.60	1-41229-266-0	AR	1	9405-	●	●	●	●
42	COLLAR; DIST,COLLAPSIBLE T=7.40	1-41229-053-0	AR	1	9212-9404	●	●	●	●
42	COLLAR; DIST,COLLAPSIBLE T=7.40	1-41229-267-0	AR	1	9405-	●	●	●	●
42	COLLAR; DIST,COLLAPSIBLE T=7.60	1-41229-054-0	AR	1	9212-9404	●	●	●	●
42	COLLAR; DIST,COLLAPSIBLE T=7.60	1-41229-268-0	AR	1	9405-	●	●	●	●
42	COLLAR; DIST,COLLAPSIBLE T=7.80	1-41229-055-0	AR	1	9212-9404	●	●	●	●
42	COLLAR; DIST,COLLAPSIBLE T=7.80	1-41229-269-0	AR	1	9405-	●	●	●	●
42	COLLAR; DIST,COLLAPSIBLE T=8.00	1-41229-056-0	AR	1	9212-9404	●	●	●	●
42	COLLAR; DIST,COLLAPSIBLE T=8.00	1-41229-270-0	AR	1	9405-	●	●	●	●
42	COLLAR; DIST,COLLAPSIBLE T=8.20	1-41229-057-0	AR	1	9212-9404	●	●	●	●
42	COLLAR; DIST,COLLAPSIBLE T=8.20	1-41229-271-0	AR	1	9405-	●	●	●	●
43	CAGE; FINAL PINION	1-41151-028-1	01	1	9212-	●	●	●	●
45	BOLT; FINAL PINION CAGE M14X50	0-16806-450-0	08	1	9212-	●	●	●	●
48	WASHER; LK,FINAL PINION ID=14.2	9-09150-514-0	08	1	9212-	●	●	●	●
49	SHIM; FINAL PINION CAGE T=0.30	1-41154-063-0	AR	1	9212-	●	●	●	●
49	SHIM; FINAL PINION CAGE T=0.40	1-41154-064-0	AR	1	9212-	●	●	●	●
49	SHIM; FINAL PINION CAGE T=1.00	9-41154-013-0	AR	1	9212-	●	●	●	●
49	SHIM; FINAL PINION CAGE T=0.50	9-41154-014-0	AR	1	9212-	●	●	●	●
50	BEARING; FINAL PINION NSK	1-09812-041-2	01	1	9212-	●	●	●	●
55	CARRIER; DIFF	1-41110-052-0	01	1	9212-	●	●	●	●
56	BOLT; BRG CAP M18X107	1-09050-002-1	04	1	9212-	●	●	●	●
60	GEAR SET; FINAL DRIVE,RR 43/7	1-41210-277-3	01	1	9212-	●
60	GEAR SET; FINAL DRIVE,RR 39/7	1-41210-280-3	01	1	9212-		●
60	GEAR SET; FINAL DRIVE,RR 41/8	1-41210-279-3	01	1	9212-			●
60	GEAR SET; FINAL DRIVE,RR 43/9	1-41210-342-3	01	1	9212-				●
61	RETAINER; PILOT BRG,PINION T=2.3	1-41227-006-0	02	1	9212-	●	●	●	●
62	BOLT; RET M8X36 W/PIN HOLE	1-09042-035-0	02	1	9212-	●	●	●	●
63	BEARING; PINION PILOT KOYO	1-09810-007-0	01	1	9212-	●	●	●	●
63	BEARING; PINION PILOT NSK	1-09810-015-0	01	1	9212-	●	●	●	●
64	NUT; RET M8	9-09117-408-0	02	1	9212-	●	●	●	●
65	PIN; SPLIT,RET	9-08112-012-0	02	1	9212-	●	●	●	●
66	RING; SNAP,PILOT BRG OD=42	9-09950-179-0	01	1	9212-	●	●	●	●
69	NUT; ADJ,DIFF CAGE M143 H=29	1-41121-006-0	01	1	9212-	●	●	●	●
69	NUT; ADJ,DIFF CAGE M143 H=24	1-41121-005-0	01	1	9212-	●	●	●	●
70	BEARING; DIFF CAGE ID=80 OD=140 T=35.3 NACHI	1-09812-144-0	02	1	9212-	●	●	●	●
70	BEARING; DIFF CAGE KOYO ID=80 OD=140 T=35.3	1-09812-145-0	02	1	9212-	●	●	●	●
70	BEARING; DIFF CAGE NSK ID=80 OD=140 T=35.3	1-09812-146-0	02	1	9212-	●	●	●	●
71	CAGE ASM; DIFF,FINAL DRIVE	1-41510-127-0	01	1	9212-	●	●	●	●
84	BOLT; FINAL DRIVE GEAR M16X37.5 FLANGE	9-09802-561-0	16	1	9212-	●	●	●	●
85	NUT; DIFF CAGE SETTING M14	1-09400-077-1	12	1	9212-	●	●	●	●
88	PLATE; LK,ADJ NUT (B)	9-41124-005-0	02	1	9212-	●	●	●	●
88	PLATE; LK,ADJ NUT (A)	1-41124-002-0	02	1	9212-	●	●	●	●
89	BOLT; LK PLATE M8X16	0-20800-816-0	04	1	9212-	●	●	●	●
100	SEAL; OIL,FINAL PINION NOK	1-09625-017-0	01	1	9212-	●	●	●	●
126	COUPLING; DRIVING PINION	1-37245-215-2	01	1	9212-	●	●	●	●
134	WASHER; LK,BRG CAP ID=18.2	9-09150-518-0	04	1	9212-	●	●	●	●
