8-15 — FIXING PARTS; WIRING HARNESS (#21687) — 225 parça

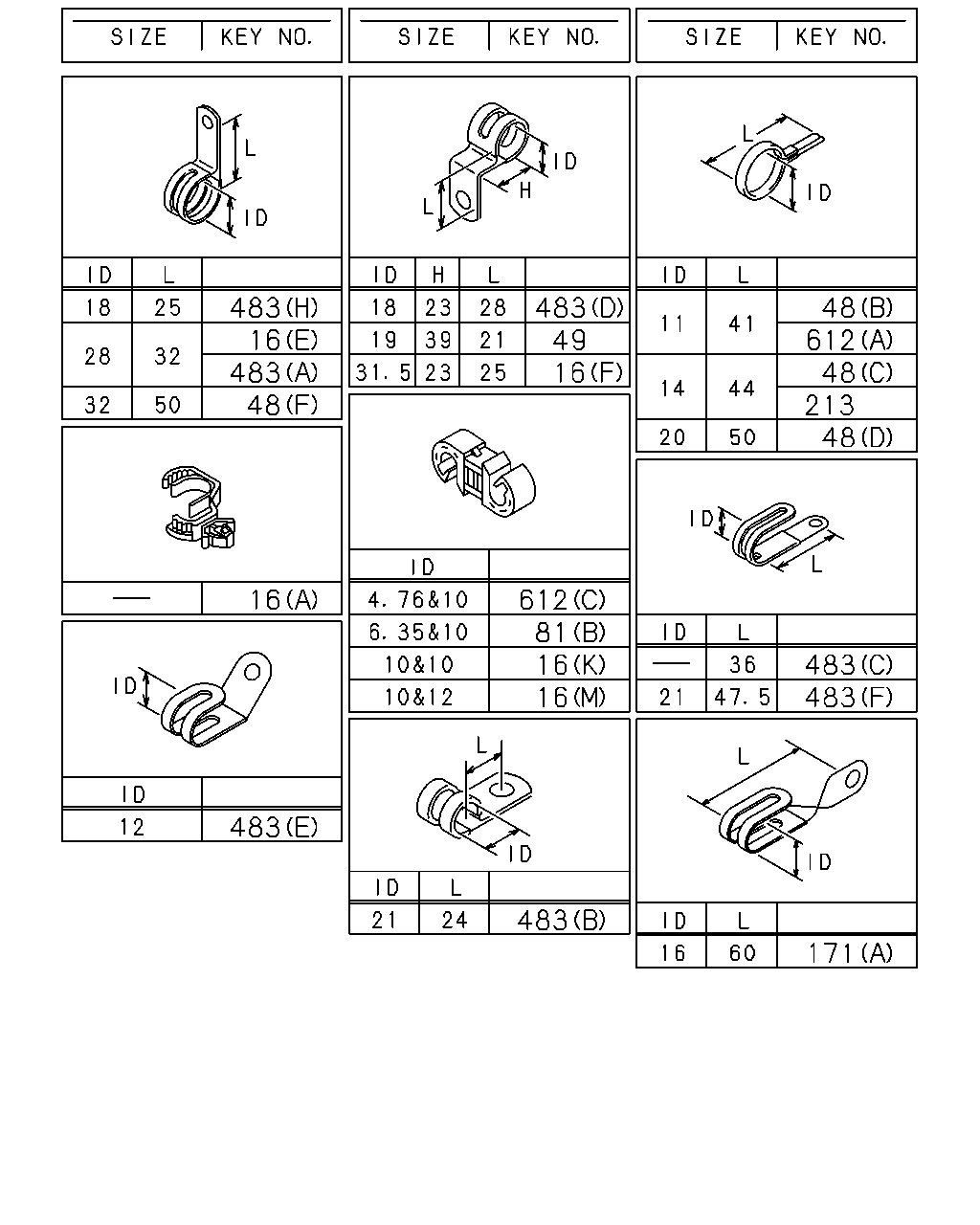

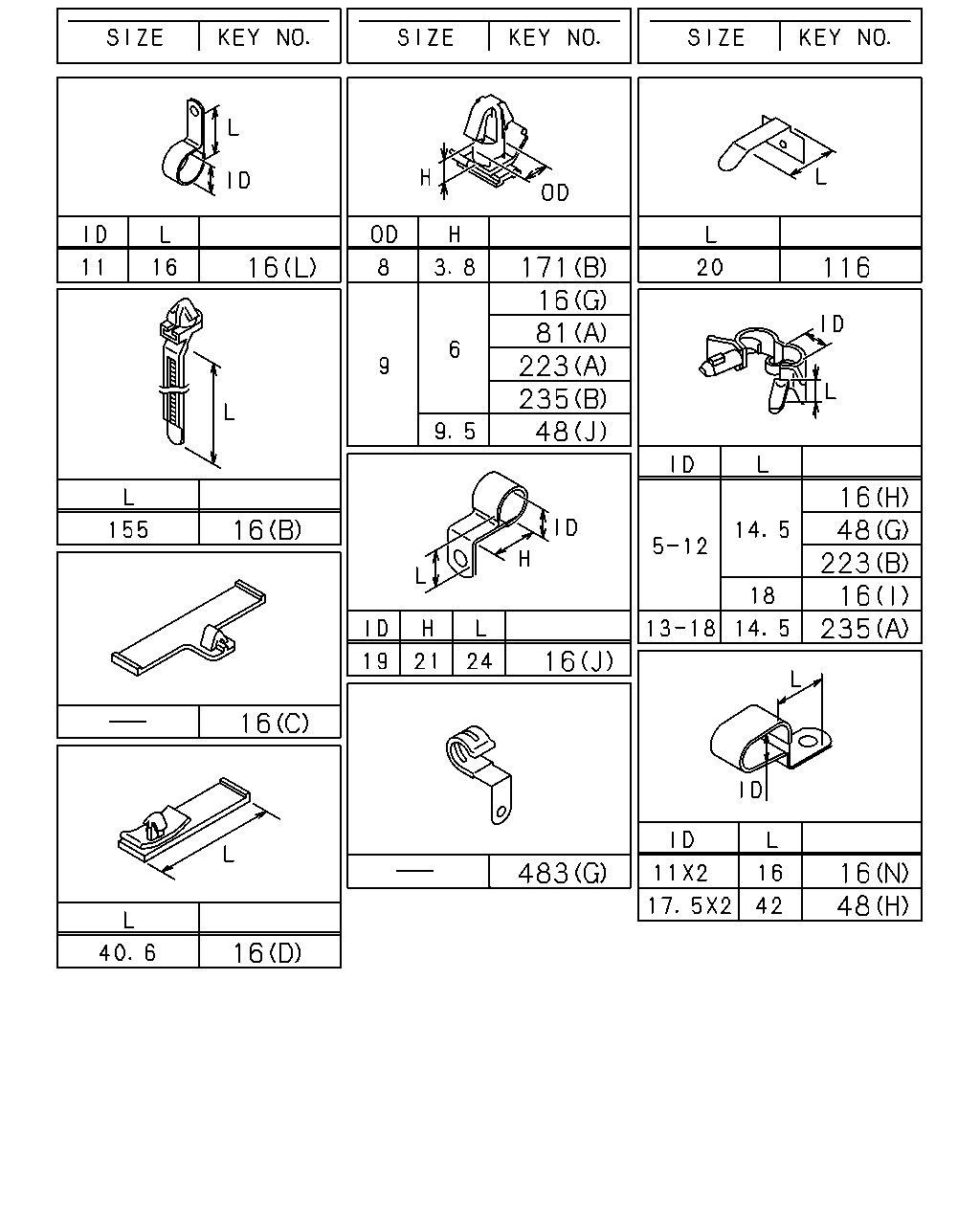

16 171 16 81 223 235 48 116 16 48 223 16 235 16 16 16 16 48 483 16

Balon	Parca Adi	Parca No	Adet	Tip	Applied Date
16	CLIP; HARNESS (L) ID=11 L=16	0-95235-025-0	02	1	1105-
16	CLIP; HARNESS (N) ID=11X2 L=16	1-09700-734-0	01	1	1105-
16	CLIP; HARNESS (F) ID=31.5 H=23 L=25	1-09701-017-0	01	1	1105-
16	CLIP; HARNESS (E) ID=28 L=32	1-09701-107-1	02	1	1105-
16	CLIP; HARNESS (O) L=250	1-09707-126-0	02	1	1105-
16	CLIP; HARNESS (K) ID=10 & 10	1-09709-277-1	04	1	1105-
16	CLIP; HARNESS (M) ID=10 & 12	1-09709-278-1	01	1	1105-
16	CLIP; HARNESS (I) ID=5-12 L=18	1-09709-287-0	02	1	1105-
16	CLIP; HARNESS (H) ID=5-12 L=14.5	1-09987-221-0	03	1	1105-
16	CLIP; HARNESS (J) ID=19 H=21 L=24	5-09700-360-0	01	1	1105-
16	CLIP; HARNESS (A) ID=10 & 16	8-94413-325-0	01	1	1105-
16	CLIP; HARNESS (B) L=155	8-97173-307-0	18	1	1105-
16	CLIP; HARNESS (D) L=40.6	8-97229-357-0	02	1	1105-
16	CLIP; HARNESS (C)	8-98052-679-0	02	1	1105-
16	CLIP; HARNESS EXC. H.S.A SYSTEM<6EP> (G) OD=9 H=6	1-09709-178-0	01	1	1105-
48	CLIP; FRAME HARNESS (J) OD=9 H=9.5	1-09709-179-0	01	1	1105-
48	CLIP; FRAME HARNESS (C) ID=14 L=44	9-09917-427-0	02	1	1202-
48	CLIP; FRAME HARNESS (B) ID=11 L=41	1-09700-403-0	01	1	1105-
48	CLIP; FRAME HARNESS (F) ID=32 L=50	1-09701-055-1	01	1	1105-
48	CLIP; FRAME HARNESS (I) L=600	1-09707-107-1	01	1	1105-
48	CLIP; FRAME HARNESS (E) L=350	1-09707-183-0	01	1	1105-
48	CLIP; FRAME HARNESS (G) ID=5-12 L=14.5	1-09987-221-0	03	1	1105-
48	CLIP; FRAME HARNESS (H) ID=17.5X2 L=25	5-09700-358-0	01	1	1105-
48	CLIP; FRAME HARNESS (A) L=250	5-09707-030-1	02	1	1105-
48	CLIP; FRAME HARNESS (A) L=250	5-09707-030-1	02	1	1105-
48	CLIP; FRAME HARNESS (C) ID=14 L=44	9-09917-427-0	04	1	1105-
48	CLIP; FRAME HARNESS (D) ID=20 L=50	9-09917-430-0	02	1	1105-1201
48	CLIP; FRAME HARNESS (D) ID=20 L=50	9-09917-430-0	02	1	1105-1201
48	CLIP; FRAME HARNESS (D) ID=20 L=50	9-09917-430-0	02	1	1202-
48	CLIP; FRAME HARNESS WHEEL BASE 4000MM(40W) (C) ID=14 L=44	9-09917-427-0	07	1	1105-
48	CLIP; FRAME HARNESS WHEEL BASE 4600MM(46W) (C) ID=14 L=44	9-09917-427-0	10	1	1105-
81	CLIP; HARNESS (A) OD=9 H=6	1-09709-178-0	01	1	1105-
81	CLIP; HARNESS (B) ID=6.35 & 10.0	1-09709-274-1	02	1	1105-
116	CLIP; ROOF HARNESS L=20 SET=10 PIECE	1-09987-246-2	03	1	1105-
171	CLIP; STARTER HARNESS (B) OD=8 H=3.8	1-09709-309-0	01	1	1105-
171	CLIP; STARTER HARNESS (A)	8-97101-436-0	01	1	1105-
223	CLIP; AIR TANK HARNESS (A) OD=9 H=6	1-09709-178-0	03	1	1105-
223	CLIP; AIR TANK HARNESS (B) ID=5-12 L=14.5	1-09987-221-0	04	1	1105-
235	CLIP; HARNESS,SPD SENSOR,SSPS (B) OD=9 H=6	1-09709-178-0	02	1	1105-
235	CLIP; HARNESS,SPD SENSOR,SSPS (A) ID=13-18 L=14.5	1-09709-290-0	01	1	1105-
483	CLIP; ENG HARNESS (D) ID=18 H=23 L=28	1-09700-860-0	01	1	1105-
483	CLIP; ENG HARNESS (A) ID=28 L=32	1-09701-107-1	01	1	1105-
483	CLIP; ENG HARNESS (B) ID=21 L=24	1-09701-201-0	01	1	1105-
483	CLIP; ENG HARNESS (G)	1-09987-281-0	01	1	1105-
483	CLIP; ENG HARNESS (E) ID=12 B=13 ID=6.5	5-09700-348-0	01	1	1105-
483	CLIP; ENG HARNESS (H) ID=18 L=25	8-94121-004-1	01	1	1105-
483	CLIP; ENG HARNESS (F) ID=21 L=47.5	8-94178-108-0	01	1	1105-
483	CLIP; ENG HARNESS (C) L=36	8-94224-891-1	01	1	1105-

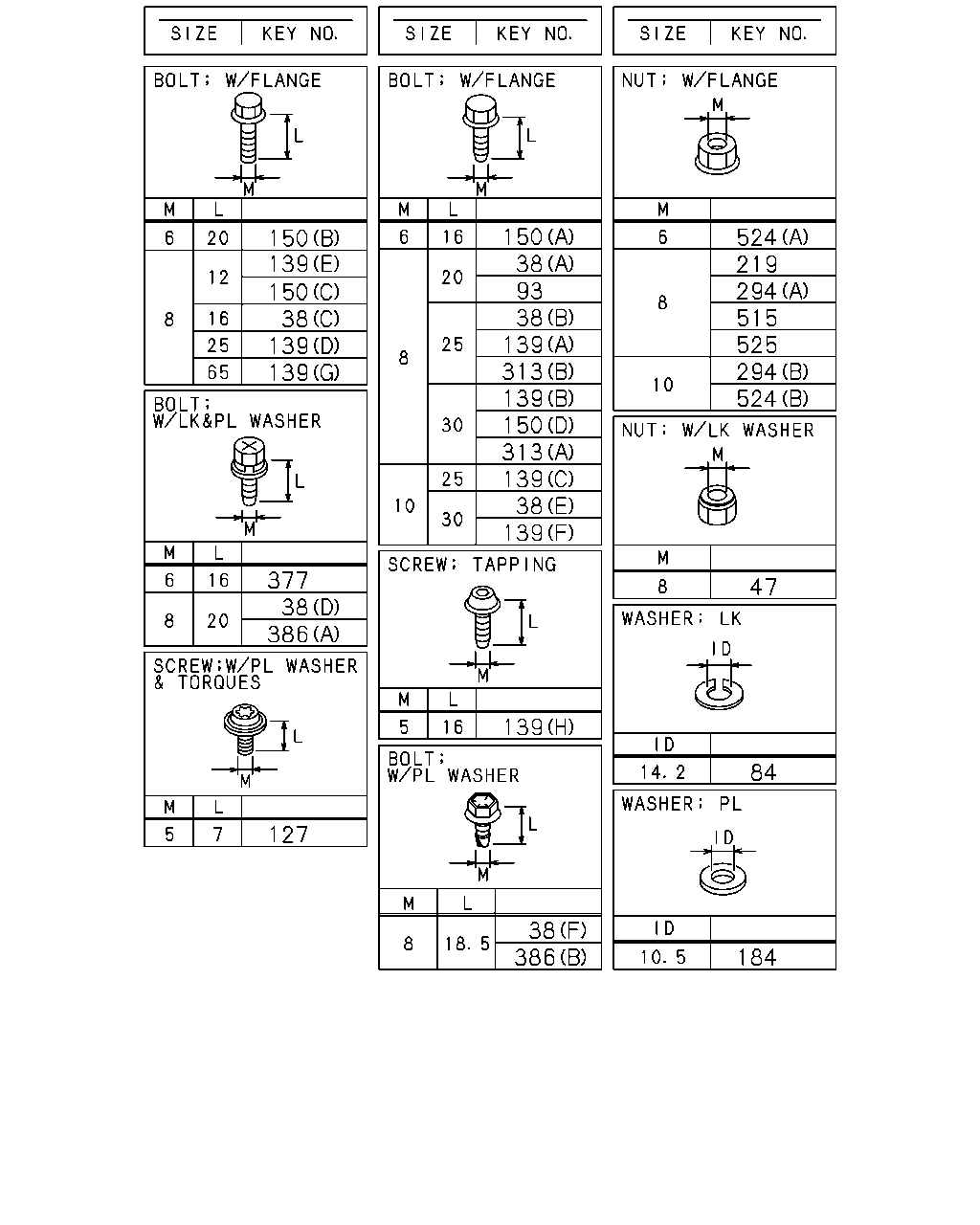

150 150 139 38 139 139 150 93 38 38 139 139 313 150 139 313 38 139 524 515 219 525 294 294 524 47 84 139 127 386 377 38 38 386 184

Balon	Parca Adi	Parca No	Adet	Tip	Applied Date
38	BOLT; CLIP,HARNESS (C) M8X16 FLANGE	0-28050-816-0	03	1	1105-
38	BOLT; CLIP,HARNESS (A) M8X20 FLANGE	0-28650-820-0	01	1	1105-
38	BOLT; CLIP,HARNESS (B) M8X25 FLANGE	0-28650-825-0	02	1	1105-
38	BOLT; CLIP,HARNESS (E) M10X30 FLANGE	0-28651-030-0	01	1	1105-
38	BOLT; CLIP,HARNESS (D) M8X20 W/LK&PL WASHER	8-97086-825-0	03	1	1105-1201
38	BOLT; CLIP,HARNESS (F) M8X18.5 W/PL WASHER	8-98141-255-0	03	1	1202-
47	NUT; GEN TERMINAL M8 W/LK WASHER	8-94279-050-0	01	1	1409-
84	WASHER; LK BRKT,HARNESS ID=14.2	0-91510-814-0	02	1	1105-
93	BOLT; ECM HARNESS CLIP M8X20 FLANGE	0-28650-820-0	02	1	1105-
127	SCREW; FACIA HARNESS CLIP M5X7 HEXALOBULAR SOCKET	8-98063-767-0	01	1	1105-
139	BOLT; BRKT (E) M8X12 FLANGE	0-28050-812-0	01	1	1105-
139	BOLT; BRKT (A) M8X25 FLANGE	0-28650-825-0	01	1	1105-
139	BOLT; BRKT (A) M8X25 FLANGE	0-28650-825-0	01	1	1105-
139	BOLT; BRKT (B) M8X30 FLANGE	0-28650-830-0	01	1	1105-
139	BOLT; BRKT (B) M8X30 FLANGE	0-28650-830-0	02	1	1105-
139	BOLT; BRKT (B) M8X30 FLANGE	0-28650-830-0	04	1	1105-
139	BOLT; BRKT (C) M10X25 FLANGE	0-28651-025-0	02	1	1105-
139	BOLT; BRKT (F) M10X30 FLANGE	0-28651-030-0	01	1	1105-
139	BOLT; BRKT (F) M10X30 FLANGE	0-28651-030-0	01	1	1105-
139	BOLT; BRKT (D) M8X25 FLANGE	0-28050-825-0	02	1	1105-
139	BOLT; BRKT (A) M8X25 FLANGE	0-28650-825-0	02	1	1105-
139	BOLT; BRKT EXC. AIR CONDITIONER MANUAL CONTROL(C60) (G) M8X65 FLANGE	1-09044-072-1	01	1	1105-
139	BOLT; BRKT EXC. HEATER & DEFROSTER(C41),AIR CONDITIONER MANUALCONTROL(C60),VENTILATOR & DEFROSTER WO/HEATER(SAZ) (H) M5X16 TAPPING HEXALOBULAR	0-72180-516-0	01	1	1105-
150	BOLT; CLIP (B) M6X20 FLANGE	0-28050-620-0	02	1	1105-
150	BOLT; CLIP (C) M8X12 FLANGE	0-28050-812-0	01	1	1105-
150	BOLT; CLIP (A) M6X16 FLANGE	0-28650-616-0	01	1	1105-
150	BOLT; CLIP (D) M8X30 FLANGE	0-28650-830-0	01	1	1105-
184	WASHER; PL,STARTER EARTH ID=10.5 OD=22 T=2.0	1-09503-265-0	01	1	1105-
219	NUT M8 FLANGE	0-91180-108-0	01	1	1105-
219	NUT M8 FLANGE	0-91180-108-0	02	1	1105-
294	NUT (A) M8 FLANGE	0-91180-108-0	03	1	1105-
294	NUT (A) M8 FLANGE	0-91180-108-0	04	1	1105-
294	NUT (A) M8 FLANGE	0-91180-108-0	01	1	1105-
294	NUT (A) M8 FLANGE	0-91180-108-0	01	1	1105-
294	NUT (A) M8 FLANGE	0-91180-108-0	01	1	1105-
294	NUT (A) M8 FLANGE	0-91180-108-0	01	1	1105-
294	NUT (B) M10 FLANGE	0-91180-210-0	01	1	1105-
294	NUT (B) M10 FLANGE	0-91180-210-0	02	1	1105-
313	BOLT; BRKT (B) M8X25 FLANGE	0-28650-825-0	01	1	1105-
313	BOLT; BRKT (A) M8X30 FLANGE	0-28650-830-0	01	1	1105-
377	BOLT; CAB EARTH M6X16 W/LK&PL WASHER	8-97086-823-0	02	1	1105-
386	BOLT; GRAND HARNESS (A) M8X20 W/LK&PL WASHER	8-97086-825-0	02	1	1105-1202
386	BOLT; GRAND HARNESS (B) M8X18.5 W/PL WASHER	8-98141-255-0	02	1	1203-
515	NUT; BRKT M8 FLANGE	0-91180-108-0	01	1	1105-
524	NUT; HARNESS (A) M6 FLANGE	0-91180-106-0	04	1	1105-
524	NUT; HARNESS (B) M10 FLANGE	0-91180-110-0	01	1	1105-
525	NUT; CLIP M8 FLANGE	0-91180-108-0	01	1	1105-
525	NUT; CLIP M8 FLANGE	0-91180-108-0	01	1	1105-

483 16 483 48 483 49 16 48 612 48 213 48 16 612 81 16 16 483 483 483 483 171

Balon	Parca Adi	Parca No	Adet	Tip	Applied Date
16	CLIP; HARNESS (L) ID=11 L=16	0-95235-025-0	02	1	1105-
16	CLIP; HARNESS (N) ID=11X2 L=16	1-09700-734-0	01	1	1105-
16	CLIP; HARNESS (F) ID=31.5 H=23 L=25	1-09701-017-0	01	1	1105-
16	CLIP; HARNESS (E) ID=28 L=32	1-09701-107-1	02	1	1105-
16	CLIP; HARNESS (O) L=250	1-09707-126-0	02	1	1105-
16	CLIP; HARNESS (K) ID=10 & 10	1-09709-277-1	04	1	1105-
16	CLIP; HARNESS (M) ID=10 & 12	1-09709-278-1	01	1	1105-
16	CLIP; HARNESS (I) ID=5-12 L=18	1-09709-287-0	02	1	1105-
16	CLIP; HARNESS (H) ID=5-12 L=14.5	1-09987-221-0	03	1	1105-
16	CLIP; HARNESS (J) ID=19 H=21 L=24	5-09700-360-0	01	1	1105-
16	CLIP; HARNESS (A) ID=10 & 16	8-94413-325-0	01	1	1105-
16	CLIP; HARNESS (B) L=155	8-97173-307-0	18	1	1105-
16	CLIP; HARNESS (D) L=40.6	8-97229-357-0	02	1	1105-
16	CLIP; HARNESS (C)	8-98052-679-0	02	1	1105-
16	CLIP; HARNESS EXC. H.S.A SYSTEM<6EP> (G) OD=9 H=6	1-09709-178-0	01	1	1105-
48	CLIP; FRAME HARNESS (J) OD=9 H=9.5	1-09709-179-0	01	1	1105-
48	CLIP; FRAME HARNESS (C) ID=14 L=44	9-09917-427-0	02	1	1202-
48	CLIP; FRAME HARNESS (B) ID=11 L=41	1-09700-403-0	01	1	1105-
48	CLIP; FRAME HARNESS (F) ID=32 L=50	1-09701-055-1	01	1	1105-
48	CLIP; FRAME HARNESS (I) L=600	1-09707-107-1	01	1	1105-
48	CLIP; FRAME HARNESS (E) L=350	1-09707-183-0	01	1	1105-
48	CLIP; FRAME HARNESS (G) ID=5-12 L=14.5	1-09987-221-0	03	1	1105-
48	CLIP; FRAME HARNESS (H) ID=17.5X2 L=25	5-09700-358-0	01	1	1105-
48	CLIP; FRAME HARNESS (A) L=250	5-09707-030-1	02	1	1105-
48	CLIP; FRAME HARNESS (A) L=250	5-09707-030-1	02	1	1105-
48	CLIP; FRAME HARNESS (C) ID=14 L=44	9-09917-427-0	04	1	1105-
48	CLIP; FRAME HARNESS (D) ID=20 L=50	9-09917-430-0	02	1	1105-1201
48	CLIP; FRAME HARNESS (D) ID=20 L=50	9-09917-430-0	02	1	1105-1201
48	CLIP; FRAME HARNESS (D) ID=20 L=50	9-09917-430-0	02	1	1202-
48	CLIP; FRAME HARNESS WHEEL BASE 4000MM(40W) (C) ID=14 L=44	9-09917-427-0	07	1	1105-
48	CLIP; FRAME HARNESS WHEEL BASE 4600MM(46W) (C) ID=14 L=44	9-09917-427-0	10	1	1105-
49	CLIP; GEN HARNESS ID=19 L=39 H=21	1-09700-972-1	01	1	1105-
81	CLIP; HARNESS (A) OD=9 H=6	1-09709-178-0	01	1	1105-
81	CLIP; HARNESS (B) ID=6.35 & 10.0	1-09709-274-1	02	1	1105-
171	CLIP; STARTER HARNESS (B) OD=8 H=3.8	1-09709-309-0	01	1	1105-
171	CLIP; STARTER HARNESS (A)	8-97101-436-0	01	1	1105-
213	CLIP; END CROSS HARNESS ID=14 L=44	9-09917-427-0	03	1	1105-
483	CLIP; ENG HARNESS (D) ID=18 H=23 L=28	1-09700-860-0	01	1	1105-
483	CLIP; ENG HARNESS (A) ID=28 L=32	1-09701-107-1	01	1	1105-
483	CLIP; ENG HARNESS (B) ID=21 L=24	1-09701-201-0	01	1	1105-
483	CLIP; ENG HARNESS (G)	1-09987-281-0	01	1	1105-
483	CLIP; ENG HARNESS (E) ID=12 B=13 ID=6.5	5-09700-348-0	01	1	1105-
483	CLIP; ENG HARNESS (H) ID=18 L=25	8-94121-004-1	01	1	1105-
483	CLIP; ENG HARNESS (F) ID=21 L=47.5	8-94178-108-0	01	1	1105-
483	CLIP; ENG HARNESS (C) L=36	8-94224-891-1	01	1	1105-
612	CLIP; HARNESS DPD (A) ID=11 L=41	1-09700-403-0	01	1	1105-
612	CLIP; HARNESS DPD (C) ID=4.76 & 10.0	1-09709-305-0	03	1	1105-
612	CLIP; HARNESS DPD (D) L=135	1-09987-143-1	01	1	1105-
612	CLIP; HARNESS DPD (B) L=250	5-09707-030-1	01	1	1105-

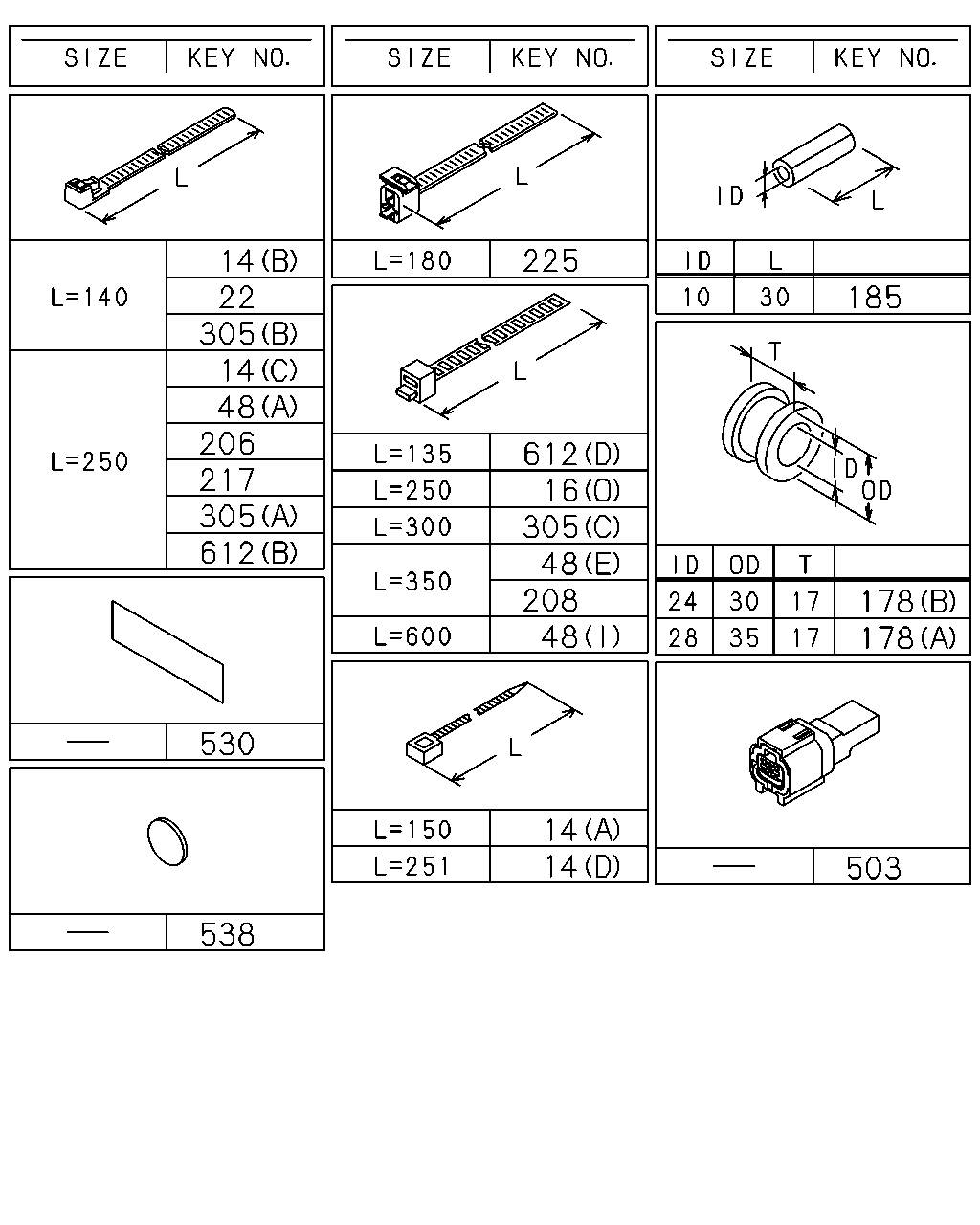

14 22 305 14 48 206 217 305 612 225 185 612 16 305 48 208 48 178 178 530 14 14 503 538

Balon	Parca Adi	Parca No	Adet	Tip	Applied Date
14	CLIP; BAND,HARNESS (C) L=250	5-09707-030-1	01	1	1105-
14	CLIP; BAND,HARNESS (A) L=150	8-97355-273-0	02	1	1105-
14	CLIP; BAND,HARNESS (D) L=251	8-97619-917-0	01	1	1105-
14	CLIP; BAND,HARNESS AIR CONDITIONER MANUAL CONTROL(C60) (B) L=140	5-09707-031-1	02	1	1105-1107
14	CLIP; BAND,HARNESS (B) L=140	5-09707-031-1	02	1	1105-1107
14	CLIP; BAND,HARNESS (B) L=140	5-09707-031-1	02	1	1108-
14	CLIP; BAND,HARNESS (B) L=140	5-09707-031-1	02	1	1108-
16	CLIP; HARNESS (L) ID=11 L=16	0-95235-025-0	02	1	1105-
16	CLIP; HARNESS (N) ID=11X2 L=16	1-09700-734-0	01	1	1105-
16	CLIP; HARNESS (F) ID=31.5 H=23 L=25	1-09701-017-0	01	1	1105-
16	CLIP; HARNESS (E) ID=28 L=32	1-09701-107-1	02	1	1105-
16	CLIP; HARNESS (O) L=250	1-09707-126-0	02	1	1105-
16	CLIP; HARNESS (K) ID=10 & 10	1-09709-277-1	04	1	1105-
16	CLIP; HARNESS (M) ID=10 & 12	1-09709-278-1	01	1	1105-
16	CLIP; HARNESS (I) ID=5-12 L=18	1-09709-287-0	02	1	1105-
16	CLIP; HARNESS (H) ID=5-12 L=14.5	1-09987-221-0	03	1	1105-
16	CLIP; HARNESS (J) ID=19 H=21 L=24	5-09700-360-0	01	1	1105-
16	CLIP; HARNESS (A) ID=10 & 16	8-94413-325-0	01	1	1105-
16	CLIP; HARNESS (B) L=155	8-97173-307-0	18	1	1105-
16	CLIP; HARNESS (D) L=40.6	8-97229-357-0	02	1	1105-
16	CLIP; HARNESS (C)	8-98052-679-0	02	1	1105-
16	CLIP; HARNESS EXC. H.S.A SYSTEM<6EP> (G) OD=9 H=6	1-09709-178-0	01	1	1105-
22	CLIP; ENG HARNESS L=140	5-09707-031-1	02	1	1105-
48	CLIP; FRAME HARNESS (J) OD=9 H=9.5	1-09709-179-0	01	1	1105-
48	CLIP; FRAME HARNESS (C) ID=14 L=44	9-09917-427-0	02	1	1202-
48	CLIP; FRAME HARNESS (B) ID=11 L=41	1-09700-403-0	01	1	1105-
48	CLIP; FRAME HARNESS (F) ID=32 L=50	1-09701-055-1	01	1	1105-
48	CLIP; FRAME HARNESS (I) L=600	1-09707-107-1	01	1	1105-
48	CLIP; FRAME HARNESS (E) L=350	1-09707-183-0	01	1	1105-
48	CLIP; FRAME HARNESS (G) ID=5-12 L=14.5	1-09987-221-0	03	1	1105-
48	CLIP; FRAME HARNESS (H) ID=17.5X2 L=25	5-09700-358-0	01	1	1105-
48	CLIP; FRAME HARNESS (A) L=250	5-09707-030-1	02	1	1105-
48	CLIP; FRAME HARNESS (A) L=250	5-09707-030-1	02	1	1105-
48	CLIP; FRAME HARNESS (C) ID=14 L=44	9-09917-427-0	04	1	1105-
48	CLIP; FRAME HARNESS (D) ID=20 L=50	9-09917-430-0	02	1	1105-1201
48	CLIP; FRAME HARNESS (D) ID=20 L=50	9-09917-430-0	02	1	1105-1201
48	CLIP; FRAME HARNESS (D) ID=20 L=50	9-09917-430-0	02	1	1202-
48	CLIP; FRAME HARNESS WHEEL BASE 4000MM(40W) (C) ID=14 L=44	9-09917-427-0	07	1	1105-
48	CLIP; FRAME HARNESS WHEEL BASE 4600MM(46W) (C) ID=14 L=44	9-09917-427-0	10	1	1105-
178	GROMMET; HARNESS (B) ID=24 OD=30 T=17	9-09956-092-1	01	1	1105-
178	GROMMET; HARNESS (B) ID=24 OD=30 T=17	9-09956-092-1	02	1	1105-
178	GROMMET; HARNESS (A) ID=28 OD=35 T=17	9-09956-256-2	04	1	1105-
185	SLEEVE; RUBBER ID=10 OD=14 L=30	9-09956-682-0	01	1	1105-
206	CLIP; FUEL TANK HARNESS L=250	5-09707-030-1	03	1	1105-
208	CLIP; HARNESS,MAG VLV L=350	1-09707-183-0	01	1	1105-
217	CLIP; RR BODY HARNESS L=250	5-09707-030-1	02	1	1105-
225	CLIP; AIR TANK HARNESS L=180	1-09707-162-1	01	1	1105-
305	CLIP; ENG HARNESS (C) L=300	1-09707-001-1	01	1	1105-
305	CLIP; ENG HARNESS (A) L=250	5-09707-030-1	01	1	1105-
305	CLIP; ENG HARNESS (B) L=140	5-09707-031-1	02	1	1105-
503	CONNECTOR EXC. H.S.A SYSTEM<6EP>	1-82691-191-0	01	1	1105-
530	SEAL; HARNESS 180X40	1-72498-019-1	14	1	1105-1305
530	SEAL; HARNESS 180X40	1-72498-019-1	15	1	1306-
530	SEAL; HARNESS 100X40	1-72498-022-1	06	1	1105-1305
530	SEAL; HARNESS EXC. H.S.A SYSTEM<6EP> 180X40	1-72498-019-1	01	1	1306-
538	SEAL; HOLE OD=25 BLACK	1-76798-019-0	01	1	1105-
612	CLIP; HARNESS DPD (A) ID=11 L=41	1-09700-403-0	01	1	1105-
612	CLIP; HARNESS DPD (C) ID=4.76 & 10.0	1-09709-305-0	03	1	1105-
612	CLIP; HARNESS DPD (D) L=135	1-09987-143-1	01	1	1105-
612	CLIP; HARNESS DPD (B) L=250	5-09707-030-1	01	1	1105-

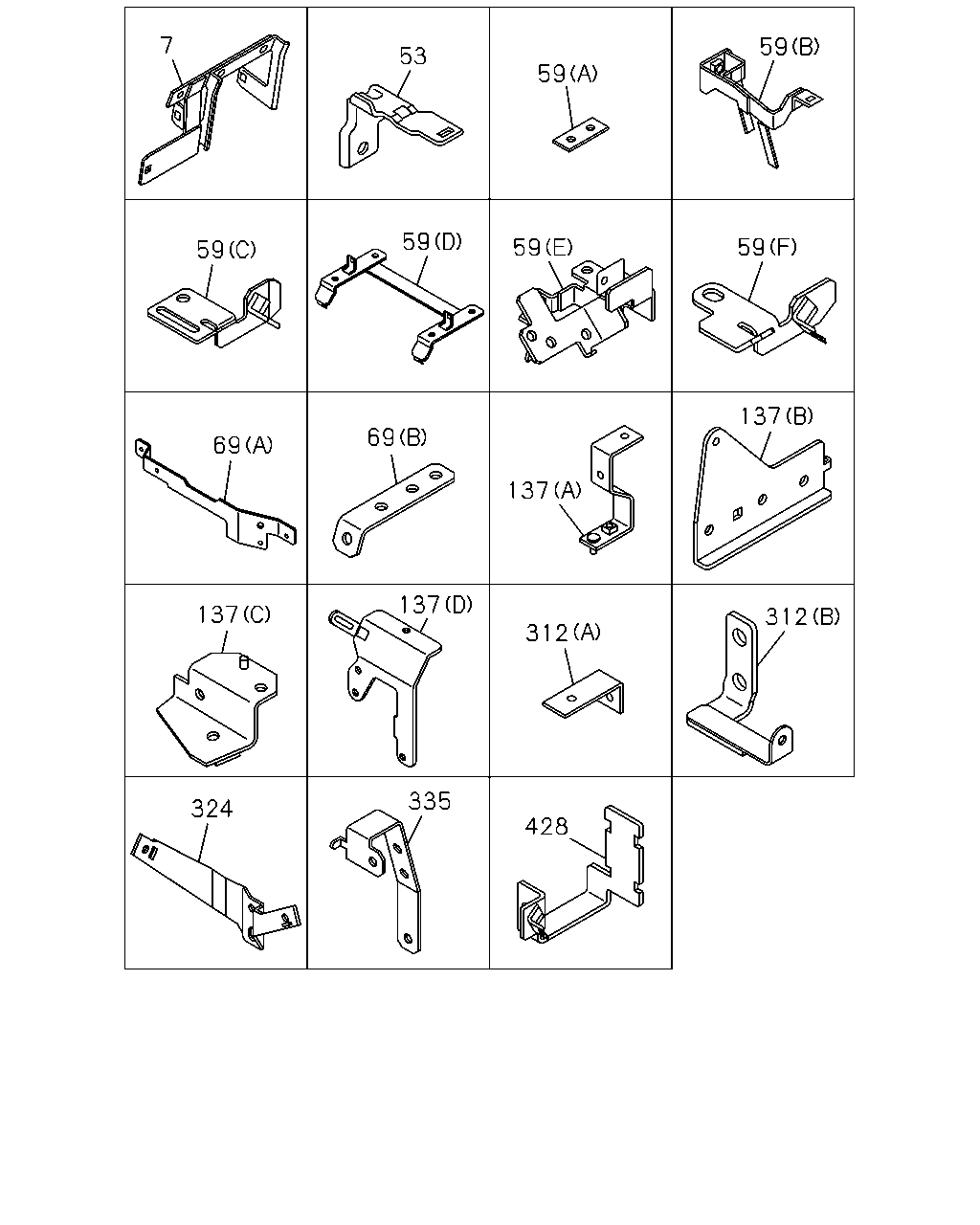

7 53 59 59 59 59 59 59 69 69 137 137 137 137 312 312 324 335 428

Balon	Parca Adi	Parca No	Adet	Tip	Applied Date
7	BRACKET; CONNECTOR	8-98049-798-1	01	1	1105-
53	BRACKET; HARNESS	8-98052-458-0	01	1	1105-
59	BRACKET; FRAME HARNESS (C)	8-97616-305-0	01	1	1105-1502
59	BRACKET; FRAME HARNESS (F)	8-98254-592-0	01	1	1503-
59	BRACKET; FRAME HARNESS (D)	8-97619-533-0	01	1	1105-
59	BRACKET; FRAME HARNESS (E)	8-97619-535-0	01	1	1105-
59	BRACKET; FRAME HARNESS (B)	8-98099-963-0	01	1	1105-
59	BRACKET; FRAME HARNESS (A) L=85	8-98044-743-0	01	1	1105-
69	BRACKET; CLIP (B)	1-82698-167-0	01	1	1105-
69	BRACKET; CLIP (A)	8-97614-738-0	01	1	1105-
137	BRACKET; HARNESS CLAMP (B)	8-97624-016-0	01	1	1105-
137	BRACKET; HARNESS CLAMP (A)	8-98065-904-0	01	1	1105-
137	BRACKET; HARNESS CLAMP (C)	8-98058-354-1	01	1	1105-
137	BRACKET; HARNESS CLAMP (D)	8-97618-098-2	01	1	1105-
312	BRACKET; CLIP HARNESS (A) L=55	1-47475-304-0	01	1	1105-
312	BRACKET; CLIP HARNESS (B)	8-98094-804-0	01	1	1105-
324	BRACKET; CLIP	8-98061-654-2	01	1	1105-
324	BRACKET; CLIP	8-98061-653-2	01	1	1105-
335	BRACKET; CONNECTOR	8-97619-097-1	01	1	1105-
428	BRACKET	8-98116-461-0	01	1	1105-

İpucu: çizimdeki balona veya tablodaki Balon sütununa tıkla; ilgili parçalar vurgulanır. Birden çok çizim varsa üstteki seçim kutusu/oklarla gezin.

Isuzu EPC — test · veri: yerel (eski sürüm)
