8-10 — WIRING HARNESS AND FUSE (#21686) — 161 parça

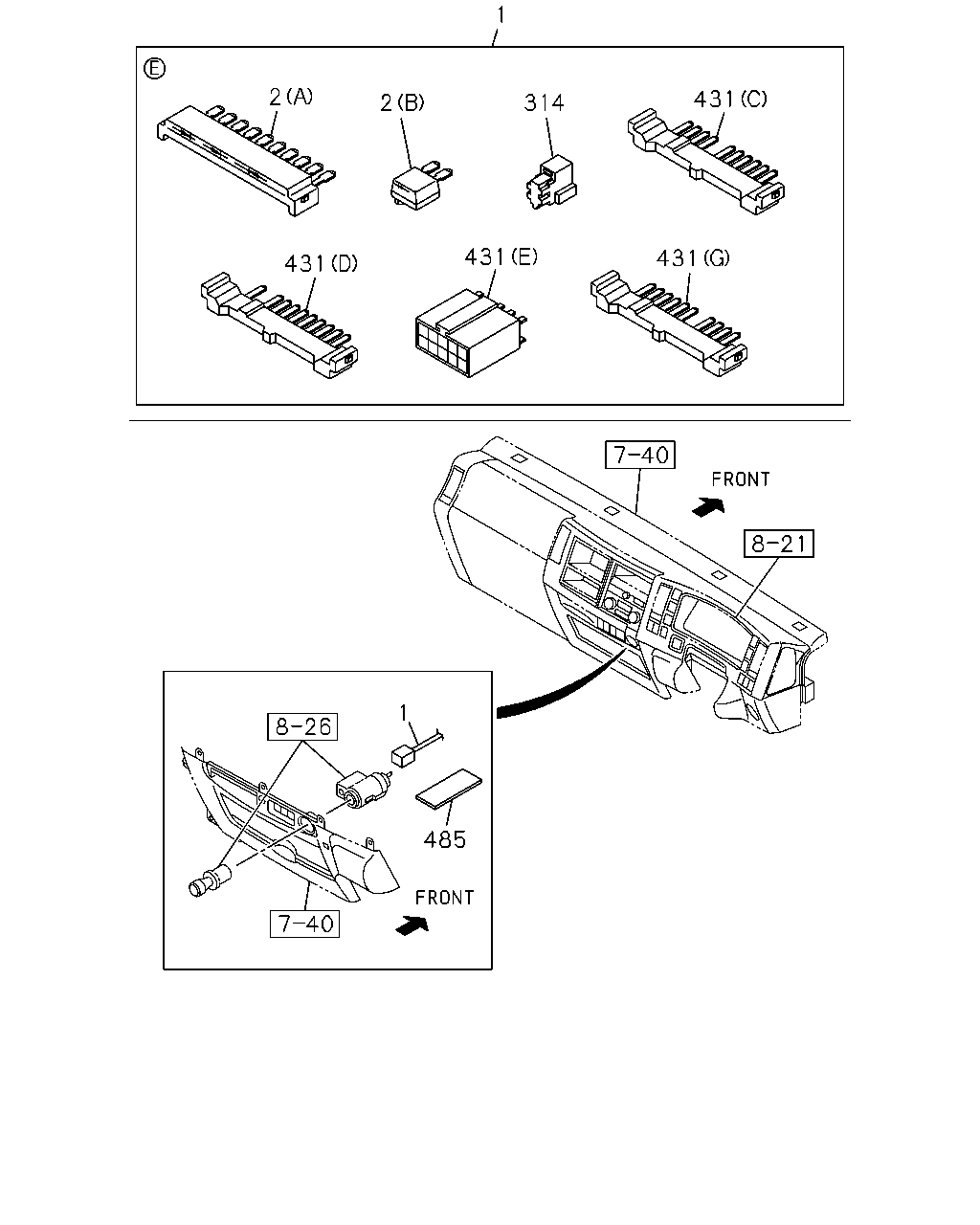

çizim 108643
1 2 431 2 314 431 431 431 1 485
BalonParca AdiParca NoAdetTipApplied Date
1 HARNESS; CAB
IN HOUSE PRODUCTION<TKF> 		8-98189-009-0 01 1 1110-1203
1 HARNESS; CAB 8-98189-009-0 01 1 1204-1206
1 HARNESS; CAB 8-98208-098-0 01 1 1207-
1 HARNESS; CAB 8-98133-694-0 01 1 1105-1109
1 HARNESS; CAB
EXC. IN HOUSE PRODUCTION<TKF> 		8-98133-694-0 01 1 1110-1203
2 DIODE; CABLE HARNESS
(A) BLACK 10P 		1-82699-703-0 01 1 1105-1206
2 DIODE; CABLE HARNESS
(A) BLACK 10P 		1-82699-703-0 AR 1 1207-
2 DIODE; CABLE HARNESS
(B) BLACK 2P-1.5A 		8-94422-639-1 02 1 1105-1206
2 DIODE; CABLE HARNESS
(B) BLACK 2P-1.5A 		8-94422-639-1 AR 1 1207-
314 RESISTOR; HARNESS
BLUE 		1-82691-204-0 01 1 1105-1206
431 CONNECTOR; JOINT
(F) 10P GREEN 		1-82698-579-0 02 1 1105-
431 CONNECTOR; JOINT
(C) 10P BLUE 		1-82699-598-0 01 1 1105-1206
431 CONNECTOR; JOINT
(C) 10P BLUE 		1-82699-598-0 04 1 1105-
431 CONNECTOR; JOINT
(G) 10P GREEN 		1-82699-599-0 01 1 1105-1206
431 CONNECTOR; JOINT
(G) 10P GREEN 		1-82699-599-0 04 1 1105-
431 CONNECTOR; JOINT
(D) 10P BROWN 		1-82699-601-0 01 1 1105-
431 CONNECTOR; JOINT
(D) 10P BROWN 		1-82699-601-0 09 1 1105-1206
431 CONNECTOR; JOINT
(E) 10P 		8-97077-943-0 02 1 1105-1206
431 CONNECTOR; JOINT
(H) 6P BLACK 		8-97616-194-0 01 1 1105-
431 CONNECTOR; JOINT
(A) WHITE 		8-98056-374-0 01 1 1105-
431 CONNECTOR; JOINT
(B) WHITE 		8-98056-375-0 01 1 1105-
485 SEAL; CONNECTOR
180X40 		1-72498-019-1 01 1 1105-

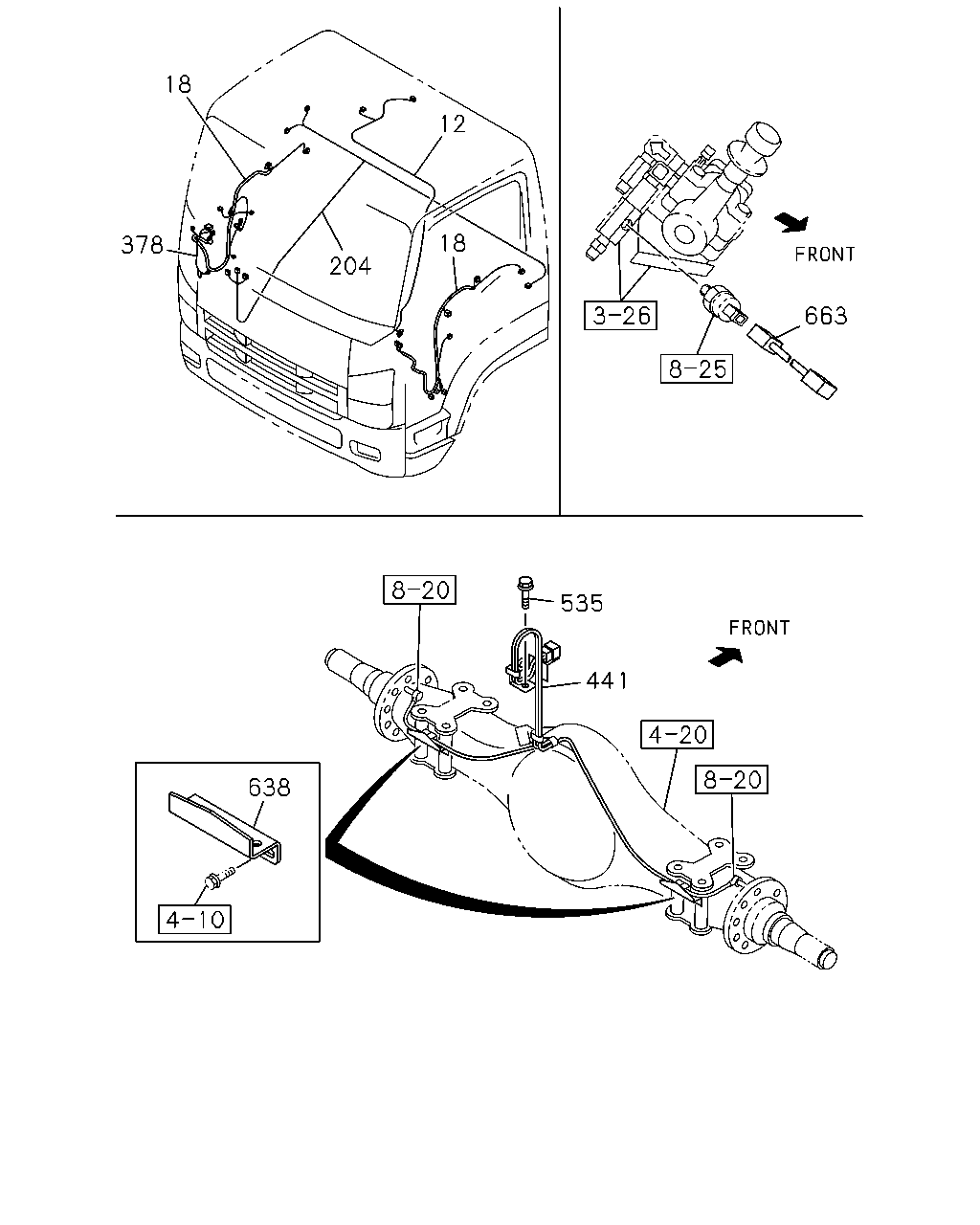

çizim 108645
18 12 18 378 204 663 535 441 638
BalonParca AdiParca NoAdetTipApplied Date
12 HARNESS; ROOF
FLUORESCENT LAMP<6UC> 		8-98048-930-2 01 1 1105-
12 HARNESS; ROOF
EXC. FLUORESCENT LAMP<6UC> 		8-98041-948-2 01 1 1105-
18 HARNESS; DOOR 8-98108-439-1 01 1 1105-
18 HARNESS; DOOR 8-98108-440-1 01 1 1105-
204 HARNESS; CABLE,FLOOR 8-98084-194-0 01 1 1105-
378 HARNESS; EXT,MIRROR 8-98022-717-1 01 1 1105-
441 HARNESS; CABLE,SPEED SENSOR 8-98061-652-0 01 1 1105-
535 BOLT; BRKT FIX
M8X10 W/LK WASHER 		8-98029-928-0 02 1 1105-
638 BRACKET; SPD SENSOR 8-98012-580-1 02 1 1105-
663 HARNESS; EXTENSION,RR WHEEL PARKING
REAR WHEEL PARKING BRAKE AIR CONTROL(B3A) 		8-98126-779-2 01 1 1105-

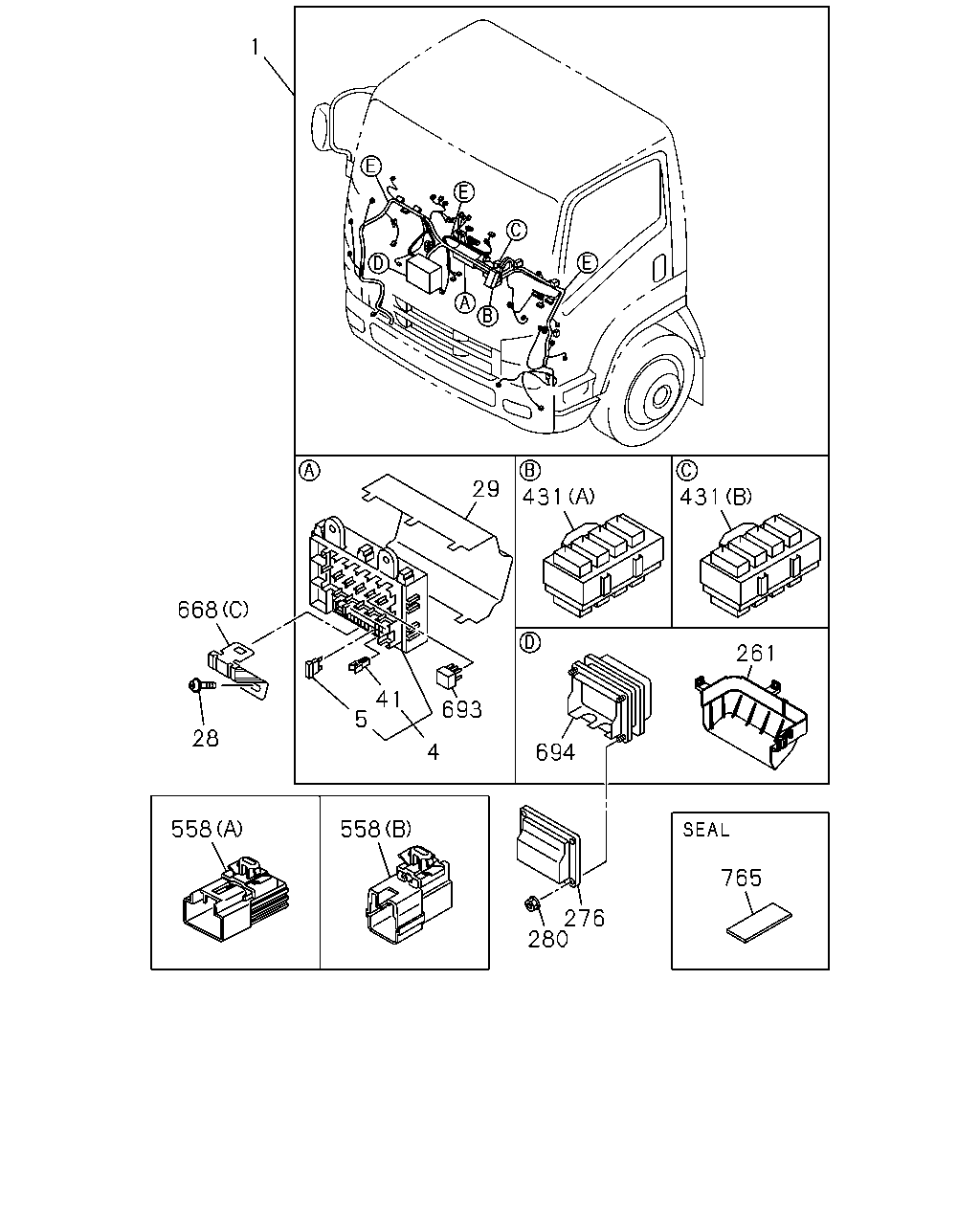

çizim 108646
1 668 28 5 4 41 693 29 431 431 261 694 765 276 280 558 558
BalonParca AdiParca NoAdetTipApplied Date
1 HARNESS; CAB
IN HOUSE PRODUCTION<TKF> 		8-98189-009-0 01 1 1110-1203
1 HARNESS; CAB 8-98189-009-0 01 1 1204-1206
1 HARNESS; CAB 8-98208-098-0 01 1 1207-
1 HARNESS; CAB 8-98133-694-0 01 1 1105-1109
1 HARNESS; CAB
EXC. IN HOUSE PRODUCTION<TKF> 		8-98133-694-0 01 1 1110-1203
4 BOX ASM; FUSE,HARNESS 8-98065-666-0 01 1 1105-
5 FUSE; FACIA HARNESS
10A RED 		8-98054-257-0 AR 1 1105-
5 FUSE; FACIA HARNESS
15A BLUE 		8-98054-258-0 AR 1 1105-
5 FUSE; FACIA HARNESS
20A YELLOW 		8-98054-259-0 AR 1 1105-
5 FUSE; FACIA HARNESS
25A WHITE 		8-98062-982-0 01 1 1105-1206
5 FUSE; FACIA HARNESS
25A WHITE 		8-98062-982-0 AR 1 1207-
28 SCREW; FUSE BOX
HEATER & DEFROSTER(C41),AIR CONDITIONER MANUAL CONTROL(C60),VENTILATOR & DEFROSTER WO/HEATER(SAZ) T25 M5X12 TAPPING HEXALOBULAR 		8-98081-722-0 01 1 1105-
28 SCREW; FUSE BOX
EXC. HEATER & DEFROSTER(C41),AIR CONDITIONER MANUALCONTROL(C60),VENTILATOR & DEFROSTER WO/HEATER(SAZ) M6X16 FLANGE 		0-28650-616-0 01 1 1105-
29 COVER; FUSE BOX 8-98056-968-0 01 1 1105-
41 PULLER; FUSE 8-98054-260-0 01 1 1105-
261 COVER; CONNECTOR BOX 8-98065-986-1 01 1 1207-
276 COVER; BOX,FRAME HARNESS 8-98034-039-1 01 1 1105-
280 NUT; BOX ASM FIX
M6 FLANGE 		0-91180-106-0 04 1 1105-
431 CONNECTOR; JOINT
(F) 10P GREEN 		1-82698-579-0 02 1 1105-
431 CONNECTOR; JOINT
(C) 10P BLUE 		1-82699-598-0 01 1 1105-1206
431 CONNECTOR; JOINT
(C) 10P BLUE 		1-82699-598-0 04 1 1105-
431 CONNECTOR; JOINT
(G) 10P GREEN 		1-82699-599-0 01 1 1105-1206
431 CONNECTOR; JOINT
(G) 10P GREEN 		1-82699-599-0 04 1 1105-
431 CONNECTOR; JOINT
(D) 10P BROWN 		1-82699-601-0 01 1 1105-
431 CONNECTOR; JOINT
(D) 10P BROWN 		1-82699-601-0 09 1 1105-1206
431 CONNECTOR; JOINT
(E) 10P 		8-97077-943-0 02 1 1105-1206
431 CONNECTOR; JOINT
(H) 6P BLACK 		8-97616-194-0 01 1 1105-
431 CONNECTOR; JOINT
(A) WHITE 		8-98056-374-0 01 1 1105-
431 CONNECTOR; JOINT
(B) WHITE 		8-98056-375-0 01 1 1105-
558 CONNECTOR; HARNESS
EXC. AIR CONDITIONER MANUAL CONTROL(C60) (C) 		1-82690-668-0 01 1 1105-
558 CONNECTOR; HARNESS
EXC. HEATER & DEFROSTER(C41),AIR CONDITIONER MANUALCONTROL(C60),VENTILATOR & DEFROSTER WO/HEATER(SAZ) (A) 		8-98108-678-0 01 1 1105-
558 CONNECTOR; HARNESS
EXC. HEATER & DEFROSTER(C41),AIR CONDITIONER MANUALCONTROL(C60),VENTILATOR & DEFROSTER WO/HEATER(SAZ) (B) 		8-98108-679-0 01 1 1105-
668 BRACKET; HARNESS
(E) 		8-98009-245-0 01 1 1105-1408
668 BRACKET; HARNESS
(E) 		8-98273-295-0 01 1 1409-
668 BRACKET; HARNESS
(F) 		8-98011-484-0 01 1 1105-
668 BRACKET; HARNESS
(A) 		8-98024-765-0 01 1 1105-
668 BRACKET; HARNESS
(B) 		8-98061-780-0 01 1 1105-
668 BRACKET; HARNESS
(C) 		8-98095-653-2 01 1 1105-
668 BRACKET; HARNESS
(D) 		8-98097-674-0 01 1 1105-
693 RELAY; FUSE BOX
24V 10A PANASONIC 		8-97173-035-1 AR 1 1105-
694 BOX ASM; CONNECTOR 8-98063-269-1 01 1 1105-1206
694 BOX ASM; CONNECTOR 8-98057-771-0 01 1 1207-
765 TAPE
100X40 		1-72498-022-1 01 1 1409-

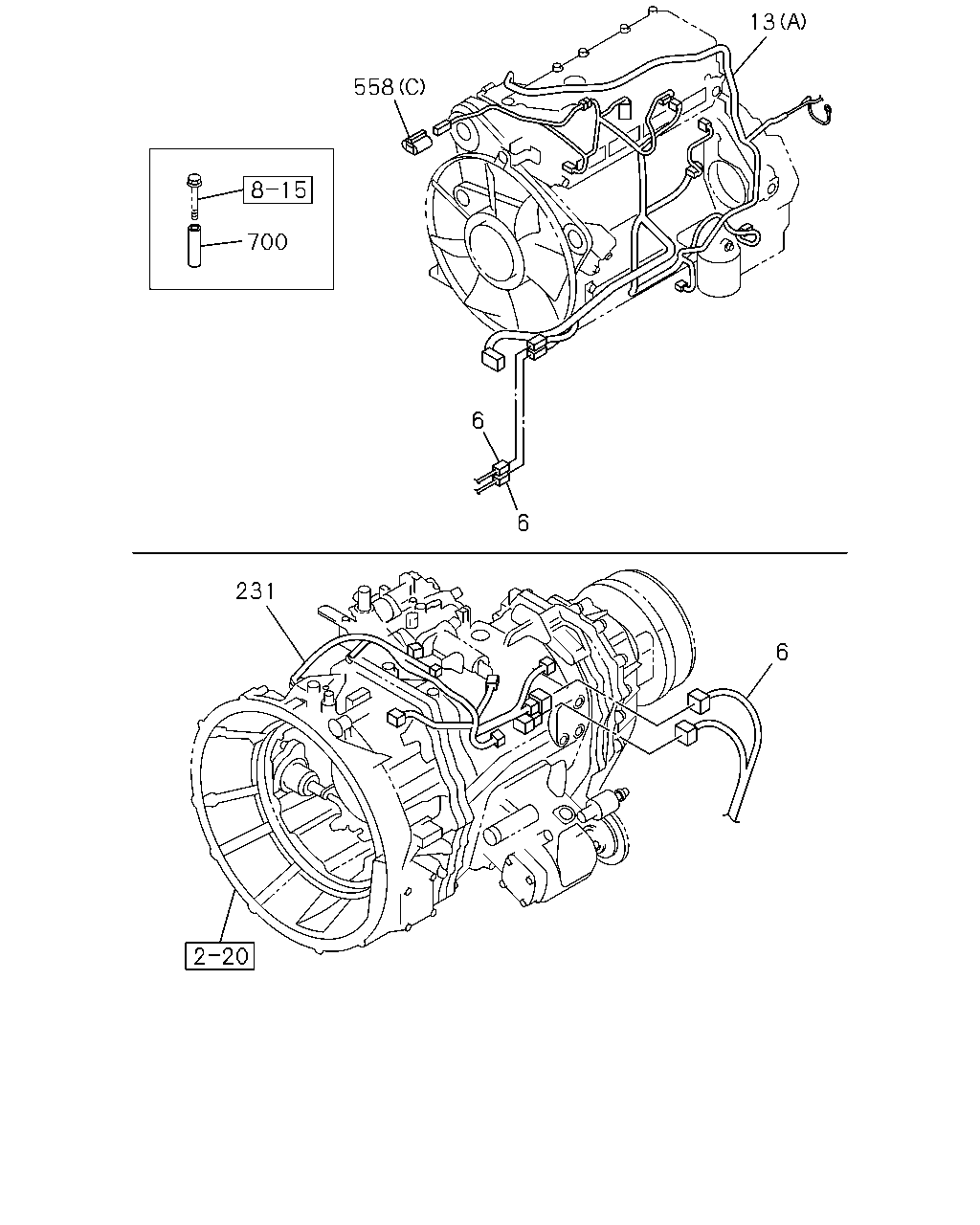

çizim 108647
13 558 700 6 6 231 6
BalonParca AdiParca NoAdetTipApplied Date
6 HARNESS; FRAME 8-98064-292-8 01 1 1105-
13 HARNESS; ENG
(B) 		8-98171-638-0 01 1 1105-
13 HARNESS; ENG
GENERATOR 24V50A(K89) (A) 		8-98162-659-1 01 1 1105-1405
13 HARNESS; ENG
GENERATOR 24V50A(K89) (A) 		8-98274-039-0 01 1 1406-
13 HARNESS; ENG
GENERATOR 24V60A(KG2),GENERATOR 24V90A(K44) (A) 		8-98162-660-1 01 1 1105-1405
13 HARNESS; ENG
GENERATOR 24V60A(KG2),GENERATOR 24V90A(K44) (A) 		8-98274-040-0 01 1 1406-
231 HARNESS; TRANS 8-97618-933-2 01 1 1105-
558 CONNECTOR; HARNESS
EXC. AIR CONDITIONER MANUAL CONTROL(C60) (C) 		1-82690-668-0 01 1 1105-
558 CONNECTOR; HARNESS
EXC. HEATER & DEFROSTER(C41),AIR CONDITIONER MANUALCONTROL(C60),VENTILATOR & DEFROSTER WO/HEATER(SAZ) (A) 		8-98108-678-0 01 1 1105-
558 CONNECTOR; HARNESS
EXC. HEATER & DEFROSTER(C41),AIR CONDITIONER MANUALCONTROL(C60),VENTILATOR & DEFROSTER WO/HEATER(SAZ) (B) 		8-98108-679-0 01 1 1105-
700 TUBE; DISTANCE
EXC. AIR CONDITIONER MANUAL CONTROL(C60) L=51 		1-11369-157-0 01 1 1105-

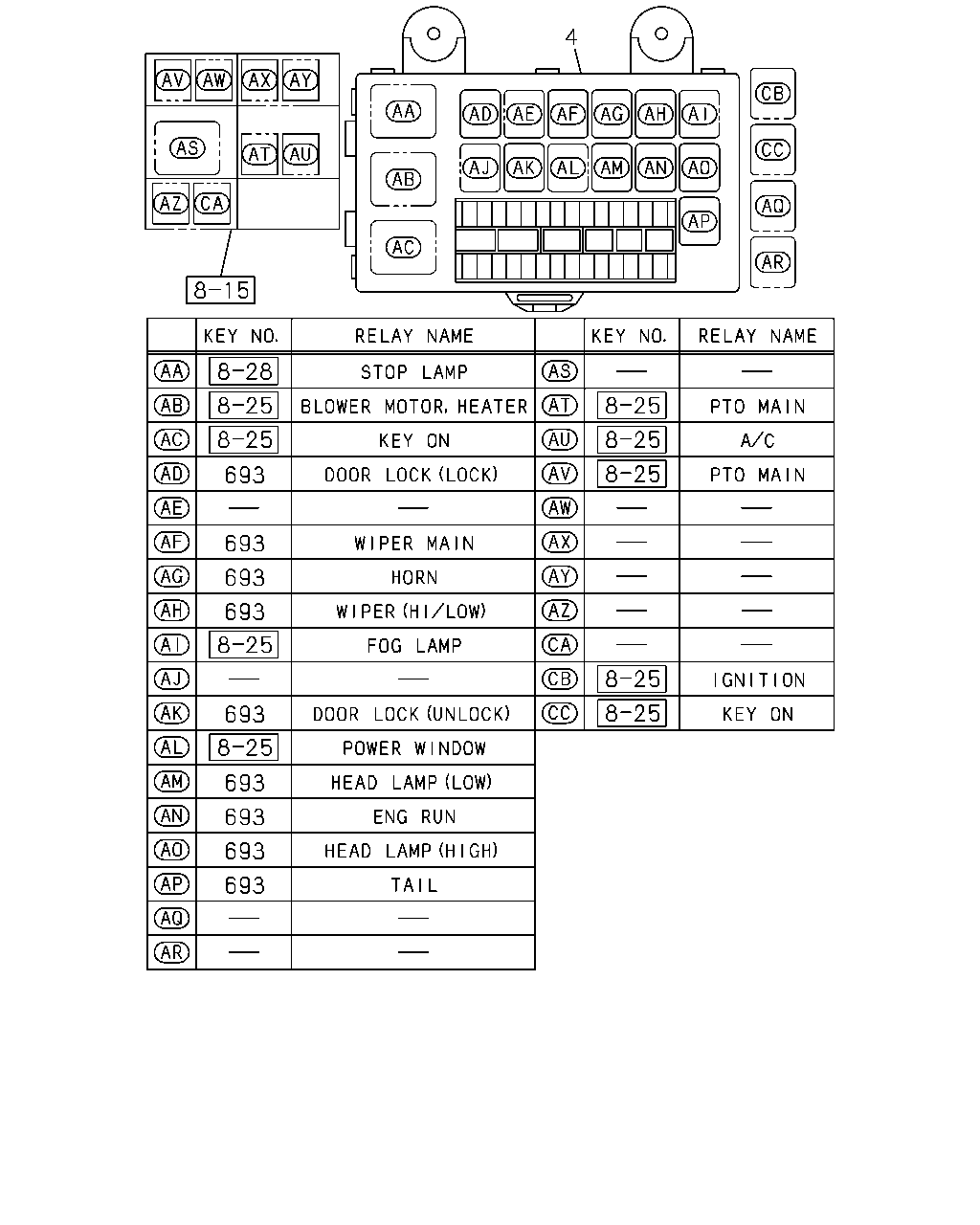

çizim 108648
693 693 693 693 693 693 693 693 693 4
BalonParca AdiParca NoAdetTipApplied Date
4 BOX ASM; FUSE,HARNESS 8-98065-666-0 01 1 1105-
693 RELAY; FUSE BOX
24V 10A PANASONIC 		8-97173-035-1 AR 1 1105-

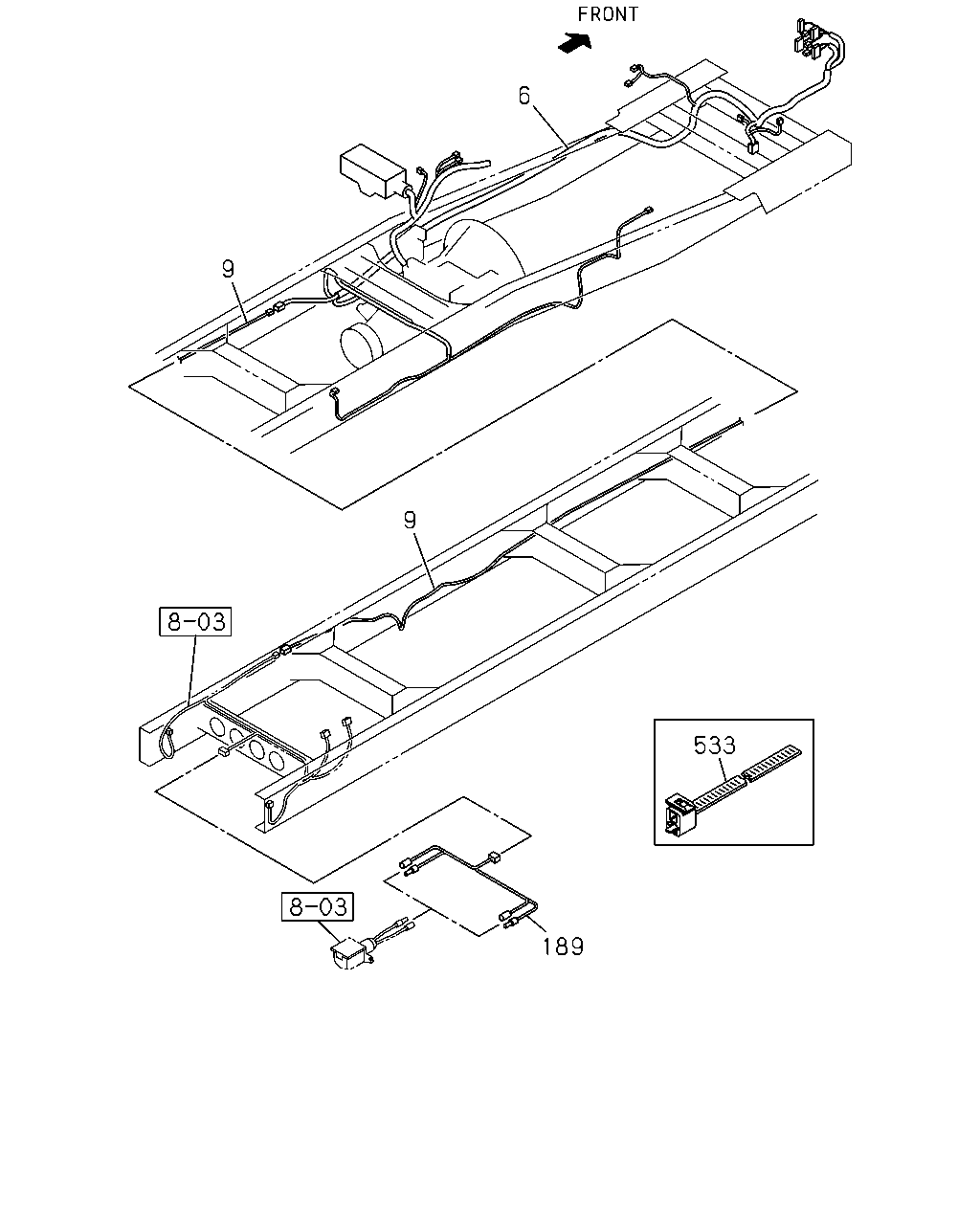

çizim 108649
6 9 9 533 189
BalonParca AdiParca NoAdetTipApplied Date
6 HARNESS; FRAME 8-98064-292-8 01 1 1105-
9 HARNESS; FRAME,RR
WHEEL BASE 4000MM(40W) 		8-98171-633-1 01 1 1105-
9 HARNESS; FRAME,RR
WHEEL BASE 4600MM(46W) 		8-98171-635-1 01 1 1105-
189 HARNESS; EXT 8-98131-066-0 01 1 1105-
533 CLIP
L=180 		1-09707-162-1 01 1 1105-
çizim 108650

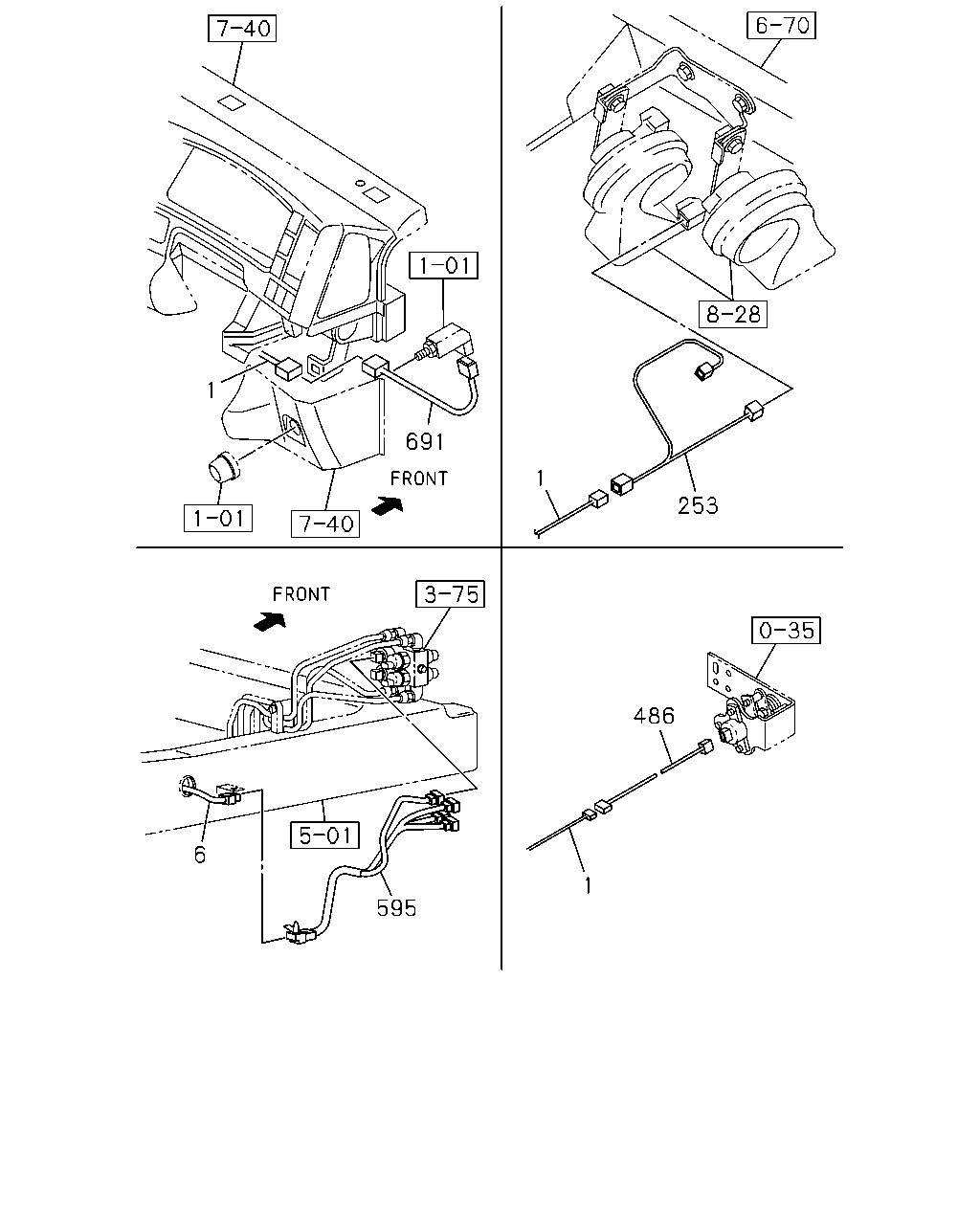

1 691 1 253 486 6 1 595
BalonParca AdiParca NoAdetTipApplied Date
1 HARNESS; CAB
IN HOUSE PRODUCTION<TKF> 		8-98189-009-0 01 1 1110-1203
1 HARNESS; CAB 8-98189-009-0 01 1 1204-1206
1 HARNESS; CAB 8-98208-098-0 01 1 1207-
1 HARNESS; CAB 8-98133-694-0 01 1 1105-1109
1 HARNESS; CAB
EXC. IN HOUSE PRODUCTION<TKF> 		8-98133-694-0 01 1 1110-1203
6 HARNESS; FRAME 8-98064-292-8 01 1 1105-
253 HARNESS; EXT,HORN 8-98074-081-2 01 1 1105-
486 HARNESS; ALL SPEED ACCEL
TRANSMISSION SIDE PTO WO/LEVER(SH5) EXC. DUMP CONTROL LEVER<RC4> 		1-82675-898-0 01 1 1105-
595 HARNESS; WARNING,BRK 8-97621-003-3 01 1 1105-
691 HARNESS; IDLE CONT 8-98049-014-2 01 1 1105-

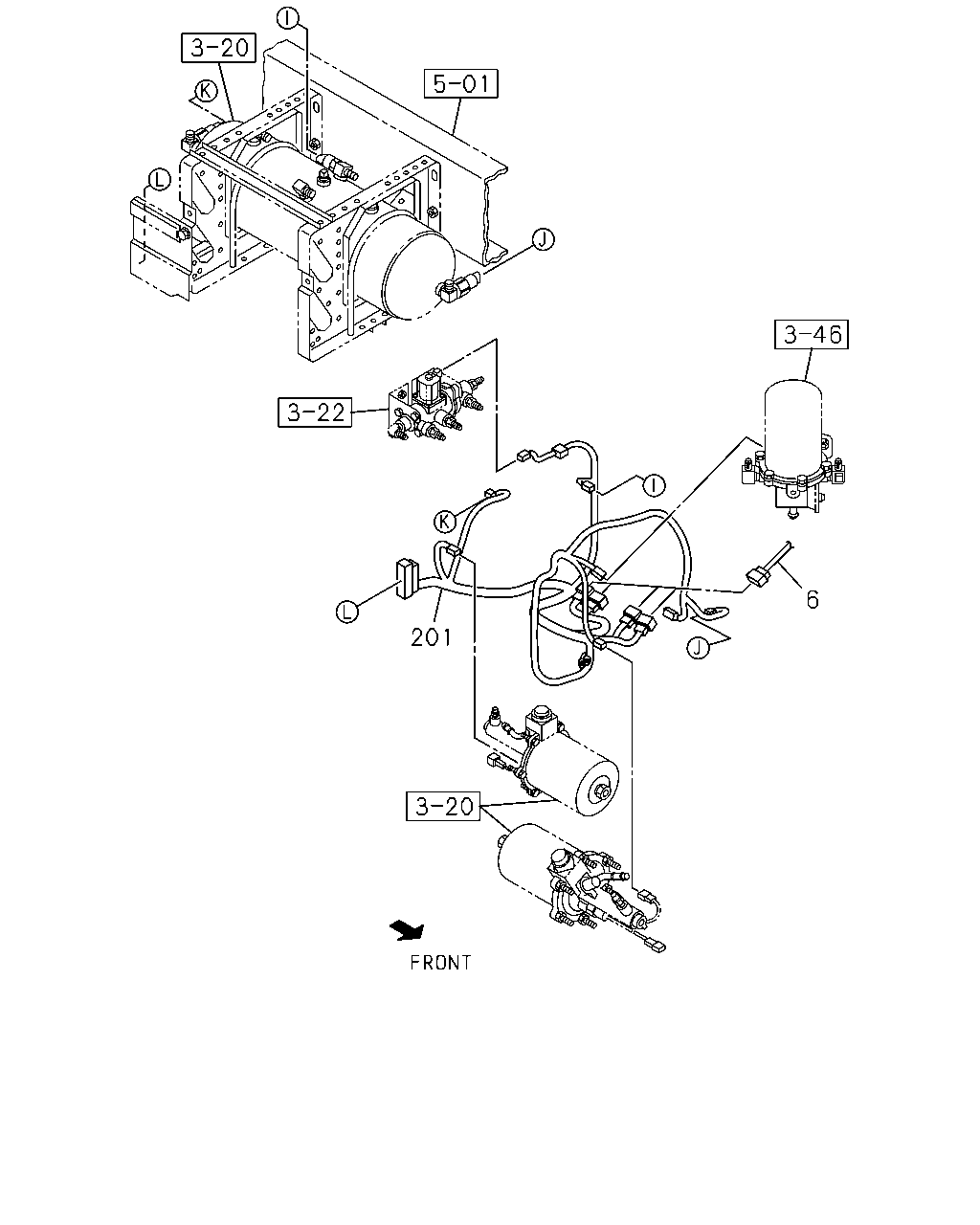

çizim 108652
6 201
BalonParca AdiParca NoAdetTipApplied Date
6 HARNESS; FRAME 8-98064-292-8 01 1 1105-
201 HARNESS; AIR TANK
REAR WHEEL PARKING BRAKE AIR CONTROL(B3A) THROTTLE CONTROL SYSTEM(6XH) 		8-98156-704-2 01 1 1105-
201 HARNESS; AIR TANK
REAR WHEEL PARKING BRAKE AIR CONTROL(B3A) EXC. THROTTLE CONTROL SYSTEM(6XH) 		8-98156-705-2 01 1 1105-
201 HARNESS; AIR TANK
EXC. REAR WHEEL PARKING BRAKE AIR CONTROL(B3A), THROTTLE CONTROL SYSTEM(6XH) 		8-98156-709-2 01 1 1105-
201 HARNESS; AIR TANK
THROTTLE CONTROL SYSTEM(6XH) EXC. REAR WHEEL PARKING BRAKE AIR CONTROL(B3A) 		8-98156-707-2 01 1 1105-

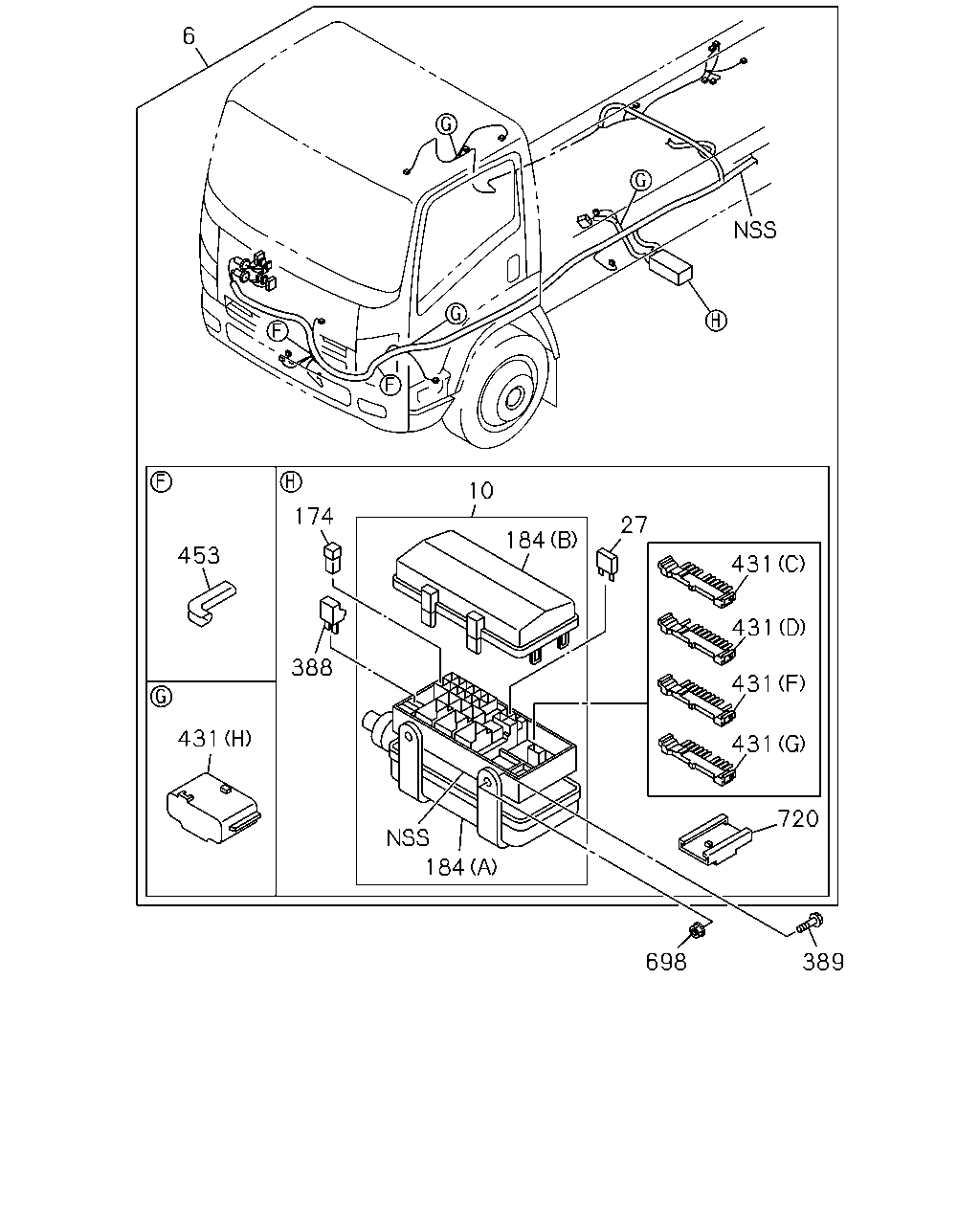

çizim 108653
6 10 174 27 184 453 431 431 388 431 431 431 720 184 698 389
BalonParca AdiParca NoAdetTipApplied Date
6 HARNESS; FRAME 8-98064-292-8 01 1 1105-
10 BOX; FUSE,HARNESS 8-98030-762-0 01 1 1105-
27 FUSE UNIT
10A RED 		8-98054-257-0 01 1 1105-
27 FUSE UNIT
15A BLUE 		8-98054-258-0 02 1 1105-
174 FUSE; SLOW BLOW
60A YELLOW 		8-97219-407-0 01 1 1107-
174 FUSE; SLOW BLOW
30A PINK 		8-98079-191-0 02 1 1105-
174 FUSE; SLOW BLOW
40A GREEN 		8-98079-192-0 02 1 1105-
174 FUSE; SLOW BLOW
50A RED 		8-98079-193-0 03 1 1105-
174 FUSE; SLOW BLOW
60A YELLOW 		8-97219-407-0 03 1 1105-1106
174 FUSE; SLOW BLOW
60A YELLOW 		8-97219-407-0 02 1 1107-
184 COVER; RELAY & FUSE BOX
(A) 		8-98030-766-0 01 1 1105-
184 COVER; RELAY & FUSE BOX
(B) 		8-98030-767-1 01 1 1105-
388 DIODE; RELAY BOX
BLACK 2P-1.5A 		8-94422-639-1 01 1 1105-
389 BOLT; COVER,RELAY BOX
M8X35 W/LK&PL WASHER 		1-09030-073-0 03 1 1105-
431 CONNECTOR; JOINT
(F) 10P GREEN 		1-82698-579-0 02 1 1105-
431 CONNECTOR; JOINT
(C) 10P BLUE 		1-82699-598-0 01 1 1105-1206
431 CONNECTOR; JOINT
(C) 10P BLUE 		1-82699-598-0 04 1 1105-
431 CONNECTOR; JOINT
(G) 10P GREEN 		1-82699-599-0 01 1 1105-1206
431 CONNECTOR; JOINT
(G) 10P GREEN 		1-82699-599-0 04 1 1105-
431 CONNECTOR; JOINT
(D) 10P BROWN 		1-82699-601-0 01 1 1105-
431 CONNECTOR; JOINT
(D) 10P BROWN 		1-82699-601-0 09 1 1105-1206
431 CONNECTOR; JOINT
(E) 10P 		8-97077-943-0 02 1 1105-1206
431 CONNECTOR; JOINT
(H) 6P BLACK 		8-97616-194-0 01 1 1105-
431 CONNECTOR; JOINT
(A) WHITE 		8-98056-374-0 01 1 1105-
431 CONNECTOR; JOINT
(B) WHITE 		8-98056-375-0 01 1 1105-
453 PROTECTOR; HARNESS 1-82699-709-0 02 1 1105-
698 NUT; COVER,RELAY BOX
M8 FLANGE 		0-91180-108-0 02 1 1105-
720 ATTACHMENT; CONNECTOR 1-82699-688-0 03 1 1105-

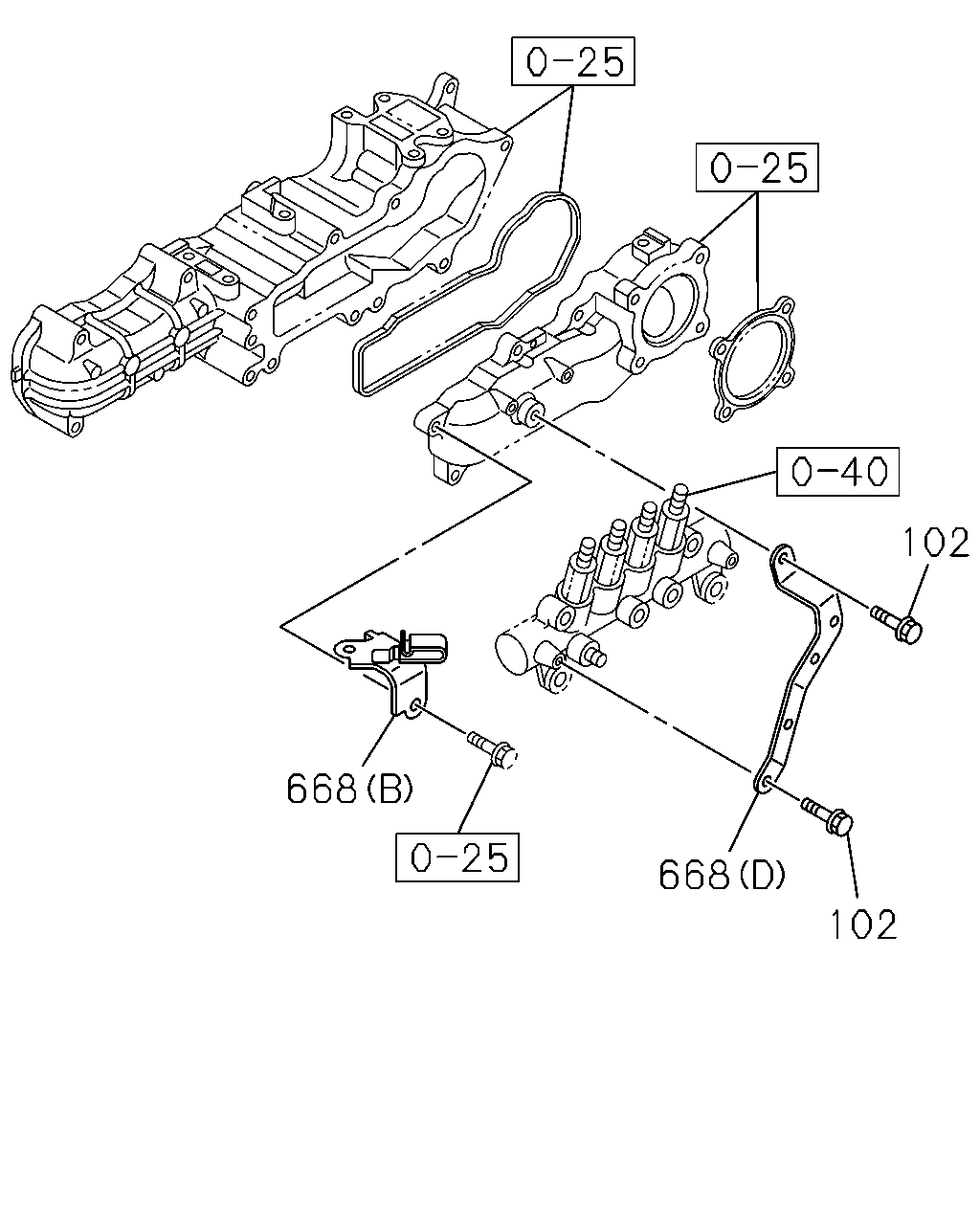

çizim 108655
102 668 668 102
BalonParca AdiParca NoAdetTipApplied Date
102 BOLT; BRKT,HARNESS CONNECTOR
M8X16 FLANGE 		0-28050-816-0 03 1 1105-
102 BOLT; BRKT,HARNESS CONNECTOR
M10X16 FLANGE 		0-28151-016-0 03 1 1105-
668 BRACKET; HARNESS
(E) 		8-98009-245-0 01 1 1105-1408
668 BRACKET; HARNESS
(E) 		8-98273-295-0 01 1 1409-
668 BRACKET; HARNESS
(F) 		8-98011-484-0 01 1 1105-
668 BRACKET; HARNESS
(A) 		8-98024-765-0 01 1 1105-
668 BRACKET; HARNESS
(B) 		8-98061-780-0 01 1 1105-
668 BRACKET; HARNESS
(C) 		8-98095-653-2 01 1 1105-
668 BRACKET; HARNESS
(D) 		8-98097-674-0 01 1 1105-

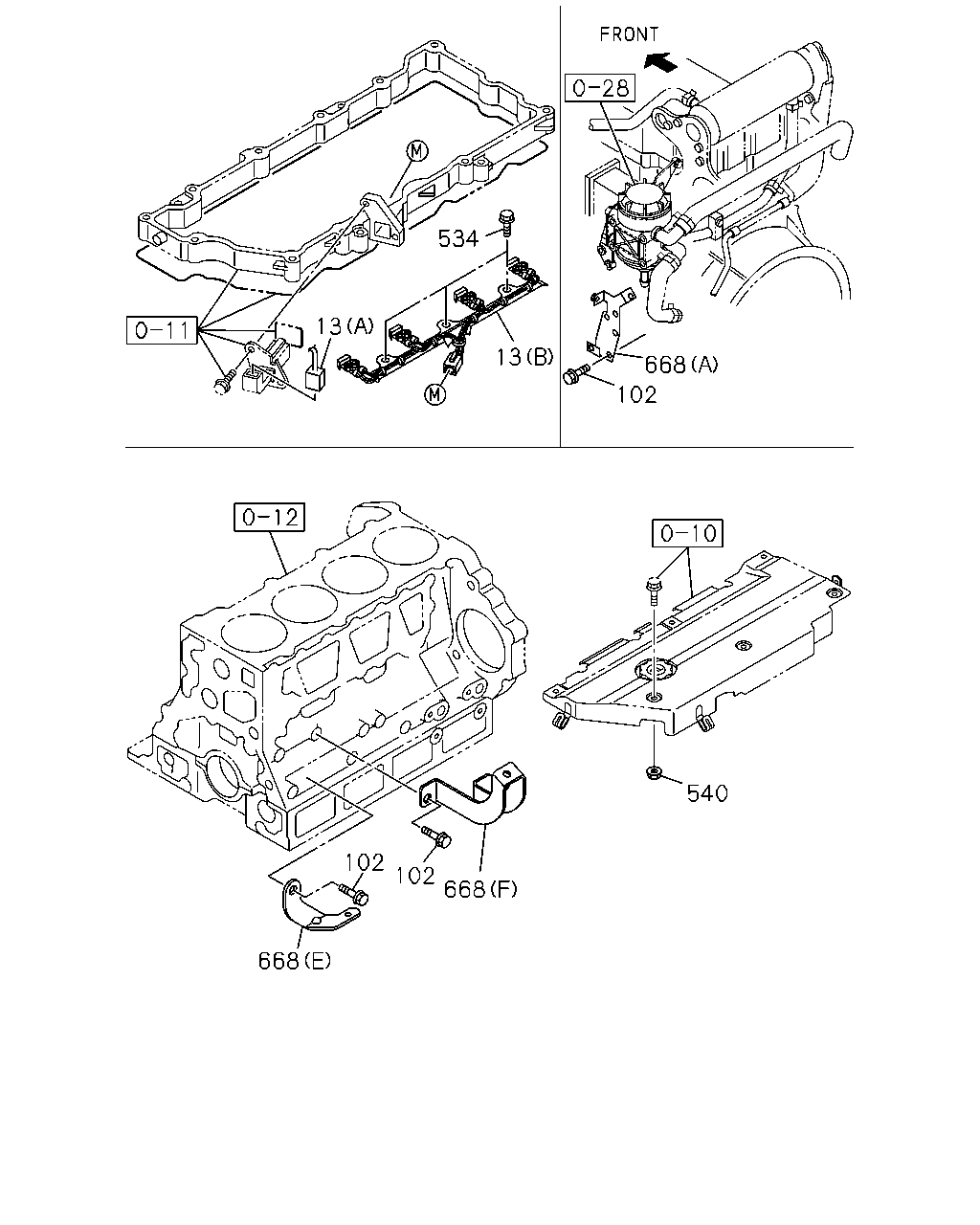

çizim 108659
534 13 13 668 102 540 102 102 668 668
BalonParca AdiParca NoAdetTipApplied Date
13 HARNESS; ENG
(B) 		8-98171-638-0 01 1 1105-
13 HARNESS; ENG
GENERATOR 24V50A(K89) (A) 		8-98162-659-1 01 1 1105-1405
13 HARNESS; ENG
GENERATOR 24V50A(K89) (A) 		8-98274-039-0 01 1 1406-
13 HARNESS; ENG
GENERATOR 24V60A(KG2),GENERATOR 24V90A(K44) (A) 		8-98162-660-1 01 1 1105-1405
13 HARNESS; ENG
GENERATOR 24V60A(KG2),GENERATOR 24V90A(K44) (A) 		8-98274-040-0 01 1 1406-
102 BOLT; BRKT,HARNESS CONNECTOR
M8X16 FLANGE 		0-28050-816-0 03 1 1105-
102 BOLT; BRKT,HARNESS CONNECTOR
M10X16 FLANGE 		0-28151-016-0 03 1 1105-
534 BOLT
M10X55 FLANGE 		8-97365-449-0 03 1 1105-
540 NUT; BRKT FIX
M6 FLANGE 		0-91180-106-0 01 1 1105-
668 BRACKET; HARNESS
(E) 		8-98009-245-0 01 1 1105-1408
668 BRACKET; HARNESS
(E) 		8-98273-295-0 01 1 1409-
668 BRACKET; HARNESS
(F) 		8-98011-484-0 01 1 1105-
668 BRACKET; HARNESS
(A) 		8-98024-765-0 01 1 1105-
668 BRACKET; HARNESS
(B) 		8-98061-780-0 01 1 1105-
668 BRACKET; HARNESS
(C) 		8-98095-653-2 01 1 1105-
668 BRACKET; HARNESS
(D) 		8-98097-674-0 01 1 1105-
İpucu: çizimdeki balona veya tablodaki Balon sütununa tıkla; ilgili parçalar vurgulanır. Birden çok çizim varsa üstteki seçim kutusu/oklarla gezin.
Isuzu EPC — test · veri: yerel (eski sürüm)
