0-40 — FUEL INJECTION SYSTEM (#2168) — 110 parça

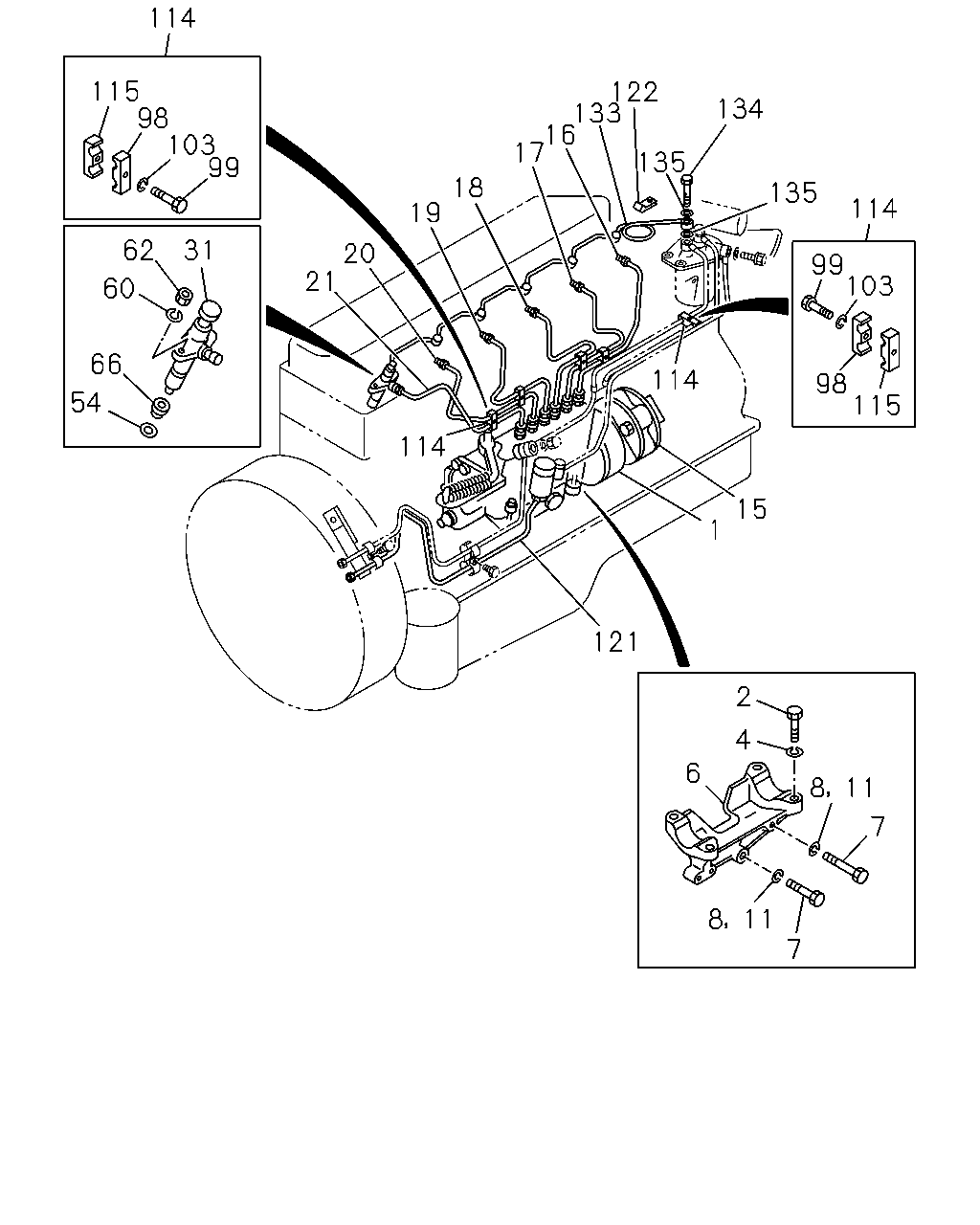

çizim 28589
114 115 98 103 99 122 133 16 17 134 135 18 135 114 19 62 31 20 21 99 103 60 114 66 98 115 54 114 15 1 121 2 4 8 6 11 7 8 11 7
BalonParca AdiParca NoAdetTipApplied Date A B
1 PUMP ASM; INJ
SEE FIG-NO 0-80 - 0-85 FOR COMPONENT. INJ PUMP HIGH ALTITUDE ANEROID COMPENSATOR<YC4> EXC. RLD ECE GOVERNOR(E7P) 		1-15601-616-5 01 1 9101-0203 ●
1 PUMP ASM; INJ
SEE FIG-NO 0-80 - 0-85 FOR COMPONENT. LEFT HAND DRIVE(MTR6FB) INJ PUMP HIGH ALTITUDE ANEROID COMPENSATOR<YC4> 		1-15601-616-5 01 1 0204- ●
1 PUMP ASM; INJ
SEE FIG-NO 0-80 - 0-85 FOR COMPONENT. EXC. RLD ECE GOVERNOR(E7P),ANTI SMOKE BLACK SMOKE<E9M>,INJ PUMP HIGH ALTITUDE ANEROID COMPENSATOR<YC4> 		1-15601-602-6 01 1 9101-0203 ●
1 PUMP ASM; INJ
SEE FIG-NO 0-80 - 0-85 FOR COMPONENT. RIGHT HAND DRIVE(MTR5FB) EXC. INJ PUMP HIGH ALTITUDE ANEROID COMPENSATOR<YC4> 		1-15601-602-6 01 1 0204- ●
1 PUMP ASM; INJ
SEE FIG-NO 0-80 - 0-85 FOR COMPONENT. RIGHT HAND DRIVE(MTR5FB) ANTI SMOKE BLACK SMOKE<E9M> EXC. RLD ECE GOVERNOR(E7P),INJ PUMP HIGH ALTITUDE ANEROID COMPENSATOR<YC4> 		1-15601-620-6 01 1 9101-9207 ●
1 PUMP ASM; INJ
SEE FIG-NO 0-80 - 0-85 FOR COMPONENT. RIGHT HAND DRIVE(MTR5FB) ANTI SMOKE BLACK SMOKE<E9M> EXC. RLD ECE GOVERNOR(E7P),INJ PUMP HIGH ALTITUDE ANEROID COMPENSATOR<YC4> 		1-15602-889-0 01 1 9208-0203 ●
1 PUMP ASM; INJ
SEE FIG-NO 0-80 - 0-85 FOR COMPONENT. RIGHT HAND DRIVE(MTR5FB) RLD ECE GOVERNOR(E7P) 		1-15601-764-4 01 1 9101-9106 ●
1 PUMP ASM; INJ
SEE FIG-NO 0-80 - 0-85 FOR COMPONENT. RIGHT HAND DRIVE(MTR5FB) RLD ECE GOVERNOR(E7P) 		1-15602-824-0 01 1 9107-0203 ●
1 PUMP ASM; INJ
SEE FIG-NO 0-80 - 0-85 FOR COMPONENT. EXC. GOVERNOR SET 3000RPM<E1L>,TAMPER PROOF INJ PUMP SET(W44),INJ PUMP HIGH ALTITUDE ANEROID COMPENSATOR<YC4> 		1-15601-527-4 01 1 9101-0203 ●
1 PUMP ASM; INJ
SEE FIG-NO 0-80 - 0-85 FOR COMPONENT. EXC. INJ PUMP HIGH ALTITUDE ANEROID COMPENSATOR<YC4> 		1-15601-527-4 01 1 0204- ●
1 PUMP ASM; INJ
SEE FIG-NO 0-80 - 0-85 FOR COMPONENT. INJ PUMP HIGH ALTITUDE ANEROID COMPENSATOR<YC4> EXC. TAMPER PROOF INJ PUMP SET(W44) 		1-15601-529-4 01 1 9101-0203 ●
1 PUMP ASM; INJ
SEE FIG-NO 0-80 - 0-85 FOR COMPONENT. INJ PUMP HIGH ALTITUDE ANEROID COMPENSATOR<YC4> 		1-15601-529-4 01 1 0204- ●
1 PUMP ASM; INJ
SEE FIG-NO 0-80 - 0-85 FOR COMPONENT. RIGHT HAND DRIVE(MTR5FB) GOVERNOR SET 3000RPM<E1L> TAMPER PROOF INJ PUMP SET(W44) 		1-15602-221-4 01 1 9101-0203 ●
1 PUMP ASM; INJ
SEE FIG-NO 0-80 - 0-85 FOR COMPONENT. LEFT HAND DRIVE(MTR6FB) TAMPER PROOF INJ PUMP SET(W44) EXC. GOVERNOR SET 3000RPM<E1L>,INJ PUMP HIGH ALTITUDE ANEROID COMPENSATOR<YC4> 		1-15601-528-4 01 1 9101-0203 ●
2 BOLT; INJ PUMP
M8X75 		0-10810-875-0 04 1 9101- ● ●
4 WASHER; INJ PUMP
ID=8.5 MITSUBISHI 		9-09851-934-0 04 1 9101- ● ●
6 BRACKET; INJ PUMP TO C/BL 9-19751-104-1 01 1 9101- ● ●
7 BOLT; INJ PUMP BRKT
M10X80 		0-10806-080-0 02 1 9101- ● ●
7 BOLT; INJ PUMP BRKT
M10X40 W/LK WASHER 		0-50041-040-0 02 1 9101-9410 ● ●
7 BOLT; INJ PUMP BRKT
RIGHT HAND DRIVE(MTR5FB) M10X40 W/LK WASHER 		0-50041-040-0 02 1 9411- ● ●
7 BOLT; INJ PUMP BRKT
LEFT HAND DRIVE(MTR6FB) ENGINE OIL COOLER HEAVY DUTY(E1E) M10X40 W/LK WASHER 		0-50041-040-0 01 1 9104-0203 ●
7 BOLT; INJ PUMP BRKT
LEFT HAND DRIVE(MTR6FB) ENGINE OIL COOLER HEAVY DUTY(E1E) M10X45 W/LK WASHER 		0-50041-045-0 01 1 9104-0203 ●
8 WASHER; LK,INJ PUMP BRKT
ID=10.2 		9-09150-510-0 02 1 9101-9106 ● ●
11 WASHER; INJ PUMP BRKT
ID=10.5 		9-09851-866-0 02 1 9107- ● ●
15 COUPLING ASM; INJ PUMP
SEE FIG-NO 0-87 FOR COMPONENT. RLD ECE GOVERNOR(E7P) 		1-15780-136-0 01 1 9101-0203 ●
15 COUPLING ASM; INJ PUMP
SEE FIG-NO 0-87 FOR COMPONENT. EXC. RLD ECE GOVERNOR(E7P) 		1-15780-089-2 01 1 9101-0203 ● ●
15 COUPLING ASM; INJ PUMP
SEE FIG-NO 0-87 FOR COMPONENT. 		1-15780-089-2 01 1 0204- ● ●
16 PIPE; INJ NO.1 1-15413-169-3 01 1 9101- ●
16 PIPE; INJ NO.1 1-15413-182-3 01 1 9101- ●
17 PIPE; INJ NO.2 1-15413-170-2 01 1 9101- ●
17 PIPE; INJ NO.2 1-15413-183-2 01 1 9101- ●
18 PIPE; INJ NO.3 1-15413-171-2 01 1 9101- ●
18 PIPE; INJ NO.3 1-15413-184-2 01 1 9101- ●
19 PIPE; INJ NO.4 1-15413-172-2 01 1 9101- ●
19 PIPE; INJ NO.4 1-15413-185-2 01 1 9101- ●
20 PIPE; INJ NO.5 1-15413-173-2 01 1 9101- ●
20 PIPE; INJ NO.5 1-15413-186-2 01 1 9101- ●
21 PIPE; INJ NO.6 1-15413-174-3 01 1 9101- ●
21 PIPE; INJ NO.6 1-15413-187-2 01 1 9101- ●
31 NOZZLE ASM; INJ 1-15300-169-1 06 1 9101-0307 ● ●
31 NOZZLE ASM; INJ 5-15300-089-1 06 1 0308- ● ●
54 COVER; DUST,NOZZLE HOLDER 9-15339-051-0 06 1 9101- ● ●
60 WASHER; NOZZLE HOLDER
ID=8.2 		9-09150-508-0 12 1 9101- ● ●
62 NUT; NOZZLE HOLDER
M8 		9-09110-408-0 12 1 9101- ● ●
66 GASKET; INJ NOZZLE
ALSO INCLUDED IN GASKET SET(ENG. & HEAD) ID=9.2 OD=19.0 T=7.3 		5-15315-003-0 06 1 9101- ● ●
98 CLIP; "A",INJ PIPE 9-15419-613-0 04 1 9101- ● ●
99 BOLT; CLIP,INJ,PIPE
M5X20 		9-09802-539-0 04 1 9101- ● ●
103 WASHER; LK,CLIP,INJ PIPE
ID=5.1 		9-09150-505-0 04 1 9101- ● ●
114 CLIP; INJ PIPE 9-15419-612-0 04 1 9101- ● ●
115 CLIP; "B",INJ PIPE 9-15419-614-0 04 1 9101- ● ●
121 PIPE; FUEL,FEED PUMP,SUCTION 1-15413-396-0 01 1 9101- ● ●
122 CLIP; LEAK OFF PIPE
ID=6 		9-09524-555-0 01 1 9101- ● ●
133 PIPE; INJ NOZZLE LEAK OFF 1-15412-471-1 01 1 9101- ● ●
134 BOLT; JOINT,LEAK OFF PIPE
M8X18 EYE BOLT 		1-09675-037-1 01 1 9101- ● ●
135 GASKET; JOINT BOLT,LEAK OFF PIPE
ALSO INCLUDED IN GASKET SET(ENG. & HEAD) ID=8.2 OD=14.0 T=1.0 		9-09571-408-0 02 1 9101-9305 ● ●
135 GASKET; JOINT BOLT,LEAK OFF PIPE
ALSO INCLUDED IN GASKET SET(ENG. & HEAD) ID=8.2 OD=13.2 		1-09630-082-0 02 1 9306- ● ●
çizim 94229
31 34 36 36 32 37 38 39 139 44 45 41 42 33 35
BalonParca AdiParca NoAdetTipApplied Date A B
31 NOZZLE ASM; INJ 1-15300-169-1 06 1 9101-0307 ● ●
31 NOZZLE ASM; INJ 5-15300-089-1 06 1 0308- ● ●
32 HOLDER ASM; NOZZLE 1-15330-057-0 06 1 9101-9306 ● ●
32 HOLDER ASM; NOZZLE 1-15330-087-1 06 1 9307-0307 ● ●
32 HOLDER ASM; NOZZLE 8-94132-645-2 06 1 0308- ● ●
33 NOZZLE; INJ 5-15311-016-0 06 1 9101- ● ●
34 BOLT; EYE,NOZZLE HOLDER
M8X19 FLANGE 		1-09675-139-0 06 1 9101-9306 ● ●
34 BOLT; EYE,NOZZLE HOLDER
M8X18 EYE BOLT 		1-09675-037-1 06 1 9307- ● ●
35 NUT; NOZZLE RET,NOZZLE HOLDER 8-94171-195-0 06 1 9101-9306 ● ●
35 NUT; NOZZLE RET,NOZZLE HOLDER 1-15332-017-0 06 1 9307- ● ●
36 GASKET; RETURN PIPE,NOZZLE HOLDER
ALSO INCLUDED IN GASKET SET(ENG. & HEAD) ID=8.2 OD=14.0 T=1.0 		9-09571-408-0 12 1 9101-9306 ● ●
36 GASKET; RETURN PIPE,NOZZLE HOLDER
ALSO INCLUDED IN GASKET SET(ENG. & HEAD) ID=8.2 OD=13.2 		1-09630-082-0 12 1 9307- ● ●
37 NUT; CAP,NOZZLE HOLDER 8-94169-504-0 06 1 9101-9306 ● ●
37 NUT; CAP,NOZZLE HOLDER 5-15332-006-0 06 1 9307-0307 ● ●
37 NUT; CAP,NOZZLE HOLDER 5-15332-010-0 06 1 0308- ● ●
38 GASKET; CAP NUT,NOZZLE HOLDER
ALSO INCLUDED IN GASKET SET(ENGINE). 		5-15339-060-0 06 1 9307-0307 ● ●
38 GASKET; CAP NUT,NOZZLE HOLDER
ALSO INCLUDED IN GASKET SET(ENGINE). 		9-15339-056-0 06 1 0308- ● ●
39 SCREW; ADJ,NOZZLE SPRING,NOZZLE HOLDER 8-94169-503-0 06 1 9101-0307 ● ●
39 SCREW; ADJ,NOZZLE SPRING,NOZZLE HOLDER 5-15345-001-0 06 1 0308- ● ●
41 CONNECTOR; FUEL INL,NOZZLE HOLDER 5-15351-001-0 06 1 9101- ● ●
42 GASKET; INL CONNECTOR,NOZZLE HOLDER 5-15339-003-0 06 1 9101-0307 ● ●
42 GASKET; INL CONNECTOR,NOZZLE HOLDER 5-51339-003-0 06 1 0308- ● ●
44 SPRING; NOZZLE,NOZZLE HOLDER 5-15343-005-0 06 1 9101-0307 ● ●
44 SPRING; NOZZLE,NOZZLE HOLDER 9-15343-013-0 06 1 0308- ● ●
45 ROD; PUSH,NOZZLE HOLDER 8-94169-502-0 06 1 9101-0307 ● ●
45 ROD; PUSH,NOZZLE HOLDER 5-15341-001-0 06 1 0308- ● ●
139 WASHER; NOZZLE SPRING,NOZZLE HOLDER 9-15339-057-0 06 1 0308- ● ●
çizim 95446
34 45 36 41 42 36 37 39 46 33 44 31 38 32 35
BalonParca AdiParca NoAdetTipApplied Date A B
31 NOZZLE ASM; INJ 1-15300-169-1 06 1 9101-0307 ● ●
31 NOZZLE ASM; INJ 5-15300-089-1 06 1 0308- ● ●
32 HOLDER ASM; NOZZLE 1-15330-057-0 06 1 9101-9306 ● ●
32 HOLDER ASM; NOZZLE 1-15330-087-1 06 1 9307-0307 ● ●
32 HOLDER ASM; NOZZLE 8-94132-645-2 06 1 0308- ● ●
33 NOZZLE; INJ 5-15311-016-0 06 1 9101- ● ●
34 BOLT; EYE,NOZZLE HOLDER
M8X19 FLANGE 		1-09675-139-0 06 1 9101-9306 ● ●
34 BOLT; EYE,NOZZLE HOLDER
M8X18 EYE BOLT 		1-09675-037-1 06 1 9307- ● ●
35 NUT; NOZZLE RET,NOZZLE HOLDER 8-94171-195-0 06 1 9101-9306 ● ●
35 NUT; NOZZLE RET,NOZZLE HOLDER 1-15332-017-0 06 1 9307- ● ●
36 GASKET; RETURN PIPE,NOZZLE HOLDER
ALSO INCLUDED IN GASKET SET(ENG. & HEAD) ID=8.2 OD=14.0 T=1.0 		9-09571-408-0 12 1 9101-9306 ● ●
36 GASKET; RETURN PIPE,NOZZLE HOLDER
ALSO INCLUDED IN GASKET SET(ENG. & HEAD) ID=8.2 OD=13.2 		1-09630-082-0 12 1 9307- ● ●
37 NUT; CAP,NOZZLE HOLDER 8-94169-504-0 06 1 9101-9306 ● ●
37 NUT; CAP,NOZZLE HOLDER 5-15332-006-0 06 1 9307-0307 ● ●
37 NUT; CAP,NOZZLE HOLDER 5-15332-010-0 06 1 0308- ● ●
38 GASKET; CAP NUT,NOZZLE HOLDER
ALSO INCLUDED IN GASKET SET(ENGINE). 		5-15339-060-0 06 1 9307-0307 ● ●
38 GASKET; CAP NUT,NOZZLE HOLDER
ALSO INCLUDED IN GASKET SET(ENGINE). 		9-15339-056-0 06 1 0308- ● ●
39 SCREW; ADJ,NOZZLE SPRING,NOZZLE HOLDER 8-94169-503-0 06 1 9101-0307 ● ●
39 SCREW; ADJ,NOZZLE SPRING,NOZZLE HOLDER 5-15345-001-0 06 1 0308- ● ●
41 CONNECTOR; FUEL INL,NOZZLE HOLDER 5-15351-001-0 06 1 9101- ● ●
42 GASKET; INL CONNECTOR,NOZZLE HOLDER 5-15339-003-0 06 1 9101-0307 ● ●
42 GASKET; INL CONNECTOR,NOZZLE HOLDER 5-51339-003-0 06 1 0308- ● ●
44 SPRING; NOZZLE,NOZZLE HOLDER 5-15343-005-0 06 1 9101-0307 ● ●
44 SPRING; NOZZLE,NOZZLE HOLDER 9-15343-013-0 06 1 0308- ● ●
45 ROD; PUSH,NOZZLE HOLDER 8-94169-502-0 06 1 9101-0307 ● ●
45 ROD; PUSH,NOZZLE HOLDER 5-15341-001-0 06 1 0308- ● ●
46 PIN; NOZZLE SET,NOZZLE HOLDER 9-15347-003-0 12 1 9101-0307 ● ●
