◀ 🏠 ▶ Isuzu WW ▶ TRUCKS ▶ NKR ▶ 50810 - NKR(EUROPE)-LHD ▶ 0 - Engine, Emission, Engine Electrical ▶ 0-60 - ENGINE ELECTRICAL CONTROL PARTS ▶
0-60 — ENGINE ELECTRICAL CONTROL PARTS (#21673) — 144 parça

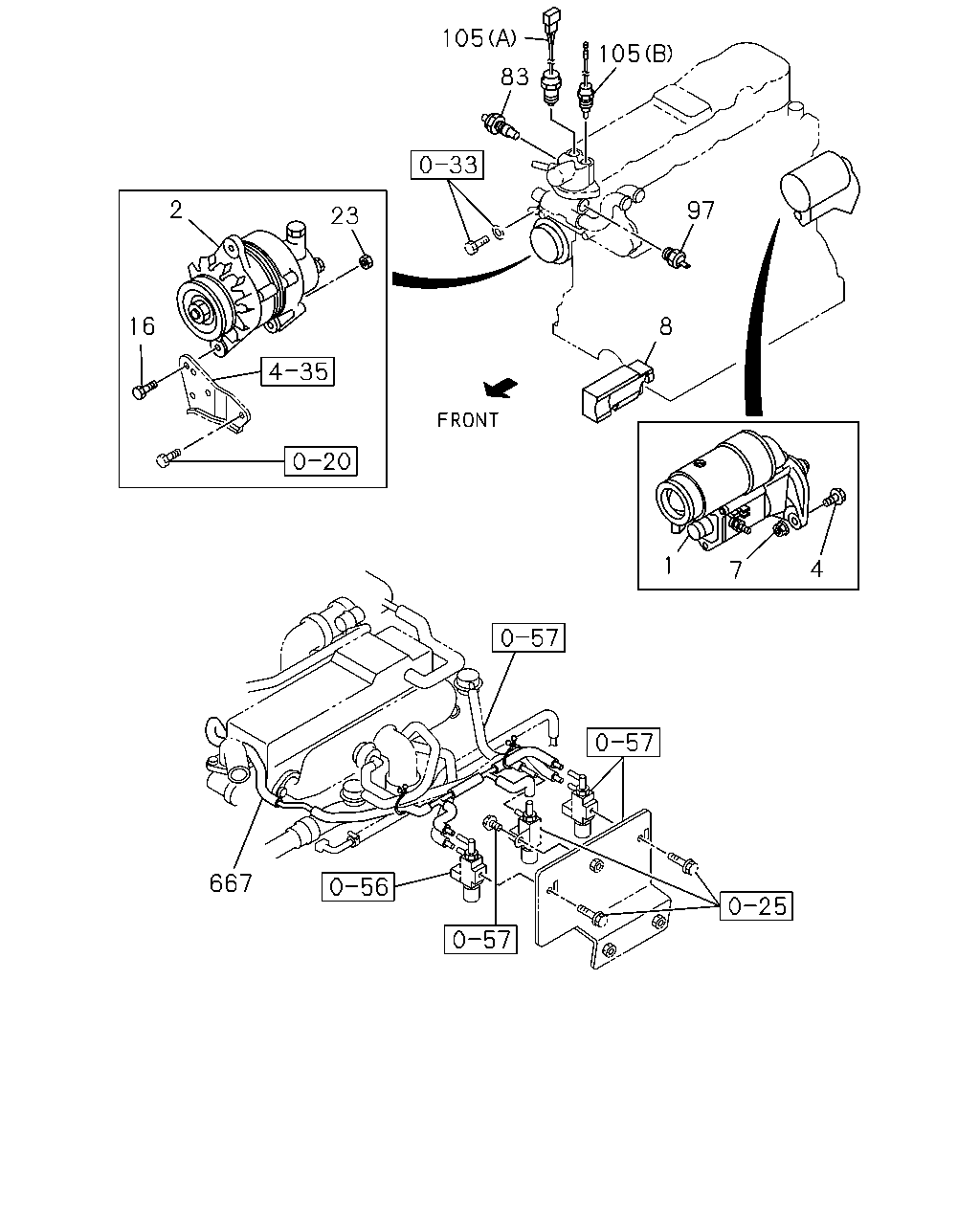

çizim 44245
105 105 83 2 97 23 16 8 1 4 7 667
BalonParca AdiParca NoAdetTipApplied Date A B C
1 02.041 STARTER ASM
SEE FIG-NO 0-65 FOR COMPONENT. 12V 2.0KW 		8-97120-356-2 01 1 9812-0105 ● ●
1 02.041 STARTER ASM
SEE FIG-NO 0-65 FOR COMPONENT. 12V 2.2KW DENSO 		8-97042-997-2 01 1 0106- ●
2 02.275 GENERATOR ASM
SEE FIG-NO 0-66 FOR COMPONENT. 12V 50A 		8-97187-657-0 01 1 9812-0105 ● ●
2 02.275 GENERATOR ASM
SEE FIG-NO 0-66 FOR COMPONENT. GENERATOR 12V80A(K97) 12V 80A 		8-97249-209-1 01 1 0106- ●
2 02.275 GENERATOR ASM
SEE FIG-NO 0-66 FOR COMPONENT. EXC. GENERATOR 12V80A(K97) 12V 60A 		8-97240-270-1 01 1 0106- ●
4 02.042 BOLT; STARTER
M12X80 		0-28081-280-0 02 1 9812-0105 ● ●
4 02.042 BOLT; STARTER
M12X40 		0-28781-240-0 02 1 0106-0111 ●
4 02.042 BOLT; STARTER
M12X35 FLANGE 		0-28781-235-0 02 1 0112- ●
7 02.042 NUT; STARTER
05.586 M12 FLANGE 		0-91150-112-0 02 1 9812-0105 ● ●
8 02.042 SPACER; STARTER 8-97210-762-0 01 1 9906-0105 ●
16 02.277 BOLT; GEN
M10X130 FLANGE 		0-28086-013-0 01 1 9812-9910 ●
16 02.277 BOLT; GEN
M10X130 FLANGE 		0-28086-013-0 01 1 9911-0105 ● ●
16 02.277 BOLT; GEN
M10X130 FLANGE 		0-28086-013-0 01 1 0106- ●
16 02.277 BOLT; GEN
M8X130 FLANGE 		0-28085-813-0 01 1 9906-9910 ●
23 02.277 NUT; GEN
08.917 M10 FLANGE 		0-91150-210-0 01 1 9812-9910 ●
23 02.277 NUT; GEN
08.917 M10 FLANGE 		0-91150-210-0 01 1 9911-0105 ● ●
23 02.277 NUT; GEN
08.917 M10 FLANGE 		0-91150-210-0 01 1 0106- ●
23 02.277 NUT; GEN
01.540 M8 FLANGE 		0-91150-208-0 01 1 9906-9910 ●
83 01.150 THERMOMETER UNIT
DENSO 		8-94235-691-0 01 1 9812-0105 ● ●
83 01.150 THERMOMETER UNIT
DENSO 		8-94235-691-0 01 1 0106- ●
83 01.150 THERMOMETER UNIT
YAZAKI 		8-94237-861-0 01 1 9812-0105 ● ●
83 01.150 THERMOMETER UNIT
YAZAKI 		8-94237-861-0 01 1 0106- ●
97 01.150 SWITCH; THERMO,EGR CONT
TURBOCHARGER<K51> CHARGE AIR COOLER<6PL> 		8-94368-591-0 01 1 9906-0105 ●
105 01.150 SWITCH; THERMO,QOS
(B) 		8-94457-511-0 01 1 9906-0105 ●
105 01.150 SWITCH; THERMO,QOS
TURBOCHARGER<K51> CHARGE AIR COOLER<6PL> (A) 		8-94336-668-0 01 1 9906-0105 ●
667 03.280 HOSE; VAC,PUMP TO VSV
TURBOCHARGER<K51> CHARGE AIR COOLER<6PL> 		8-97228-358-1 01 1 9906-0105 ●
çizim 44686
16 23 2 83 435 129 435 1 4
BalonParca AdiParca NoAdetTipApplied Date A B C
1 02.041 STARTER ASM
SEE FIG-NO 0-65 FOR COMPONENT. 12V 2.0KW 		8-97120-356-2 01 1 9812-0105 ● ●
1 02.041 STARTER ASM
SEE FIG-NO 0-65 FOR COMPONENT. 12V 2.2KW DENSO 		8-97042-997-2 01 1 0106- ●
2 02.275 GENERATOR ASM
SEE FIG-NO 0-66 FOR COMPONENT. 12V 50A 		8-97187-657-0 01 1 9812-0105 ● ●
2 02.275 GENERATOR ASM
SEE FIG-NO 0-66 FOR COMPONENT. GENERATOR 12V80A(K97) 12V 80A 		8-97249-209-1 01 1 0106- ●
2 02.275 GENERATOR ASM
SEE FIG-NO 0-66 FOR COMPONENT. EXC. GENERATOR 12V80A(K97) 12V 60A 		8-97240-270-1 01 1 0106- ●
4 02.042 BOLT; STARTER
M12X80 		0-28081-280-0 02 1 9812-0105 ● ●
4 02.042 BOLT; STARTER
M12X40 		0-28781-240-0 02 1 0106-0111 ●
4 02.042 BOLT; STARTER
M12X35 FLANGE 		0-28781-235-0 02 1 0112- ●
16 02.277 BOLT; GEN
M10X130 FLANGE 		0-28086-013-0 01 1 9812-9910 ●
16 02.277 BOLT; GEN
M10X130 FLANGE 		0-28086-013-0 01 1 9911-0105 ● ●
16 02.277 BOLT; GEN
M10X130 FLANGE 		0-28086-013-0 01 1 0106- ●
16 02.277 BOLT; GEN
M8X130 FLANGE 		0-28085-813-0 01 1 9906-9910 ●
23 02.277 NUT; GEN
08.917 M10 FLANGE 		0-91150-210-0 01 1 9812-9910 ●
23 02.277 NUT; GEN
08.917 M10 FLANGE 		0-91150-210-0 01 1 9911-0105 ● ●
23 02.277 NUT; GEN
08.917 M10 FLANGE 		0-91150-210-0 01 1 0106- ●
23 02.277 NUT; GEN
01.540 M8 FLANGE 		0-91150-208-0 01 1 9906-9910 ●
83 01.150 THERMOMETER UNIT
DENSO 		8-94235-691-0 01 1 9812-0105 ● ●
83 01.150 THERMOMETER UNIT
DENSO 		8-94235-691-0 01 1 0106- ●
83 01.150 THERMOMETER UNIT
YAZAKI 		8-94237-861-0 01 1 9812-0105 ● ●
83 01.150 THERMOMETER UNIT
YAZAKI 		8-94237-861-0 01 1 0106- ●
129 01.150 SENSOR; GLOW PLUG,THERMO 8-97069-786-1 01 1 0106- ●
435 02.363 RUBBER; CUSHION
(A) 		8-97259-609-3 01 1 0106- ●
435 02.363 RUBBER; CUSHION
(B) 		8-97308-356-0 01 1 0106- ●

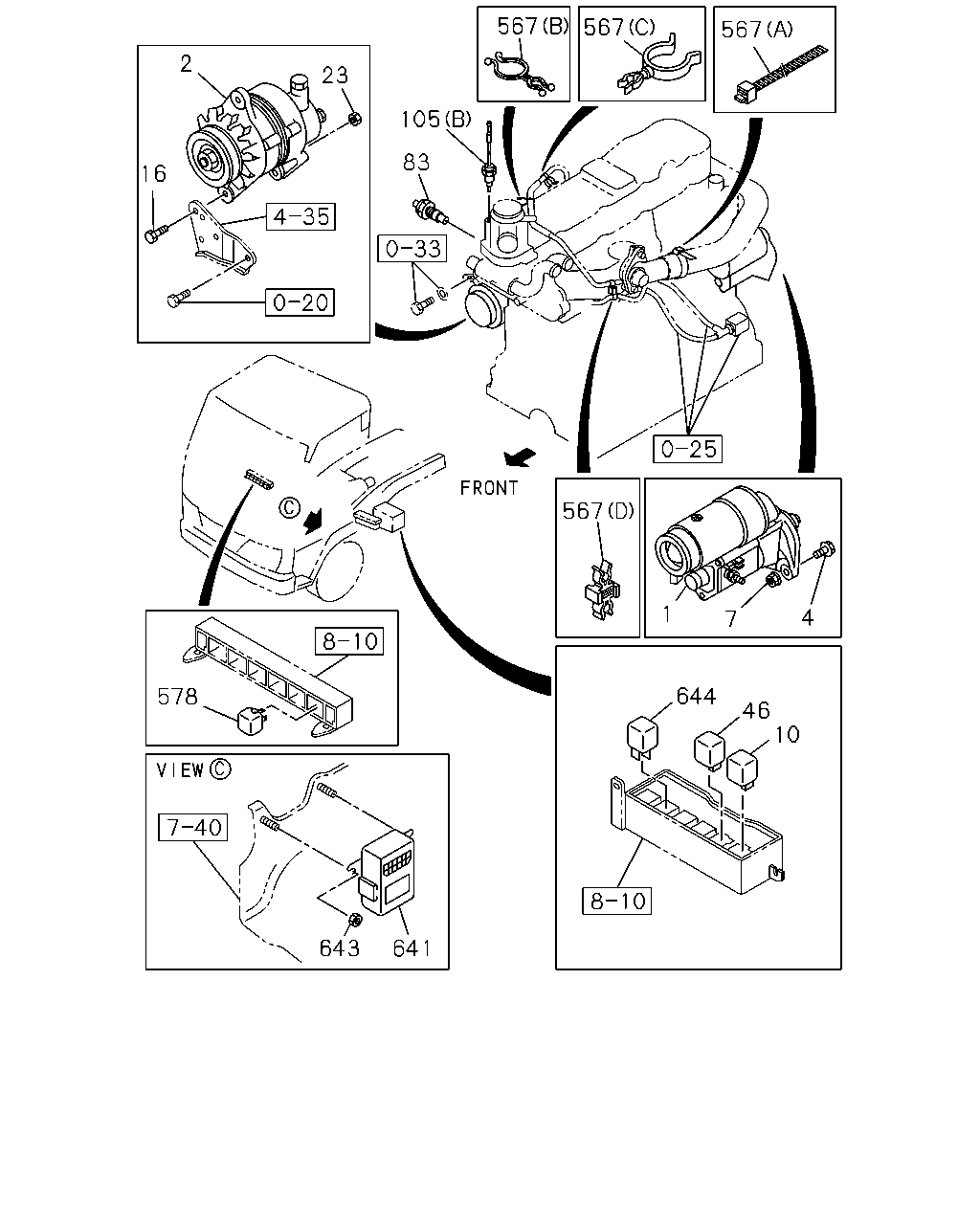

çizim 44814
567 567 567 2 23 105 83 16 567 1 4 7 644 578 46 10 643 641
BalonParca AdiParca NoAdetTipApplied Date A B C
1 02.041 STARTER ASM
SEE FIG-NO 0-65 FOR COMPONENT. 12V 2.0KW 		8-97120-356-2 01 1 9812-0105 ● ●
1 02.041 STARTER ASM
SEE FIG-NO 0-65 FOR COMPONENT. 12V 2.2KW DENSO 		8-97042-997-2 01 1 0106- ●
2 02.275 GENERATOR ASM
SEE FIG-NO 0-66 FOR COMPONENT. 12V 50A 		8-97187-657-0 01 1 9812-0105 ● ●
2 02.275 GENERATOR ASM
SEE FIG-NO 0-66 FOR COMPONENT. GENERATOR 12V80A(K97) 12V 80A 		8-97249-209-1 01 1 0106- ●
2 02.275 GENERATOR ASM
SEE FIG-NO 0-66 FOR COMPONENT. EXC. GENERATOR 12V80A(K97) 12V 60A 		8-97240-270-1 01 1 0106- ●
4 02.042 BOLT; STARTER
M12X80 		0-28081-280-0 02 1 9812-0105 ● ●
4 02.042 BOLT; STARTER
M12X40 		0-28781-240-0 02 1 0106-0111 ●
4 02.042 BOLT; STARTER
M12X35 FLANGE 		0-28781-235-0 02 1 0112- ●
7 02.042 NUT; STARTER
05.586 M12 FLANGE 		0-91150-112-0 02 1 9812-0105 ● ●
10 02.100 RELAY; STARTER
02.510 12V 80A 		8-97173-951-0 01 1 9812-0105 ● ●
10 02.100 RELAY; STARTER
02.510 12V 80A 		8-97173-951-0 01 1 0106- ●
16 02.277 BOLT; GEN
M10X130 FLANGE 		0-28086-013-0 01 1 9812-9910 ●
16 02.277 BOLT; GEN
M10X130 FLANGE 		0-28086-013-0 01 1 9911-0105 ● ●
16 02.277 BOLT; GEN
M10X130 FLANGE 		0-28086-013-0 01 1 0106- ●
16 02.277 BOLT; GEN
M8X130 FLANGE 		0-28085-813-0 01 1 9906-9910 ●
23 02.277 NUT; GEN
08.917 M10 FLANGE 		0-91150-210-0 01 1 9812-9910 ●
23 02.277 NUT; GEN
08.917 M10 FLANGE 		0-91150-210-0 01 1 9911-0105 ● ●
23 02.277 NUT; GEN
08.917 M10 FLANGE 		0-91150-210-0 01 1 0106- ●
23 02.277 NUT; GEN
01.540 M8 FLANGE 		0-91150-208-0 01 1 9906-9910 ●
46 02.510 RELAY; GLOW PLUG
12V 80A 		8-97173-951-0 02 1 9812-0105 ●
46 02.510 RELAY; GLOW PLUG
12V 80A 		8-97173-951-0 01 1 0106- ●
46 02.510 RELAY; GLOW PLUG
12V 80A 		8-97173-951-0 01 1 9906-0105 ●
83 01.150 THERMOMETER UNIT
DENSO 		8-94235-691-0 01 1 9812-0105 ● ●
83 01.150 THERMOMETER UNIT
DENSO 		8-94235-691-0 01 1 0106- ●
83 01.150 THERMOMETER UNIT
YAZAKI 		8-94237-861-0 01 1 9812-0105 ● ●
83 01.150 THERMOMETER UNIT
YAZAKI 		8-94237-861-0 01 1 0106- ●
105 01.150 SWITCH; THERMO,QOS
(B) 		8-94457-511-0 01 1 9906-0105 ●
105 01.150 SWITCH; THERMO,QOS
TURBOCHARGER<K51> CHARGE AIR COOLER<6PL> (A) 		8-94336-668-0 01 1 9906-0105 ●
567 03.726 CLIP; VAC HOSE
TURBOCHARGER<K51> EXHAUST BRAKE<NF8> EXC. CHARGE AIR COOLER<6PL> 02.559 (A) L=300 		1-09707-001-1 01 1 9906-0009 ●
567 03.726 CLIP; VAC HOSE
TURBOCHARGER<K51> EXHAUST BRAKE<NF8> EXC. CHARGE AIR COOLER<6PL> 08.852 (B) ID=8 & 16 		5-09707-032-0 01 1 9906-0105 ●
567 03.726 CLIP; VAC HOSE
TURBOCHARGER<K51> EXHAUST BRAKE<NF8> EXC. CHARGE AIR COOLER<6PL> 03.430 (C) ID=6 & 16.5 		8-94165-402-0 01 1 9906-0009 ●
567 03.726 CLIP; VAC HOSE
TURBOCHARGER<K51> EXHAUST BRAKE<NF8> EXC. CHARGE AIR COOLER<6PL> 03.483 (D) ID=6 & 6 		8-94463-708-0 02 1 9906-0009 ●
578 02.510 RELAY; CHARGE WARNING
12V 		8-97063-441-1 01 1 9812-0105 ● ●
578 02.510 RELAY; CHARGE WARNING
12V 		8-97063-441-2 01 1 0106- ●
641 02.510 TIMER; QOS 8-97215-646-0 01 1 9906-0105 ●
643 02.510 NUT; TIMER,QOS
04.594 M6 FLANGE 		0-91150-106-0 02 1 9812-0105 ● ●
644 02.510 RELAY; COLD START DEVICE
EXC. CHARGE AIR COOLER<6PL> 08.852 12V 20A 		8-97060-926-1 01 1 9906-0105 ●

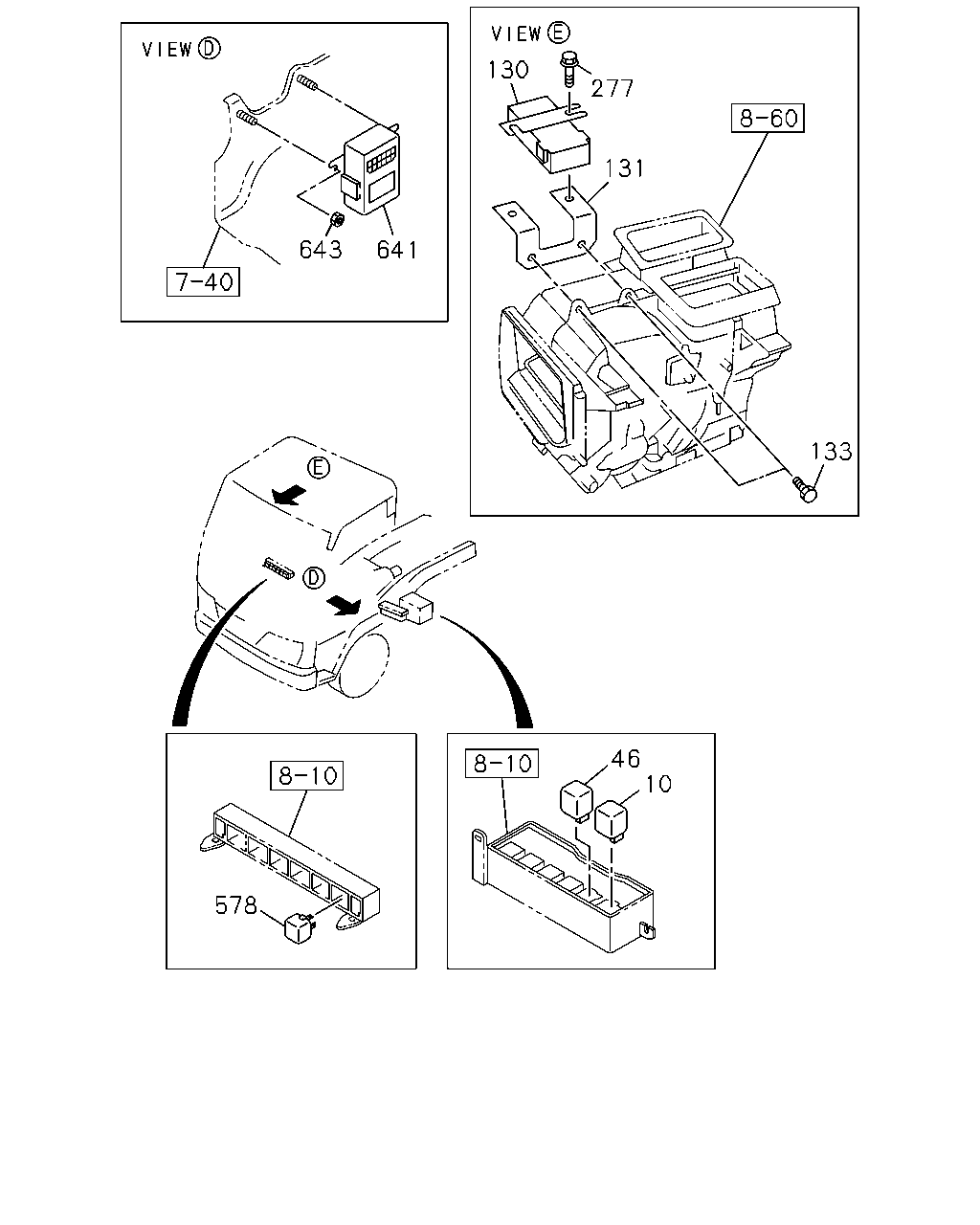

çizim 45388
130 277 131 643 641 133 46 10 578
BalonParca AdiParca NoAdetTipApplied Date A B C
10 02.100 RELAY; STARTER
02.510 12V 80A 		8-97173-951-0 01 1 9812-0105 ● ●
10 02.100 RELAY; STARTER
02.510 12V 80A 		8-97173-951-0 01 1 0106- ●
46 02.510 RELAY; GLOW PLUG
12V 80A 		8-97173-951-0 02 1 9812-0105 ●
46 02.510 RELAY; GLOW PLUG
12V 80A 		8-97173-951-0 01 1 0106- ●
46 02.510 RELAY; GLOW PLUG
12V 80A 		8-97173-951-0 01 1 9906-0105 ●
130 02.510 CONTROLLER; EGR
TURBOCHARGER<K51> CHARGE AIR COOLER<6PL> 		8-97201-734-3 01 1 9906-0105 ●
131 03.670 BRACKET; EGR
TURBOCHARGER<K51> CHARGE AIR COOLER<6PL> 		8-97217-813-1 01 1 9906-0105 ●
133 02.500 BOLT; EGR CONTROLLER
TURBOCHARGER<K51> CHARGE AIR COOLER<6PL> 04.930 M6X20 FLANGE 		0-28680-620-0 02 1 9906-0105 ●
277 02.510 BOLT; BRKT
TURBOCHARGER<K51> CHARGE AIR COOLER<6PL> 04.930 M6X20 FLANGE 		0-28680-620-0 02 1 9906-0105 ●
578 02.510 RELAY; CHARGE WARNING
12V 		8-97063-441-1 01 1 9812-0105 ● ●
578 02.510 RELAY; CHARGE WARNING
12V 		8-97063-441-2 01 1 0106- ●
641 02.510 TIMER; QOS 8-97215-646-0 01 1 9906-0105 ●
643 02.510 NUT; TIMER,QOS
04.594 M6 FLANGE 		0-91150-106-0 02 1 9812-0105 ● ●

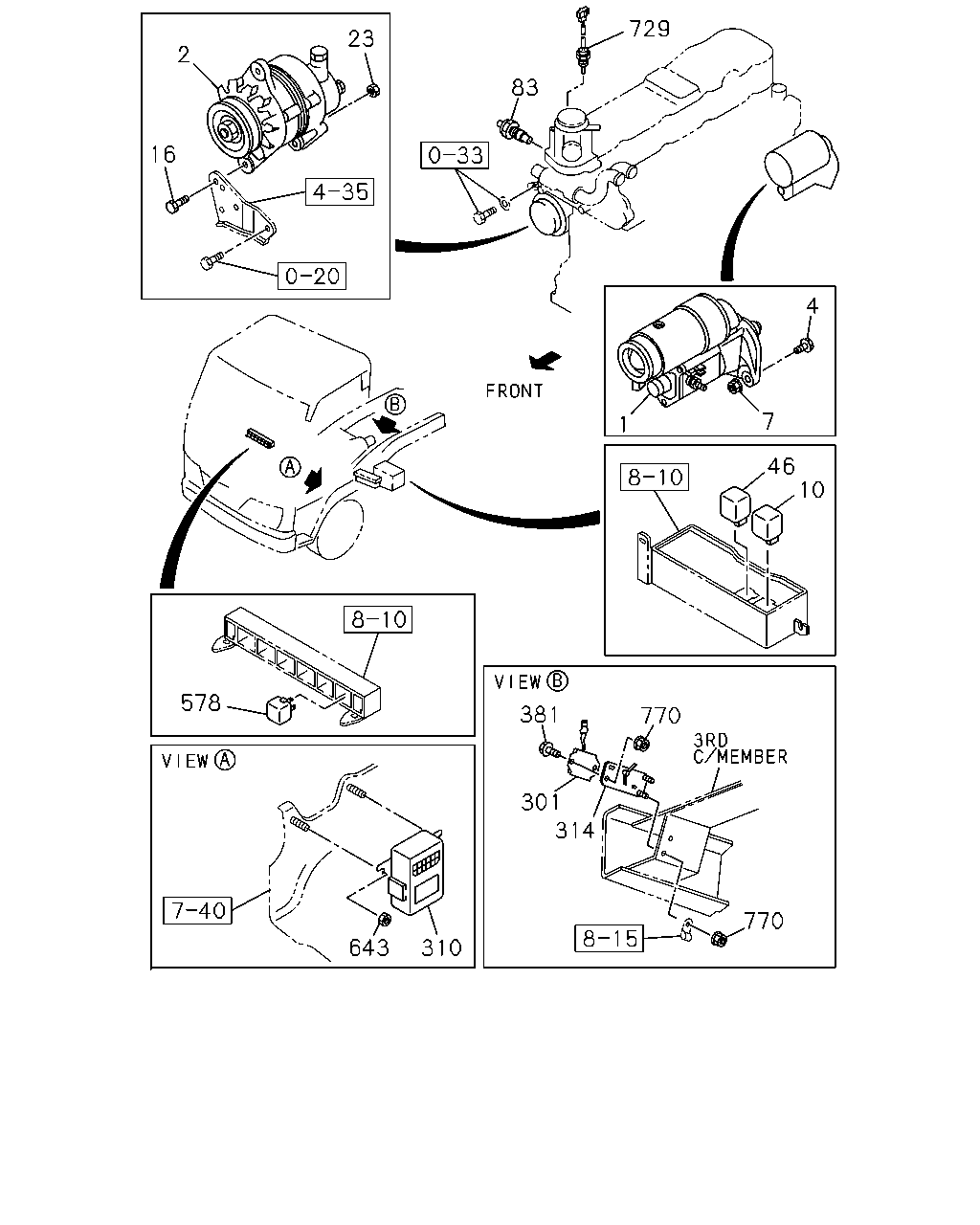

çizim 45410
729 23 2 83 16 4 7 1 46 10 578 381 770 301 314 770 643 310
BalonParca AdiParca NoAdetTipApplied Date A B C
1 02.041 STARTER ASM
SEE FIG-NO 0-65 FOR COMPONENT. 12V 2.0KW 		8-97120-356-2 01 1 9812-0105 ● ●
1 02.041 STARTER ASM
SEE FIG-NO 0-65 FOR COMPONENT. 12V 2.2KW DENSO 		8-97042-997-2 01 1 0106- ●
2 02.275 GENERATOR ASM
SEE FIG-NO 0-66 FOR COMPONENT. 12V 50A 		8-97187-657-0 01 1 9812-0105 ● ●
2 02.275 GENERATOR ASM
SEE FIG-NO 0-66 FOR COMPONENT. GENERATOR 12V80A(K97) 12V 80A 		8-97249-209-1 01 1 0106- ●
2 02.275 GENERATOR ASM
SEE FIG-NO 0-66 FOR COMPONENT. EXC. GENERATOR 12V80A(K97) 12V 60A 		8-97240-270-1 01 1 0106- ●
4 02.042 BOLT; STARTER
M12X80 		0-28081-280-0 02 1 9812-0105 ● ●
4 02.042 BOLT; STARTER
M12X40 		0-28781-240-0 02 1 0106-0111 ●
4 02.042 BOLT; STARTER
M12X35 FLANGE 		0-28781-235-0 02 1 0112- ●
7 02.042 NUT; STARTER
05.586 M12 FLANGE 		0-91150-112-0 02 1 9812-0105 ● ●
10 02.100 RELAY; STARTER
02.510 12V 80A 		8-97173-951-0 01 1 9812-0105 ● ●
10 02.100 RELAY; STARTER
02.510 12V 80A 		8-97173-951-0 01 1 0106- ●
16 02.277 BOLT; GEN
M10X130 FLANGE 		0-28086-013-0 01 1 9812-9910 ●
16 02.277 BOLT; GEN
M10X130 FLANGE 		0-28086-013-0 01 1 9911-0105 ● ●
16 02.277 BOLT; GEN
M10X130 FLANGE 		0-28086-013-0 01 1 0106- ●
16 02.277 BOLT; GEN
M8X130 FLANGE 		0-28085-813-0 01 1 9906-9910 ●
23 02.277 NUT; GEN
08.917 M10 FLANGE 		0-91150-210-0 01 1 9812-9910 ●
23 02.277 NUT; GEN
08.917 M10 FLANGE 		0-91150-210-0 01 1 9911-0105 ● ●
23 02.277 NUT; GEN
08.917 M10 FLANGE 		0-91150-210-0 01 1 0106- ●
23 02.277 NUT; GEN
01.540 M8 FLANGE 		0-91150-208-0 01 1 9906-9910 ●
46 02.510 RELAY; GLOW PLUG
12V 80A 		8-97173-951-0 02 1 9812-0105 ●
46 02.510 RELAY; GLOW PLUG
12V 80A 		8-97173-951-0 01 1 0106- ●
46 02.510 RELAY; GLOW PLUG
12V 80A 		8-97173-951-0 01 1 9906-0105 ●
83 01.150 THERMOMETER UNIT
DENSO 		8-94235-691-0 01 1 9812-0105 ● ●
83 01.150 THERMOMETER UNIT
DENSO 		8-94235-691-0 01 1 0106- ●
83 01.150 THERMOMETER UNIT
YAZAKI 		8-94237-861-0 01 1 9812-0105 ● ●
83 01.150 THERMOMETER UNIT
YAZAKI 		8-94237-861-0 01 1 0106- ●
301 02.510 RESISTOR; DROPPING 8-94389-802-1 01 1 9812-0105 ●
310 02.510 CONTROLLER; QOS 8-97047-029-0 01 1 9812-0105 ●
314 02.500 BRACKET; DROPPING RESISTOR 8-97061-910-2 01 1 9812-0105 ●
381 02.183 BOLT; DROPPING RESISTOR
02.334 M6X25 FLANGE 		0-28680-625-0 02 1 9812-0105 ●
578 02.510 RELAY; CHARGE WARNING
12V 		8-97063-441-1 01 1 9812-0105 ● ●
578 02.510 RELAY; CHARGE WARNING
12V 		8-97063-441-2 01 1 0106- ●
643 02.510 NUT; TIMER,QOS
04.594 M6 FLANGE 		0-91150-106-0 02 1 9812-0105 ● ●
729 01.150 SENSOR; QOS THERMO 8-97018-064-0 01 1 9812-0105 ●
770 02.183 NUT; DROPPING REGISTER
04.594 M6 FLANGE 		0-91150-106-0 04 1 9812-0105 ●

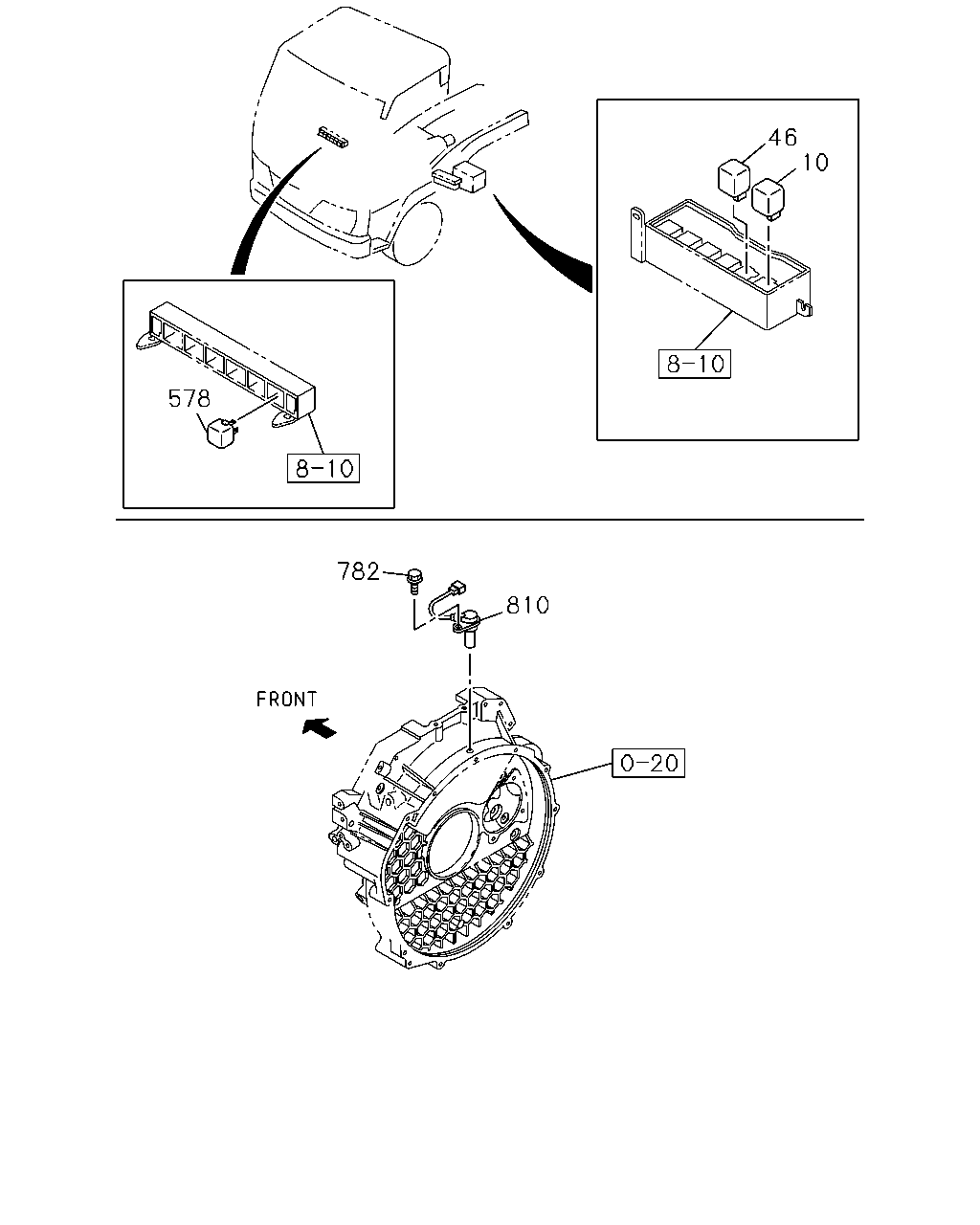

çizim 47409
46 10 578 782 810
BalonParca AdiParca NoAdetTipApplied Date A B C
10 02.100 RELAY; STARTER
02.510 12V 80A 		8-97173-951-0 01 1 9812-0105 ● ●
10 02.100 RELAY; STARTER
02.510 12V 80A 		8-97173-951-0 01 1 0106- ●
46 02.510 RELAY; GLOW PLUG
12V 80A 		8-97173-951-0 02 1 9812-0105 ●
46 02.510 RELAY; GLOW PLUG
12V 80A 		8-97173-951-0 01 1 0106- ●
46 02.510 RELAY; GLOW PLUG
12V 80A 		8-97173-951-0 01 1 9906-0105 ●
578 02.510 RELAY; CHARGE WARNING
12V 		8-97063-441-1 01 1 9812-0105 ● ●
578 02.510 RELAY; CHARGE WARNING
12V 		8-97063-441-2 01 1 0106- ●
782 02.510 BOLT; SENSOR
04.439 M6X16 FLANGE 		0-28680-616-0 01 1 0106- ●
810 01.150 SENSOR; CRANK ANGLE 8-97240-034-0 01 1 0106-0106 ●
810 01.150 SENSOR; CRANK ANGLE 8-97306-601-0 01 1 0107- ●
İpucu: çizimdeki balona veya tablodaki Balon sütununa tıkla; ilgili parçalar vurgulanır. Birden çok çizim varsa üstteki seçim kutusu/oklarla gezin.
Isuzu EPC — test · veri: yerel (eski sürüm)
