Sayfa 0-52 - Isuzu EPC

0-52 — OIL AND VACUUM PIPING; ENGINE (#21670) — 243 parça

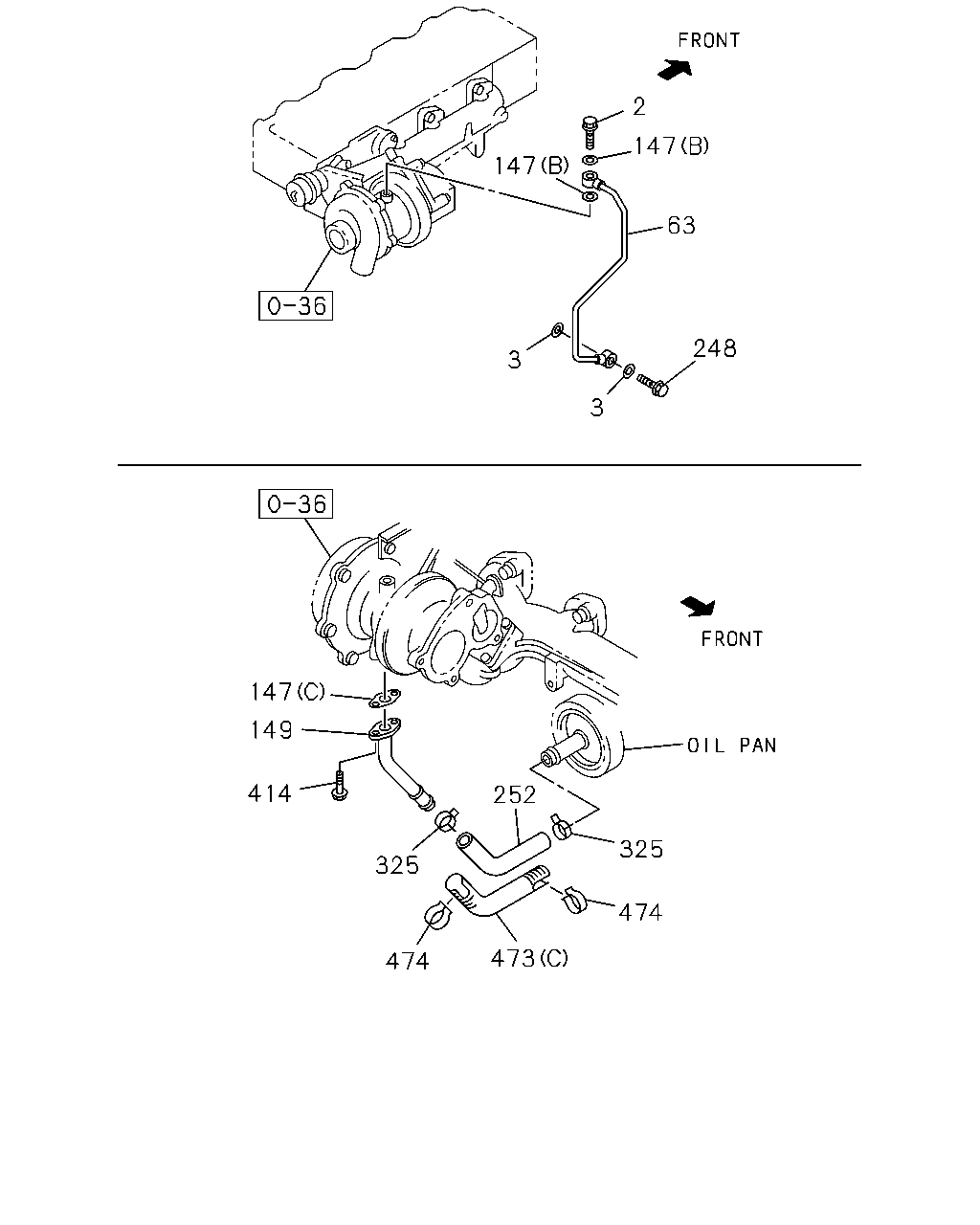

2 147 147 63 248 3 3 147 149 414 252 325 325 474 473 474

Balon	Parca Adi	Parca No	Adet	Tip	Applied Date	A	B	C
2	01.531 BOLT; EYE,OIL PIPE TURBOCHARGER<K51> 03.358 M10X23 FLANGE	8-94332-831-1	01	1	9906-0105	●
2	01.531 BOLT; EYE,OIL PIPE M10X27	8-94443-535-0	01	1	0106-		●
3	01.531 GASKET; EYE BOLT,OIL PIPE ALSO INCLUDED IN GASKET SET(ENGINE). TURBOCHARGER<K51> 08.955 ID=14.2 OD=20.0	9-09571-414-0	02	1	9906-0105	●
3	01.531 GASKET; EYE BOLT,OIL PIPE ALSO INCLUDED IN GASKET SET(ENGINE). 08.955 ID=14.2 OD=20.0	9-09571-414-0	02	1	0106-		●
63	01.519 PIPE; OIL,TURBOCHARGER FEED TURBOCHARGER<K51> CHARGE AIR COOLER<6PL>	8-97224-297-0	01	1	9906-0105	●
63	01.519 PIPE; OIL,TURBOCHARGER FEED	8-97239-974-4	01	1	0106-		●
63	01.519 PIPE; OIL,TURBOCHARGER FEED TURBOCHARGER<K51> EXC. CHARGE AIR COOLER<6PL>	8-97214-267-0	01	1	9906-0105	●
147	01.531 GASKET; OIL PIPE TO TURBOCHARGER ALSO INCLUDED IN GASKET SET(ENGINE). TURBOCHARGER<K51> 08.955 (B) ID=10.2 OD=16.0	9-09571-410-0	02	1	9906-0105	●
147	01.531 GASKET; OIL PIPE TO TURBOCHARGER ALSO INCLUDED IN GASKET SET(ENGINE). 08.955 (B) ID=10.2 OD=16.0	9-09571-410-0	02	1	0106-		●
147	01.531 GASKET; OIL PIPE TO TURBOCHARGER ALSO INCLUDED IN GASKET SET(ENGINE). TURBOCHARGER<K51> CHARGE AIR COOLER<6PL> 03.358 (A)	8-94362-672-0	01	1	9906-0105	●
147	01.531 GASKET; OIL PIPE TO TURBOCHARGER ALSO INCLUDED IN GASKET SET(ENGINE). TURBOCHARGER<K51> EXC. CHARGE AIR COOLER<6PL> (A) ID=14	8-97041-638-0	01	1	9906-0105	●
147	01.531 GASKET; OIL PIPE TO TURBOCHARGER ALSO INCLUDED IN GASKET SET(ENGINE). (C) ID=14	8-97041-638-0	01	1	0106-		●
149	01.519 PIPE; OIL RETURN,TURBOCHARGER TURBOCHARGER<K51> CHARGE AIR COOLER<6PL>	8-97192-313-0	01	1	9906-0105	●
149	01.519 PIPE; OIL RETURN,TURBOCHARGER	8-97258-833-0	01	1	0106-		●
149	01.519 PIPE; OIL RETURN,TURBOCHARGER TURBOCHARGER<K51> EXC. CHARGE AIR COOLER<6PL>	8-97166-389-0	01	1	9906-0105	●
248	01.519 CONNECTOR; TURBOCHARGER OIL FEED TURBOCHARGER<K51> 03.162 M14X27 FLANGE	1-09675-086-0	01	1	9906-0105	●
248	01.519 CONNECTOR; TURBOCHARGER OIL FEED 03.162 M14X27 FLANGE	1-09675-086-0	01	1	0106-		●
252	01.855 HOSE; RUBBER,TURBOCHARGER RETURN TURBOCHARGER<K51>	8-97176-141-0	01	1	9906-0105	●
252	01.855 HOSE; RUBBER,TURBOCHARGER RETURN	8-97258-872-1	01	1	0106-		●
325	01.519 CLIP; RUBBER HOSE,OIL RETURN TURBOCHARGER<K51> 01.166 ID=20.8	8-94125-862-1	02	1	9906-0105	●
325	01.519 CLIP; RUBBER HOSE,OIL RETURN 01.166 ID=20.8	8-94125-862-1	02	1	0106-		●
414	01.531 BOLT; OIL PIPE TURBOCHARGER<K51> 02.559 M6X20 W/LK&PL WASHER	0-50140-620-0	02	1	9906-0105	●
414	01.531 BOLT; OIL PIPE 00.738 M6X16 FLANGE	0-28080-616-0	02	1	0106-		●
473	01.540 INSULATOR; HOSE (A)	8-97101-331-0	01	1	9812-0105			●
473	01.540 INSULATOR; HOSE (A)	8-97101-331-0	01	1	0106-		●
473	01.540 INSULATOR; HOSE (B)	8-97101-333-1	01	1	9812-0105			●
473	01.540 INSULATOR; HOSE (B)	8-97101-333-1	01	1	0106-		●
473	01.540 INSULATOR; HOSE TURBOCHARGER<K51> (A)	8-97101-331-0	02	1	9906-0105	●
473	01.540 INSULATOR; HOSE (C)	8-97305-283-1	01	1	0106-		●
474	01.540 CLIP; INSULATOR	8-97101-337-0	04	1	9812-9905			●
474	01.540 CLIP; INSULATOR	8-97101-337-0	04	1	9906-0105			●
474	01.540 CLIP; INSULATOR TURBOCHARGER<K51>	8-97101-337-0	04	1	9906-0105	●
474	01.540 CLIP; INSULATOR	8-97101-337-0	06	1	0106-		●

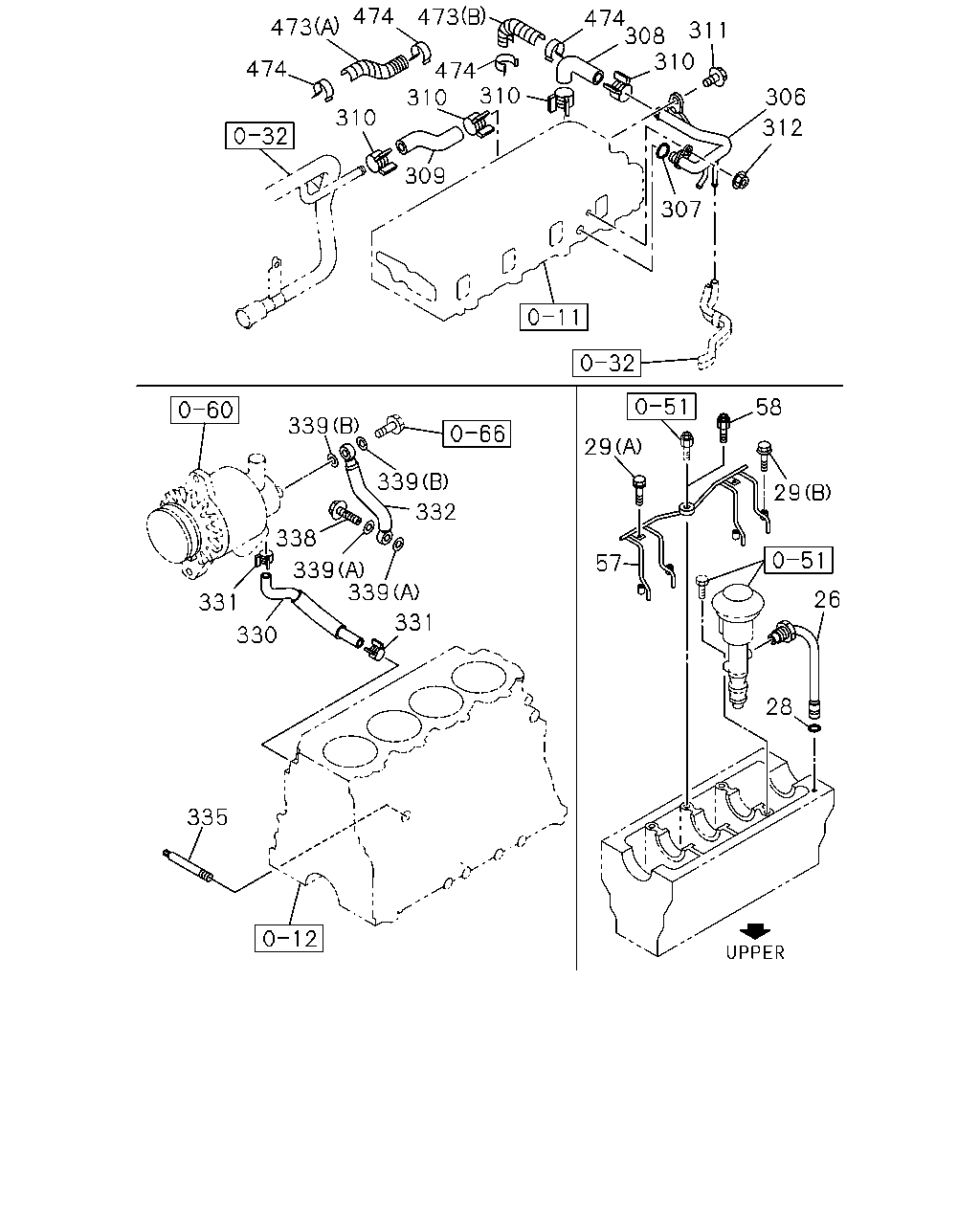

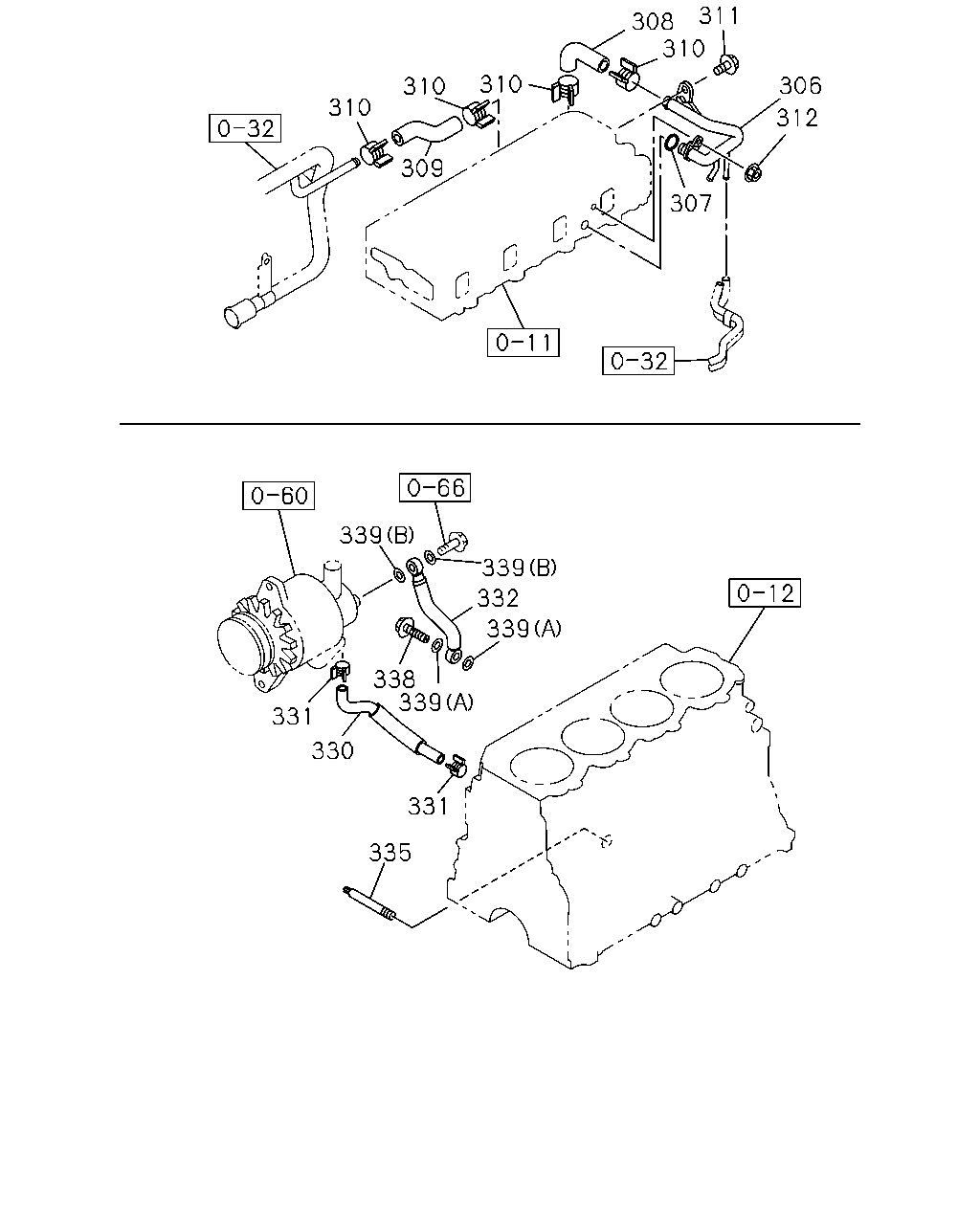

311 308 310 310 306 310 310 312 309 307 339 339 332 339 338 339 331 330 331 335

Balon	Parca Adi	Parca No	Adet	Tip	Applied Date	A	B	C
306	01.519 PIPE ASM; CYL HD TO OIL COOLER	8-97176-316-0	01	1	9812-0105			●
306	01.519 PIPE ASM; CYL HD TO OIL COOLER	8-97239-979-2	01	1	0106-		●
306	01.519 PIPE ASM; CYL HD TO OIL COOLER OIL COOLER<KC4> EXC. TURBOCHARGER<K51>	8-94450-627-0	01	1	9906-0105	●
306	01.519 PIPE ASM; CYL HD TO OIL COOLER TURBOCHARGER<K51> CHARGE AIR COOLER<6PL>	8-97225-604-0	01	1	9906-0105	●
306	01.519 PIPE ASM; CYL HD TO OIL COOLER TURBOCHARGER<K51> EXC. CHARGE AIR COOLER<6PL>	8-97169-754-0	01	1	9906-0105	●
307	01.531 GASKET; WATER PIPE	8-97124-640-0	01	1	9812-9905			●
307	01.531 GASKET; WATER PIPE	8-97124-640-0	01	1	9906-0105			●
307	01.531 GASKET; WATER PIPE OIL COOLER<KC4> EXC. TURBOCHARGER<K51>	8-97124-640-0	01	1	9906-0105	●
307	01.531 GASKET; WATER PIPE TURBOCHARGER<K51>	8-97124-640-0	01	1	9906-0105	●
307	01.531 GASKET; WATER PIPE ALSO INCLUDED IN GASKET SET(ENGINE).	8-97264-168-0	01	1	0106-		●
308	01.540 HOSE; OIL COOLER FEED	8-97078-193-3	01	1	9812-0105			●
308	01.540 HOSE; OIL COOLER FEED	8-97300-062-0	01	1	0106-		●
308	01.540 HOSE; OIL COOLER FEED OIL COOLER<KC4> EXC. TURBOCHARGER<K51>	8-94174-464-0	01	1	9906-0105	●
308	01.540 HOSE; OIL COOLER FEED TURBOCHARGER<K51>	8-94174-464-0	01	1	9906-0105	●
309	01.540 HOSE; OIL COOLER RETURN	8-97147-960-0	01	1	9812-0105			●
309	01.540 HOSE; OIL COOLER RETURN	8-97300-063-0	01	1	0106-		●
309	01.540 HOSE; OIL COOLER RETURN OIL COOLER<KC4> EXC. TURBOCHARGER<K51>	8-97022-314-0	01	1	9906-0105	●
309	01.540 HOSE; OIL COOLER RETURN TURBOCHARGER<K51> CHARGE AIR COOLER<6PL>	8-97224-318-0	01	1	9906-0105	●
309	01.540 HOSE; OIL COOLER RETURN TURBOCHARGER<K51> EXC. CHARGE AIR COOLER<6PL>	8-97176-138-0	01	1	9906-0105	●
310	01.540 CLIP; WATER HOSE FIX 01.166 ID=20.8	8-94125-862-0	04	1	9812-9905			●
310	01.540 CLIP; WATER HOSE FIX 01.166 ID=20.8	8-94125-862-1	04	1	9906-0105			●
310	01.540 CLIP; WATER HOSE FIX OIL COOLER<KC4> EXC. TURBOCHARGER<K51> 01.166 ID=20.8	8-94125-862-1	04	1	9906-0105	●
310	01.540 CLIP; WATER HOSE FIX TURBOCHARGER<K51> 01.166 ID=20.8	8-94125-862-1	04	1	9906-0105	●
310	01.540 CLIP; WATER HOSE FIX 01.166 ID=20.8	8-94125-862-1	04	1	0106-		●
311	01.531 BOLT; PIPE FIX 00.662 M8X14 FLANGE	0-28080-814-0	01	1	9812-9905			●
311	01.531 BOLT; PIPE FIX 00.662 M8X14 FLANGE	0-28080-814-0	01	1	9906-0105			●
311	01.531 BOLT; PIPE FIX OIL COOLER<KC4> EXC. TURBOCHARGER<K51> 00.662 M8X14 FLANGE	0-28080-814-0	01	1	9906-0105	●
311	01.531 BOLT; PIPE FIX TURBOCHARGER<K51> 00.662 M8X14 FLANGE	0-28080-814-0	01	1	9906-0105	●
311	01.531 BOLT; PIPE FIX 00.662 M8X14 FLANGE	0-28080-814-0	01	1	0106-		●
312	01.531 NUT; PIPE FIX 00.854 M8 FLANGE	5-09440-005-0	01	1	9812-9905			●
312	01.531 NUT; PIPE FIX 00.854 M8 FLANGE	5-09440-005-0	01	1	9906-0105			●
312	01.531 NUT; PIPE FIX OIL COOLER<KC4> EXC. TURBOCHARGER<K51> 00.854 M8 FLANGE	5-09440-005-0	01	1	9906-0105	●
312	01.531 NUT; PIPE FIX TURBOCHARGER<K51> 00.854 M8 FLANGE	5-09440-005-0	01	1	9906-0105	●
312	01.531 NUT; PIPE FIX 00.854 M8 FLANGE	5-09440-005-0	01	1	0106-		●
330	03.278 HOSE; VAC PUMP,RETURN	8-97073-920-1	01	1	9812-0105	●		●
330	03.278 HOSE; VAC PUMP,RETURN	8-97073-920-1	01	1	0106-		●
331	03.278 CLAMP; VAC HOSE,PUMP RETURN	8-97108-102-0	02	1	9812-0105	●		●
331	03.278 CLAMP; VAC HOSE,PUMP RETURN	8-97108-102-0	02	1	0106-		●
332	01.519 PIPE; OIL,C/BL TO VAC PUMP	8-94443-644-1	01	1	9812-0105	●		●
332	01.519 PIPE; OIL,C/BL TO VAC PUMP	8-94443-644-1	01	1	0106-		●
335	01.531 STOPPER; OIL PIPE	8-97203-568-0	01	1	9812-0105	●		●
335	01.531 STOPPER; OIL PIPE	8-97203-568-0	01	1	0106-		●
338	01.531 BOLT; JOINT,OIL PIPE M8X20 EYE-BOLT	5-09675-018-1	01	1	9812-0105	●		●
338	01.531 BOLT; JOINT,OIL PIPE M8X20 EYE-BOLT	5-09675-018-1	01	1	0106-		●
339	01.531 GASKET; OIL PIPE ALSO INCLUDED IN GASKET SET(ENGINE). 05.398 (A) ID=8.2 OD=14.0 T=1.0	9-09571-408-0	02	1	9812-0105	●		●
339	01.531 GASKET; OIL PIPE ALSO INCLUDED IN GASKET SET(ENGINE). 05.398 (A) ID=8.2 OD=14.0 T=1.0	9-09571-408-0	02	1	0106-		●
339	01.531 GASKET; OIL PIPE ALSO INCLUDED IN GASKET SET(ENGINE). 08.955 (B) ID=10.2 OD=16.0	9-09571-410-0	02	1	9812-0105	●		●
339	01.531 GASKET; OIL PIPE ALSO INCLUDED IN GASKET SET(ENGINE). 08.955 (B) ID=10.2 OD=16.0	9-09571-410-0	02	1	0106-		●

474 473 474 308 310 473 311 474 474 306 310 312 309 307 58 339 29 339 29 332 338 57 339 339 26 331 331 330 28 335 310 310

Balon	Parca Adi	Parca No	Adet	Tip	Applied Date	A	B	C
26	01.519 PIPE; OIL,PUMP TO C/BL	8-97080-301-0	01	1	9812-0105	●		●
26	01.519 PIPE; OIL,PUMP TO C/BL	8-97080-301-2	01	1	0106-		●
28	01.531 GASKET; OIL PIPE ALSO INCLUDED IN GASKET SET(ENGINE). 01.516 ID=11	5-09623-002-0	02	1	9812-0105	●		●
28	01.531 GASKET; OIL PIPE ALSO INCLUDED IN GASKET SET(ENGINE). 01.516 ID=11	5-09623-002-0	02	1	0106-		●
29	01.531 BOLT; OIL PIPE,OIL JET 00.206 (A) M8X10 FLANGE	0-28080-810-0	02	1	9812-9905			●
29	01.531 BOLT; OIL PIPE,OIL JET 00.206 (A) M8X10 FLANGE	0-28080-810-0	02	1	9906-0105			●
29	01.531 BOLT; OIL PIPE,OIL JET TURBOCHARGER<K51> 00.206 (A) M8X10 FLANGE	0-28080-810-0	02	1	9906-0105	●
29	01.531 BOLT; OIL PIPE,OIL JET 00.206 (A) M8X10 FLANGE	0-28080-810-0	01	1	0106-		●
29	01.531 BOLT; OIL PIPE,OIL JET 01.540 (B) M6X25 W/LK&PL WASHER	0-50140-625-0	04	1	9812-9905			●
29	01.531 BOLT; OIL PIPE,OIL JET 01.540 (B) M6X25 W/LK&PL WASHER	0-50140-625-0	04	1	9906-0105			●
29	01.531 BOLT; OIL PIPE,OIL JET TURBOCHARGER<K51> 01.540 (B) M6X25 W/LK&PL WASHER	0-50140-625-0	04	1	9906-0105	●
29	01.531 BOLT; OIL PIPE,OIL JET (B) M6X20	8-97117-298-1	04	1	0106-		●
57	01.519 PIPE; OIL,OIL JET	8-97043-741-1	01	1	9812-0105			●
57	01.519 PIPE; OIL,OIL JET	8-97116-971-1	01	1	0106-		●
57	01.519 PIPE; OIL,OIL JET TURBOCHARGER<K51>	8-94469-709-2	01	1	9906-0105	●
58	01.531 VALVE; RELIEF,OIL JET,PISTON COO TURBOCHARGER<K51>	8-97145-612-0	01	1	9906-0104	●
58	01.531 VALVE; RELIEF,OIL JET,PISTON COO TURBOCHARGER<K51> 01.639	8-97311-976-0	01	1	0105-0105	●
58	01.531 VALVE; RELIEF,OIL JET,PISTON COO	8-97239-048-0	01	1	0106-		●
306	01.519 PIPE ASM; CYL HD TO OIL COOLER	8-97176-316-0	01	1	9812-0105			●
306	01.519 PIPE ASM; CYL HD TO OIL COOLER	8-97239-979-2	01	1	0106-		●
306	01.519 PIPE ASM; CYL HD TO OIL COOLER OIL COOLER<KC4> EXC. TURBOCHARGER<K51>	8-94450-627-0	01	1	9906-0105	●
306	01.519 PIPE ASM; CYL HD TO OIL COOLER TURBOCHARGER<K51> CHARGE AIR COOLER<6PL>	8-97225-604-0	01	1	9906-0105	●
306	01.519 PIPE ASM; CYL HD TO OIL COOLER TURBOCHARGER<K51> EXC. CHARGE AIR COOLER<6PL>	8-97169-754-0	01	1	9906-0105	●
307	01.531 GASKET; WATER PIPE	8-97124-640-0	01	1	9812-9905			●
307	01.531 GASKET; WATER PIPE	8-97124-640-0	01	1	9906-0105			●
307	01.531 GASKET; WATER PIPE OIL COOLER<KC4> EXC. TURBOCHARGER<K51>	8-97124-640-0	01	1	9906-0105	●
307	01.531 GASKET; WATER PIPE TURBOCHARGER<K51>	8-97124-640-0	01	1	9906-0105	●
307	01.531 GASKET; WATER PIPE ALSO INCLUDED IN GASKET SET(ENGINE).	8-97264-168-0	01	1	0106-		●
308	01.540 HOSE; OIL COOLER FEED	8-97078-193-3	01	1	9812-0105			●
308	01.540 HOSE; OIL COOLER FEED	8-97300-062-0	01	1	0106-		●
308	01.540 HOSE; OIL COOLER FEED OIL COOLER<KC4> EXC. TURBOCHARGER<K51>	8-94174-464-0	01	1	9906-0105	●
308	01.540 HOSE; OIL COOLER FEED TURBOCHARGER<K51>	8-94174-464-0	01	1	9906-0105	●
309	01.540 HOSE; OIL COOLER RETURN	8-97147-960-0	01	1	9812-0105			●
309	01.540 HOSE; OIL COOLER RETURN	8-97300-063-0	01	1	0106-		●
309	01.540 HOSE; OIL COOLER RETURN OIL COOLER<KC4> EXC. TURBOCHARGER<K51>	8-97022-314-0	01	1	9906-0105	●
309	01.540 HOSE; OIL COOLER RETURN TURBOCHARGER<K51> CHARGE AIR COOLER<6PL>	8-97224-318-0	01	1	9906-0105	●
309	01.540 HOSE; OIL COOLER RETURN TURBOCHARGER<K51> EXC. CHARGE AIR COOLER<6PL>	8-97176-138-0	01	1	9906-0105	●
310	01.540 CLIP; WATER HOSE FIX 01.166 ID=20.8	8-94125-862-0	04	1	9812-9905			●
310	01.540 CLIP; WATER HOSE FIX 01.166 ID=20.8	8-94125-862-1	04	1	9906-0105			●
310	01.540 CLIP; WATER HOSE FIX OIL COOLER<KC4> EXC. TURBOCHARGER<K51> 01.166 ID=20.8	8-94125-862-1	04	1	9906-0105	●
310	01.540 CLIP; WATER HOSE FIX TURBOCHARGER<K51> 01.166 ID=20.8	8-94125-862-1	04	1	9906-0105	●
310	01.540 CLIP; WATER HOSE FIX 01.166 ID=20.8	8-94125-862-1	04	1	0106-		●
311	01.531 BOLT; PIPE FIX 00.662 M8X14 FLANGE	0-28080-814-0	01	1	9812-9905			●
311	01.531 BOLT; PIPE FIX 00.662 M8X14 FLANGE	0-28080-814-0	01	1	9906-0105			●
311	01.531 BOLT; PIPE FIX OIL COOLER<KC4> EXC. TURBOCHARGER<K51> 00.662 M8X14 FLANGE	0-28080-814-0	01	1	9906-0105	●
311	01.531 BOLT; PIPE FIX TURBOCHARGER<K51> 00.662 M8X14 FLANGE	0-28080-814-0	01	1	9906-0105	●
311	01.531 BOLT; PIPE FIX 00.662 M8X14 FLANGE	0-28080-814-0	01	1	0106-		●
312	01.531 NUT; PIPE FIX 00.854 M8 FLANGE	5-09440-005-0	01	1	9812-9905			●
312	01.531 NUT; PIPE FIX 00.854 M8 FLANGE	5-09440-005-0	01	1	9906-0105			●
312	01.531 NUT; PIPE FIX OIL COOLER<KC4> EXC. TURBOCHARGER<K51> 00.854 M8 FLANGE	5-09440-005-0	01	1	9906-0105	●
312	01.531 NUT; PIPE FIX TURBOCHARGER<K51> 00.854 M8 FLANGE	5-09440-005-0	01	1	9906-0105	●
312	01.531 NUT; PIPE FIX 00.854 M8 FLANGE	5-09440-005-0	01	1	0106-		●
330	03.278 HOSE; VAC PUMP,RETURN	8-97073-920-1	01	1	9812-0105	●		●
330	03.278 HOSE; VAC PUMP,RETURN	8-97073-920-1	01	1	0106-		●
331	03.278 CLAMP; VAC HOSE,PUMP RETURN	8-97108-102-0	02	1	9812-0105	●		●
331	03.278 CLAMP; VAC HOSE,PUMP RETURN	8-97108-102-0	02	1	0106-		●
332	01.519 PIPE; OIL,C/BL TO VAC PUMP	8-94443-644-1	01	1	9812-0105	●		●
332	01.519 PIPE; OIL,C/BL TO VAC PUMP	8-94443-644-1	01	1	0106-		●
335	01.531 STOPPER; OIL PIPE	8-97203-568-0	01	1	9812-0105	●		●
335	01.531 STOPPER; OIL PIPE	8-97203-568-0	01	1	0106-		●
338	01.531 BOLT; JOINT,OIL PIPE M8X20 EYE-BOLT	5-09675-018-1	01	1	9812-0105	●		●
338	01.531 BOLT; JOINT,OIL PIPE M8X20 EYE-BOLT	5-09675-018-1	01	1	0106-		●
339	01.531 GASKET; OIL PIPE ALSO INCLUDED IN GASKET SET(ENGINE). 05.398 (A) ID=8.2 OD=14.0 T=1.0	9-09571-408-0	02	1	9812-0105	●		●
339	01.531 GASKET; OIL PIPE ALSO INCLUDED IN GASKET SET(ENGINE). 05.398 (A) ID=8.2 OD=14.0 T=1.0	9-09571-408-0	02	1	0106-		●
339	01.531 GASKET; OIL PIPE ALSO INCLUDED IN GASKET SET(ENGINE). 08.955 (B) ID=10.2 OD=16.0	9-09571-410-0	02	1	9812-0105	●		●
339	01.531 GASKET; OIL PIPE ALSO INCLUDED IN GASKET SET(ENGINE). 08.955 (B) ID=10.2 OD=16.0	9-09571-410-0	02	1	0106-		●
473	01.540 INSULATOR; HOSE (A)	8-97101-331-0	01	1	9812-0105			●
473	01.540 INSULATOR; HOSE (A)	8-97101-331-0	01	1	0106-		●
473	01.540 INSULATOR; HOSE (B)	8-97101-333-1	01	1	9812-0105			●
473	01.540 INSULATOR; HOSE (B)	8-97101-333-1	01	1	0106-		●
473	01.540 INSULATOR; HOSE TURBOCHARGER<K51> (A)	8-97101-331-0	02	1	9906-0105	●
473	01.540 INSULATOR; HOSE (C)	8-97305-283-1	01	1	0106-		●
474	01.540 CLIP; INSULATOR	8-97101-337-0	04	1	9812-9905			●
474	01.540 CLIP; INSULATOR	8-97101-337-0	04	1	9906-0105			●
474	01.540 CLIP; INSULATOR TURBOCHARGER<K51>	8-97101-337-0	04	1	9906-0105	●
474	01.540 CLIP; INSULATOR	8-97101-337-0	06	1	0106-		●

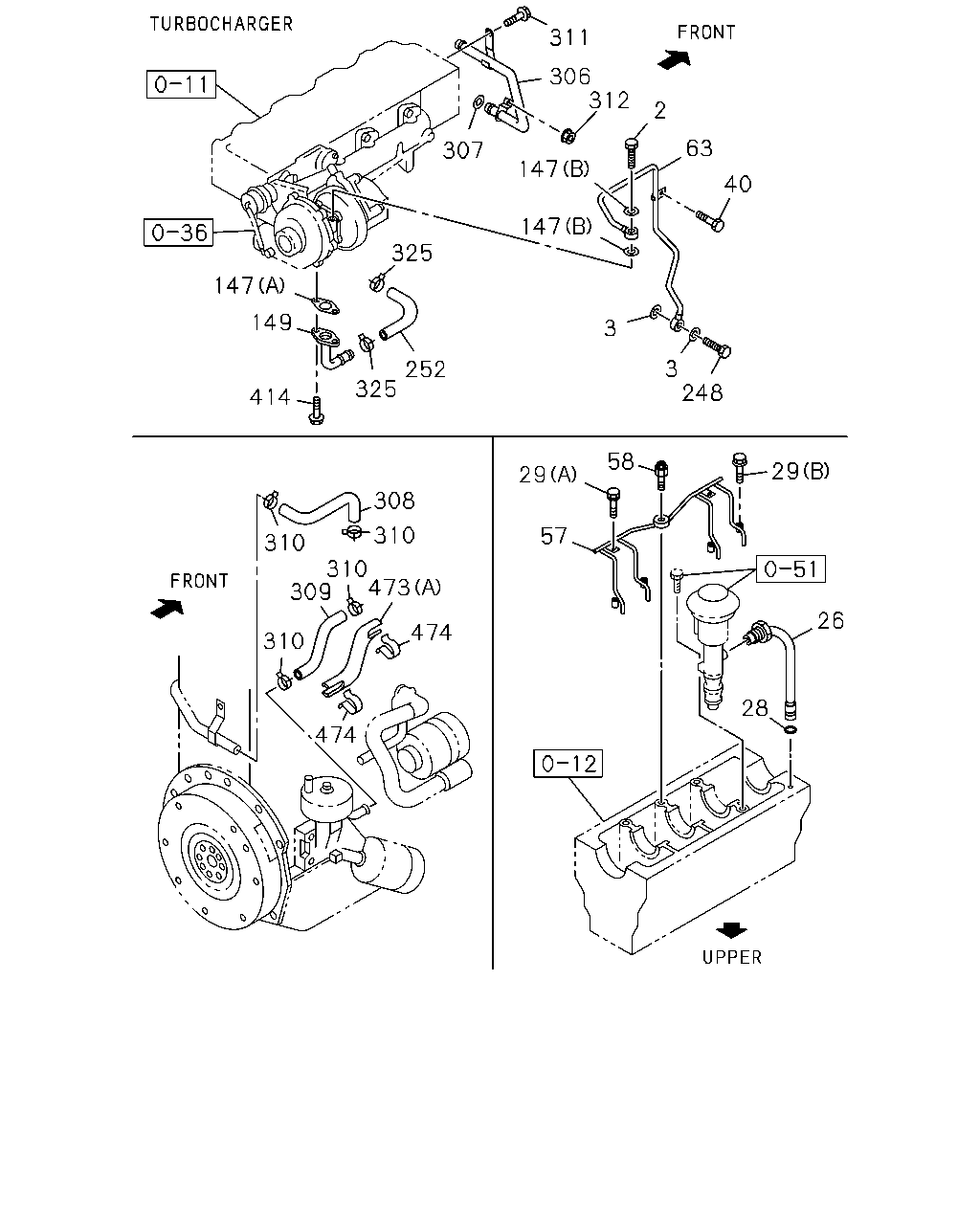

311 306 312 2 63 307 147 40 147 325 147 149 3 3 248 252 325 414 58 29 29 308 310 57 310 310 309 473 26 474 310 28 474

Balon	Parca Adi	Parca No	Adet	Tip	Applied Date	A	B	C
2	01.531 BOLT; EYE,OIL PIPE TURBOCHARGER<K51> 03.358 M10X23 FLANGE	8-94332-831-1	01	1	9906-0105	●
2	01.531 BOLT; EYE,OIL PIPE M10X27	8-94443-535-0	01	1	0106-		●
3	01.531 GASKET; EYE BOLT,OIL PIPE ALSO INCLUDED IN GASKET SET(ENGINE). TURBOCHARGER<K51> 08.955 ID=14.2 OD=20.0	9-09571-414-0	02	1	9906-0105	●
3	01.531 GASKET; EYE BOLT,OIL PIPE ALSO INCLUDED IN GASKET SET(ENGINE). 08.955 ID=14.2 OD=20.0	9-09571-414-0	02	1	0106-		●
26	01.519 PIPE; OIL,PUMP TO C/BL	8-97080-301-0	01	1	9812-0105	●		●
26	01.519 PIPE; OIL,PUMP TO C/BL	8-97080-301-2	01	1	0106-		●
28	01.531 GASKET; OIL PIPE ALSO INCLUDED IN GASKET SET(ENGINE). 01.516 ID=11	5-09623-002-0	02	1	9812-0105	●		●
28	01.531 GASKET; OIL PIPE ALSO INCLUDED IN GASKET SET(ENGINE). 01.516 ID=11	5-09623-002-0	02	1	0106-		●
29	01.531 BOLT; OIL PIPE,OIL JET 00.206 (A) M8X10 FLANGE	0-28080-810-0	02	1	9812-9905			●
29	01.531 BOLT; OIL PIPE,OIL JET 00.206 (A) M8X10 FLANGE	0-28080-810-0	02	1	9906-0105			●
29	01.531 BOLT; OIL PIPE,OIL JET TURBOCHARGER<K51> 00.206 (A) M8X10 FLANGE	0-28080-810-0	02	1	9906-0105	●
29	01.531 BOLT; OIL PIPE,OIL JET 00.206 (A) M8X10 FLANGE	0-28080-810-0	01	1	0106-		●
29	01.531 BOLT; OIL PIPE,OIL JET 01.540 (B) M6X25 W/LK&PL WASHER	0-50140-625-0	04	1	9812-9905			●
29	01.531 BOLT; OIL PIPE,OIL JET 01.540 (B) M6X25 W/LK&PL WASHER	0-50140-625-0	04	1	9906-0105			●
29	01.531 BOLT; OIL PIPE,OIL JET TURBOCHARGER<K51> 01.540 (B) M6X25 W/LK&PL WASHER	0-50140-625-0	04	1	9906-0105	●
29	01.531 BOLT; OIL PIPE,OIL JET (B) M6X20	8-97117-298-1	04	1	0106-		●
40	01.531 BOLT; OIL PIPE TURBOCHARGER<K51> 02.500 M6X10 FLANGE	0-28080-610-0	01	1	9906-0105	●
57	01.519 PIPE; OIL,OIL JET	8-97043-741-1	01	1	9812-0105			●
57	01.519 PIPE; OIL,OIL JET	8-97116-971-1	01	1	0106-		●
57	01.519 PIPE; OIL,OIL JET TURBOCHARGER<K51>	8-94469-709-2	01	1	9906-0105	●
58	01.531 VALVE; RELIEF,OIL JET,PISTON COO TURBOCHARGER<K51>	8-97145-612-0	01	1	9906-0104	●
58	01.531 VALVE; RELIEF,OIL JET,PISTON COO TURBOCHARGER<K51> 01.639	8-97311-976-0	01	1	0105-0105	●
58	01.531 VALVE; RELIEF,OIL JET,PISTON COO	8-97239-048-0	01	1	0106-		●
63	01.519 PIPE; OIL,TURBOCHARGER FEED TURBOCHARGER<K51> CHARGE AIR COOLER<6PL>	8-97224-297-0	01	1	9906-0105	●
63	01.519 PIPE; OIL,TURBOCHARGER FEED	8-97239-974-4	01	1	0106-		●
63	01.519 PIPE; OIL,TURBOCHARGER FEED TURBOCHARGER<K51> EXC. CHARGE AIR COOLER<6PL>	8-97214-267-0	01	1	9906-0105	●
147	01.531 GASKET; OIL PIPE TO TURBOCHARGER ALSO INCLUDED IN GASKET SET(ENGINE). TURBOCHARGER<K51> 08.955 (B) ID=10.2 OD=16.0	9-09571-410-0	02	1	9906-0105	●
147	01.531 GASKET; OIL PIPE TO TURBOCHARGER ALSO INCLUDED IN GASKET SET(ENGINE). 08.955 (B) ID=10.2 OD=16.0	9-09571-410-0	02	1	0106-		●
147	01.531 GASKET; OIL PIPE TO TURBOCHARGER ALSO INCLUDED IN GASKET SET(ENGINE). TURBOCHARGER<K51> CHARGE AIR COOLER<6PL> 03.358 (A)	8-94362-672-0	01	1	9906-0105	●
147	01.531 GASKET; OIL PIPE TO TURBOCHARGER ALSO INCLUDED IN GASKET SET(ENGINE). TURBOCHARGER<K51> EXC. CHARGE AIR COOLER<6PL> (A) ID=14	8-97041-638-0	01	1	9906-0105	●
147	01.531 GASKET; OIL PIPE TO TURBOCHARGER ALSO INCLUDED IN GASKET SET(ENGINE). (C) ID=14	8-97041-638-0	01	1	0106-		●
149	01.519 PIPE; OIL RETURN,TURBOCHARGER TURBOCHARGER<K51> CHARGE AIR COOLER<6PL>	8-97192-313-0	01	1	9906-0105	●
149	01.519 PIPE; OIL RETURN,TURBOCHARGER	8-97258-833-0	01	1	0106-		●
149	01.519 PIPE; OIL RETURN,TURBOCHARGER TURBOCHARGER<K51> EXC. CHARGE AIR COOLER<6PL>	8-97166-389-0	01	1	9906-0105	●
248	01.519 CONNECTOR; TURBOCHARGER OIL FEED TURBOCHARGER<K51> 03.162 M14X27 FLANGE	1-09675-086-0	01	1	9906-0105	●
248	01.519 CONNECTOR; TURBOCHARGER OIL FEED 03.162 M14X27 FLANGE	1-09675-086-0	01	1	0106-		●
252	01.855 HOSE; RUBBER,TURBOCHARGER RETURN TURBOCHARGER<K51>	8-97176-141-0	01	1	9906-0105	●
252	01.855 HOSE; RUBBER,TURBOCHARGER RETURN	8-97258-872-1	01	1	0106-		●
306	01.519 PIPE ASM; CYL HD TO OIL COOLER	8-97176-316-0	01	1	9812-0105			●
306	01.519 PIPE ASM; CYL HD TO OIL COOLER	8-97239-979-2	01	1	0106-		●
306	01.519 PIPE ASM; CYL HD TO OIL COOLER OIL COOLER<KC4> EXC. TURBOCHARGER<K51>	8-94450-627-0	01	1	9906-0105	●
306	01.519 PIPE ASM; CYL HD TO OIL COOLER TURBOCHARGER<K51> CHARGE AIR COOLER<6PL>	8-97225-604-0	01	1	9906-0105	●
306	01.519 PIPE ASM; CYL HD TO OIL COOLER TURBOCHARGER<K51> EXC. CHARGE AIR COOLER<6PL>	8-97169-754-0	01	1	9906-0105	●
307	01.531 GASKET; WATER PIPE	8-97124-640-0	01	1	9812-9905			●
307	01.531 GASKET; WATER PIPE	8-97124-640-0	01	1	9906-0105			●
307	01.531 GASKET; WATER PIPE OIL COOLER<KC4> EXC. TURBOCHARGER<K51>	8-97124-640-0	01	1	9906-0105	●
307	01.531 GASKET; WATER PIPE TURBOCHARGER<K51>	8-97124-640-0	01	1	9906-0105	●
307	01.531 GASKET; WATER PIPE ALSO INCLUDED IN GASKET SET(ENGINE).	8-97264-168-0	01	1	0106-		●
308	01.540 HOSE; OIL COOLER FEED	8-97078-193-3	01	1	9812-0105			●
308	01.540 HOSE; OIL COOLER FEED	8-97300-062-0	01	1	0106-		●
308	01.540 HOSE; OIL COOLER FEED OIL COOLER<KC4> EXC. TURBOCHARGER<K51>	8-94174-464-0	01	1	9906-0105	●
308	01.540 HOSE; OIL COOLER FEED TURBOCHARGER<K51>	8-94174-464-0	01	1	9906-0105	●
309	01.540 HOSE; OIL COOLER RETURN	8-97147-960-0	01	1	9812-0105			●
309	01.540 HOSE; OIL COOLER RETURN	8-97300-063-0	01	1	0106-		●
309	01.540 HOSE; OIL COOLER RETURN OIL COOLER<KC4> EXC. TURBOCHARGER<K51>	8-97022-314-0	01	1	9906-0105	●
309	01.540 HOSE; OIL COOLER RETURN TURBOCHARGER<K51> CHARGE AIR COOLER<6PL>	8-97224-318-0	01	1	9906-0105	●
309	01.540 HOSE; OIL COOLER RETURN TURBOCHARGER<K51> EXC. CHARGE AIR COOLER<6PL>	8-97176-138-0	01	1	9906-0105	●
310	01.540 CLIP; WATER HOSE FIX 01.166 ID=20.8	8-94125-862-0	04	1	9812-9905			●
310	01.540 CLIP; WATER HOSE FIX 01.166 ID=20.8	8-94125-862-1	04	1	9906-0105			●
310	01.540 CLIP; WATER HOSE FIX OIL COOLER<KC4> EXC. TURBOCHARGER<K51> 01.166 ID=20.8	8-94125-862-1	04	1	9906-0105	●
310	01.540 CLIP; WATER HOSE FIX TURBOCHARGER<K51> 01.166 ID=20.8	8-94125-862-1	04	1	9906-0105	●
310	01.540 CLIP; WATER HOSE FIX 01.166 ID=20.8	8-94125-862-1	04	1	0106-		●
311	01.531 BOLT; PIPE FIX 00.662 M8X14 FLANGE	0-28080-814-0	01	1	9812-9905			●
311	01.531 BOLT; PIPE FIX 00.662 M8X14 FLANGE	0-28080-814-0	01	1	9906-0105			●
311	01.531 BOLT; PIPE FIX OIL COOLER<KC4> EXC. TURBOCHARGER<K51> 00.662 M8X14 FLANGE	0-28080-814-0	01	1	9906-0105	●
311	01.531 BOLT; PIPE FIX TURBOCHARGER<K51> 00.662 M8X14 FLANGE	0-28080-814-0	01	1	9906-0105	●
311	01.531 BOLT; PIPE FIX 00.662 M8X14 FLANGE	0-28080-814-0	01	1	0106-		●
312	01.531 NUT; PIPE FIX 00.854 M8 FLANGE	5-09440-005-0	01	1	9812-9905			●
312	01.531 NUT; PIPE FIX 00.854 M8 FLANGE	5-09440-005-0	01	1	9906-0105			●
312	01.531 NUT; PIPE FIX OIL COOLER<KC4> EXC. TURBOCHARGER<K51> 00.854 M8 FLANGE	5-09440-005-0	01	1	9906-0105	●
312	01.531 NUT; PIPE FIX TURBOCHARGER<K51> 00.854 M8 FLANGE	5-09440-005-0	01	1	9906-0105	●
312	01.531 NUT; PIPE FIX 00.854 M8 FLANGE	5-09440-005-0	01	1	0106-		●
325	01.519 CLIP; RUBBER HOSE,OIL RETURN TURBOCHARGER<K51> 01.166 ID=20.8	8-94125-862-1	02	1	9906-0105	●
325	01.519 CLIP; RUBBER HOSE,OIL RETURN 01.166 ID=20.8	8-94125-862-1	02	1	0106-		●
414	01.531 BOLT; OIL PIPE TURBOCHARGER<K51> 02.559 M6X20 W/LK&PL WASHER	0-50140-620-0	02	1	9906-0105	●
414	01.531 BOLT; OIL PIPE 00.738 M6X16 FLANGE	0-28080-616-0	02	1	0106-		●
473	01.540 INSULATOR; HOSE (A)	8-97101-331-0	01	1	9812-0105			●
473	01.540 INSULATOR; HOSE (A)	8-97101-331-0	01	1	0106-		●
473	01.540 INSULATOR; HOSE (B)	8-97101-333-1	01	1	9812-0105			●
473	01.540 INSULATOR; HOSE (B)	8-97101-333-1	01	1	0106-		●
473	01.540 INSULATOR; HOSE TURBOCHARGER<K51> (A)	8-97101-331-0	02	1	9906-0105	●
473	01.540 INSULATOR; HOSE (C)	8-97305-283-1	01	1	0106-		●
474	01.540 CLIP; INSULATOR	8-97101-337-0	04	1	9812-9905			●
474	01.540 CLIP; INSULATOR	8-97101-337-0	04	1	9906-0105			●
474	01.540 CLIP; INSULATOR TURBOCHARGER<K51>	8-97101-337-0	04	1	9906-0105	●
474	01.540 CLIP; INSULATOR	8-97101-337-0	06	1	0106-		●

İpucu: çizimdeki balona veya tablodaki Balon sütununa tıkla; ilgili parçalar vurgulanır. Birden çok çizim varsa üstteki seçim kutusu/oklarla gezin.
