Isuzu WW
▶
BUSES
▶
MT
▶
10650 - MT111,112
▶
0 - Engine, Emission, Engine Electrical
▶

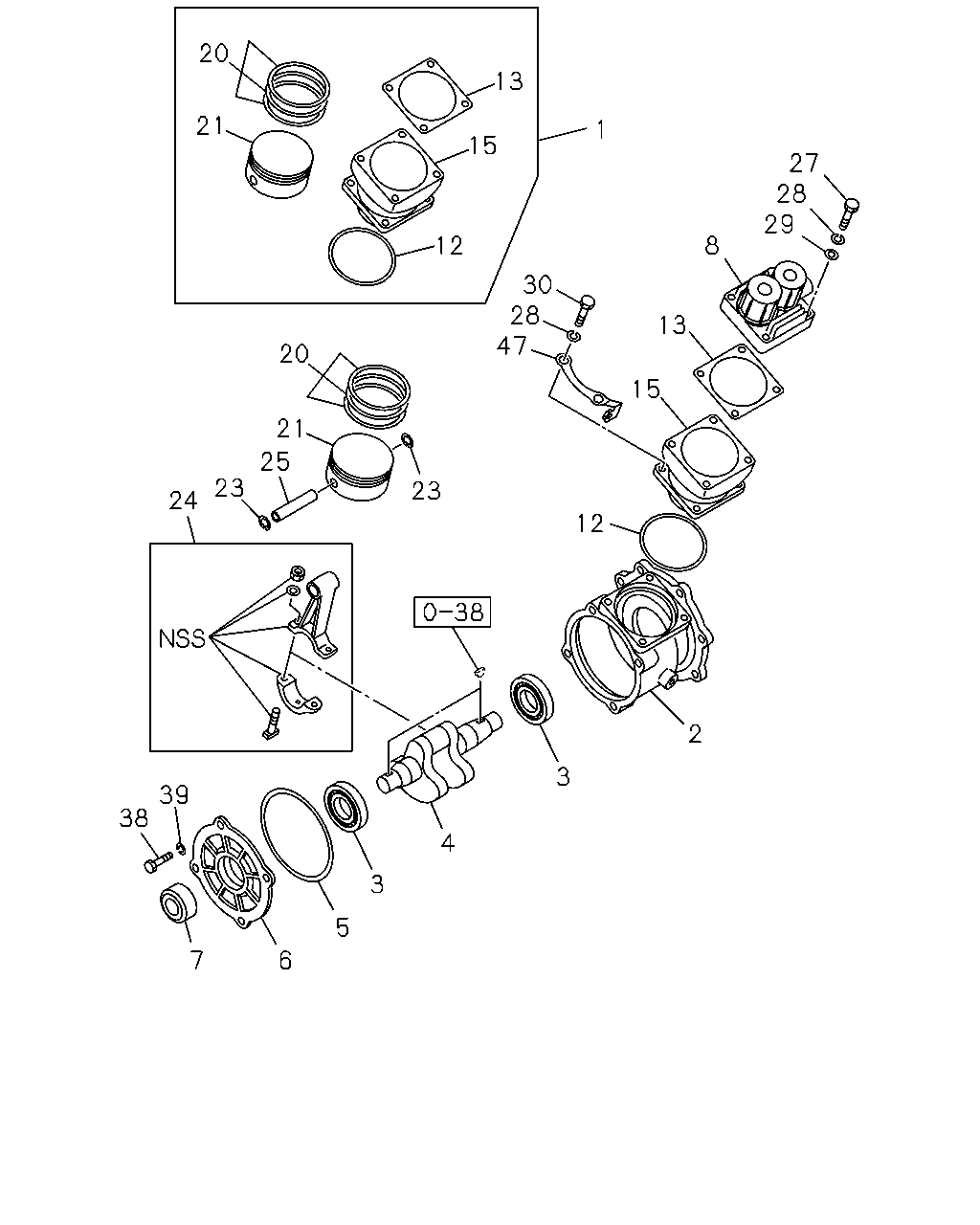

0-39 - AIR COMPRESSOR; BRAKE
▶
0-39 — AIR COMPRESSOR; BRAKE
(#2167) — 25 parça
Tümü
A - 6BG1 STD ENG
B - 6BD1 STD ENG
20
13
21
1
15
27
28
29
12
8
30
28
47
13
20
15
21
25
23
23
24
12
2
3
39
38
4
3
5
7
6
Balon
Parca Adi
Parca No
Adet
Tip
Applied Date
A
B
1
LINER KIT; CYL,AIR CMPR
1-19163-048-0
01
1
9101-
●
●
2
CRANKCASE; AIR CMPR
1-19151-241-0
01
1
9101-
●
●
3
BEARING; AIR CMPR
9-00006-206-0
02
1
9101-
●
●
4
CRANKSHAFT; AIR CMPR
1-19171-037-0
01
1
9101-9911
●
●
4
CRANKSHAFT; AIR CMPR
1-19171-083-0
01
1
9912-
●
●
5
GASKET; AIR CMPR
1-19158-019-0
01
1
9101-
●
●
6
COVER ASM; BRG,AIR CMPR
1-19156-040-0
01
1
9101-
●
●
7
SEAL; OIL,BRG COVER,AIR CMPR
1-19158-018-1
01
1
9101-
●
●
8
HEAD ASM; CYL,AIR CMPR
1-19110-019-0
01
1
9101-
●
●
12
GASKET; AIR CMPR
1-19158-020-0
01
1
9101-
●
●
13
GASKET; AIR CMPR
1-19115-006-0
01
1
9101-
●
●
15
CYLINDER; AIR CMPR
1-19151-222-0
01
1
9101-
●
●
20
RING KIT; PISTON,AIR CMPR
1-19163-043-0
01
1
9101-
●
●
21
PISTON; AIR CMPR
1-19161-021-0
01
1
9101-
●
●
23
RING; SNAP,PISTON,AIR CMPR
9-19168-003-0
02
1
9101-
●
●
24
ROD ASM; CONN,AIR CMPR
1-19173-011-0
01
1
9101-
●
●
25
PIN; PISTON,AIR CMPR
9-19167-006-0
01
1
9101-
●
●
27
BOLT; HD
M10X30
9-02061-030-0
04
1
9101-
●
●
28
WASHER; LK,HD BOLT
ID=10.2
9-09150-610-0
08
1
9101-
●
●
29
WASHER; PL,HD BOLT
ID=10.5
9-09164-510-0
04
1
9101-9911
●
●
29
WASHER; PL,HD BOLT
ID=10.5 OD=22
9-09164-610-0
04
1
9912-
●
●
30
BOLT; CYL TO CRANKCASE
1-09000-332-0
04
1
9101-
●
●
38
BOLT; COVER FIX
1-09000-331-0
04
1
9101-
●
●
39
WASHER; LK,COVER FIX
ID=8.2
9-09150-608-0
04
1
9101-
●
●
47
BRACKET; PIPE
1-19156-057-0
01
1
9101-
●
●
