Sayfa 0-50 - Isuzu EPC

0-50 — OIL COOLER AND OIL FILTER (#21668) — 233 parça

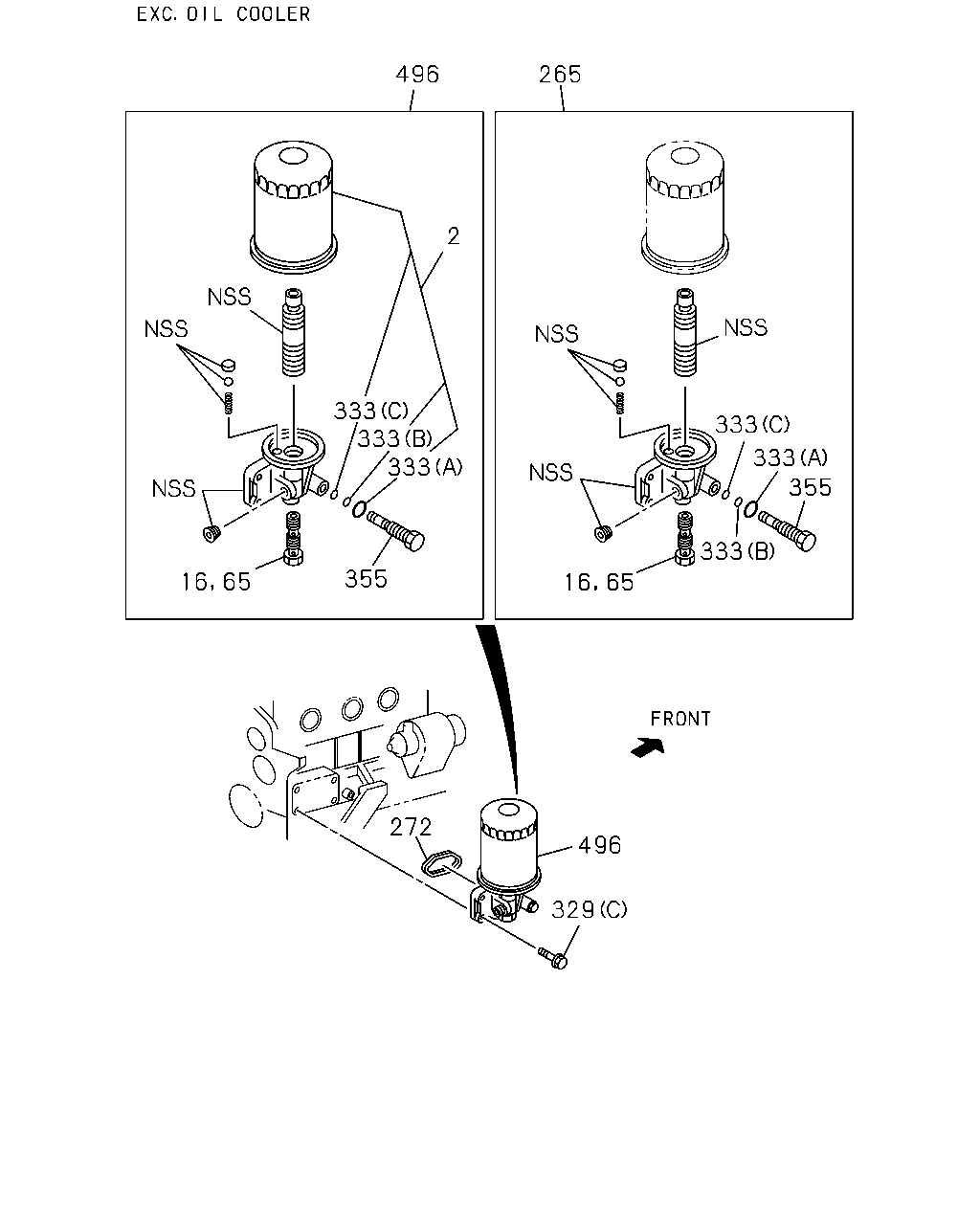

496 265 2 333 333 333 333 333 355 333 355 16 65 272 496 329 65 16

Balon	Parca Adi	Parca No	Adet	Tip	Applied Date	A	B	C
2	01.836 ELEMENT; OIL FILTER	8-94360-427-1	01	1	9812-9905	●
2	01.836 ELEMENT; OIL FILTER	8-94360-427-1	01	1	9906-9911	●
2	01.836 ELEMENT; OIL FILTER TURBOCHARGER<K51> EXC. CHARGE AIR COOLER<6PL>	8-94360-427-1	01	1	9906-9911		●
2	01.836 ELEMENT; OIL FILTER PARTIAL OIL FILTER<S6A> EXC. TURBOCHARGER<K51>	8-94423-701-0	01	1	9906-0105		●
2	01.836 ELEMENT; OIL FILTER TURBOCHARGER<K51> CHARGE AIR COOLER<6PL>	8-94340-697-1	01	1	9906-9911		●
2	01.836 ELEMENT; OIL FILTER	8-94340-697-1	01	1	9912-0105	●
2	01.836 ELEMENT; OIL FILTER TURBOCHARGER<K51>	8-94340-697-1	01	1	9912-0105		●
2	01.836 ELEMENT; OIL FILTER 01.826	8-97301-752-0	01	1	0106-0204			●
2	01.836 ELEMENT; OIL FILTER	8-97329-911-0	01	1	0205-			●
2	01.836 ELEMENT; OIL FILTER EXC. TURBOCHARGER<K51>,PARTIAL OIL FILTER<S6A>	8-97049-708-0	01	1	9906-0105		●
16	01.540 VALVE ASM; RELIEF EXC. OIL COOLER<KC4>,TURBOCHARGER<K51> 01.837	8-94167-882-0	01	1	9906-0105		●
65	01.540 VALVE; OIL COOLER	8-94450-772-0	01	1	9812-9905	●
65	01.540 VALVE; OIL COOLER	8-94450-772-0	01	1	9906-0105	●
65	01.540 VALVE; OIL COOLER TURBOCHARGER<K51>	8-94450-772-0	01	1	9906-0105		●
65	01.540 VALVE; OIL COOLER OIL COOLER<KC4> EXC. TURBOCHARGER<K51> 01.837	8-94167-882-0	01	1	9906-0105		●
65	01.540 VALVE; OIL COOLER	8-94450-772-0	01	1	0106-			●
265	01.837 BODY; OIL FILTER PARTIAL OIL FILTER<S6A> EXC. OIL COOLER<KC4>,TURBOCHARGER<K51> 01.540	8-94423-698-1	01	1	9906-0105		●
265	01.837 BODY; OIL FILTER EXC. OIL COOLER<KC4>,TURBOCHARGER<K51>, PARTIAL OIL FILTER<S6A>	8-97129-937-1	01	1	9906-0105		●
272	01.844 GASKET; OIL FILTER TO C/BL ALSO INCLUDED IN GASKET SET(ENGINE).	8-97065-983-0	01	1	9812-0105	●	●
272	01.844 GASKET; OIL FILTER TO C/BL ALSO INCLUDED IN GASKET SET(ENGINE).	8-97065-983-0	01	1	0106-			●
329	01.840 BOLT; OIL FILTER 01.540 (A) M8X35 W/LK WASHER	0-50040-835-0	02	1	9812-9905	●
329	01.840 BOLT; OIL FILTER 01.540 (A) M8X35 W/LK WASHER	0-50040-835-0	02	1	9906-9906	●
329	01.840 BOLT; OIL FILTER TURBOCHARGER<K51> 01.540 (A) M8X35 W/LK WASHER	0-50040-835-0	02	1	9906-9906		●
329	01.840 BOLT; OIL FILTER 00.004 (A) M8X32 FLANGE	0-28080-832-0	02	1	9907-0105	●
329	01.840 BOLT; OIL FILTER TURBOCHARGER<K51> 00.004 (A) M8X32 FLANGE	0-28080-832-0	02	1	9907-0105		●
329	01.840 BOLT; OIL FILTER 00.004 (A) M8X32 FLANGE	0-28080-832-0	02	1	0106-			●
329	01.840 BOLT; OIL FILTER 00.206 (B) M8X65 W/LK WASHER	8-94205-986-1	02	1	9812-9903	●
329	01.840 BOLT; OIL FILTER 01.251 (B) M8X60 FLANGE	0-28080-860-0	02	1	9904-9905	●
329	01.840 BOLT; OIL FILTER 01.251 (B) M8X60 FLANGE	0-28080-860-0	02	1	9906-0105	●
329	01.840 BOLT; OIL FILTER TURBOCHARGER<K51> 01.251 (B) M8X60 FLANGE	0-28080-860-0	02	1	9906-0105		●
329	01.840 BOLT; OIL FILTER 01.251 (B) M8X60 FLANGE	0-28080-860-0	02	1	0106-			●
329	01.840 BOLT; OIL FILTER EXC. TURBOCHARGER<K51> 00.780 (C) M8X30 W/LK WASHER	0-50040-830-0	04	1	9906-9906		●
329	01.840 BOLT; OIL FILTER EXC. TURBOCHARGER<K51> 01.531 (C) M8X25 FLANGE	0-28080-825-0	04	1	9907-0105		●
333	01.844 GASKET; OIL FILTER EXC. OIL COOLER<KC4>,TURBOCHARGER<K51> (A) ID=13.6	8-94167-884-0	01	1	9906-0105		●
333	01.844 GASKET; OIL FILTER EXC. OIL COOLER<KC4>,TURBOCHARGER<K51> (B) ID=8.8	8-94167-885-0	01	1	9906-0105		●
333	01.844 GASKET; OIL FILTER EXC. OIL COOLER<KC4>,TURBOCHARGER<K51> (C) ID=6.8	8-94167-886-0	01	1	9906-0105		●
355	01.837 PLUG; OIL PRESS EXC. OIL COOLER<KC4>,TURBOCHARGER<K51>	8-94167-883-0	01	1	9906-0105		●
496	01.835 FILTER ASM; OIL EXC. OIL COOLER<KC4>,TURBOCHARGER<K51>, PARTIAL OIL FILTER<S6A>	8-94462-137-1	01	1	9906-0105		●
496	01.835 FILTER ASM; OIL PARTIAL OIL FILTER<S6A> EXC. OIL COOLER<KC4>,TURBOCHARGER<K51>	8-94144-297-1	01	1	9906-0105		●

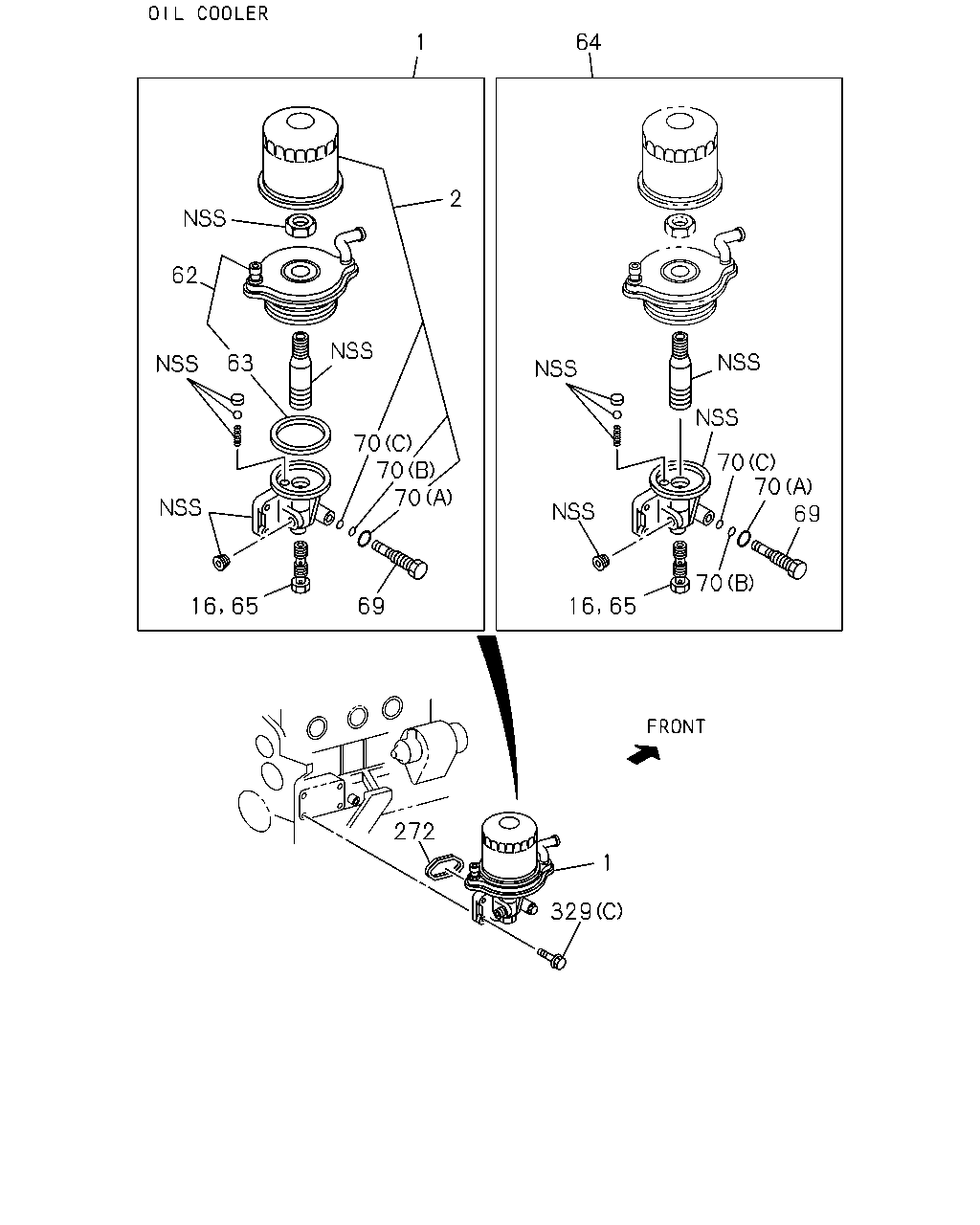

64 1 2 62 63 70 70 70 70 70 69 70 16 69 16 272 1 329 65 65

Balon	Parca Adi	Parca No	Adet	Tip	Applied Date	A	B	C
1	01.540 FILTER & COOLER ASM; OIL	8-97120-286-2	01	1	9812-0105	●
1	01.540 FILTER & COOLER ASM; OIL	8-97239-978-1	01	1	0106-			●
1	01.540 FILTER & COOLER ASM; OIL OIL COOLER<KC4> PARTIAL OIL FILTER<S6A> EXC. TURBOCHARGER<K51>	8-94144-296-1	01	1	9906-0105		●
1	01.540 FILTER & COOLER ASM; OIL OIL COOLER<KC4> EXC. TURBOCHARGER<K51>,PARTIAL OIL FILTER<S6A>	8-94327-272-1	01	1	9906-0105		●
1	01.540 FILTER & COOLER ASM; OIL TURBOCHARGER<K51> CHARGE AIR COOLER<6PL>	8-97224-298-0	01	1	9906-0105		●
1	01.540 FILTER & COOLER ASM; OIL TURBOCHARGER<K51> EXC. CHARGE AIR COOLER<6PL>	8-97176-074-2	01	1	9906-0105		●
2	01.836 ELEMENT; OIL FILTER	8-94360-427-1	01	1	9812-9905	●
2	01.836 ELEMENT; OIL FILTER	8-94360-427-1	01	1	9906-9911	●
2	01.836 ELEMENT; OIL FILTER TURBOCHARGER<K51> EXC. CHARGE AIR COOLER<6PL>	8-94360-427-1	01	1	9906-9911		●
2	01.836 ELEMENT; OIL FILTER PARTIAL OIL FILTER<S6A> EXC. TURBOCHARGER<K51>	8-94423-701-0	01	1	9906-0105		●
2	01.836 ELEMENT; OIL FILTER TURBOCHARGER<K51> CHARGE AIR COOLER<6PL>	8-94340-697-1	01	1	9906-9911		●
2	01.836 ELEMENT; OIL FILTER	8-94340-697-1	01	1	9912-0105	●
2	01.836 ELEMENT; OIL FILTER TURBOCHARGER<K51>	8-94340-697-1	01	1	9912-0105		●
2	01.836 ELEMENT; OIL FILTER 01.826	8-97301-752-0	01	1	0106-0204			●
2	01.836 ELEMENT; OIL FILTER	8-97329-911-0	01	1	0205-			●
2	01.836 ELEMENT; OIL FILTER EXC. TURBOCHARGER<K51>,PARTIAL OIL FILTER<S6A>	8-97049-708-0	01	1	9906-0105		●
16	01.540 VALVE ASM; RELIEF EXC. OIL COOLER<KC4>,TURBOCHARGER<K51> 01.837	8-94167-882-0	01	1	9906-0105		●
62	01.540 COOLER ASM; OIL	8-97144-716-1	01	1	9812-0105	●
62	01.540 COOLER ASM; OIL	8-97301-588-0	01	1	0106-			●
62	01.540 COOLER ASM; OIL OIL COOLER<KC4> EXC. TURBOCHARGER<K51>	8-94401-680-0	01	1	9906-0105		●
62	01.540 COOLER ASM; OIL TURBOCHARGER<K51> CHARGE AIR COOLER<6PL>	8-97226-391-0	01	1	9906-0105		●
62	01.540 COOLER ASM; OIL TURBOCHARGER<K51> EXC. CHARGE AIR COOLER<6PL>	8-97166-499-1	01	1	9906-0105		●
63	01.550 GASKET; COOLER TO BRKT	8-94383-720-0	01	1	9812-0105	●	●
63	01.550 GASKET; COOLER TO BRKT	8-94383-720-0	01	1	0106-			●
64	01.540 BODY; OIL FILTER & OIL COOLER	8-97144-712-0	01	1	9812-0105	●
64	01.540 BODY; OIL FILTER & OIL COOLER OIL COOLER<KC4> PARTIAL OIL FILTER<S6A> EXC. TURBOCHARGER<K51>	8-94423-698-1	01	1	9906-0105		●
64	01.540 BODY; OIL FILTER & OIL COOLER OIL COOLER<KC4> EXC. TURBOCHARGER<K51>,PARTIAL OIL FILTER<S6A>	8-97081-756-0	01	1	9906-0105		●
64	01.540 BODY; OIL FILTER & OIL COOLER TURBOCHARGER<K51>	8-97166-497-0	01	1	9906-0105		●
64	01.540 BODY; OIL FILTER & OIL COOLER	8-97166-497-0	01	1	0106-0204			●
64	01.540 BODY; OIL FILTER & OIL COOLER	8-97313-207-1	01	1	0205-			●
65	01.540 VALVE; OIL COOLER	8-94450-772-0	01	1	9812-9905	●
65	01.540 VALVE; OIL COOLER	8-94450-772-0	01	1	9906-0105	●
65	01.540 VALVE; OIL COOLER TURBOCHARGER<K51>	8-94450-772-0	01	1	9906-0105		●
65	01.540 VALVE; OIL COOLER OIL COOLER<KC4> EXC. TURBOCHARGER<K51> 01.837	8-94167-882-0	01	1	9906-0105		●
65	01.540 VALVE; OIL COOLER	8-94450-772-0	01	1	0106-			●
69	01.837 PLUG; BODY,OIL FILTER OIL COOLER<KC4> EXC. TURBOCHARGER<K51>	8-94167-883-0	01	1	9906-0105		●
70	01.844 GASKET; PLUG,OIL FILTER	9-09921-193-0	01	1	9812-9905	●
70	01.844 GASKET; PLUG,OIL FILTER	9-09921-193-0	01	1	9906-0105	●
70	01.844 GASKET; PLUG,OIL FILTER TURBOCHARGER<K51>	9-09921-193-0	01	1	9906-0105		●
70	01.844 GASKET; PLUG,OIL FILTER	9-09921-193-0	01	1	0106-			●
70	01.844 GASKET; PLUG,OIL FILTER OIL COOLER<KC4> EXC. TURBOCHARGER<K51> (A) ID=13.6	8-94167-884-0	01	1	9906-0105		●
70	01.844 GASKET; PLUG,OIL FILTER OIL COOLER<KC4> EXC. TURBOCHARGER<K51> (B) ID=8.8	8-94167-885-0	01	1	9906-0105		●
70	01.844 GASKET; PLUG,OIL FILTER OIL COOLER<KC4> EXC. TURBOCHARGER<K51> (C) ID=6.8	8-94167-886-0	01	1	9906-0105		●
272	01.844 GASKET; OIL FILTER TO C/BL ALSO INCLUDED IN GASKET SET(ENGINE).	8-97065-983-0	01	1	9812-0105	●	●
272	01.844 GASKET; OIL FILTER TO C/BL ALSO INCLUDED IN GASKET SET(ENGINE).	8-97065-983-0	01	1	0106-			●
329	01.840 BOLT; OIL FILTER 01.540 (A) M8X35 W/LK WASHER	0-50040-835-0	02	1	9812-9905	●
329	01.840 BOLT; OIL FILTER 01.540 (A) M8X35 W/LK WASHER	0-50040-835-0	02	1	9906-9906	●
329	01.840 BOLT; OIL FILTER TURBOCHARGER<K51> 01.540 (A) M8X35 W/LK WASHER	0-50040-835-0	02	1	9906-9906		●
329	01.840 BOLT; OIL FILTER 00.004 (A) M8X32 FLANGE	0-28080-832-0	02	1	9907-0105	●
329	01.840 BOLT; OIL FILTER TURBOCHARGER<K51> 00.004 (A) M8X32 FLANGE	0-28080-832-0	02	1	9907-0105		●
329	01.840 BOLT; OIL FILTER 00.004 (A) M8X32 FLANGE	0-28080-832-0	02	1	0106-			●
329	01.840 BOLT; OIL FILTER 00.206 (B) M8X65 W/LK WASHER	8-94205-986-1	02	1	9812-9903	●
329	01.840 BOLT; OIL FILTER 01.251 (B) M8X60 FLANGE	0-28080-860-0	02	1	9904-9905	●
329	01.840 BOLT; OIL FILTER 01.251 (B) M8X60 FLANGE	0-28080-860-0	02	1	9906-0105	●
329	01.840 BOLT; OIL FILTER TURBOCHARGER<K51> 01.251 (B) M8X60 FLANGE	0-28080-860-0	02	1	9906-0105		●
329	01.840 BOLT; OIL FILTER 01.251 (B) M8X60 FLANGE	0-28080-860-0	02	1	0106-			●
329	01.840 BOLT; OIL FILTER EXC. TURBOCHARGER<K51> 00.780 (C) M8X30 W/LK WASHER	0-50040-830-0	04	1	9906-9906		●
329	01.840 BOLT; OIL FILTER EXC. TURBOCHARGER<K51> 01.531 (C) M8X25 FLANGE	0-28080-825-0	04	1	9907-0105		●

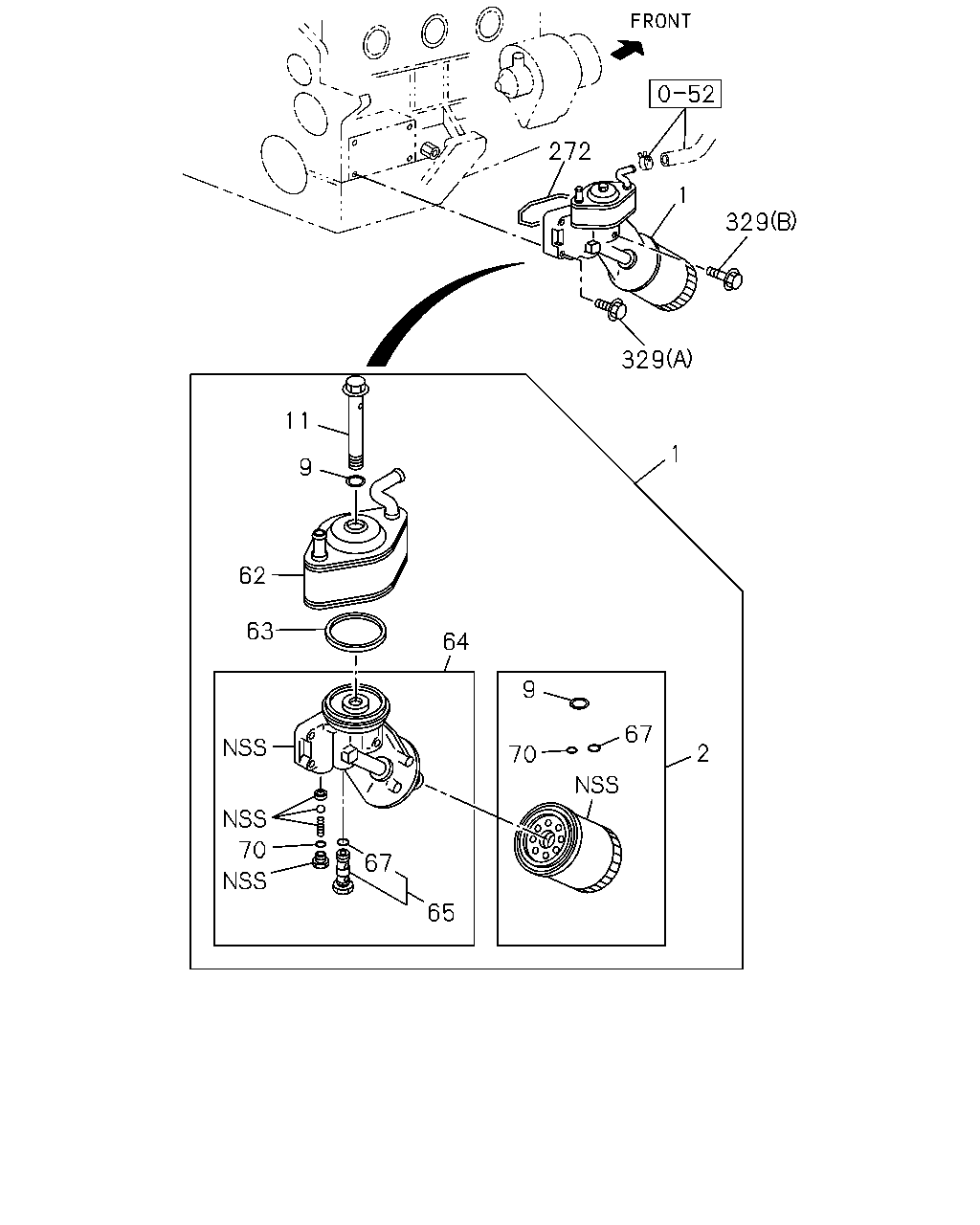

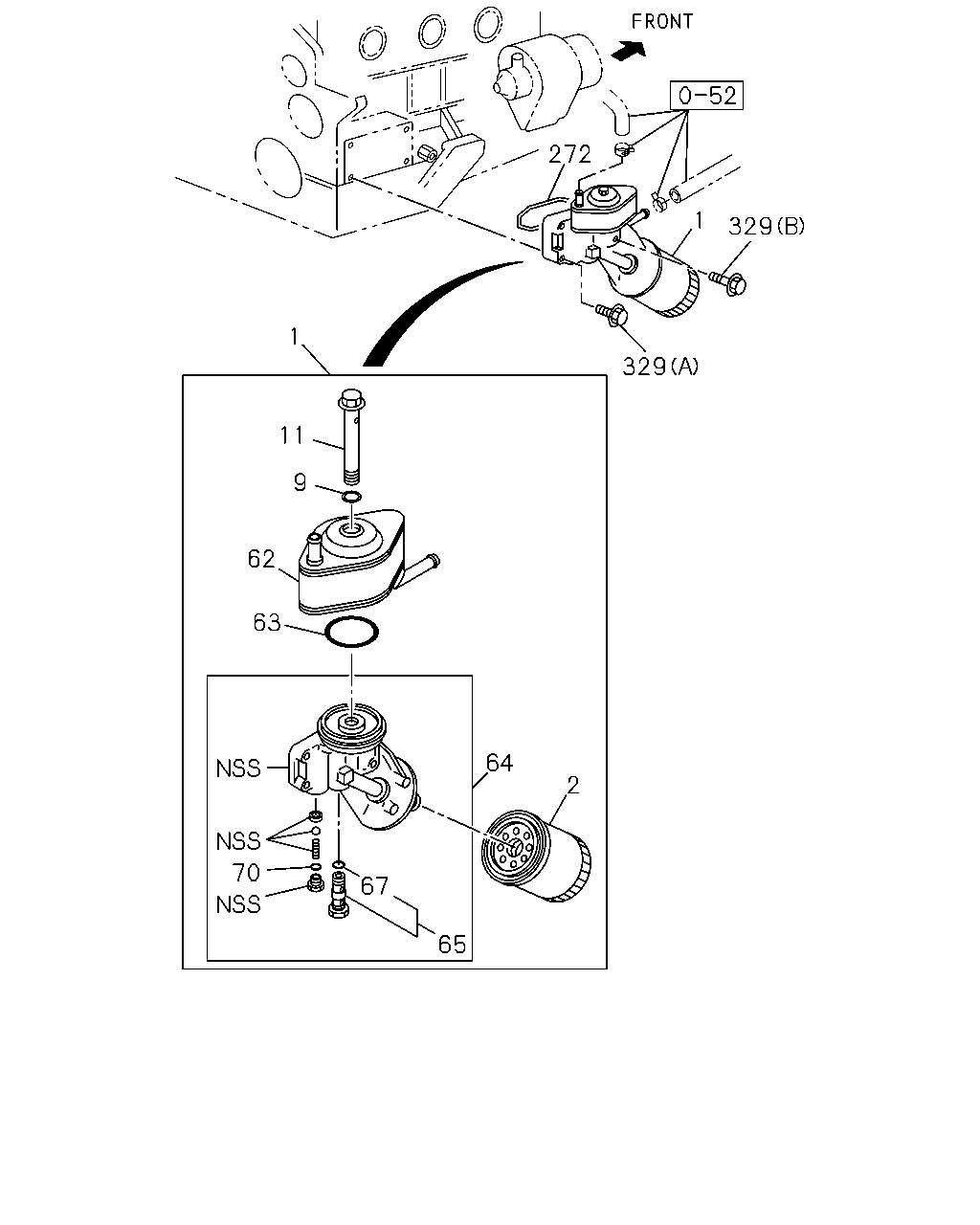

272 1 329 1 329 11 9 62 63 64 2 70 67 65

Balon	Parca Adi	Parca No	Adet	Tip	Applied Date	A	B	C
1	01.540 FILTER & COOLER ASM; OIL	8-97120-286-2	01	1	9812-0105	●
1	01.540 FILTER & COOLER ASM; OIL	8-97239-978-1	01	1	0106-			●
1	01.540 FILTER & COOLER ASM; OIL OIL COOLER<KC4> PARTIAL OIL FILTER<S6A> EXC. TURBOCHARGER<K51>	8-94144-296-1	01	1	9906-0105		●
1	01.540 FILTER & COOLER ASM; OIL OIL COOLER<KC4> EXC. TURBOCHARGER<K51>,PARTIAL OIL FILTER<S6A>	8-94327-272-1	01	1	9906-0105		●
1	01.540 FILTER & COOLER ASM; OIL TURBOCHARGER<K51> CHARGE AIR COOLER<6PL>	8-97224-298-0	01	1	9906-0105		●
1	01.540 FILTER & COOLER ASM; OIL TURBOCHARGER<K51> EXC. CHARGE AIR COOLER<6PL>	8-97176-074-2	01	1	9906-0105		●
2	01.836 ELEMENT; OIL FILTER	8-94360-427-1	01	1	9812-9905	●
2	01.836 ELEMENT; OIL FILTER	8-94360-427-1	01	1	9906-9911	●
2	01.836 ELEMENT; OIL FILTER TURBOCHARGER<K51> EXC. CHARGE AIR COOLER<6PL>	8-94360-427-1	01	1	9906-9911		●
2	01.836 ELEMENT; OIL FILTER PARTIAL OIL FILTER<S6A> EXC. TURBOCHARGER<K51>	8-94423-701-0	01	1	9906-0105		●
2	01.836 ELEMENT; OIL FILTER TURBOCHARGER<K51> CHARGE AIR COOLER<6PL>	8-94340-697-1	01	1	9906-9911		●
2	01.836 ELEMENT; OIL FILTER	8-94340-697-1	01	1	9912-0105	●
2	01.836 ELEMENT; OIL FILTER TURBOCHARGER<K51>	8-94340-697-1	01	1	9912-0105		●
2	01.836 ELEMENT; OIL FILTER 01.826	8-97301-752-0	01	1	0106-0204			●
2	01.836 ELEMENT; OIL FILTER	8-97329-911-0	01	1	0205-			●
2	01.836 ELEMENT; OIL FILTER EXC. TURBOCHARGER<K51>,PARTIAL OIL FILTER<S6A>	8-97049-708-0	01	1	9906-0105		●
9	01.840 GASKET; CENTER BOLT ALSO INCLUDED IN GASKET SET(ENGINE).	8-97047-000-0	01	1	9812-9905	●
9	01.840 GASKET; CENTER BOLT ALSO INCLUDED IN GASKET SET(ENGINE).	8-97047-000-0	01	1	9906-0105	●
9	01.840 GASKET; CENTER BOLT ALSO INCLUDED IN GASKET SET(ENGINE). TURBOCHARGER<K51>	8-97047-000-0	01	1	9906-0105		●
9	01.840 GASKET; CENTER BOLT ALSO INCLUDED IN GASKET SET(ENGINE).	8-97047-000-0	01	1	0106-			●
11	01.840 BOLT; CENTER	8-97144-713-0	01	1	9812-9905	●
11	01.840 BOLT; CENTER	8-97144-713-0	01	1	9906-0105	●
11	01.840 BOLT; CENTER TURBOCHARGER<K51>	8-97144-713-0	01	1	9906-0105		●
11	01.840 BOLT; CENTER	8-97094-724-1	01	1	0106-			●
62	01.540 COOLER ASM; OIL	8-97144-716-1	01	1	9812-0105	●
62	01.540 COOLER ASM; OIL	8-97301-588-0	01	1	0106-			●
62	01.540 COOLER ASM; OIL OIL COOLER<KC4> EXC. TURBOCHARGER<K51>	8-94401-680-0	01	1	9906-0105		●
62	01.540 COOLER ASM; OIL TURBOCHARGER<K51> CHARGE AIR COOLER<6PL>	8-97226-391-0	01	1	9906-0105		●
62	01.540 COOLER ASM; OIL TURBOCHARGER<K51> EXC. CHARGE AIR COOLER<6PL>	8-97166-499-1	01	1	9906-0105		●
63	01.550 GASKET; COOLER TO BRKT	8-94383-720-0	01	1	9812-0105	●	●
63	01.550 GASKET; COOLER TO BRKT	8-94383-720-0	01	1	0106-			●
64	01.540 BODY; OIL FILTER & OIL COOLER	8-97144-712-0	01	1	9812-0105	●
64	01.540 BODY; OIL FILTER & OIL COOLER OIL COOLER<KC4> PARTIAL OIL FILTER<S6A> EXC. TURBOCHARGER<K51>	8-94423-698-1	01	1	9906-0105		●
64	01.540 BODY; OIL FILTER & OIL COOLER OIL COOLER<KC4> EXC. TURBOCHARGER<K51>,PARTIAL OIL FILTER<S6A>	8-97081-756-0	01	1	9906-0105		●
64	01.540 BODY; OIL FILTER & OIL COOLER TURBOCHARGER<K51>	8-97166-497-0	01	1	9906-0105		●
64	01.540 BODY; OIL FILTER & OIL COOLER	8-97166-497-0	01	1	0106-0204			●
64	01.540 BODY; OIL FILTER & OIL COOLER	8-97313-207-1	01	1	0205-			●
65	01.540 VALVE; OIL COOLER	8-94450-772-0	01	1	9812-9905	●
65	01.540 VALVE; OIL COOLER	8-94450-772-0	01	1	9906-0105	●
65	01.540 VALVE; OIL COOLER TURBOCHARGER<K51>	8-94450-772-0	01	1	9906-0105		●
65	01.540 VALVE; OIL COOLER OIL COOLER<KC4> EXC. TURBOCHARGER<K51> 01.837	8-94167-882-0	01	1	9906-0105		●
65	01.540 VALVE; OIL COOLER	8-94450-772-0	01	1	0106-			●
67	01.550 GASKET; VLV 01.837	9-09920-975-0	01	1	9812-9905	●
67	01.550 GASKET; VLV 01.837	9-09920-975-0	01	1	9906-0105	●
67	01.550 GASKET; VLV TURBOCHARGER<K51> 01.837	9-09920-975-0	01	1	9906-0105		●
67	01.550 GASKET; VLV 01.837	9-09920-975-0	01	1	0106-			●
70	01.844 GASKET; PLUG,OIL FILTER	9-09921-193-0	01	1	9812-9905	●
70	01.844 GASKET; PLUG,OIL FILTER	9-09921-193-0	01	1	9906-0105	●
70	01.844 GASKET; PLUG,OIL FILTER TURBOCHARGER<K51>	9-09921-193-0	01	1	9906-0105		●
70	01.844 GASKET; PLUG,OIL FILTER	9-09921-193-0	01	1	0106-			●
70	01.844 GASKET; PLUG,OIL FILTER OIL COOLER<KC4> EXC. TURBOCHARGER<K51> (A) ID=13.6	8-94167-884-0	01	1	9906-0105		●
70	01.844 GASKET; PLUG,OIL FILTER OIL COOLER<KC4> EXC. TURBOCHARGER<K51> (B) ID=8.8	8-94167-885-0	01	1	9906-0105		●
70	01.844 GASKET; PLUG,OIL FILTER OIL COOLER<KC4> EXC. TURBOCHARGER<K51> (C) ID=6.8	8-94167-886-0	01	1	9906-0105		●
272	01.844 GASKET; OIL FILTER TO C/BL ALSO INCLUDED IN GASKET SET(ENGINE).	8-97065-983-0	01	1	9812-0105	●	●
272	01.844 GASKET; OIL FILTER TO C/BL ALSO INCLUDED IN GASKET SET(ENGINE).	8-97065-983-0	01	1	0106-			●
329	01.840 BOLT; OIL FILTER 01.540 (A) M8X35 W/LK WASHER	0-50040-835-0	02	1	9812-9905	●
329	01.840 BOLT; OIL FILTER 01.540 (A) M8X35 W/LK WASHER	0-50040-835-0	02	1	9906-9906	●
329	01.840 BOLT; OIL FILTER TURBOCHARGER<K51> 01.540 (A) M8X35 W/LK WASHER	0-50040-835-0	02	1	9906-9906		●
329	01.840 BOLT; OIL FILTER 00.004 (A) M8X32 FLANGE	0-28080-832-0	02	1	9907-0105	●
329	01.840 BOLT; OIL FILTER TURBOCHARGER<K51> 00.004 (A) M8X32 FLANGE	0-28080-832-0	02	1	9907-0105		●
329	01.840 BOLT; OIL FILTER 00.004 (A) M8X32 FLANGE	0-28080-832-0	02	1	0106-			●
329	01.840 BOLT; OIL FILTER 00.206 (B) M8X65 W/LK WASHER	8-94205-986-1	02	1	9812-9903	●
329	01.840 BOLT; OIL FILTER 01.251 (B) M8X60 FLANGE	0-28080-860-0	02	1	9904-9905	●
329	01.840 BOLT; OIL FILTER 01.251 (B) M8X60 FLANGE	0-28080-860-0	02	1	9906-0105	●
329	01.840 BOLT; OIL FILTER TURBOCHARGER<K51> 01.251 (B) M8X60 FLANGE	0-28080-860-0	02	1	9906-0105		●
329	01.840 BOLT; OIL FILTER 01.251 (B) M8X60 FLANGE	0-28080-860-0	02	1	0106-			●
329	01.840 BOLT; OIL FILTER EXC. TURBOCHARGER<K51> 00.780 (C) M8X30 W/LK WASHER	0-50040-830-0	04	1	9906-9906		●
329	01.840 BOLT; OIL FILTER EXC. TURBOCHARGER<K51> 01.531 (C) M8X25 FLANGE	0-28080-825-0	04	1	9907-0105		●

272 1 329 329 11 1 9 62 63 64 9 67 2 70 70 67 65

Balon	Parca Adi	Parca No	Adet	Tip	Applied Date	A	B	C
1	01.540 FILTER & COOLER ASM; OIL	8-97120-286-2	01	1	9812-0105	●
1	01.540 FILTER & COOLER ASM; OIL	8-97239-978-1	01	1	0106-			●
1	01.540 FILTER & COOLER ASM; OIL OIL COOLER<KC4> PARTIAL OIL FILTER<S6A> EXC. TURBOCHARGER<K51>	8-94144-296-1	01	1	9906-0105		●
1	01.540 FILTER & COOLER ASM; OIL OIL COOLER<KC4> EXC. TURBOCHARGER<K51>,PARTIAL OIL FILTER<S6A>	8-94327-272-1	01	1	9906-0105		●
1	01.540 FILTER & COOLER ASM; OIL TURBOCHARGER<K51> CHARGE AIR COOLER<6PL>	8-97224-298-0	01	1	9906-0105		●
1	01.540 FILTER & COOLER ASM; OIL TURBOCHARGER<K51> EXC. CHARGE AIR COOLER<6PL>	8-97176-074-2	01	1	9906-0105		●
2	01.836 ELEMENT; OIL FILTER	8-94360-427-1	01	1	9812-9905	●
2	01.836 ELEMENT; OIL FILTER	8-94360-427-1	01	1	9906-9911	●
2	01.836 ELEMENT; OIL FILTER TURBOCHARGER<K51> EXC. CHARGE AIR COOLER<6PL>	8-94360-427-1	01	1	9906-9911		●
2	01.836 ELEMENT; OIL FILTER PARTIAL OIL FILTER<S6A> EXC. TURBOCHARGER<K51>	8-94423-701-0	01	1	9906-0105		●
2	01.836 ELEMENT; OIL FILTER TURBOCHARGER<K51> CHARGE AIR COOLER<6PL>	8-94340-697-1	01	1	9906-9911		●
2	01.836 ELEMENT; OIL FILTER	8-94340-697-1	01	1	9912-0105	●
2	01.836 ELEMENT; OIL FILTER TURBOCHARGER<K51>	8-94340-697-1	01	1	9912-0105		●
2	01.836 ELEMENT; OIL FILTER 01.826	8-97301-752-0	01	1	0106-0204			●
2	01.836 ELEMENT; OIL FILTER	8-97329-911-0	01	1	0205-			●
2	01.836 ELEMENT; OIL FILTER EXC. TURBOCHARGER<K51>,PARTIAL OIL FILTER<S6A>	8-97049-708-0	01	1	9906-0105		●
9	01.840 GASKET; CENTER BOLT ALSO INCLUDED IN GASKET SET(ENGINE).	8-97047-000-0	01	1	9812-9905	●
9	01.840 GASKET; CENTER BOLT ALSO INCLUDED IN GASKET SET(ENGINE).	8-97047-000-0	01	1	9906-0105	●
9	01.840 GASKET; CENTER BOLT ALSO INCLUDED IN GASKET SET(ENGINE). TURBOCHARGER<K51>	8-97047-000-0	01	1	9906-0105		●
9	01.840 GASKET; CENTER BOLT ALSO INCLUDED IN GASKET SET(ENGINE).	8-97047-000-0	01	1	0106-			●
11	01.840 BOLT; CENTER	8-97144-713-0	01	1	9812-9905	●
11	01.840 BOLT; CENTER	8-97144-713-0	01	1	9906-0105	●
11	01.840 BOLT; CENTER TURBOCHARGER<K51>	8-97144-713-0	01	1	9906-0105		●
11	01.840 BOLT; CENTER	8-97094-724-1	01	1	0106-			●
62	01.540 COOLER ASM; OIL	8-97144-716-1	01	1	9812-0105	●
62	01.540 COOLER ASM; OIL	8-97301-588-0	01	1	0106-			●
62	01.540 COOLER ASM; OIL OIL COOLER<KC4> EXC. TURBOCHARGER<K51>	8-94401-680-0	01	1	9906-0105		●
62	01.540 COOLER ASM; OIL TURBOCHARGER<K51> CHARGE AIR COOLER<6PL>	8-97226-391-0	01	1	9906-0105		●
62	01.540 COOLER ASM; OIL TURBOCHARGER<K51> EXC. CHARGE AIR COOLER<6PL>	8-97166-499-1	01	1	9906-0105		●
63	01.550 GASKET; COOLER TO BRKT	8-94383-720-0	01	1	9812-0105	●	●
63	01.550 GASKET; COOLER TO BRKT	8-94383-720-0	01	1	0106-			●
64	01.540 BODY; OIL FILTER & OIL COOLER	8-97144-712-0	01	1	9812-0105	●
64	01.540 BODY; OIL FILTER & OIL COOLER OIL COOLER<KC4> PARTIAL OIL FILTER<S6A> EXC. TURBOCHARGER<K51>	8-94423-698-1	01	1	9906-0105		●
64	01.540 BODY; OIL FILTER & OIL COOLER OIL COOLER<KC4> EXC. TURBOCHARGER<K51>,PARTIAL OIL FILTER<S6A>	8-97081-756-0	01	1	9906-0105		●
64	01.540 BODY; OIL FILTER & OIL COOLER TURBOCHARGER<K51>	8-97166-497-0	01	1	9906-0105		●
64	01.540 BODY; OIL FILTER & OIL COOLER	8-97166-497-0	01	1	0106-0204			●
64	01.540 BODY; OIL FILTER & OIL COOLER	8-97313-207-1	01	1	0205-			●
65	01.540 VALVE; OIL COOLER	8-94450-772-0	01	1	9812-9905	●
65	01.540 VALVE; OIL COOLER	8-94450-772-0	01	1	9906-0105	●
65	01.540 VALVE; OIL COOLER TURBOCHARGER<K51>	8-94450-772-0	01	1	9906-0105		●
65	01.540 VALVE; OIL COOLER OIL COOLER<KC4> EXC. TURBOCHARGER<K51> 01.837	8-94167-882-0	01	1	9906-0105		●
65	01.540 VALVE; OIL COOLER	8-94450-772-0	01	1	0106-			●
67	01.550 GASKET; VLV 01.837	9-09920-975-0	01	1	9812-9905	●
67	01.550 GASKET; VLV 01.837	9-09920-975-0	01	1	9906-0105	●
67	01.550 GASKET; VLV TURBOCHARGER<K51> 01.837	9-09920-975-0	01	1	9906-0105		●
67	01.550 GASKET; VLV 01.837	9-09920-975-0	01	1	0106-			●
70	01.844 GASKET; PLUG,OIL FILTER	9-09921-193-0	01	1	9812-9905	●
70	01.844 GASKET; PLUG,OIL FILTER	9-09921-193-0	01	1	9906-0105	●
70	01.844 GASKET; PLUG,OIL FILTER TURBOCHARGER<K51>	9-09921-193-0	01	1	9906-0105		●
70	01.844 GASKET; PLUG,OIL FILTER	9-09921-193-0	01	1	0106-			●
70	01.844 GASKET; PLUG,OIL FILTER OIL COOLER<KC4> EXC. TURBOCHARGER<K51> (A) ID=13.6	8-94167-884-0	01	1	9906-0105		●
70	01.844 GASKET; PLUG,OIL FILTER OIL COOLER<KC4> EXC. TURBOCHARGER<K51> (B) ID=8.8	8-94167-885-0	01	1	9906-0105		●
70	01.844 GASKET; PLUG,OIL FILTER OIL COOLER<KC4> EXC. TURBOCHARGER<K51> (C) ID=6.8	8-94167-886-0	01	1	9906-0105		●
272	01.844 GASKET; OIL FILTER TO C/BL ALSO INCLUDED IN GASKET SET(ENGINE).	8-97065-983-0	01	1	9812-0105	●	●
272	01.844 GASKET; OIL FILTER TO C/BL ALSO INCLUDED IN GASKET SET(ENGINE).	8-97065-983-0	01	1	0106-			●
329	01.840 BOLT; OIL FILTER 01.540 (A) M8X35 W/LK WASHER	0-50040-835-0	02	1	9812-9905	●
329	01.840 BOLT; OIL FILTER 01.540 (A) M8X35 W/LK WASHER	0-50040-835-0	02	1	9906-9906	●
329	01.840 BOLT; OIL FILTER TURBOCHARGER<K51> 01.540 (A) M8X35 W/LK WASHER	0-50040-835-0	02	1	9906-9906		●
329	01.840 BOLT; OIL FILTER 00.004 (A) M8X32 FLANGE	0-28080-832-0	02	1	9907-0105	●
329	01.840 BOLT; OIL FILTER TURBOCHARGER<K51> 00.004 (A) M8X32 FLANGE	0-28080-832-0	02	1	9907-0105		●
329	01.840 BOLT; OIL FILTER 00.004 (A) M8X32 FLANGE	0-28080-832-0	02	1	0106-			●
329	01.840 BOLT; OIL FILTER 00.206 (B) M8X65 W/LK WASHER	8-94205-986-1	02	1	9812-9903	●
329	01.840 BOLT; OIL FILTER 01.251 (B) M8X60 FLANGE	0-28080-860-0	02	1	9904-9905	●
329	01.840 BOLT; OIL FILTER 01.251 (B) M8X60 FLANGE	0-28080-860-0	02	1	9906-0105	●
329	01.840 BOLT; OIL FILTER TURBOCHARGER<K51> 01.251 (B) M8X60 FLANGE	0-28080-860-0	02	1	9906-0105		●
329	01.840 BOLT; OIL FILTER 01.251 (B) M8X60 FLANGE	0-28080-860-0	02	1	0106-			●
329	01.840 BOLT; OIL FILTER EXC. TURBOCHARGER<K51> 00.780 (C) M8X30 W/LK WASHER	0-50040-830-0	04	1	9906-9906		●
329	01.840 BOLT; OIL FILTER EXC. TURBOCHARGER<K51> 01.531 (C) M8X25 FLANGE	0-28080-825-0	04	1	9907-0105		●

İpucu: çizimdeki balona veya tablodaki Balon sütununa tıkla; ilgili parçalar vurgulanır. Birden çok çizim varsa üstteki seçim kutusu/oklarla gezin.
