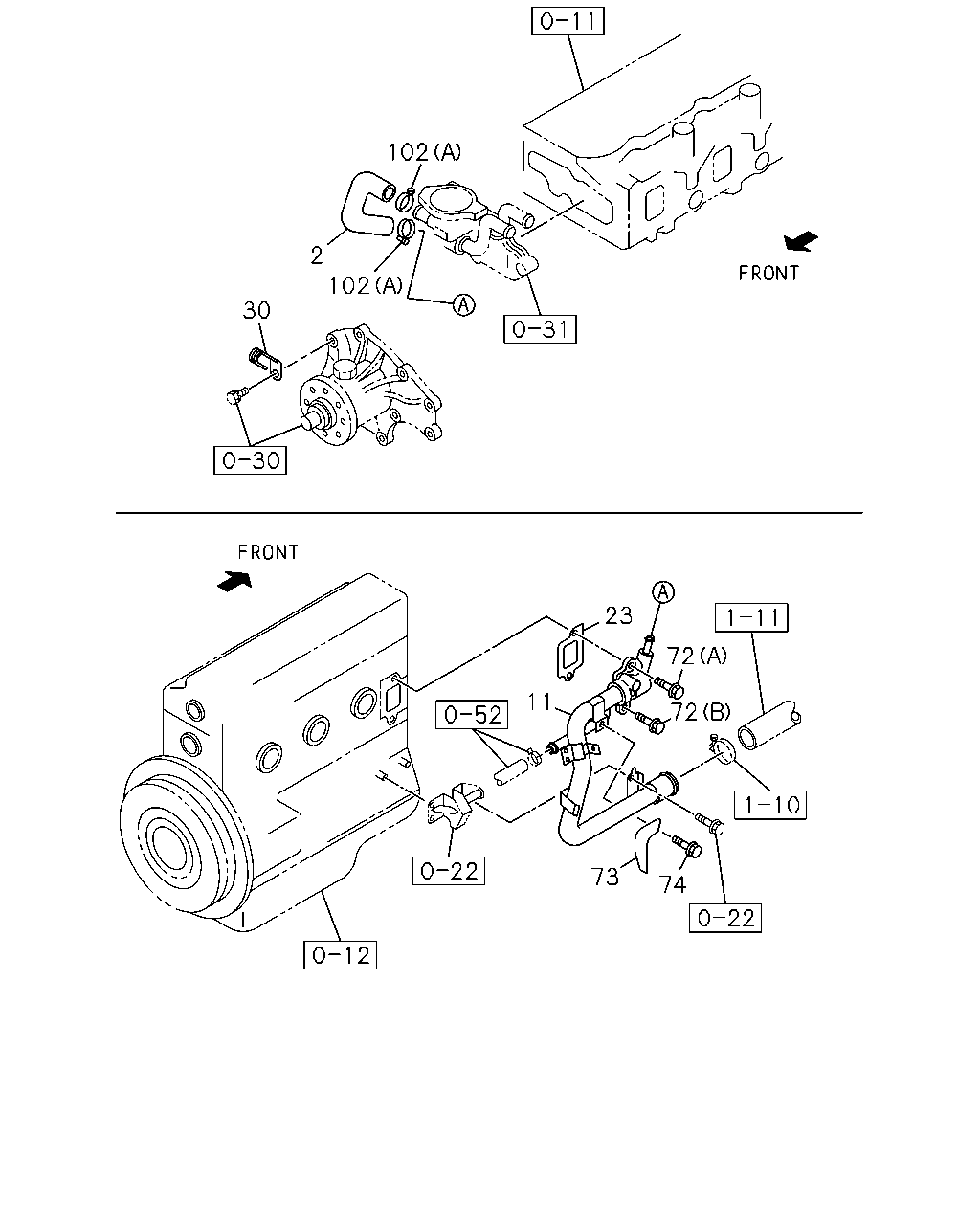

0-32 — WATER PIPING; ENGINE (#21661) — 96 parça

102 2 102 30 23 72 11 72 73 74

Balon	Parca Adi	Parca No	Adet	Tip	Applied Date	A	B	C
2	01.097 HOSE; WATER,BY-PASS	8-97037-464-0	01	1	9812-0105	●	●
2	01.097 HOSE; WATER,BY-PASS	8-97037-464-0	01	1	0106-			●
11	01.097 PIPE; INL,WATER PUMP	8-97063-639-2	01	1	9812-9905	●
11	01.097 PIPE; INL,WATER PUMP	8-97063-639-3	01	1	9906-0105	●
11	01.097 PIPE; INL,WATER PUMP TURBOCHARGER<K51> EXC. CHARGE AIR COOLER<6PL>	8-97063-639-3	01	1	9906-0105		●
11	01.097 PIPE; INL,WATER PUMP EXC. TURBOCHARGER<K51> OIL COOLER<KC4>	8-97063-639-3	01	1	9906-0105		●
11	01.097 PIPE; INL,WATER PUMP	8-97239-994-2	01	1	0106-			●
11	01.097 PIPE; INL,WATER PUMP EXC. OIL COOLER<KC4>,TURBOCHARGER<K51>	8-97070-871-2	01	1	9906-0105		●
11	01.097 PIPE; INL,WATER PUMP TURBOCHARGER<K51> CHARGE AIR COOLER<6PL>	8-97213-400-1	01	1	9906-0105		●
23	01.079 GASKET; SUCTION PIPE TO BLOCK ALSO INCLUDED IN GASKET SET(ENGINE).	8-94365-676-2	01	1	9812-0105	●	●
23	01.079 GASKET; SUCTION PIPE TO BLOCK ALSO INCLUDED IN GASKET SET(ENGINE).	8-94365-676-3	01	1	0106-			●
30	01.150 CLIP; HARNESS 02.559 ID=12	5-09700-331-0	01	1	9812-0105	●	●
72	00.206 BOLT; WATER PIPE 00.727 (A) M8X22 W/LK WASHER	0-50040-822-0	01	1	9812-9905	●
72	00.206 BOLT; WATER PIPE 00.727 (A) M8X22 W/LK WASHER	0-50040-822-0	01	1	9906-0105	●
72	00.206 BOLT; WATER PIPE EXC. TURBOCHARGER<K51> 00.727 (A) M8X22 W/LK WASHER	0-50040-822-0	01	1	9906-0105		●
72	00.206 BOLT; WATER PIPE TURBOCHARGER<K51> EXC. CHARGE AIR COOLER<6PL> 00.727 (A) M8X22 W/LK WASHER	0-50040-822-0	01	1	9906-0105		●
72	00.206 BOLT; WATER PIPE 01.252 (B) M8X45 W/LK WASHER	0-50040-845-0	01	1	9812-0105	●	●
72	00.206 BOLT; WATER PIPE 01.252 (C) M8X45 W/LK WASHER	0-50040-845-0	01	1	0106-			●
72	00.206 BOLT; WATER PIPE TURBOCHARGER<K51> CHARGE AIR COOLER<6PL> 07.010 (A) M8X20 FLANGE	0-28080-820-0	01	1	9906-0105		●
72	00.206 BOLT; WATER PIPE 07.010 (D) M8X20 FLANGE	0-28080-820-0	01	1	0106-			●
73	01.097 PROTECTOR; HEAT,WATER PIPE	8-97043-743-0	01	1	9812-0105	●	●
73	01.097 PROTECTOR; HEAT,WATER PIPE	8-97043-743-1	01	1	0106-			●
74	01.097 BOLT; HEAT PROTECTOR FIX 12.187 M8X16 W/LK&PL WASHER	0-50140-816-0	03	1	9812-0105	●	●
74	01.097 BOLT; HEAT PROTECTOR FIX 12.187 M8X16 W/LK&PL WASHER	0-50140-816-0	03	1	0106-			●
102	01.252 CLIP; WATER HOSE 01.166 (A) ID=20.8	8-94125-862-1	02	1	9812-0105	●	●
102	01.252 CLIP; WATER HOSE 01.166 (A) ID=20.8	8-94125-862-1	02	1	0106-			●
102	01.252 CLIP; WATER HOSE TURBOCHARGER<K51> CHARGE AIR COOLER<6PL> 03.162 (B) ID=15.5	8-94221-519-0	04	1	9906-9907		●
102	01.252 CLIP; WATER HOSE TURBOCHARGER<K51> CHARGE AIR COOLER<6PL> 01.153 (B) ID=12.8	8-94367-943-0	04	1	9908-0105		●
102	01.252 CLIP; WATER HOSE 01.153 (C) ID=12.8	8-94367-943-0	04	1	0106-			●

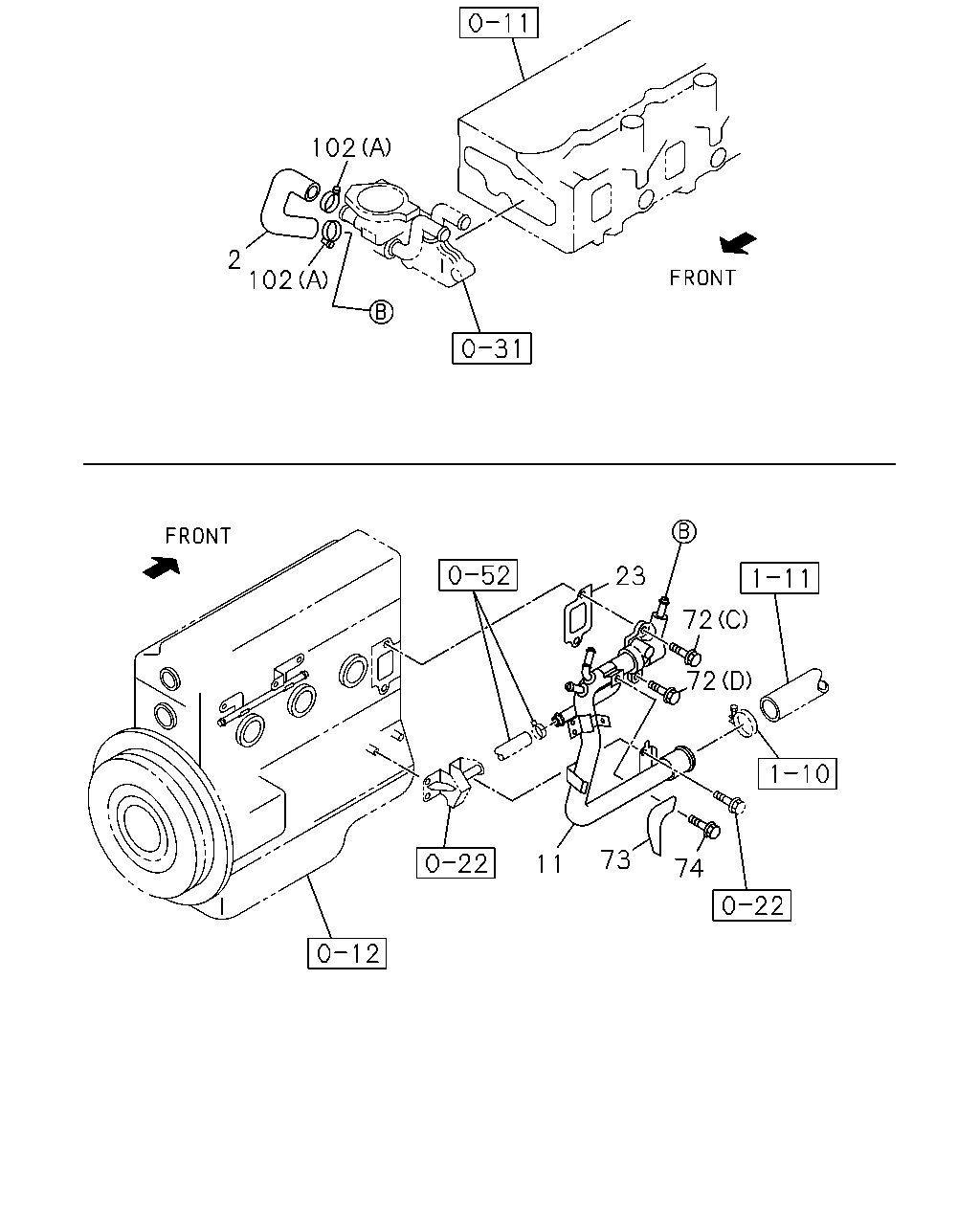

102 2 102 23 72 72 73 11 74

Balon	Parca Adi	Parca No	Adet	Tip	Applied Date	A	B	C
2	01.097 HOSE; WATER,BY-PASS	8-97037-464-0	01	1	9812-0105	●	●
2	01.097 HOSE; WATER,BY-PASS	8-97037-464-0	01	1	0106-			●
11	01.097 PIPE; INL,WATER PUMP	8-97063-639-2	01	1	9812-9905	●
11	01.097 PIPE; INL,WATER PUMP	8-97063-639-3	01	1	9906-0105	●
11	01.097 PIPE; INL,WATER PUMP TURBOCHARGER<K51> EXC. CHARGE AIR COOLER<6PL>	8-97063-639-3	01	1	9906-0105		●
11	01.097 PIPE; INL,WATER PUMP EXC. TURBOCHARGER<K51> OIL COOLER<KC4>	8-97063-639-3	01	1	9906-0105		●
11	01.097 PIPE; INL,WATER PUMP	8-97239-994-2	01	1	0106-			●
11	01.097 PIPE; INL,WATER PUMP EXC. OIL COOLER<KC4>,TURBOCHARGER<K51>	8-97070-871-2	01	1	9906-0105		●
11	01.097 PIPE; INL,WATER PUMP TURBOCHARGER<K51> CHARGE AIR COOLER<6PL>	8-97213-400-1	01	1	9906-0105		●
23	01.079 GASKET; SUCTION PIPE TO BLOCK ALSO INCLUDED IN GASKET SET(ENGINE).	8-94365-676-2	01	1	9812-0105	●	●
23	01.079 GASKET; SUCTION PIPE TO BLOCK ALSO INCLUDED IN GASKET SET(ENGINE).	8-94365-676-3	01	1	0106-			●
72	00.206 BOLT; WATER PIPE 00.727 (A) M8X22 W/LK WASHER	0-50040-822-0	01	1	9812-9905	●
72	00.206 BOLT; WATER PIPE 00.727 (A) M8X22 W/LK WASHER	0-50040-822-0	01	1	9906-0105	●
72	00.206 BOLT; WATER PIPE EXC. TURBOCHARGER<K51> 00.727 (A) M8X22 W/LK WASHER	0-50040-822-0	01	1	9906-0105		●
72	00.206 BOLT; WATER PIPE TURBOCHARGER<K51> EXC. CHARGE AIR COOLER<6PL> 00.727 (A) M8X22 W/LK WASHER	0-50040-822-0	01	1	9906-0105		●
72	00.206 BOLT; WATER PIPE 01.252 (B) M8X45 W/LK WASHER	0-50040-845-0	01	1	9812-0105	●	●
72	00.206 BOLT; WATER PIPE 01.252 (C) M8X45 W/LK WASHER	0-50040-845-0	01	1	0106-			●
72	00.206 BOLT; WATER PIPE TURBOCHARGER<K51> CHARGE AIR COOLER<6PL> 07.010 (A) M8X20 FLANGE	0-28080-820-0	01	1	9906-0105		●
72	00.206 BOLT; WATER PIPE 07.010 (D) M8X20 FLANGE	0-28080-820-0	01	1	0106-			●
73	01.097 PROTECTOR; HEAT,WATER PIPE	8-97043-743-0	01	1	9812-0105	●	●
73	01.097 PROTECTOR; HEAT,WATER PIPE	8-97043-743-1	01	1	0106-			●
74	01.097 BOLT; HEAT PROTECTOR FIX 12.187 M8X16 W/LK&PL WASHER	0-50140-816-0	03	1	9812-0105	●	●
74	01.097 BOLT; HEAT PROTECTOR FIX 12.187 M8X16 W/LK&PL WASHER	0-50140-816-0	03	1	0106-			●
102	01.252 CLIP; WATER HOSE 01.166 (A) ID=20.8	8-94125-862-1	02	1	9812-0105	●	●
102	01.252 CLIP; WATER HOSE 01.166 (A) ID=20.8	8-94125-862-1	02	1	0106-			●
102	01.252 CLIP; WATER HOSE TURBOCHARGER<K51> CHARGE AIR COOLER<6PL> 03.162 (B) ID=15.5	8-94221-519-0	04	1	9906-9907		●
102	01.252 CLIP; WATER HOSE TURBOCHARGER<K51> CHARGE AIR COOLER<6PL> 01.153 (B) ID=12.8	8-94367-943-0	04	1	9908-0105		●
102	01.252 CLIP; WATER HOSE 01.153 (C) ID=12.8	8-94367-943-0	04	1	0106-			●

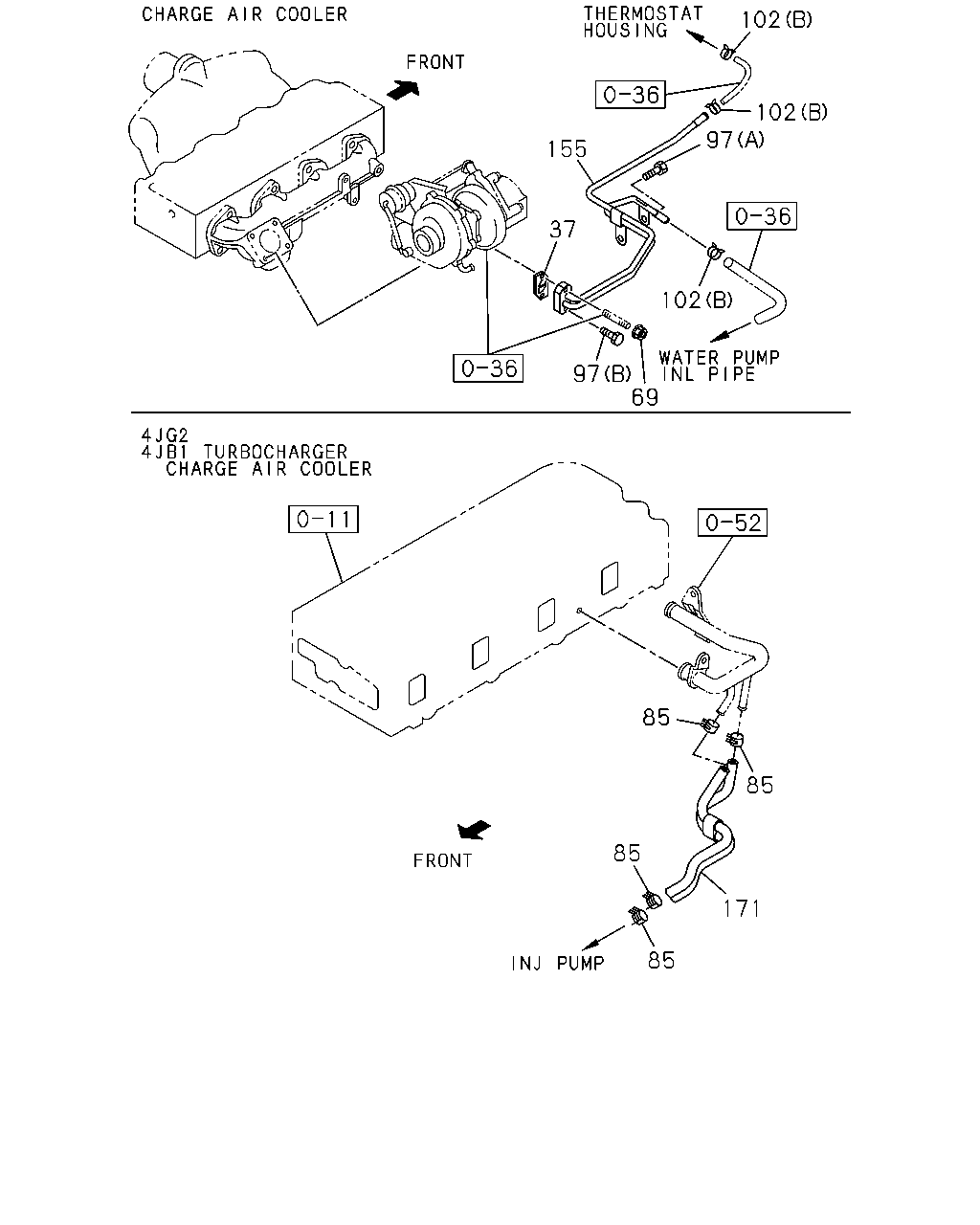

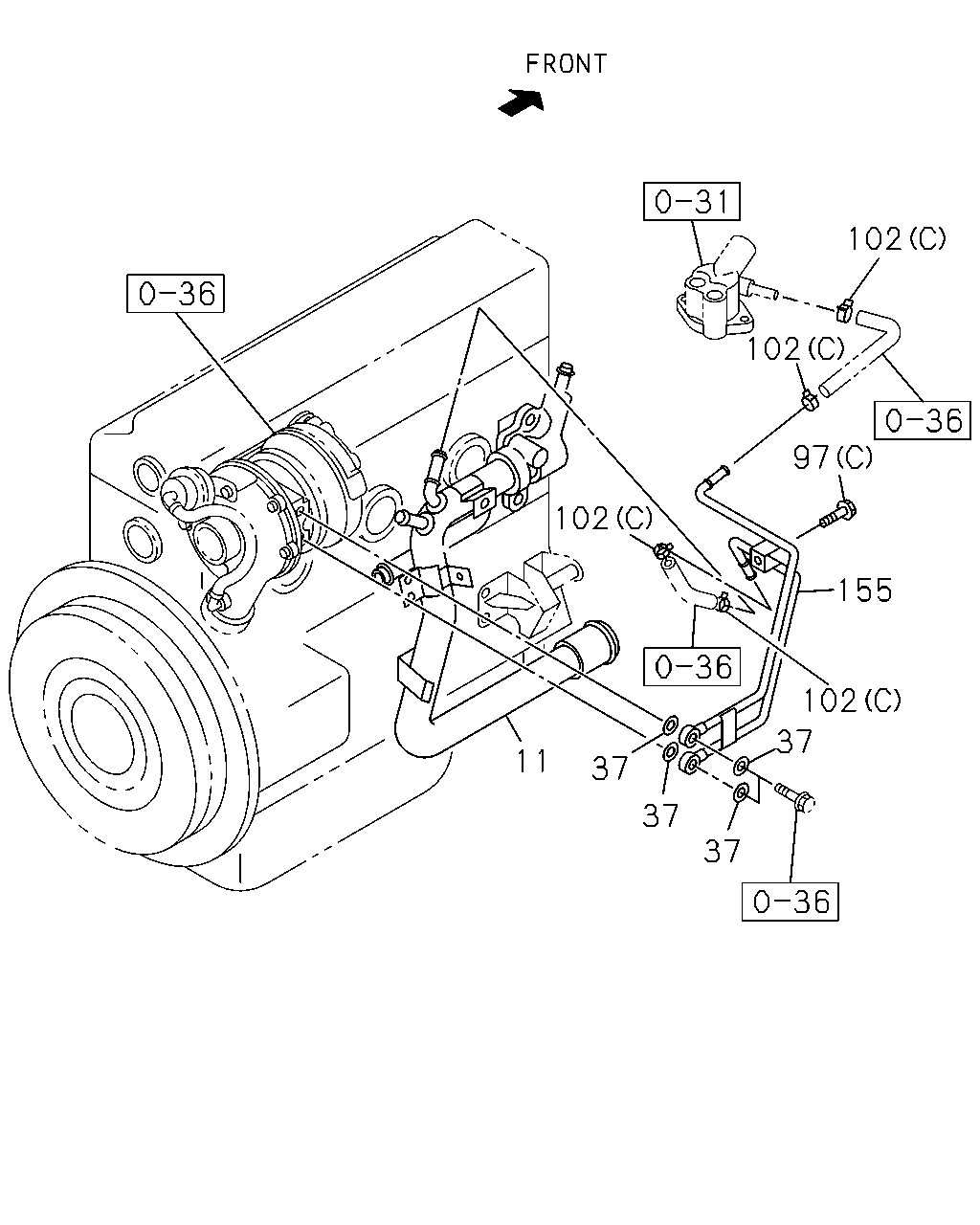

102 102 97 155 37 102 97 69 85 85 85 171 85

Balon	Parca Adi	Parca No	Adet	Tip	Applied Date	A	B	C
37	01.242 GASKET; WATER PIPE ALSO INCLUDED IN GASKET SET(ENGINE). TURBOCHARGER<K51> CHARGE AIR COOLER<6PL> 03.374	8-94321-135-1	01	1	9906-0105		●
37	01.242 GASKET; WATER PIPE ALSO INCLUDED IN GASKET SET(ENGINE). 08.955 ID=12.2	9-09571-412-0	04	1	0106-			●
69	01.153 NUT; WATER PIPE TURBOCHARGER<K51> CHARGE AIR COOLER<6PL> 04.594 M6 FLANGE	0-91150-106-0	01	1	9906-0105		●
85	01.240 CLIP; RUBBER,WAX CSD 03.162 ID=15.5	8-94221-519-0	04	1	9812-9905	●
85	01.240 CLIP; RUBBER,WAX CSD 03.162 ID=15.5	8-94221-519-0	04	1	9906-9907	●
85	01.240 CLIP; RUBBER,WAX CSD CHARGE AIR COOLER<6PL> 03.162 ID=15.5	8-94221-519-0	04	1	9906-9907		●
85	01.240 CLIP; RUBBER,WAX CSD 01.153 ID=12.8	8-94367-943-0	04	1	9908-0105	●
85	01.240 CLIP; RUBBER,WAX CSD CHARGE AIR COOLER<6PL> 01.153 ID=12.8	8-94367-943-0	04	1	9908-0105		●
97	04.866 BOLT; WATER PIPE TURBOCHARGER<K51> CHARGE AIR COOLER<6PL> 01.428 (A) M6X12 FLANGE	0-28080-612-0	01	1	9906-0105		●
97	04.866 BOLT; WATER PIPE 08.900 (C) M8X12 FLANGE	0-28080-812-0	01	1	0106-			●
97	04.866 BOLT; WATER PIPE TURBOCHARGER<K51> CHARGE AIR COOLER<6PL> 04.930 (B) M6X20 FLANGE	0-28680-620-0	01	1	9906-0105		●
102	01.252 CLIP; WATER HOSE 01.166 (A) ID=20.8	8-94125-862-1	02	1	9812-0105	●	●
102	01.252 CLIP; WATER HOSE 01.166 (A) ID=20.8	8-94125-862-1	02	1	0106-			●
102	01.252 CLIP; WATER HOSE TURBOCHARGER<K51> CHARGE AIR COOLER<6PL> 03.162 (B) ID=15.5	8-94221-519-0	04	1	9906-9907		●
102	01.252 CLIP; WATER HOSE TURBOCHARGER<K51> CHARGE AIR COOLER<6PL> 01.153 (B) ID=12.8	8-94367-943-0	04	1	9908-0105		●
102	01.252 CLIP; WATER HOSE 01.153 (C) ID=12.8	8-94367-943-0	04	1	0106-			●
155	01.153 PIPE ASM; WATER TURBOCHARGER<K51> CHARGE AIR COOLER<6PL>	8-97207-954-0	01	1	9906-0105		●
155	01.153 PIPE ASM; WATER	8-97239-995-0	01	1	0106-			●
171	01.240 HOSE; RUBBER,WAX CSD	8-97189-478-0	01	1	9812-0105	●
171	01.240 HOSE; RUBBER,WAX CSD TURBOCHARGER<K51> CHARGE AIR COOLER<6PL>	8-97225-605-0	01	1	9906-0105		●

102 102 97 102 155 102 37 11 37 37 37

Balon	Parca Adi	Parca No	Adet	Tip	Applied Date	A	B	C
11	01.097 PIPE; INL,WATER PUMP	8-97063-639-2	01	1	9812-9905	●
11	01.097 PIPE; INL,WATER PUMP	8-97063-639-3	01	1	9906-0105	●
11	01.097 PIPE; INL,WATER PUMP TURBOCHARGER<K51> EXC. CHARGE AIR COOLER<6PL>	8-97063-639-3	01	1	9906-0105		●
11	01.097 PIPE; INL,WATER PUMP EXC. TURBOCHARGER<K51> OIL COOLER<KC4>	8-97063-639-3	01	1	9906-0105		●
11	01.097 PIPE; INL,WATER PUMP	8-97239-994-2	01	1	0106-			●
11	01.097 PIPE; INL,WATER PUMP EXC. OIL COOLER<KC4>,TURBOCHARGER<K51>	8-97070-871-2	01	1	9906-0105		●
11	01.097 PIPE; INL,WATER PUMP TURBOCHARGER<K51> CHARGE AIR COOLER<6PL>	8-97213-400-1	01	1	9906-0105		●
37	01.242 GASKET; WATER PIPE ALSO INCLUDED IN GASKET SET(ENGINE). TURBOCHARGER<K51> CHARGE AIR COOLER<6PL> 03.374	8-94321-135-1	01	1	9906-0105		●
37	01.242 GASKET; WATER PIPE ALSO INCLUDED IN GASKET SET(ENGINE). 08.955 ID=12.2	9-09571-412-0	04	1	0106-			●
97	04.866 BOLT; WATER PIPE TURBOCHARGER<K51> CHARGE AIR COOLER<6PL> 01.428 (A) M6X12 FLANGE	0-28080-612-0	01	1	9906-0105		●
97	04.866 BOLT; WATER PIPE 08.900 (C) M8X12 FLANGE	0-28080-812-0	01	1	0106-			●
97	04.866 BOLT; WATER PIPE TURBOCHARGER<K51> CHARGE AIR COOLER<6PL> 04.930 (B) M6X20 FLANGE	0-28680-620-0	01	1	9906-0105		●
102	01.252 CLIP; WATER HOSE 01.166 (A) ID=20.8	8-94125-862-1	02	1	9812-0105	●	●
102	01.252 CLIP; WATER HOSE 01.166 (A) ID=20.8	8-94125-862-1	02	1	0106-			●
102	01.252 CLIP; WATER HOSE TURBOCHARGER<K51> CHARGE AIR COOLER<6PL> 03.162 (B) ID=15.5	8-94221-519-0	04	1	9906-9907		●
102	01.252 CLIP; WATER HOSE TURBOCHARGER<K51> CHARGE AIR COOLER<6PL> 01.153 (B) ID=12.8	8-94367-943-0	04	1	9908-0105		●
102	01.252 CLIP; WATER HOSE 01.153 (C) ID=12.8	8-94367-943-0	04	1	0106-			●
155	01.153 PIPE ASM; WATER TURBOCHARGER<K51> CHARGE AIR COOLER<6PL>	8-97207-954-0	01	1	9906-0105		●
155	01.153 PIPE ASM; WATER	8-97239-995-0	01	1	0106-			●
