0-31 — THERMOSTAT AND HOUSING (#21660) — 69 parça

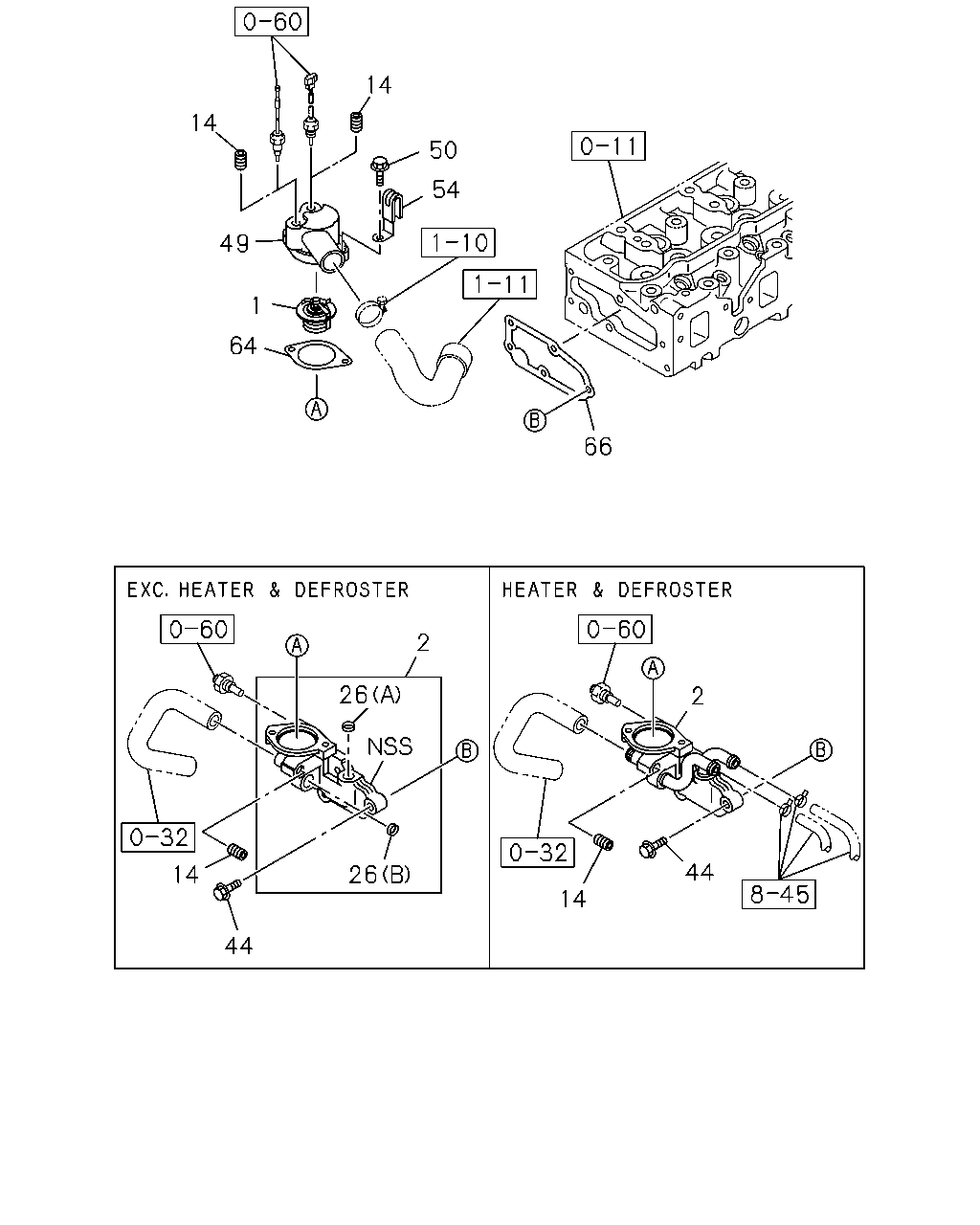

14 14 50 54 49 1 64 66 2 26 2 44 26 14 14 44

Balon	Parca Adi	Parca No	Adet	Tip	Applied Date	A	B	C
1	01.246 THERMOSTAT 82 CELSIUS	8-97089-891-0	01	1	9812-9905	●
1	01.246 THERMOSTAT 82 CELSIUS	8-97089-891-0	01	1	9906-0105	●
1	01.246 THERMOSTAT HEATER & DEFROSTER(C41) 82 CELSIUS	8-97089-891-0	01	1	9906-0105		●
1	01.246 THERMOSTAT 82 CELSIUS	8-97089-891-0	01	1	0106-0301			●
1	01.246 THERMOSTAT 82 CELSIUS	8-97361-770-0	01	1	0302-			●
1	01.246 THERMOSTAT EXC. HEATER & DEFROSTER(C41) 82 CELSIUS	8-94482-277-1	01	1	9906-0105		●
2	01.251 HOUSING; THERMOSTAT	8-97139-602-0	01	1	9812-9905	●
2	01.251 HOUSING; THERMOSTAT HEATER & DEFROSTER(C41)	8-97139-602-0	01	1	9906-0105	●
2	01.251 HOUSING; THERMOSTAT HEATER & DEFROSTER(C41) EXC. TURBOCHARGER<K51>	8-97139-602-0	01	1	9906-0105		●
2	01.251 HOUSING; THERMOSTAT TURBOCHARGER<K51> HEATER & DEFROSTER(C41) EXC. CHARGE AIR COOLER<6PL>	8-97139-602-0	01	1	9906-0105		●
2	01.251 HOUSING; THERMOSTAT HEATER & DEFROSTER(C41) TURBOCHARGER<K51> CHARGE AIR COOLER<6PL>	8-97139-603-0	01	1	9906-0105		●
2	01.251 HOUSING; THERMOSTAT	8-97252-416-2	01	1	0106-			●
2	01.251 HOUSING; THERMOSTAT EXC. HEATER & DEFROSTER(C41)	8-97139-604-2	01	1	9906-0105		●
14	01.252 PLUG; SW 01.073 PT3/8	5-09605-005-0	02	1	9812-9905	●
14	01.252 PLUG; SW 01.073 PT3/8	5-09605-005-0	02	1	9906-0105	●	●
14	01.252 PLUG; SW EXC. HEATER & DEFROSTER(C41), TURBOCHARGER<K51> 01.073 PT3/8	5-09605-005-0	01	1	9906-0105		●
14	01.252 PLUG; SW TURBOCHARGER<K51> EXC. HEATER & DEFROSTER(C41),CHARGE AIR COOLER<6PL> 01.073 PT3/8	5-09605-005-0	01	1	9906-0105		●
26	01.251 CUP; SEALING,VLV,VENTILATION EXC. HEATER & DEFROSTER(C41) 00.253 (B) OD=18	5-11219-008-0	01	1	0010-0105		●
26	01.251 CUP; SEALING,VLV,VENTILATION EXC. HEATER & DEFROSTER(C41), TURBOCHARGER<K51> (A) OD=18	9-11129-082-0	02	1	9906-0009		●
26	01.251 CUP; SEALING,VLV,VENTILATION TURBOCHARGER<K51> EXC. HEATER & DEFROSTER(C41),CHARGE AIR COOLER<6PL> (A) OD=18	9-11129-082-0	02	1	9906-0009		●
26	01.251 CUP; SEALING,VLV,VENTILATION EXC. HEATER & DEFROSTER(C41) (A) OD=18	9-11129-082-0	02	1	0010-0105		●
44	01.252 BOLT; HSG TO HD 00.780 M8X30 W/LK WASHER	0-50040-830-0	05	1	9812-0105	●	●
44	01.252 BOLT; HSG TO HD 00.780 M8X30 W/LK WASHER	0-50040-830-0	05	1	0106-			●
49	01.153 PIPE; WATER OUTLET	8-94254-601-1	01	1	9812-9905	●
49	01.153 PIPE; WATER OUTLET	8-94254-601-1	01	1	9906-0105	●
49	01.153 PIPE; WATER OUTLET EXC. TURBOCHARGER<K51>	8-94254-601-1	01	1	9906-0105		●
49	01.153 PIPE; WATER OUTLET TURBOCHARGER<K51> EXC. CHARGE AIR COOLER<6PL>	8-94254-601-1	01	1	9906-0105		●
49	01.153 PIPE; WATER OUTLET TURBOCHARGER<K51> CHARGE AIR COOLER<6PL>	8-97204-199-0	01	1	9906-0105		●
49	01.153 PIPE; WATER OUTLET	8-97289-011-0	01	1	0106-			●
50	01.252 BOLT; OUTLET PIPE M8X30 W/LK&PL WASHER	0-50140-830-0	02	1	9812-0105	●	●
50	01.252 BOLT; OUTLET PIPE M8X30 W/LK&PL WASHER	0-50140-830-0	02	1	0106-			●
54	01.152 CLIP; THERMO SWITCH,OUTLET PIPE 02.559 ID=13 H=50 L=27	8-94130-076-0	01	1	9812-0105	●	●
54	01.152 CLIP; THERMO SWITCH,OUTLET PIPE 02.559 ID=13 H=50 L=27	8-94130-076-0	01	1	0106-			●
64	01.154 GASKET; OUTLET PIPE TO HSG ALSO INCLUDED IN GASKET SET(ENG. & HEAD) 01.252	8-94365-674-1	01	1	9812-0105	●	●
64	01.154 GASKET; OUTLET PIPE TO HSG ALSO INCLUDED IN GASKET SET(ENG. & HEAD) 01.252	8-94365-674-2	01	1	0106-			●
66	01.252 GASKET; THERMOSTAT HSG ALSO INCLUDED IN GASKET SET(ENG. & HEAD)	8-94365-675-1	01	1	9812-9902	●
66	01.252 GASKET; THERMOSTAT HSG ALSO INCLUDED IN GASKET SET(ENG. & HEAD)	8-97216-156-0	01	1	9903-0105	●	●
66	01.252 GASKET; THERMOSTAT HSG ALSO INCLUDED IN GASKET SET(ENG. & HEAD)	8-97216-156-0	01	1	0106-			●

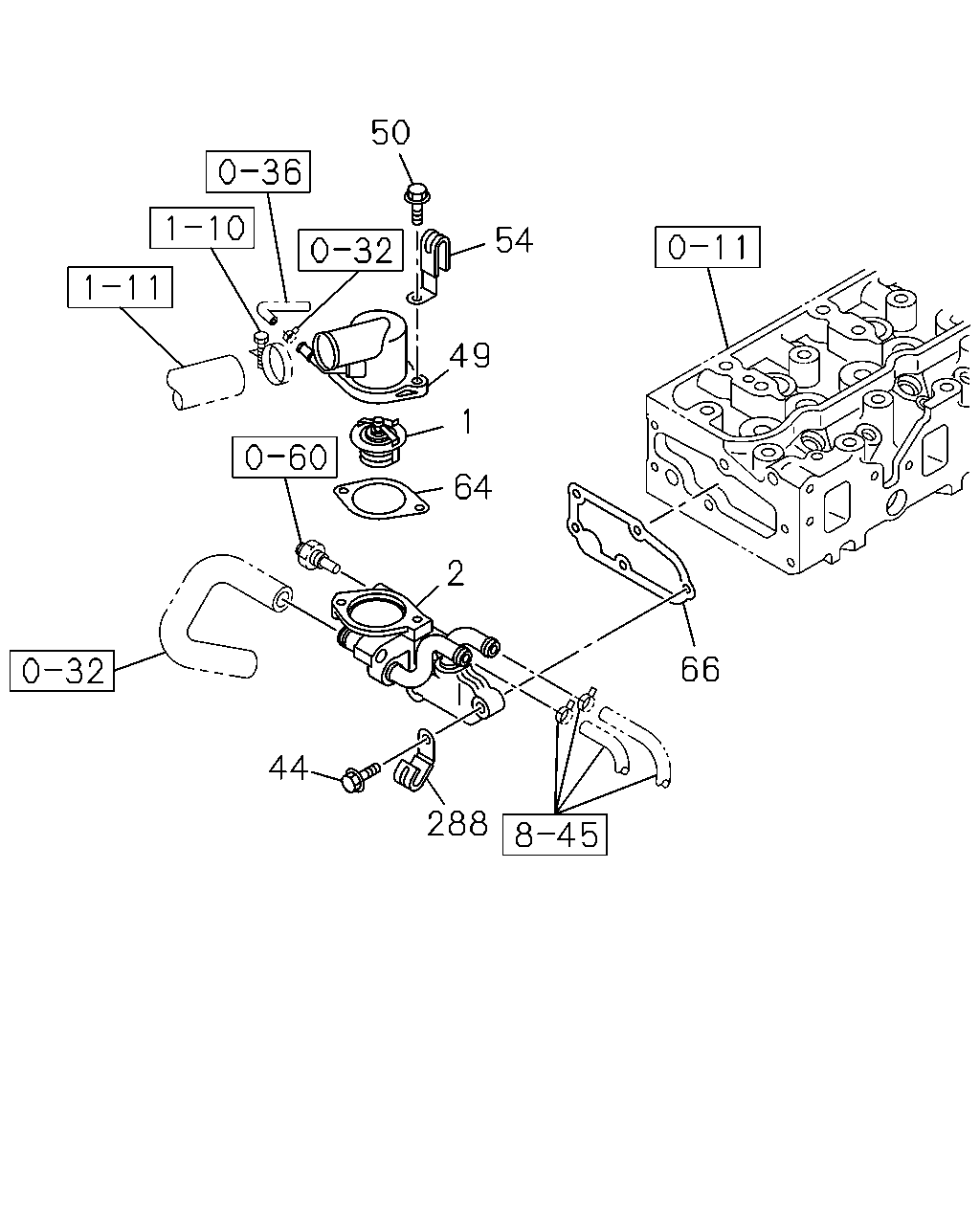

50 54 49 1 64 2 66 44 288

Balon	Parca Adi	Parca No	Adet	Tip	Applied Date	A	B	C
1	01.246 THERMOSTAT 82 CELSIUS	8-97089-891-0	01	1	9812-9905	●
1	01.246 THERMOSTAT 82 CELSIUS	8-97089-891-0	01	1	9906-0105	●
1	01.246 THERMOSTAT HEATER & DEFROSTER(C41) 82 CELSIUS	8-97089-891-0	01	1	9906-0105		●
1	01.246 THERMOSTAT 82 CELSIUS	8-97089-891-0	01	1	0106-0301			●
1	01.246 THERMOSTAT 82 CELSIUS	8-97361-770-0	01	1	0302-			●
1	01.246 THERMOSTAT EXC. HEATER & DEFROSTER(C41) 82 CELSIUS	8-94482-277-1	01	1	9906-0105		●
2	01.251 HOUSING; THERMOSTAT	8-97139-602-0	01	1	9812-9905	●
2	01.251 HOUSING; THERMOSTAT HEATER & DEFROSTER(C41)	8-97139-602-0	01	1	9906-0105	●
2	01.251 HOUSING; THERMOSTAT HEATER & DEFROSTER(C41) EXC. TURBOCHARGER<K51>	8-97139-602-0	01	1	9906-0105		●
2	01.251 HOUSING; THERMOSTAT TURBOCHARGER<K51> HEATER & DEFROSTER(C41) EXC. CHARGE AIR COOLER<6PL>	8-97139-602-0	01	1	9906-0105		●
2	01.251 HOUSING; THERMOSTAT HEATER & DEFROSTER(C41) TURBOCHARGER<K51> CHARGE AIR COOLER<6PL>	8-97139-603-0	01	1	9906-0105		●
2	01.251 HOUSING; THERMOSTAT	8-97252-416-2	01	1	0106-			●
2	01.251 HOUSING; THERMOSTAT EXC. HEATER & DEFROSTER(C41)	8-97139-604-2	01	1	9906-0105		●
44	01.252 BOLT; HSG TO HD 00.780 M8X30 W/LK WASHER	0-50040-830-0	05	1	9812-0105	●	●
44	01.252 BOLT; HSG TO HD 00.780 M8X30 W/LK WASHER	0-50040-830-0	05	1	0106-			●
49	01.153 PIPE; WATER OUTLET	8-94254-601-1	01	1	9812-9905	●
49	01.153 PIPE; WATER OUTLET	8-94254-601-1	01	1	9906-0105	●
49	01.153 PIPE; WATER OUTLET EXC. TURBOCHARGER<K51>	8-94254-601-1	01	1	9906-0105		●
49	01.153 PIPE; WATER OUTLET TURBOCHARGER<K51> EXC. CHARGE AIR COOLER<6PL>	8-94254-601-1	01	1	9906-0105		●
49	01.153 PIPE; WATER OUTLET TURBOCHARGER<K51> CHARGE AIR COOLER<6PL>	8-97204-199-0	01	1	9906-0105		●
49	01.153 PIPE; WATER OUTLET	8-97289-011-0	01	1	0106-			●
50	01.252 BOLT; OUTLET PIPE M8X30 W/LK&PL WASHER	0-50140-830-0	02	1	9812-0105	●	●
50	01.252 BOLT; OUTLET PIPE M8X30 W/LK&PL WASHER	0-50140-830-0	02	1	0106-			●
54	01.152 CLIP; THERMO SWITCH,OUTLET PIPE 02.559 ID=13 H=50 L=27	8-94130-076-0	01	1	9812-0105	●	●
54	01.152 CLIP; THERMO SWITCH,OUTLET PIPE 02.559 ID=13 H=50 L=27	8-94130-076-0	01	1	0106-			●
64	01.154 GASKET; OUTLET PIPE TO HSG ALSO INCLUDED IN GASKET SET(ENG. & HEAD) 01.252	8-94365-674-1	01	1	9812-0105	●	●
64	01.154 GASKET; OUTLET PIPE TO HSG ALSO INCLUDED IN GASKET SET(ENG. & HEAD) 01.252	8-94365-674-2	01	1	0106-			●
66	01.252 GASKET; THERMOSTAT HSG ALSO INCLUDED IN GASKET SET(ENG. & HEAD)	8-94365-675-1	01	1	9812-9902	●
66	01.252 GASKET; THERMOSTAT HSG ALSO INCLUDED IN GASKET SET(ENG. & HEAD)	8-97216-156-0	01	1	9903-0105	●	●
66	01.252 GASKET; THERMOSTAT HSG ALSO INCLUDED IN GASKET SET(ENG. & HEAD)	8-97216-156-0	01	1	0106-			●
288	04.930 CLIP 02.559 ID=12	5-09700-331-0	01	1	0106-			●
