0-38 — AIR COMPRESSOR PIPING; ENGINE SIDE (#2166) — 107 parça

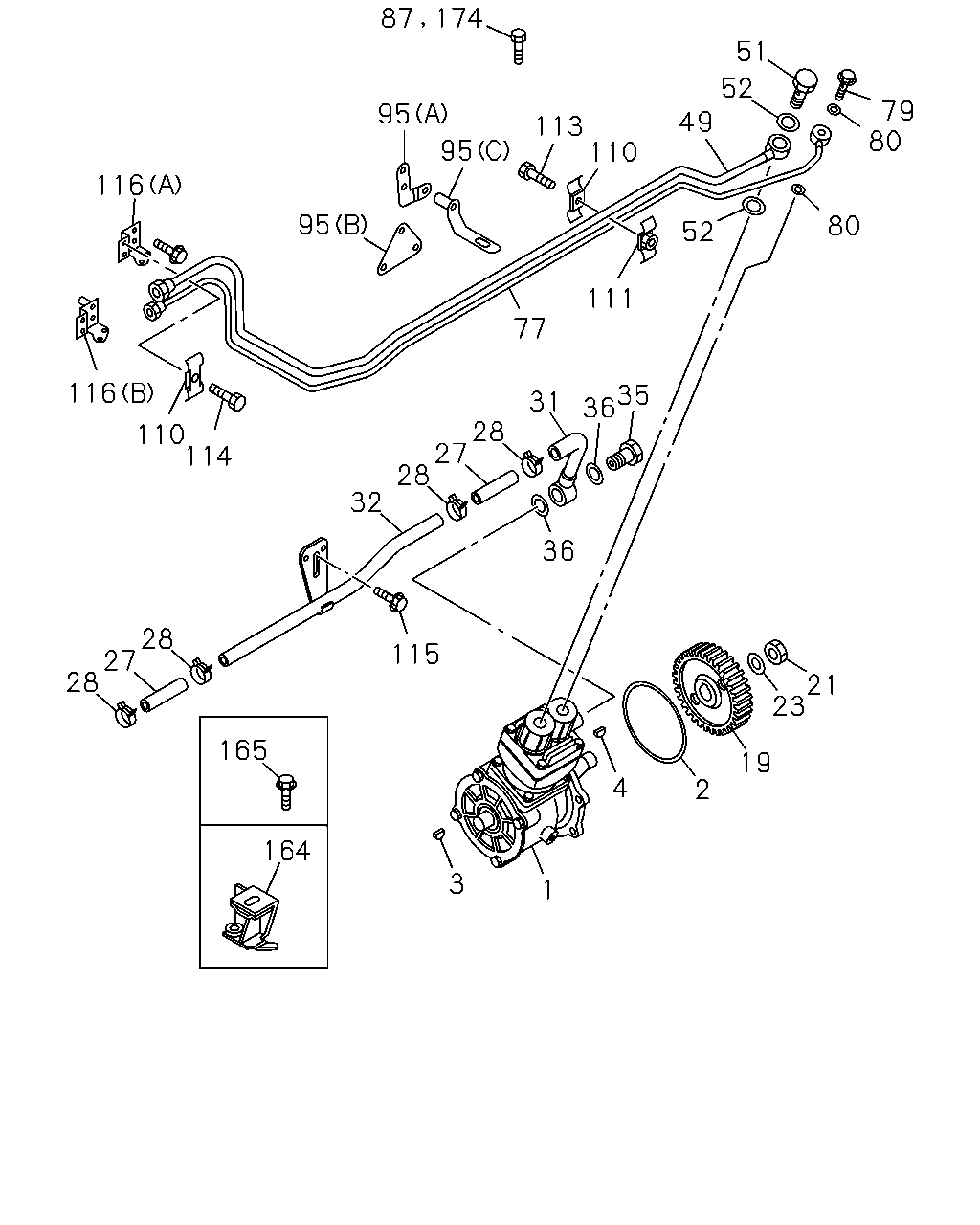

çizim 27782
87 174 51 52 49 79 80 95 113 110 95 116 95 80 52 111 77 116 35 36 31 28 27 28 110 114 32 36 28 27 28 115 21 23 19 165 4 2 164 3 1
BalonParca AdiParca NoAdetTipApplied Date A B
1 COMPRESSOR ASM; AIR
SEE FIG-NO 0-39 FOR COMPONENT. 		1-19100-255-2 01 1 9101-9911 ● ●
1 COMPRESSOR ASM; AIR
SEE FIG-NO 0-39 FOR COMPONENT. 		1-19100-325-0 01 1 9912- ● ●
2 GASKET; AIR CMPR
ALSO INCLUDED IN GASKET SET(ENGINE). ID=139.6 		1-09623-464-0 01 1 9101- ● ●
3 KEY; COUPLING,INJ PUMP 9-08055-416-0 01 1 9101- ● ●
4 KEY; INJ PUMP GEAR 9-08055-516-0 01 1 9101- ● ●
19 GEAR; INJ PUMP
Z=50 		1-12524-033-0 01 1 9101- ● ●
21 NUT; PUMP GEAR
M20 		9-99110-520-0 01 1 9101- ● ●
23 WASHER; PL,PUMP GEAR
ID=21 		9-09160-520-0 01 1 9101- ● ●
27 HOSE; AIR CMPR,SUCTION
RIGHT HAND DRIVE(MTR5FB) L=100 SERVICED BY L=10000 		9-09912-813-0 02 1 9101- ● ●
27 HOSE; AIR CMPR,SUCTION
LEFT HAND DRIVE(MTR6FB) 		1-09360-680-0 01 1 9101- ● ●
28 CLIP; HOSE,AIR CMPR
RIGHT HAND DRIVE(MTR5FB) ID=26 		1-09707-091-0 04 1 9101- ● ●
28 CLIP; HOSE,AIR CMPR
LEFT HAND DRIVE(MTR6FB) ID=26 		1-09707-091-0 02 1 9101- ● ●
31 PIPE; AIR,AIR CMPR SUCTION
RIGHT HAND DRIVE(MTR5FB) 		1-19191-690-0 01 1 9101- ● ●
31 PIPE; AIR,AIR CMPR SUCTION
LEFT HAND DRIVE(MTR6FB) 		1-19191-839-0 01 1 9101- ● ●
32 PIPE; AIR,AIR CMPR
RIGHT HAND DRIVE(MTR5FB) EXC. PARTIAL OIL FILTER<KC1> 		1-19191-692-0 01 1 9101-0203 ● ●
32 PIPE; AIR,AIR CMPR
RIGHT HAND DRIVE(MTR5FB) 		1-19191-692-0 01 1 0204- ● ●
35 BOLT; EYE,AIR PIPE
M24X39 		1-09675-132-0 01 1 9101- ● ●
36 GASKET; AIR PIPE TO AIR CMPR
ALSO INCLUDED IN GASKET SET(ENGINE). ID=24.5 OD=32 		9-09571-424-0 02 1 9101- ● ●
49 PIPE; AIR,CHARGE
RIGHT HAND DRIVE(MTR5FB) 		1-19192-008-1 01 1 9101-9212 ● ●
49 PIPE; AIR,CHARGE
RIGHT HAND DRIVE(MTR5FB) 		1-19192-750-0 01 1 9301- ● ●
49 PIPE; AIR,CHARGE
LEFT HAND DRIVE(MTR6FB) 		1-19192-173-1 01 1 9101-9212 ● ●
49 PIPE; AIR,CHARGE
LEFT HAND DRIVE(MTR6FB) 		1-19192-745-0 01 1 9301- ● ●
51 BOLT; EYE,AIR PIPE TO CMPR
M20X38 		1-09675-133-0 01 1 9101- ● ●
52 GASKET; EYE BOLT,AIR PIPE
ALSO INCLUDED IN GASKET SET(ENGINE). 		9-09571-420-0 02 1 9101- ● ●
77 PIPE; AIR,GOV
RIGHT HAND DRIVE(MTR5FB) 		1-19192-007-1 01 1 9101- ● ●
77 PIPE; AIR,GOV
LEFT HAND DRIVE(MTR6FB) 		1-19192-174-0 01 1 9101- ● ●
79 BOLT; EYE,AIR PIPE TO CMPR 1-09675-058-0 01 1 9101- ● ●
80 GASKET; AIR PIPE TO CMPR
ALSO INCLUDED IN GASKET SET(ENG. & HEAD) 		1-09630-087-0 02 1 9101- ● ●
87 BOLT; BRKT FIX
RIGHT HAND DRIVE(MTR5FB) EXC. STARTER DENSO(RC6) M8X35 W/LK WASHER 		0-50040-835-0 02 1 9101-9204 ●
87 BOLT; BRKT FIX
RIGHT HAND DRIVE(MTR5FB) EXC. ENGINE OIL COOLER HEAVY DUTY(E1E) M8X35 W/LK WASHER 		0-50040-835-0 02 1 9101-9204 ●
87 BOLT; BRKT FIX
RIGHT HAND DRIVE(MTR5FB) EXC. FLYWHEEL HOUSING SAE #2<E4C> M8X35 W/LK WASHER 		0-50040-835-0 02 1 9205- ● ●
87 BOLT; BRKT FIX
RIGHT HAND DRIVE(MTR5FB) ENGINE OIL COOLER HEAVY DUTY(E1E) M8X16 W/LK WASHER 		0-50040-816-0 02 1 9101-9204 ●
87 BOLT; BRKT FIX
RIGHT HAND DRIVE(MTR5FB) FLYWHEEL HOUSING SAE #2<E4C> M8X16 W/LK WASHER 		0-50040-816-0 02 1 9205-0203 ● ●
87 BOLT; BRKT FIX
RIGHT HAND DRIVE(MTR5FB) FLYWHEEL HOUSING SAE #2<E4C> M8X16 W/LK WASHER 		0-50040-816-0 02 1 0204- ●
95 BRACKET; PIPE CLIP
RIGHT HAND DRIVE(MTR5FB) EXC. STARTER DENSO(RC6) (A) 		1-19199-102-0 01 1 9101-9204 ●
95 BRACKET; PIPE CLIP
RIGHT HAND DRIVE(MTR5FB) EXC. ENGINE OIL COOLER HEAVY DUTY(E1E) (A) 		1-19199-102-0 01 1 9101-9204 ●
95 BRACKET; PIPE CLIP
RIGHT HAND DRIVE(MTR5FB) (A) 		1-19199-102-0 01 1 9205- ● ●
95 BRACKET; PIPE CLIP
RIGHT HAND DRIVE(MTR5FB) EXC. STARTER DENSO(RC6) (B) 		1-19199-103-0 01 1 9101-9204 ●
95 BRACKET; PIPE CLIP
RIGHT HAND DRIVE(MTR5FB) (B) 		1-19199-103-0 01 1 9101-9204 ●
95 BRACKET; PIPE CLIP
RIGHT HAND DRIVE(MTR5FB) (B) 		1-19199-103-0 01 1 9205- ● ●
95 BRACKET; PIPE CLIP
RIGHT HAND DRIVE(MTR5FB) EXC. STARTER DENSO(RC6) (C) 		1-19199-116-0 01 1 9101-9204 ●
95 BRACKET; PIPE CLIP
RIGHT HAND DRIVE(MTR5FB) EXC. ENGINE OIL COOLER HEAVY DUTY(E1E),PARTIAL OILFILTER<KC1> (C) 		1-19199-116-0 01 1 9101-9204 ●
95 BRACKET; PIPE CLIP
RIGHT HAND DRIVE(MTR5FB) EXC. FLYWHEEL HOUSING SAE #2<E4C> (C) 		1-19199-116-0 01 1 9205- ● ●
110 CLIP; AIR PIPE
RIGHT HAND DRIVE(MTR5FB) WO/NUT 		1-09700-547-0 08 1 9101- ● ●
110 CLIP; AIR PIPE
LEFT HAND DRIVE(MTR6FB) WO/NUT 		1-09700-547-0 06 1 9101- ● ●
111 CLIP; AIR PIPE
W/NUT 		1-09700-550-0 02 1 9101- ● ●
113 BOLT; CLIP,AIR PIPE
M6X28 W/LK WASHER 		9-01900-628-0 02 1 9101-9204 ● ●
113 BOLT; CLIP,AIR PIPE
M6X28 W/LK WASHER 		0-50040-628-0 02 1 9205- ● ●
114 BOLT; CLIP,AIR PIPE
RIGHT HAND DRIVE(MTR5FB) M6X28 W/LK WASHER 		9-01900-628-0 03 1 9101-9204 ● ●
114 BOLT; CLIP,AIR PIPE
RIGHT HAND DRIVE(MTR5FB) M6X28 W/LK WASHER 		0-50040-628-0 03 1 9205- ● ●
114 BOLT; CLIP,AIR PIPE
LEFT HAND DRIVE(MTR6FB) M6X28 W/LK WASHER 		9-01900-628-0 02 1 9101-9204 ● ●
114 BOLT; CLIP,AIR PIPE
LEFT HAND DRIVE(MTR6FB) M6X28 W/LK WASHER 		0-50040-628-0 02 1 9205- ● ●
115 BOLT; AIR PIPE
RIGHT HAND DRIVE(MTR5FB) EXC. STARTER DENSO(RC6) M8X16 W/LK WASHER 		0-50040-816-0 02 1 9101-9204 ●
115 BOLT; AIR PIPE
RIGHT HAND DRIVE(MTR5FB) EXC. ENGINE OIL COOLER HEAVY DUTY(E1E) M8X16 W/LK WASHER 		0-50040-816-0 02 1 9101-9204 ●
115 BOLT; AIR PIPE
RIGHT HAND DRIVE(MTR5FB) M8X16 W/LK WASHER 		0-50040-816-0 02 1 9205-0203 ●
115 BOLT; AIR PIPE
RIGHT HAND DRIVE(MTR5FB) EXC. ENGINE OIL COOLER HEAVY DUTY(E1E) M8X16 W/LK WASHER 		0-50040-816-0 02 1 9205-0203 ●
115 BOLT; AIR PIPE
RIGHT HAND DRIVE(MTR5FB) M8X16 W/LK WASHER 		0-50040-816-0 02 1 0204- ● ●
115 BOLT; AIR PIPE
RIGHT HAND DRIVE(MTR5FB) ENGINE OIL COOLER HEAVY DUTY(E1E) M8X20 W/LK WASHER 		0-50040-820-0 02 1 9101-0203 ●
116 BRACKET; AIR PIPE
RIGHT HAND DRIVE(MTR5FB) EXC. STARTER DENSO(RC6) (B) 		1-19199-115-0 01 1 9101-9608 ●
116 BRACKET; AIR PIPE
RIGHT HAND DRIVE(MTR5FB) EXC. ENGINE OIL COOLER HEAVY DUTY(E1E) (B) 		1-19199-115-0 01 1 9101-9608 ●
116 BRACKET; AIR PIPE
RIGHT HAND DRIVE(MTR5FB) EXC. FLYWHEEL HOUSING SAE #2<E4C> (B) 		1-19199-115-0 01 1 9609- ● ●
116 BRACKET; AIR PIPE
RIGHT HAND DRIVE(MTR5FB) ENGINE OIL COOLER HEAVY DUTY(E1E) (A) 		1-19199-113-0 01 1 9101-9204 ●
116 BRACKET; AIR PIPE
RIGHT HAND DRIVE(MTR5FB) (A) 		1-19199-113-0 01 1 9205-9410 ● ●
116 BRACKET; AIR PIPE
RIGHT HAND DRIVE(MTR5FB) FLYWHEEL HOUSING SAE #2<E4C> (A) 		1-19199-113-0 01 1 9411-0203 ● ●
116 BRACKET; AIR PIPE
RIGHT HAND DRIVE(MTR5FB) FLYWHEEL HOUSING SAE #2<E4C> (A) 		1-19199-113-0 01 1 0204- ●
164 BRACKET; OIL PIPE CLIP FIX 1-13345-166-0 01 1 9101- ● ●
165 BOLT; BRKT OIL PIPE CLIP 0-50041-020-0 01 1 9101- ● ●
174 BOLT; BRKT
RIGHT HAND DRIVE(MTR5FB) EXC. STARTER DENSO(RC6) M10X50 W/LK WASHER 		0-50041-050-0 01 1 9101-9608 ●
174 BOLT; BRKT
RIGHT HAND DRIVE(MTR5FB) EXC. ENGINE OIL COOLER HEAVY DUTY(E1E) M10X50 W/LK WASHER 		0-50041-050-0 01 1 9101-9608 ●
174 BOLT; BRKT
RIGHT HAND DRIVE(MTR5FB) EXC. FLYWHEEL HOUSING SAE #2<E4C> M10X50 W/LK WASHER 		0-50041-050-0 01 1 9609- ● ●

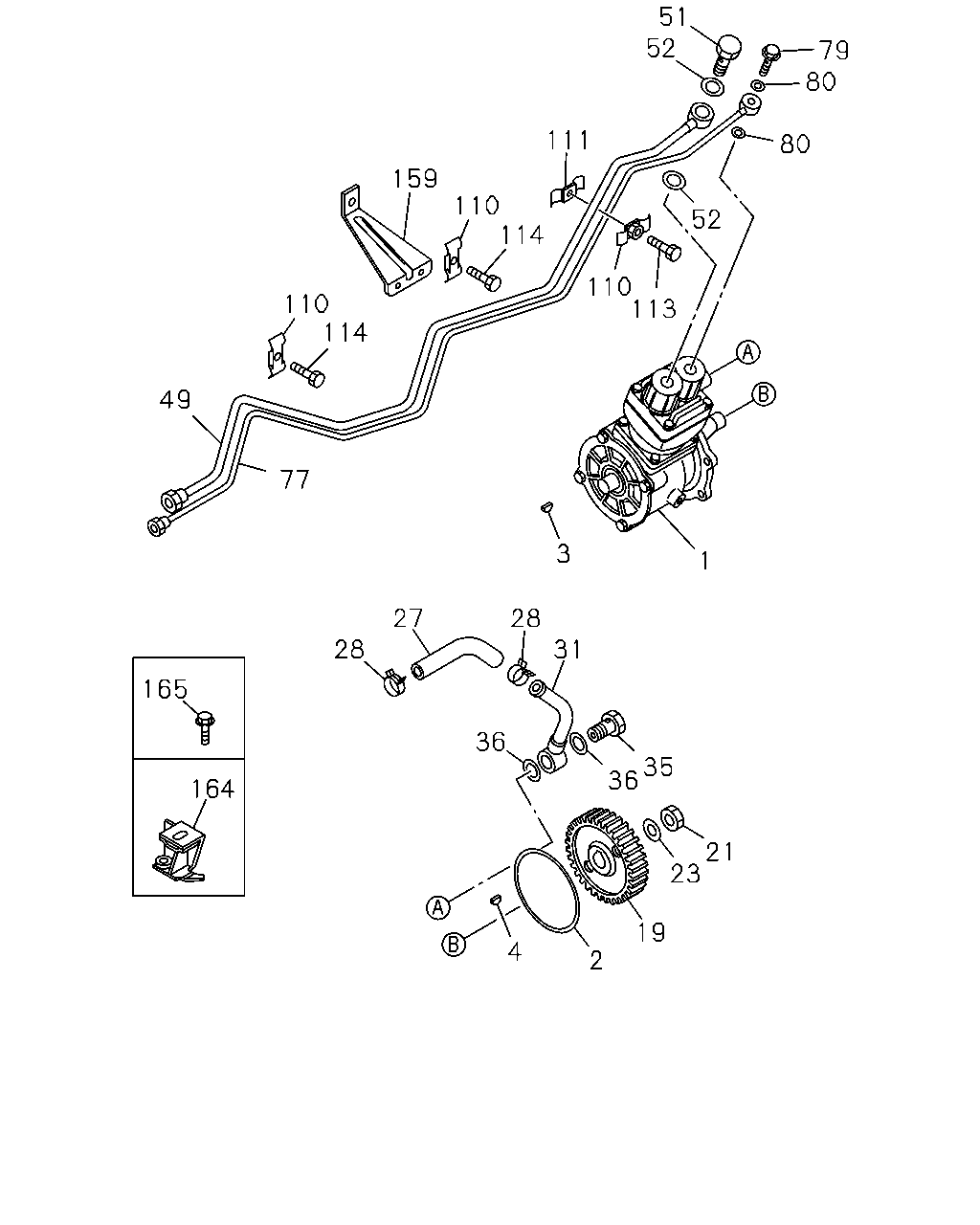

çizim 94846
51 52 79 80 111 80 159 110 114 52 110 113 110 114 49 77 3 1 27 28 28 31 165 36 35 36 164 2 23 19 4 2
BalonParca AdiParca NoAdetTipApplied Date A B
1 COMPRESSOR ASM; AIR
SEE FIG-NO 0-39 FOR COMPONENT. 		1-19100-255-2 01 1 9101-9911 ● ●
1 COMPRESSOR ASM; AIR
SEE FIG-NO 0-39 FOR COMPONENT. 		1-19100-325-0 01 1 9912- ● ●
2 GASKET; AIR CMPR
ALSO INCLUDED IN GASKET SET(ENGINE). ID=139.6 		1-09623-464-0 01 1 9101- ● ●
3 KEY; COUPLING,INJ PUMP 9-08055-416-0 01 1 9101- ● ●
4 KEY; INJ PUMP GEAR 9-08055-516-0 01 1 9101- ● ●
19 GEAR; INJ PUMP
Z=50 		1-12524-033-0 01 1 9101- ● ●
23 WASHER; PL,PUMP GEAR
ID=21 		9-09160-520-0 01 1 9101- ● ●
27 HOSE; AIR CMPR,SUCTION
RIGHT HAND DRIVE(MTR5FB) L=100 SERVICED BY L=10000 		9-09912-813-0 02 1 9101- ● ●
27 HOSE; AIR CMPR,SUCTION
LEFT HAND DRIVE(MTR6FB) 		1-09360-680-0 01 1 9101- ● ●
28 CLIP; HOSE,AIR CMPR
RIGHT HAND DRIVE(MTR5FB) ID=26 		1-09707-091-0 04 1 9101- ● ●
28 CLIP; HOSE,AIR CMPR
LEFT HAND DRIVE(MTR6FB) ID=26 		1-09707-091-0 02 1 9101- ● ●
31 PIPE; AIR,AIR CMPR SUCTION
RIGHT HAND DRIVE(MTR5FB) 		1-19191-690-0 01 1 9101- ● ●
31 PIPE; AIR,AIR CMPR SUCTION
LEFT HAND DRIVE(MTR6FB) 		1-19191-839-0 01 1 9101- ● ●
35 BOLT; EYE,AIR PIPE
M24X39 		1-09675-132-0 01 1 9101- ● ●
36 GASKET; AIR PIPE TO AIR CMPR
ALSO INCLUDED IN GASKET SET(ENGINE). ID=24.5 OD=32 		9-09571-424-0 02 1 9101- ● ●
49 PIPE; AIR,CHARGE
RIGHT HAND DRIVE(MTR5FB) 		1-19192-008-1 01 1 9101-9212 ● ●
49 PIPE; AIR,CHARGE
RIGHT HAND DRIVE(MTR5FB) 		1-19192-750-0 01 1 9301- ● ●
49 PIPE; AIR,CHARGE
LEFT HAND DRIVE(MTR6FB) 		1-19192-173-1 01 1 9101-9212 ● ●
49 PIPE; AIR,CHARGE
LEFT HAND DRIVE(MTR6FB) 		1-19192-745-0 01 1 9301- ● ●
51 BOLT; EYE,AIR PIPE TO CMPR
M20X38 		1-09675-133-0 01 1 9101- ● ●
52 GASKET; EYE BOLT,AIR PIPE
ALSO INCLUDED IN GASKET SET(ENGINE). 		9-09571-420-0 02 1 9101- ● ●
77 PIPE; AIR,GOV
RIGHT HAND DRIVE(MTR5FB) 		1-19192-007-1 01 1 9101- ● ●
77 PIPE; AIR,GOV
LEFT HAND DRIVE(MTR6FB) 		1-19192-174-0 01 1 9101- ● ●
79 BOLT; EYE,AIR PIPE TO CMPR 1-09675-058-0 01 1 9101- ● ●
80 GASKET; AIR PIPE TO CMPR
ALSO INCLUDED IN GASKET SET(ENG. & HEAD) 		1-09630-087-0 02 1 9101- ● ●
110 CLIP; AIR PIPE
RIGHT HAND DRIVE(MTR5FB) WO/NUT 		1-09700-547-0 08 1 9101- ● ●
110 CLIP; AIR PIPE
LEFT HAND DRIVE(MTR6FB) WO/NUT 		1-09700-547-0 06 1 9101- ● ●
111 CLIP; AIR PIPE
W/NUT 		1-09700-550-0 02 1 9101- ● ●
113 BOLT; CLIP,AIR PIPE
M6X28 W/LK WASHER 		9-01900-628-0 02 1 9101-9204 ● ●
113 BOLT; CLIP,AIR PIPE
M6X28 W/LK WASHER 		0-50040-628-0 02 1 9205- ● ●
114 BOLT; CLIP,AIR PIPE
RIGHT HAND DRIVE(MTR5FB) M6X28 W/LK WASHER 		9-01900-628-0 03 1 9101-9204 ● ●
114 BOLT; CLIP,AIR PIPE
RIGHT HAND DRIVE(MTR5FB) M6X28 W/LK WASHER 		0-50040-628-0 03 1 9205- ● ●
114 BOLT; CLIP,AIR PIPE
LEFT HAND DRIVE(MTR6FB) M6X28 W/LK WASHER 		9-01900-628-0 02 1 9101-9204 ● ●
114 BOLT; CLIP,AIR PIPE
LEFT HAND DRIVE(MTR6FB) M6X28 W/LK WASHER 		0-50040-628-0 02 1 9205- ● ●
159 BRACKET; AIR PIPE CLIP
LEFT HAND DRIVE(MTR6FB) 		1-19199-123-1 01 1 9101- ● ●
164 BRACKET; OIL PIPE CLIP FIX 1-13345-166-0 01 1 9101- ● ●
165 BOLT; BRKT OIL PIPE CLIP 0-50041-020-0 01 1 9101- ● ●
