Isuzu WW
▶
TRUCKS
▶
NKR
▶
50810 - NKR(EUROPE)-LHD
▶
0 - Engine, Emission, Engine Electrical
▶
0-30 - WATER PUMP AND CORROSION RESISTOR
▶

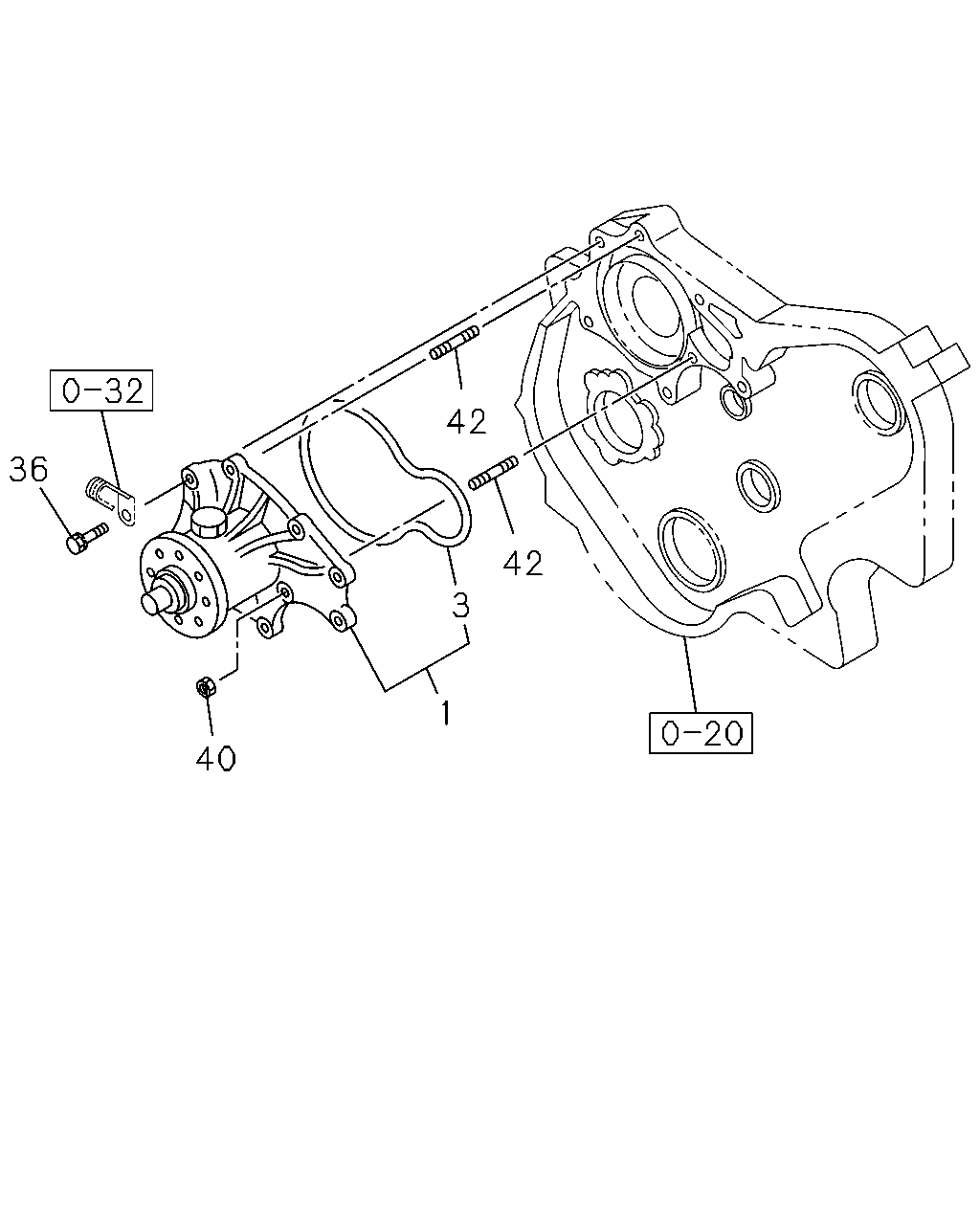

0-30 — WATER PUMP AND CORROSION RESISTOR
(#21659) — 11 parça
Tümü
A - 4JG2 ENG
B - 4JB1 ENG
C - 4JH1 ENG
42
36
42
3
1
40
Balon
Parca Adi
Parca No
Adet
Tip
Applied Date
A
B
C
1
01.069 PUMP ASM; WATER,W/GASKET
8-97123-330-2
01
1
9812-0105
●
●
1
01.069 PUMP ASM; WATER,W/GASKET
8-97123-330-2
01
1
0106-0201
●
1
01.069 PUMP ASM; WATER,W/GASKET
8-97105-012-3
01
1
0202-
●
3
01.079 GASKET; PUMP TO C/BL
ALSO INCLUDED IN GASKET SET(ENGINE).
8-94178-081-0
01
1
9812-0105
●
●
3
01.079 GASKET; PUMP TO C/BL
ALSO INCLUDED IN GASKET SET(ENGINE).
8-94178-081-0
01
1
0106-
●
36
00.386 BOLT; WATER PUMP TO C/BL
03.330 M8X55 W/LK WASHER
5-09000-084-1
05
1
9812-0105
●
●
36
00.386 BOLT; WATER PUMP TO C/BL
03.330 M8X55 W/LK WASHER
5-09000-084-1
05
1
0106-
●
40
07.874 NUT; WATER PUMP
07.633 M8 FLANGE
0-91150-108-0
02
1
9812-0105
●
●
40
07.874 NUT; WATER PUMP
07.633 M8 FLANGE
0-91150-108-0
02
1
0106-
●
42
01.073 STUD; WATER PUMP
09.173 M8X22 L=34
9-04110-822-0
02
1
9812-0105
●
●
42
01.073 STUD; WATER PUMP
09.173 M8X22 L=34
9-04110-822-0
02
1
0106-
●
Seçili parçaları sepete ekle
İpucu: çizimdeki balona veya tablodaki
Balon
sütununa tıkla; ilgili parçalar vurgulanır. Birden çok çizim varsa üstteki seçim kutusu/oklarla gezin.
