◀ 🏠 ▶ Isuzu WW ▶ TRUCKS ▶ NKR ▶ 50810 - NKR(EUROPE)-LHD ▶ 0 - Engine, Emission, Engine Electrical ▶ 0-28 - VENTILATION SYSTEM ▶
0-28 — VENTILATION SYSTEM (#21658) — 42 parça

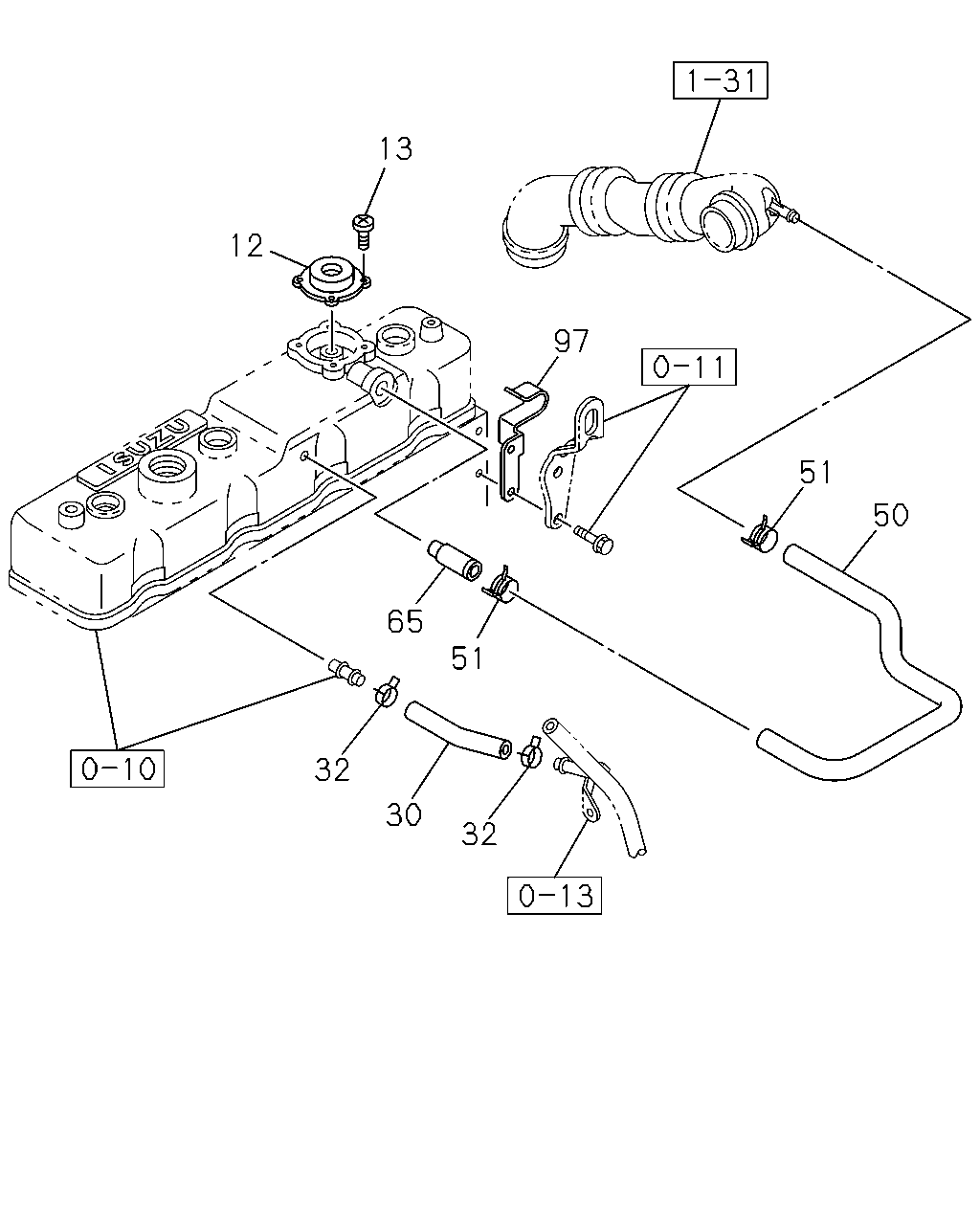

çizim 46258
13 12 97 51 50 65 51 32 30 32
BalonParca AdiParca NoAdetTipApplied Date A B C
12 01.745 VENTILATOR; AIR 8-94250-172-0 01 1 9812-0105 ● ●
12 01.745 VENTILATOR; AIR 8-94250-172-0 01 1 0106-0212 ●
12 01.745 VENTILATOR; AIR
03.415 		8-97119-887-0 01 1 0301- ●
13 00.386 SCREW; VENTILATOR TO HD COVER
06.321 M4X8 W/LK WASHER 		9-03910-408-0 04 1 9812-0105 ● ●
13 00.386 SCREW; VENTILATOR TO HD COVER
06.321 M4X8 W/LK WASHER 		9-03910-408-0 04 1 0106- ●
30 03.417 HOSE; VENTILATOR,CYL HD COVER 8-97240-031-0 01 1 0106- ●
32 03.417 CLIP; VENT HOSE
01.097 ID=14.8 		8-94448-727-0 02 1 0106- ●
50 03.265 HOSE; PCV 8-97049-423-2 01 1 9812-9905 ●
50 03.265 HOSE; PCV
AIR INTAKE SYSTEM FRONT<6PC> 		8-97049-423-2 01 1 9906-0105 ● ●
50 03.265 HOSE; PCV 8-97248-984-1 01 1 0106- ●
50 03.265 HOSE; PCV 8-97107-740-2 01 1 9906-0007 ●
50 03.265 HOSE; PCV
AIR INTAKE REAR VERTICAL<KJ3> EXC. TURBOCHARGER<K51> 		8-97107-740-2 01 1 9906-0007 ●
50 03.265 HOSE; PCV 8-97253-667-0 01 1 0008-0105 ●
50 03.265 HOSE; PCV
AIR INTAKE REAR VERTICAL<KJ3> EXC. TURBOCHARGER<K51> 		8-97253-667-0 01 1 0008-0105 ●
50 03.265 HOSE; PCV
AIR INTAKE REAR VERTICAL<KJ3> TURBOCHARGER<K51> EXC. CHARGE AIR COOLER<6PL> 		8-97176-145-2 01 1 9906-0105 ●
50 03.265 HOSE; PCV
TURBOCHARGER<K51> CHARGE AIR COOLER<6PL> 		8-97212-347-1 01 1 9906-0105 ●
51 03.265 CLIP; PCV HOSE
ID=20.4 		8-94121-113-0 02 1 9812-0105 ● ●
51 03.265 CLIP; PCV HOSE
ID=20.4 		8-94121-113-0 02 1 0106- ●
65 01.762 PIPE; BREATHER 8-94250-615-1 01 1 9812-0105 ● ●
65 01.762 PIPE; BREATHER 8-94250-615-1 01 1 0106- ●
97 01.750 BRACKET; HOSE
TURBOCHARGER<K51> CHARGE AIR COOLER<6PL> 		8-97212-350-0 01 1 9906-0105 ●
97 01.750 BRACKET; HOSE 8-97212-350-0 01 1 0106- ●
çizim 48917
13 12 65 51 50 51 13 12 97 51 50 65 51
BalonParca AdiParca NoAdetTipApplied Date A B C
12 01.745 VENTILATOR; AIR 8-94250-172-0 01 1 9812-0105 ● ●
12 01.745 VENTILATOR; AIR 8-94250-172-0 01 1 0106-0212 ●
12 01.745 VENTILATOR; AIR
03.415 		8-97119-887-0 01 1 0301- ●
13 00.386 SCREW; VENTILATOR TO HD COVER
06.321 M4X8 W/LK WASHER 		9-03910-408-0 04 1 9812-0105 ● ●
13 00.386 SCREW; VENTILATOR TO HD COVER
06.321 M4X8 W/LK WASHER 		9-03910-408-0 04 1 0106- ●
50 03.265 HOSE; PCV 8-97049-423-2 01 1 9812-9905 ●
50 03.265 HOSE; PCV
AIR INTAKE SYSTEM FRONT<6PC> 		8-97049-423-2 01 1 9906-0105 ● ●
50 03.265 HOSE; PCV 8-97248-984-1 01 1 0106- ●
50 03.265 HOSE; PCV 8-97107-740-2 01 1 9906-0007 ●
50 03.265 HOSE; PCV
AIR INTAKE REAR VERTICAL<KJ3> EXC. TURBOCHARGER<K51> 		8-97107-740-2 01 1 9906-0007 ●
50 03.265 HOSE; PCV 8-97253-667-0 01 1 0008-0105 ●
50 03.265 HOSE; PCV
AIR INTAKE REAR VERTICAL<KJ3> EXC. TURBOCHARGER<K51> 		8-97253-667-0 01 1 0008-0105 ●
50 03.265 HOSE; PCV
AIR INTAKE REAR VERTICAL<KJ3> TURBOCHARGER<K51> EXC. CHARGE AIR COOLER<6PL> 		8-97176-145-2 01 1 9906-0105 ●
50 03.265 HOSE; PCV
TURBOCHARGER<K51> CHARGE AIR COOLER<6PL> 		8-97212-347-1 01 1 9906-0105 ●
51 03.265 CLIP; PCV HOSE
ID=20.4 		8-94121-113-0 02 1 9812-0105 ● ●
51 03.265 CLIP; PCV HOSE
ID=20.4 		8-94121-113-0 02 1 0106- ●
65 01.762 PIPE; BREATHER 8-94250-615-1 01 1 9812-0105 ● ●
65 01.762 PIPE; BREATHER 8-94250-615-1 01 1 0106- ●
97 01.750 BRACKET; HOSE
TURBOCHARGER<K51> CHARGE AIR COOLER<6PL> 		8-97212-350-0 01 1 9906-0105 ●
97 01.750 BRACKET; HOSE 8-97212-350-0 01 1 0106- ●
