Sayfa 0-25 - Isuzu EPC

0-25 — INLET MANIFOLD (#21656) — 174 parça

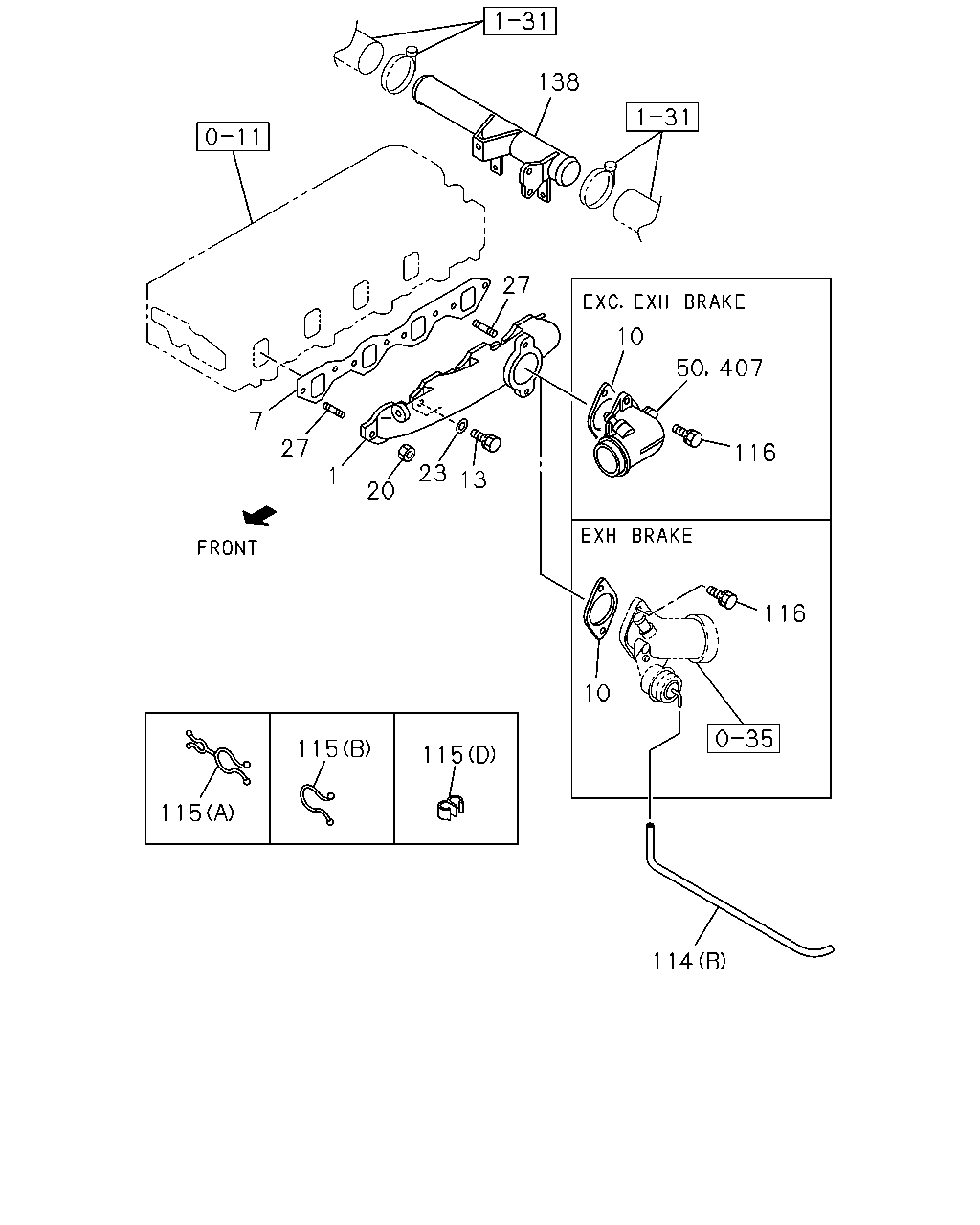

138 407 1 27 116 7 7 7 7 27 10 116 23 20 13 114 115 115 50

Balon	Parca Adi	Parca No	Adet	Tip	Applied Date	A	B	C
1	03.265 MANIFOLD; INL	8-97147-920-0	01	1	9812-0105	●
1	03.265 MANIFOLD; INL TURBOCHARGER<K51> CHARGE AIR COOLER<6PL>	8-97192-327-1	01	1	9906-0105		●
1	03.265 MANIFOLD; INL	8-97192-327-1	01	1	0106-			●
1	03.265 MANIFOLD; INL EXC. TURBOCHARGER<K51>	8-97107-744-1	01	1	9906-0105		●
1	03.265 MANIFOLD; INL TURBOCHARGER<K51> EXC. CHARGE AIR COOLER<6PL>	8-97107-744-1	01	1	9906-0105		●
7	03.270 GASKET; INL MANIF TO HD ALSO INCLUDED IN GASKET SET(ENG. & HEAD)	8-97144-623-0	04	1	9812-0105	●
7	03.270 GASKET; INL MANIF TO HD ALSO INCLUDED IN GASKET SET(ENG. & HEAD)	8-97228-044-0	01	1	0106-0112			●
7	03.270 GASKET; INL MANIF TO HD ALSO INCLUDED IN GASKET SET(ENG. & HEAD)	8-97301-838-0	01	1	0201-			●
7	03.270 GASKET; INL MANIF TO HD ALSO INCLUDED IN GASKET SET(ENG. & HEAD)	8-97228-044-0	01	1	9906-0101		●
7	03.270 GASKET; INL MANIF TO HD ALSO INCLUDED IN GASKET SET(ENG. & HEAD)	8-97301-838-0	01	1	0102-0105		●
10	03.406 GASKET; INL PIPE TO MANIF ALSO INCLUDED IN GASKET SET(ENG. & HEAD)	8-97144-622-0	01	1	9812-0105	●
10	03.406 GASKET; INL PIPE TO MANIF ALSO INCLUDED IN GASKET SET(ENG. & HEAD) EXC. TURBOCHARGER<K51>	8-97035-883-0	01	1	9906-0105		●
13	03.275 BOLT; INL MANIF 01.073 M8X25 W/LK WASHER	0-50040-825-0	06	1	9812-9905	●
13	03.275 BOLT; INL MANIF 01.073 M8X25 W/LK WASHER	0-50040-825-0	06	1	9906-0105	●
13	03.275 BOLT; INL MANIF EXC. TURBOCHARGER<K51> 01.073 M8X25 W/LK WASHER	0-50040-825-0	06	1	9906-0105		●
13	03.275 BOLT; INL MANIF TURBOCHARGER<K51> EXC. CHARGE AIR COOLER<6PL> 01.073 M8X25 W/LK WASHER	0-50040-825-0	06	1	9906-0105		●
13	03.275 BOLT; INL MANIF 01.073 M8X25 W/LK WASHER	0-50040-825-0	04	1	0106-			●
13	03.275 BOLT; INL MANIF TURBOCHARGER<K51> CHARGE AIR COOLER<6PL> 01.073 M8X25 W/LK WASHER	0-50040-825-0	05	1	9906-0105		●
13	03.275 BOLT; INL MANIF TURBOCHARGER<K51> CHARGE AIR COOLER<6PL> 00.780 M8X30 W/LK WASHER	0-50040-830-0	01	1	9906-0105		●
13	03.275 BOLT; INL MANIF 00.780 M8X30 W/LK WASHER	0-50040-830-0	02	1	0106-			●
20	03.275 NUT; INL MANIF 00.854 M8 FLANGE	5-09440-005-0	02	1	9812-0105	●	●
20	03.275 NUT; INL MANIF 00.854 M8 FLANGE	5-09440-005-0	02	1	0106-			●
23	03.275 WASHER; PL,INL MANIF 07.633 ID=8.4 OD=22	9-09164-708-0	01	1	9812-0105	●	●
27	03.275 STUD; INL MANIF 03.901 M8X25 L=37	9-04110-825-0	01	1	9812-0105	●	●
27	03.275 STUD; INL MANIF 03.901 (B) M8X25 L=37	9-04110-825-0	01	1	0106-			●
27	03.275 STUD; INL MANIF 00.219 M8X35 L=46	9-09630-034-1	01	1	9812-0105	●	●
27	03.275 STUD; INL MANIF 00.219 (A) M8X35 L=46	9-09630-034-1	01	1	0106-			●
27	03.275 STUD; INL MANIF EXC. OIL COOLER<KC4>,TURBOCHARGER<K51> 03.901 M8X25 L=37	9-04110-825-0	02	1	9906-0105		●
50	03.265 PIPE; INL EXC. EXHAUST BRAKE<NF8>	8-97078-858-0	01	1	9812-9905	●
50	03.265 PIPE; INL AIR INTAKE SYSTEM FRONT<6PC> EXC. EXHAUST BRAKE<NF8>	8-97078-858-0	01	1	9906-0105	●	●
114	03.265 HOSE; VAC,INT THROTTLE EXHAUST BRAKE<NF8> (B) L=1320	8-97096-148-1	01	1	9812-9904	●
114	03.265 HOSE; VAC,INT THROTTLE EXHAUST BRAKE<NF8> (B) L=1320	8-97227-211-0	01	1	9905-9905	●
114	03.265 HOSE; VAC,INT THROTTLE EXHAUST BRAKE<NF8> EXC. TURBOCHARGER<K51> (B) L=1320	8-97227-211-0	01	1	9906-0105	●	●
114	03.265 HOSE; VAC,INT THROTTLE TURBOCHARGER<K51> CHARGE AIR COOLER<6PL> (A) L=403	8-97228-401-0	01	1	9906-0105		●
114	03.265 HOSE; VAC,INT THROTTLE TURBOCHARGER<K51> EXHAUST BRAKE<NF8> EXC. CHARGE AIR COOLER<6PL> 08.962 (A) L=430 SERVICED BY L=3000	0-04740-300-0	01	1	9906-0006		●
114	03.265 HOSE; VAC,INT THROTTLE TURBOCHARGER<K51> EXHAUST BRAKE<NF8> EXC. CHARGE AIR COOLER<6PL> (A) L=1200	8-97259-490-0	01	1	0007-0009		●
114	03.265 HOSE; VAC,INT THROTTLE TURBOCHARGER<K51> EXHAUST BRAKE<NF8> EXC. CHARGE AIR COOLER<6PL> (A) L=310	8-97302-167-0	01	1	0010-0102		●
114	03.265 HOSE; VAC,INT THROTTLE TURBOCHARGER<K51> EXHAUST BRAKE<NF8> EXC. CHARGE AIR COOLER<6PL> (A) L=310	8-97309-000-0	01	1	0103-0105		●
114	03.265 HOSE; VAC,INT THROTTLE TURBOCHARGER<K51> EXHAUST BRAKE<NF8> EXC. CHARGE AIR COOLER<6PL> (B) L=1200	8-97180-275-0	01	1	9906-0006		●
114	03.265 HOSE; VAC,INT THROTTLE TURBOCHARGER<K51> EXHAUST BRAKE<NF8> EXC. CHARGE AIR COOLER<6PL> (A) L=430	8-97259-506-0	01	1	0007-0009		●
114	03.265 HOSE; VAC,INT THROTTLE TURBOCHARGER<K51> EXHAUST BRAKE<NF8> EXC. CHARGE AIR COOLER<6PL> (B) L=890	8-97302-168-0	01	1	0010-0105		●
115	03.265 CLIP; VAC HOSE,INT THROTTLE EXHAUST BRAKE<NF8> 08.852 (A) ID=8 & 23	5-09707-002-0	01	1	9812-9905	●
115	03.265 CLIP; VAC HOSE,INT THROTTLE EXHAUST BRAKE<NF8> EXC. CHARGE AIR COOLER<6PL> 08.852 (A) ID=8 & 23	5-09707-002-0	01	1	9906-0105	●	●
115	03.265 CLIP; VAC HOSE,INT THROTTLE EXHAUST BRAKE<NF8> 08.852 (A) ID=8 & 16	5-09707-032-0	03	1	9812-9905	●
115	03.265 CLIP; VAC HOSE,INT THROTTLE EXHAUST BRAKE<NF8> EXC. TURBOCHARGER<K51> 08.852 (A) ID=8 & 16	5-09707-032-0	03	1	9906-0105	●	●
115	03.265 CLIP; VAC HOSE,INT THROTTLE EXHAUST BRAKE<NF8> 03.278 (B) ID=37	8-94481-468-0	01	1	9812-9905	●
115	03.265 CLIP; VAC HOSE,INT THROTTLE EXHAUST BRAKE<NF8> EXC. CHARGE AIR COOLER<6PL> 03.278 (B) ID=37	8-94481-468-0	01	1	9906-0105	●	●
115	03.265 CLIP; VAC HOSE,INT THROTTLE TURBOCHARGER<K51> EXHAUST BRAKE<NF8> EXC. CHARGE AIR COOLER<6PL> (C) ID=6 & 7	8-97302-181-0	01	1	9906-0102		●
115	03.265 CLIP; VAC HOSE,INT THROTTLE TURBOCHARGER<K51> EXHAUST BRAKE<NF8> EXC. CHARGE AIR COOLER<6PL> 03.162 (D) ID=6.8X2	8-94126-636-0	01	1	0010-0105		●
116	03.275 BOLT; MANIF TO INL PIPE 01.540 M10X20 FLANGE	0-28181-020-0	02	1	9812-9905	●
116	03.275 BOLT; MANIF TO INL PIPE EXC. TURBOCHARGER<K51> 01.540 M10X20 FLANGE	0-28181-020-0	02	1	9906-0105	●	●
138	03.265 PIPE; INL AIR INTAKE REAR VERTICAL<KJ3> EXC. TURBOCHARGER<K51> 03.417	8-94417-173-1	01	1	9906-0105	●	●
407	03.265 PIPE; INL,REAR AIR INTAKE REAR VERTICAL<KJ3> EXC. TURBOCHARGER<K51>,EXHAUST BRAKE<NF8>	8-94152-318-0	01	1	9906-0105	●	●

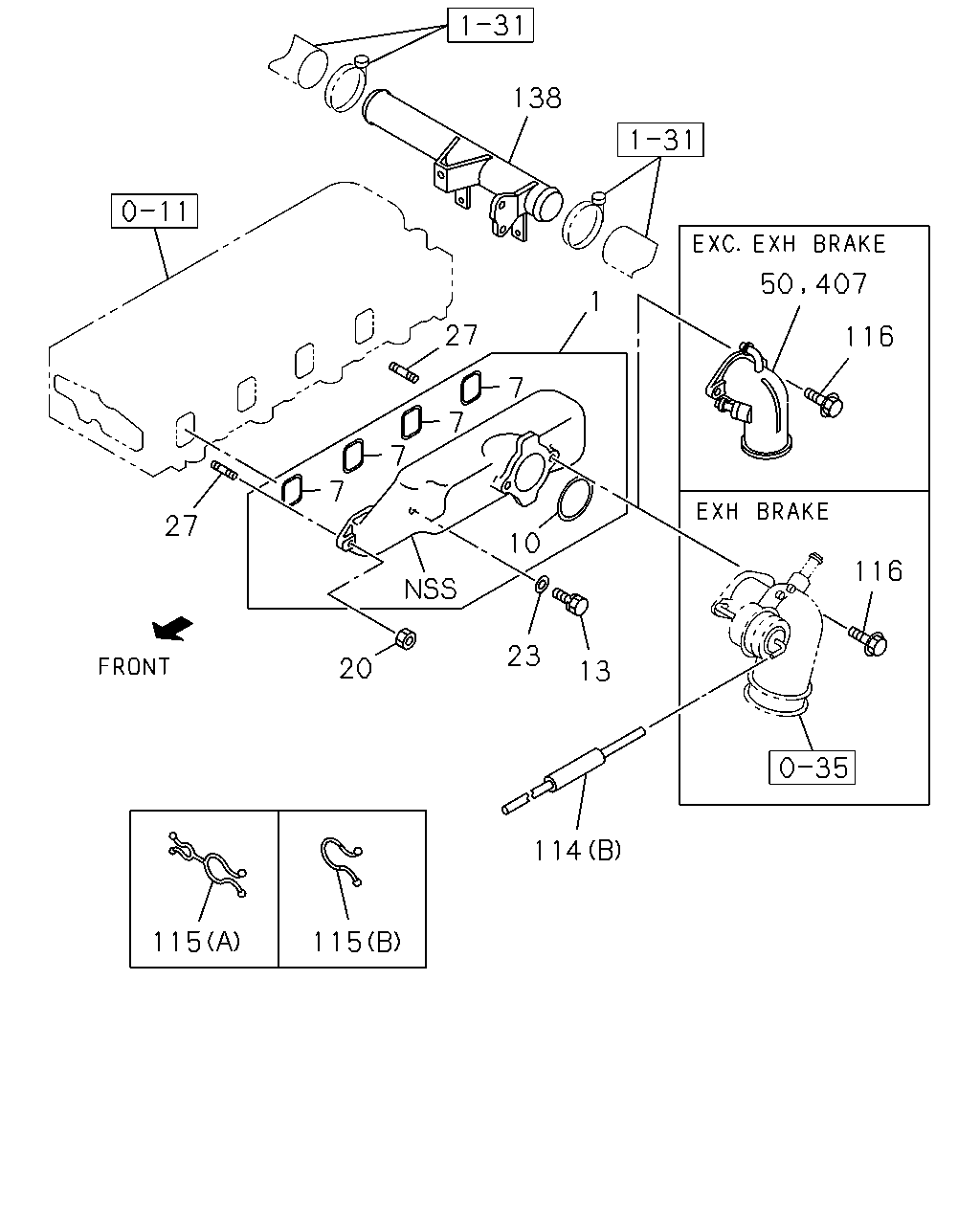

138 27 10 50 407 7 27 116 23 1 13 20 116 10 115 115 115 114

Balon	Parca Adi	Parca No	Adet	Tip	Applied Date	A	B	C
1	03.265 MANIFOLD; INL	8-97147-920-0	01	1	9812-0105	●
1	03.265 MANIFOLD; INL TURBOCHARGER<K51> CHARGE AIR COOLER<6PL>	8-97192-327-1	01	1	9906-0105		●
1	03.265 MANIFOLD; INL	8-97192-327-1	01	1	0106-			●
1	03.265 MANIFOLD; INL EXC. TURBOCHARGER<K51>	8-97107-744-1	01	1	9906-0105		●
1	03.265 MANIFOLD; INL TURBOCHARGER<K51> EXC. CHARGE AIR COOLER<6PL>	8-97107-744-1	01	1	9906-0105		●
7	03.270 GASKET; INL MANIF TO HD ALSO INCLUDED IN GASKET SET(ENG. & HEAD)	8-97144-623-0	04	1	9812-0105	●
7	03.270 GASKET; INL MANIF TO HD ALSO INCLUDED IN GASKET SET(ENG. & HEAD)	8-97228-044-0	01	1	0106-0112			●
7	03.270 GASKET; INL MANIF TO HD ALSO INCLUDED IN GASKET SET(ENG. & HEAD)	8-97301-838-0	01	1	0201-			●
7	03.270 GASKET; INL MANIF TO HD ALSO INCLUDED IN GASKET SET(ENG. & HEAD)	8-97228-044-0	01	1	9906-0101		●
7	03.270 GASKET; INL MANIF TO HD ALSO INCLUDED IN GASKET SET(ENG. & HEAD)	8-97301-838-0	01	1	0102-0105		●
10	03.406 GASKET; INL PIPE TO MANIF ALSO INCLUDED IN GASKET SET(ENG. & HEAD)	8-97144-622-0	01	1	9812-0105	●
10	03.406 GASKET; INL PIPE TO MANIF ALSO INCLUDED IN GASKET SET(ENG. & HEAD) EXC. TURBOCHARGER<K51>	8-97035-883-0	01	1	9906-0105		●
13	03.275 BOLT; INL MANIF 01.073 M8X25 W/LK WASHER	0-50040-825-0	06	1	9812-9905	●
13	03.275 BOLT; INL MANIF 01.073 M8X25 W/LK WASHER	0-50040-825-0	06	1	9906-0105	●
13	03.275 BOLT; INL MANIF EXC. TURBOCHARGER<K51> 01.073 M8X25 W/LK WASHER	0-50040-825-0	06	1	9906-0105		●
13	03.275 BOLT; INL MANIF TURBOCHARGER<K51> EXC. CHARGE AIR COOLER<6PL> 01.073 M8X25 W/LK WASHER	0-50040-825-0	06	1	9906-0105		●
13	03.275 BOLT; INL MANIF 01.073 M8X25 W/LK WASHER	0-50040-825-0	04	1	0106-			●
13	03.275 BOLT; INL MANIF TURBOCHARGER<K51> CHARGE AIR COOLER<6PL> 01.073 M8X25 W/LK WASHER	0-50040-825-0	05	1	9906-0105		●
13	03.275 BOLT; INL MANIF TURBOCHARGER<K51> CHARGE AIR COOLER<6PL> 00.780 M8X30 W/LK WASHER	0-50040-830-0	01	1	9906-0105		●
13	03.275 BOLT; INL MANIF 00.780 M8X30 W/LK WASHER	0-50040-830-0	02	1	0106-			●
20	03.275 NUT; INL MANIF 00.854 M8 FLANGE	5-09440-005-0	02	1	9812-0105	●	●
20	03.275 NUT; INL MANIF 00.854 M8 FLANGE	5-09440-005-0	02	1	0106-			●
23	03.275 WASHER; PL,INL MANIF 07.633 ID=8.4 OD=22	9-09164-708-0	01	1	9812-0105	●	●
27	03.275 STUD; INL MANIF 03.901 M8X25 L=37	9-04110-825-0	01	1	9812-0105	●	●
27	03.275 STUD; INL MANIF 03.901 (B) M8X25 L=37	9-04110-825-0	01	1	0106-			●
27	03.275 STUD; INL MANIF 00.219 M8X35 L=46	9-09630-034-1	01	1	9812-0105	●	●
27	03.275 STUD; INL MANIF 00.219 (A) M8X35 L=46	9-09630-034-1	01	1	0106-			●
27	03.275 STUD; INL MANIF EXC. OIL COOLER<KC4>,TURBOCHARGER<K51> 03.901 M8X25 L=37	9-04110-825-0	02	1	9906-0105		●
50	03.265 PIPE; INL EXC. EXHAUST BRAKE<NF8>	8-97078-858-0	01	1	9812-9905	●
50	03.265 PIPE; INL AIR INTAKE SYSTEM FRONT<6PC> EXC. EXHAUST BRAKE<NF8>	8-97078-858-0	01	1	9906-0105	●	●
114	03.265 HOSE; VAC,INT THROTTLE EXHAUST BRAKE<NF8> (B) L=1320	8-97096-148-1	01	1	9812-9904	●
114	03.265 HOSE; VAC,INT THROTTLE EXHAUST BRAKE<NF8> (B) L=1320	8-97227-211-0	01	1	9905-9905	●
114	03.265 HOSE; VAC,INT THROTTLE EXHAUST BRAKE<NF8> EXC. TURBOCHARGER<K51> (B) L=1320	8-97227-211-0	01	1	9906-0105	●	●
114	03.265 HOSE; VAC,INT THROTTLE TURBOCHARGER<K51> CHARGE AIR COOLER<6PL> (A) L=403	8-97228-401-0	01	1	9906-0105		●
114	03.265 HOSE; VAC,INT THROTTLE TURBOCHARGER<K51> EXHAUST BRAKE<NF8> EXC. CHARGE AIR COOLER<6PL> 08.962 (A) L=430 SERVICED BY L=3000	0-04740-300-0	01	1	9906-0006		●
114	03.265 HOSE; VAC,INT THROTTLE TURBOCHARGER<K51> EXHAUST BRAKE<NF8> EXC. CHARGE AIR COOLER<6PL> (A) L=1200	8-97259-490-0	01	1	0007-0009		●
114	03.265 HOSE; VAC,INT THROTTLE TURBOCHARGER<K51> EXHAUST BRAKE<NF8> EXC. CHARGE AIR COOLER<6PL> (A) L=310	8-97302-167-0	01	1	0010-0102		●
114	03.265 HOSE; VAC,INT THROTTLE TURBOCHARGER<K51> EXHAUST BRAKE<NF8> EXC. CHARGE AIR COOLER<6PL> (A) L=310	8-97309-000-0	01	1	0103-0105		●
114	03.265 HOSE; VAC,INT THROTTLE TURBOCHARGER<K51> EXHAUST BRAKE<NF8> EXC. CHARGE AIR COOLER<6PL> (B) L=1200	8-97180-275-0	01	1	9906-0006		●
114	03.265 HOSE; VAC,INT THROTTLE TURBOCHARGER<K51> EXHAUST BRAKE<NF8> EXC. CHARGE AIR COOLER<6PL> (A) L=430	8-97259-506-0	01	1	0007-0009		●
114	03.265 HOSE; VAC,INT THROTTLE TURBOCHARGER<K51> EXHAUST BRAKE<NF8> EXC. CHARGE AIR COOLER<6PL> (B) L=890	8-97302-168-0	01	1	0010-0105		●
115	03.265 CLIP; VAC HOSE,INT THROTTLE EXHAUST BRAKE<NF8> 08.852 (A) ID=8 & 23	5-09707-002-0	01	1	9812-9905	●
115	03.265 CLIP; VAC HOSE,INT THROTTLE EXHAUST BRAKE<NF8> EXC. CHARGE AIR COOLER<6PL> 08.852 (A) ID=8 & 23	5-09707-002-0	01	1	9906-0105	●	●
115	03.265 CLIP; VAC HOSE,INT THROTTLE EXHAUST BRAKE<NF8> 08.852 (A) ID=8 & 16	5-09707-032-0	03	1	9812-9905	●
115	03.265 CLIP; VAC HOSE,INT THROTTLE EXHAUST BRAKE<NF8> EXC. TURBOCHARGER<K51> 08.852 (A) ID=8 & 16	5-09707-032-0	03	1	9906-0105	●	●
115	03.265 CLIP; VAC HOSE,INT THROTTLE EXHAUST BRAKE<NF8> 03.278 (B) ID=37	8-94481-468-0	01	1	9812-9905	●
115	03.265 CLIP; VAC HOSE,INT THROTTLE EXHAUST BRAKE<NF8> EXC. CHARGE AIR COOLER<6PL> 03.278 (B) ID=37	8-94481-468-0	01	1	9906-0105	●	●
115	03.265 CLIP; VAC HOSE,INT THROTTLE TURBOCHARGER<K51> EXHAUST BRAKE<NF8> EXC. CHARGE AIR COOLER<6PL> (C) ID=6 & 7	8-97302-181-0	01	1	9906-0102		●
115	03.265 CLIP; VAC HOSE,INT THROTTLE TURBOCHARGER<K51> EXHAUST BRAKE<NF8> EXC. CHARGE AIR COOLER<6PL> 03.162 (D) ID=6.8X2	8-94126-636-0	01	1	0010-0105		●
116	03.275 BOLT; MANIF TO INL PIPE 01.540 M10X20 FLANGE	0-28181-020-0	02	1	9812-9905	●
116	03.275 BOLT; MANIF TO INL PIPE EXC. TURBOCHARGER<K51> 01.540 M10X20 FLANGE	0-28181-020-0	02	1	9906-0105	●	●
138	03.265 PIPE; INL AIR INTAKE REAR VERTICAL<KJ3> EXC. TURBOCHARGER<K51> 03.417	8-94417-173-1	01	1	9906-0105	●	●
407	03.265 PIPE; INL,REAR AIR INTAKE REAR VERTICAL<KJ3> EXC. TURBOCHARGER<K51>,EXHAUST BRAKE<NF8>	8-94152-318-0	01	1	9906-0105	●	●

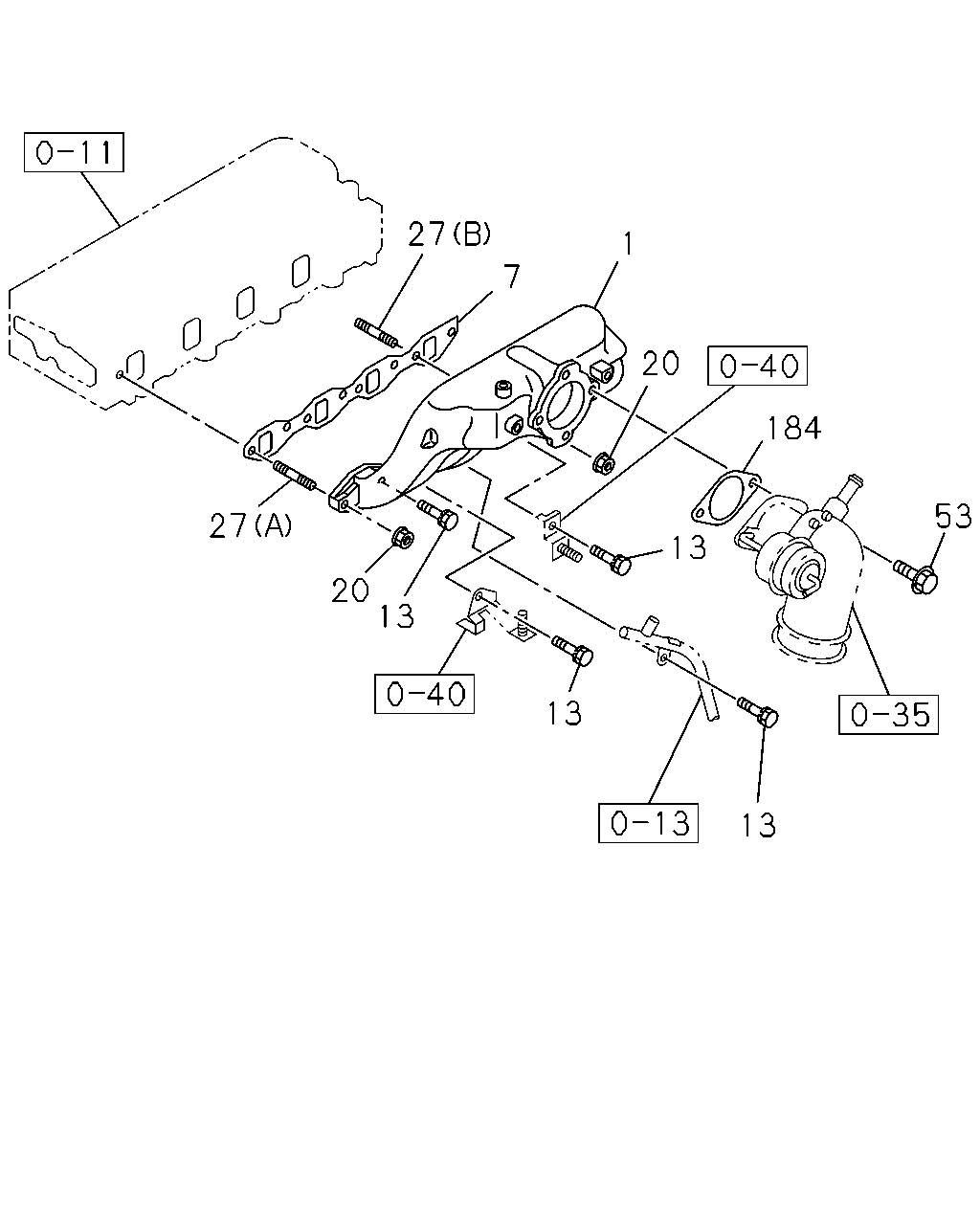

27 1 7 20 184 53 27 13 20 13 13 13

Balon	Parca Adi	Parca No	Adet	Tip	Applied Date	A	B	C
1	03.265 MANIFOLD; INL	8-97147-920-0	01	1	9812-0105	●
1	03.265 MANIFOLD; INL TURBOCHARGER<K51> CHARGE AIR COOLER<6PL>	8-97192-327-1	01	1	9906-0105		●
1	03.265 MANIFOLD; INL	8-97192-327-1	01	1	0106-			●
1	03.265 MANIFOLD; INL EXC. TURBOCHARGER<K51>	8-97107-744-1	01	1	9906-0105		●
1	03.265 MANIFOLD; INL TURBOCHARGER<K51> EXC. CHARGE AIR COOLER<6PL>	8-97107-744-1	01	1	9906-0105		●
7	03.270 GASKET; INL MANIF TO HD ALSO INCLUDED IN GASKET SET(ENG. & HEAD)	8-97144-623-0	04	1	9812-0105	●
7	03.270 GASKET; INL MANIF TO HD ALSO INCLUDED IN GASKET SET(ENG. & HEAD)	8-97228-044-0	01	1	0106-0112			●
7	03.270 GASKET; INL MANIF TO HD ALSO INCLUDED IN GASKET SET(ENG. & HEAD)	8-97301-838-0	01	1	0201-			●
7	03.270 GASKET; INL MANIF TO HD ALSO INCLUDED IN GASKET SET(ENG. & HEAD)	8-97228-044-0	01	1	9906-0101		●
7	03.270 GASKET; INL MANIF TO HD ALSO INCLUDED IN GASKET SET(ENG. & HEAD)	8-97301-838-0	01	1	0102-0105		●
13	03.275 BOLT; INL MANIF 01.073 M8X25 W/LK WASHER	0-50040-825-0	06	1	9812-9905	●
13	03.275 BOLT; INL MANIF 01.073 M8X25 W/LK WASHER	0-50040-825-0	06	1	9906-0105	●
13	03.275 BOLT; INL MANIF EXC. TURBOCHARGER<K51> 01.073 M8X25 W/LK WASHER	0-50040-825-0	06	1	9906-0105		●
13	03.275 BOLT; INL MANIF TURBOCHARGER<K51> EXC. CHARGE AIR COOLER<6PL> 01.073 M8X25 W/LK WASHER	0-50040-825-0	06	1	9906-0105		●
13	03.275 BOLT; INL MANIF 01.073 M8X25 W/LK WASHER	0-50040-825-0	04	1	0106-			●
13	03.275 BOLT; INL MANIF TURBOCHARGER<K51> CHARGE AIR COOLER<6PL> 01.073 M8X25 W/LK WASHER	0-50040-825-0	05	1	9906-0105		●
13	03.275 BOLT; INL MANIF TURBOCHARGER<K51> CHARGE AIR COOLER<6PL> 00.780 M8X30 W/LK WASHER	0-50040-830-0	01	1	9906-0105		●
13	03.275 BOLT; INL MANIF 00.780 M8X30 W/LK WASHER	0-50040-830-0	02	1	0106-			●
20	03.275 NUT; INL MANIF 00.854 M8 FLANGE	5-09440-005-0	02	1	9812-0105	●	●
20	03.275 NUT; INL MANIF 00.854 M8 FLANGE	5-09440-005-0	02	1	0106-			●
27	03.275 STUD; INL MANIF 03.901 M8X25 L=37	9-04110-825-0	01	1	9812-0105	●	●
27	03.275 STUD; INL MANIF 03.901 (B) M8X25 L=37	9-04110-825-0	01	1	0106-			●
27	03.275 STUD; INL MANIF 00.219 M8X35 L=46	9-09630-034-1	01	1	9812-0105	●	●
27	03.275 STUD; INL MANIF 00.219 (A) M8X35 L=46	9-09630-034-1	01	1	0106-			●
27	03.275 STUD; INL MANIF EXC. OIL COOLER<KC4>,TURBOCHARGER<K51> 03.901 M8X25 L=37	9-04110-825-0	02	1	9906-0105		●
53	03.602 BOLT; INL PIPE TURBOCHARGER<K51> 09.181 M10X25 FLANGE	0-28781-025-0	02	1	9906-0105		●
53	03.602 BOLT; INL PIPE 09.181 M10X25 FLANGE	0-28781-025-0	02	1	0106-0208			●
53	03.602 BOLT; INL PIPE 04.525 M10X25 FLANGE	0-28181-025-0	02	1	0209-			●
184	03.275 GASKET; T/V ALSO INCLUDED IN GASKET SET(ENG. & HEAD) TURBOCHARGER<K51> 03.406	8-97035-883-0	01	1	9906-0105		●
184	03.275 GASKET; T/V ALSO INCLUDED IN GASKET SET(ENG. & HEAD) 03.406	8-97035-883-1	01	1	0106-			●

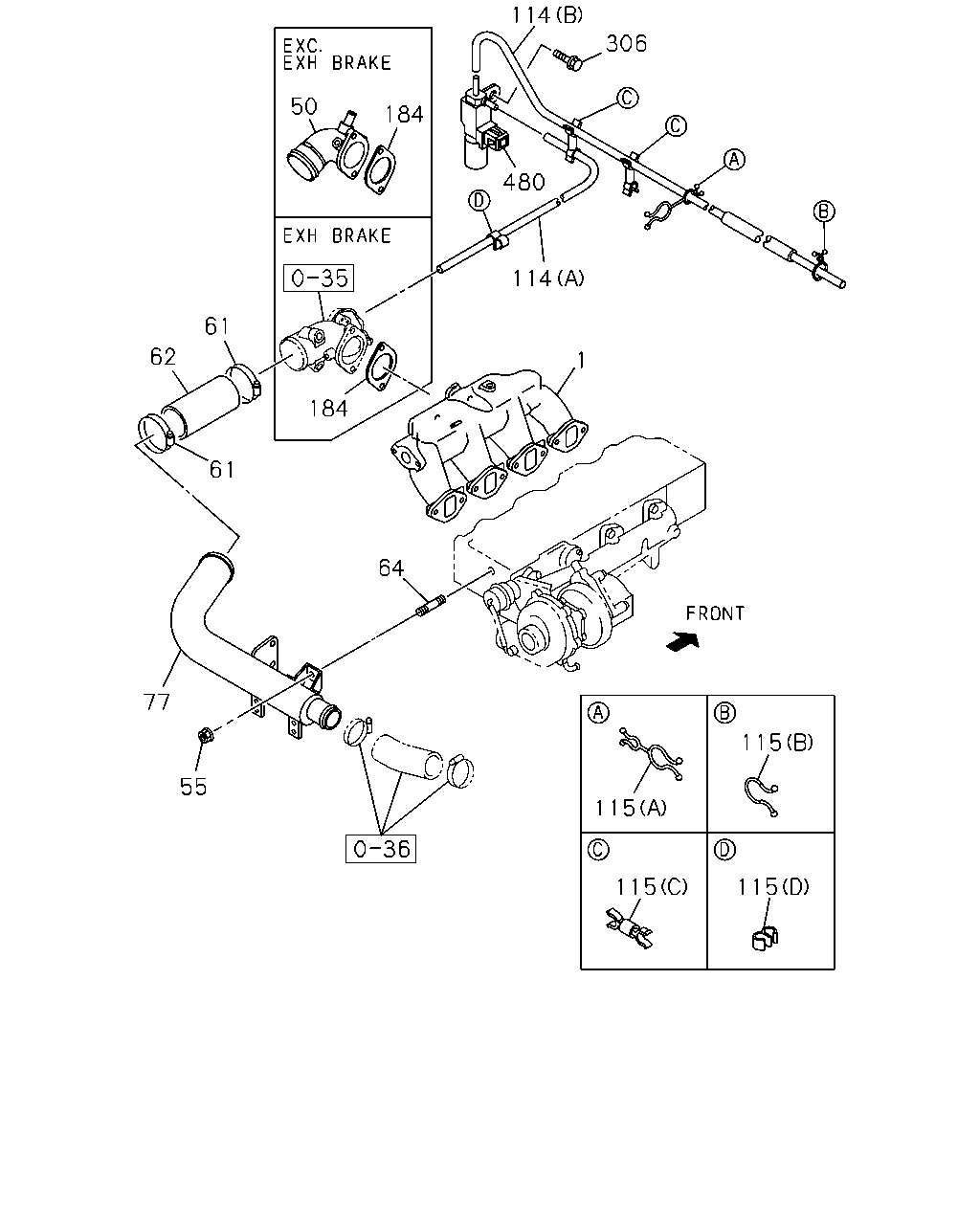

114 306 50 184 480 114 61 62 1 184 61 64 77 115 55 115 115 115

Balon	Parca Adi	Parca No	Adet	Tip	Applied Date	A	B	C
1	03.265 MANIFOLD; INL	8-97147-920-0	01	1	9812-0105	●
1	03.265 MANIFOLD; INL TURBOCHARGER<K51> CHARGE AIR COOLER<6PL>	8-97192-327-1	01	1	9906-0105		●
1	03.265 MANIFOLD; INL	8-97192-327-1	01	1	0106-			●
1	03.265 MANIFOLD; INL EXC. TURBOCHARGER<K51>	8-97107-744-1	01	1	9906-0105		●
1	03.265 MANIFOLD; INL TURBOCHARGER<K51> EXC. CHARGE AIR COOLER<6PL>	8-97107-744-1	01	1	9906-0105		●
50	03.265 PIPE; INL EXC. EXHAUST BRAKE<NF8>	8-97078-858-0	01	1	9812-9905	●
50	03.265 PIPE; INL AIR INTAKE SYSTEM FRONT<6PC> EXC. EXHAUST BRAKE<NF8>	8-97078-858-0	01	1	9906-0105	●	●
55	03.407 NUT; INL PIPE TURBOCHARGER<K51> EXC. CHARGE AIR COOLER<6PL> 07.633 M8 FLANGE	0-91150-108-0	01	1	9906-0105		●
61	03.273 CLIP; CONNECTOR HOSE TURBOCHARGER<K51> EXC. CHARGE AIR COOLER<6PL> 03.417 ID=58-79	8-94126-771-0	02	1	9906-0105		●
62	03.265 HOSE; CONNECTOR TURBOCHARGER<K51> EXC. CHARGE AIR COOLER<6PL>	8-97176-147-0	01	1	9906-0105		●
64	03.275 STUD; INL PIPE TURBOCHARGER<K51> EXC. CHARGE AIR COOLER<6PL> 03.417 M8X14 L=26	9-04110-814-0	01	1	9906-0105		●
77	03.265 PIPE; INL,INT SHUTTER TO INL MAN TURBOCHARGER<K51> EXC. CHARGE AIR COOLER<6PL>	8-97176-076-0	01	1	9906-0105		●
114	03.265 HOSE; VAC,INT THROTTLE EXHAUST BRAKE<NF8> (B) L=1320	8-97096-148-1	01	1	9812-9904	●
114	03.265 HOSE; VAC,INT THROTTLE EXHAUST BRAKE<NF8> (B) L=1320	8-97227-211-0	01	1	9905-9905	●
114	03.265 HOSE; VAC,INT THROTTLE EXHAUST BRAKE<NF8> EXC. TURBOCHARGER<K51> (B) L=1320	8-97227-211-0	01	1	9906-0105	●	●
114	03.265 HOSE; VAC,INT THROTTLE TURBOCHARGER<K51> CHARGE AIR COOLER<6PL> (A) L=403	8-97228-401-0	01	1	9906-0105		●
114	03.265 HOSE; VAC,INT THROTTLE TURBOCHARGER<K51> EXHAUST BRAKE<NF8> EXC. CHARGE AIR COOLER<6PL> 08.962 (A) L=430 SERVICED BY L=3000	0-04740-300-0	01	1	9906-0006		●
114	03.265 HOSE; VAC,INT THROTTLE TURBOCHARGER<K51> EXHAUST BRAKE<NF8> EXC. CHARGE AIR COOLER<6PL> (A) L=1200	8-97259-490-0	01	1	0007-0009		●
114	03.265 HOSE; VAC,INT THROTTLE TURBOCHARGER<K51> EXHAUST BRAKE<NF8> EXC. CHARGE AIR COOLER<6PL> (A) L=310	8-97302-167-0	01	1	0010-0102		●
114	03.265 HOSE; VAC,INT THROTTLE TURBOCHARGER<K51> EXHAUST BRAKE<NF8> EXC. CHARGE AIR COOLER<6PL> (A) L=310	8-97309-000-0	01	1	0103-0105		●
114	03.265 HOSE; VAC,INT THROTTLE TURBOCHARGER<K51> EXHAUST BRAKE<NF8> EXC. CHARGE AIR COOLER<6PL> (B) L=1200	8-97180-275-0	01	1	9906-0006		●
114	03.265 HOSE; VAC,INT THROTTLE TURBOCHARGER<K51> EXHAUST BRAKE<NF8> EXC. CHARGE AIR COOLER<6PL> (A) L=430	8-97259-506-0	01	1	0007-0009		●
114	03.265 HOSE; VAC,INT THROTTLE TURBOCHARGER<K51> EXHAUST BRAKE<NF8> EXC. CHARGE AIR COOLER<6PL> (B) L=890	8-97302-168-0	01	1	0010-0105		●
115	03.265 CLIP; VAC HOSE,INT THROTTLE EXHAUST BRAKE<NF8> 08.852 (A) ID=8 & 23	5-09707-002-0	01	1	9812-9905	●
115	03.265 CLIP; VAC HOSE,INT THROTTLE EXHAUST BRAKE<NF8> EXC. CHARGE AIR COOLER<6PL> 08.852 (A) ID=8 & 23	5-09707-002-0	01	1	9906-0105	●	●
115	03.265 CLIP; VAC HOSE,INT THROTTLE EXHAUST BRAKE<NF8> 08.852 (A) ID=8 & 16	5-09707-032-0	03	1	9812-9905	●
115	03.265 CLIP; VAC HOSE,INT THROTTLE EXHAUST BRAKE<NF8> EXC. TURBOCHARGER<K51> 08.852 (A) ID=8 & 16	5-09707-032-0	03	1	9906-0105	●	●
115	03.265 CLIP; VAC HOSE,INT THROTTLE EXHAUST BRAKE<NF8> 03.278 (B) ID=37	8-94481-468-0	01	1	9812-9905	●
115	03.265 CLIP; VAC HOSE,INT THROTTLE EXHAUST BRAKE<NF8> EXC. CHARGE AIR COOLER<6PL> 03.278 (B) ID=37	8-94481-468-0	01	1	9906-0105	●	●
115	03.265 CLIP; VAC HOSE,INT THROTTLE TURBOCHARGER<K51> EXHAUST BRAKE<NF8> EXC. CHARGE AIR COOLER<6PL> (C) ID=6 & 7	8-97302-181-0	01	1	9906-0102		●
115	03.265 CLIP; VAC HOSE,INT THROTTLE TURBOCHARGER<K51> EXHAUST BRAKE<NF8> EXC. CHARGE AIR COOLER<6PL> 03.162 (D) ID=6.8X2	8-94126-636-0	01	1	0010-0105		●
184	03.275 GASKET; T/V ALSO INCLUDED IN GASKET SET(ENG. & HEAD) TURBOCHARGER<K51> 03.406	8-97035-883-0	01	1	9906-0105		●
184	03.275 GASKET; T/V ALSO INCLUDED IN GASKET SET(ENG. & HEAD) 03.406	8-97035-883-1	01	1	0106-			●
306	03.265 BOLT; VLV CHARGE AIR COOLER<6PL> 08.900 M8X12 FLANGE	0-28080-812-0	01	1	9906-0105		●
306	03.265 BOLT; VLV TURBOCHARGER<K51> EXHAUST BRAKE<NF8> EXC. CHARGE AIR COOLER<6PL> 08.900 M8X12 FLANGE	0-28080-812-0	01	1	9906-0105		●
306	03.265 BOLT; VLV TURBOCHARGER<K51> CHARGE AIR COOLER<6PL> 04.054 M5X10 W/LK+PL WASHER	9-03920-510-0	02	1	9906-0105		●
480	03.314 VALVE ASM; VAC SW CHARGE AIR COOLER<6PL> 03.670	8-94144-597-1	01	1	9906-0105		●
480	03.314 VALVE ASM; VAC SW TURBOCHARGER<K51> EXHAUST BRAKE<NF8> EXC. CHARGE AIR COOLER<6PL> 03.670	8-94144-597-1	01	1	9906-0105		●

İpucu: çizimdeki balona veya tablodaki Balon sütununa tıkla; ilgili parçalar vurgulanır. Birden çok çizim varsa üstteki seçim kutusu/oklarla gezin.
