◀ 🏠 ▶ Isuzu WW ▶ TRUCKS ▶ NKR ▶ 50810 - NKR(EUROPE)-LHD ▶ 0 - Engine, Emission, Engine Electrical ▶ 0-22 - ENGINE MOUNTING ▶
0-22 — ENGINE MOUNTING (#21655) — 74 parça

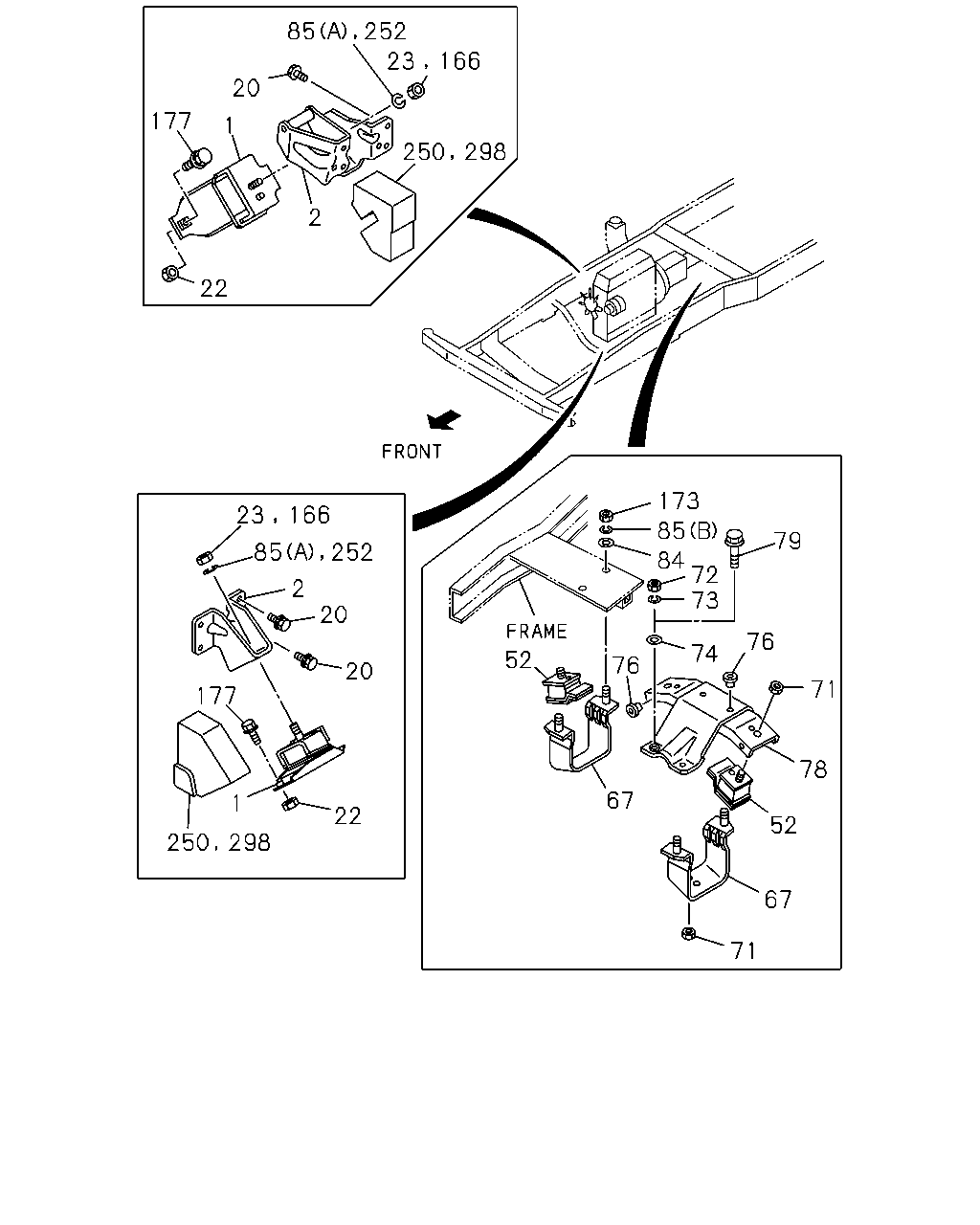

çizim 11413
85 252 23 166 20 177 1 250 2 22 173 23 166 85 79 85 252 84 72 73 2 20 76 74 52 76 20 71 177 78 67 1 22 52 250 67 71 298 298
BalonParca AdiParca NoAdetTipApplied Date A B C
1 00.027 RUBBER; ENG FOOT,FRT
FRT INDEPENDENT SUSPENSION(6PP) 		8-97085-123-0 01 1 9812-0105 ● ●
1 00.027 RUBBER; ENG FOOT,FRT
FRT INDEPENDENT SUSPENSION(6PP) 		8-97122-892-0 01 1 0106- ●
1 00.027 RUBBER; ENG FOOT,FRT
FRT INDEPENDENT SUSPENSION(6PP) 		8-97085-122-0 01 1 9812-0105 ● ●
1 00.027 RUBBER; ENG FOOT,FRT
FRT INDEPENDENT SUSPENSION(6PP) 		8-97122-890-0 01 1 0106- ●
1 00.027 RUBBER; ENG FOOT,FRT
EXC. FRT INDEPENDENT SUSPENSION(6PP) 		8-97080-621-0 01 1 9812-0105 ● ●
1 00.027 RUBBER; ENG FOOT,FRT
EXC. FRT INDEPENDENT SUSPENSION(6PP) 		8-97122-895-0 01 1 0106- ●
1 00.027 RUBBER; ENG FOOT,FRT
EXC. FRT INDEPENDENT SUSPENSION(6PP) 		8-97080-620-0 01 1 9812-0105 ● ●
1 00.027 RUBBER; ENG FOOT,FRT
EXC. FRT INDEPENDENT SUSPENSION(6PP) 		8-97122-893-0 01 1 0106- ●
2 00.029 FOOT; ENG 8-94122-052-1 01 1 9812-0105 ● ●
2 00.029 FOOT; ENG 8-97300-156-0 01 1 0106- ●
2 00.029 FOOT; ENG 8-97073-922-1 01 1 9812-0105 ● ●
2 00.029 FOOT; ENG 8-97287-639-1 01 1 0106- ●
20 00.029 BOLT; ENG FOOT
02.277 M10X22 W/LK WASHER 		0-50041-022-0 05 1 9812-0105 ●
20 00.029 BOLT; ENG FOOT
02.277 M10X22 W/LK WASHER 		0-50041-022-0 05 1 0106- ●
20 00.029 BOLT; ENG FOOT
00.002 M14X25 W/LK WASHER 		0-50041-425-0 01 1 9812-0105 ● ●
20 00.029 BOLT; ENG FOOT
00.002 M14X25 W/LK WASHER 		0-50041-425-0 01 1 0106- ●
20 00.029 BOLT; ENG FOOT
00.034 M10X28 		8-94329-952-1 02 1 9812-9905 ●
20 00.029 BOLT; ENG FOOT
00.034 M10X28 		8-94329-952-1 02 1 9906-0105 ●
20 00.029 BOLT; ENG FOOT
OIL COOLER<KC4> EXC. TURBOCHARGER<K51>,FRT INDEPENDENT SUSPENSION(6PP) 00.034 M10X28 		8-94329-952-1 02 1 9906-0105 ●
20 00.029 BOLT; ENG FOOT
OIL COOLER<KC4> TURBOCHARGER<K51> EXC. CHARGE AIR COOLER<6PL>,FRT INDEPENDENT SUSPENSION(6PP) 00.034 M10X28 		8-94329-952-1 02 1 9906-0105 ●
20 00.029 BOLT; ENG FOOT
00.034 M10X28 		8-94329-952-1 02 1 0106- ●
20 00.029 BOLT; ENG FOOT
OIL COOLER<KC4> EXC. TURBOCHARGER<K51> 02.277 M10X22 W/LK WASHER 		0-50041-022-0 02 1 9906-0105 ●
20 00.029 BOLT; ENG FOOT
TURBOCHARGER<K51> EXC. CHARGE AIR COOLER<6PL> 02.277 M10X22 W/LK WASHER 		0-50041-022-0 02 1 9906-0105 ●
20 00.029 BOLT; ENG FOOT
EXC. OIL COOLER<KC4>,TURBOCHARGER<K51> 00.034 M10X28 		8-94329-952-1 01 1 9906-0105 ●
20 00.029 BOLT; ENG FOOT
TURBOCHARGER<K51> CHARGE AIR COOLER<6PL> 00.034 M10X28 		8-94329-952-1 01 1 9906-0105 ●
20 00.029 BOLT; ENG FOOT
TURBOCHARGER<K51> CHARGE AIR COOLER<6PL> 02.277 M10X22 W/LK WASHER 		0-50041-022-0 06 1 9906-0105 ●
20 00.029 BOLT; ENG FOOT
EXC. TURBOCHARGER<K51> 02.277 M10X22 W/LK WASHER 		0-50041-022-0 03 1 9906-0105 ●
20 00.029 BOLT; ENG FOOT
TURBOCHARGER<K51> EXC. CHARGE AIR COOLER<6PL> 02.277 M10X22 W/LK WASHER 		0-50041-022-0 03 1 9906-0105 ●
20 00.029 BOLT; ENG FOOT
EXC. OIL COOLER<KC4>,TURBOCHARGER<K51> 02.277 M10X22 W/LK WASHER 		0-50041-022-0 03 1 9906-0105 ●
22 00.002 NUT; CUSHION RUBBER TO BRKT
FRT INDEPENDENT SUSPENSION(6PP) 08.917 M10 FLANGE 		0-91150-210-0 02 1 9812-0105 ● ●
22 00.002 NUT; CUSHION RUBBER TO BRKT
FRT INDEPENDENT SUSPENSION(6PP) 08.917 M10 FLANGE 		0-91150-210-0 02 1 0106- ●
22 00.002 NUT; CUSHION RUBBER TO BRKT
EXC. FRT INDEPENDENT SUSPENSION(6PP) 08.917 M10 FLANGE 		0-91150-210-0 04 1 9812-0105 ● ●
22 00.002 NUT; CUSHION RUBBER TO BRKT
EXC. FRT INDEPENDENT SUSPENSION(6PP) 08.917 M10 FLANGE 		0-91150-210-0 04 1 0106- ●
23 00.002 NUT; SUPPORT RUBBER,ENG FOOT
05.816 M12 		9-99110-412-0 02 1 9812-0105 ●
52 00.027 RUBBER; CUSHION,ENG MTG,RR 8-94111-903-0 02 1 9812-0105 ● ●
52 00.027 RUBBER; CUSHION,ENG MTG,RR 8-94111-903-0 02 1 0106- ●
67 00.029 BRACKET; SUPPORT,ENG MTG,RR 8-94111-908-2 01 1 9812-0105 ● ●
67 00.029 BRACKET; SUPPORT,ENG MTG,RR 8-94384-213-0 01 1 0106- ●
67 00.029 BRACKET; SUPPORT,ENG MTG,RR 8-94111-909-2 01 1 9812-0105 ● ●
67 00.029 BRACKET; SUPPORT,ENG MTG,RR 8-94384-214-0 01 1 0106- ●
71 00.002 NUT; SUPPORT RUBBER TO BRKT
04.785 M10 FLANGE 		0-91150-110-0 04 1 9812-0105 ● ●
71 00.002 NUT; SUPPORT RUBBER TO BRKT
04.785 M10 FLANGE 		0-91150-110-0 04 1 0106- ●
72 00.002 NUT; SUPPORT RUBBER TO TRANS
09.011 M10 		9-09110-410-0 04 1 9812-0105 ● ●
73 00.002 WASHER; LK,CUSHION RUBBER TO FRA
ID=10.2 		9-09150-610-0 04 1 9812-0105 ● ●
74 00.002 WASHER; PL,SUPPORT RUBBER TO TRA
04.085 ID=10.5 OD=22 		9-09164-610-0 02 1 9812-0105 ● ●
74 00.002 WASHER; PL,SUPPORT RUBBER TO TRA
04.085 ID=10.5 OD=22 		9-09164-610-0 02 1 0106- ●
76 00.002 STOPPER; ENG MTG RUBBER
00.027 		8-94111-904-0 04 1 9812-0105 ● ●
76 00.002 STOPPER; ENG MTG RUBBER
00.027 		8-94111-904-0 04 1 0106-0203 ●
76 00.002 STOPPER; ENG MTG RUBBER
00.027 		8-94111-904-0 02 1 0204- ●
78 00.029 BRACKET; ENG MTG,RR 8-94133-393-1 01 1 9812-0105 ● ●
78 00.029 BRACKET; ENG MTG,RR 8-97260-282-1 01 1 0106- ●
79 00.002 BOLT; SUPPORT RUBBER TO TRANS
03.417 M10X25 FLANGE 		0-28081-025-0 04 1 0106- ●
84 00.002 WASHER; PL,ENG MTG RR TO FRAME
03.706 ID=10.5 OD=32 		9-09164-810-0 04 1 9812-0105 ● ●
84 00.002 WASHER; PL,ENG MTG RR TO FRAME
03.706 ID=10.5 OD=32 		9-09164-810-0 04 1 0106- ●
85 00.002 WASHER; LK,ENG MTG RR TO FRAME
(B) ID=10.2 		9-09150-610-0 04 1 9812-0105 ● ●
85 00.002 WASHER; LK,ENG MTG RR TO FRAME
(B) ID=10.2 		9-09150-610-0 04 1 0106- ●
85 00.002 WASHER; LK,ENG MTG RR TO FRAME
06.515 (A) ID=12.2 		9-09150-612-0 02 1 9812-0105 ●
166 00.002 NUT; SUPPORT RUBBER
05.816 M12 		9-99110-412-0 02 1 9906-0105 ●
166 00.002 NUT; SUPPORT RUBBER
05.816 M12 		9-99110-412-0 02 1 0106-0206 ●
166 00.002 NUT; SUPPORT RUBBER
04.634 M12 		9-99110-512-0 02 1 0207- ●
173 00.002 NUT; ENG MTG RR TO FRAME
09.011 M10 		9-09110-410-0 04 1 9812-0105 ● ●
173 00.002 NUT; ENG MTG RR TO FRAME
09.011 M10 		9-09110-410-0 04 1 0106- ●
177 00.002 BOLT; BRKT TO CUSHION RUBBER
FRT INDEPENDENT SUSPENSION(6PP) M10X32.5 		8-97090-761-0 04 1 9812-0105 ● ●
177 00.002 BOLT; BRKT TO CUSHION RUBBER
FRT INDEPENDENT SUSPENSION(6PP) M10X32.5 		8-97090-761-0 04 1 0106- ●
177 00.002 BOLT; BRKT TO CUSHION RUBBER
EXC. FRT INDEPENDENT SUSPENSION(6PP) M10X37.5 		8-94468-733-1 04 1 9812-0105 ● ●
177 00.002 BOLT; BRKT TO CUSHION RUBBER
EXC. FRT INDEPENDENT SUSPENSION(6PP) M10X37.5 		8-94468-733-1 04 1 0106- ●
250 00.002 SPACER; ENG FOOT
TURBOCHARGER<K51> CHARGE AIR COOLER<6PL> 		8-97205-803-0 01 1 9906-0105 ●
250 00.002 SPACER; ENG FOOT
TURBOCHARGER<K51> CHARGE AIR COOLER<6PL> 		8-97205-805-0 01 1 9906-0105 ●
252 00.002 WASHER; LK,SUPPORT RUBBER
06.515 ID=12.2 		9-09150-612-0 02 1 9906-0105 ●
252 00.002 WASHER; LK,SUPPORT RUBBER
06.515 ID=12.2 		9-09150-612-0 02 1 0106- ●
298 00.027 RUBBER; SPACE,ENG FOOT
00.002 		8-97205-803-0 01 1 0106-0203 ●
298 00.027 RUBBER; SPACE,ENG FOOT 8-97264-926-0 01 1 0204- ●
298 00.027 RUBBER; SPACE,ENG FOOT
00.002 		8-97205-805-0 01 1 0106-0203 ●
298 00.027 RUBBER; SPACE,ENG FOOT 8-97264-925-0 01 1 0204- ●
