Sayfa 0-15 - Isuzu EPC

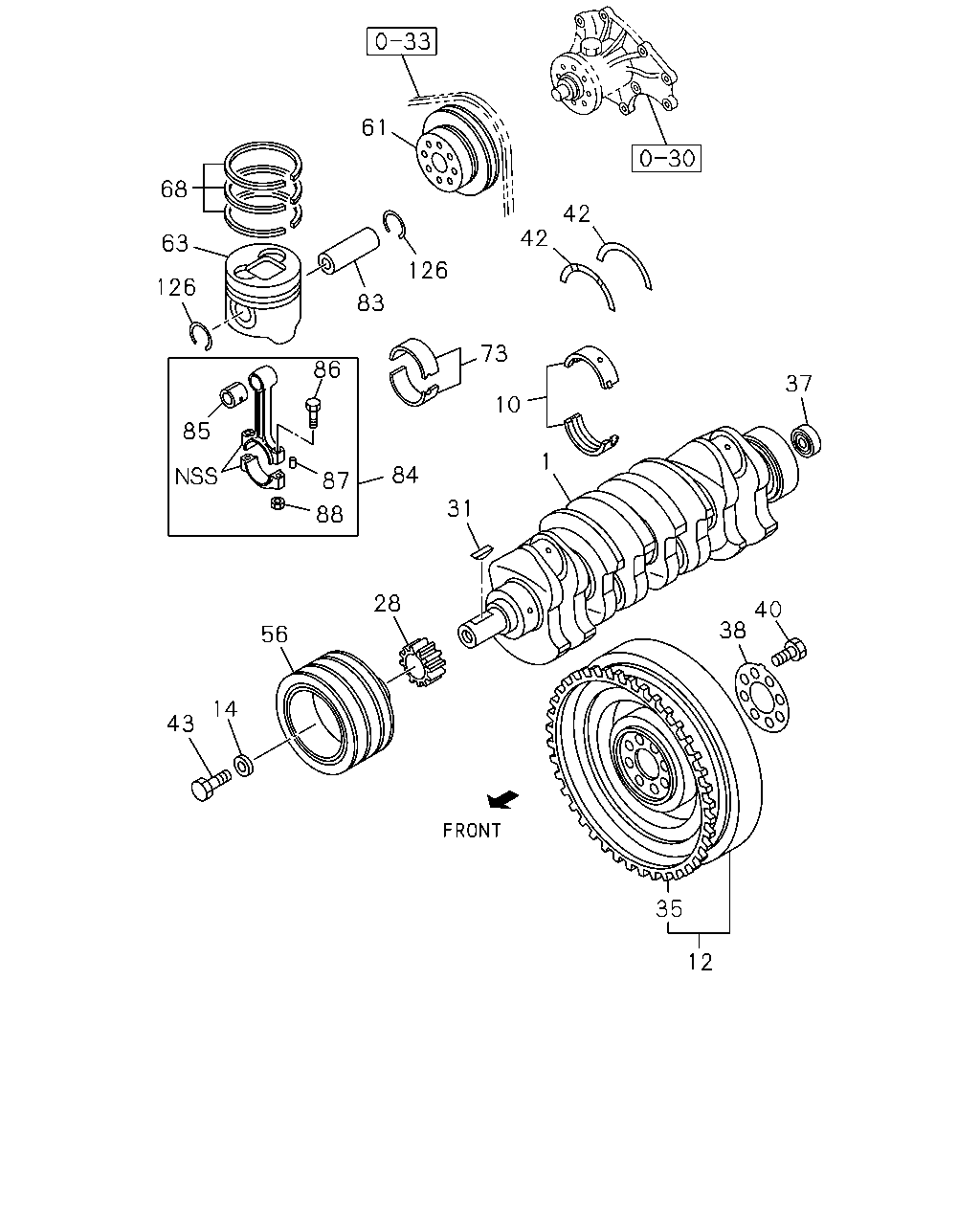

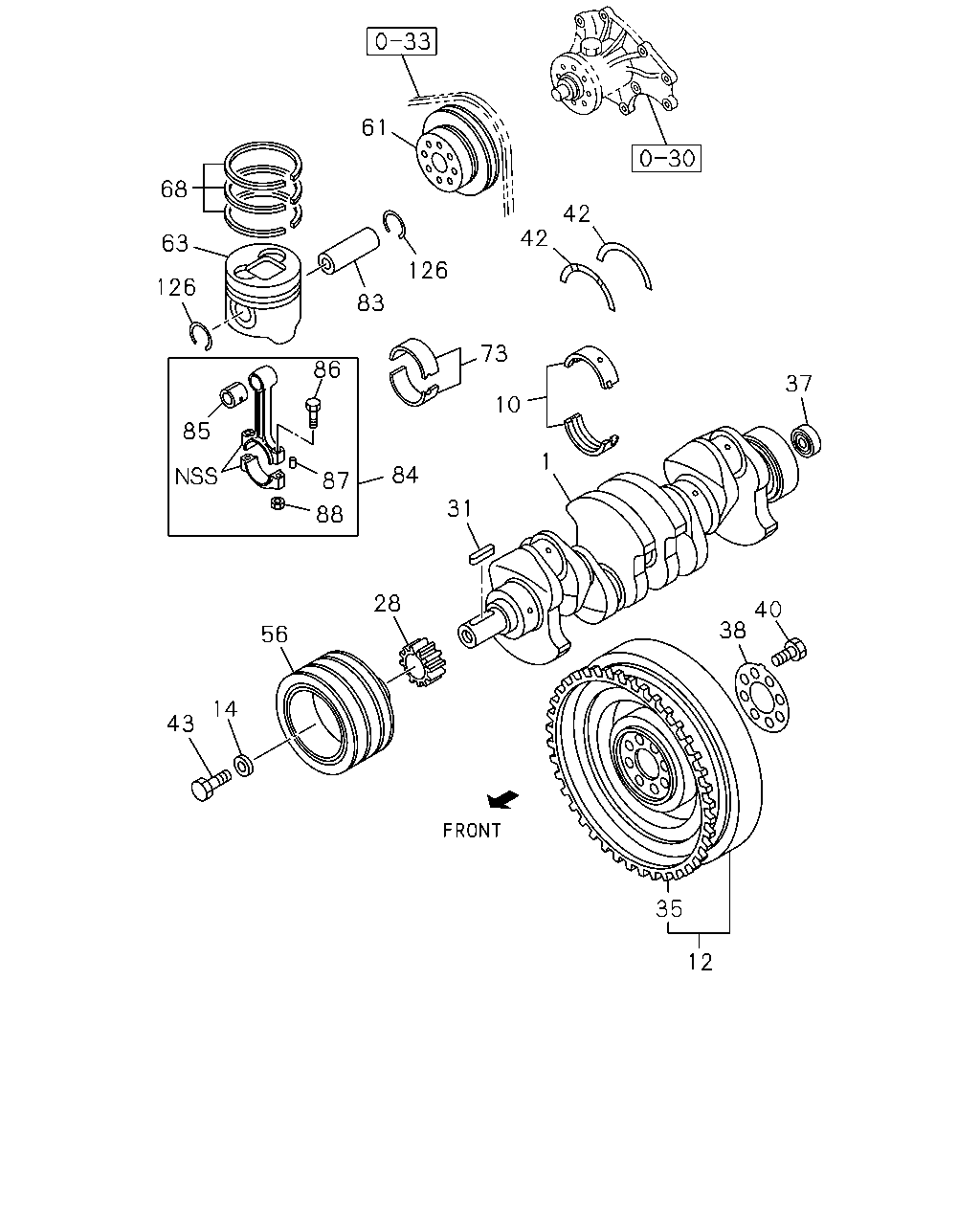

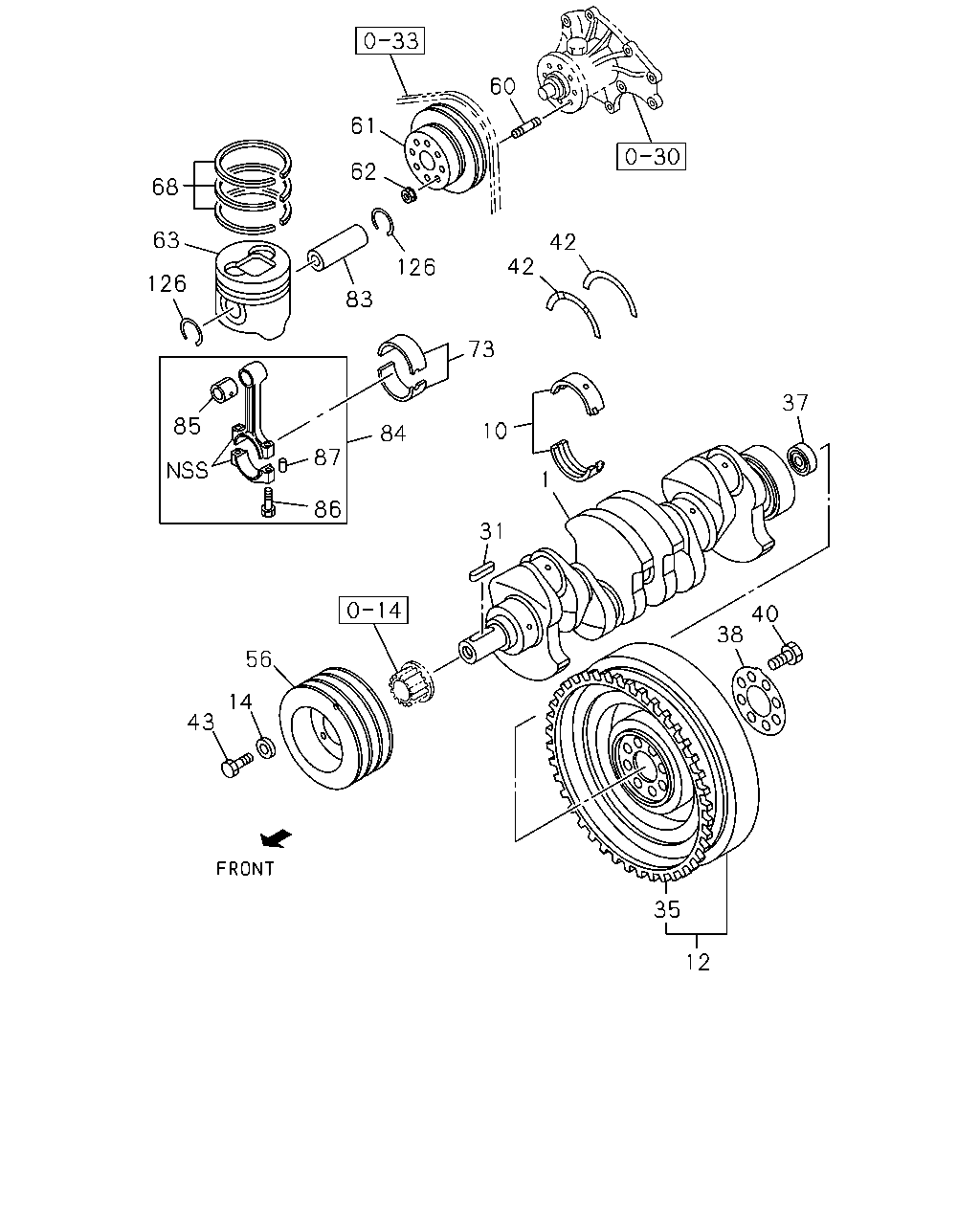

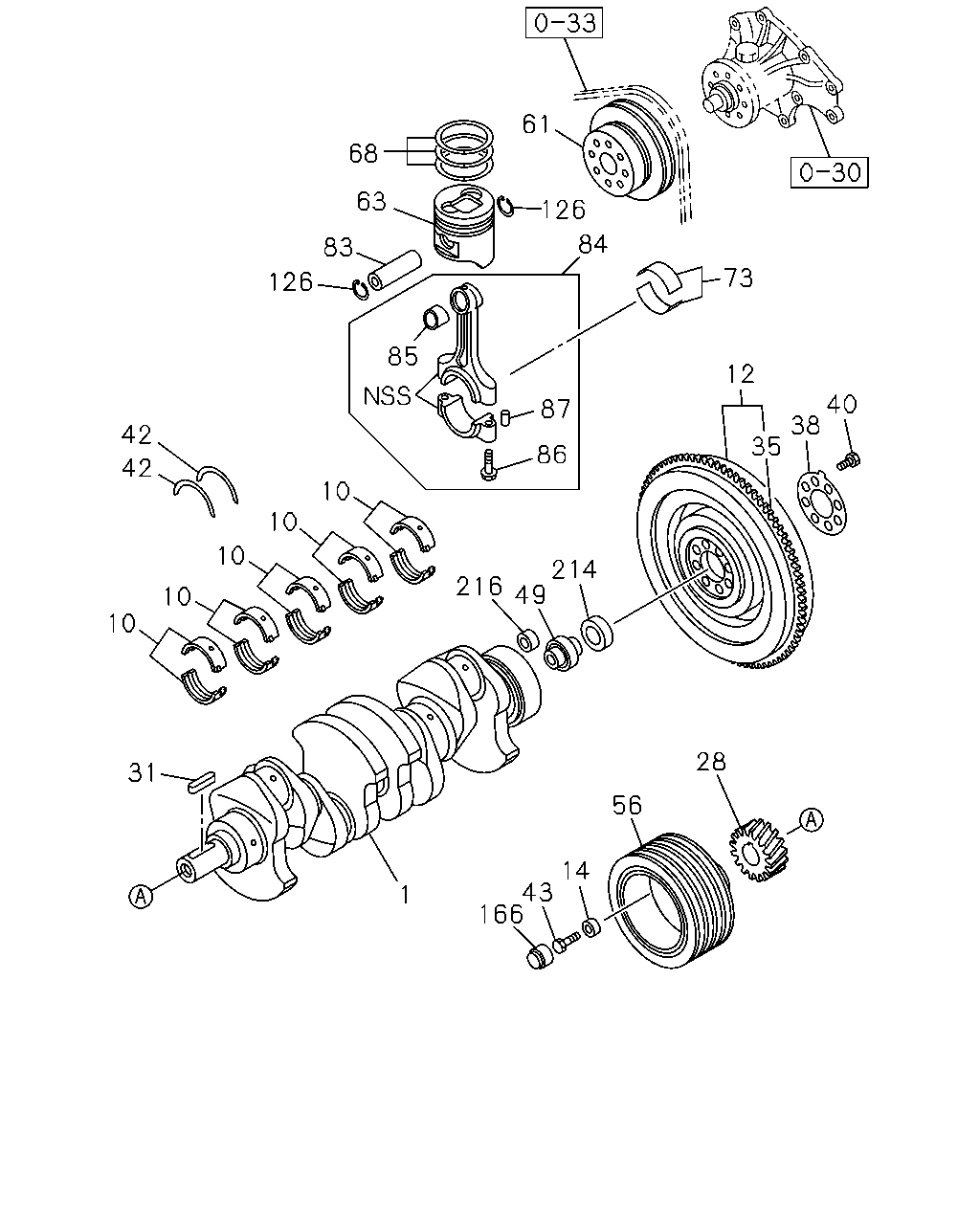

0-15 — CRANKSHAFT,PISTON AND FLYWHEEL (#21653) — 399 parça

61 68 63 126 84 83 73 126 85 12 40 38 35 87 42 86 42 10 10 10 214 49 216 10 10 28 31 56 14 43 166 1

Balon	Parca Adi	Parca No	Adet	Tip	Applied Date	A	B	C
1	00.646 CRANKSHAFT	8-97023-182-1	01	1	9812-0008	●
1	00.646 CRANKSHAFT	8-97190-930-0	01	1	0009-0105	●
1	00.646 CRANKSHAFT TURBOCHARGER<K51>	8-94453-525-2	01	1	9906-0008		●
1	00.646 CRANKSHAFT TURBOCHARGER<K51>	8-97190-929-0	01	1	0009-0105		●
1	00.646 CRANKSHAFT EXC. TURBOCHARGER<K51>	8-94443-662-0	01	1	9906-0008		●
1	00.646 CRANKSHAFT EXC. TURBOCHARGER<K51>	8-97190-928-0	01	1	0009-0105		●
1	00.646 CRANKSHAFT	8-97239-932-1	01	1	0106-0108			●
1	00.646 CRANKSHAFT	8-97254-611-1	01	1	0109-			●
10	00.094 METAL SET; CRANKSHAFT,STANDARD BLUE	8-97063-258-0	05	1	9812-0105	●	●
10	00.094 METAL SET; CRANKSHAFT,STANDARD GRADE 1	8-97202-878-0	05	1	0106-			●
10	00.094 METAL SET; CRANKSHAFT,STANDARD BLACK	8-97063-259-0	05	1	9812-0105	●	●
10	00.094 METAL SET; CRANKSHAFT,STANDARD GRADE 2	8-97202-879-0	05	1	0106-			●
10	00.094 METAL SET; CRANKSHAFT,STANDARD GREEN	8-97063-260-0	05	1	9812-0105	●	●
10	00.094 METAL SET; CRANKSHAFT,STANDARD GRADE 3	8-97202-880-0	05	1	0106-			●
10	00.094 METAL SET; CRANKSHAFT,STANDARD GRADE 4	8-97202-881-0	05	1	0106-			●
10	00.094 METAL SET; CRANKSHAFT,STANDARD GRADE 5	8-97202-882-0	05	1	0106-			●
12	00.666 FLYWHEEL	8-97034-430-2	01	1	9812-9905	●
12	00.666 FLYWHEEL	8-97034-430-2	01	1	9906-0105	●
12	00.666 FLYWHEEL TURBOCHARGER<K51>	8-97034-430-2	01	1	9906-0105		●
12	00.666 FLYWHEEL	8-97239-929-1	01	1	0106-0202			●
12	00.666 FLYWHEEL	8-97333-110-0	01	1	0203-			●
12	00.666 FLYWHEEL EXC. TURBOCHARGER<K51>	8-94125-761-4	01	1	9906-0105		●
14	00.662 WASHER; PULLEY DAMPER ID=16.5 OD=45 T=12	5-09503-127-0	01	1	9812-0105	●	●
14	00.662 WASHER; PULLEY DAMPER ID=16.5 OD=45 T=12	5-09503-127-0	01	1	0106-			●
28	00.728 GEAR; CR/SHF TURBOCHARGER<K51> CHARGE AIR COOLER<6PL> Z=21	8-97229-593-0	01	1	9906-0105		●
28	00.728 GEAR; CR/SHF Z=30	8-97240-011-2	01	1	0106-			●
28	00.728 GEAR; CR/SHF EXC. TURBOCHARGER<K51> Z=21	8-94139-754-0	01	1	9906-0105		●
28	00.728 GEAR; CR/SHF TURBOCHARGER<K51> EXC. CHARGE AIR COOLER<6PL> Z=21	8-94139-754-0	01	1	9906-0105		●
31	00.662 KEY; FEATHER,CR/SHF 00.729	9-08030-743-0	01	1	9812-0008	●	●
31	00.662 KEY; FEATHER,CR/SHF 00.729	8-94201-641-0	01	1	0009-0105	●	●
31	00.662 KEY; FEATHER,CR/SHF 00.729	8-94201-641-0	01	1	0106-			●
35	00.673 GEAR; RING Z=108	8-94419-602-1	01	1	9812-0105	●	●
35	00.673 GEAR; RING Z=122	8-94364-395-1	01	1	0106-			●
38	00.862 WASHER; FLYWHEEL 00.669	8-94133-970-0	01	1	9812-0105	●	●
38	00.862 WASHER; FLYWHEEL 00.669	8-94133-970-0	01	1	0106-			●
40	00.669 BOLT; FLYWHEEL M13X36	8-97065-984-1	08	1	9812-0105	●	●
40	00.669 BOLT; FLYWHEEL M13X45	8-94418-050-0	08	1	0106-			●
42	00.095 WASHER; THRUST,CR/SHF	8-94453-520-0	02	1	9812-0105	●	●
42	00.095 WASHER; THRUST,CR/SHF	8-94453-520-0	02	1	0106-			●
43	00.662 BOLT; CR/SHF PULLEY M16X43	5-09000-273-2	01	1	9812-0105	●	●
43	00.662 BOLT; CR/SHF PULLEY M16X43	5-09000-273-2	01	1	0106-			●
49	00.669 BEARING; PILOT 00.649	8-97031-741-0	01	1	0106-			●
56	00.659 PULLEY; CR/SHF DAMPER 3-GROOVE	8-97182-904-0	01	1	9812-0105	●
56	00.659 PULLEY; CR/SHF DAMPER 4-GROOVE	8-97254-844-0	01	1	0106-			●
56	00.659 PULLEY; CR/SHF DAMPER TURBOCHARGER<K51> CHARGE AIR COOLER<6PL> 4-GROOVE	8-97204-204-0	01	1	9906-0105		●
56	00.659 PULLEY; CR/SHF DAMPER TURBOCHARGER<K51> EXC. CHARGE AIR COOLER<6PL> 3-GROOVE YAMATO PRESS	8-94419-457-2	01	1	9906-0105		●
56	00.659 PULLEY; CR/SHF DAMPER EXC. TURBOCHARGER<K51> 3-GROOVE FUKOKU	8-94442-166-3	01	1	9906-9906		●
56	00.659 PULLEY; CR/SHF DAMPER TURBOCHARGER<K51> EXC. CHARGE AIR COOLER<6PL> 3-GROOVE FUKOKU	8-94442-166-3	01	1	9906-9906		●
56	00.659 PULLEY; CR/SHF DAMPER EXC. TURBOCHARGER<K51> 3-GROOVE FUKOKU	8-97229-900-0	01	1	9907-0105		●
56	00.659 PULLEY; CR/SHF DAMPER TURBOCHARGER<K51> EXC. CHARGE AIR COOLER<6PL> 3-GROOVE FUKOKU	8-97229-900-0	01	1	9907-0105		●
61	00.659 PULLEY; FAN DRIVE 1-GROOVE OD=120	8-94459-815-3	01	1	9812-9905	●
61	00.659 PULLEY; FAN DRIVE 1-GROOVE OD=120	8-94459-815-3	01	1	9906-0105	●
61	00.659 PULLEY; FAN DRIVE TURBOCHARGER<K51> 1-GROOVE OD=120	8-94459-815-3	01	1	9906-0105		●
61	00.659 PULLEY; FAN DRIVE EXC. TURBOCHARGER<K51> 1-GROOVE	8-94146-638-1	01	1	9906-0105		●
61	00.659 PULLEY; FAN DRIVE 1-GROOVE OD=120	8-94459-815-3	01	1	0106-			●
63	00.629 PISTON ALSO INCLUDED IN LINER SET. GRADE=AX	8-97176-618-0	04	1	9812-0105	●
63	00.629 PISTON ALSO INCLUDED IN LINER SET. GRADE=AX	8-97305-585-3	04	1	0106-			●
63	00.629 PISTON ALSO INCLUDED IN LINER SET. GRADE=CX	8-97176-619-0	04	1	9812-0105	●
63	00.629 PISTON ALSO INCLUDED IN LINER SET. GRADE=CX	8-97305-586-3	04	1	0106-			●
63	00.629 PISTON ALSO INCLUDED IN LINER SET. TURBOCHARGER<K51> GRADE=AX	8-97176-610-0	04	1	9906-0105		●
63	00.629 PISTON ALSO INCLUDED IN LINER SET. TURBOCHARGER<K51> GRADE=CX	8-97176-611-0	04	1	9906-0105		●
63	00.629 PISTON ALSO INCLUDED IN LINER SET. EXC. TURBOCHARGER<K51> GRADE=AX	8-97176-606-0	04	1	9906-0105		●
63	00.629 PISTON ALSO INCLUDED IN LINER SET. EXC. TURBOCHARGER<K51> GRADE=CX	8-97176-607-0	04	1	9906-0105		●
68	00.643 RING SET; PISTON,STANDARD ALSO INCLUDED IN LINER SET.	8-97147-984-0	04	1	9812-0105	●
68	00.643 RING SET; PISTON,STANDARD ALSO INCLUDED IN LINER SET.	8-97259-941-0	04	1	0106-			●
68	00.643 RING SET; PISTON,STANDARD ALSO INCLUDED IN LINER SET.	8-94247-867-1	04	1	9906-0105		●
73	00.616 METAL SET; CONN ROD,STANDARD	8-94372-193-1	04	1	9812-0105	●	●
73	00.616 METAL SET; CONN ROD,STANDARD	8-97184-534-0	04	1	0106-			●
83	00.636 PIN; PISTON ALSO INCLUDED IN LINER SET.	8-94457-008-1	04	1	9812-9905	●
83	00.636 PIN; PISTON ALSO INCLUDED IN LINER SET.	8-94457-008-1	04	1	9906-0105	●
83	00.636 PIN; PISTON ALSO INCLUDED IN LINER SET. TURBOCHARGER<K51>	8-94457-008-1	04	1	9906-0105		●
83	00.636 PIN; PISTON ALSO INCLUDED IN LINER SET. EXC. TURBOCHARGER<K51>	8-94454-479-0	04	1	9906-0105		●
83	00.636 PIN; PISTON ALSO INCLUDED IN LINER SET.	8-94454-479-0	04	1	0106-			●
84	00.603 ROD ASM; CONN	8-97062-300-0	04	1	9812-9905	●
84	00.603 ROD ASM; CONN	8-97062-300-0	04	1	9906-0105	●
84	00.603 ROD ASM; CONN TURBOCHARGER<K51>	8-97062-300-0	04	1	9906-0105		●
84	00.603 ROD ASM; CONN EXC. TURBOCHARGER<K51>	8-94329-692-1	04	1	9906-0105		●
84	00.603 ROD ASM; CONN	8-97288-580-0	04	1	0106-0206			●
84	00.603 ROD ASM; CONN	8-97352-890-0	04	1	0207-			●
85	00.613 BUSHING; CONNROD ALSO INCLUDED IN LINER SET.	8-94457-158-0	04	1	9812-9905	●
85	00.613 BUSHING; CONNROD ALSO INCLUDED IN LINER SET.	8-94457-158-0	04	1	9906-0105	●
85	00.613 BUSHING; CONNROD ALSO INCLUDED IN LINER SET. TURBOCHARGER<K51>	8-94457-158-0	04	1	9906-0105		●
85	00.613 BUSHING; CONNROD ALSO INCLUDED IN LINER SET. EXC. TURBOCHARGER<K51> AFTER PRESS FITTING,SHAPE THE BUSHING.	8-94419-455-0	04	1	9906-0105		●
85	00.613 BUSHING; CONNROD ALSO INCLUDED IN LINER SET. AFTER PRESS FITTING,SHAPE THE BUSHING.	8-97288-551-0	04	1	0106-0206			●
85	00.613 BUSHING; CONNROD ALSO INCLUDED IN LINER SET. AFTER PRESS FITTING,SHAPE THE BUSHING.	8-97352-889-0	04	1	0207-			●
86	00.623 BOLT; CONNROD M11X44.5	8-97062-086-0	08	1	9812-9905	●
86	00.623 BOLT; CONNROD M11X44.5	8-97062-086-0	08	1	9906-0105	●
86	00.623 BOLT; CONNROD TURBOCHARGER<K51> M11X44.5	8-97062-086-0	08	1	9906-0105		●
86	00.623 BOLT; CONNROD EXC. TURBOCHARGER<K51> M11X59	5-12235-009-0	08	1	9906-0105		●
86	00.623 BOLT; CONNROD M11X44.5	8-97062-086-0	08	1	0106-			●
87	00.613 PIN; CONNROD BIG END OD=5 L=8	9-08160-508-0	08	1	9812-9905	●
87	00.613 PIN; CONNROD BIG END OD=5 L=8	9-08160-508-0	08	1	9906-0105	●
87	00.613 PIN; CONNROD BIG END TURBOCHARGER<K51> OD=5 L=8	9-08160-508-0	08	1	9906-0105		●
87	00.613 PIN; CONNROD BIG END OD=5 L=8	9-08160-508-0	08	1	0106-			●
126	00.639 RING; SNAP,PISTON PIN ALSO INCLUDED IN LINER SET.	8-94460-687-0	08	1	9812-9905	●
126	00.639 RING; SNAP,PISTON PIN ALSO INCLUDED IN LINER SET.	8-94460-687-0	08	1	9906-0105	●
126	00.639 RING; SNAP,PISTON PIN ALSO INCLUDED IN LINER SET. TURBOCHARGER<K51>	8-94460-687-0	08	1	9906-0105		●
126	00.639 RING; SNAP,PISTON PIN ALSO INCLUDED IN LINER SET. EXC. TURBOCHARGER<K51>	8-94133-969-0	08	1	9906-0105		●
126	00.639 RING; SNAP,PISTON PIN ALSO INCLUDED IN LINER SET.	8-94133-969-0	08	1	0106-			●
166	00.659 RUBBER; SPACE,PULLEY	8-97231-528-0	01	1	0106-			●
214	00.724 STOPPER; BEARING	8-97240-620-0	01	1	0106-			●
216	00.293 DOWEL	8-97259-856-0	01	1	0106-			●

61 68 42 42 63 126 126 83 73 86 37 10 85 1 84 87 31 88 28 40 38 56 14 43 35 12

Balon	Parca Adi	Parca No	Adet	Tip	Applied Date	A	B	C
1	00.646 CRANKSHAFT	8-97023-182-1	01	1	9812-0008	●
1	00.646 CRANKSHAFT	8-97190-930-0	01	1	0009-0105	●
1	00.646 CRANKSHAFT TURBOCHARGER<K51>	8-94453-525-2	01	1	9906-0008		●
1	00.646 CRANKSHAFT TURBOCHARGER<K51>	8-97190-929-0	01	1	0009-0105		●
1	00.646 CRANKSHAFT EXC. TURBOCHARGER<K51>	8-94443-662-0	01	1	9906-0008		●
1	00.646 CRANKSHAFT EXC. TURBOCHARGER<K51>	8-97190-928-0	01	1	0009-0105		●
1	00.646 CRANKSHAFT	8-97239-932-1	01	1	0106-0108			●
1	00.646 CRANKSHAFT	8-97254-611-1	01	1	0109-			●
10	00.094 METAL SET; CRANKSHAFT,STANDARD BLUE	8-97063-258-0	05	1	9812-0105	●	●
10	00.094 METAL SET; CRANKSHAFT,STANDARD GRADE 1	8-97202-878-0	05	1	0106-			●
10	00.094 METAL SET; CRANKSHAFT,STANDARD BLACK	8-97063-259-0	05	1	9812-0105	●	●
10	00.094 METAL SET; CRANKSHAFT,STANDARD GRADE 2	8-97202-879-0	05	1	0106-			●
10	00.094 METAL SET; CRANKSHAFT,STANDARD GREEN	8-97063-260-0	05	1	9812-0105	●	●
10	00.094 METAL SET; CRANKSHAFT,STANDARD GRADE 3	8-97202-880-0	05	1	0106-			●
10	00.094 METAL SET; CRANKSHAFT,STANDARD GRADE 4	8-97202-881-0	05	1	0106-			●
10	00.094 METAL SET; CRANKSHAFT,STANDARD GRADE 5	8-97202-882-0	05	1	0106-			●
12	00.666 FLYWHEEL	8-97034-430-2	01	1	9812-9905	●
12	00.666 FLYWHEEL	8-97034-430-2	01	1	9906-0105	●
12	00.666 FLYWHEEL TURBOCHARGER<K51>	8-97034-430-2	01	1	9906-0105		●
12	00.666 FLYWHEEL	8-97239-929-1	01	1	0106-0202			●
12	00.666 FLYWHEEL	8-97333-110-0	01	1	0203-			●
12	00.666 FLYWHEEL EXC. TURBOCHARGER<K51>	8-94125-761-4	01	1	9906-0105		●
14	00.662 WASHER; PULLEY DAMPER ID=16.5 OD=45 T=12	5-09503-127-0	01	1	9812-0105	●	●
14	00.662 WASHER; PULLEY DAMPER ID=16.5 OD=45 T=12	5-09503-127-0	01	1	0106-			●
28	00.728 GEAR; CR/SHF TURBOCHARGER<K51> CHARGE AIR COOLER<6PL> Z=21	8-97229-593-0	01	1	9906-0105		●
28	00.728 GEAR; CR/SHF Z=30	8-97240-011-2	01	1	0106-			●
28	00.728 GEAR; CR/SHF EXC. TURBOCHARGER<K51> Z=21	8-94139-754-0	01	1	9906-0105		●
28	00.728 GEAR; CR/SHF TURBOCHARGER<K51> EXC. CHARGE AIR COOLER<6PL> Z=21	8-94139-754-0	01	1	9906-0105		●
31	00.662 KEY; FEATHER,CR/SHF 00.729	9-08030-743-0	01	1	9812-0008	●	●
31	00.662 KEY; FEATHER,CR/SHF 00.729	8-94201-641-0	01	1	0009-0105	●	●
31	00.662 KEY; FEATHER,CR/SHF 00.729	8-94201-641-0	01	1	0106-			●
35	00.673 GEAR; RING Z=108	8-94419-602-1	01	1	9812-0105	●	●
35	00.673 GEAR; RING Z=122	8-94364-395-1	01	1	0106-			●
37	00.096 BEARING; PILOT,TOP GEAR SHAFT 00.649 NSK	9-00090-679-0	01	1	9812-0105	●	●
38	00.862 WASHER; FLYWHEEL 00.669	8-94133-970-0	01	1	9812-0105	●	●
38	00.862 WASHER; FLYWHEEL 00.669	8-94133-970-0	01	1	0106-			●
40	00.669 BOLT; FLYWHEEL M13X36	8-97065-984-1	08	1	9812-0105	●	●
40	00.669 BOLT; FLYWHEEL M13X45	8-94418-050-0	08	1	0106-			●
42	00.095 WASHER; THRUST,CR/SHF	8-94453-520-0	02	1	9812-0105	●	●
42	00.095 WASHER; THRUST,CR/SHF	8-94453-520-0	02	1	0106-			●
43	00.662 BOLT; CR/SHF PULLEY M16X43	5-09000-273-2	01	1	9812-0105	●	●
43	00.662 BOLT; CR/SHF PULLEY M16X43	5-09000-273-2	01	1	0106-			●
56	00.659 PULLEY; CR/SHF DAMPER 3-GROOVE	8-97182-904-0	01	1	9812-0105	●
56	00.659 PULLEY; CR/SHF DAMPER 4-GROOVE	8-97254-844-0	01	1	0106-			●
56	00.659 PULLEY; CR/SHF DAMPER TURBOCHARGER<K51> CHARGE AIR COOLER<6PL> 4-GROOVE	8-97204-204-0	01	1	9906-0105		●
56	00.659 PULLEY; CR/SHF DAMPER TURBOCHARGER<K51> EXC. CHARGE AIR COOLER<6PL> 3-GROOVE YAMATO PRESS	8-94419-457-2	01	1	9906-0105		●
56	00.659 PULLEY; CR/SHF DAMPER EXC. TURBOCHARGER<K51> 3-GROOVE FUKOKU	8-94442-166-3	01	1	9906-9906		●
56	00.659 PULLEY; CR/SHF DAMPER TURBOCHARGER<K51> EXC. CHARGE AIR COOLER<6PL> 3-GROOVE FUKOKU	8-94442-166-3	01	1	9906-9906		●
56	00.659 PULLEY; CR/SHF DAMPER EXC. TURBOCHARGER<K51> 3-GROOVE FUKOKU	8-97229-900-0	01	1	9907-0105		●
56	00.659 PULLEY; CR/SHF DAMPER TURBOCHARGER<K51> EXC. CHARGE AIR COOLER<6PL> 3-GROOVE FUKOKU	8-97229-900-0	01	1	9907-0105		●
61	00.659 PULLEY; FAN DRIVE 1-GROOVE OD=120	8-94459-815-3	01	1	9812-9905	●
61	00.659 PULLEY; FAN DRIVE 1-GROOVE OD=120	8-94459-815-3	01	1	9906-0105	●
61	00.659 PULLEY; FAN DRIVE TURBOCHARGER<K51> 1-GROOVE OD=120	8-94459-815-3	01	1	9906-0105		●
61	00.659 PULLEY; FAN DRIVE EXC. TURBOCHARGER<K51> 1-GROOVE	8-94146-638-1	01	1	9906-0105		●
61	00.659 PULLEY; FAN DRIVE 1-GROOVE OD=120	8-94459-815-3	01	1	0106-			●
63	00.629 PISTON ALSO INCLUDED IN LINER SET. GRADE=AX	8-97176-618-0	04	1	9812-0105	●
63	00.629 PISTON ALSO INCLUDED IN LINER SET. GRADE=AX	8-97305-585-3	04	1	0106-			●
63	00.629 PISTON ALSO INCLUDED IN LINER SET. GRADE=CX	8-97176-619-0	04	1	9812-0105	●
63	00.629 PISTON ALSO INCLUDED IN LINER SET. GRADE=CX	8-97305-586-3	04	1	0106-			●
63	00.629 PISTON ALSO INCLUDED IN LINER SET. TURBOCHARGER<K51> GRADE=AX	8-97176-610-0	04	1	9906-0105		●
63	00.629 PISTON ALSO INCLUDED IN LINER SET. TURBOCHARGER<K51> GRADE=CX	8-97176-611-0	04	1	9906-0105		●
63	00.629 PISTON ALSO INCLUDED IN LINER SET. EXC. TURBOCHARGER<K51> GRADE=AX	8-97176-606-0	04	1	9906-0105		●
63	00.629 PISTON ALSO INCLUDED IN LINER SET. EXC. TURBOCHARGER<K51> GRADE=CX	8-97176-607-0	04	1	9906-0105		●
68	00.643 RING SET; PISTON,STANDARD ALSO INCLUDED IN LINER SET.	8-97147-984-0	04	1	9812-0105	●
68	00.643 RING SET; PISTON,STANDARD ALSO INCLUDED IN LINER SET.	8-97259-941-0	04	1	0106-			●
68	00.643 RING SET; PISTON,STANDARD ALSO INCLUDED IN LINER SET.	8-94247-867-1	04	1	9906-0105		●
73	00.616 METAL SET; CONN ROD,STANDARD	8-94372-193-1	04	1	9812-0105	●	●
73	00.616 METAL SET; CONN ROD,STANDARD	8-97184-534-0	04	1	0106-			●
83	00.636 PIN; PISTON ALSO INCLUDED IN LINER SET.	8-94457-008-1	04	1	9812-9905	●
83	00.636 PIN; PISTON ALSO INCLUDED IN LINER SET.	8-94457-008-1	04	1	9906-0105	●
83	00.636 PIN; PISTON ALSO INCLUDED IN LINER SET. TURBOCHARGER<K51>	8-94457-008-1	04	1	9906-0105		●
83	00.636 PIN; PISTON ALSO INCLUDED IN LINER SET. EXC. TURBOCHARGER<K51>	8-94454-479-0	04	1	9906-0105		●
83	00.636 PIN; PISTON ALSO INCLUDED IN LINER SET.	8-94454-479-0	04	1	0106-			●
84	00.603 ROD ASM; CONN	8-97062-300-0	04	1	9812-9905	●
84	00.603 ROD ASM; CONN	8-97062-300-0	04	1	9906-0105	●
84	00.603 ROD ASM; CONN TURBOCHARGER<K51>	8-97062-300-0	04	1	9906-0105		●
84	00.603 ROD ASM; CONN EXC. TURBOCHARGER<K51>	8-94329-692-1	04	1	9906-0105		●
84	00.603 ROD ASM; CONN	8-97288-580-0	04	1	0106-0206			●
84	00.603 ROD ASM; CONN	8-97352-890-0	04	1	0207-			●
85	00.613 BUSHING; CONNROD ALSO INCLUDED IN LINER SET.	8-94457-158-0	04	1	9812-9905	●
85	00.613 BUSHING; CONNROD ALSO INCLUDED IN LINER SET.	8-94457-158-0	04	1	9906-0105	●
85	00.613 BUSHING; CONNROD ALSO INCLUDED IN LINER SET. TURBOCHARGER<K51>	8-94457-158-0	04	1	9906-0105		●
85	00.613 BUSHING; CONNROD ALSO INCLUDED IN LINER SET. EXC. TURBOCHARGER<K51> AFTER PRESS FITTING,SHAPE THE BUSHING.	8-94419-455-0	04	1	9906-0105		●
85	00.613 BUSHING; CONNROD ALSO INCLUDED IN LINER SET. AFTER PRESS FITTING,SHAPE THE BUSHING.	8-97288-551-0	04	1	0106-0206			●
85	00.613 BUSHING; CONNROD ALSO INCLUDED IN LINER SET. AFTER PRESS FITTING,SHAPE THE BUSHING.	8-97352-889-0	04	1	0207-			●
86	00.623 BOLT; CONNROD M11X44.5	8-97062-086-0	08	1	9812-9905	●
86	00.623 BOLT; CONNROD M11X44.5	8-97062-086-0	08	1	9906-0105	●
86	00.623 BOLT; CONNROD TURBOCHARGER<K51> M11X44.5	8-97062-086-0	08	1	9906-0105		●
86	00.623 BOLT; CONNROD EXC. TURBOCHARGER<K51> M11X59	5-12235-009-0	08	1	9906-0105		●
86	00.623 BOLT; CONNROD M11X44.5	8-97062-086-0	08	1	0106-			●
87	00.613 PIN; CONNROD BIG END OD=5 L=8	9-08160-508-0	08	1	9812-9905	●
87	00.613 PIN; CONNROD BIG END OD=5 L=8	9-08160-508-0	08	1	9906-0105	●
87	00.613 PIN; CONNROD BIG END TURBOCHARGER<K51> OD=5 L=8	9-08160-508-0	08	1	9906-0105		●
87	00.613 PIN; CONNROD BIG END OD=5 L=8	9-08160-508-0	08	1	0106-			●
88	00.623 NUT; CONNROD EXC. TURBOCHARGER<K51> 00.626 M11	5-09409-016-0	08	1	9906-0105		●
126	00.639 RING; SNAP,PISTON PIN ALSO INCLUDED IN LINER SET.	8-94460-687-0	08	1	9812-9905	●
126	00.639 RING; SNAP,PISTON PIN ALSO INCLUDED IN LINER SET.	8-94460-687-0	08	1	9906-0105	●
126	00.639 RING; SNAP,PISTON PIN ALSO INCLUDED IN LINER SET. TURBOCHARGER<K51>	8-94460-687-0	08	1	9906-0105		●
126	00.639 RING; SNAP,PISTON PIN ALSO INCLUDED IN LINER SET. EXC. TURBOCHARGER<K51>	8-94133-969-0	08	1	9906-0105		●
126	00.639 RING; SNAP,PISTON PIN ALSO INCLUDED IN LINER SET.	8-94133-969-0	08	1	0106-			●

60 61 62 68 63 42 42 126 126 83 73 37 85 10 84 87 1 86 31 40 38 56 14 43 35 12

Balon	Parca Adi	Parca No	Adet	Tip	Applied Date	A	B	C
1	00.646 CRANKSHAFT	8-97023-182-1	01	1	9812-0008	●
1	00.646 CRANKSHAFT	8-97190-930-0	01	1	0009-0105	●
1	00.646 CRANKSHAFT TURBOCHARGER<K51>	8-94453-525-2	01	1	9906-0008		●
1	00.646 CRANKSHAFT TURBOCHARGER<K51>	8-97190-929-0	01	1	0009-0105		●
1	00.646 CRANKSHAFT EXC. TURBOCHARGER<K51>	8-94443-662-0	01	1	9906-0008		●
1	00.646 CRANKSHAFT EXC. TURBOCHARGER<K51>	8-97190-928-0	01	1	0009-0105		●
1	00.646 CRANKSHAFT	8-97239-932-1	01	1	0106-0108			●
1	00.646 CRANKSHAFT	8-97254-611-1	01	1	0109-			●
10	00.094 METAL SET; CRANKSHAFT,STANDARD BLUE	8-97063-258-0	05	1	9812-0105	●	●
10	00.094 METAL SET; CRANKSHAFT,STANDARD GRADE 1	8-97202-878-0	05	1	0106-			●
10	00.094 METAL SET; CRANKSHAFT,STANDARD BLACK	8-97063-259-0	05	1	9812-0105	●	●
10	00.094 METAL SET; CRANKSHAFT,STANDARD GRADE 2	8-97202-879-0	05	1	0106-			●
10	00.094 METAL SET; CRANKSHAFT,STANDARD GREEN	8-97063-260-0	05	1	9812-0105	●	●
10	00.094 METAL SET; CRANKSHAFT,STANDARD GRADE 3	8-97202-880-0	05	1	0106-			●
10	00.094 METAL SET; CRANKSHAFT,STANDARD GRADE 4	8-97202-881-0	05	1	0106-			●
10	00.094 METAL SET; CRANKSHAFT,STANDARD GRADE 5	8-97202-882-0	05	1	0106-			●
12	00.666 FLYWHEEL	8-97034-430-2	01	1	9812-9905	●
12	00.666 FLYWHEEL	8-97034-430-2	01	1	9906-0105	●
12	00.666 FLYWHEEL TURBOCHARGER<K51>	8-97034-430-2	01	1	9906-0105		●
12	00.666 FLYWHEEL	8-97239-929-1	01	1	0106-0202			●
12	00.666 FLYWHEEL	8-97333-110-0	01	1	0203-			●
12	00.666 FLYWHEEL EXC. TURBOCHARGER<K51>	8-94125-761-4	01	1	9906-0105		●
14	00.662 WASHER; PULLEY DAMPER ID=16.5 OD=45 T=12	5-09503-127-0	01	1	9812-0105	●	●
14	00.662 WASHER; PULLEY DAMPER ID=16.5 OD=45 T=12	5-09503-127-0	01	1	0106-			●
31	00.662 KEY; FEATHER,CR/SHF 00.729	9-08030-743-0	01	1	9812-0008	●	●
31	00.662 KEY; FEATHER,CR/SHF 00.729	8-94201-641-0	01	1	0009-0105	●	●
31	00.662 KEY; FEATHER,CR/SHF 00.729	8-94201-641-0	01	1	0106-			●
35	00.673 GEAR; RING Z=108	8-94419-602-1	01	1	9812-0105	●	●
35	00.673 GEAR; RING Z=122	8-94364-395-1	01	1	0106-			●
37	00.096 BEARING; PILOT,TOP GEAR SHAFT 00.649 NSK	9-00090-679-0	01	1	9812-0105	●	●
38	00.862 WASHER; FLYWHEEL 00.669	8-94133-970-0	01	1	9812-0105	●	●
38	00.862 WASHER; FLYWHEEL 00.669	8-94133-970-0	01	1	0106-			●
40	00.669 BOLT; FLYWHEEL M13X36	8-97065-984-1	08	1	9812-0105	●	●
40	00.669 BOLT; FLYWHEEL M13X45	8-94418-050-0	08	1	0106-			●
42	00.095 WASHER; THRUST,CR/SHF	8-94453-520-0	02	1	9812-0105	●	●
42	00.095 WASHER; THRUST,CR/SHF	8-94453-520-0	02	1	0106-			●
43	00.662 BOLT; CR/SHF PULLEY M16X43	5-09000-273-2	01	1	9812-0105	●	●
43	00.662 BOLT; CR/SHF PULLEY M16X43	5-09000-273-2	01	1	0106-			●
56	00.659 PULLEY; CR/SHF DAMPER 3-GROOVE	8-97182-904-0	01	1	9812-0105	●
56	00.659 PULLEY; CR/SHF DAMPER 4-GROOVE	8-97254-844-0	01	1	0106-			●
56	00.659 PULLEY; CR/SHF DAMPER TURBOCHARGER<K51> CHARGE AIR COOLER<6PL> 4-GROOVE	8-97204-204-0	01	1	9906-0105		●
56	00.659 PULLEY; CR/SHF DAMPER TURBOCHARGER<K51> EXC. CHARGE AIR COOLER<6PL> 3-GROOVE YAMATO PRESS	8-94419-457-2	01	1	9906-0105		●
56	00.659 PULLEY; CR/SHF DAMPER EXC. TURBOCHARGER<K51> 3-GROOVE FUKOKU	8-94442-166-3	01	1	9906-9906		●
56	00.659 PULLEY; CR/SHF DAMPER TURBOCHARGER<K51> EXC. CHARGE AIR COOLER<6PL> 3-GROOVE FUKOKU	8-94442-166-3	01	1	9906-9906		●
56	00.659 PULLEY; CR/SHF DAMPER EXC. TURBOCHARGER<K51> 3-GROOVE FUKOKU	8-97229-900-0	01	1	9907-0105		●
56	00.659 PULLEY; CR/SHF DAMPER TURBOCHARGER<K51> EXC. CHARGE AIR COOLER<6PL> 3-GROOVE FUKOKU	8-97229-900-0	01	1	9907-0105		●
60	01.060 STUD; FAN FIX 01.073 M6X18 L=27	9-04110-618-0	04	1	9812-0105	●
61	00.659 PULLEY; FAN DRIVE 1-GROOVE OD=120	8-94459-815-3	01	1	9812-9905	●
61	00.659 PULLEY; FAN DRIVE 1-GROOVE OD=120	8-94459-815-3	01	1	9906-0105	●
61	00.659 PULLEY; FAN DRIVE TURBOCHARGER<K51> 1-GROOVE OD=120	8-94459-815-3	01	1	9906-0105		●
61	00.659 PULLEY; FAN DRIVE EXC. TURBOCHARGER<K51> 1-GROOVE	8-94146-638-1	01	1	9906-0105		●
61	00.659 PULLEY; FAN DRIVE 1-GROOVE OD=120	8-94459-815-3	01	1	0106-			●
62	01.060 NUT; FAN PULLEY 07.829 M6 FLANGE	5-09440-004-0	04	1	9812-0105	●
63	00.629 PISTON ALSO INCLUDED IN LINER SET. GRADE=AX	8-97176-618-0	04	1	9812-0105	●
63	00.629 PISTON ALSO INCLUDED IN LINER SET. GRADE=AX	8-97305-585-3	04	1	0106-			●
63	00.629 PISTON ALSO INCLUDED IN LINER SET. GRADE=CX	8-97176-619-0	04	1	9812-0105	●
63	00.629 PISTON ALSO INCLUDED IN LINER SET. GRADE=CX	8-97305-586-3	04	1	0106-			●
63	00.629 PISTON ALSO INCLUDED IN LINER SET. TURBOCHARGER<K51> GRADE=AX	8-97176-610-0	04	1	9906-0105		●
63	00.629 PISTON ALSO INCLUDED IN LINER SET. TURBOCHARGER<K51> GRADE=CX	8-97176-611-0	04	1	9906-0105		●
63	00.629 PISTON ALSO INCLUDED IN LINER SET. EXC. TURBOCHARGER<K51> GRADE=AX	8-97176-606-0	04	1	9906-0105		●
63	00.629 PISTON ALSO INCLUDED IN LINER SET. EXC. TURBOCHARGER<K51> GRADE=CX	8-97176-607-0	04	1	9906-0105		●
68	00.643 RING SET; PISTON,STANDARD ALSO INCLUDED IN LINER SET.	8-97147-984-0	04	1	9812-0105	●
68	00.643 RING SET; PISTON,STANDARD ALSO INCLUDED IN LINER SET.	8-97259-941-0	04	1	0106-			●
68	00.643 RING SET; PISTON,STANDARD ALSO INCLUDED IN LINER SET.	8-94247-867-1	04	1	9906-0105		●
73	00.616 METAL SET; CONN ROD,STANDARD	8-94372-193-1	04	1	9812-0105	●	●
73	00.616 METAL SET; CONN ROD,STANDARD	8-97184-534-0	04	1	0106-			●
83	00.636 PIN; PISTON ALSO INCLUDED IN LINER SET.	8-94457-008-1	04	1	9812-9905	●
83	00.636 PIN; PISTON ALSO INCLUDED IN LINER SET.	8-94457-008-1	04	1	9906-0105	●
83	00.636 PIN; PISTON ALSO INCLUDED IN LINER SET. TURBOCHARGER<K51>	8-94457-008-1	04	1	9906-0105		●
83	00.636 PIN; PISTON ALSO INCLUDED IN LINER SET. EXC. TURBOCHARGER<K51>	8-94454-479-0	04	1	9906-0105		●
83	00.636 PIN; PISTON ALSO INCLUDED IN LINER SET.	8-94454-479-0	04	1	0106-			●
84	00.603 ROD ASM; CONN	8-97062-300-0	04	1	9812-9905	●
84	00.603 ROD ASM; CONN	8-97062-300-0	04	1	9906-0105	●
84	00.603 ROD ASM; CONN TURBOCHARGER<K51>	8-97062-300-0	04	1	9906-0105		●
84	00.603 ROD ASM; CONN EXC. TURBOCHARGER<K51>	8-94329-692-1	04	1	9906-0105		●
84	00.603 ROD ASM; CONN	8-97288-580-0	04	1	0106-0206			●
84	00.603 ROD ASM; CONN	8-97352-890-0	04	1	0207-			●
85	00.613 BUSHING; CONNROD ALSO INCLUDED IN LINER SET.	8-94457-158-0	04	1	9812-9905	●
85	00.613 BUSHING; CONNROD ALSO INCLUDED IN LINER SET.	8-94457-158-0	04	1	9906-0105	●
85	00.613 BUSHING; CONNROD ALSO INCLUDED IN LINER SET. TURBOCHARGER<K51>	8-94457-158-0	04	1	9906-0105		●
85	00.613 BUSHING; CONNROD ALSO INCLUDED IN LINER SET. EXC. TURBOCHARGER<K51> AFTER PRESS FITTING,SHAPE THE BUSHING.	8-94419-455-0	04	1	9906-0105		●
85	00.613 BUSHING; CONNROD ALSO INCLUDED IN LINER SET. AFTER PRESS FITTING,SHAPE THE BUSHING.	8-97288-551-0	04	1	0106-0206			●
85	00.613 BUSHING; CONNROD ALSO INCLUDED IN LINER SET. AFTER PRESS FITTING,SHAPE THE BUSHING.	8-97352-889-0	04	1	0207-			●
86	00.623 BOLT; CONNROD M11X44.5	8-97062-086-0	08	1	9812-9905	●
86	00.623 BOLT; CONNROD M11X44.5	8-97062-086-0	08	1	9906-0105	●
86	00.623 BOLT; CONNROD TURBOCHARGER<K51> M11X44.5	8-97062-086-0	08	1	9906-0105		●
86	00.623 BOLT; CONNROD EXC. TURBOCHARGER<K51> M11X59	5-12235-009-0	08	1	9906-0105		●
86	00.623 BOLT; CONNROD M11X44.5	8-97062-086-0	08	1	0106-			●
87	00.613 PIN; CONNROD BIG END OD=5 L=8	9-08160-508-0	08	1	9812-9905	●
87	00.613 PIN; CONNROD BIG END OD=5 L=8	9-08160-508-0	08	1	9906-0105	●
87	00.613 PIN; CONNROD BIG END TURBOCHARGER<K51> OD=5 L=8	9-08160-508-0	08	1	9906-0105		●
87	00.613 PIN; CONNROD BIG END OD=5 L=8	9-08160-508-0	08	1	0106-			●
126	00.639 RING; SNAP,PISTON PIN ALSO INCLUDED IN LINER SET.	8-94460-687-0	08	1	9812-9905	●
126	00.639 RING; SNAP,PISTON PIN ALSO INCLUDED IN LINER SET.	8-94460-687-0	08	1	9906-0105	●
126	00.639 RING; SNAP,PISTON PIN ALSO INCLUDED IN LINER SET. TURBOCHARGER<K51>	8-94460-687-0	08	1	9906-0105		●
126	00.639 RING; SNAP,PISTON PIN ALSO INCLUDED IN LINER SET. EXC. TURBOCHARGER<K51>	8-94133-969-0	08	1	9906-0105		●
126	00.639 RING; SNAP,PISTON PIN ALSO INCLUDED IN LINER SET.	8-94133-969-0	08	1	0106-			●

61 68 42 42 63 126 126 83 73 86 37 10 85 1 84 87 31 88 28 40 38 56 14 43 35 12

Balon	Parca Adi	Parca No	Adet	Tip	Applied Date	A	B	C
1	00.646 CRANKSHAFT	8-97023-182-1	01	1	9812-0008	●
1	00.646 CRANKSHAFT	8-97190-930-0	01	1	0009-0105	●
1	00.646 CRANKSHAFT TURBOCHARGER<K51>	8-94453-525-2	01	1	9906-0008		●
1	00.646 CRANKSHAFT TURBOCHARGER<K51>	8-97190-929-0	01	1	0009-0105		●
1	00.646 CRANKSHAFT EXC. TURBOCHARGER<K51>	8-94443-662-0	01	1	9906-0008		●
1	00.646 CRANKSHAFT EXC. TURBOCHARGER<K51>	8-97190-928-0	01	1	0009-0105		●
1	00.646 CRANKSHAFT	8-97239-932-1	01	1	0106-0108			●
1	00.646 CRANKSHAFT	8-97254-611-1	01	1	0109-			●
10	00.094 METAL SET; CRANKSHAFT,STANDARD BLUE	8-97063-258-0	05	1	9812-0105	●	●
10	00.094 METAL SET; CRANKSHAFT,STANDARD GRADE 1	8-97202-878-0	05	1	0106-			●
10	00.094 METAL SET; CRANKSHAFT,STANDARD BLACK	8-97063-259-0	05	1	9812-0105	●	●
10	00.094 METAL SET; CRANKSHAFT,STANDARD GRADE 2	8-97202-879-0	05	1	0106-			●
10	00.094 METAL SET; CRANKSHAFT,STANDARD GREEN	8-97063-260-0	05	1	9812-0105	●	●
10	00.094 METAL SET; CRANKSHAFT,STANDARD GRADE 3	8-97202-880-0	05	1	0106-			●
10	00.094 METAL SET; CRANKSHAFT,STANDARD GRADE 4	8-97202-881-0	05	1	0106-			●
10	00.094 METAL SET; CRANKSHAFT,STANDARD GRADE 5	8-97202-882-0	05	1	0106-			●
12	00.666 FLYWHEEL	8-97034-430-2	01	1	9812-9905	●
12	00.666 FLYWHEEL	8-97034-430-2	01	1	9906-0105	●
12	00.666 FLYWHEEL TURBOCHARGER<K51>	8-97034-430-2	01	1	9906-0105		●
12	00.666 FLYWHEEL	8-97239-929-1	01	1	0106-0202			●
12	00.666 FLYWHEEL	8-97333-110-0	01	1	0203-			●
12	00.666 FLYWHEEL EXC. TURBOCHARGER<K51>	8-94125-761-4	01	1	9906-0105		●
14	00.662 WASHER; PULLEY DAMPER ID=16.5 OD=45 T=12	5-09503-127-0	01	1	9812-0105	●	●
14	00.662 WASHER; PULLEY DAMPER ID=16.5 OD=45 T=12	5-09503-127-0	01	1	0106-			●
28	00.728 GEAR; CR/SHF TURBOCHARGER<K51> CHARGE AIR COOLER<6PL> Z=21	8-97229-593-0	01	1	9906-0105		●
28	00.728 GEAR; CR/SHF Z=30	8-97240-011-2	01	1	0106-			●
28	00.728 GEAR; CR/SHF EXC. TURBOCHARGER<K51> Z=21	8-94139-754-0	01	1	9906-0105		●
28	00.728 GEAR; CR/SHF TURBOCHARGER<K51> EXC. CHARGE AIR COOLER<6PL> Z=21	8-94139-754-0	01	1	9906-0105		●
31	00.662 KEY; FEATHER,CR/SHF 00.729	9-08030-743-0	01	1	9812-0008	●	●
31	00.662 KEY; FEATHER,CR/SHF 00.729	8-94201-641-0	01	1	0009-0105	●	●
31	00.662 KEY; FEATHER,CR/SHF 00.729	8-94201-641-0	01	1	0106-			●
35	00.673 GEAR; RING Z=108	8-94419-602-1	01	1	9812-0105	●	●
35	00.673 GEAR; RING Z=122	8-94364-395-1	01	1	0106-			●
37	00.096 BEARING; PILOT,TOP GEAR SHAFT 00.649 NSK	9-00090-679-0	01	1	9812-0105	●	●
38	00.862 WASHER; FLYWHEEL 00.669	8-94133-970-0	01	1	9812-0105	●	●
38	00.862 WASHER; FLYWHEEL 00.669	8-94133-970-0	01	1	0106-			●
40	00.669 BOLT; FLYWHEEL M13X36	8-97065-984-1	08	1	9812-0105	●	●
40	00.669 BOLT; FLYWHEEL M13X45	8-94418-050-0	08	1	0106-			●
42	00.095 WASHER; THRUST,CR/SHF	8-94453-520-0	02	1	9812-0105	●	●
42	00.095 WASHER; THRUST,CR/SHF	8-94453-520-0	02	1	0106-			●
43	00.662 BOLT; CR/SHF PULLEY M16X43	5-09000-273-2	01	1	9812-0105	●	●
43	00.662 BOLT; CR/SHF PULLEY M16X43	5-09000-273-2	01	1	0106-			●
56	00.659 PULLEY; CR/SHF DAMPER 3-GROOVE	8-97182-904-0	01	1	9812-0105	●
56	00.659 PULLEY; CR/SHF DAMPER 4-GROOVE	8-97254-844-0	01	1	0106-			●
56	00.659 PULLEY; CR/SHF DAMPER TURBOCHARGER<K51> CHARGE AIR COOLER<6PL> 4-GROOVE	8-97204-204-0	01	1	9906-0105		●
56	00.659 PULLEY; CR/SHF DAMPER TURBOCHARGER<K51> EXC. CHARGE AIR COOLER<6PL> 3-GROOVE YAMATO PRESS	8-94419-457-2	01	1	9906-0105		●
56	00.659 PULLEY; CR/SHF DAMPER EXC. TURBOCHARGER<K51> 3-GROOVE FUKOKU	8-94442-166-3	01	1	9906-9906		●
56	00.659 PULLEY; CR/SHF DAMPER TURBOCHARGER<K51> EXC. CHARGE AIR COOLER<6PL> 3-GROOVE FUKOKU	8-94442-166-3	01	1	9906-9906		●
56	00.659 PULLEY; CR/SHF DAMPER EXC. TURBOCHARGER<K51> 3-GROOVE FUKOKU	8-97229-900-0	01	1	9907-0105		●
56	00.659 PULLEY; CR/SHF DAMPER TURBOCHARGER<K51> EXC. CHARGE AIR COOLER<6PL> 3-GROOVE FUKOKU	8-97229-900-0	01	1	9907-0105		●
61	00.659 PULLEY; FAN DRIVE 1-GROOVE OD=120	8-94459-815-3	01	1	9812-9905	●
61	00.659 PULLEY; FAN DRIVE 1-GROOVE OD=120	8-94459-815-3	01	1	9906-0105	●
61	00.659 PULLEY; FAN DRIVE TURBOCHARGER<K51> 1-GROOVE OD=120	8-94459-815-3	01	1	9906-0105		●
61	00.659 PULLEY; FAN DRIVE EXC. TURBOCHARGER<K51> 1-GROOVE	8-94146-638-1	01	1	9906-0105		●
61	00.659 PULLEY; FAN DRIVE 1-GROOVE OD=120	8-94459-815-3	01	1	0106-			●
63	00.629 PISTON ALSO INCLUDED IN LINER SET. GRADE=AX	8-97176-618-0	04	1	9812-0105	●
63	00.629 PISTON ALSO INCLUDED IN LINER SET. GRADE=AX	8-97305-585-3	04	1	0106-			●
63	00.629 PISTON ALSO INCLUDED IN LINER SET. GRADE=CX	8-97176-619-0	04	1	9812-0105	●
63	00.629 PISTON ALSO INCLUDED IN LINER SET. GRADE=CX	8-97305-586-3	04	1	0106-			●
63	00.629 PISTON ALSO INCLUDED IN LINER SET. TURBOCHARGER<K51> GRADE=AX	8-97176-610-0	04	1	9906-0105		●
63	00.629 PISTON ALSO INCLUDED IN LINER SET. TURBOCHARGER<K51> GRADE=CX	8-97176-611-0	04	1	9906-0105		●
63	00.629 PISTON ALSO INCLUDED IN LINER SET. EXC. TURBOCHARGER<K51> GRADE=AX	8-97176-606-0	04	1	9906-0105		●
63	00.629 PISTON ALSO INCLUDED IN LINER SET. EXC. TURBOCHARGER<K51> GRADE=CX	8-97176-607-0	04	1	9906-0105		●
68	00.643 RING SET; PISTON,STANDARD ALSO INCLUDED IN LINER SET.	8-97147-984-0	04	1	9812-0105	●
68	00.643 RING SET; PISTON,STANDARD ALSO INCLUDED IN LINER SET.	8-97259-941-0	04	1	0106-			●
68	00.643 RING SET; PISTON,STANDARD ALSO INCLUDED IN LINER SET.	8-94247-867-1	04	1	9906-0105		●
73	00.616 METAL SET; CONN ROD,STANDARD	8-94372-193-1	04	1	9812-0105	●	●
73	00.616 METAL SET; CONN ROD,STANDARD	8-97184-534-0	04	1	0106-			●
83	00.636 PIN; PISTON ALSO INCLUDED IN LINER SET.	8-94457-008-1	04	1	9812-9905	●
83	00.636 PIN; PISTON ALSO INCLUDED IN LINER SET.	8-94457-008-1	04	1	9906-0105	●
83	00.636 PIN; PISTON ALSO INCLUDED IN LINER SET. TURBOCHARGER<K51>	8-94457-008-1	04	1	9906-0105		●
83	00.636 PIN; PISTON ALSO INCLUDED IN LINER SET. EXC. TURBOCHARGER<K51>	8-94454-479-0	04	1	9906-0105		●
83	00.636 PIN; PISTON ALSO INCLUDED IN LINER SET.	8-94454-479-0	04	1	0106-			●
84	00.603 ROD ASM; CONN	8-97062-300-0	04	1	9812-9905	●
84	00.603 ROD ASM; CONN	8-97062-300-0	04	1	9906-0105	●
84	00.603 ROD ASM; CONN TURBOCHARGER<K51>	8-97062-300-0	04	1	9906-0105		●
84	00.603 ROD ASM; CONN EXC. TURBOCHARGER<K51>	8-94329-692-1	04	1	9906-0105		●
84	00.603 ROD ASM; CONN	8-97288-580-0	04	1	0106-0206			●
84	00.603 ROD ASM; CONN	8-97352-890-0	04	1	0207-			●
85	00.613 BUSHING; CONNROD ALSO INCLUDED IN LINER SET.	8-94457-158-0	04	1	9812-9905	●
85	00.613 BUSHING; CONNROD ALSO INCLUDED IN LINER SET.	8-94457-158-0	04	1	9906-0105	●
85	00.613 BUSHING; CONNROD ALSO INCLUDED IN LINER SET. TURBOCHARGER<K51>	8-94457-158-0	04	1	9906-0105		●
85	00.613 BUSHING; CONNROD ALSO INCLUDED IN LINER SET. EXC. TURBOCHARGER<K51> AFTER PRESS FITTING,SHAPE THE BUSHING.	8-94419-455-0	04	1	9906-0105		●
85	00.613 BUSHING; CONNROD ALSO INCLUDED IN LINER SET. AFTER PRESS FITTING,SHAPE THE BUSHING.	8-97288-551-0	04	1	0106-0206			●
85	00.613 BUSHING; CONNROD ALSO INCLUDED IN LINER SET. AFTER PRESS FITTING,SHAPE THE BUSHING.	8-97352-889-0	04	1	0207-			●
86	00.623 BOLT; CONNROD M11X44.5	8-97062-086-0	08	1	9812-9905	●
86	00.623 BOLT; CONNROD M11X44.5	8-97062-086-0	08	1	9906-0105	●
86	00.623 BOLT; CONNROD TURBOCHARGER<K51> M11X44.5	8-97062-086-0	08	1	9906-0105		●
86	00.623 BOLT; CONNROD EXC. TURBOCHARGER<K51> M11X59	5-12235-009-0	08	1	9906-0105		●
86	00.623 BOLT; CONNROD M11X44.5	8-97062-086-0	08	1	0106-			●
87	00.613 PIN; CONNROD BIG END OD=5 L=8	9-08160-508-0	08	1	9812-9905	●
87	00.613 PIN; CONNROD BIG END OD=5 L=8	9-08160-508-0	08	1	9906-0105	●
87	00.613 PIN; CONNROD BIG END TURBOCHARGER<K51> OD=5 L=8	9-08160-508-0	08	1	9906-0105		●
87	00.613 PIN; CONNROD BIG END OD=5 L=8	9-08160-508-0	08	1	0106-			●
88	00.623 NUT; CONNROD EXC. TURBOCHARGER<K51> 00.626 M11	5-09409-016-0	08	1	9906-0105		●
126	00.639 RING; SNAP,PISTON PIN ALSO INCLUDED IN LINER SET.	8-94460-687-0	08	1	9812-9905	●
126	00.639 RING; SNAP,PISTON PIN ALSO INCLUDED IN LINER SET.	8-94460-687-0	08	1	9906-0105	●
126	00.639 RING; SNAP,PISTON PIN ALSO INCLUDED IN LINER SET. TURBOCHARGER<K51>	8-94460-687-0	08	1	9906-0105		●
126	00.639 RING; SNAP,PISTON PIN ALSO INCLUDED IN LINER SET. EXC. TURBOCHARGER<K51>	8-94133-969-0	08	1	9906-0105		●
126	00.639 RING; SNAP,PISTON PIN ALSO INCLUDED IN LINER SET.	8-94133-969-0	08	1	0106-			●

İpucu: çizimdeki balona veya tablodaki Balon sütununa tıkla; ilgili parçalar vurgulanır. Birden çok çizim varsa üstteki seçim kutusu/oklarla gezin.
