0-14 — CAMSHAFT AND VALVE (#21652) — 180 parça

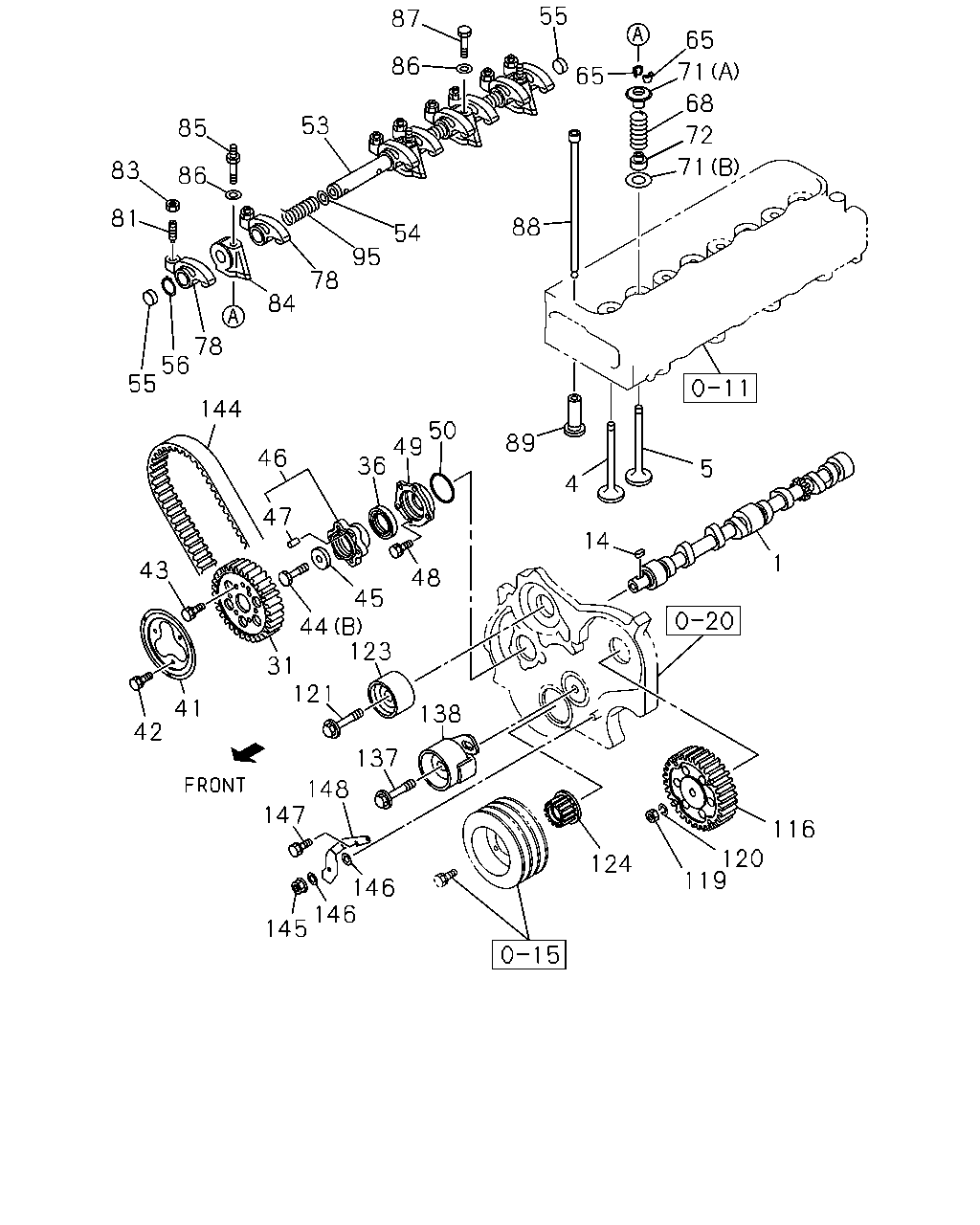

55 87 65 86 71 65 68 53 85 72 71 83 86 81 88 54 95 78 84 78 56 55 144 50 49 36 89 46 5 4 47 14 1 43 48 45 44 123 31 121 41 138 42 137 148 147 116 120 119 124 146 146 145

Balon	Parca Adi	Parca No	Adet	Tip	Applied Date	A	B	C
1	00.519 CAMSHAFT	8-94127-797-4	01	1	9812-0012	●	●
1	00.519 CAMSHAFT	8-97287-657-0	01	1	0101-0105	●	●
1	00.519 CAMSHAFT	8-97287-657-0	01	1	0106-			●
4	00.296 VALVE; INL	8-97131-729-0	04	1	9812-0105	●
4	00.296 VALVE; INL TURBOCHARGER<K51>	8-94464-921-0	04	1	9906-0105		●
4	00.296 VALVE; INL EXC. TURBOCHARGER<K51>	8-94133-275-1	04	1	9906-0105		●
4	00.296 VALVE; INL	8-97131-729-0	04	1	0106-			●
5	00.297 VALVE; EXH	8-97118-767-0	04	1	9812-0105	●
5	00.297 VALVE; EXH TURBOCHARGER<K51>	8-94433-245-0	04	1	9906-0105		●
5	00.297 VALVE; EXH EXC. TURBOCHARGER<K51>	8-94247-875-1	04	1	9906-0105		●
5	00.297 VALVE; EXH	8-97043-861-1	04	1	0106-			●
14	00.738 KEY; CM/SHF 08.960	9-08000-718-0	01	1	9812-0105	●	●
14	00.738 KEY; CM/SHF 08.960	9-08000-718-0	01	1	0106-			●
31	00.736 SPROCKET; CM/SHF Z=44	8-97147-983-0	01	1	9812-0105	●
36	00.533 SEAL; OIL,CM/SHF,FRT ALSO INCLUDED IN GASKET SET(ENG. & HEAD) OD=56 T=7.0	8-97080-562-0	01	1	9812-0105	●
41	00.662 FLANGE; CAM PULLEY	8-94157-492-0	01	1	9812-0105	●
42	00.662 BOLT; FLANGE CAM 04.785 M8X18 W/LK WASHER	0-50040-818-0	03	1	9812-0105	●
43	00.662 BOLT; PULLEY 04.686 M6X16 W/LK WASHER	0-50040-616-0	03	1	9812-0105	●
44	00.738 BOLT 00.533 (B) M12X47	8-94433-407-0	01	1	9812-0105	●	●
44	00.738 BOLT 00.533 (B) M12X47	8-94433-407-0	01	1	0106-			●
44	00.738 BOLT 03.704 (A) M8X16 W/LK WASHER	0-50040-816-0	02	1	9906-0102		●
44	00.738 BOLT 01.062 (A) M8X16 FLANGE	0-28080-816-0	02	1	0103-0105		●
44	00.738 BOLT 01.062 (A) M8X16 FLANGE	0-28080-816-0	02	1	0106-			●
44	00.738 BOLT (C) M6X30 HEX SOCKET	9-05820-630-0	01	1	0106-			●
45	00.738 WASHER; GEAR CAM ID=13 OD=36	5-12519-002-1	01	1	9812-0105	●	●
45	00.738 WASHER; GEAR CAM ID=13 OD=36	5-12519-002-1	01	1	0106-			●
46	00.736 CENTER ASM; TIMING PULLEY	8-97118-491-0	01	1	9812-0105	●
47	00.662 PIN; STRAIGHT,CENTER 08.939 OD=4 L=12	9-08160-412-0	01	1	9812-0105	●
48	00.724 BOLT; RET 01.540 M8X35 W/LK WASHER	0-50040-835-0	05	1	9812-0105	●
49	00.724 RETAINER; OIL SEAL,CM/SHF	8-94133-516-2	01	1	9812-0105	●
50	00.724 GASKET; RET ALSO INCLUDED IN GASKET SET(ENG. & HEAD)	8-97080-893-0	01	1	9812-0105	●
53	00.353 SHAFT; ROCKER ARM	8-97036-197-0	01	1	9812-0105	●	●
53	00.353 SHAFT; ROCKER ARM	8-97036-197-0	01	1	0106-			●
54	00.349 WASHER; ROCKER SPR ID=19.1 OD=23	8-94341-906-0	06	1	9812-0105	●	●
54	00.349 WASHER; ROCKER SPR ID=19.1 OD=23	8-94341-906-0	06	1	0106-			●
55	00.356 PLUG; ROCKER SHAFT END	9-12626-005-0	02	1	9812-0105	●	●
55	00.356 PLUG; ROCKER SHAFT END	9-12626-005-0	02	1	0106-			●
56	00.349 RING; SNAP,ROCKER ARM ID=17.5	9-09180-019-0	02	1	9812-0105	●	●
56	00.349 RING; SNAP,ROCKER ARM ID=17.5	9-09180-019-0	02	1	0106-			●
65	00.310 COLLAR; SPLIT	5-12565-004-0	16	1	9812-0105	●	●
65	00.310 COLLAR; SPLIT	5-12565-004-0	16	1	0106-			●
68	00.303 SPRING; VLV ID=26.25	8-94433-247-0	08	1	9812-0105	●	●
68	00.303 SPRING; VLV ID=26.25	8-94433-247-0	08	1	0106-			●
71	00.309 SEAT; SPR (B) OD=34	5-12563-001-0	08	1	9812-0105	●	●
71	00.309 SEAT; SPR (B) OD=34	5-12563-001-0	08	1	0106-			●
71	00.309 SEAT; SPR (A) OD=32.8	8-94133-731-2	08	1	9812-0105	●	●
71	00.309 SEAT; SPR (A) OD=32.8	8-94133-731-2	08	1	0106-			●
72	00.308 SEAL; VLV GUIDE ALSO INCLUDED IN GASKET SET(ENG. & HEAD)	8-97120-307-0	08	1	9812-0105	●	●
72	00.308 SEAL; VLV GUIDE ALSO INCLUDED IN GASKET SET(ENG. & HEAD)	8-97120-307-0	08	1	0106-			●
78	00.333 ARM; ROCKER	8-94152-344-0	08	1	9812-0105	●	●
78	00.333 ARM; ROCKER	8-94152-344-0	08	1	0106-			●
81	00.429 SCREW; ADJ,ROCKER ARM M8X30	8-94152-283-1	08	1	9812-0105	●	●
81	00.429 SCREW; ADJ,ROCKER ARM M8X30	8-94152-283-1	08	1	0106-			●
83	00.787 NUT; ADJ SCREW,LK 08.915 M8	9-09111-508-0	08	1	9812-0105	●	●
83	00.787 NUT; ADJ SCREW,LK 08.915 M8	9-09111-508-0	08	1	0106-			●
84	00.349 BRACKET; ROCKER SHAFT,INTER	8-94152-345-1	04	1	9812-0105	●	●
84	00.349 BRACKET; ROCKER SHAFT,INTER	8-94152-345-1	04	1	0106-			●
85	00.349 BOLT; BRKT M8X15,M10X60 L=82	8-94433-304-0	03	1	9812-0105	●	●
85	00.349 BOLT; BRKT M8X15,M10X60 L=82	8-94433-304-0	03	1	0106-			●
86	00.349 WASHER; ROCKER ARM FIX ID=10.5	9-09164-010-0	04	1	9812-0105	●	●
86	00.349 WASHER; ROCKER ARM FIX ID=10.5	9-09164-010-0	04	1	0106-			●
87	00.349 BOLT; ROCKER SHAFT M10X60	8-94433-302-0	01	1	9812-0105	●	●
87	00.349 BOLT; ROCKER SHAFT M10X60	8-94433-302-0	01	1	0106-			●
88	00.426 ROD; PUSH	8-97071-673-0	08	1	9812-0105	●	●
88	00.426 ROD; PUSH	8-97071-673-0	08	1	0106-			●
89	00.459 TAPPET; VLV	8-94438-305-0	08	1	9812-0105	●	●
89	00.459 TAPPET; VLV	8-94438-305-1	08	1	0106-			●
95	00.376 SPRING; ROCKER SHAFT	8-94341-905-0	03	1	9812-0105	●	●
95	00.376 SPRING; ROCKER SHAFT	8-94341-905-0	03	1	0106-			●
116	00.659 PULLEY; TIMING,INJ PUMP Z=44 B=37.7	8-97043-289-0	01	1	9812-0105	●
119	00.662 NUT; PULLEY 03.340 M14	8-94226-565-0	01	1	9812-0105	●
120	00.662 WASHER; LK,PULLEY,INJ PUMP 03.340	8-94226-554-0	01	1	9812-0105	●
121	00.724 BOLT; IDLE PULLEY M12X57 FLANGE	8-94433-408-1	01	1	9812-0105	●
123	00.724 PULLEY; IDLE,TIMING	8-94382-215-1	01	1	9812-0105	●
124	00.659 PULLEY; TIMING,CR/SHF Z=22	8-94133-501-3	01	1	9812-0105	●
137	00.724 BOLT; TENSIONER M12X57 FLANGE	8-94433-408-1	01	1	9812-0105	●
138	00.724 TENSIONER; TIMING BELT	8-94382-214-1	01	1	9812-0105	●
144	00.724 BELT; TIMING BLUE	8-94380-679-0	01	1	9812-0105	●
145	00.724 NUT; FLANGE 01.540 M8 FLANGE	0-91150-208-0	01	1	9812-0105	●
146	00.724 WASHER; PL,TENSION LEVER 07.633 ID=8.4 OD=22	9-09164-708-0	02	1	9812-0105	●
147	00.724 BOLT; TENSION LEVER 01.428 M6X12 FLANGE	0-28080-612-0	01	1	9812-0105	●
148	00.724 LEVER; TENSION,TIMING BELT	8-97146-370-0	01	1	9812-0105	●

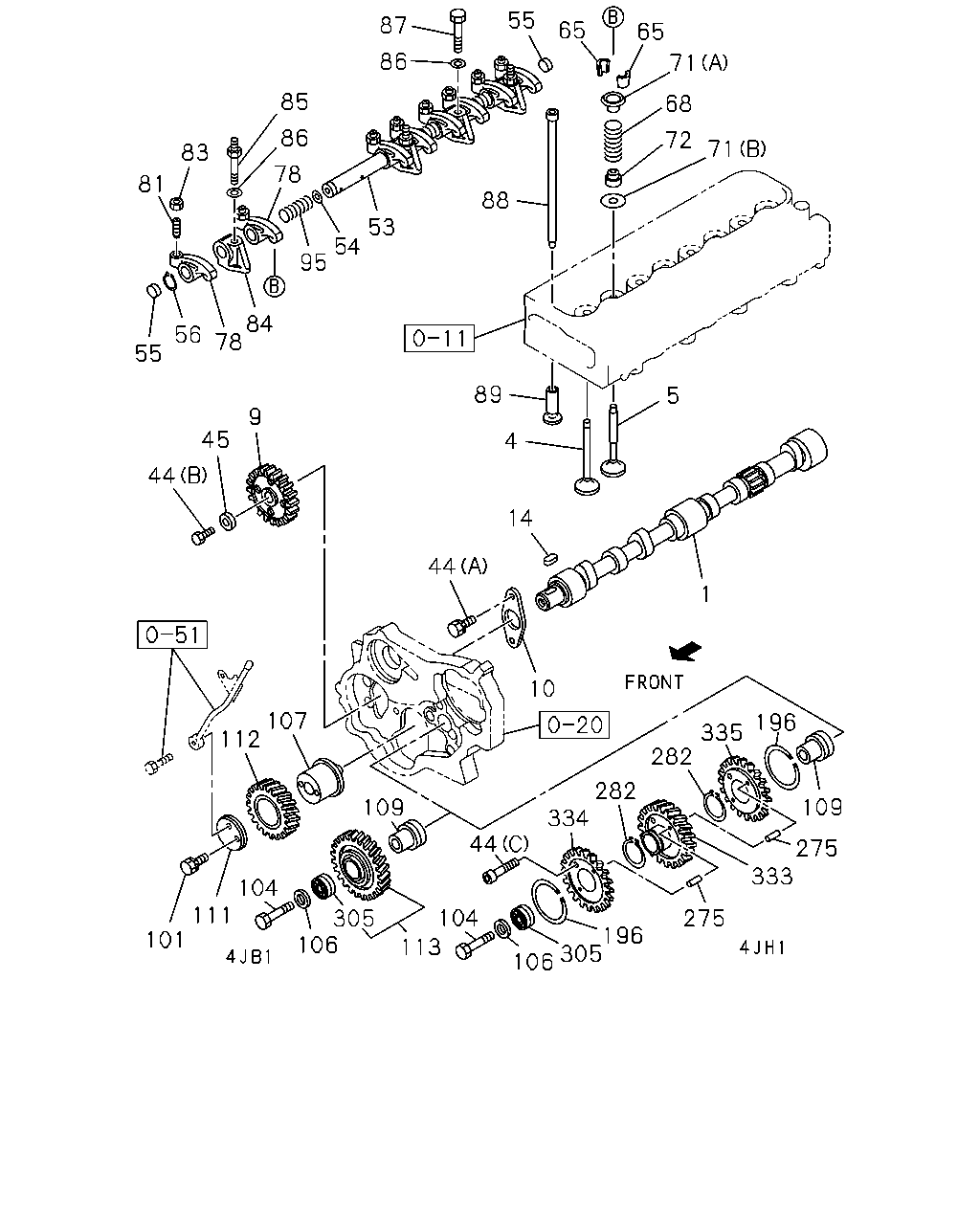

55 87 65 65 86 71 85 68 86 72 71 83 78 81 88 53 54 95 84 78 56 55 89 5 9 45 4 44 14 44 1 10 107 112 196 335 282 282 334 109 109 44 275 333 104 111 104 275 305 106 196 305 106 101 113

Balon	Parca Adi	Parca No	Adet	Tip	Applied Date	A	B	C
1	00.519 CAMSHAFT	8-94127-797-4	01	1	9812-0012	●	●
1	00.519 CAMSHAFT	8-97287-657-0	01	1	0101-0105	●	●
1	00.519 CAMSHAFT	8-97287-657-0	01	1	0106-			●
4	00.296 VALVE; INL	8-97131-729-0	04	1	9812-0105	●
4	00.296 VALVE; INL TURBOCHARGER<K51>	8-94464-921-0	04	1	9906-0105		●
4	00.296 VALVE; INL EXC. TURBOCHARGER<K51>	8-94133-275-1	04	1	9906-0105		●
4	00.296 VALVE; INL	8-97131-729-0	04	1	0106-			●
5	00.297 VALVE; EXH	8-97118-767-0	04	1	9812-0105	●
5	00.297 VALVE; EXH TURBOCHARGER<K51>	8-94433-245-0	04	1	9906-0105		●
5	00.297 VALVE; EXH EXC. TURBOCHARGER<K51>	8-94247-875-1	04	1	9906-0105		●
5	00.297 VALVE; EXH	8-97043-861-1	04	1	0106-			●
9	00.736 GEAR; CM/SHF TURBOCHARGER<K51> CHARGE AIR COOLER<6PL> Z=42	8-97229-594-0	01	1	9906-0105		●
9	00.736 GEAR; CM/SHF Z=60	8-97240-012-2	01	1	0106-			●
9	00.736 GEAR; CM/SHF EXC. TURBOCHARGER<K51> Z=42	8-97079-212-0	01	1	9906-0105		●
9	00.736 GEAR; CM/SHF TURBOCHARGER<K51> EXC. CHARGE AIR COOLER<6PL> Z=42	8-97079-212-0	01	1	9906-0105		●
10	00.533 PLATE; THRUST	8-94110-480-1	01	1	9906-0105		●
10	00.533 PLATE; THRUST	8-94110-480-1	01	1	0106-			●
14	00.738 KEY; CM/SHF 08.960	9-08000-718-0	01	1	9812-0105	●	●
14	00.738 KEY; CM/SHF 08.960	9-08000-718-0	01	1	0106-			●
44	00.738 BOLT 00.533 (B) M12X47	8-94433-407-0	01	1	9812-0105	●	●
44	00.738 BOLT 00.533 (B) M12X47	8-94433-407-0	01	1	0106-			●
44	00.738 BOLT 03.704 (A) M8X16 W/LK WASHER	0-50040-816-0	02	1	9906-0102		●
44	00.738 BOLT 01.062 (A) M8X16 FLANGE	0-28080-816-0	02	1	0103-0105		●
44	00.738 BOLT 01.062 (A) M8X16 FLANGE	0-28080-816-0	02	1	0106-			●
44	00.738 BOLT (C) M6X30 HEX SOCKET	9-05820-630-0	01	1	0106-			●
45	00.738 WASHER; GEAR CAM ID=13 OD=36	5-12519-002-1	01	1	9812-0105	●	●
45	00.738 WASHER; GEAR CAM ID=13 OD=36	5-12519-002-1	01	1	0106-			●
53	00.353 SHAFT; ROCKER ARM	8-97036-197-0	01	1	9812-0105	●	●
53	00.353 SHAFT; ROCKER ARM	8-97036-197-0	01	1	0106-			●
54	00.349 WASHER; ROCKER SPR ID=19.1 OD=23	8-94341-906-0	06	1	9812-0105	●	●
54	00.349 WASHER; ROCKER SPR ID=19.1 OD=23	8-94341-906-0	06	1	0106-			●
55	00.356 PLUG; ROCKER SHAFT END	9-12626-005-0	02	1	9812-0105	●	●
55	00.356 PLUG; ROCKER SHAFT END	9-12626-005-0	02	1	0106-			●
56	00.349 RING; SNAP,ROCKER ARM ID=17.5	9-09180-019-0	02	1	9812-0105	●	●
56	00.349 RING; SNAP,ROCKER ARM ID=17.5	9-09180-019-0	02	1	0106-			●
65	00.310 COLLAR; SPLIT	5-12565-004-0	16	1	9812-0105	●	●
65	00.310 COLLAR; SPLIT	5-12565-004-0	16	1	0106-			●
68	00.303 SPRING; VLV ID=26.25	8-94433-247-0	08	1	9812-0105	●	●
68	00.303 SPRING; VLV ID=26.25	8-94433-247-0	08	1	0106-			●
71	00.309 SEAT; SPR (B) OD=34	5-12563-001-0	08	1	9812-0105	●	●
71	00.309 SEAT; SPR (B) OD=34	5-12563-001-0	08	1	0106-			●
71	00.309 SEAT; SPR (A) OD=32.8	8-94133-731-2	08	1	9812-0105	●	●
71	00.309 SEAT; SPR (A) OD=32.8	8-94133-731-2	08	1	0106-			●
72	00.308 SEAL; VLV GUIDE ALSO INCLUDED IN GASKET SET(ENG. & HEAD)	8-97120-307-0	08	1	9812-0105	●	●
72	00.308 SEAL; VLV GUIDE ALSO INCLUDED IN GASKET SET(ENG. & HEAD)	8-97120-307-0	08	1	0106-			●
78	00.333 ARM; ROCKER	8-94152-344-0	08	1	9812-0105	●	●
78	00.333 ARM; ROCKER	8-94152-344-0	08	1	0106-			●
81	00.429 SCREW; ADJ,ROCKER ARM M8X30	8-94152-283-1	08	1	9812-0105	●	●
81	00.429 SCREW; ADJ,ROCKER ARM M8X30	8-94152-283-1	08	1	0106-			●
83	00.787 NUT; ADJ SCREW,LK 08.915 M8	9-09111-508-0	08	1	9812-0105	●	●
83	00.787 NUT; ADJ SCREW,LK 08.915 M8	9-09111-508-0	08	1	0106-			●
84	00.349 BRACKET; ROCKER SHAFT,INTER	8-94152-345-1	04	1	9812-0105	●	●
84	00.349 BRACKET; ROCKER SHAFT,INTER	8-94152-345-1	04	1	0106-			●
85	00.349 BOLT; BRKT M8X15,M10X60 L=82	8-94433-304-0	03	1	9812-0105	●	●
85	00.349 BOLT; BRKT M8X15,M10X60 L=82	8-94433-304-0	03	1	0106-			●
86	00.349 WASHER; ROCKER ARM FIX ID=10.5	9-09164-010-0	04	1	9812-0105	●	●
86	00.349 WASHER; ROCKER ARM FIX ID=10.5	9-09164-010-0	04	1	0106-			●
87	00.349 BOLT; ROCKER SHAFT M10X60	8-94433-302-0	01	1	9812-0105	●	●
87	00.349 BOLT; ROCKER SHAFT M10X60	8-94433-302-0	01	1	0106-			●
88	00.426 ROD; PUSH	8-97071-673-0	08	1	9812-0105	●	●
88	00.426 ROD; PUSH	8-97071-673-0	08	1	0106-			●
89	00.459 TAPPET; VLV	8-94438-305-0	08	1	9812-0105	●	●
89	00.459 TAPPET; VLV	8-94438-305-1	08	1	0106-			●
95	00.376 SPRING; ROCKER SHAFT	8-94341-905-0	03	1	9812-0105	●	●
95	00.376 SPRING; ROCKER SHAFT	8-94341-905-0	03	1	0106-			●
101	00.724 BOLT; THRUST COLLAR M8X53 FLANGE	8-97223-999-0	02	1	9906-0105		●
101	00.724 BOLT; THRUST COLLAR M8X53 FLANGE	8-97223-999-0	02	1	0106-			●
104	00.724 BOLT; SHAFT IDLE	8-94109-706-1	01	1	9906-0105		●
104	00.724 BOLT; SHAFT IDLE M12X77	8-94129-384-0	01	1	0106-			●
106	00.724 WASHER; IDLE GEAR SHAFT 00.738 ID=13 OD=36	5-12519-002-1	01	1	9906-0105		●
106	00.724 WASHER; IDLE GEAR SHAFT 00.738 ID=13 OD=36	5-12519-002-1	01	1	0106-			●
107	00.724 SHAFT; IDLE GEAR TURBOCHARGER<K51> CHARGE AIR COOLER<6PL>	8-97218-993-0	01	1	9906-0105		●
107	00.724 SHAFT; IDLE GEAR	8-97240-021-0	01	1	0106-			●
107	00.724 SHAFT; IDLE GEAR EXC. TURBOCHARGER<K51>	8-94139-758-1	01	1	9906-0105		●
107	00.724 SHAFT; IDLE GEAR TURBOCHARGER<K51> EXC. CHARGE AIR COOLER<6PL>	8-94139-758-1	01	1	9906-0105		●
109	00.724 SHAFT; IDLE GEAR TURBOCHARGER<K51> CHARGE AIR COOLER<6PL>	8-97218-780-0	01	1	9906-0105		●
109	00.724 SHAFT; IDLE GEAR	8-97240-023-1	01	1	0106-			●
109	00.724 SHAFT; IDLE GEAR EXC. TURBOCHARGER<K51>	8-94109-913-1	01	1	9906-0105		●
109	00.724 SHAFT; IDLE GEAR TURBOCHARGER<K51> EXC. CHARGE AIR COOLER<6PL>	8-94109-913-1	01	1	9906-0105		●
111	00.724 COLLAR; THRUST,IDLE GEAR	8-94141-937-1	01	1	9906-0105		●
111	00.724 COLLAR; THRUST,IDLE GEAR	8-94171-289-0	01	1	0106-			●
112	00.724 GEAR; IDLE TURBOCHARGER<K51> CHARGE AIR COOLER<6PL> Z=31	8-97229-601-0	01	1	9906-0105		●
112	00.724 GEAR; IDLE Z=43	8-97240-014-1	01	1	0106-			●
112	00.724 GEAR; IDLE EXC. TURBOCHARGER<K51> Z=31	8-97164-773-0	01	1	9906-0105		●
112	00.724 GEAR; IDLE TURBOCHARGER<K51> EXC. CHARGE AIR COOLER<6PL> Z=31	8-97164-773-0	01	1	9906-0105		●
113	00.724 GEAR; IDLE TURBOCHARGER<K51> CHARGE AIR COOLER<6PL> Z=37	8-97229-602-0	01	1	9906-0105		●
113	00.724 GEAR; IDLE EXC. TURBOCHARGER<K51> Z=37	8-94139-761-0	01	1	9906-0105		●
113	00.724 GEAR; IDLE TURBOCHARGER<K51> EXC. CHARGE AIR COOLER<6PL> Z=37	8-94139-761-0	01	1	9906-0105		●
196	00.724 RING; SNAP	8-97245-684-1	02	1	0106-			●
275	00.724 PIN; IDLE GEAR OD=5 L=7.5	8-97245-683-0	04	1	0106-			●
282	00.738 SPRING; GEAR	8-97245-337-0	02	1	0106-			●
305	00.724 BEARING; IDLE GEAR TURBOCHARGER<K51> CHARGE AIR COOLER<6PL>	8-97218-947-1	01	1	9906-0105		●
305	00.724 BEARING; IDLE GEAR EXC. TURBOCHARGER<K51>	8-94110-271-0	01	1	9906-0105		●
305	00.724 BEARING; IDLE GEAR TURBOCHARGER<K51> EXC. CHARGE AIR COOLER<6PL>	8-94110-271-0	01	1	9906-0105		●
305	00.724 BEARING; IDLE GEAR	8-97240-019-1	01	1	0106-			●
333	00.724 GEAR; IDLE,MAIN Z=52	8-97240-018-2	01	1	0106-			●
334	00.724 GEAR; IDLE,FRT Z=52	8-97245-232-2	01	1	0106-			●
335	00.724 GEAR; IDLE,RR Z=52	8-97245-231-1	01	1	0106-			●

İpucu: çizimdeki balona veya tablodaki Balon sütununa tıkla; ilgili parçalar vurgulanır. Birden çok çizim varsa üstteki seçim kutusu/oklarla gezin.

Isuzu EPC — test · veri: yerel (eski sürüm)
