0-13 — OIL PAN AND LEVEL GAUGE (#21651) — 82 parça

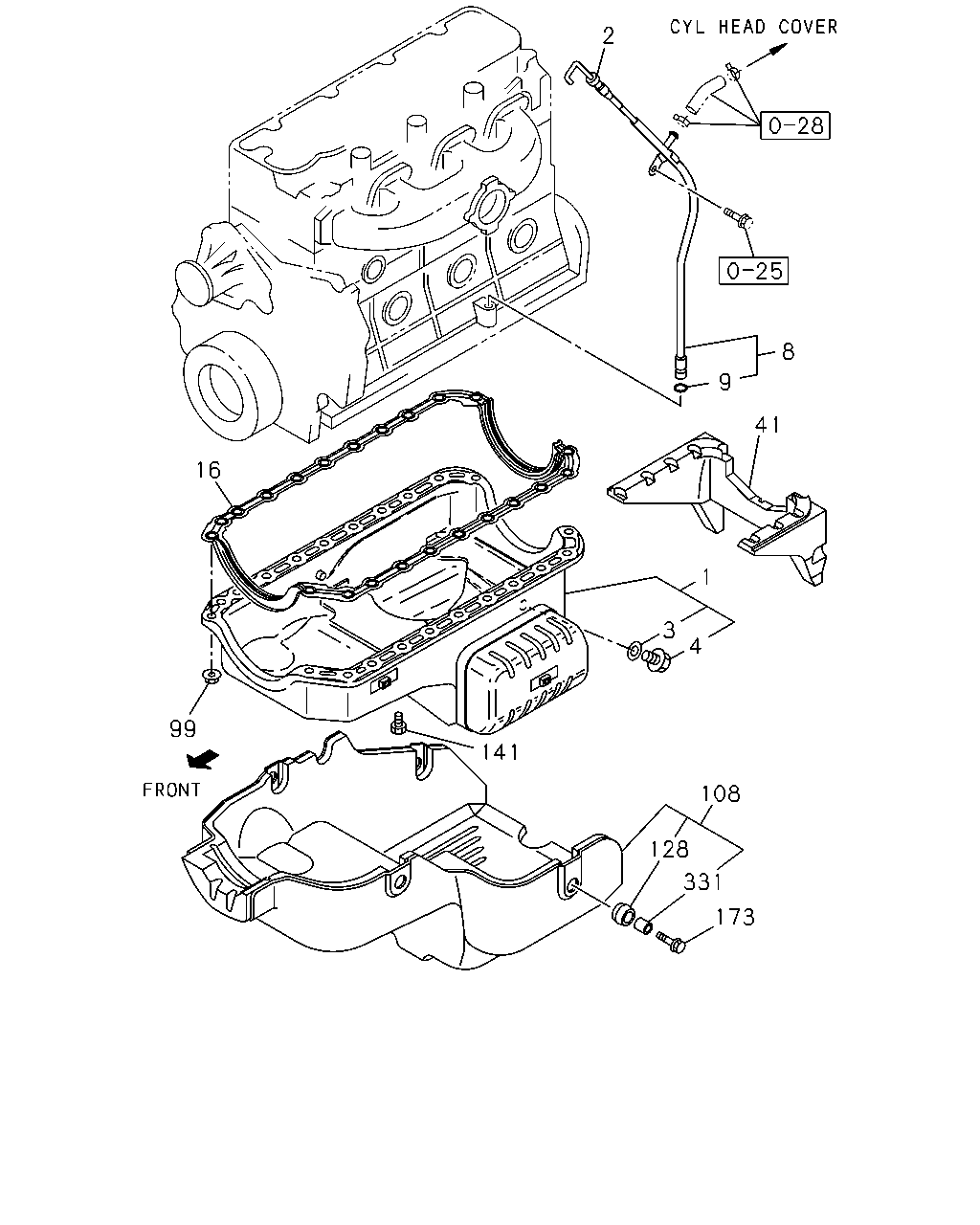

2 8 9 41 16 1 3 4 141 99 108 128 331 173

Balon	Parca Adi	Parca No	Adet	Tip	Applied Date	A	B	C
1	01.426 PAN ASM; OIL	8-97083-322-3	01	1	9812-9905	●
1	01.426 PAN ASM; OIL	8-97083-322-3	01	1	9906-0105	●
1	01.426 PAN ASM; OIL EXC. TURBOCHARGER<K51>	8-97083-322-3	01	1	9906-0105		●
1	01.426 PAN ASM; OIL TURBOCHARGER<K51> EXC. CHARGE AIR COOLER<6PL>	8-97083-322-3	01	1	9906-0105		●
1	01.426 PAN ASM; OIL TURBOCHARGER<K51> CHARGE AIR COOLER<6PL>	8-97223-955-0	01	1	9906-0105		●
1	01.426 PAN ASM; OIL	8-97223-955-0	01	1	0106-			●
2	01.516 GAUGE; OIL LEVEL	8-97092-924-0	01	1	9812-9905	●
2	01.516 GAUGE; OIL LEVEL	8-97092-924-0	01	1	9906-0105	●
2	01.516 GAUGE; OIL LEVEL EXC. TURBOCHARGER<K51>	8-97092-924-0	01	1	9906-0105		●
2	01.516 GAUGE; OIL LEVEL TURBOCHARGER<K51>	8-97231-295-0	01	1	9906-0105		●
2	01.516 GAUGE; OIL LEVEL	8-97231-295-0	01	1	0106-			●
3	01.456 GASKET; DRAIN PLUG ALSO INCLUDED IN GASKET SET(ENGINE). ID=14.2 OD=24	8-94158-328-0	01	1	9812-0105	●	●
3	01.456 GASKET; DRAIN PLUG ALSO INCLUDED IN GASKET SET(ENGINE). ID=14.2 OD=24	8-94158-328-0	01	1	0106-			●
4	01.453 PLUG; DRAIN,OIL 03.001 M14X14	8-94152-613-0	01	1	9812-0105	●	●
4	01.453 PLUG; DRAIN,OIL 03.001 M14X14	8-94152-613-0	01	1	0106-			●
8	01.516 TUBE; GUIDE,OIL LEVEL GAUGE	8-97044-886-0	01	1	9812-9905	●
8	01.516 TUBE; GUIDE,OIL LEVEL GAUGE	8-97044-886-0	01	1	9906-0105	●
8	01.516 TUBE; GUIDE,OIL LEVEL GAUGE EXC. TURBOCHARGER<K51>	8-97044-886-0	01	1	9906-0105		●
8	01.516 TUBE; GUIDE,OIL LEVEL GAUGE TURBOCHARGER<K51> EXC. CHARGE AIR COOLER<6PL>	8-97044-886-0	01	1	9906-0105		●
8	01.516 TUBE; GUIDE,OIL LEVEL GAUGE TURBOCHARGER<K51> CHARGE AIR COOLER<6PL>	8-97221-497-0	01	1	9906-0105		●
8	01.516 TUBE; GUIDE,OIL LEVEL GAUGE	8-97239-977-0	01	1	0106-			●
9	01.516 GASKET; GUIDE TUBE,OIL LEVEL GAU ALSO INCLUDED IN GASKET SET(ENGINE). ID=11	5-09623-002-0	01	1	9812-0105	●	●
9	01.516 GASKET; GUIDE TUBE,OIL LEVEL GAU ALSO INCLUDED IN GASKET SET(ENGINE). ID=11	5-09623-002-0	01	1	0106-			●
16	01.429 GASKET; OIL PAN TO C/BL ALSO INCLUDED IN GASKET SET(ENGINE).	8-97080-194-0	01	1	9812-0105	●	●
16	01.429 GASKET; OIL PAN TO C/BL ALSO INCLUDED IN GASKET SET(ENGINE).	8-97080-194-0	01	1	0106-			●
41	00.137 RUBBER; SPACE	8-97095-936-0	01	1	9812-9905	●
41	00.137 RUBBER; SPACE	8-97095-936-0	01	1	9906-0105	●
41	00.137 RUBBER; SPACE TURBOCHARGER<K51>	8-97095-936-0	01	1	9906-0105		●
41	00.137 RUBBER; SPACE	8-97286-992-0	01	1	0106-			●
99	01.453 NUT; BRKT TO OIL PAN FIX 06.164 M8 FLANGE	5-09440-010-0	10	1	9812-0105	●	●
99	01.453 NUT; BRKT TO OIL PAN FIX 06.164 M8 FLANGE	5-09440-010-0	10	1	0106-			●
108	01.426 COVER; OIL PAN TURBOCHARGER<K51> CHARGE AIR COOLER<6PL>	8-97224-447-1	01	1	9906-0105		●
108	01.426 COVER; OIL PAN	8-97248-296-2	01	1	0106-			●
128	01.516 RUBBER; MTG,OIL PAN TURBOCHARGER<K51> CHARGE AIR COOLER<6PL>	8-97227-521-0	04	1	9906-0105		●
128	01.516 RUBBER; MTG,OIL PAN	8-97227-521-0	04	1	0106-			●
141	01.428 BOLT; BRKT TO OIL PAN FIX	8-94133-973-2	12	1	9812-0105	●	●
141	01.428 BOLT; BRKT TO OIL PAN FIX	8-94133-973-2	12	1	0106-			●
173	01.428 BOLT; COVER TURBOCHARGER<K51> CHARGE AIR COOLER<6PL> 00.034 M8X22 W/LK&PL WASHER	8-94329-953-1	04	1	9906-0105		●
173	01.428 BOLT; COVER 00.034 M8X22 W/LK&PL WASHER	8-94329-953-1	04	1	0106-			●
331	01.516 COLLAR; MTG RUBBER TURBOCHARGER<K51> CHARGE AIR COOLER<6PL>	8-97224-450-0	04	1	9906-0105		●
331	01.516 COLLAR; MTG RUBBER	8-97224-450-0	04	1	0106-			●

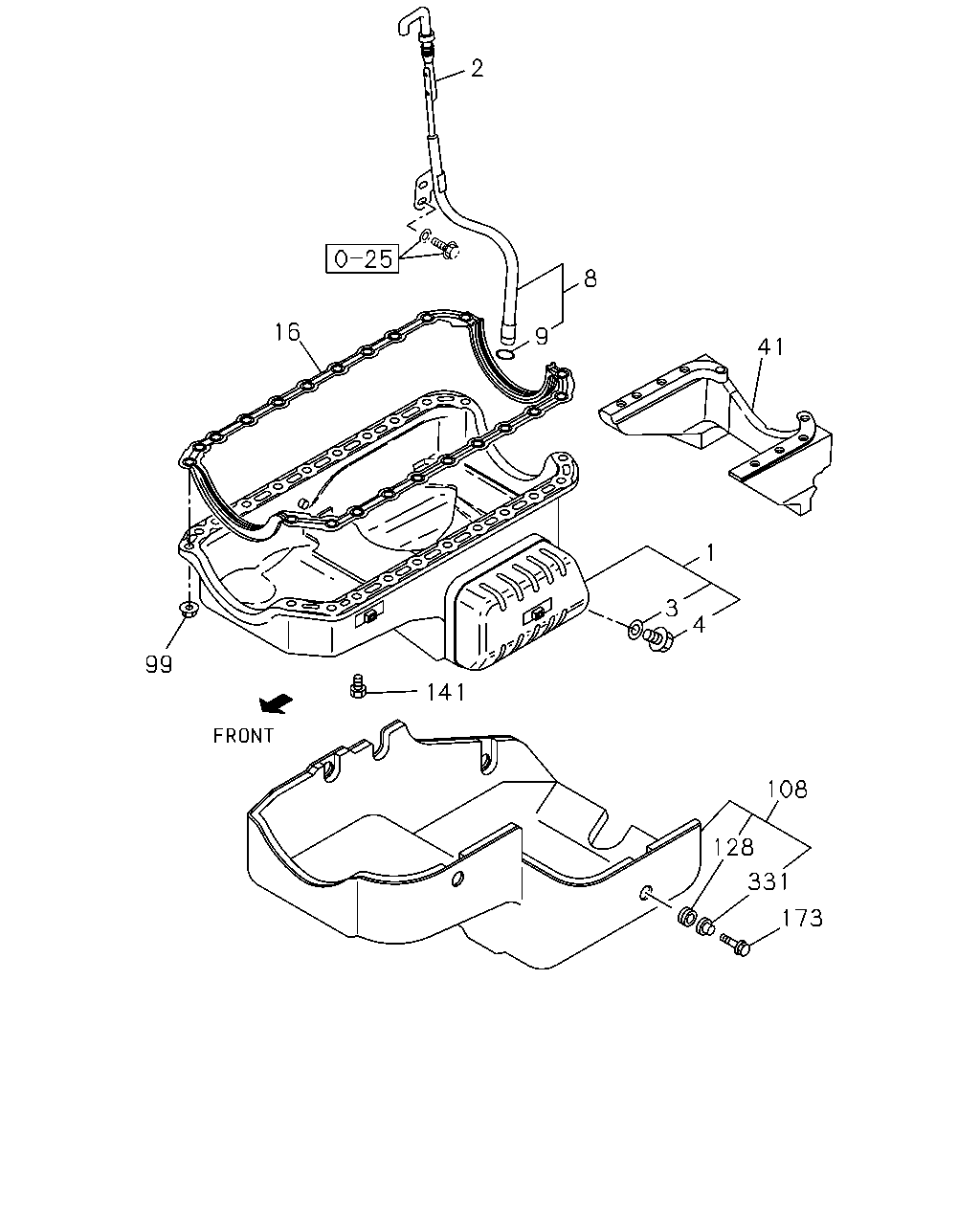

2 8 16 9 41 1 3 4 99 141 108 128 331 173

Balon	Parca Adi	Parca No	Adet	Tip	Applied Date	A	B	C
1	01.426 PAN ASM; OIL	8-97083-322-3	01	1	9812-9905	●
1	01.426 PAN ASM; OIL	8-97083-322-3	01	1	9906-0105	●
1	01.426 PAN ASM; OIL EXC. TURBOCHARGER<K51>	8-97083-322-3	01	1	9906-0105		●
1	01.426 PAN ASM; OIL TURBOCHARGER<K51> EXC. CHARGE AIR COOLER<6PL>	8-97083-322-3	01	1	9906-0105		●
1	01.426 PAN ASM; OIL TURBOCHARGER<K51> CHARGE AIR COOLER<6PL>	8-97223-955-0	01	1	9906-0105		●
1	01.426 PAN ASM; OIL	8-97223-955-0	01	1	0106-			●
2	01.516 GAUGE; OIL LEVEL	8-97092-924-0	01	1	9812-9905	●
2	01.516 GAUGE; OIL LEVEL	8-97092-924-0	01	1	9906-0105	●
2	01.516 GAUGE; OIL LEVEL EXC. TURBOCHARGER<K51>	8-97092-924-0	01	1	9906-0105		●
2	01.516 GAUGE; OIL LEVEL TURBOCHARGER<K51>	8-97231-295-0	01	1	9906-0105		●
2	01.516 GAUGE; OIL LEVEL	8-97231-295-0	01	1	0106-			●
3	01.456 GASKET; DRAIN PLUG ALSO INCLUDED IN GASKET SET(ENGINE). ID=14.2 OD=24	8-94158-328-0	01	1	9812-0105	●	●
3	01.456 GASKET; DRAIN PLUG ALSO INCLUDED IN GASKET SET(ENGINE). ID=14.2 OD=24	8-94158-328-0	01	1	0106-			●
4	01.453 PLUG; DRAIN,OIL 03.001 M14X14	8-94152-613-0	01	1	9812-0105	●	●
4	01.453 PLUG; DRAIN,OIL 03.001 M14X14	8-94152-613-0	01	1	0106-			●
8	01.516 TUBE; GUIDE,OIL LEVEL GAUGE	8-97044-886-0	01	1	9812-9905	●
8	01.516 TUBE; GUIDE,OIL LEVEL GAUGE	8-97044-886-0	01	1	9906-0105	●
8	01.516 TUBE; GUIDE,OIL LEVEL GAUGE EXC. TURBOCHARGER<K51>	8-97044-886-0	01	1	9906-0105		●
8	01.516 TUBE; GUIDE,OIL LEVEL GAUGE TURBOCHARGER<K51> EXC. CHARGE AIR COOLER<6PL>	8-97044-886-0	01	1	9906-0105		●
8	01.516 TUBE; GUIDE,OIL LEVEL GAUGE TURBOCHARGER<K51> CHARGE AIR COOLER<6PL>	8-97221-497-0	01	1	9906-0105		●
8	01.516 TUBE; GUIDE,OIL LEVEL GAUGE	8-97239-977-0	01	1	0106-			●
9	01.516 GASKET; GUIDE TUBE,OIL LEVEL GAU ALSO INCLUDED IN GASKET SET(ENGINE). ID=11	5-09623-002-0	01	1	9812-0105	●	●
9	01.516 GASKET; GUIDE TUBE,OIL LEVEL GAU ALSO INCLUDED IN GASKET SET(ENGINE). ID=11	5-09623-002-0	01	1	0106-			●
16	01.429 GASKET; OIL PAN TO C/BL ALSO INCLUDED IN GASKET SET(ENGINE).	8-97080-194-0	01	1	9812-0105	●	●
16	01.429 GASKET; OIL PAN TO C/BL ALSO INCLUDED IN GASKET SET(ENGINE).	8-97080-194-0	01	1	0106-			●
41	00.137 RUBBER; SPACE	8-97095-936-0	01	1	9812-9905	●
41	00.137 RUBBER; SPACE	8-97095-936-0	01	1	9906-0105	●
41	00.137 RUBBER; SPACE TURBOCHARGER<K51>	8-97095-936-0	01	1	9906-0105		●
41	00.137 RUBBER; SPACE	8-97286-992-0	01	1	0106-			●
99	01.453 NUT; BRKT TO OIL PAN FIX 06.164 M8 FLANGE	5-09440-010-0	10	1	9812-0105	●	●
99	01.453 NUT; BRKT TO OIL PAN FIX 06.164 M8 FLANGE	5-09440-010-0	10	1	0106-			●
108	01.426 COVER; OIL PAN TURBOCHARGER<K51> CHARGE AIR COOLER<6PL>	8-97224-447-1	01	1	9906-0105		●
108	01.426 COVER; OIL PAN	8-97248-296-2	01	1	0106-			●
128	01.516 RUBBER; MTG,OIL PAN TURBOCHARGER<K51> CHARGE AIR COOLER<6PL>	8-97227-521-0	04	1	9906-0105		●
128	01.516 RUBBER; MTG,OIL PAN	8-97227-521-0	04	1	0106-			●
141	01.428 BOLT; BRKT TO OIL PAN FIX	8-94133-973-2	12	1	9812-0105	●	●
141	01.428 BOLT; BRKT TO OIL PAN FIX	8-94133-973-2	12	1	0106-			●
173	01.428 BOLT; COVER TURBOCHARGER<K51> CHARGE AIR COOLER<6PL> 00.034 M8X22 W/LK&PL WASHER	8-94329-953-1	04	1	9906-0105		●
173	01.428 BOLT; COVER 00.034 M8X22 W/LK&PL WASHER	8-94329-953-1	04	1	0106-			●
331	01.516 COLLAR; MTG RUBBER TURBOCHARGER<K51> CHARGE AIR COOLER<6PL>	8-97224-450-0	04	1	9906-0105		●
331	01.516 COLLAR; MTG RUBBER	8-97224-450-0	04	1	0106-			●
