Sayfa 0-05 - Isuzu EPC

◀ 🏠 ▶ Isuzu WW ▶ TRUCKS ▶ NKR ▶ 50810 - NKR(EUROPE)-LHD ▶ 0 - Engine, Emission, Engine Electrical ▶ 0-05 - ENGINE GASKET KIT ▶

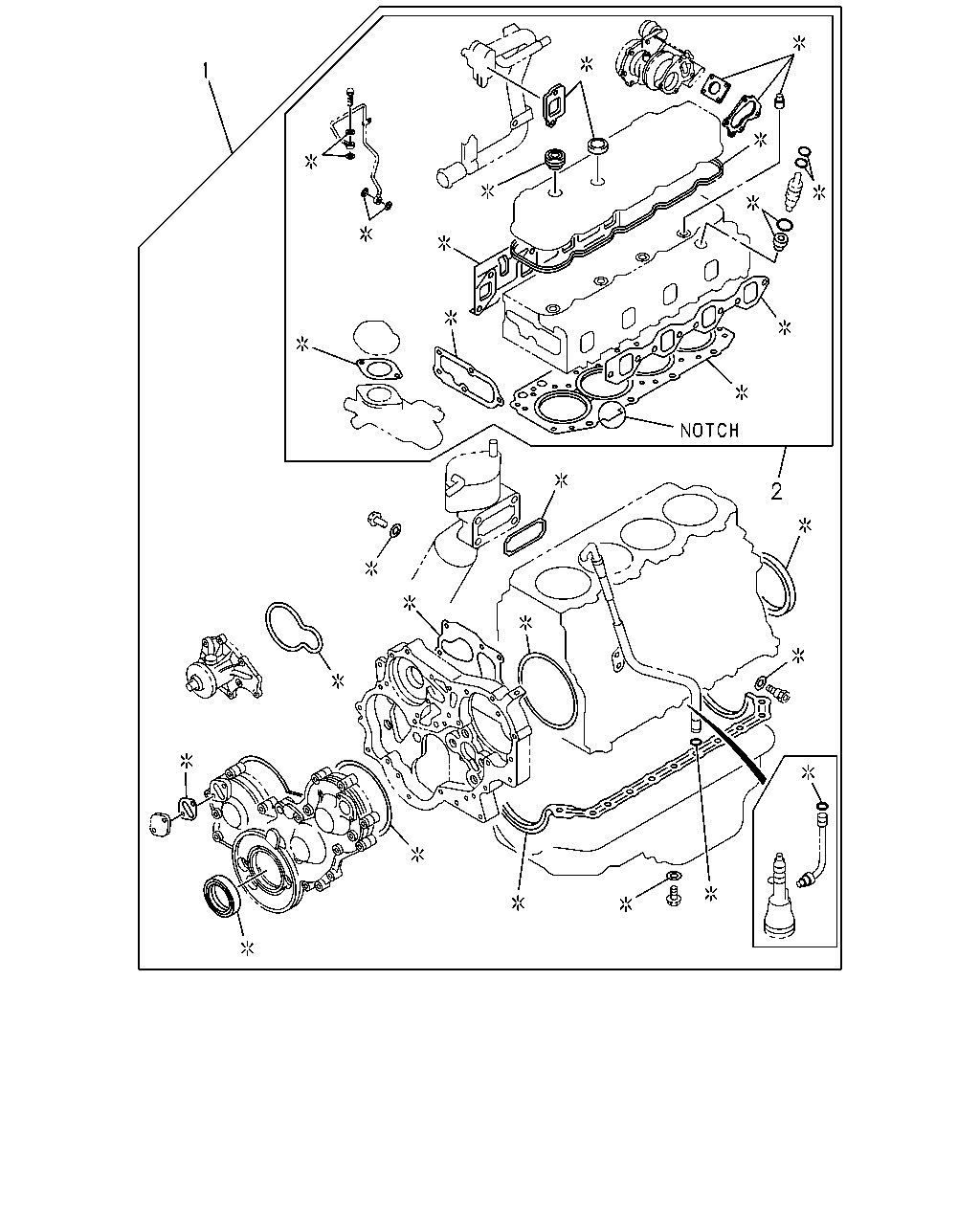

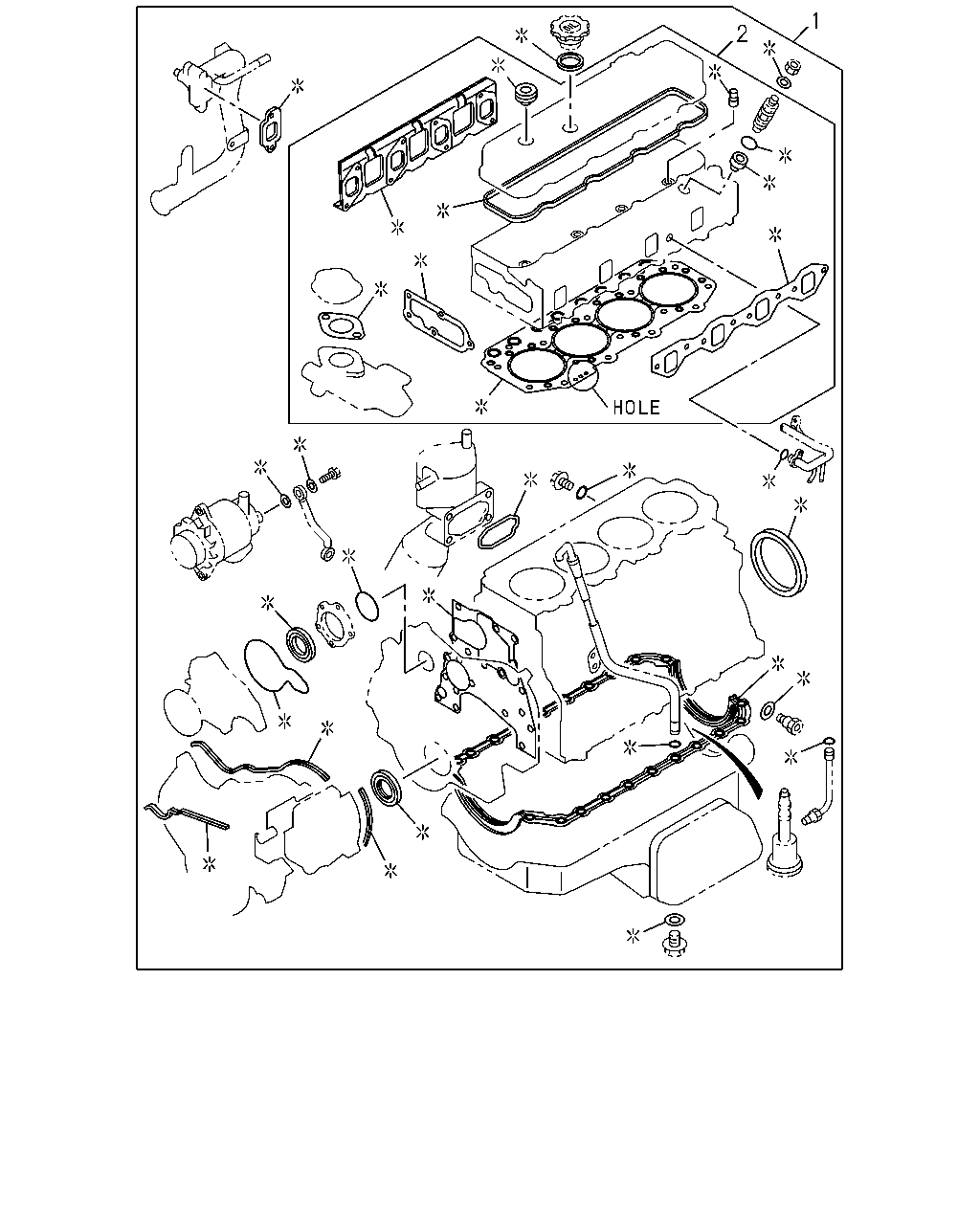

0-05 — ENGINE GASKET KIT (#21647) — 60 parça

1 2

Balon	Parca Adi	Parca No	Adet	Tip	Applied Date	A	B	C
1	00.010 GASKET SET; ENG OVERHAUL T=1.60 1-HOLE	5-87812-913-2	01	1	9812-0105	●
1	00.010 GASKET SET; ENG OVERHAUL T=1.30 1-NOTCH	5-87814-084-4	01	1	0106-		●
1	00.010 GASKET SET; ENG OVERHAUL T=1.65 2-HOLE	5-87812-914-2	01	1	9812-0105	●
1	00.010 GASKET SET; ENG OVERHAUL T=1.35 2-NOTCH	5-87814-085-4	01	1	0106-		●
1	00.010 GASKET SET; ENG OVERHAUL T=1.70 3-HOLE	5-87812-915-2	01	1	9812-0105	●
1	00.010 GASKET SET; ENG OVERHAUL T=1.40 3-NOTCH	5-87814-086-4	01	1	0106-		●
1	00.010 GASKET SET; ENG OVERHAUL TURBOCHARGER<K51> CHARGE AIR COOLER<6PL> T=1.60 1-NOTCH	5-87813-708-2	01	1	9906-0105			●
1	00.010 GASKET SET; ENG OVERHAUL TURBOCHARGER<K51> CHARGE AIR COOLER<6PL> T=1.65 2-NOTCH	5-87813-709-2	01	1	9906-0105			●
1	00.010 GASKET SET; ENG OVERHAUL TURBOCHARGER<K51> CHARGE AIR COOLER<6PL> T=1.70 3-NOTCH	5-87813-710-2	01	1	9906-0105			●
1	00.010 GASKET SET; ENG OVERHAUL TURBOCHARGER<K51> EXC. CHARGE AIR COOLER<6PL> T=1.60 1-NOTCH	5-87812-895-5	01	1	9906-0105			●
1	00.010 GASKET SET; ENG OVERHAUL TURBOCHARGER<K51> EXC. CHARGE AIR COOLER<6PL> T=1.65 2-NOTCH	5-87812-896-5	01	1	9906-0105			●
1	00.010 GASKET SET; ENG OVERHAUL TURBOCHARGER<K51> EXC. CHARGE AIR COOLER<6PL> T=1.70 3-NOTCH	5-87812-897-5	01	1	9906-0105			●
1	00.010 GASKET SET; ENG OVERHAUL EXC. TURBOCHARGER<K51> T=1.60 1-NOTCH	5-87812-892-5	01	1	9906-0105			●
1	00.010 GASKET SET; ENG OVERHAUL EXC. TURBOCHARGER<K51> T=1.65 2-NOTCH	5-87812-893-5	01	1	9906-0105			●
1	00.010 GASKET SET; ENG OVERHAUL EXC. TURBOCHARGER<K51> T=1.70 3-NOTCH	5-87812-894-5	01	1	9906-0105			●
2	00.010 GASKET SET; ENG HD OVERHAUL T=1.60 1-HOLE	5-87813-021-2	01	1	9812-0105	●
2	00.010 GASKET SET; ENG HD OVERHAUL T=1.30 1-NOTCH	5-87814-087-3	01	1	0106-		●
2	00.010 GASKET SET; ENG HD OVERHAUL T=1.65 2-HOLE	5-87813-022-2	01	1	9812-0105	●
2	00.010 GASKET SET; ENG HD OVERHAUL T=1.35 2-NOTCH	5-87814-088-3	01	1	0106-		●
2	00.010 GASKET SET; ENG HD OVERHAUL T=1.70 3-HOLE	5-87813-023-2	01	1	9812-0105	●
2	00.010 GASKET SET; ENG HD OVERHAUL T=1.40 3-NOTCH	5-87814-089-3	01	1	0106-		●
2	00.010 GASKET SET; ENG HD OVERHAUL TURBOCHARGER<K51> CHARGE AIR COOLER<6PL> T=1.60 1-NOTCH	5-87813-711-1	01	1	9906-0105			●
2	00.010 GASKET SET; ENG HD OVERHAUL TURBOCHARGER<K51> CHARGE AIR COOLER<6PL> T=1.65 2-NOTCH	5-87813-712-1	01	1	9906-0105			●
2	00.010 GASKET SET; ENG HD OVERHAUL TURBOCHARGER<K51> CHARGE AIR COOLER<6PL> T=1.70 3-NOTCH	5-87813-713-1	01	1	9906-0105			●
2	00.010 GASKET SET; ENG HD OVERHAUL TURBOCHARGER<K51> EXC. CHARGE AIR COOLER<6PL> T=1.60 1-NOTCH	5-87812-901-4	01	1	9906-0105			●
2	00.010 GASKET SET; ENG HD OVERHAUL TURBOCHARGER<K51> EXC. CHARGE AIR COOLER<6PL> T=1.65 2-NOTCH	5-87812-902-4	01	1	9906-0105			●
2	00.010 GASKET SET; ENG HD OVERHAUL TURBOCHARGER<K51> EXC. CHARGE AIR COOLER<6PL> T=1.70 3-NOTCH	5-87812-903-4	01	1	9906-0105			●
2	00.010 GASKET SET; ENG HD OVERHAUL EXC. TURBOCHARGER<K51> T=1.60 1-NOTCH	5-87813-691-1	01	1	9906-0105			●
2	00.010 GASKET SET; ENG HD OVERHAUL EXC. TURBOCHARGER<K51> T=1.65 2-NOTCH	5-87813-692-1	01	1	9906-0105			●
2	00.010 GASKET SET; ENG HD OVERHAUL EXC. TURBOCHARGER<K51> T=1.70 3-NOTCH	5-87813-693-1	01	1	9906-0105			●

1 2

Balon	Parca Adi	Parca No	Adet	Tip	Applied Date	A	B	C
1	00.010 GASKET SET; ENG OVERHAUL T=1.60 1-HOLE	5-87812-913-2	01	1	9812-0105	●
1	00.010 GASKET SET; ENG OVERHAUL T=1.30 1-NOTCH	5-87814-084-4	01	1	0106-		●
1	00.010 GASKET SET; ENG OVERHAUL T=1.65 2-HOLE	5-87812-914-2	01	1	9812-0105	●
1	00.010 GASKET SET; ENG OVERHAUL T=1.35 2-NOTCH	5-87814-085-4	01	1	0106-		●
1	00.010 GASKET SET; ENG OVERHAUL T=1.70 3-HOLE	5-87812-915-2	01	1	9812-0105	●
1	00.010 GASKET SET; ENG OVERHAUL T=1.40 3-NOTCH	5-87814-086-4	01	1	0106-		●
1	00.010 GASKET SET; ENG OVERHAUL TURBOCHARGER<K51> CHARGE AIR COOLER<6PL> T=1.60 1-NOTCH	5-87813-708-2	01	1	9906-0105			●
1	00.010 GASKET SET; ENG OVERHAUL TURBOCHARGER<K51> CHARGE AIR COOLER<6PL> T=1.65 2-NOTCH	5-87813-709-2	01	1	9906-0105			●
1	00.010 GASKET SET; ENG OVERHAUL TURBOCHARGER<K51> CHARGE AIR COOLER<6PL> T=1.70 3-NOTCH	5-87813-710-2	01	1	9906-0105			●
1	00.010 GASKET SET; ENG OVERHAUL TURBOCHARGER<K51> EXC. CHARGE AIR COOLER<6PL> T=1.60 1-NOTCH	5-87812-895-5	01	1	9906-0105			●
1	00.010 GASKET SET; ENG OVERHAUL TURBOCHARGER<K51> EXC. CHARGE AIR COOLER<6PL> T=1.65 2-NOTCH	5-87812-896-5	01	1	9906-0105			●
1	00.010 GASKET SET; ENG OVERHAUL TURBOCHARGER<K51> EXC. CHARGE AIR COOLER<6PL> T=1.70 3-NOTCH	5-87812-897-5	01	1	9906-0105			●
1	00.010 GASKET SET; ENG OVERHAUL EXC. TURBOCHARGER<K51> T=1.60 1-NOTCH	5-87812-892-5	01	1	9906-0105			●
1	00.010 GASKET SET; ENG OVERHAUL EXC. TURBOCHARGER<K51> T=1.65 2-NOTCH	5-87812-893-5	01	1	9906-0105			●
1	00.010 GASKET SET; ENG OVERHAUL EXC. TURBOCHARGER<K51> T=1.70 3-NOTCH	5-87812-894-5	01	1	9906-0105			●
2	00.010 GASKET SET; ENG HD OVERHAUL T=1.60 1-HOLE	5-87813-021-2	01	1	9812-0105	●
2	00.010 GASKET SET; ENG HD OVERHAUL T=1.30 1-NOTCH	5-87814-087-3	01	1	0106-		●
2	00.010 GASKET SET; ENG HD OVERHAUL T=1.65 2-HOLE	5-87813-022-2	01	1	9812-0105	●
2	00.010 GASKET SET; ENG HD OVERHAUL T=1.35 2-NOTCH	5-87814-088-3	01	1	0106-		●
2	00.010 GASKET SET; ENG HD OVERHAUL T=1.70 3-HOLE	5-87813-023-2	01	1	9812-0105	●
2	00.010 GASKET SET; ENG HD OVERHAUL T=1.40 3-NOTCH	5-87814-089-3	01	1	0106-		●
2	00.010 GASKET SET; ENG HD OVERHAUL TURBOCHARGER<K51> CHARGE AIR COOLER<6PL> T=1.60 1-NOTCH	5-87813-711-1	01	1	9906-0105			●
2	00.010 GASKET SET; ENG HD OVERHAUL TURBOCHARGER<K51> CHARGE AIR COOLER<6PL> T=1.65 2-NOTCH	5-87813-712-1	01	1	9906-0105			●
2	00.010 GASKET SET; ENG HD OVERHAUL TURBOCHARGER<K51> CHARGE AIR COOLER<6PL> T=1.70 3-NOTCH	5-87813-713-1	01	1	9906-0105			●
2	00.010 GASKET SET; ENG HD OVERHAUL TURBOCHARGER<K51> EXC. CHARGE AIR COOLER<6PL> T=1.60 1-NOTCH	5-87812-901-4	01	1	9906-0105			●
2	00.010 GASKET SET; ENG HD OVERHAUL TURBOCHARGER<K51> EXC. CHARGE AIR COOLER<6PL> T=1.65 2-NOTCH	5-87812-902-4	01	1	9906-0105			●
2	00.010 GASKET SET; ENG HD OVERHAUL TURBOCHARGER<K51> EXC. CHARGE AIR COOLER<6PL> T=1.70 3-NOTCH	5-87812-903-4	01	1	9906-0105			●
2	00.010 GASKET SET; ENG HD OVERHAUL EXC. TURBOCHARGER<K51> T=1.60 1-NOTCH	5-87813-691-1	01	1	9906-0105			●
2	00.010 GASKET SET; ENG HD OVERHAUL EXC. TURBOCHARGER<K51> T=1.65 2-NOTCH	5-87813-692-1	01	1	9906-0105			●
2	00.010 GASKET SET; ENG HD OVERHAUL EXC. TURBOCHARGER<K51> T=1.70 3-NOTCH	5-87813-693-1	01	1	9906-0105			●

İpucu: çizimdeki balona veya tablodaki Balon sütununa tıkla; ilgili parçalar vurgulanır. Birden çok çizim varsa üstteki seçim kutusu/oklarla gezin.
