9-32 — REAR BODY; GUARD FRAME (#21644) — 122 parça
çizim 44852
1 1 8 2 6 37 42 15 14 37 16 42
BalonParca AdiParca NoAdetTipApplied Date A B C D E
1 17.455 FRAME; GUARD,RR BODY
RR BODY FLAT BED<RS6> 		8-94196-086-0 01 1 9811-0007 ●
1 17.455 FRAME; GUARD,RR BODY
RR BODY FLAT BED<RS6> 		8-97590-492-1 01 1 0008- ●
1 17.455 FRAME; GUARD,RR BODY
RR BODY FLAT BED<RS6> CAB-LOW ROOF<6XQ> REAR BODY LAGER WIDTH<8EH> 		8-97590-512-1 01 1 0010- ●
1 17.455 FRAME; GUARD,RR BODY
RR BODY NON FLAT BED(RS5) 		8-94197-229-1 01 1 9811- ●
1 17.455 FRAME; GUARD,RR BODY
RR BODY FLAT BED<RS6> 		8-94196-095-0 01 1 9811-0007 ● ● ●
1 17.455 FRAME; GUARD,RR BODY
RR BODY FLAT BED<RS6> 		8-97590-476-0 01 1 0008-0009 ● ● ●
1 17.455 FRAME; GUARD,RR BODY
RR BODY FLAT BED<RS6> EXC. CAB-LOW ROOF<6XQ>,REAR BODY LAGER WIDTH<8EH> 		8-97590-476-0 01 1 0010-0105 ●
1 17.455 FRAME; GUARD,RR BODY
RR BODY FLAT BED<RS6> 		8-97590-476-0 01 1 0010-0105 ● ●
1 17.455 FRAME; GUARD,RR BODY
RR BODY FLAT BED<RS6> EXC. CAB-LOW ROOF<6XQ>,REAR BODY LAGER WIDTH<8EH> 		8-97590-476-1 01 1 0106- ●
1 17.455 FRAME; GUARD,RR BODY
RR BODY FLAT BED<RS6> 		8-97590-476-1 01 1 0106- ●
2 17.447 STOPPER; GUARD FRAME
RR BODY FLAT BED<RS6> TAKADA 		8-94193-798-0 02 1 9811- ●
2 17.447 STOPPER; GUARD FRAME
RR BODY NON FLAT BED(RS5) TAKADA 		8-94197-135-0 02 1 9811- ●
2 17.447 STOPPER; GUARD FRAME
RR BODY FLAT BED<RS6> 		8-97590-396-0 02 1 0008-0105 ● ● ●
2 17.447 STOPPER; GUARD FRAME
RR BODY FLAT BED<RS6> 		8-97590-396-0 02 1 0106- ● ●
6 17.447 BOLT; STOPPER TO GUARD FRAME
RR BODY FLAT BED<RS6> TAKADA 		8-94193-950-0 02 1 9811- ●
6 17.447 BOLT; STOPPER TO GUARD FRAME
RR BODY NON FLAT BED(RS5) TAKADA 		8-94197-154-1 02 1 9811- ●
6 17.447 BOLT; STOPPER TO GUARD FRAME
RR BODY FLAT BED<RS6> 		8-97590-488-0 02 1 0008-0105 ● ● ●
6 17.447 BOLT; STOPPER TO GUARD FRAME
RR BODY FLAT BED<RS6> 		8-97590-488-0 02 1 0106- ● ●
8 17.447 NUT; STOPPER BOLT
RR BODY FLAT BED<RS6> M10 TAKADA 		8-94193-951-0 02 1 9811- ●
8 17.447 NUT; STOPPER BOLT
RR BODY NON FLAT BED(RS5) TAKADA 		8-94197-155-0 02 1 9811- ●
8 17.447 NUT; STOPPER BOLT
RR BODY FLAT BED<RS6> M10 		8-97590-493-0 02 1 0008-0105 ● ● ●
8 17.447 NUT; STOPPER BOLT
RR BODY FLAT BED<RS6> M10 		8-97590-493-0 02 1 0106- ● ●
14 17.455 BOLT; GUARD FRAME TO GUSSET
RR BODY FLAT BED<RS6> M10X22 FLANGE 		8-97065-440-0 10 1 9811-0002 ●
14 17.455 BOLT; GUARD FRAME TO GUSSET
RR BODY FLAT BED<RS6> M10X22 		8-97233-077-0 10 1 0003-0007 ●
14 17.455 BOLT; GUARD FRAME TO GUSSET
RR BODY FLAT BED<RS6> M10X22 		8-97233-077-0 08 1 0008-0105 ● ● ● ●
14 17.455 BOLT; GUARD FRAME TO GUSSET
RR BODY FLAT BED<RS6> M10X22 		8-97233-077-0 08 1 0106- ● ● ●
14 17.455 BOLT; GUARD FRAME TO GUSSET
RR BODY NON FLAT BED(RS5) M10X22 FLANGE 		8-97065-440-0 04 1 9811-0002 ●
14 17.455 BOLT; GUARD FRAME TO GUSSET
RR BODY NON FLAT BED(RS5) M10X22 		8-97233-077-0 04 1 0003- ●
14 17.455 BOLT; GUARD FRAME TO GUSSET
RR BODY FLAT BED<RS6> M10X22 FLANGE 		8-97065-440-0 12 1 9811-0002 ● ● ●
14 17.455 BOLT; GUARD FRAME TO GUSSET
RR BODY FLAT BED<RS6> M10X22 		8-97233-077-0 12 1 0003-0007 ● ● ●
15 17.455 WASHER; PL,GUARD FRAME TO GUSSET
RR BODY FLAT BED<RS6> 		8-97065-438-0 10 1 9811-0002 ●
15 17.455 WASHER; PL,GUARD FRAME TO GUSSET
RR BODY NON FLAT BED(RS5) 		8-97065-438-0 04 1 9811-0002 ●
15 17.455 WASHER; PL,GUARD FRAME TO GUSSET
RR BODY FLAT BED<RS6> 		8-97065-438-0 12 1 9811-0002 ● ● ●
16 17.455 NUT; GUARD FRAME TO GUSSET
RR BODY FLAT BED<RS6> M10 FLANGE 		8-97065-439-0 10 1 9811-0007 ●
16 17.455 NUT; GUARD FRAME TO GUSSET
RR BODY FLAT BED<RS6> M10 FLANGE 		8-97065-439-0 08 1 0008-0105 ● ● ● ●
16 17.455 NUT; GUARD FRAME TO GUSSET
RR BODY FLAT BED<RS6> M10 FLANGE 		8-97065-439-0 08 1 0106- ● ● ●
16 17.455 NUT; GUARD FRAME TO GUSSET
RR BODY NON FLAT BED(RS5) M10 FLANGE 		8-97065-439-0 02 1 9811- ●
16 17.455 NUT; GUARD FRAME TO GUSSET
RR BODY FLAT BED<RS6> M10 FLANGE 		8-97065-439-0 12 1 9811-0007 ● ● ●
37 17.455 BOLT; GUARD FRAME
RR BODY NON FLAT BED(RS5) 02.559 (A) M8X25 FLANGE 		0-28680-825-0 04 1 9811- ●
37 17.455 BOLT; GUARD FRAME
RR BODY NON FLAT BED(RS5) (B) M10X22 FLANGE 		8-97065-440-0 06 1 9811-0002 ●
37 17.455 BOLT; GUARD FRAME
RR BODY NON FLAT BED(RS5) (B) M10X22 		8-97233-077-0 06 1 0003- ●
42 17.447 WASHER; PL
RR BODY NON FLAT BED(RS5) 17.455 (B) 		8-97065-438-0 06 1 9811-0002 ●
42 17.447 WASHER; PL
RR BODY NON FLAT BED(RS5) 06.760 (A) ID=8.4 OD=22 		9-09160-708-0 04 1 9811- ●

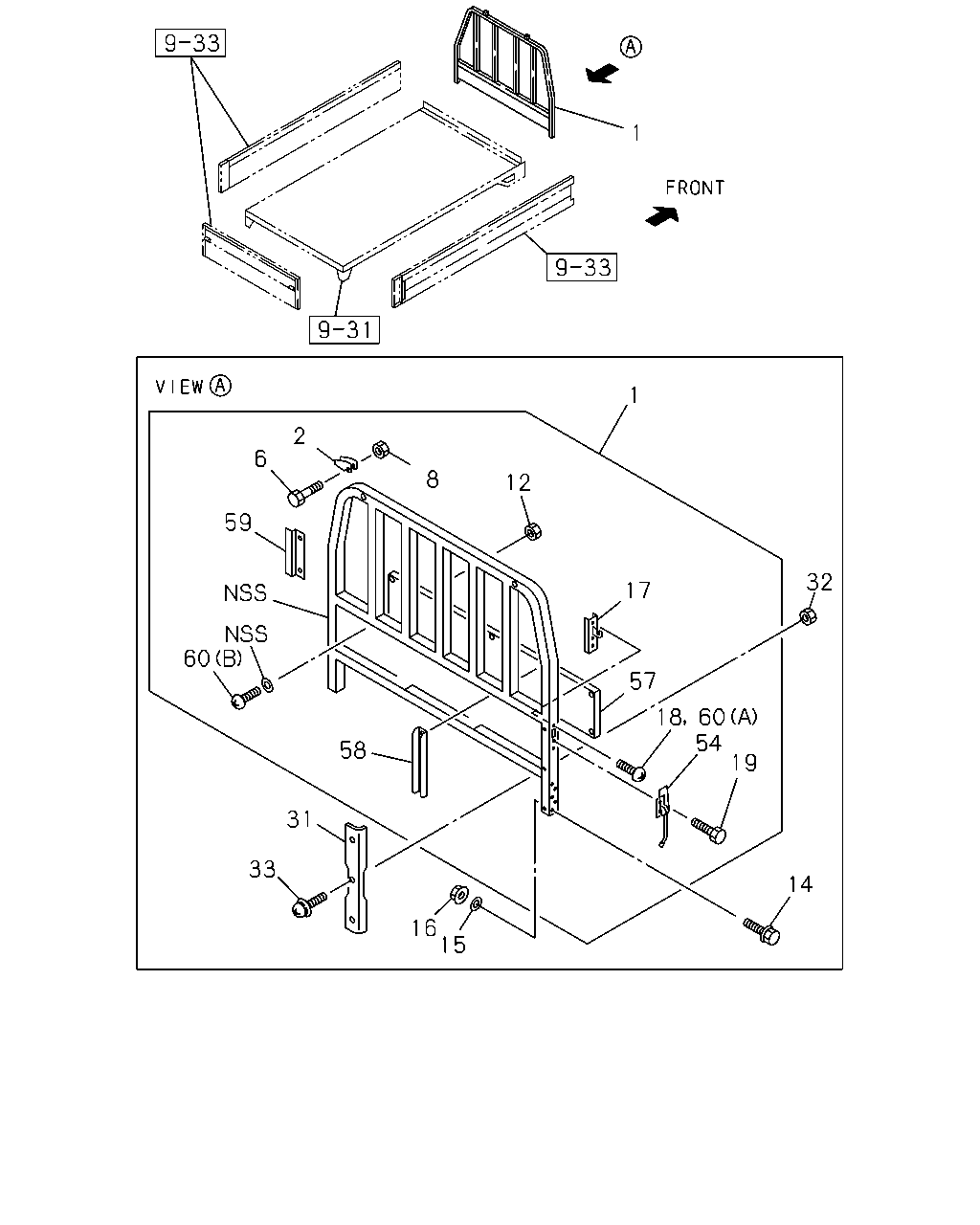

çizim 45773
1 1 2 6 8 12 59 32 17 60 57 54 58 19 31 33 14 16 15 18 60
BalonParca AdiParca NoAdetTipApplied Date A B C D E
1 17.455 FRAME; GUARD,RR BODY
RR BODY FLAT BED<RS6> 		8-94196-086-0 01 1 9811-0007 ●
1 17.455 FRAME; GUARD,RR BODY
RR BODY FLAT BED<RS6> 		8-97590-492-1 01 1 0008- ●
1 17.455 FRAME; GUARD,RR BODY
RR BODY FLAT BED<RS6> CAB-LOW ROOF<6XQ> REAR BODY LAGER WIDTH<8EH> 		8-97590-512-1 01 1 0010- ●
1 17.455 FRAME; GUARD,RR BODY
RR BODY NON FLAT BED(RS5) 		8-94197-229-1 01 1 9811- ●
1 17.455 FRAME; GUARD,RR BODY
RR BODY FLAT BED<RS6> 		8-94196-095-0 01 1 9811-0007 ● ● ●
1 17.455 FRAME; GUARD,RR BODY
RR BODY FLAT BED<RS6> 		8-97590-476-0 01 1 0008-0009 ● ● ●
1 17.455 FRAME; GUARD,RR BODY
RR BODY FLAT BED<RS6> EXC. CAB-LOW ROOF<6XQ>,REAR BODY LAGER WIDTH<8EH> 		8-97590-476-0 01 1 0010-0105 ●
1 17.455 FRAME; GUARD,RR BODY
RR BODY FLAT BED<RS6> 		8-97590-476-0 01 1 0010-0105 ● ●
1 17.455 FRAME; GUARD,RR BODY
RR BODY FLAT BED<RS6> EXC. CAB-LOW ROOF<6XQ>,REAR BODY LAGER WIDTH<8EH> 		8-97590-476-1 01 1 0106- ●
1 17.455 FRAME; GUARD,RR BODY
RR BODY FLAT BED<RS6> 		8-97590-476-1 01 1 0106- ●
2 17.447 STOPPER; GUARD FRAME
RR BODY FLAT BED<RS6> TAKADA 		8-94193-798-0 02 1 9811- ●
2 17.447 STOPPER; GUARD FRAME
RR BODY NON FLAT BED(RS5) TAKADA 		8-94197-135-0 02 1 9811- ●
2 17.447 STOPPER; GUARD FRAME
RR BODY FLAT BED<RS6> 		8-97590-396-0 02 1 0008-0105 ● ● ●
2 17.447 STOPPER; GUARD FRAME
RR BODY FLAT BED<RS6> 		8-97590-396-0 02 1 0106- ● ●
6 17.447 BOLT; STOPPER TO GUARD FRAME
RR BODY FLAT BED<RS6> TAKADA 		8-94193-950-0 02 1 9811- ●
6 17.447 BOLT; STOPPER TO GUARD FRAME
RR BODY NON FLAT BED(RS5) TAKADA 		8-94197-154-1 02 1 9811- ●
6 17.447 BOLT; STOPPER TO GUARD FRAME
RR BODY FLAT BED<RS6> 		8-97590-488-0 02 1 0008-0105 ● ● ●
6 17.447 BOLT; STOPPER TO GUARD FRAME
RR BODY FLAT BED<RS6> 		8-97590-488-0 02 1 0106- ● ●
8 17.447 NUT; STOPPER BOLT
RR BODY FLAT BED<RS6> M10 TAKADA 		8-94193-951-0 02 1 9811- ●
8 17.447 NUT; STOPPER BOLT
RR BODY NON FLAT BED(RS5) TAKADA 		8-94197-155-0 02 1 9811- ●
8 17.447 NUT; STOPPER BOLT
RR BODY FLAT BED<RS6> M10 		8-97590-493-0 02 1 0008-0105 ● ● ●
8 17.447 NUT; STOPPER BOLT
RR BODY FLAT BED<RS6> M10 		8-97590-493-0 02 1 0106- ● ●
12 17.455 NUT; GUARD FRAME
RR BODY FLAT BED<RS6> 17.447 M8 FLANGE 		8-94193-939-0 04 1 9811- ●
12 17.455 NUT; GUARD FRAME
RR BODY FLAT BED<RS6> 17.447 M8 FLANGE 		8-94193-939-0 05 1 9811-0105 ● ● ●
12 17.455 NUT; GUARD FRAME
RR BODY FLAT BED<RS6> 17.447 M8 FLANGE 		8-94193-939-0 05 1 0106- ● ●
14 17.455 BOLT; GUARD FRAME TO GUSSET
RR BODY FLAT BED<RS6> M10X22 FLANGE 		8-97065-440-0 10 1 9811-0002 ●
14 17.455 BOLT; GUARD FRAME TO GUSSET
RR BODY FLAT BED<RS6> M10X22 		8-97233-077-0 10 1 0003-0007 ●
14 17.455 BOLT; GUARD FRAME TO GUSSET
RR BODY FLAT BED<RS6> M10X22 		8-97233-077-0 08 1 0008-0105 ● ● ● ●
14 17.455 BOLT; GUARD FRAME TO GUSSET
RR BODY FLAT BED<RS6> M10X22 		8-97233-077-0 08 1 0106- ● ● ●
14 17.455 BOLT; GUARD FRAME TO GUSSET
RR BODY NON FLAT BED(RS5) M10X22 FLANGE 		8-97065-440-0 04 1 9811-0002 ●
14 17.455 BOLT; GUARD FRAME TO GUSSET
RR BODY NON FLAT BED(RS5) M10X22 		8-97233-077-0 04 1 0003- ●
14 17.455 BOLT; GUARD FRAME TO GUSSET
RR BODY FLAT BED<RS6> M10X22 FLANGE 		8-97065-440-0 12 1 9811-0002 ● ● ●
14 17.455 BOLT; GUARD FRAME TO GUSSET
RR BODY FLAT BED<RS6> M10X22 		8-97233-077-0 12 1 0003-0007 ● ● ●
15 17.455 WASHER; PL,GUARD FRAME TO GUSSET
RR BODY FLAT BED<RS6> 		8-97065-438-0 10 1 9811-0002 ●
15 17.455 WASHER; PL,GUARD FRAME TO GUSSET
RR BODY NON FLAT BED(RS5) 		8-97065-438-0 04 1 9811-0002 ●
15 17.455 WASHER; PL,GUARD FRAME TO GUSSET
RR BODY FLAT BED<RS6> 		8-97065-438-0 12 1 9811-0002 ● ● ●
16 17.455 NUT; GUARD FRAME TO GUSSET
RR BODY FLAT BED<RS6> M10 FLANGE 		8-97065-439-0 10 1 9811-0007 ●
16 17.455 NUT; GUARD FRAME TO GUSSET
RR BODY FLAT BED<RS6> M10 FLANGE 		8-97065-439-0 08 1 0008-0105 ● ● ● ●
16 17.455 NUT; GUARD FRAME TO GUSSET
RR BODY FLAT BED<RS6> M10 FLANGE 		8-97065-439-0 08 1 0106- ● ● ●
16 17.455 NUT; GUARD FRAME TO GUSSET
RR BODY NON FLAT BED(RS5) M10 FLANGE 		8-97065-439-0 02 1 9811- ●
16 17.455 NUT; GUARD FRAME TO GUSSET
RR BODY FLAT BED<RS6> M10 FLANGE 		8-97065-439-0 12 1 9811-0007 ● ● ●
17 17.455 HOOK; GUARD FRAME
RR BODY FLAT BED<RS6> 		8-94194-628-0 02 1 9811-0105 ● ● ● ●
17 17.455 HOOK; GUARD FRAME
RR BODY FLAT BED<RS6> 		8-94194-628-0 02 1 0106- ● ● ●
18 17.455 SCREW; HOOK TO GUARD FRAME
RR BODY FLAT BED<RS6> M8X30 		8-94193-938-1 02 1 0008-0105 ● ● ● ●
18 17.455 SCREW; HOOK TO GUARD FRAME
RR BODY FLAT BED<RS6> M8X30 		8-94193-938-1 02 1 0106- ● ● ●
19 17.455 BOLT; HANDLE TO GUARD FRAME
RR BODY FLAT BED<RS6> M8X20 		8-94193-942-0 04 1 9811-0105 ● ● ● ●
19 17.455 BOLT; HANDLE TO GUARD FRAME
RR BODY FLAT BED<RS6> M8X20 		8-94193-942-0 04 1 0106- ● ● ●
31 17.455 PROTECTOR; GUARD FRAME
BODY COLOR ADRIATIC BLUE(730) RR BODY FLAT BED<RS6> PRIMER 		8-94192-023-2 02 1 9811-0007 ● ● ●
31 17.455 PROTECTOR; GUARD FRAME
BODY COLOR ARC WHITE(729),BODY COLORCARDINAL RED(736) RR BODY FLAT BED<RS6> WHITE PRIMER 		8-94192-023-2 02 1 9811-0007 ● ● ●
31 17.455 PROTECTOR; GUARD FRAME
BODY COLOR MARINE BLUE(890) RR BODY FLAT BED<RS6> BLUE PRIMER 		8-94192-023-2 02 1 9811-0007 ● ● ●
32 17.455 NUT; PROTECTOR
RR BODY FLAT BED<RS6> M5 		8-97065-433-0 06 1 9811-0007 ● ● ●
33 17.455 SCREW; PROTECTOR
RR BODY FLAT BED<RS6> 		8-97065-434-0 06 1 9811-0007 ● ● ●
54 17.455 HANDLE; LOCK,GATE,FRT
RR BODY FLAT BED<RS6> 17.490 		8-94193-936-0 02 1 9811-0105 ● ● ● ●
54 17.455 HANDLE; LOCK,GATE,FRT
RR BODY FLAT BED<RS6> 17.490 		8-94193-936-0 02 1 0106- ● ● ●
57 17.400 BOARD; HEADER
RR BODY FLAT BED<RS6> EXC. CAB-LOW ROOF<6XQ>,REAR BODY LAGER WIDTH<8EH> 		8-97591-875-0 01 1 0212- ●
57 17.400 BOARD; HEADER
RR BODY FLAT BED<RS6> 		8-97591-875-0 01 1 0212- ●
57 17.400 BOARD; HEADER
RR BODY FLAT BED<RS6> 		8-94194-455-0 01 1 9811-0211 ●
57 17.400 BOARD; HEADER
RR BODY FLAT BED<RS6> 		8-97591-874-0 01 1 0212- ●
57 17.400 BOARD; HEADER
RR BODY FLAT BED<RS6> 		8-94194-459-0 01 1 9811-0105 ● ● ●
57 17.400 BOARD; HEADER
RR BODY FLAT BED<RS6> 		8-94194-459-0 01 1 0106-0211 ● ●
57 17.400 BOARD; HEADER
RR BODY FLAT BED<RS6> CAB-LOW ROOF<6XQ> REAR BODY LAGER WIDTH<8EH> 		8-97591-877-0 01 1 0212- ●
58 17.505 MEMBER; HEADER BOARD
RR BODY FLAT BED<RS6> TAKADA 		8-94194-452-0 02 1 9811-0007 ●
58 17.505 MEMBER; HEADER BOARD
RR BODY FLAT BED<RS6> TAKADA 		8-97590-017-0 02 1 0008- ●
58 17.505 MEMBER; HEADER BOARD
RR BODY FLAT BED<RS6> 		8-94195-457-0 02 1 9811-0007 ● ● ●
58 17.505 MEMBER; HEADER BOARD
RR BODY FLAT BED<RS6> TAKADA 		8-97590-019-0 02 1 0008-0105 ● ● ●
58 17.505 MEMBER; HEADER BOARD
RR BODY FLAT BED<RS6> TAKADA 		8-97590-019-0 02 1 0106- ● ●
59 17.455 REINFORCEMENT; HEADER BOARD
RR BODY FLAT BED<RS6> TAKADA 		8-94194-454-0 01 1 9811-0007 ● ● ● ●
59 17.455 REINFORCEMENT; HEADER BOARD
RR BODY FLAT BED<RS6> 		8-97590-024-0 01 1 0008-0105 ● ● ● ●
59 17.455 REINFORCEMENT; HEADER BOARD
RR BODY FLAT BED<RS6> 		8-97590-024-0 01 1 0106- ● ● ●
59 17.455 REINFORCEMENT; HEADER BOARD
RR BODY FLAT BED<RS6> TAKADA 		8-94194-453-0 01 1 9811-0007 ● ● ● ●
59 17.455 REINFORCEMENT; HEADER BOARD
RR BODY FLAT BED<RS6> 		8-97590-023-0 01 1 0008-0105 ● ● ● ●
59 17.455 REINFORCEMENT; HEADER BOARD
RR BODY FLAT BED<RS6> 		8-97590-023-0 01 1 0106- ● ● ●
60 17.455 SCREW; BOARD
RR BODY FLAT BED<RS6> (A),(B) M8X30 		8-94193-938-1 05 1 0010-0105 ● ● ●
60 17.455 SCREW; BOARD
RR BODY FLAT BED<RS6> (A),(B) M8X30 		8-94193-938-1 05 1 0106- ● ●
60 17.455 SCREW; BOARD
RR BODY FLAT BED<RS6> (A),(B) M8X30 		8-94193-938-0 06 1 9811-0007 ●
60 17.455 SCREW; BOARD
RR BODY FLAT BED<RS6> (A),(B) M8X30 		8-94193-938-1 04 1 0008- ●
60 17.455 SCREW; BOARD
RR BODY FLAT BED<RS6> (A) M8X30 		8-94193-938-0 02 1 9811-0007 ● ● ●
60 17.455 SCREW; BOARD
RR BODY FLAT BED<RS6> (A),(B) M8X30 		8-94193-938-1 05 1 0008-0009 ● ● ●
60 17.455 SCREW; BOARD
RR BODY FLAT BED<RS6> (B) M8X35 		8-94193-941-0 05 1 9811-0007 ● ● ●
İpucu: çizimdeki balona veya tablodaki Balon sütununa tıkla; ilgili parçalar vurgulanır. Birden çok çizim varsa üstteki seçim kutusu/oklarla gezin.
Isuzu EPC — test · veri: yerel (eski sürüm)
